USER MANUAL LC-E6 CANON

LC-E6 ① ② ③ Canon

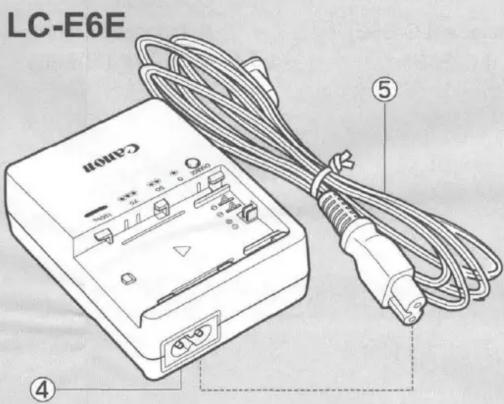

LC-E6E Canon ④ ⑤

Nomenclature

① Power plug (LC-E6)
② Battery pack slot
③ Charge lamp
④ Power cord socket (LC-E6E)
⑤ Power cord (LC-E6E)

Illustration of a printer or scanner with an open lid and a paper stack, showing a foldable cover (no text or symbols present)

2 Canon ① ② Canon

LC-E6

LC-E6E

3-2 ① ②

Battery Charger LC-E6/LC-E6E E Instructions

Thank you for purchasing a Canon product.

Battery Charger LC-E6/LC-E6E is dedicated to recharging Battery Pack LP-E6N/LP-E6.

Also read "Tips for Using the Battery and Charger" in the camera's instruction manual.

■ Recharging the Battery

1. Remove the protective cover. (Fig. 1)

1. Attach the battery. (Fig. 2)

- As shown in the illustration, attach the battery securely.

• To detach the battery, follow the above procedure in reverse.

3. Recharge the battery.

For LC-E6 (Fig. 3-1)

- As shown by the arrow, flip out the battery charger's prongs and insert the prongs into a power outlet.

For LC-E6E (Fig. 3-2)

- Connect the power cord to the charger and insert the plug into the power outlet.

- Recharging starts automatically, and the charge lamp turns orange and flashes.

Recharge level	Charge lamp
	Color	Display
0 – 50%	Orange	Flashes 1 time/second
50 – 75%		Flashes 2 times/second
75% or higher		Flashes 3 times/second
Charge completed	Green	Lights on

• About 2 hours 30 minutes is needed to fully recharge a completely exhausted battery at room temperature (+23°C/73°F). The exact charging time varies significantly depending on the ambient temperature and remaining charge level.
• To ensure safe recharging under low temperature conditions (+5°C to +10°C/41°F to 50°F), the recharging time is longer (up to approximately 4 hours).

Do not recharge any battery other than Battery Pack LP-E6N/LP-E6.

- Battery Pack LP-E6N/LP-E6 is dedicated to Canon products only. Using it with an incompatible battery charger or product may result in malfunction or accidents for which Canon cannot be held liable.

If any problems occur during recharging, see "Troubleshooting Guide" in the camera's instruction manual.

Specifications

Type:

Charger dedicated to Battery Pack LP-E6N/LP-E6

Charging time:

Power cord length: Approx. 2 m / 6.6 ft. (LC-E6E)

Working temperature range: +5°C - +40°C / 41°F - 104°F

Working humidity:

85% or less

Dimensions (W x H x D): Approx. 69 x 33 x 93 mm /

Approx. 69 x 33 x 93 mm /

2.7 × 1.3 × 3.7 in.

(LC-E6: when plug is retracted,

LC-E6E: excluding power cord)

LC-E6: Approx. 110 g / 3.9 oz.

LC-E6E: Approx. 100 g / 3.5 oz.

(excluding power cord)

• All the specifications above are based on Canon's testing standards.
• The product specifications and exterior are subject to change without notice.

Graphical symbols placed on the equipment

Class II equipment

Direct current

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3 (B)/NMB-3 (B)

Canon

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

CIA-M332-001

1122Ni13.7

© CANON INC. 2018

PRINTED IN JAPAN

IMPRIMÉ AU JAPON

IMPRESO EN JAPÓN

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS. DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.
