Product Type	Electric Deep Fryer
Brand	Girmi
Model	FG21
Power Supply	AC 230 V ~ 50-60 Hz
Power	1800 W
Oil Tank Capacity	2.5 Liters
Basket Material	Stainless Steel
Temperature Range	130 °C to 190 °C
Temperature Control	Rotary knob with OFF positions and graduations
Indicator Lights	Red power indicator, green temperature reached indicator
Viewing Window	Yes, to monitor cooking
Lid	With button release system and odor filter
Basket Handle	With locking system for safety
Safety Feature	Do not operate without oil; lid must be closed
Cleaning	Clean the body with a damp cloth; basket and tank washable with warm water and mild detergent
Maintenance	Do not immerse cord or plug; dry thoroughly after cleaning
Usage	Household and indoor only
Included Accessories	Basket, removable tank

Frequently Asked Questions - FG21 GIRMI

How to fill the deep fryer with oil?

Open the lid by pressing the release button. Remove the oil tank by lifting the basket handle. Fill with cooking oil up to the MAX mark (2.5 liters). Do not exceed the MAX level and do not fill below the MIN level. Close the lid before turning on the appliance.

What temperature should I choose for fries?

For fries, set the temperature to 190 °C. The indicative cooking time is 8 to 10 minutes. Adjust according to thickness and your taste.

Can I cook frozen foods directly?

Yes, but be careful: do not introduce frozen foods still covered in ice. Drain them slightly before placing them in hot oil to avoid splattering.

How to clean the deep fryer after use?

Turn the temperature control to OFF and unplug the appliance. Wait for the oil and appliance to cool completely. Clean the body with a damp cloth and non-abrasive cleaner. The basket and tank can be washed with warm water and mild detergent. Dry thoroughly before reassembling.

What to do if the oil starts smoking?

If the oil is smoking, it is too hot or has been used too often. Lower the temperature immediately and turn off the appliance if necessary. Let it cool and replace the oil if it is degraded.

Can I use other liquids besides oil?

No, this appliance is designed only for cooking oil. Do not use water, solid fat, or other liquids, as this could damage the appliance and cause accidents.

How to change used oil?

Wait for the oil to cool completely. Empty the oil into a container or bottle by tilting the appliance from a corner of the tank. Dispose of the oil according to local regulations (do not pour down the sink). Then clean the tank with hot water and soap, and dry it.

Does the deep fryer turn off automatically?

No, this appliance does not have automatic shut-off. You must turn it off manually by turning the temperature knob to OFF and unplugging after use. Never leave the appliance unattended while it is operating.

What to do if the lid does not close properly?

Check that the basket is properly positioned and the handle is lowered. Ensure no food or obstacle prevents closing. If the problem persists, contact an authorized service center.

How to store the deep fryer after use?

After cleaning and complete drying, wind the power cord neatly. Store the appliance in a dry place out of reach of children under 8 years. Do not store the appliance with oil inside.

USER MANUAL FG21 GIRMI

Black Girmi air fryer with control panel and food icons (no visible text or symbols on device body)

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

Description of parts.... p. 11

First use p. 11

Operating the unit.... p. 11

Cooking time and temperature p. 12

Cleaning....p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE Directive).... p. 24

PORTUGUESE...... p. 13

FRANCAIS p. 18

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

AL PRIMO UTILIZZO

Line drawing of a toaster oven and its internal structure, showing exterior and front views (no text or symbols)

PULIZIA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

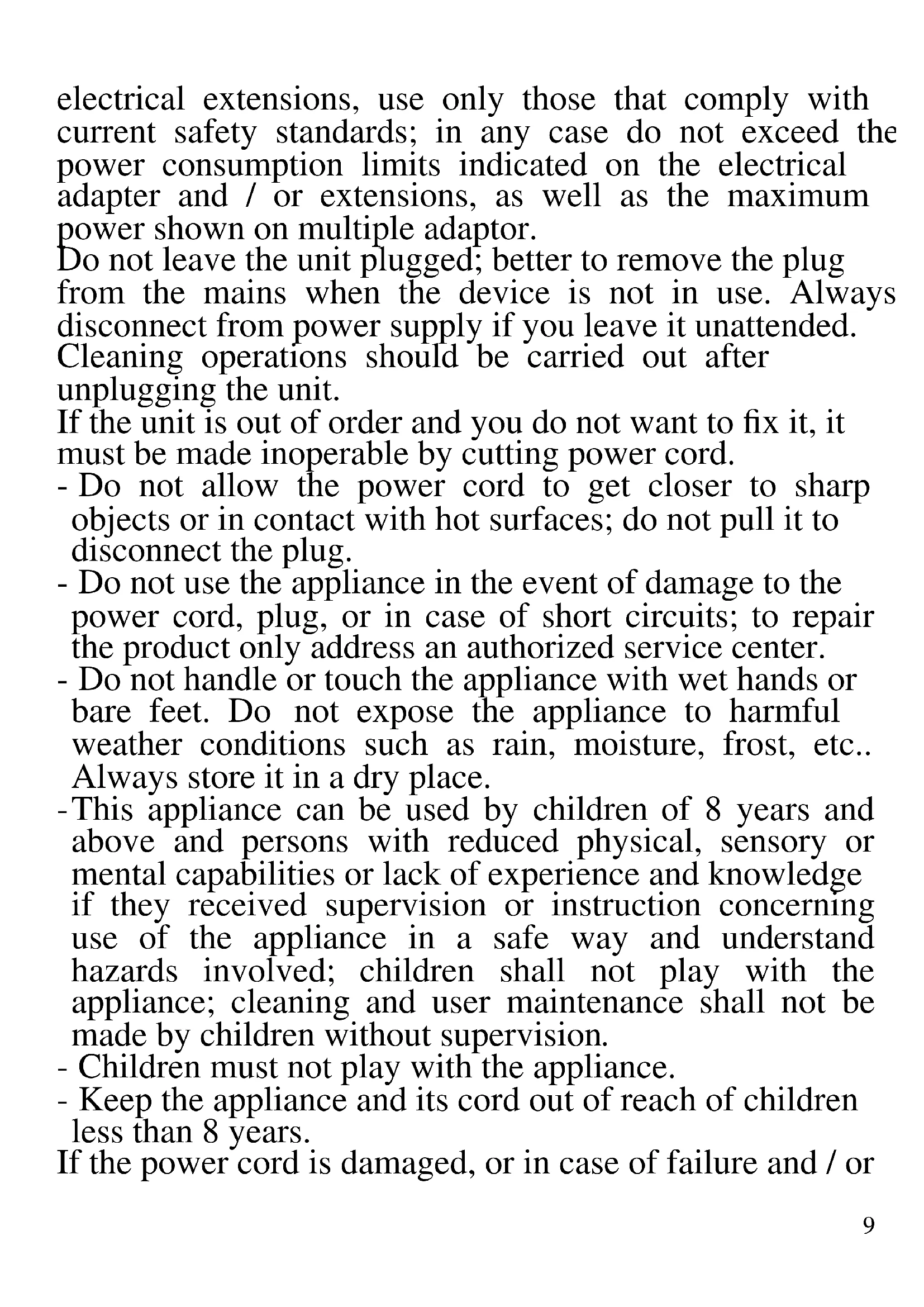

If it is necessary to use adapters, multiple sockets or

electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or

malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household as similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unrøll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

CAUTION: always close the lid before starting operations. Unplug the unit before touching any

part for cleaning or mounting.

Before using for the first time, carefully wash all the parts that will come in touch with food.

Never leave the appliance unattended while it is running. Unplug the appliance from the electrical outlet after each use. Allow the product to cool down before disassembling or cleaning.

Place the unit on a flat and stable surface.

Do not unstall near electric or gas cooktops and away from the oven; place the appliance close to the power outlet to avoid the use of extension cords.

CAUTION: Use with caution during use, because the product contains potentially dangerous hot oil.

We recommend not moving the appliance when it contains hot oil and let it cool before emptying the reservoir or cleaning it.

Check that the product is OFF before connecting the appliance to the electrical outlet. To turn off, switch the temperature knob to OFF position and then unplug it from the electrical outlet socket.

Do not use for any purpose other than those expressly stated in this manual.

Do not use without oil.

Make sure the basket is properly assembled before turning on the product.

When finished using the unit, you may want to wrap the power cord so as to ensure a better cleaning.

Always follow the instructions in section "Cleaning".

Do not immerse the electrical cord or plug in water or other liquids; Use a damp cloth to clean.

DESCRIPTION OF PARTS FG21

1 Filter cover

5 Handle lock button

8 Temperature control

2 View window

6 Indicator light

9 Basket

3 Lid

7 Temperature light

10 Housing

4 Lid release button

11 Container

FIRST USE

CAUTION: Remove the protective plastic and every element of the packaging, before proceeding.

Thoroughly clean the parts that will be in contact with food, such as the basket and the interior of the

appliance. Use a damp cloth and dry thoroughly before use. Do not immerse Livello olio

power cord or plug in water or other liquids.

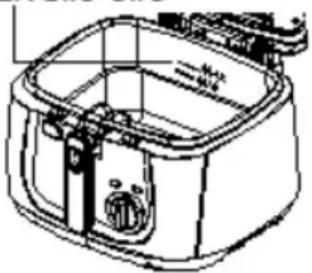

OPERATING THE UNIT

CAUTION: Do not turn on the fryer without oil in the reservoir.

1. Place the unit on a flat, stable and heat-resistant surface.

2. Open the lid (3) by pressing the release button (4).

Line drawing of a square<|im_start|> Guyan electric cooker with handle and side panel (no text or symbols)

1. To remove the basket (9), pull up the handle (5) and simply remove it.

2. Fill the reservoir with cooking oil (2.5 liters) up to the MAX level mark.

NOTE: Do not exceed the MAX level. We recommend to not fill the tank below the MIN level indicated.

1. Spread a little of oil on view window (2) to prevent condensation during use. Close the lid (3).
2. After making sure that the temperature knob (8) is set to O (OFF), connect the power cable to compatible electric outlet. The red light (6) turns on.
3. Set the desired temperature using the regulator (8). At the switch on, the green light turns on. Once you have reached the desired temperature, the green light will turn off.
4. Open the lid (3) by pressing the release button (4).
5. Place the basket (9) on the side of oil container and insert food in the basket.
6. Slowly lower the basket in the oil, close the lid (3) and lower the handle (5).

CAUTION: Do not immerse the frozen food with crystal ice on it.

1. Once finished, lift the handle (5) and then open the lid (3); place the basket (9) on the side of oil container. Allow to drain the oil in excess for a few seconds, then roll out the foods and let them dry on paper towels before serving.

COOKING TIME AND TEMPERATURE

FOOD	TEMPERATURE	COOKING TIME
CHICKEN WINGS	150°C	12/14 mins
FRENCH FRIES	190°C	8/10 mins
CHICKEN (slices)	190°C	5/8 mins
SHRIMPS	170°C	2/4 mins
ONION RINGS	190°C	3 mins
FISH	170°C	5 mins
EGGPLANT, ZUCCHINI	190°C	2 mins

NOTE: The table is for guidance only. It is therefore recommended to adjust temperature and cooking times by referring to the weight, thickness and type of storage of food to be cooked, constantly checking the state of cooking and always referring to your own experience and taste.

CLEANING

WARNING: Turn the temperature controller (8) to O (OFF) and unplug the appliance from the electrical outlet before cleaning. Wait for complete cooling of every part and of the oil inside container.

• Do not immerse housing in water, but wash it with a damp cloth and non-abrasive cleaners. Also avoid any infiltration of water into the motor.
• Remove the basket (9) and wash it in warm water with neutral detergent. Dry thoroughly before reinstalling. Lid is dismountable for easier cleaning.

ASSEMBLING AND CLEANING

Line drawing of a toaster oven and its front panel (no text or symbols)

CAUTION: Remove the oil reservoir only when the oil and the unit itself are completely cooled.

1. Drain the cooking oil in a container or in a bottle (use a funnel in this case); to rinse the oil smoothly slant the appliance, making the oil pass through an angle of the container. Dispose of in accordance with local guidelines. Thoroughly clean the inside of the tank with a paper towel to wipe off the remaining oil.
2. To complete cleaning of the container, wash it with a sponge filled with water and dish soap. Dry thoroughly before assembling again.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power 1800W
- Capacity 2,5 lt
- Stainless steel basket
• Temperature control switch (from 130° up to 190°C)

PORTUGUES: ADVERTÊNCIAS

Line drawing of a kitchen appliance with a microwave oven and front panel (no text or symbols)

Line drawing of a microwave oven with open lid and side view showing internal components (no text or symbols)

ASSEMBLAGE ET NETTOYAGE

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.
