Product type	Hair clipper
Brand	Blaupunkt
Model	BP5001
Power supply	Mains 220-240 V ~ 50/60 Hz
Blade material	Stainless steel
Adjustable cutting length	3 mm to 12 mm (with combs)
Combs included	4: 3 mm, 6 mm, 9 mm, 12 mm
Side combs	2 (right and left)
Main comb	1
On/off switch	Yes
Blade adjustment lever	Yes
Motor	Rotary
Lubricating oil included	Yes
Cleaning brush included	Yes
Protection mat included	Yes
Water protection	No (do not use near water)
Usage	Household
Warranty	2 years
Country of manufacture	China
Included accessories	Combs, combs, oil, brush, mat

Frequently Asked Questions - BP5001 BLAUPUNKT

What are the combs supplied with the BP5001 clipper?

The clipper comes with four combs: 3 mm, 6 mm, 9 mm and 12 mm, allowing variable length cuts.

Can I use the clipper on wet hair?

No, it is not recommended to use the device on wet hair. For best results, use it on dry and clean hair.

How to clean the clipper blades?

Unplug the device, use the provided brush to remove hair. Do not disassemble the blades. Lubricate with the provided oil after each cleaning.

Can the clipper be used near a bathtub or shower?

No, the device should not be used near water. The symbol on the device indicates it should not be used near bathtubs, showers, or washbasins.

How to adjust the cutting length?

Attach the desired comb (3, 6, 9, or 12 mm) by clipping it onto the blades. To remove, simply pull it off. Use the sliding lever to fine-tune the adjustment between combs.

What to do if the device stops working?

First check the mains socket and cable. If the problem persists, do not attempt to repair it yourself. Contact an authorized technical service.

Does the warranty cover the blades?

The two-year warranty covers manufacturing defects. The blades are considered wear parts; their replacement may be charged outside warranty.

How to lubricate the blades?

After cleaning, put a few drops of lubricating oil on the blade ends and run the device for a few seconds to distribute the oil.

Can this clipper be used on animals?

No, the device is intended solely for household use for human hair cutting. Do not use on animals.

How to achieve an even cut?

Start at the nape with a short comb, then work your way up progressively. Use the comb to detangle and check the result regularly. Always cut a little longer than desired and adjust.

USER MANUAL BP5001 BLAUPUNKT

MANUAL DE INSTRUÇÕES

Black and white photo of a BLAM/ROT hairbrush with a black head and gold teeth (no text or symbols visible)

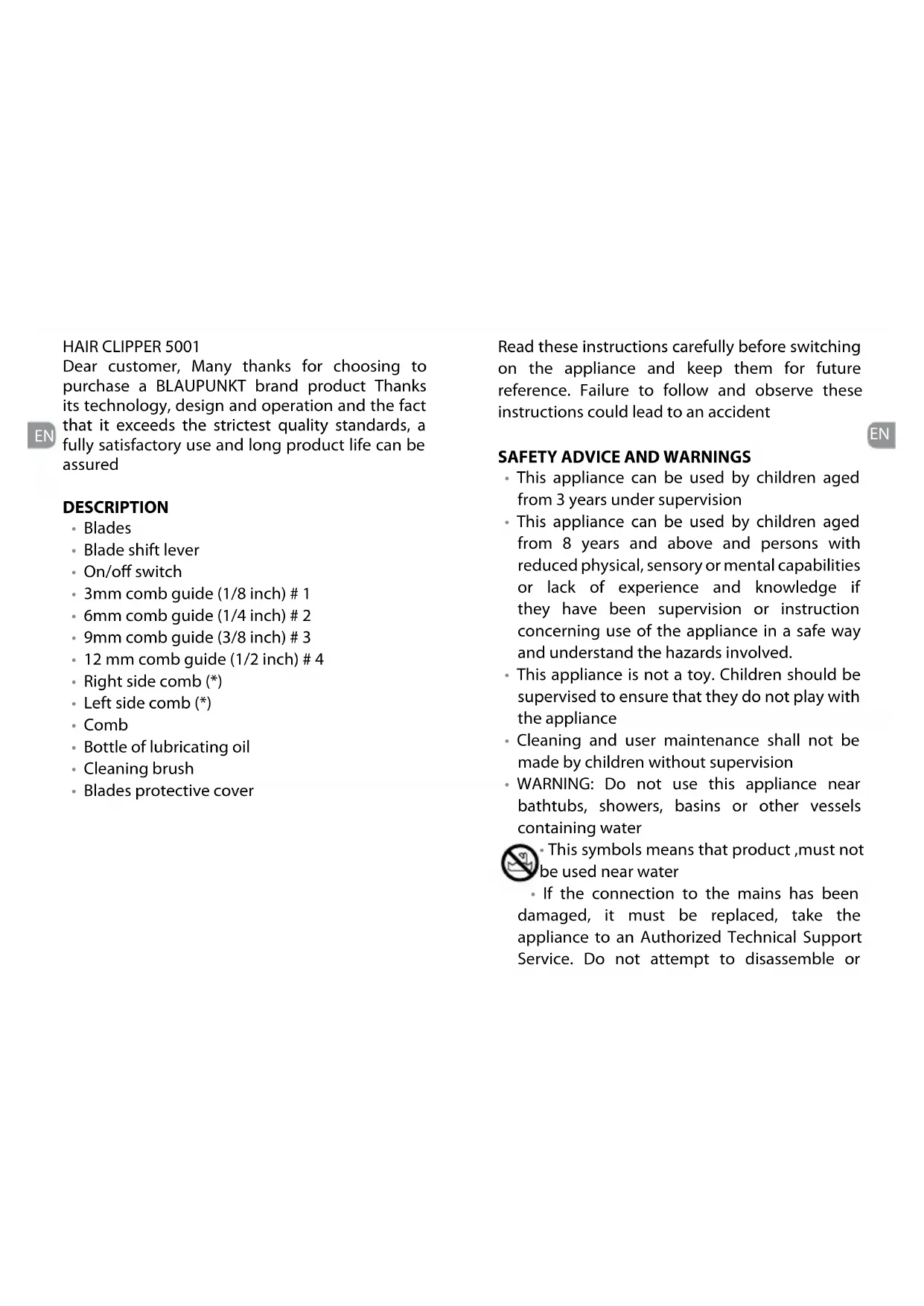

CORTAPELOS BP5001

Dear customer, Many thanks for choosing to purchase a BLAUPUNKT brand product Thanks its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured

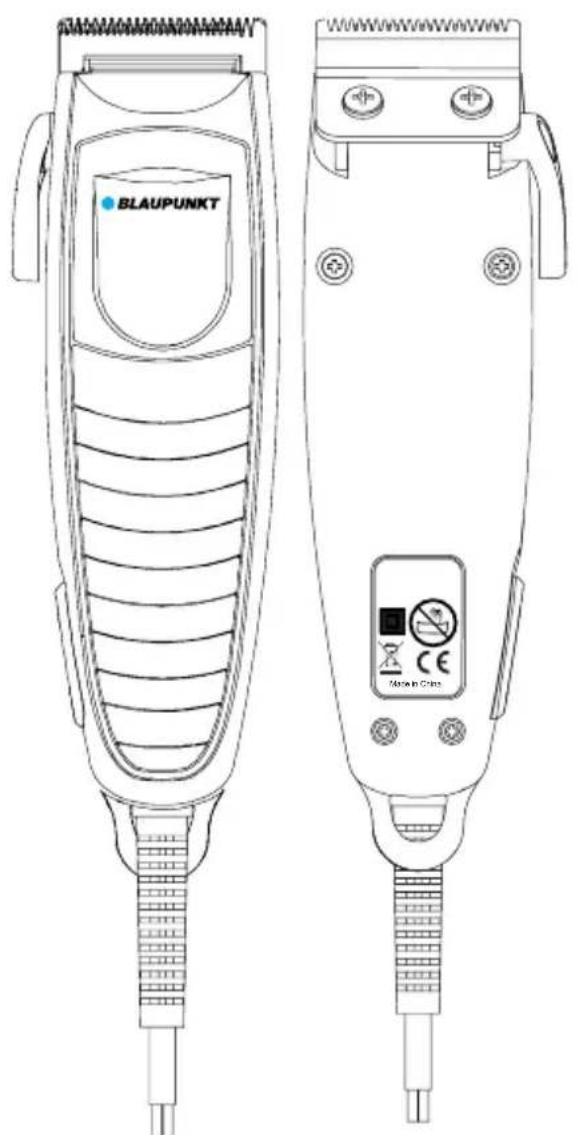

DESCRIPTION

• Blades
• Blade shift lever
• On/off switch
  • 3mm comb guide (1/8 inch) # 1
• 6mm comb guide (1/4 inch) # 2
• 9mm comb guide (3/8 inch) # 3
  • 12 mm comb guide (1/2 inch) # 4
• Right side comb (*)
• Left side comb (*)
• Comb
• Bottle of lubricating oil
• Cleaning brush
• Blades protective cover

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident

SAFETY ADVICE AND WARNINGS

• This appliance can be used by children aged from 3 years under supervision
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance
• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water

- This symbols means that product ,must not be used near water

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an Authorized Technical Support Service. Do not attempt to disassemble or

repair the appliance by yourself in order to avoid a hazard

• Ensure that voltage indicated on the rating label matches the mains voltage before plugging in the appliance
• Connect the appliance to a socket that can supply a minimum of 10 amperes
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry pr unplug the appliance.
• Do not wrap the power cord around the appliance
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance
• Check the state of power cord. Damaged or tangled cables increases the risk of electric shock
• Do not touch the plug with wet hands
• Do not use the appliance if the cable or plug is damaged
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock
• Do not use the appliance if it has fallen on the

floor, if there are visible signs or if it has a leak.

• Do not leave the appliance out in rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock
  • CAUTION: Maintain the appliance dry.
• Do not use the appliance with damp hands or feet, or when barefooted
• Do not touch any of the appliance's moving parts while it is operating.

USE AND CARE:

• Do not use the appliance if its accessories are not properly fitted or are defective. Replace them immediately.
• Do not use the appliance on wet hair.
• Do not use the appliance if on/off switch doesn't works
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only
• for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
• Disconnect the appliance from the mains when not in use, before undertaking any cleaning task; make any adjustment or accessory change.
• This appliance is for household use only, not professional or industrial use.
• Store this appliance out of reach of children

and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

• Never rest the appliance into a surface while in use.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance with pets or animals

SERVICE:

• The appliance has been oiled in origin, In order to maintain the appliance in good operation conditions we suggest greasing the blades every time you clean it by putting a few drops of oil on the ends of the blade, and finally switching on the appliance during a few seconds.
• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging has been removed

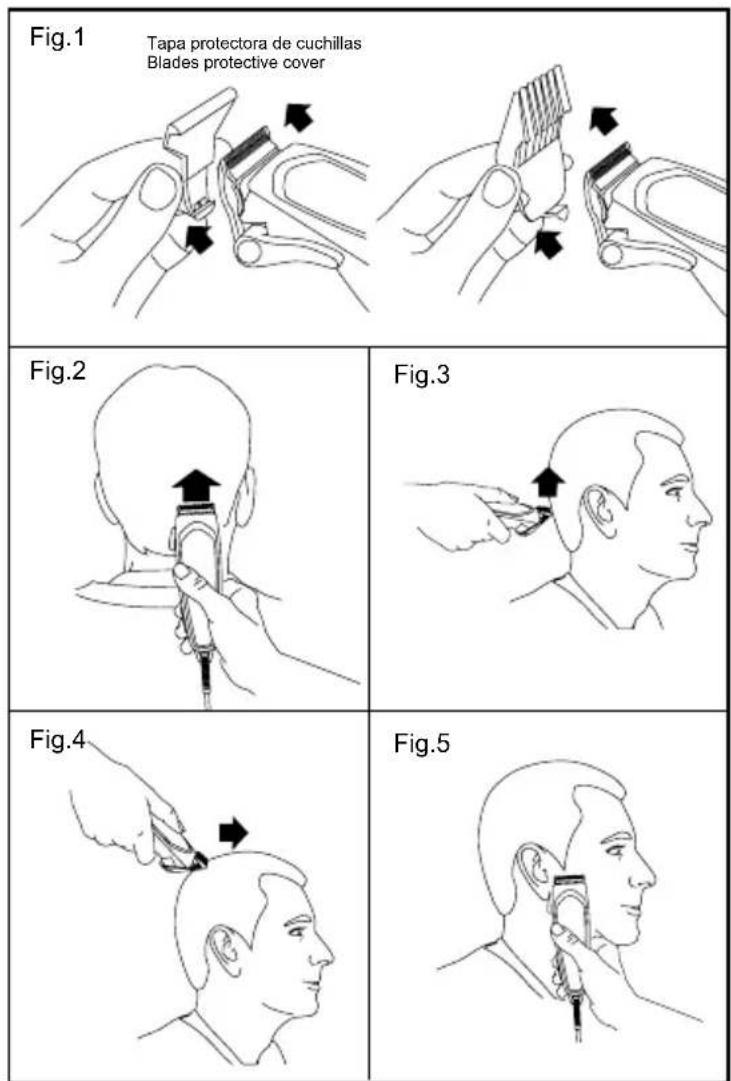

INSERTION OF A COMB GUIDE: (FIG 1)

• To attach the comb guide, pick up by its two tips and press against the blades of the appliance until is firmly fixes
  • To extract the comb guide, just pull out.

USE:

• Unroll the cable completely before plugging it in.
• Remove the protective cover (Fig.1)
• Connect the appliance to the mains.
• Make sure that the blades are correctly aligned.
• Turn the appliance on, by using the on/off switch

HOW TO CUT THE HAIR:

• Situate the person whose hair you are going to cut so that the top of their head is at your eye level. Place a protective towel or cloth around their neck.
• To obtain best results is better to use the appliance on dry hair, as it is much easier to control the hair and the results
• Comb hair well before cutting. Make sure that there are no tangles or knots.
• Hold the appliance in calm and relaxed manner

in order to ensure maximum control of the cut and uniform result. Proceed to use short cuts gradually going around the head.

• Leave the hair a little longer than desired length as it can always be altered later.
• While working adapt the comb/comb guide to the desired result
• At regular intervals, stop cutting in order to comb the hair and check the results so far.

STEP 1 - NAPE:

• Attach the comb guide size 3 / 6 mm
• Hold the appliance with the razor facing downwards and begin to cut the hair from the base of the neck.
• Make some upward movements, raising the appliance gradually and away from the head, cutting the hair gradually until the height of the ears (Fig.2)

STEP 2 - BACK OF HEAD:

- Attach comb guide size 9 / 12mm and continue with the back of the head (Fig.3)

STEP 3 – SIDE OF HEAD:

• Attach a new shorter guide, size 3 / 6 mm to trim the sideburns.
• Attach the longest comb guide size 9 / 12 mm again and continue until you reach the top of the head.

STEP 4 – TOP OF HEAD:

• Using comb guide size 9 / 12 mm, pass the

appliance from the back to the front, against the growth of the hair (Fig.4). In some cases it's necessary to go over what you have done a second time from front to back.

• The comb guide size 3 / 6 mm is for when you want to achieve a more precise cut.
• Use comb guides size 12 mm to leave hair at a longer length. Hold the hair up with the comb or the comb and your fingers and cut.
• Always work form back to the front reducing the length between your fingers or the comb and the head gradually.

STEP 5 – FINAL TOUCH:

• Finally use the appliance without attaching any comb guides to the blades to cut the hair around the base of the neck, the sides of the neck and the ears.
• To make sideburns straight, turn the appliance over to use the upper blades (Fig.5). Move the appliance adapting it the physiognomy of the head. To achieve more precise results use a shaver

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch
• Unplug the appliance from the mains
• Clean the appliance
• Put on the protective cover.

CLEANING:

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance
• Never submerge the appliance in water or any other liquid or place it under running water.
• Clean the blades and the comb guide with the cleaning brush. Remove the hairs from the blades and from inside the appliance with the brush. It is important to clean o remaining hairs after each use.
• NEVER disassemble the blades from the appliance to clean.

ANOMALIES AND REPAIR:

• Take the appliance to an authorized technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: HAIR CLIPPER

Model: BP5001

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC

Name: Vivek Sadhwani

Position : manager

Date: 29 de November 2020

Signature:

Ramsons, S.A, Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate. To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
