Owner’s Manual Read before installing For help please visit honeywellhome.com RTH111 Series RTH111B1042 Non- Programmable Thermostat Heat Off Cool Auto On Fan Identify System Type This thermostat is compatible with the following systems:• Gas, oil or electric furnace• Central air conditioner• Hot water system with or without pump• Millivolt system• Central heating and cooling system• Heat pump without auxiliary/backup heat Do you need assistance? We are here to help. Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store. This thermostat cannot be used on heat pumps with backup heat or on multistage systems.2 NOTICE: To avoid possible compressor damage, do not run air conditioner if the outside temperature drops below 50 °F (10 °C).

ATTENTION: MERCURY RECYCLING

NOTICE This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury should not be discarded in household trash. For more information on how and where to properly recycle a thermostat containing mercury in the United States, please refer to the Thermostat Recycling Corporation at www.thermostat-recycle.org. For mercury thermostat recycling in Canada, please refer to Switch the Stat at www.switchthestat.ca NO MERCURY SANS MERCURE

RTHXXXX M32707 Customer assistance For assistance with this product, please visit honeywellhome.com Or call Resideo Customer Care toll-free at

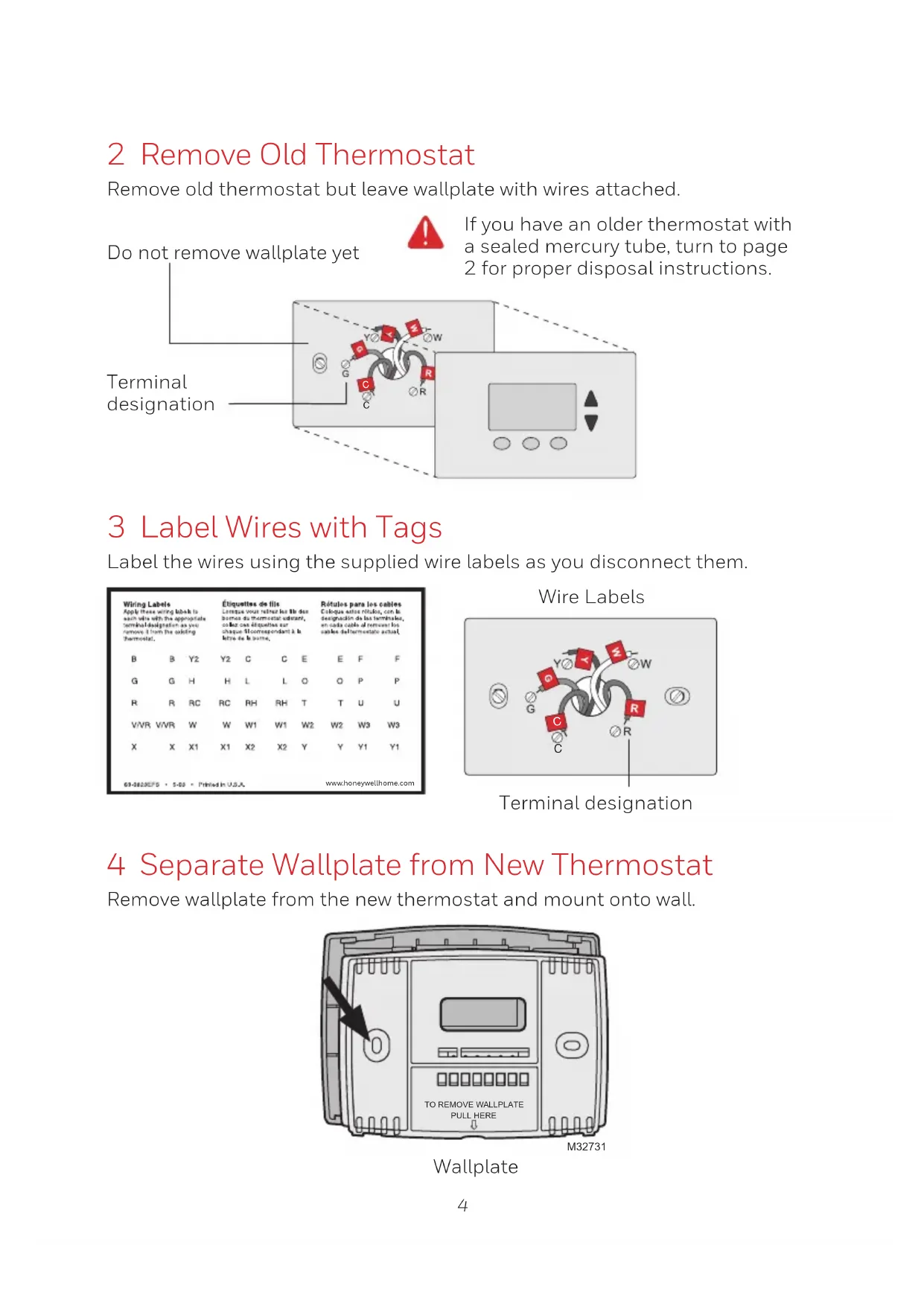

M31535 Circuit breaker box Heating/cooling system power switch4 Do not remove wallplate yet 3 Label Wires with Tags Label the wires using the supplied wire labels as you disconnect them. Wire Labels www.honeywellhome.com

MCR33823 Terminal designation If you have an older thermostat with a sealed mercury tube, turn to page 2 for proper disposal instructions. Terminal designation

MCR31537 2 Remove Old Thermostat Remove old thermostat but leave wallplate with wires attached. 4 Separate Wallplate from New Thermostat Remove wallplate from the new thermostat and mount onto wall. M32731

PULL HERE Wallplate5 5 Mount Wallplate Mount the new wallplate using the included screws and anchors. Drill 3/16-in. (4,76 mm ) holes for drywall Drill 3/32-in. (2,38 mm ) holes for plaster 6 Connect Wires Simply match wire labels. If labels do not match letters on the thermostat, check “Alternate Wiring” on page 6 and connect to terminal as shown (see notes, below). We are here to help. Call 18004681502 for wiring assistance. W/AuxNotUsed M32714 Remove metal jumper if you have both R and Rc wires. M32732

Alternate Wiring If labels do not match letters on the thermostat, check the chart below and connect to terminal as shown here (see notes, below). If wires will be connected to both R and Rc terminals, remove metal jumper. Do not use C or X. Wrap bare end of wire with electrical tape. If you have a heat pump without auxiliary/backup heat connect O or B, not both. If you do not have a heat pump, do not connect B. Wrap bare end of wire with electrical tape. Place a jumper (piece of wire) between Y and W if you are using a heat pump without auxiliary/backup heat. 7 Install Batteries Install two AAA alkaline batteries. Back of thermostat RTHXXXXM32707 B O G Y

8 Set fan operation switch Move the switch to the proper setting: Gas or Oil: For gas or oil heating systems, leave the fan operation switch in this factory- set position (for systems that control the fan in a call for heat). Electric or Heat Pump: Change the switch to this setting for heat pump or electric heat systems. (This setting is for systems that allow the thermostat to control the fan in a call for heat, if a fan wire is connected to the G terminal.) 9 Install Thermostat onto Wallplate Install thermostat onto the wallplate on the wall. RTHXXXX M32716

10 Turn Power Back On Turn the power back on to the heating/cooling system. M31544

Circuit breaker box Heating/cooling system power switch

Aux Not Used M33588 Heat Off Cool Auto On Fan Heat Off Cool Auto On Fan8 11 If your system type is... If your system type is: q Single Stage Heat and Coolq Heat Only or Cool Only Congratulations, you’re done! If you are not sure of your system type or if you have other questions, call us toll-free at 18004681502. This thermostat works on single stage 24 volt or 750 mV systems. It will NOT work on multi-stage systems. Advanced Installation Enter System Setup To enter system setup, press and hold both the s and t buttons until the display changes (approximately 5 seconds). Changing Settings

1. Press the s or t button to

2. Press the s and t buttons

simultaneously for one second to advance to the next function.3. When the last function is displayed, press the s and t buttons to save any changes and exit the menu. M33589 Heat Off Cool Auto On Fan

M33590 FunctionSetting9 NOTE: If you do not press any button for 60 seconds while you are in the setup menu, the thermostat automatically saves any changes made and exits the menu. Function Description Press the s or t button to Setting 5 select your heating system and optimize its operation 5 Gas or oil furnace: Use this setting if you have a standard gas or oil furnace that is less than 90% efficient. 6 Electric furnace: Use this setting if you have any type of electric heating system. 3 Heat pump, hot water or high-efficiency furnace: Use this setting if you have a hot water system or a gas furnace of greater than 90% efficiency. 2 Gas/oil steam or gravity system: Use this setting if you have a steam or gravity heat system. 14 select Fahrenheit or Celsius temperature display 0 Fahrenheit temperature display (°F) 1 Celsius temperature display (°C) 15* select Compressor Protection settings 1 On 0 Off

• Compressor Protection: This feature forces the compressor to wait approximately 5 minutes before restarting, to prevent equipment damage. During the wait time, the message “Cool On” or “Heat On” is displayed on screen. About your new thermostat Your new Resideo thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.

• Displays ambient (measured) temperature at all times

• One-touch access to setpoint temperature

M33586 Heat Off Cool Auto On Fan Thermostat controls Temperature adjustment Press the up or down buttons until you reach the desired temperature. NOTE: Make sure the SYSTEM switch is set to the system you want to control (Heat or Cool). Fan Switch is used to control your fan. In “Auto” mode, the fan runs only when the heating or cooling system is on. If set to “On,” the fan runs continuously. System Switch is used to control your heating or cooling system.

• Heat: Heating system control.

• Off: All systems off.

• Cool: Cooling system control. Display screen Low battery warning (see page 11) Setpoint indicator Appears when the setpoint temperature is displayed. Temperature The ambient (measured) temperature is normally displayed. To view the setpoint temperature, press the Up or Down button once. The setpoint temperature will appear for five seconds. System status Cool on: Cooling system is on. Heat on: Heating system is on. When Cool On is flashing, compressor protection is engaged (see page 11).11 Set Cool

Built-in compressor protection This feature helps prevent damage to the compressor in your air conditioning or heat pump system. Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait 5 minutes before restarting. During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on. Battery replacement Install two fresh AAA batteries when Lo Batt flashes on the screen. Lo Batt appears for 60 days before the batteries are depleted. Replace batteries once a year, or when you will be away for more than a month. Most settings are stored in non- volatile (permanent) memory. Only the clock and the day must be set after you replace the batteries. Pull at bottom to remove thermostat from wallplate. Turn thermostat over, insert fresh AAA alkaline batteries, then reinstall thermostat. Set the System switch to Off before removing the batteries. Otherwise, the heating/cooling system could remain activated even when batteries are removed. RTHXXXX M32707

Aux Not Used M33588 Heat Off Cool Auto On Fan Heat Off Cool Auto On Fan12 Troubleshooting If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily. Display is blank

• Make sure fresh AAA alkaline batteries are correctly installed. Heating or cooling system does not respond

• Set system switch to Heat. Make sure the temperature is set higher than the Inside temperature.

• Set system switch to Cool. Make sure the temperature is set lower than the Inside temperature.

• Wait 5 minutes for the system to respond. Cannot change setpoint Verify the system switch is set to Heat or Cool mode. The thermostat should allow you to change the setpoint within the following ranges:

• Heat: 40° to 90°F (4.5° to 32°C).

• Cool: 50° to 99°F (10° to 37°C). “Cool On” or “Heat On” is flashing

• Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor. “Heat On” is not displayed

• Set the System switch to Heat, and set the temperature level above the current room temperature. “Cool On” is not displayed

NOT USED R Rc MF32734
