USER MANUAL ProPress V2 RIDGID

Pressing Tools for Use With: ProPress

Fitting System ProPress

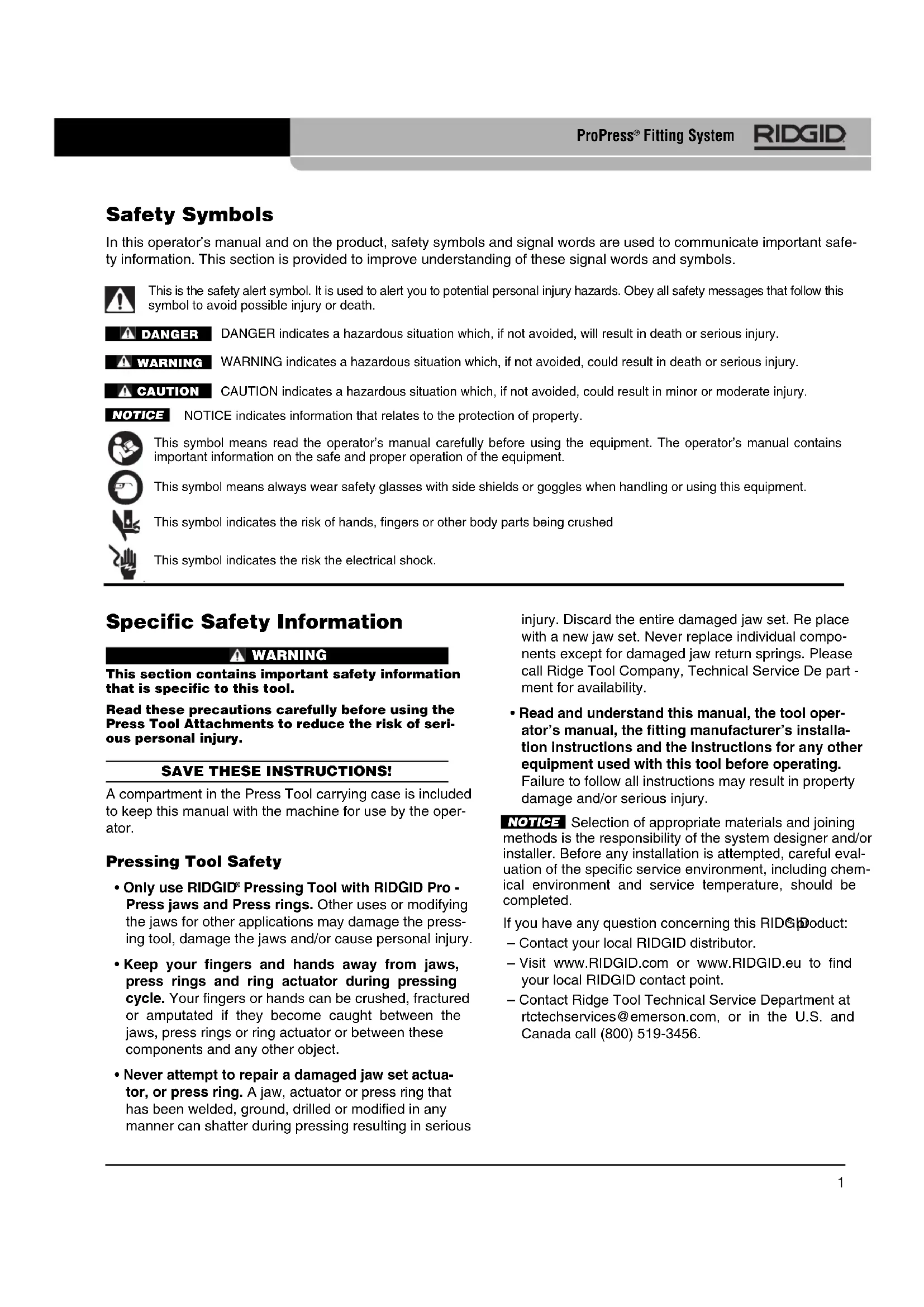

• Français – 15• Castellano – pág. 31 WARNING! Read this Operator’s Manualcarefully before using this tool.Failure to understand and fol-low the contents of this manualmay result in extensive prop-erty damage and/or seriouspersonal injury. ProPress

Fitting System Specific Safety Information WARNING This section contains important safety information that is specific to this tool. Read these precautions carefully before using the Press Tool Attachments to reduce the risk of seri- ous personal injury. SAVE THESE INSTRUCTIONS! A compartment in the Press Tool carrying case is included to keep this manual with the machine for use by the oper- ator. Pressing Tool Safety

Pressing Tool with RIDGID Pro - Press jaws and Press rings. Other uses or modifying the jaws for other applications may damage the press- ing tool, damage the jaws and/or cause personal injury.

• Keep your fingers and hands away from jaws, press rings and ring actuator during pressing cycle. Your fingers or hands can be crushed, fractured or amputated if they become caught between the jaws, press rings or ring actuator or between these components and any other object.

• Never attempt to repair a damaged jaw set actua- tor, or press ring. A jaw, actuator or press ring that has been welded, ground, drilled or modified in any manner can shatter during pressing resulting in serious injury. Discard the entire damaged jaw set. Re place with a new jaw set. Never replace individual compo- nents except for damaged jaw return springs. Please call Ridge Tool Company, Technical Service De part - ment for availability.

• Read and understand this manual, the tool oper- ator’s manual, the fitting manufacturer’s installa- tion instructions and the instructions for any other equipment used with this tool before operating. Failure to follow all instructions may result in property damage and/or serious injury. Selection of appropriate materials and joining methods is the responsibility of the system designer and/or installer. Before any installation is attempted, careful eval- uation of the specific service environment, including chem- ical environment and service temperature, should be completed. If you have any question concerning this RIDGID

product: – Contact your local RIDGID distributor. – Visit www.RIDGID.com or www.RIDGID.eu to find your local RIDGID contact point. – Contact Ridge Tool Technical Service Department at [e-mail], or in the U.S. and Canada call [phone]. Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safe- ty information. This section is provided to improve understanding of these signal words and symbols. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE indicates information that relates to the protection of property. This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains important information on the safe and proper operation of the equipment. This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment. This symbol indicates the risk of hands, fingers or other body parts being crushed This symbol indicates the risk the electrical shock. NOTICEDANGERWARNINGCAUTIONNOTICE2 ProPress

Fitting System Description and Specifications Description RIDGID Press Tool Attachments for ProPress

Systems, when used with the appropriate RIDGID Press Tool, are designed to mechanically press ProPress fittings onto tubing to create a watertight and permanent seal. When the switch on the press tool is depressed, a motor powers a hydraulic pump which forces fluid into the press tool cylin- der. This moves the tool rollers forward into contact with the attachment and applies thousands of pounds of force to the specially designed fitting. NOTE! ProPress

is a registered trademark of Viega GmbH & Co. The entire pressing cycles takes between 4 and 8 seconds starting from when the switch is pressed. Once the press- ing tool starts to deform the fitting, the tool will automati- cally continue the press until complete. There are RIDGID Press Tool attachments for the fol- lowing ProPress Systems:

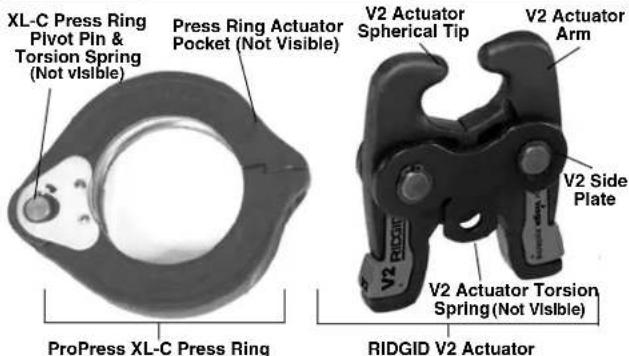

• ProPress XL-C ProPress RIDGID makes jaw sets, rings and actuators to press ProPress fittings. These include:

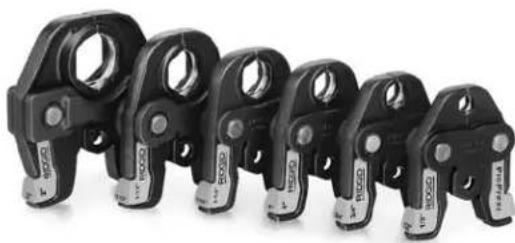

• Standard Series ProPress Jaw sets for

" to 2" ProPress fittings

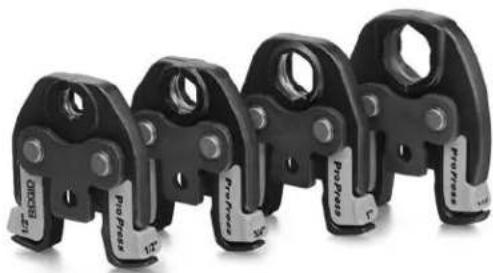

• Compact Series ProPress Jaw sets for

" to 2" ProPress fittings: – 1

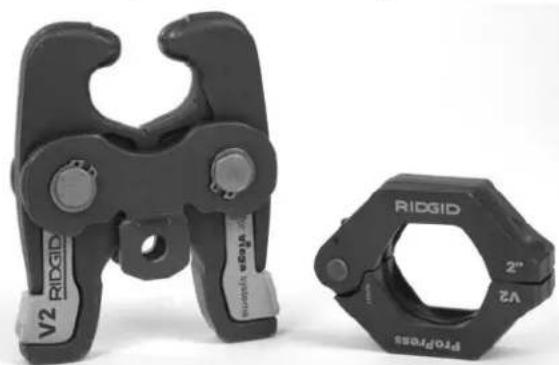

" and 2" ProPress Rings are used with Standard Series Press Tools with the V2 actuator

" ProPress Rings can be used with the Standard Series Press Tools with the V1 Actuator, or with the Compact Series Press Tools with the C1 actuator Standard Series ProPress Jaw Sets Standard Series ProPress Jaw Sets are designed to mechanically press ProPress fittings onto

" and 2" tubing. An individual jaw set is required for each size tubing. Standard Series Jaw sets are designed to be used with RIDGID Standard Series Press Tools such as the CT-400, 320-E, RP 330 and RP 340. Standard Series Jaw Sets cannot be used with RIDGID Compact Series press tools such as the 100-B, RP 200 and RP 210. Jaw sets and press tools must be used perpendicular to the fit- ting/tube being pressed. Figure 1 – Standard Series ProPress Jaw Set Compact Series ProPress Jaw Sets Compact ProPress Jaw Sets are designed to mechanically press ProPress fittings onto

" tubing. An individual jaw set is required for each size tubing. Compact Series Jaw sets are designed to be used with RIDGID Compact Series Press Tools such as the 100-B, RP 200 and RP 210. Com pact Series Jaw Sets cannot be used with RIDGID Standard Series press tools such as the CT-400, 320-E, RP 330 and RP 340. Jaw sets and press tools must be used perpendicular to the fitting/tube being pressed. Figure 2 – Compact Series ProPress Jaw Set ProPress Rings ProPress Rings are designed to mechanically press ProPress fittings onto

" and 2" tubing. An individual ring is required for each tubing size.

" through Catalog No. Size Weight

" 3.75 lbs. (1,70 kg)

" 3.90 lbs. (1,76 kg)

" 4.15 lbs. (1,88 kg)

" 4.30 lbs. (1,95 kg)

" 6.45 lbs. (2,93 kg)

" 9.40 lbs. (4,26 kg) Catalog No. Size Weight

" 2.5 lbs. (1,14 kg)

" 2.22 lbs. (1,01 kg) 16978 1" 2.28 lbs. (1,03 kg)

" 2.56 lbs. (1,15 kg)feature on the rings and actuators allows the actuator and press tool to swivel up to 90 degrees in each direction. Figure 4 – ProPress XL-C Press Ring and RIDGID V2Actuator Only use RIDGID Press Tools and RIDGID press tool attachments (jaw sets, rings, actuators, etc.) when specified by the fitting manufacturer for use with their system. Use of incorrect press tools and/or attachments for a system can cause system leaks, damage the press tool or attachment, void warranties or cause severe per- sonal injury. Contact the fitting manufacturer for specific information on their system, including compatible tubing, materials, installation instructions, minimum distance be - tween fittings, seal material, inspection, testing, etc. Incor - rect installation can cause system leaks and extensive property damage. Contact Ridge Tool Technical Service Department at [phone] or [e-mail] for a list of press fitting system and valve manufacturers that spec- ify RIDGID pressing tools and attachments for their sys- tems. Inspecting the Press Tool and Attachments WARNING Inspect your pressing tool and attachments daily

" rings can be actuated with either a V1 actuator and Standard Series Press Tools such as the CT-400, 320-E, RP 330 or RP 340, or a C1 actuator and Compact Series Press Tools such as the 100-B, RP 200 and RP 210. 1

and 2" rings can only be actuated with the V2 actuator and Standard Series Press Tools. 1

" and 2" ProPress rings cannot be actuated with Compact Series Press Tools. The ProPress rings must be used perpendicular to the fit- ting and tube being pressed but the ball pocket/tip feature on the rings and actuators allows the actuator and press tool to swivel up to 90 degrees in each direction. This allows the rings and actuators to be used in some appli- cations where the jaw sets and pressing tool will not fit. The ProPress rings are marked to show the correct actu- ator for use with that ring. Figure 3 – ProPress Ring and V2 Actuator ProPress XL-C RIDGID makes ProPress XL-C Rings for use with ProPress XL-C Fittings. ProPress XL-C Rings are de signed to mechanically press ProPress XL-C fittings onto 2

", 3" and 4" tubing. An individual ring is required for each tubing size. ProPress XL-C Rings are actuated with V2 actuators and Standard Series Press Tools such as the CT-400, 320-E, RP 330 or RP 340. ProPress XL-C Rings cannot be used with the Compact Series Press Tools. The ProPress XL-C rings must be used perpendicular to the fitting and tube being pressed but the ball pocket/tip Catalog No. Description Weight

" XL-C Press Ring 5.46 lbs (2,48 kg)20548 3" XL-C Press Ring 9.63 lbs (4,37 kg)20553 4" XL-C Press Ring 11.08 lbs (5,03 kg)21878 V2 Actuator 6.71 lbs (3,04 kg)21103 Carrying Case 6.15 lbs (2,79 kg)Press Ring ActuatorPocket (Not Visible)V2 Actuator Arm V2 SidePlateV2 Actuator TorsionSpring (Not Visible) ProPress XL-C Press RingXL-C Press RingPivot Pin &Torsion Spring (Not visible) RIDGID V2 ActuatorV2 ActuatorSpherical Tip NOTICE WARNINGTool and Work Area Set-Up WARNING Set up the press tool, attachment and work area according to these procedures to reduce the risk of injury from electric shock and other causes and to prevent property damage.

1. Inspect the work to be done and determine

• The system of fittings to be used

• The sizes of fittings to be used

• The amount of space available for the tool and attachments to make the pressed connections.

2. Determine the appropriate pressing tool and attach-

ments for the application. See the Description and Specification section for information on the attach- ments available for the ProPress systems. Information on clearance requirements for various attachments can be found at the back of the manual. Information on RIDGID Pressing Tools and other RIDGID press tool attachments can be found at www.RIDGID.com, or by contacting Ridge Tool Technical Services at [phone] or [e-mail]. Only use RIDGID Press Tools and RIDGID press tool attachments (jaw sets, rings, actuators, etc.) when specified by the fitting manufacturer for use with their system. Be sure to use the correct actuator for the ring being used. Rings are marked to indicate the correct actuator for use with the ring. Use of in - correct press tools and/or attachments for a system can cause system leaks, damage the press tool and attachment or cause severe personal injury.

3. Make sure that the press tool and attachment have

been inspected according to their respective manuals or instructions.

4. Follow tool set up procedure according to the specif-

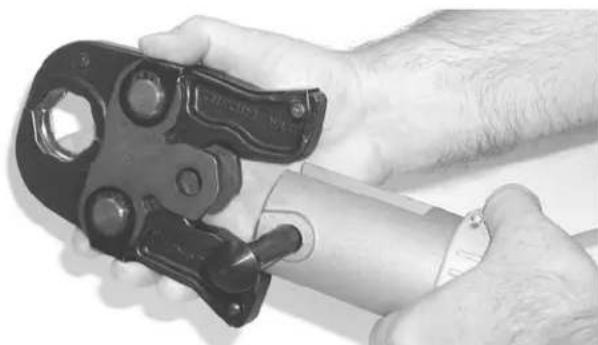

ic press tool operator’s manual. Mounting Attachment Into Press Tool

1. Make sure that the press tool is unplugged or that the

battery is removed from the tool.

2. Pull the attachment mounting pin on the press tool

out. If there is already an attachment in the tool, slide it out of the pressing tool (See Figure 5).

Fitting System and correct any problems to reduce the risk of seri- ous injury from electric shock, tool and attach- ment failure and other causes and to prevent tool and property damage.

1. Inspect press tool according to the specific tool oper-

2. Clean any oil, grease or dirt from the tool and attach-

ments, especially the handles and controls. This reduces the risk of the tool or attachment slipping from your grip and makes inspection easier.

3. Closely inspect all pressing attachment components

(jaw sets, rings, actuators, etc.) for any cracked, bro- ken, worn, missing, misaligned or binding parts or any other sign of damage that may prevent proper and safe operation. Damaged parts can cause the attach- ment to make incorrect pressed connections or fail during use, and cause serious injury or property dam- age. If any damage is found, the attachment should discarded and replaced. (See Figure 14.) Always discard the complete pressing attachment. Never replace individual components or exchange parts between assemblies. Failure to replace the entire assembly may result in component failure and serious injury. Do not modify pressing attachments or use modified attachments. A pressing attachment component that has been welded, ground, drilled or modified in any manner can shatter during pressing, resulting in sharp flying objects, severe injury or death. Discard and replace damaged pressing attachments.

4. Inspect the attachment markings to make sure that it

is clearly marked as to the system and size that it is appropriate for. Do not use an attachment that is not clearly marked.

5. Inspect the press profile of the attachment. If it is

rusty, dirty or if there is a build up of fitting material, clean as described in the maintenance section. It is important to keep the press profile clean to prevent the formation of burrs during pressing process, prevent the attachment from sticking to the fitting and making sure that a proper press connection is made.

6. Make sure that springs are intact and bias the attach-

ment in the proper direction (closed for rings, jaws and actuators). Attachment should cycle freely from the fully open to fully closed position. If needed, lubricate pivot points with a light lubricating oil. Wipe any excess oil from the attachment. WARNINGFigure 5 – Pulling The Jaw Set Mounting Pin Out

3. Slide the attachment into the press tool and fully

engage the attachment mounting pin. The press tool will not function unless the pin is fully engaged. Calibrating The Pressing Tool For The Specific Pressing Attachment (320-E Pressing Tool Only) The RIDGID 320-E Pressing Tool includes a feature to help insure that complete press connections are made. To use this feature, when a press attachment is installed on the 320-E, a calibration cycle is done. The 320-E then compares that calibration cycle to each press connection made. If the press connection does not match the cali- bration cycle, the 320-E alerts the user that a pressing error has occurred so that the operator can take appro- priate action. See the 320-E manual or contact Ridge Tool Technical Service if you have any questions regarding this feature. Preparing The Connection These are generalized instructions. Always fol- low the fitting manufacturers specific installation instruc- tions. Failure to follow the fitting manufacturer’s installation instructions may lead to an improper press connection and cause leaking connections and property damage. Preparing the Tube

1. If necessary, cut the desired length of the proper

tube for use with the fitting system. Use a tubing cutter or other method that provides a clean cut square to the axis of the tube. If using a vise or other method to hold the tube during cutting, make sure that the vise is far enough from the end of the tube not to damage the section of tube that is inserted into the fit- ting. Scratches on the outside diameter of the tube and deformed tube can cause leaks.

2. Deburr the tube end inside and out with a file, ream-

er, deburring tool or other suitable tool. Burrs can cut the sealing element of the fitting and cause leaks.

3. Clean the end of the tube of all dirt, oil and grease.

Improperly prepared tube can cause improper con- nections, leaks and other property damage. Inserting the Tube into the Fitting

1. Inspect the fitting per the manufacturer’s instructions

to be sure all parts are present, in place and free of dirt and debris. If fitting parts are missing or dirty, this can cause improper connections, leaks and other property damage. See Figure 7. Figure 6A – Inspection of the ProPress Fitting per the Manufacturer’s Instructions Figure 6B – Inspection of XL-C Fitting Prior to Tube Insertion

2. In some systems, there is a requirement to mark the

tube before insertion. Check the fitting manufacturer’s instructions, and if required, mark the tubing with a permanent marker at the appropriate distance from the tube end. This gives a visual reference that the tube has been fully inserted into the fitting prior to pressing the connection. See Figure 7.

3. Fully insert the tube into the fitting. Most fittings have

a stop that the tube end contacts to indicate full inser- tion. Other fittings do not have a stop and will allow the tube to fully pass through the fitting, and are typically used in repair applications. If there is no stop, insert the tube so that the mark made in the previous step is even with the end of the fitting. In some cases, a twisting motion during insertion makes the process easier. Never use any lubricant unless the fitting man- ufacturer specifically advises to. Lubricants can de - grade the seal and cause leaks. Tubing that is difficult to insert may be out of round or have burrs on the tube end, which can damage the seal and cause leaks.

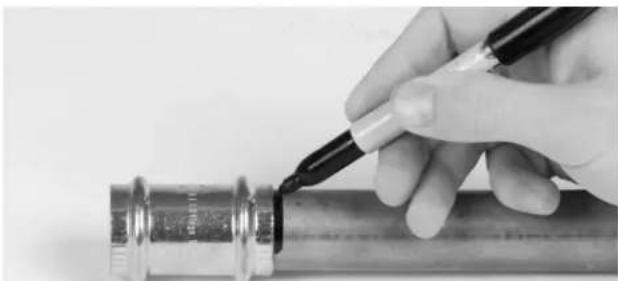

4. Make sure that the tube is fully inserted in the fitting

and if not marked in previous steps, mark the tube at the end of the fitting to give a visual reference that the tube is fully inserted. See Figures 8 and 9. Figure 8 – Marking the Tubing After Fully Inserting Tube Figure 9 – Inserting the Tube Into Fitting to Proper Depth Operating Instructions WARNING Always wear eye protection to protect your eyes against dirt and other foreign objects. Keep your fingers and hands away from the tool attachment during the pressing cycle. Your fingers or hands can be crushed fractured or amputated in the attachment or tool or between the attach- ment, work piece and other objects. Follow operating instructions to reduce the risk of injury from crushing and other causes and to pre- vent tool damage. Only use RIDGID Press Tools and RIDGID press tool attachments (jaw sets, rings, actuators, etc.) when specified by the fitting manufacturer for use with their system. Use of incorrect press tools and/or attachments for a system can cause system leaks, damage the press tool or attachment, void warranties or cause severe per- sonal injury. Confirm that the tool and attachments have been properly set up. Pressing the Connection with a Jaw Set

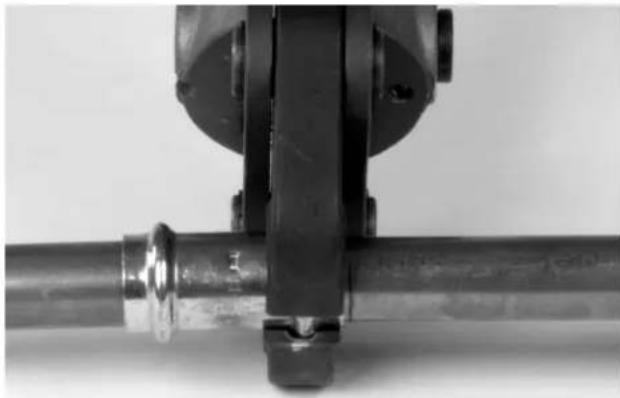

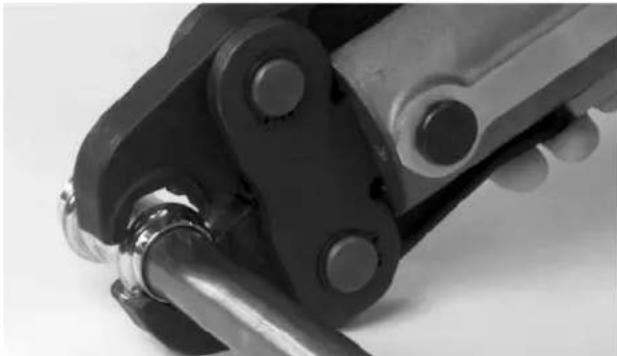

1. Squeeze the jaw arms to open the Jaw set and place

the open jaws around the fitting. Allow the jaw set to close around the fitting, making sure to align the press profile of the jaw set with the contour of the fit- ting (See Figure 10). Figure 10 – Opening the Jaw set and Placing Around Fitting

2. Confirm that the tubing is inserted to the proper depth

in the fitting. As specified in appropriate Fitting System instructions.

Fitting System WARNING3. Make sure that the jaw set and pressing tool are square to the tube and fitting (See Figure 11) and depress the press tool switch. Keep fingers and hands away from the jaw set to avoid crushing injuries in jaw set and between the jaw set and the surroundings. Figure 11 – Jaw Set Square To Fitting and Tubing The pressing cycle takes 4-8 seconds depending on the press tool. Once a press cycle begins and the rollers contact the Jaw set, the press tool will lock on and automatically complete the press cycle. Releasing the tool switch will not stop the tool once the pressing process has begun. This insures consis- tent, repeatable press connection integrity. If the tool should malfunction, refer to the specific press tool operator’s manual.

4. Press the jaw set jaw arms to open the jaw set and

remove from the fitting. Avoid any sharp edges that may have formed on fitting during pressing operation. Pressing the Connection with a Ring and Actuator

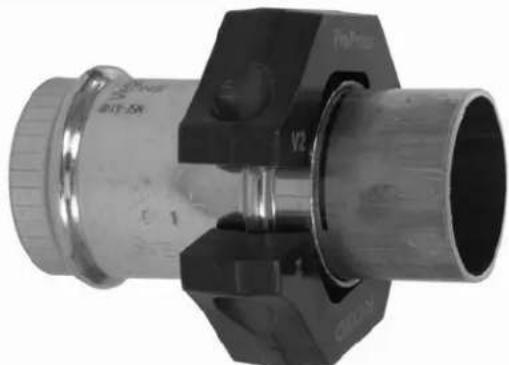

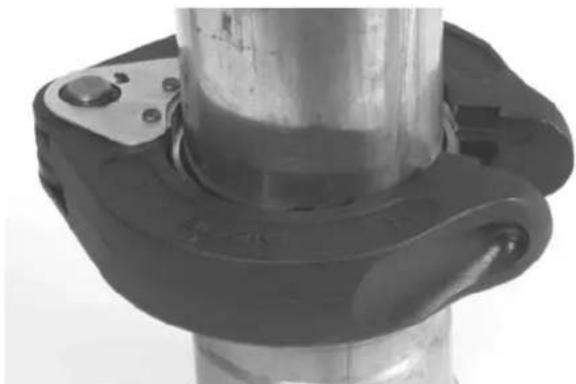

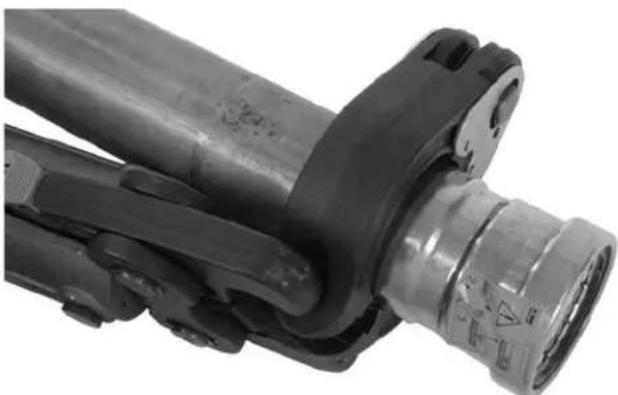

1. Open the appropriate Press Ring and place square-

ly around the fitting. Allow the ring to close around the fitting, making sure to align the press profile with the contour of the fitting. If the ring is not properly aligned with the fitting, an improper press connection will be made. See Figures 12A and B. Figure 12A – Installing ProPress XL-C Press Ring Onto Fitting Figure 12B – Installing ProPress Ring Onto Fitting

2. Confirm that the appropriate actuator for the ring to be

pressed is in the pressing tool (the ring will be marked with the designation of the appropriate actuator - C1, V1, V2). The correct actuator/ring combination must be used to prevent possible injury, ring and actuator damage, and improper press connections.

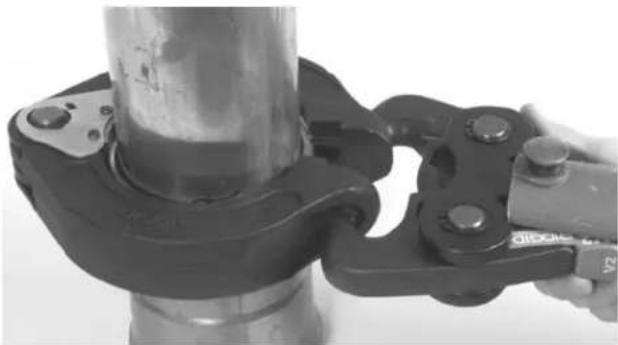

3. Squeeze the actuator arms to open the actuator tips,

place tips in ring pockets and allow the actuator to close down and seat into the pockets. See Figure 14A – B. The C1, V1 and V2 actuators and their mating rings are designed to allow the actuator and tool to be rotated up to ninety degrees each way from perpen- dicular. Actuactor tips must be fully engaged in ring pockets. Misaligning actuator tip to ring pocket can damage the ring or actuator during pressing. Make sure that the actuator tips are fully engaged in the ring pockets. (See Figure 13.)

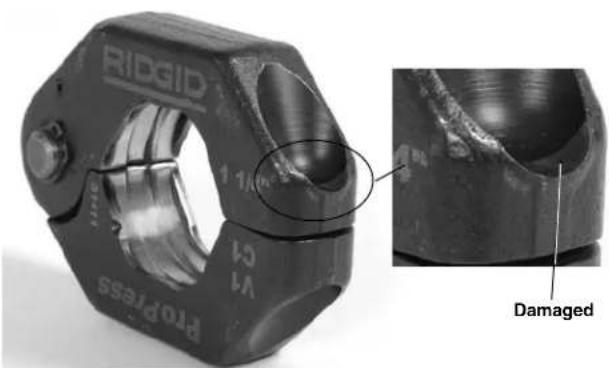

Fitting System NOTICEFigure 13 – Damaged Ring Pocket Figure 14A – Placing V2 Actuator Tips Into XL-C Ring Pockets Figure 14B – Placing V2 Actuator Into XL-C Ring Pockets At An Angle For Additional Clearance Do not hang the actuator and tool from the ring. The tool and actuator could fall from the ring and cause serious injury or death.

4. Make sure that the ring is square to the tube and fit-

ting and depress the press tool switch. Keep fingers and hands away from the actuator and ring to avoid crushing injuries in the attachments and between the attachments and surroundings. The pressing cycle takes 4-8 seconds depending on the press tool. Once a press cycle begins and the

Fitting System rollers contact the actuator, the press tool will lock on and automatically complete the press cycle. Re - leasing the tool switch will not stop the tool once the pressing process has begun. This insures consis- tent, repeatable press connection integrity. If the tool should malfunction, refer to the specific press tool operator’s manual. The ProPress rings and the ProPress XL-C rings are designed to fully close during the pressing process.

5. After the pressing operation is complete, squeeze the

actuator arms to open the actuator tips and remove from the ring.

6. Remove the ring from the fitting. Avoid any sharp

edges that may have formed on the fitting during the pressing operation. Inspecting The Press Connection

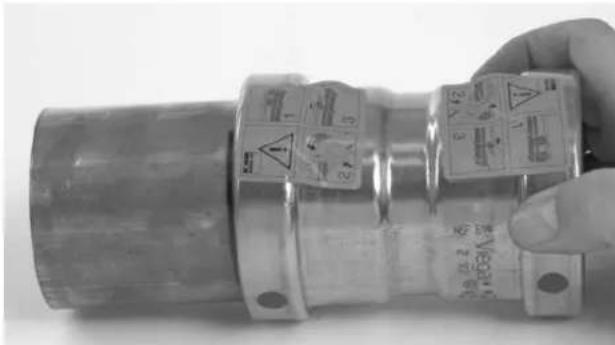

1. Inspect the pressed fitting. If the fitting is supplied with

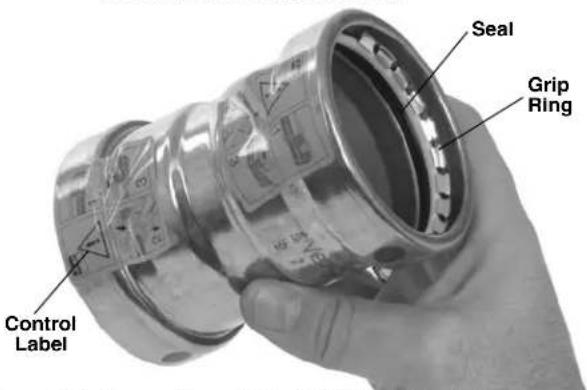

a control label by the fitting manufacturer, remove it (Refer to Figures 6B). Control labels are supplied by the manufacturer to indicate that the fitting has not yet been pressed. Removal of the control label indicates to others that the connection has been pressed. Look for the following:

• Excessive misalignment of the tubes. Note that a slight amount of misalignment at the pressed con- nection is considered normal.

• Tubes that are not fully inserted into the fitting – dou- ble check the insertion marks made on the tube to see that they are still aligned with the end of the fit- ting.

• Incorrect jaw or ring alignment with the fitting con- tour, distorted or deformed fitting.

• Any other issues per the fitting manufacturer. If any of these problems are found, then removal of the fitting is required and a new fitting and tube will need to be prepared and pressed in its place.

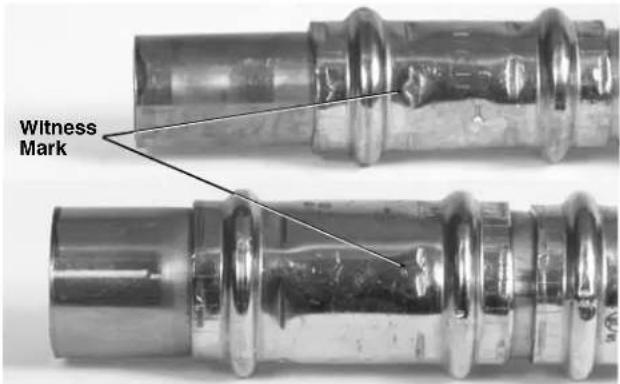

2. If inspecting ProPress fittings, check and confirm the

presence of the ProPress witness mark in one of the hex flats (See Figure 15). This unique mark con- firms that the proper RIDGID Jaw set, designed specifically for the ProPress Fitting System was used to make the pressed connection. This witness mark is a trade mark of the Ridge Tool Company. Absence of the witness mark may invalidate the system manu- facturer’s warranty. The ProPress XL-C systems do not have a witness mark. DamagedUse a fine grade Scotch-Brite

(Scotch-Brite is a registered trademark of the 3M Company) metal polishing pad, steel wool, or a steel bristle wire brush to clean the press profile. Do not clean the press profile with aggressive materials or methods, such as emery cloth, sandpaper or grinding wheels. This may alter critical press profile dimensions and cause improper press connections.

2. Lubricate pivot pins and points of relative motion on

the attachment at least once a month with a light weight general purpose lubricating oil. Clean off any excess oil.

3. Check return springs in attachments with each use.

Attach ments should open and close freely with only moderate effort. If springs are missing or unit binds, do not use until the attachment has been fixed. Accessories WARNING Only the following RIDGID ProPress products have been designed to function with RIDGID Press Tools. Other press tool attachments and accessories suit- able for use with other tools may become haz- ardous and/or produce bad presses. To prevent serious injury when pressing ProPress fittings, only use attachments such as those listed below. ProPress System: ProPress Rings ProPress XL-C Press Rings Machine Storage These tools and attachments must be kept indoors or well covered in inclement weather. Store in a locked area out of the reach of children and people unfamiliar with the tools. These tools can cause serious injury in the hands of untrained users.

Fitting System Figure 15 – ProPress Witness Mark

3. Test the system in accordance with the system sup-

pliers instructions, normal practice and local codes. The system supplier may have specific system test procedures to confirm the integrity of the system. Maintenance Instructions WARNING Press attachments should be removed from press tool before performing any maintenance. Always wear safety glasses. Protect your eyes from dirt and other foreign objects. A jaw, press ring or ring actuator component that has been welded, ground, drilled or modified in any manner can shatter during pressing, resulting in sharp flying objects, severe injury or death. Discard and replace damaged jaws, press rings or ring actu- ators.

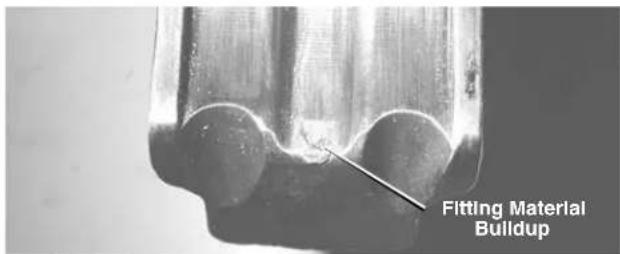

1. Before use, inspect the press profile. If damaged,

discard the attachment. If rusty, dirty or if there is evidence of fitting material build up or other contam- inants, manually clean the press profile. Contaminants in the press area (especially near the tips of scissor style jaws or press rings - see Figure 16) make it more likely that burrs will form on the fitting during pressing. Burrs can damage the attachment press profile. Figure 16 – Fitting Material Build-Up In Press Profile NOTICEFitting MaterialBuildupWitness Mark Catalog No. Description 28043 C1 Kit,

" - 2" 28028 Carrying Case for

" Ring Kits 28038 Carrying Case for 1

" - 4" WARNINGService and Repair WARNING Improper service or repair can make attachments unsafe to operate. The “Maintenance Instructions” will take care of most of the service needs of this machine. Any problems not ad - dressed by this section should only be handled by an authorized RIDGID service technician. No Service parts are sold for these attachments. If parts are needed, the attachment should be discarded and a new unit purchased. For information on your nearest RIDGID Independent Service Center or any service or repair questions:

• Contact your local RIDGID distributor.

• Visit www.RIDGID.com or www.RIDGID.eu to find your local Ridge Tool contact point.

• Contact Ridge Tool Technical Service Department at [e-mail] or in the U.S. and Canada call [phone]

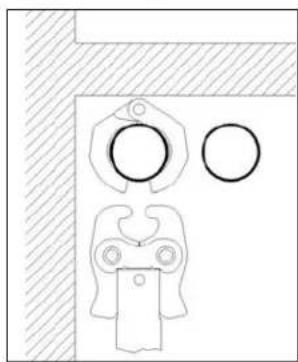

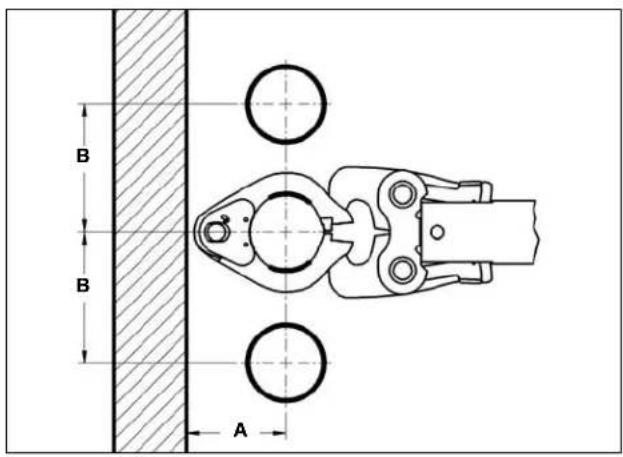

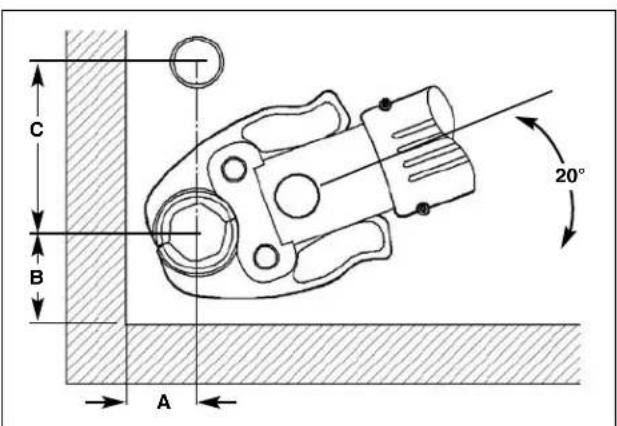

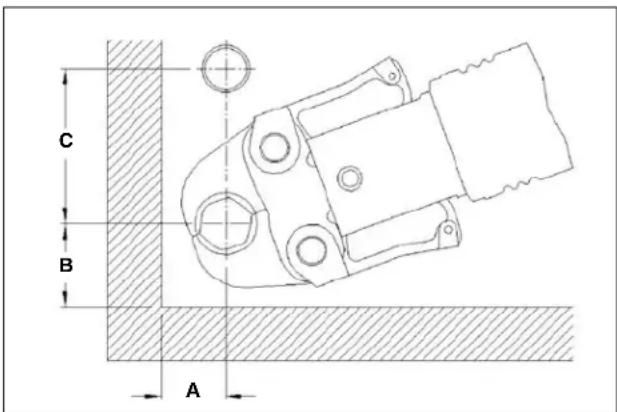

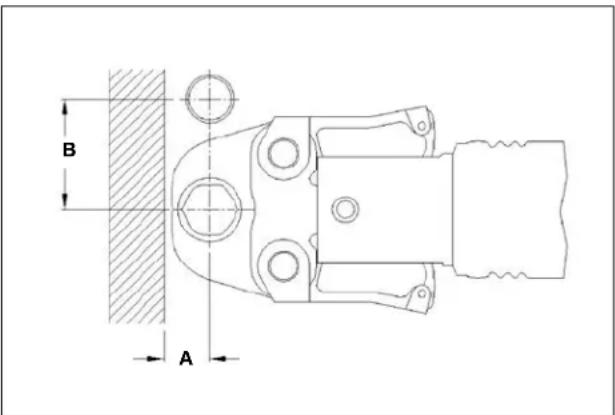

Clearance Requirements The following figures illustrate the clearance require- ments for the jaws and fittings and the procedure for pressing fittings in tight quarters with rings. Clearance Requirements – Standard Series ProPress Jaw Sets11 ProPress

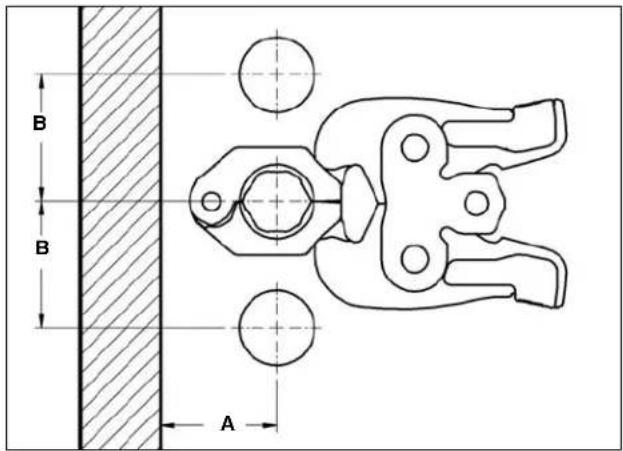

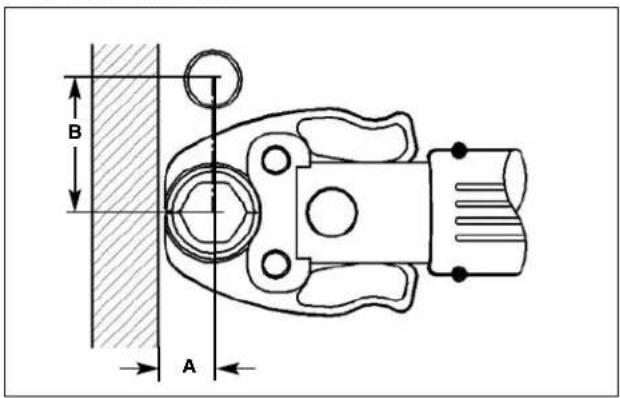

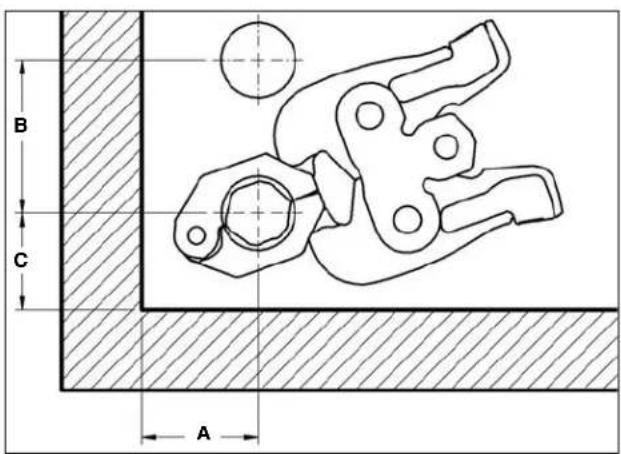

Clearance Requirements – Compact Series ProPress Jaw Sets

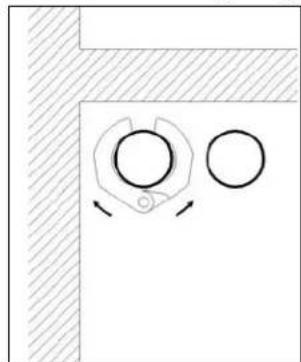

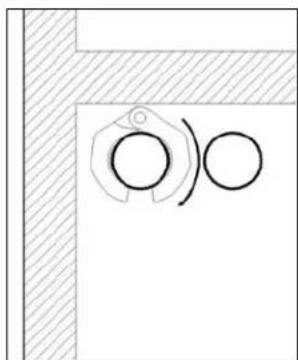

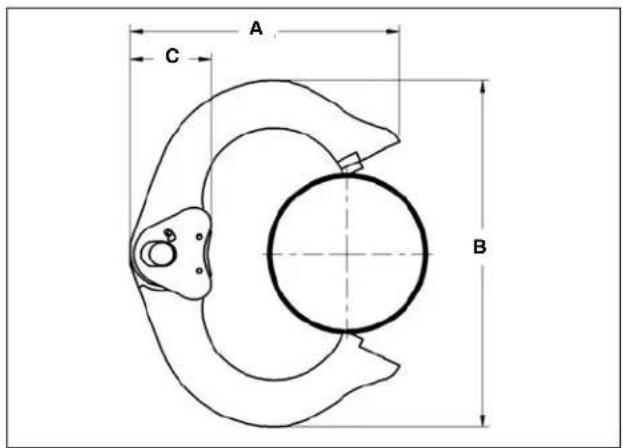

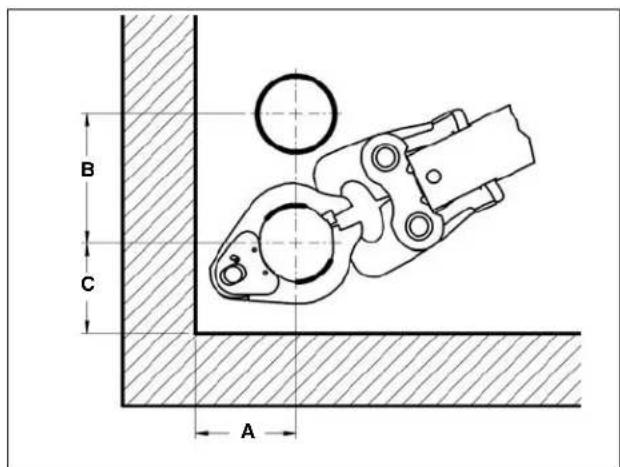

" 85 Clearance Requirements – ProPress Rings

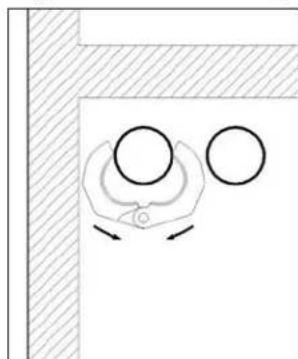

around the fitting from the front...

2. ...until the press ring is

resting in the groove of the fitting.

3. Keep the press ring

closed and rotate about the fitting until the open- ing is toward the front.

Press connections pro- duced are not complete. Excessively large or sharp fins present at press joint parting line where jaw or ring tips come together. Jaws or rings stick to fit- ting excessively after completing press joint. Troubleshooting Used wrong jaw set or press ring for the tube size or material. The jaw set or ring contour was not square to the tube. The jaw set or ring has exceed life expectations and may have failed. Fitting material build up on jaws or press rings in the contoured profile area near jaw or ring tips. Excessively worn or damaged jaws or press rings. Fitting material build-up on jaws or press ring in the contoured profile area near jaw or ring tips. Install correct jaw set. Redo the joint using new tube and fitting and make sure that the jaw set or ring is square to the fitting. If cracked, replace old jaw set with a new jaw set and redo the joint using new tube and fitting. Clean jaw or press ring in the contoured area using metal polishing pads such as Scotch-Brite

Refer to Maintenance Section for instructions. Discard jaws or press ring and replace with new RIDGID jaw set or press ring. Clean jaw or press ring contour area using metal polishing pads such as Scotch-Brite

tools are warranted to be free of defects in workmanship and material. How long coverage lasts This warranty lasts for the lifetime of the RIDGID

tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material. How you can get service To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGID

INDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase. What we will do to correct problems Warranted products will be repaired or replaced, at RIDGE TOOL’S option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price. What is not covered Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages. How local law relates to the warranty Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to coun- try. No other express warranty applies This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID

products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other war- ranty on behalf of the RIDGE TOOL COMPANY. Qué cubre Las herramientas RIDGID
