Product Type	Cordless stick vacuum
Brand	Shark
Model	IZ400DE
Rated voltage	25.2 V
Motor power	309 W
Suction head power	80 W
Runtime (ECO mode, handheld vacuum without accessory)	60 minutes
Runtime (Boost mode, handheld vacuum without accessory)	10 minutes
Runtime (Clean Sense IQ mode)	Varies based on usage
Full charge time	Approximately 3.5 hours
Battery type	Removable lithium-ion
Dust cup capacity	0.7 L (estimated)
Anti-tangle technology	Anti-Tangle PLUS
Cleaning technology	DuoClean and Clean Sense IQ
Flexible wand	Flexology
Washable filters	Yes (pre-motor and post-motor)
Manufacturer warranty	5 years (after registration)
Weight (estimated)	2.5 kg
Included accessories	Check packaging

Frequently Asked Questions - IZ400DE SHARK

How to charge the battery of the Shark IZ400DE vacuum?

You can charge the battery directly in the handheld vacuum by plugging the charger into the port located under the handle, or remove the battery by pressing the release button and plug it directly into the charger. Full charge takes approximately 3.5 hours.

What is the runtime of the vacuum?

The runtime depends on the selected mode: in ECO mode, up to 60 minutes (handheld vacuum only); in Boost mode, about 10 minutes; in Clean Sense IQ mode, varies based on detected dirt.

How to clean the filters?

Remove the dust cup, then the pre-motor filters (foam and felt) and the post-motor filter. Rinse them with water only (no soap), then let them dry completely in the air for 24 to 48 hours before reinstalling.

What does error code F0 mean?

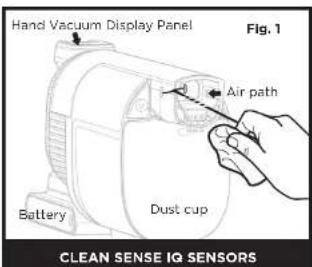

Error code F0 indicates a blockage of the Clean Sense IQ sensors. Gently clean the sensors located inside the suction head of the handheld vacuum with a microfiber cloth to remove hair and debris.

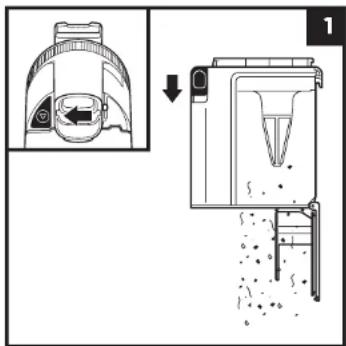

How to empty the dust cup?

Press the tube release button to detach the handheld vacuum. Position the cup over a trash can, then push the cover release slider forward. For a deep clean, remove the cup and use the CleanTouch slider.

Can the rotating brush get tangled?

The vacuum is equipped with Anti-Tangle PLUS technology that reduces hair and fiber tangles. If necessary, remove the soft brush by lifting the tab, clean it by hand with water and let it dry completely before replacing.

How to use the flexible wand?

Press the release latch at the back of the wand to adjust the angle. This allows easy vacuuming under furniture. For storage, fold the handheld vacuum forward until it clicks.

What accessories are available for this vacuum?

Shark offers various accessories such as a crevice tool, dusting brush, upholstery tool, motorized pet tool, etc. The exact list provided with your model is indicated on the packaging. Visit sharkclean.fr.

What to do if the vacuum turns off by itself?

This may be due to a blockage, discharged battery, or overheating. Empty the dust cup, clean filters, check for blockages, and let the device cool down for at least 45 minutes. If the problem persists, contact customer service.

How to register the warranty?

Register your product online at sharkclean.fr/register-guarantee within 28 days of purchase to benefit from the extended warranty. You will need the purchase date and receipt.

USER MANUAL IZ400DE SHARK

STRATOS Cordless Vacuum with Anti-Hair Wrap PLUS and Clean Sense IQ.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Beim Laden

CLEANSSENSE CLEAN SENSE POWER MODUS

Technical line drawing of a mechanical component with an inset view showing a close-up of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with an inset view of its cross-section (no text or symbols present)

Simple line drawing of a robotic arm with a cart and block, no text or symbols present

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional view and internal components (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement, no visible text or symbols

Diagram illustrating a mechanical device with a close-up view and a downward arrow indicating process, labeled with number 1.

Diagram of a laboratory apparatus with a funnel and container, showing liquid flow from a side arm (no text or labels)

Technical diagram of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a handle and base, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with internal components and a close-up inset showing internal flow or movement (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Chargement

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

DANS L'ASPIRATEUR : TECHNOLOGIE FLEXOLOGY

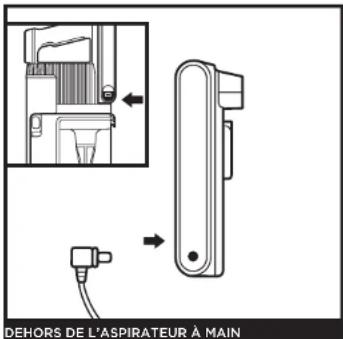

DEHORS DE L'ASPIRATEUR À MAIN

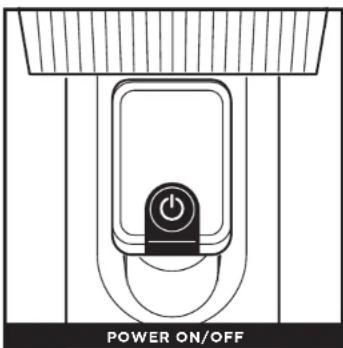

BOUTON MARCHE/ARRÊT

CLEANSENSE MODE DE PUISSANCE CLEAN SENSE

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional views and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction, no visible text or symbols

Technical diagram showing a device with internal components and a close-up view of the component's internal structure.

Line drawing of a laboratory apparatus with a funnel and water inlet (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and a wooden block, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing three-step mechanical assembly process with labeled components and directional arrows

Technical line drawing of a mechanical device with internal components and a close-up inset showing internal flow or movement (no text or symbols)

for purchasing the Shark ^® Cordless Vacuum with Anti-Hair Wrap PLUS, DuoClean and Clean Sense IQ.

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

TIP: You can locate the date code on one of the prongs of the power cord plug.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.co.uk/register-guarantee

[phone]

Scan QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number: ____

Date Code: ____

Date of Purchase (Keep Receipt): ____

Store of Purchase: ____

TECHNICAL SPECIFICATIONS

Voltage: 25.2V

Body Motor Watts: 309W

Nozzle Watts: 80W

PLEASE READ CAREFULLY

AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Cordless Vacuum with Anti-Hair Wrap PLUS, DuoClean and Clean Sense IQ.

If you have any questions, please call the customer service line on [phone].

CONTENTS

Product Registration 2

Important Safety Instructions ....4

Assembling your Shark ^x Vacuum Cleaner ....6

Using Your Lithium ION Power Pack Battery 7

LED battery Power and Charging Indicators 7

Recycling your Lithium ION Power Pack Battery 7

Charging Your Lithium ION Power Pack Battery 8

Settings 9

Cleaning Modes 10

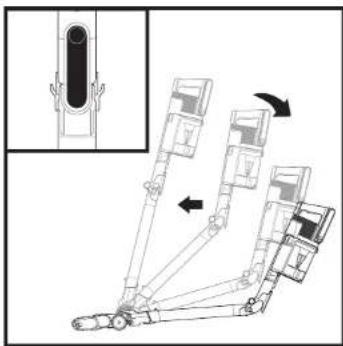

Using the Flexology Wand 11

Flexology Reach 11

Flexology Storage....11

Maintaining your Vacuum Cleaner 12

Emptying the Dust Cup 12

Removing and Cleaning the Dust Cup 12

Cleaning the Filters....13

Maintaining the Floor Nozzle 14

Checking for blockages 15

Troubleshooting Guide 16

Additional Accessories Available 17

Guarantee 18

Battery Guarantee 19

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

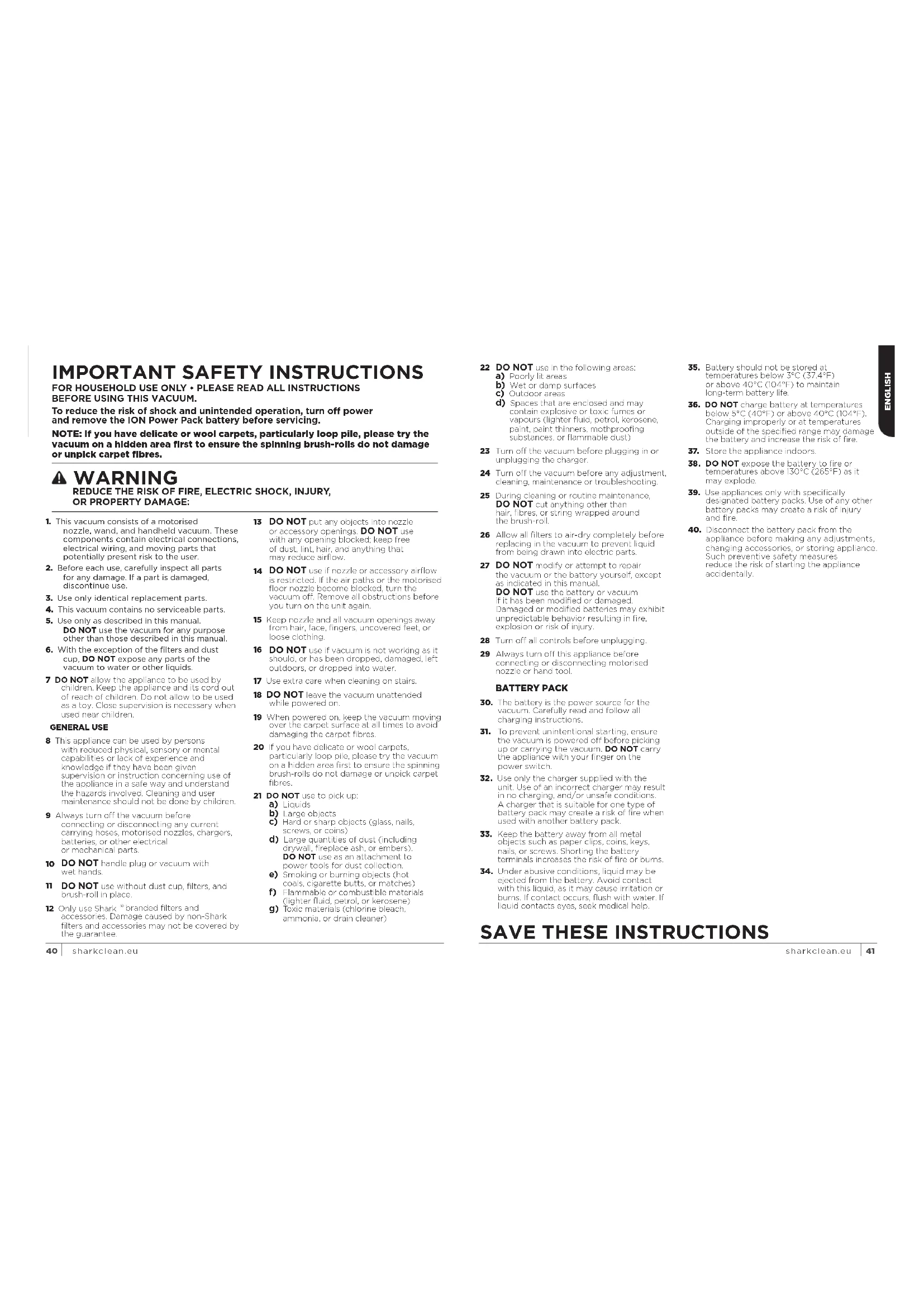

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

1. This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3. Use only identical replacement parts.
4. This vacuum contains no serviceable parts.
5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
6. With the exception of the filters and dust cup, DO NOT expose any parts of the vacuum to water or other liquids.
   7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be done by children.
9 Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.
10 DO NOT handle plug or vacuum with wet hands.
11 DO NOT use without dust cup, filters, and brush-roll in place.
12 Only use Shark ^® branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the guarantee.

13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked, keep free of dust, lint, hair, and anything that may reduce airflow.
14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.
15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
17 Use extra care when cleaning on stairs.
18 DO NOT leave the vacuum unattended while powered on.
19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.
20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.
21 DO NOT use to pick up:

a) Liquids
b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (including drywall, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, petrol, or ketone).
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

22 DO NOT use in the following areas:

a) Poorly lit areas
b) Wet or damp surfaces
c) Outdoor areas
d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

23 Turn off the vacuum before plugging in or unplugging the charger.
24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.
25 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.
26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.
DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
28 Turn off all controls before unplugging.
29 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool.

BATTERY PACK

1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
2. To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum, DO NOT carry the appliance with your finger on the power switch.
3. Use only the charger supplied with the unit. Use of an incorrect charger may result in no charging, and/or unsafe conditions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
4. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminal's increases the risk of fire or burns.

5. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.

6. Battery should not be stored at temperatures below 3^ C ( 37.4^ F) or above 40^ C ( 104^ F) to maintain long-term battery life.

7. DO NOT charge battery at temperatures below 5°C (40°F) or above 40°C (104°F). Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
8. Store the appliance indoors.
9. DO NOT expose the battery to fire or temperatures above 130^ C ( 265^ F) as it may explode.
10. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
11. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

SAVE THESE INSTRUCTIONS

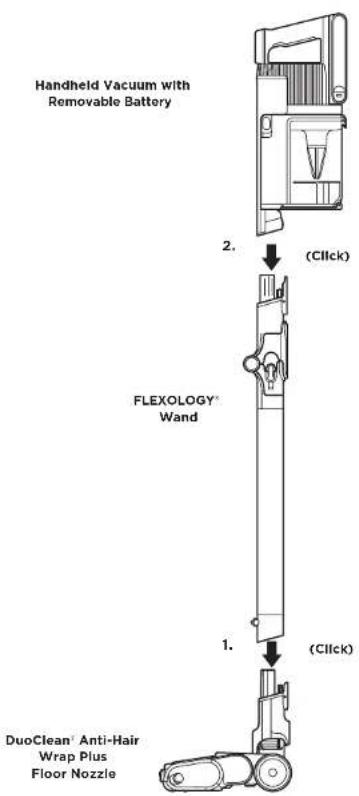

ASSEMBLY

1. Insert Wand into Floor Nozzle.
2. Insert Handheld Vacuum into Wand

Before use, ensure all components are completely connected and clicked into place.

LI-ION BATTERY

The Lithium Ion Power Pack battery does not come fully charged. Prior to first use, charge completely. During first use, run the battery down until it is completely out of power. This will condition the battery.

LED BATTERY POWER AND CHARGING INDICATORS

POWSTENS

Charging

LED will pulse white when reaching 100% charge.
LED will pulse green from 76% - 99% charge.
LED will pulse yellow from 0 - 75% charge.
☐ No LED the battery pack is off

NOTE: Full charge takes approximately 3.5 hours.

Additional Notes

1. LEDs turn off once the battery is fully charged.
2. Unit will not power on when charger is connected.

This product uses a Lithium ION rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery.

When your Lithium ION Power Pack Battery needs to be replaced, dispose of it or recycle it in accordance with local regulations. In some areas, it is illegal to place spent Lithium ION batteries in the bin or in a municipal solid waste stream. Return spent power packs to an authorised recycling centre or to retailer for recycling. Contact your local recycling centre for information on where to drop off the spent power pack.

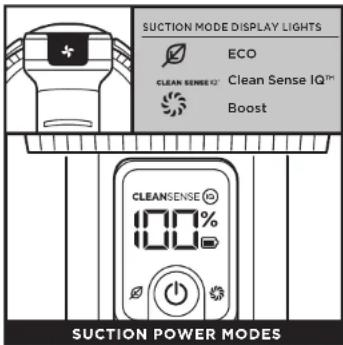

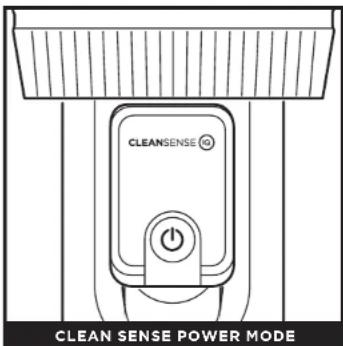

SUCTION MODE DISPLAY LIGHTS		ECO ModeMaximum runtime.Saves battery power.

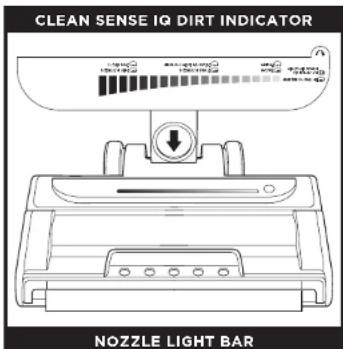

	ECO	Clean Sense IQ ModeBest balance between suction power and optimised runtime.
CLEAN SENSE	Clean Sense IQ
	Boost	Boost ModeMaximum suction. Uses the most battery power.

Battery Runtime

MODE MINUTES
Hand Vac - ECO Mode(no motorised tool attached)	60
Boost Mode (Hand Vac)(no motorised tool attached)	10

Clean Sense IQ runtime depends on individual use and amount of debris on cleaning surfaces. Suction mode impacts runtime. Use Boost in short bursts.

CHARGING THE BATTERY

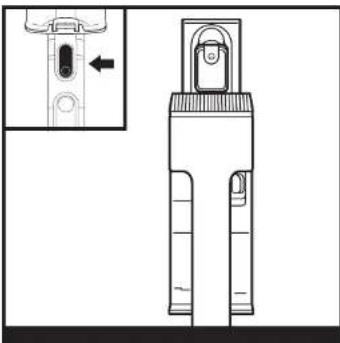

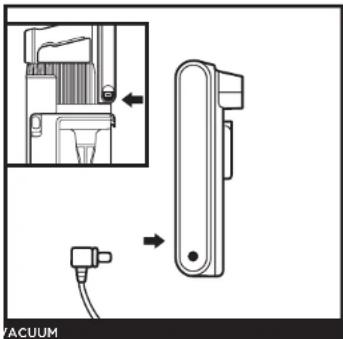

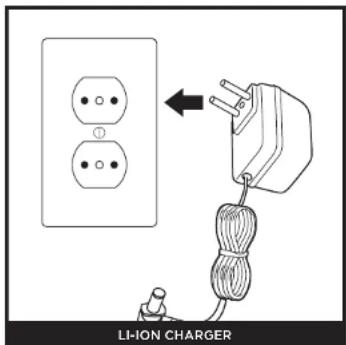

USING THE LI-ION CHARGER

LH-ON CHARGER

Plug the LI-Ion Charger into a wall outlet.

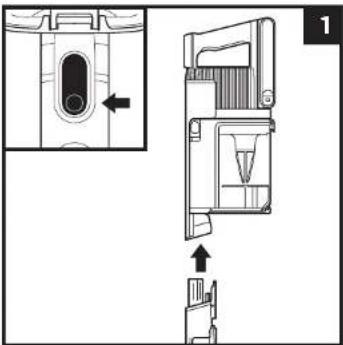

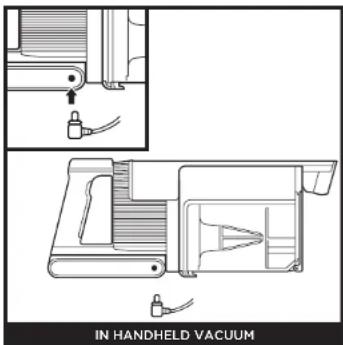

IN HANDHELD VACUUM

To charge the battery inside the handheld vacuum, connect the charger to an electrical outlet, then insert the charger plug into the port below the handle on the handheld vacuum.

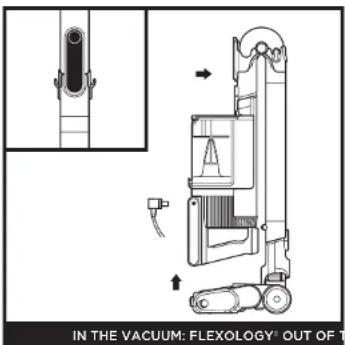

IN THE VACUUM: FLEXOLOGY OUT OF T

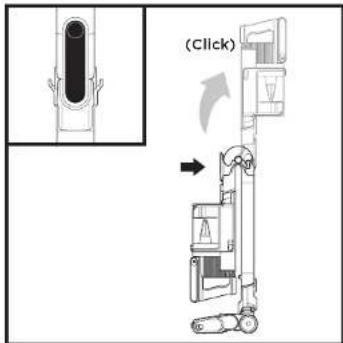

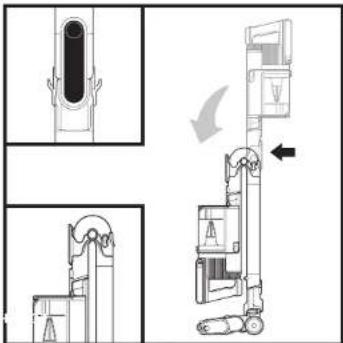

To put the vacuum in storage mode, press the Flexology Wand Unlock Latch while folding the handheld vacuum forward until the wand clicks and locks. Plug the charger into the charging port on the handheld vacuum.

YACUUM

Press and hold the Battery Release Button, then slide out the battery. Plug the charger into the charging port on the battery. To reinstall the battery, slide it into the slot in the back of the handheld vacuum until it clicks into place.

SETTINGS

POWER ON/OFF

Press power button to turn vacuum on or off.

NOTE: The unit will not turn on if the charger is connected. Unplug the charger before turning on vacuum power.

SUCTION MODE DISPLAY LIGHTS ECO CLEAN SENSE CO Clean Sense IQ™ Boost CLEANSSENSE 100% 100% SUCTION POWER MODES

Press the (✗) button to toggle between ECO, Clean Sense IQ™, and Boost modes. To save battery power, select ECO mode. For everyday cleaning power, select Clean Sense IQ mode. For an extra burst of power, select Boost mode.

CLEANSENSE CLEAN SENSE POWER MODE

Clean Sense IQ senses the dirt you can't see and automatically boosts power. Clean Sense IQ mode modifies cleaning performance based on the mess at hand, giving you optimal suction and runtime when heavy or light debris is detected.

CLEAN SENSE IQ DIRT INDICATOR NOZZLE LIGHT BAR

The Clean Indicator visually confirms when floors are cleaned. When the unit senses heavy debris, suction will increase for more cleaning performance. When the debris is cleared, suction will decrease. The clean indicator displays the level of debris detected. For best results, continue cleaning until the indicator returns to its lowest level before moving to the next area.

CLEANING MODES

UBRIGHT MODE

To clean floors, step on floor nozzle and tilt handheld vacuum back.
NOTE: Brushrolls will only engage when the handheld vacuum is tilted back.

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Press the wand release button and lift the handheld vacuum off the wand. An attachment can be used to clean stairs, furniture, and other above-floor areas.

ABOVE-FLOOR WITH WANDABOVE-

Stand the vacuum upright and press the nozzle release button located at the bottom of the wand, above the nozzle. Lift wand to detach. Great for cleaning baseboards, ceiling fans, window sills, and other hard-to-access areas.
NOTE: All accessories are compatible with both the wand and the handheld vacuum.

USING THE FLEXOLOGY WAND

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Press the unlock latch on the back of the wand, then adjust the angle.

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Adjust the wand to a lower angle to easily clean under furniture.

FLEXOLOGY STORAGE

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

To put the vacuum in storage mode, press the unlock latch while folding the handheld vacuum forward.

(Click)

To take the vacuum out of storage mode, press the unlock latch and lift up the handheld vacuum until the wand clicks and locks into place.

MAINTAINING YOUR VACUUM

Technical diagram of a mechanical device with cross-sectional view and internal components (no text or symbols)

Press the wand release button to detach the handheld vacuum from the wand.

Diagram of a mechanical device with a downward arrow indicating force or movement, no visible text or symbols

To empty the Dust Cup while it is attached to the handheld vacuum, position the dust cup over a bin and slide the lid release slider forward.

REMOVING AND CLEANING THE DUST CUP

Diagram illustrating a mechanical device with labeled components and directional arrow, showing a close-up of the component's internal structure.

To remove the dust cup from the handheld vacuum, press the Dust Cup Release button located on the base/bottom of the dust cup. Tilt the dust cup and lift off to remove.
To empty dust and debris, hold the dust cup over the bin, then slide the CleanTouch Dirt Ejector slider forward.

Line drawing of a laboratory apparatus with a funnel and tubing, no text or symbols present

To clean the interior of the dust cup, rinse it with water. Place it on its side with the lid open to air-dry for at least 48 hours before reinstalling.

MAINTAINING YOUR VACUUM

CLEANING THE FILTERS

Regularly rinse the filters to maintain your vacuum's suction power.

To clean filters, rinse them with water only. Allow all filters to air-dry completely for up to 48 hours before reinstalling, to prevent liquid from being drawn into electric parts.

Clean the pre-motor filters at least once a month and post-motor filter at least once a year. Tap off loose dirt between washes when needed. More frequent cleaning may sometimes be necessary with heavy use.

IMPORTANT: DO NOT use soap when cleaning the filters. Use water only. The vacuum will not have suction if the post-motor filter is not installed. Ensure that all filters are installed before using.

PRE-MOTOR FILTERS POST-MO

Remove the dust cup, and pull the foam and felt filters out of the back of the dust cup.

Diagram of a mechanical device with a downward arrow indicating a process or operation (no text or symbols present)

Remove the dust cup. Pull the post-motor filter out of the handheld vacuum.

Pre-Motor Foam and Felt Filter Kit Post-Motor Filter

MAINTAINING YOUR VACUUM

FLOOR NOZZLE

If any hair is wrapped around the brushroll, continue cleaning using the Carpet setting on a bare floor surface, a low-pile carpet, or a small area rug. If some fibres remain wrapped around the brushroll after continued use, carefully remove them. If you run over a hard or sharp object or notice a change in noise while vacuuming, check the floor nozzle for blockages. (See the Checking for Blockages in the Floor Nozzle section.)

CLEANING SOFT ROLLER

Technical line drawing of a mechanical assembly with a handle and base, showing motion arrows (no text or symbols)

1 To remove Soft Roller from nozzle, pull the Soft Roller out by the tab.
2 Tap loose debris off the Soft Roller. Use a dry towel to wipe the Soft Roller clean and to remove any debris caught in the teeth behind the Soft Roller.
3 Hand wash the Soft Roller as needed. Use only water, and let air-dry completely, which should take at least 24-48 hours.
4 Reinsert Soft Roller until you feel it click into place.

CLEANING THE SENSORS

Hand Vacuum Display Panel Fig. 1 Air path Battery Dust cup CLEAN SENSE IQ SENSORS

Make sure to clean the sensors inside the hand vacuum regularly, as hair and other debris may build up and obstruct them. If

the sensors are partially obstructed, Clean Sense IQ mode will not adjust suction levels as expected. If the sensors are completely obstructed, the F0 error code will appear and the Clean Sense IQ icon will flash on the hand vacuum display panel.

To clean the sensors:

1. Turn off power and remove the hand vacuum.

2. Locate the sensors inside the nozzle of the hand vacuum. The sensors are on the interior walls of the nozzle, about 3 inches down the air path, aligned with the IQ logos (Fig.2) on the exterior.

3. Gently wipe the sensors with a microfiber cloth and remove all hair and debris.
4. Turn on power and verify that the unit is functioning normally.
5. Locate the sensors inside the nozzle of the hand vacuum. The sensors are on the interior walls of the nozzle, about 3 inches down the air path, aligned with the IQ logos (Fig.2) on the exterior.
6. Gently wipe the sensors with a microfiber cloth and remove all hair and debris.
7. Turn on power and verify that the unit is functioning normally.

IQ logos- both sides Fig. 2

the sensors are partially obstructed, Clean Sense IQ mode will not adjust suction levels as expected. If the sensors are completely obstructed, the F0 error code will appear and the Clean Sense IQ icon will flash on the hand vacuum display panel.

To clean the sensors:

1. Turn off power and remove the hand vacuum.

MAINTAINING YOUR VACUUM

CHECKING FOR BLOCKAGES

Technical line drawing of a mechanical component with no visible text or symbols

Checking for Blockages In the Handheld Vacuum:

1. Turn off vacuum.
2. Remove the handheld vacuum from the wand.
3. Check all intake openings on the dust cup and remove any debris or blockage.

Technical diagram showing three-step mechanical assembly process with labeled components and directional arrows

Checking for Blockages In the Wand:

Standard Wand:

1. Turn off vacuum.
2. Remove the handheld vacuum and floor nozzle.
3. Look through wand to check for any blockages.
4. Clear away debris and blockages.

FLEXOLOGY\* Wand:

1. Turn off vacuum.
2. Remove the handheld vacuum and floor nozzle from the wand.
3. ChecktheClog Access Hose on the FLEXOLOGY® section of the wand by pinching the tabs on both sides of the hose and lifting the hose out.
4. Clear any debris and blockages.

Technical line drawing of a mechanical device with internal components and a close-up inset showing internal structure (no text or symbols)

Checking for Blockages in the Floor Nozzle:

1. Turn off vacuum.
2. Detach the wand.
3. Use the edge of a coin to open the three locks on the bottom of the floor nozzle.
4. Remove the cover and tilt back the neck of the floor nozzle.
5. Check the opening and remove any debris.
6. Replace the cover by sliding the inserts into the slots, then pressing down firmly on all sides before turning the locks clockwise to close, until they click securely into place.

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the Lithium Ion Power Pack battery before servicing.

Vacuum is not picking up debris. No suction or light suction. Filter icon on handheld vacuum control panel is red. (Refer to Checking for Blockages section for more information.)

- Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting in the vacuum.

• Dust cup may be full; empty dust cup.
- Check floor nozzle for blockages; clear blockages if required.
- Remove any string, carpet fibres, or hair that may be wrapped around the brushroll.
- Check clog access in wand for any blockages and clear any debris.
- Check connectors between handheld, wand, and floor nozzle for debris. Remove any dust or material in the connectors.
• If the issue persists, please contact Customer Service.

Vacuum lifts area rugs.

• Make sure you are not engaging Boost mode as this can be too much suction for lighter rugs. Take care when vacuuming area rugs or rugs with delicately sewn edges.
• Turn off the unit to disengage the brushroll and press the power button to restart.

Brushrolls do not spin.

• Immediately turn off the vacuum. Remove any blockages before turning the vacuum back on. Make sure the handheld vacuum is tilted back far enough for the brushrolls to engage. If the brushrolls still do not spin, please contact Customer Service.
• If the floor nozzle has headlights and they are not illuminated, there is a connection issue between the handheld vacuum, wand, and nozzle. Try disconnecting and reattaching the pieces. If the headlights still do not illuminate, please contact Customer Service.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps:

1. Turn on the vacuum and check the battery indicator lights located on the handheld vacuum, if recharging is needed, make sure power is turned off before connecting to the charger.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning the Filters sections).
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and battery to cool for at least 45 minutes, until they return to room temperature.
5. Press power button to restart the vacuum. Make sure the charger is not plugged into the port on the handheld vacuum.

NOTE: If vacuum still does not operate properly, contact Customer Service at [phone].

TROUBLESHOOTING GUIDE

	Fault	Error code display on
Motor	Motor No Start 10
	Motor Overheat 20
	Motor Overcurrent 30
	Motor Short 40
	Motor Overspeed 50
	System Comm Error	60
	Clean Sense IQ Sensor Block-age	F0
Nozzle	Nozzle Overheat	70
	Nozzle Short	F0

ADDITIONAL ACCESSORIES AVAILABLE ON SHARKCLEAN.EU

A 8" Crevice Tool
B 18" Flexi Crevice Tool
© Duster Crevice Tool
D Dusting Brush
E Multi-Angle Dusting Brush
F Anti-Allergen Dust Brush
G Upholstery Tool
Wilde Upholstery Tool
Pet Multi-Tool
Deep-Cleaning Motorised Pet Tool
K FLEXOLOGY* Under-Appliance Wand
Accessory Bag
M Li-Ion Charger
N Dual Li-Ion Charger
Li-Ion Battery

K

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkclean.co.uk.

Shark NINJA

FIVE (5) YEAR LIMITED GUARANTEE

When a consumer buys a product in the UK, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark we are so confident about the quality of our products that we give the product owner an additional manufacturer's guarantee of up to five years (1 year as standard plus 4 years when you register). Those terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee on next page).

Shark ^® Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark representative. You'll also find online support at www.sharkclean.co.uk

How do I register my extended Shark guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

- Model Number

To register online, please visit www.Sharkclean.eu/uk/register-guarantee. Products purchased directly from Shark are automatically registered.

IMPORTANT

- Your Shark guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark vacuum and hear the latest news about new Shark technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark ^® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark vacuum cleaner is guaranteed for a total of up to five years (12 months plus an extra 4 years on registration).

What Is covered by the free Shark ^4 guarantee?

Repair or replacement (at Shark's discretion) of your Shark machine, including all parts (excluding the Lithium ION power pack, please see next page for battery guarantee) and labour. A Shark guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark® guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the Operating Manual.

2. Normal wear and tear such as brush bar, fuse, belt, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark Operating Manual supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Faults caused by use of parts and accessories which are not Shark Genuine Components.

7. Faulty installation (except where installed by Shark).

8. Repairs or alterations carried out by parties other than Shark or its agents.

9. The Lithium ION power pack battery. Please see next page for battery guarantee.

What happens when my guarantee runs out?

Shark does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line and ask about our out of guarantee programme, on 0800 862 0453.

Where can I buy genuine Shark ^1 spares and accessories?

Shark spares and accessories are developed by the same engineers who developed your Shark vacuum. You'll find a full range of Shark spares, replacement parts and accessories for all Shark machines at www.sharkclean.co.uk.

Please remember that damage caused by use of non-Shark spares is not covered under your guarantee.

Shark NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in the UK, they got the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark ^® we are so confident about the quality of our products that we give the product owner an additional manufacturer's guarantee on the batteries of up to two years (1 year as standard plus 1 year when you register). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark® battery comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark® representative. You'll also find online support at www.sharkclean.co.uk

How do I register my extended Shark® guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine/battery:

- Date you purchase the machine/battery (receipt or delivery note)

- Model Number

To register online, please visit www.Sharkclean.co.uk/register-guarantee. Products purchased directly from Shark are automatically registered.

IMPORTANT

- The manufacturer's guarantee covers your battery for 12 months (or for 2 years, if registered) starting on the date of purchase. You'll need the date you purchased your machine (receipt or delivery note).

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark® batteries guaranteed for?

Our confidence in our design and quality control means that your new Shark ^2 vacuum cleaner battery is guaranteed for a total of up to two years (12 months plus an extended guarantee of 1 year on registration).

What is covered by the free Shark® guarantee?

Repair or replacement of your Shark® battery (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper functioning of your unit.

2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the battery which is not in accordance with the Shark ^® Instructions supplied with your machine.

3. Use of the battery for anything other than powering the Shark ^® vacuum cleaner with which it was supplied.

4. Use of parts not assembled or installed in accordance with the operating instructions.

5. Faults caused by use of parts and accessories which are not Shark Genuine Components.

6. Faulty installation (except where installed by Shark ^3 ).

Where can I buy genuine Shark® batteries?

Shark ^® batteries are developed by the same engineers who developed your Shark ^® vacuum. You'll find a full range of replacement batteries for all Shark ^® machines at www.sharkclean.co.uk. Please remember that damage caused by use of non-Shark ^® batteries may not be covered under your guarantee. However, your statutory rights are unaffected.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Oplader

I HÄNDHOLDT STÖVSUGER

CLEANSENSE CLEAN SENSE, STRÖMTILSTAND

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Justér skaftet til en lavere vinkel for let at rengøre under møbler.

OPBEVARING AF FLEXOLOGY

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or movement.

Diagram of a mechanical device with an arrow indicating direction, showing internal components and particle distribution (no text or symbols)

Diagram illustrating a chemical process involving a container and a slurry, with labeled steps and directional arrows.

For at fjerne støvopsamleren fra den håndholdte støvsuger skal du trykke på udløserknappen til støvbeholderen, der or placeret i bunden af støvopsamleren. Vip støvbeholderen og løft op for at fjerne den.
For at tømme støv og snavs skal du holde støvopsamleren over skraldespanden og derefter skubbe CleanTouch Dirt Ejector-skydeknappen fremad.

Line drawing of a laboratory apparatus with a funnel and container, no text or symbols present

Technical diagram of a mechanical device with a downward arrow indicating a component or assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

Technical line drawing of a mechanical component with two connectors (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Kontrollér for blokeringer | skaftet:

Standard-skaft:

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Kontrollér for blokeringer i gulvmundstykket:

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Carga

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or symbols)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a forklift operation with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional views and directional arrows (no text or symbols)

Diagram of a mechanical device with an arrow indicating direction, showing internal components and particle distribution (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrow, showing internal components and fluid flow.

Line drawing of a laboratory apparatus with a funnel and container, no text or symbols present

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

SENSORES CLEAN SENSE IQ

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical diagram showing a mechanical device with three views: top view, side view with mechanical component, and bottom view with tool.

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Ricarica

Simple line drawing of a power plug connected to two socket plates, with a cable and plug inserted (no text or symbols)

CARICABATTERIE PER BATTERIE AGLI IONI DI LITIO

Technical line drawing of a mechanical device with two views: top shows a lock mechanism, bottom shows a lever mechanism (no text or symbols)

ASPIRAPOLVERE PORTATILE

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

NELL'ASPIRAPOLVERE: FLEXOLOGY® FUOR

Diagram showing a mechanical device with a close-up view of internal components and a separate schematic view (no text or symbols)

L'ASPIRAPOLVERE

Pure electrical circuit lines without any symbols

CLEANSSENSE

Mechanical assembly diagram showing a vertical component with an inset view of its cross-section (no text or symbols present)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional views and directional arrows (no text or symbols)

Diagram of a mechanical device with an arrow indicating direction, showing internal components and particle distribution (no text or symbols)

Diagram illustrating a device's internal structure and fluid flow, with labeled components and directional arrow.

Line drawing of a laboratory apparatus with a funnel and container, no text or symbols present

Technical diagram of a mechanical device with a downward arrow indicating a component or assembly (no text or symbols present)

Technical line drawing of a mechanical device with a roller being inserted (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical device with internal components and a close-up inset showing internal components (no text or symbols)

CLEANSENSE CLEAN SENSE POWER-MODUS

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional views and an inset showing a component detail (no text or symbols)

Diagram of a mechanical device with arrows indicating movement or force, no visible text or symbols

Diagram illustrating a mechanical device with labeled components and directional arrow, showing internal structure and fluid flow.

Line drawing of a laboratory apparatus with a funnel and water outlet (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a component or assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

Technical line drawing of a mechanical component with two connectors (no text or symbols)

Technical diagram showing a mechanical device with three views: top view, side view with mechanical component, and bottom view with tool.

FLEXOLOGY ^4 -buls:

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Body Motor Watts: 309W

Dyse-watt: 80W

LES N∅YE GJENNOM OG OPPBEVAR FOR FREMTIDIG REFERANSE.

Flexology-oppbevaring 11

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Lading

LED vil pulsere hvitt när den när 100 % ladning.
LED vil pulsere grønt fra 76 % - 99 % ladning.
LED vil pulsere gult fra 0 % - 75 % ladning.
□ Ved ingen LED er batteripakken av

MERK: Full opiedning tar ca. 3,5 timer.

Ytterligere merknader

CLEANSENSE CLEAN SENCE KRAFTMODUS

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

VEDLIKEHOLDE ST∅VSUGEREN

T∅MMING AV ST∅VKOPP

Technical diagram of a mechanical device with cross-sectional views and an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical device with labeled components and directional arrows, showing internal structure and fluid flow.

Line drawing of a laboratory apparatus with a funnel and water inlet (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE FILTRENE

Diagram of a mechanical device with a downward arrow indicating a component or assembly (no text or symbols present)

VEDLIKEHOLDE ST∅VSUGEREN

GULVMUNNSTYKKE

Technical line drawing of a mechanical assembly with a handle and base, showing motion arrows (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

HVORDAN DU SER ETTER BLOKKERINGER

Technical line drawing of a mechanical component with no visible text or symbols

Sjekke etter blokkeringer i den håndholdte støvsugeren:

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with internal components and a close-up inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

A carregar

CLEANSENSE MODO DE POTÊNCIA CLEAN SENSE

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels, no text or symbols present.

Technical diagram showing a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with cross-sectional views and an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction, no visible text or symbols

Diagram illustrating a device's internal structure and fluid flow, with labeled components and directional arrow.

Line drawing of a laboratory apparatus with a funnel and water inlet (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a component or operation (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

SENSORES CLEAN SENSE IQ

Logótipos IQ → ambos os lados Fig. 2

Technical line drawing of a mechanical component with two connectors (no text or symbols)

Technical diagram showing a mechanical device with three labeled steps: before, after, and after assembly.

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Lataaminen

Diagram showing a mechanical device with a close-up inset of its internal structure (no text or symbols)

CLEANSENSE CLEAN SENSE -TEHOASETUS

Technical line drawing of a mechanical component with an inset showing a close-up view of a button (no text or symbols present)

Mechanical assembly diagram showing a vertical component with internal components and directional arrows indicating motion (no text or labels)

Simple line drawing of a robotic arm with a rectangular block and wheels (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical component with an inset view and directional arrows indicating assembly or movement.

Diagram of a mechanical device with a downward arrow indicating force or movement, no visible text or symbols

Diagram illustrating a mechanical device with labeled components and directional arrow, showing a close-up of the component's internal structure.

Line drawing of a laboratory apparatus with a funnel and tubing, no text or symbols present

KISUODATIN

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Rikkalmurin tukosten tarkistus:

Technical diagram showing a mechanical device with three views: top view, side view with mechanical component, and bottom view with tool.

Varren tukosten tarklstus:

Vaklovarsl:

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Laddning

I HANDHALLEN DAMMSUGARE

E DAMMSUGER

CLEANSENSE CLEAN SENSE EFFEKTLÄGE

Technical diagram of a mechanical device with cross-sectional views and directional arrows (no text or symbols)

Diagram of a mechanical device with an arrow indicating direction, showing internal components and particle distribution (no text or symbols)

Diagram illustrating a device's internal structure and its process, with labeled parts and directional arrow.

Line drawing of a laboratory apparatus with a funnel and water inlet (no text or symbols)

INSUGSFILTER UTBLASFILTERS

Diagram of a mechanical device with a downward arrow indicating a component or operation (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and a cutting tool (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical diagram showing a mechanical device with three views: top view, side view with mechanical component, and bottom view with tool.

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

FLER TILLBEHÖR FINNS ATT BESTÄLLA PÅ SHARKCLEAN.EU

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Shark® vacuum.

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

© 2023 SharkNinja Operating LLC. DUOCLEAN, FLEXOLOGY and SHARK are registered trademarks of SharkNinja Operating LLC.

POWERFINS PLUS is a trademark of SharkNinja Operating LLC.

LÆS DENNE VEJLEDNING OMHYGGELIGT IGENNEM, OG GEM DEN TIL FREMTIDIGE OPSLAG.
