CCS-UCA-MIC - Microphone Crestron - Free user manual and instructions

Product Type	Handheld microphone with gooseneck
Brand	Crestron
Model	CCS-UCA-MIC
Dimensions (L x W x H)	Approx. 200 x 100 x 50 mm (estimated)
Weight	Approx. 150 g
Power	48 V phantom power (via mixing console)
Capsule Type	Electret condenser
Polar Pattern	Cardioid
Frequency Response	50 Hz to 20 kHz
Connector	3-pin XLR
Intended Use	Meeting rooms, conferences, speeches
Maintenance and Cleaning	Clean with a dry cloth. Avoid liquids.
Safety	Do not expose to water or moisture. Disconnect before cleaning.
Spare Parts / Repairability	Repair only by qualified technician. No user-serviceable parts.
Warranty	See www.crestron.com/warranty
General Information	Manufactured by Crestron Electronics, Inc. Class II, grounding required.

Frequently Asked Questions - CCS-UCA-MIC Crestron

How to connect the CCS-UCA-MIC microphone?

The microphone connects via a 3-pin XLR input. It requires 48 V phantom power supplied by the mixing console or audio interface.

What type of cable to use?

A good quality male to female XLR cable is recommended. Avoid cables longer than 10 meters to prevent signal loss.

Is the microphone compatible with all Crestron systems?

Yes, the CCS-UCA-MIC is designed to be used with Crestron systems and other standard audio equipment. Verify phantom power specifications.

How to clean the microphone?

Use a soft, dry cloth. Never use liquids or chemicals. Disconnect the microphone before cleaning.

Can I use this microphone outdoors?

No, this microphone is intended for indoor use. Avoid exposure to rain, moisture, or excessive dust.

What to do in case of malfunction?

First check the connections and phantom power. If the problem persists, contact a qualified technician. Do not open the housing: it contains no user-serviceable parts.

How to install the microphone on a table?

The CCS-UCA-MIC microphone is often mounted on a gooseneck base or stand. Secure it using the included mount or a compatible one, following the manufacturer's instructions.

Are there important safety precautions?

Yes: do not expose to water, do not use near heat sources, disconnect during thunderstorms, and have any repairs done by a professional.

Where to find the product warranty?

The warranty is available online at www.crestron.com/warranty. See this page for details.

How to recycle this microphone at end of life?

In accordance with the WEEE Directive 2012/19/EU, do not dispose of the product with household waste. Take it to a recycling center or contact your Crestron distributor.

USER MANUAL CCS-UCA-MIC Crestron

Crestron Electronics, Inc.

QR code image containing encoded data, no visible human-readable text

The original language version of this document is U.S. English.

All other languages are a translation of the original document.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed online at www.crestron.com/legal/patents.

Chinese: Crestron 产品所覆盖的特定专利列表可在线查看www.crestron.com/legal/patents。

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

©2023 Crestron Electronics, Inc.

English

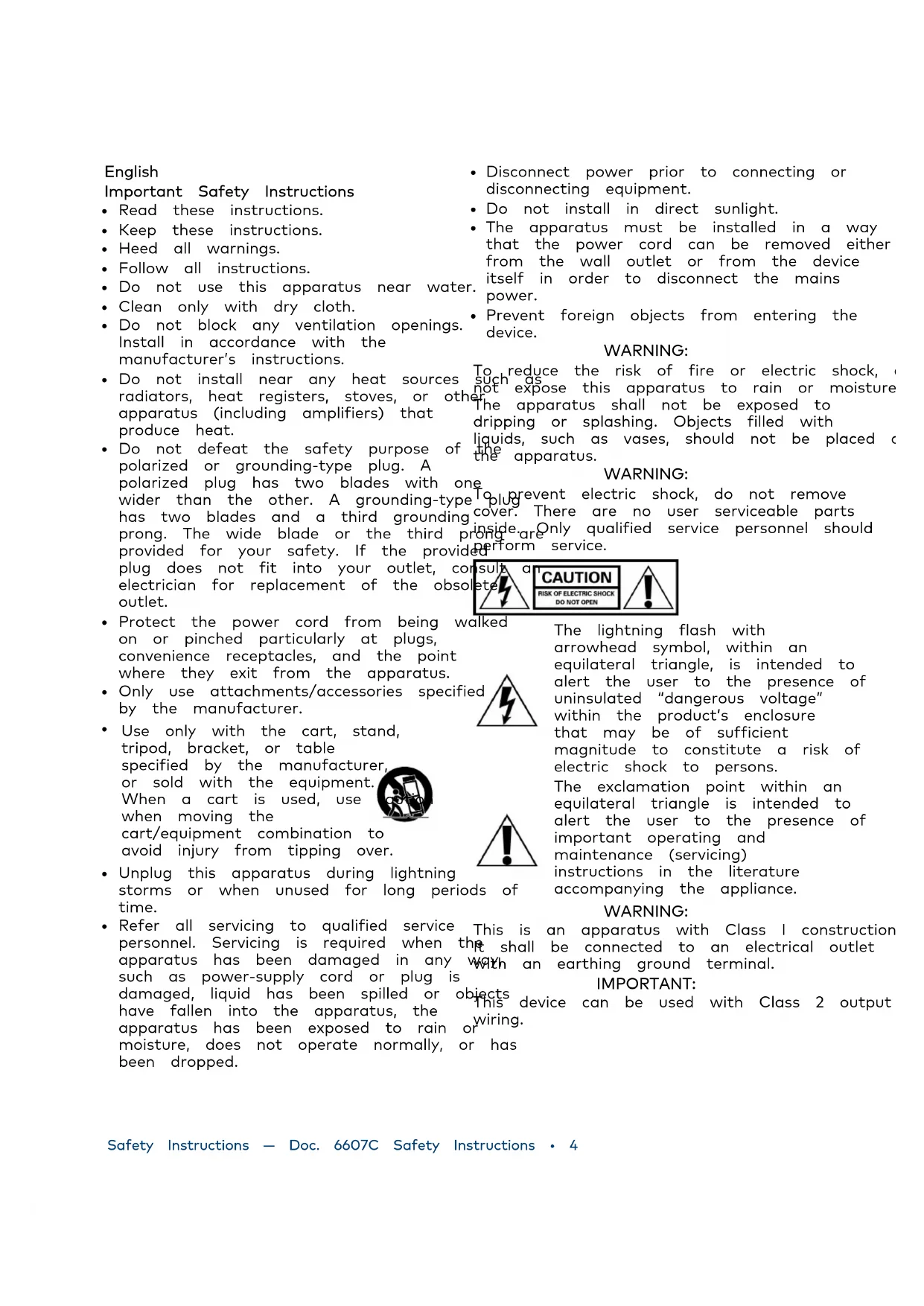

Important Safety Instructions

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources radiators, heat registers, stoves, or ot apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of polarized or grounding-type plug. A polarized plug has two blades with a wider than the other. A grounding-type has two blades and a third grounding-prong. The wide blade or the third is provided for your safety. If the providing plug does not fit into your outlet, an electrician for replacement of the obso outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use of when moving the cart/equipment combination to avoid injury from tipping over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service This is personnel. Servicing is required when the shall apparatus has been damaged in any way with an such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the device. This dev. apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Disconnect power prior to connecting or disconnecting equipment.
• Do not install in direct sunlight.
• The apparatus must be installed in a way that the power cord can be removed either from the wall outlet or from the device itself in order to disconnect the mains power.
• Prevent foreign objects from entering the device.

WARNING:

To reduce the risk of fire or electric shock, it is not exposed this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing. Objects filled with liquids, such as vases, should not be placed on the apparatus.

WARNING:

To prevent electric shock, do not remove cover. There are no user serviceable parts inside. Only qualified service personnel should perform service.
