| Product Type | 2-Door Domestic Refrigerator |
| Brand | TCL |
| Model | RF318BWF0 |
| Total Volume | 318 L |
| Refrigerator Volume | 219 L |
| Freezer Volume | 99 L |
| Dimensions (W x D x H) | 595 x 630 x 1850 mm |
| Net Weight | 60 kg |
| Power Supply | 220-240 V ~ 150 Hz, 0.8 A |
| Climate Class | N/ST/T (16 °C to 43 °C) |
| Annual Consumption | 309 kWh/year |
| Consumption at 16 °C | 0.562 kWh/24h |
| Consumption at 32 °C | 1.131 kWh/24h |
| Refrigerant | R600a, 52 g |
| Noise Level | 40 dB(A) |
| Defrost Type | No Frost |
| Temperature Control | Electronic with Display Panel |
| Interior Lighting | LED, Energy Efficiency Class F |
| Included Accessories | 3 glass shelves, 1 vegetable drawer, 3 freezer drawers, 3 bottle holders, 1 ice cube tray, 1 egg holder |
| Door Reversibility | Yes (possibility to reverse opening direction) |
| Maintenance Instructions | Clean with neutral detergent, manual defrost if necessary, do not use metal objects |
| Safety | Child lock, automatic shutdown in case of overheating, mandatory grounding |
| Spare Parts | Available through TCL after-sales service (hinges, LED bulbs, shelves, etc.) |
Frequently Asked Questions - RF318BWF0 TCL
User questions about RF318BWF0 TCL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual RF318BWF0 - TCL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RF318BWF0 by TCL.
USER MANUAL RF318BWF0 TCL
■Please carefully read the operation instructions before power on, and keep it properly.
■The products may subject to changes without notice.
Two-Door Household Refrigerator Operating Instructions
RF318BSF0
RF318BWF0
Contents
Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service.
Safety instructions P2
Product introduction P5
Handling and placement P6
Preparations prior to use P7
Operation notes P8
Illustration and operation of display panel P8
Food storage P9
Ice-making P9
Disassembly and assembly method of accessory P12
Maintenance P12
Failure analysis P13
Non-failure P13
Technical parameter P14
Packing list P14
Safe recovery instructions P15
Description of climate types P15
- This appliance is not intended for use by persons (including children) with reduced physical.
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
-
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
WARNING: Do not damage the refrigerant circuit.
-
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended to be used in household and similar applications such as
— Staff kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.
- This product contains a light source of energy efficiency class F for light source ERP, test with (without) light cover.
Safety instructions
1. Warning
Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.
Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.
Warning: Never damage the refrigerating circuit.
Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.
Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.
Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.
Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.
Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.
Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.
Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.
Warning: Under the climate types N, ST and T, the operating ambient range of the appliance is 16^ C\~ 43^ C. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.
Warning Risk of fire / flammable materials:
Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances
Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
2. Cautions
Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.
Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.
Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.
Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.
Safety instructions
EN
Cautions: The refrigerator must not be used in the rain or under the sunshine.
Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.
Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.
Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.
Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;
Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.
Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.
Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).
Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).
Product introduction
EN
Features
--Computer intelligent temperature control ; air cooling and frost free.
--Environmental-friendly refrigerant, It applies materials without CFC, R600a environmental-friendly materials. 80% of the main materials can be recycled;
--Transparent drawers with novel appearances and their internal foods can be clear at a glance;
--The tempered glass refrigeration shelves are height adjustable, wear proof, heat-proof and practical;
--The concealed condenser applies flat back design. It has perfect and coordinated style which is simple, easy to clean and high utility rate of space;
--This product adopts the efficient mute compressor of international brand and special case foaming technology, and features low noise, low energy consumption, and is more suitable for family and commercial purposes.
Warm prompt:
If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application.
Please feel relieved about usage.
Certain space shall be left around the refrigerator, shown in the figure.
--When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).
--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.
--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.
--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise;
--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.
This refrigerating appliance is not intended to be used as a built-in appliance. The outline dimension of the product and the space needed by the use of product are shown in the following.
- Remove all packing assemblies such as case fixing tape etc., especially the foam base.
- Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
- After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
Please refer to the product introduction picture on page 5 for the placement of accessories.
ELECTRONIC CONTROL
The above is the computer control board of the product
Power on for the first time
The first time the power is turned on, the refrigerator runs under 5^ C.
Gear adjustment
Repeatedly pressing the "< "key or" >" key, the refrigerator position will cycle between "02" → "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.
Power-off memory
When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.

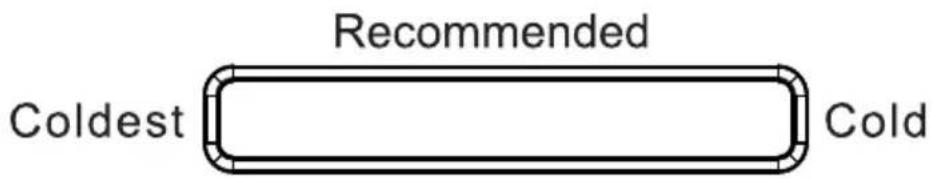

Damper adjustment paddle
damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.
Refrigerator temperature adjustment
When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.
Freezer temperature adjustment
When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.
Foods storage
Refrigerating chamber (2°C\~8°C)
--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.
Freezing chamber (-24°C\~-15°C)
--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.
★★ Warm tips:
The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.
Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.
Ice-making (If the appliance has it)
Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.
Replaceable (LED only) light source by a professional

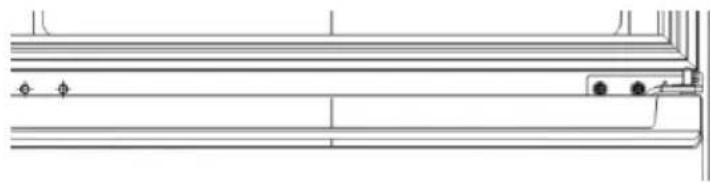

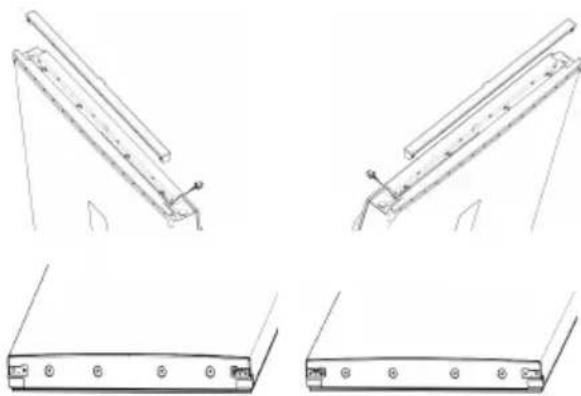

Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed. Please prepare the following items in advance:

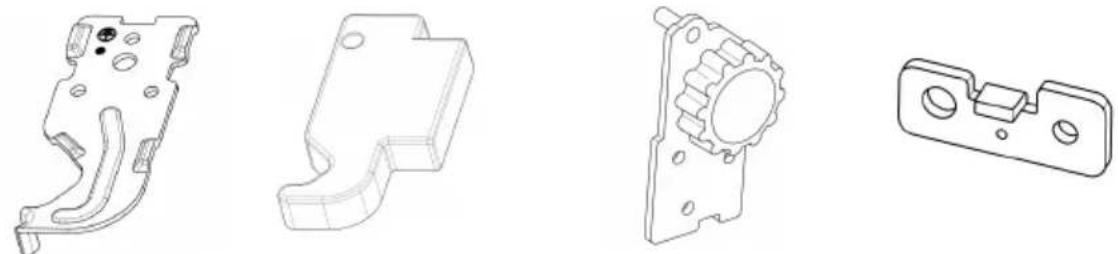

Left upper hinge × 1 left upper hinge cover × 1 lower left hinge assembly × 1 left door stop × 2
- Close the door and take out the screws from the upper hinge cover with a cross screwdriver. Remove the hinge cover, then disassemble the connection terminal, remove the top hinge and take off upper door. Remove left screw cover.
Operation notes
Disassembly and assembly method of

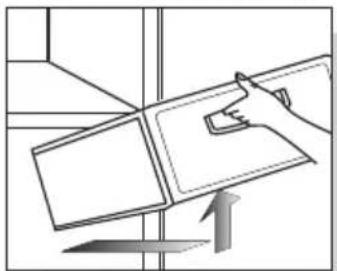

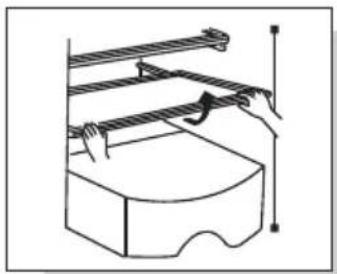

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.
Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.
--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.
Note: Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.
Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.
Maintenance
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.
--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;
--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.
Inspections after maintenance:
- Whether there are damages to the power line and plug; 2. Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5. Whether the plug is totally inserted.
Note:
If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before re-plugging it;
Do not put your hands under the refrigerator to avoid getting hurt.
Failure analysis
EN
The following items shall be inspected before occurring failures which require maintenance:
Failures: Refrigerator does not work, The refrigeration effect is poor
Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.
Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.
Failures: Foods in refrigerating chamber are frozen
Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.
Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf
Failures: There is abnormal sound in refrigerator
Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.
Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.
Failures: There is abnormal odor in refrigerator
Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.
Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.
Non-failures
Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.
Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.
Phenomenon:The door is too tight and not easy to open
Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.
Phenomenon: There is water ripple in refrigerator
Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.
Phenomenon: There is "Click" sound or tick sound in refrigerator
Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator
Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)
Phenomenon: There is condensation or frosting freezing chamber door surface or food surface
Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped
Phenomenon: There is condensation on the built-in light surface
Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.
Phenomenon: There is condensation and water mist on body
Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation
| Model | RF318BSF0 | RF318BWF0 | |||||
| Climate type | N/ST/T | N/ST/T | |||||
| Electric shock resistance | I | I | |||||
| Star sign | *** | *** | |||||
| Total Volume | 318L | 318L | |||||
| Fresh food compartment | 219 L | 219 L | |||||
| Volume of Freezer | 99L | 99L | |||||
| Power type | 220-240V-/50Hz | 220-240V-/50Hz | |||||
| Rated current | 0.8A | 0.8A | |||||
| Power consumption | 309kW·h/y | 309kW·h/y | |||||
| Lamp power | 2 W | 2 W | |||||
| Weight | 60 kg | 60 kg | |||||
| Dimension | 595x630x1850mm | 595x630x1850mm | |||||
| Refrigerant and charge amount | R600a,52g | R600a,52g | |||||
| Noise Volume | 40dB (A) | 40dB (A) | |||||
| Energy consumption E16 | 0.562 kWh/24h | 0.562 kWh/24h | |||||
| Energy consumption E32 | 1.131kWh/24h | 1.131kWh/24h |
Packing list
| Annex\Model | RF318BSF0 | RF318BWF0 | |||||
| Refrigerating shelf | 3 | 3 | |||||
| Fruit and vegetable box cover | 1 | 1 | |||||
| Fruit and vegetable box | 1 | 1 | |||||
| Ice-making box | 1 | 1 | |||||
| Egg box | 1 | 1 | |||||
| Refrigerating door bottle bracket | 3 | 3 | |||||
| Freezing drawer | 3 | 3 | |||||
| Operating instruction | 1 | 1 |
Safe recovery instructions
EN
Disposal
Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.
The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office.
| Correct Disposal of this product. | |
 | This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and ollection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. |
Description of climate types
Table 1 Climate classes
| Class | Symbol | Ambient temperature ranges°C |
| Extended temperate | SN | + 10 to + 32 |
| Temperate | N | + 16 to + 32 |
| Subtropical | ST | + 16 to + 38 |
| Tropical | + 16 to + 43T |
Extended temper ate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’;
Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16° C to 38° C';
Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16° C to 43° C';
Dear customer
if you need customer service, please check warranty card for further information.
Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)
Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.natural_image
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram of a hand holding a rectangular object with an upward arrow, no text or symbols presentnatural_image
Line drawing of an electrical plug and a wall-mounted switch with a directional arrow (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon box with steam rising, next to a sun and a monitor (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular box with arms and legs, standing on tiled floor with directional arrows (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)natural_image
Cartoon illustration of a cube with steam rising, placed on a base with steam lines (no text or symbols)Netter Hinweis:
Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawings of mechanical components with mounting holes and a base plate (no text or symbols)natural_image
Pure mechanical linkage diagram with two vertical supports and gear symbols, no text or labels presentnatural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand interacting with a document or folder, with an upward arrow indicating motion (no text or symbols present)natural_image
Simple line drawing of an electrical plug and a wall socket with a switch (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon refrigerator with steam rising, accompanied by a sun and a microwave oven (no text or symbols)natural_image
Cartoon illustration of a smiling character standing beside a rectangular block on a tiled floor (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)natural_image
Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)Warmte prompt:
Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbolsnatural_image
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols presentnatural_image
Illustration of a plug with a switch next to an electrical outlet (no text or symbols)text_image
Neutral detergenttext_image
Diagram showing a person pushing a cart with a 45-degree angle annotation, likely illustrating vehicle motion or safety instructions.natural_image
Illustration of a cartoon box with steam rising, next to a sun and a microwave device (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor with arrows indicating movement (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)natural_image
Cartoon illustration of a smiling cube with steam rising, placed on a textured base (no text or symbols)Recordatorio:
Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawings of mechanical components with mounting holes and mounting points (no text or symbols)natural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols presentnatural_image
Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)text_image
Neutral detergentnatural_image
Illustration of a cartoon character standing beside a box with steam rising, under a sun (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor with directional arrows (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box with hands clasped, surrounded by decorative stars and swirls (no text or symbols)natural_image
Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)Alerta morno:
Illustration of hands holding a grid-based tray with directional arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical assembly without any text, numbers, or symbolsnatural_image
Technical line drawings of mechanical components with no visible text or symbolsnatural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand inserting a card into a folder with an arrow indicating direction (no text or symbols)natural_image
Illustration of a plug with a switch next to an electrical outlet (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon refrigerator with steam rising, accompanied by a sun and microwave oven (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating direction (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)natural_image
Cartoon illustration of a cube with a smiling face and steam lines, placed on a base with no text or symbols.text_image
Recommended Coldest Coldnatural_image
Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols presentnatural_image
Simple line drawing of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon character standing beside a cardboard box with steam rising, under a sunny sky (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows pointing downward (no text or symbols)natural_image
Cartoon illustration of a smiling face inside a box surrounded by snowflakes and motion lines (no text or symbols)natural_image
Cartoon illustration of a cube with a smiling face and steam lines, placed on a base with steam rising (no text or symbols)Προειδοποίηση:
Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)GR
Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbolsnatural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Simple line drawing of a mechanical assembly with no text or symbolsnatural_image
Diagram of a hand pressing down on a panel with an upward arrow, no text or symbols presentnatural_image
Illustration of a plug and socket connected to an electrical outlet (no text or symbols)text_image
Neutral detergenttext_image
Recommended Coldest Coldnatural_image
Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand pressing down on a rectangular panel with an upward arrow, no text or symbols presentnatural_image
Line drawing of a plug with a switch next to an electrical outlet (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon character standing beside a box under a sun, with a monitor and fan nearby (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor with directional arrows (no text or symbols)natural_image
Cartoon illustration of a distressed face inside a box surrounded by snowflakes and motion lines (no text or symbols)natural_image
Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)Wpływ ciepła:
730mm 795mmtext_image
1390mm 1025mmtext_image
Non-rarely electric capside drive, any sensitized producttext_image
Recommended Coldest Coldnatural_image
Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)
Pure technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawings of mechanical components with mounting holes and mounting brackets (no text or symbols)natural_image
Technical line drawing of a mechanical component or bracket (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols presentnatural_image
Illustration of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)text_image
Neutral detergentnatural_image
Illustration of a cartoon refrigerator with steam rising, accompanied by a sun and a microwave (no text or symbols)natural_image
Cartoon illustration of a smiling rectangular box with arms and legs, no text or symbols presentnatural_image
Cartoon illustration of a smiling face inside a cube surrounded by snowflakes and decorative elements (no text or symbols)natural_image
Cartoon illustration of a smiling cube with steam rising, placed on a base (no text or symbols)Важно знать:
The above is the computer control board of the product
Power on for the first time
The first time the power is turned on, the refrigerator runs under 5^ C.
Gear adjustment
Repeatedly pressing the "< "key or" >" key, the refrigerator position will cycle between "02" → "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.
Power-off memory
When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.
Damper adjustment paddle
damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.
Refrigerator temperature adjustment
When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.
Freezer temperature adjustment
When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.
RU
Органы управления

