USER MANUAL RP465TSE0 TCL

10.This product contains a light source of energy efficiency class F for light source ERP, test with(without) light cover. Safe recovery instructions Description of climate types

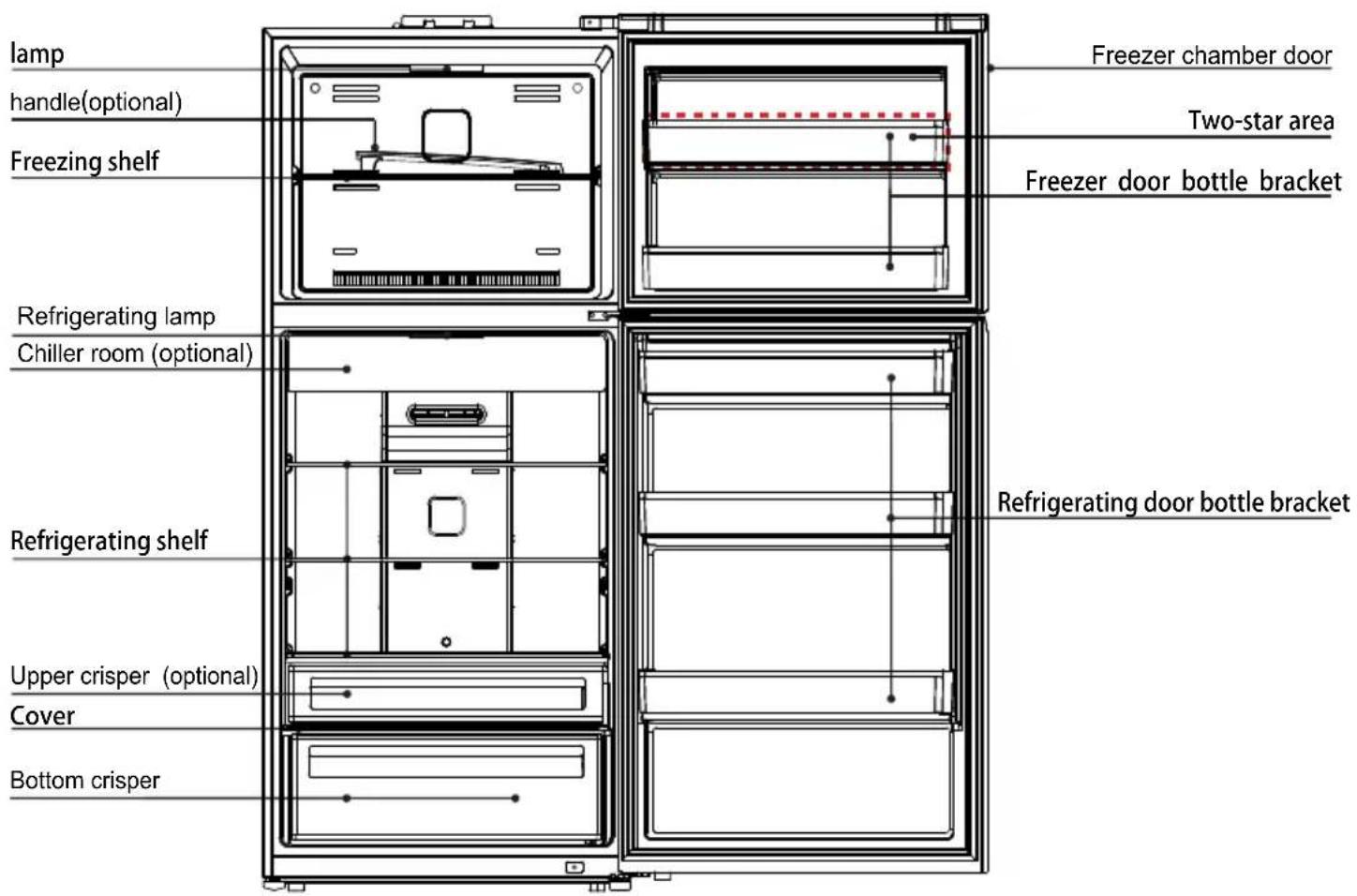

Cover Freezer chamber door Two-stararea Freezerdoorbottlebracket RefrigeratingdoorbottlebracketFreezingshelfRefrigeratingshelfBottom crisper Chiller room (optional) lamp handle(optional) (The names of the two-door refrigerator parts in the picture are for reference and please make the specific object as the standard.) Warm prompt: If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application. Please feel relieved about usage. Upper crisper (optional) Refrigerating lampEN 6EN ＞L1+100 ＞W1+200 This refrigerating appliance is not intended to be used as a built-in appliance

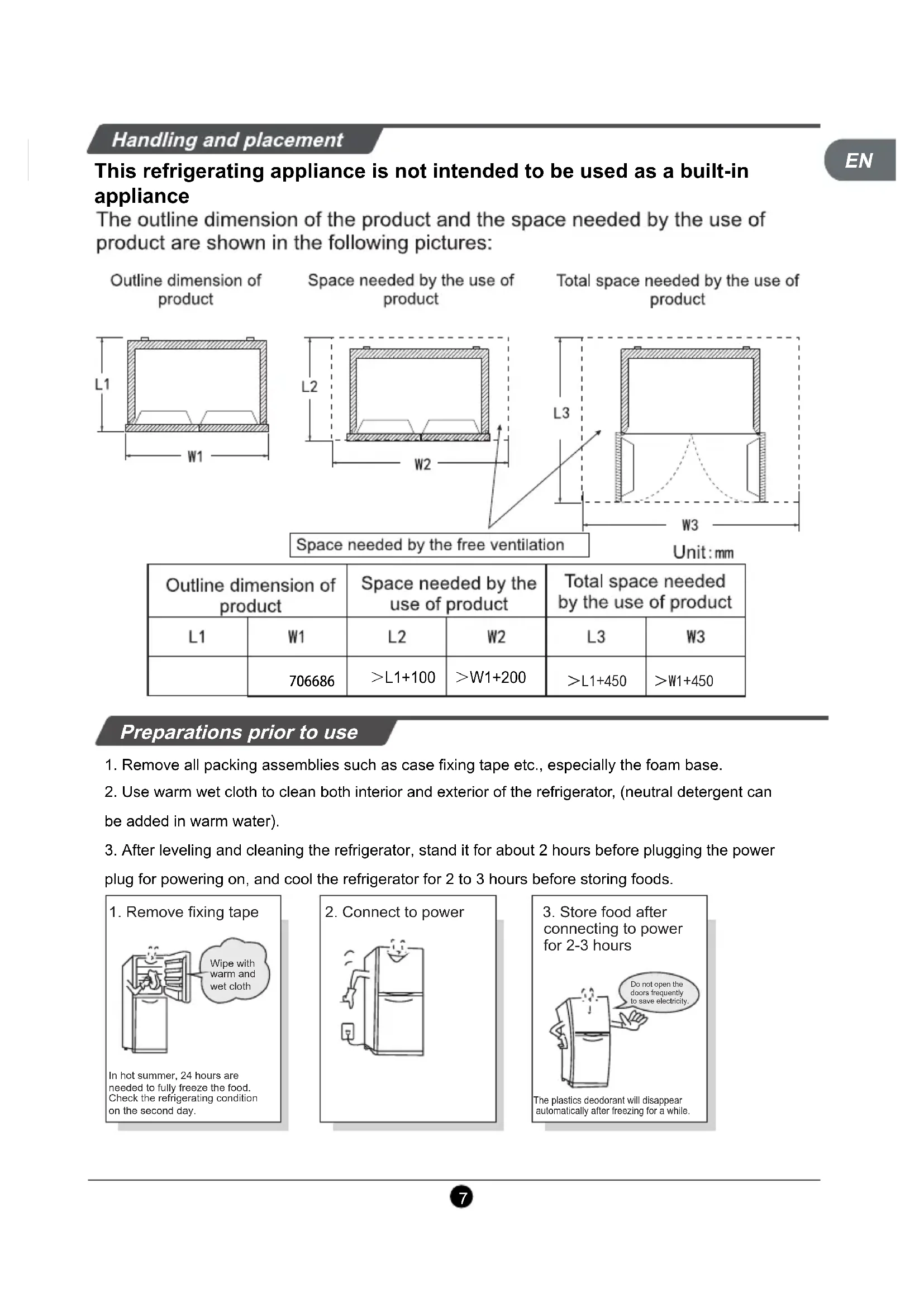

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.

2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can

be added in warm water). 3. After leveling and cleaning the refrigerator, stand it for about 2 hours before plugging the powerplug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

1. Remove fixing tape 2. Connect to power 3. Store food after

connecting to power for 2-3 hoursWipe with warm and wet clothIn hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day.Do not open the doors frequently to save electricity.The plastics deodorant will disappear automatically after freezing for a while. ＞L1+450 ＞W1+450 706686EN

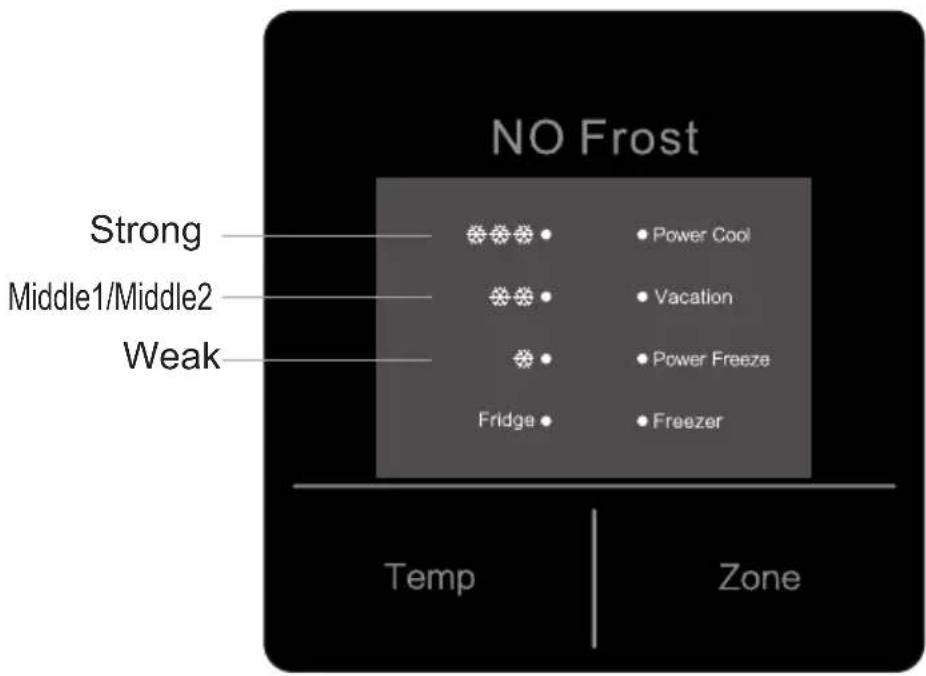

The above is the computer control board of the product Operation and diagram of display board Middle1/Middle2 Weak StrongEN

The function of adjusting the temperature manually Temperature adjustment in cooling room Repeatedly press the button of " Zone" until the indicator at the temperature zone of refrigeration is on, press the button of "Temp" to conduct the temperature adjustment for the refrigerator. The grades for the refrigerator are cycling between "strong" - "middle 1" - "middle 2"- "weak" - "power cool" - "vacation" - "strong". Temperature adjustment of freezer compartment Repeatedly press the button of "Zone" until the indicator at the temperature zone of freezing is on, press the button of "Temp" to conduct the temperature adjustment for the freezing chamber. The grades for the freezing chamber are cycling between "strong" - "middle 1" - "middle 2" - "weak" - "power freeze" - "strong". Quick refrigerating function Under the status with the indicator at the temperature zone of refrigeration being on, repeatedly press the button of "Temp" until the "power cool" function indicator is on, and then enter the power cool function for the refrigerator. After you enter the "power cool" for 2 hours,you will automatically exit the quick-cooling function. After you exit the quick-cooling function, the set temperature inside the refrigerator will automatically return to middle 2 . Under the status of the quick-cooling function being on, after the time of opening for the refrigerating door is over 3 minutes, it will automatically exit power cool function. Quick freezing function Under the status with the indictor at the temperature zone of freezing being on, repeatedly press the button of "Temp" until the "power freeze" function indicator is on, and then enter the quick-freezing function for the freezing chamber. After the refrigerator enters the "power freeze", it will enter the status of strong cooling, and will automatically exit after 4 hours. After you exit the quick-freezing function, the set temperature inside the freezing chamber will automatically return to middle 2 . Under the status of the fast freezer function being on, after the time of opening for the freezer door is over 3 minutes ,it will automatically exit power fast freezerEN

Foods storage Refrigerating chamber (2℃~8℃) --The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink. --Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss. --The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing. Freezing chamber (-22℃~-15℃) --Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer. --The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing. --The fresh foods shall not be stored together with the frozen foods. --Do not place food close to inside wall in freezer lest food and wall should be frozen together. ★★ Warm tips: The stored food, if any, shall not block the air duct outlet and return

port for fear of a ecting the refrigerating e ect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature. Vacation function Under the status of the indicator at the temperature zone of refrigeration being on, repeatedly press the button of "Temp" until the "vacation" function indicator is on, after the "vacation” indicator is on, it will enter the vacation function. (Note: under the status of the "vacation" function being open, the refrigerator will enter the off status; Before the initiation of the vacation function, please take out the food in the refrigerator.)EN

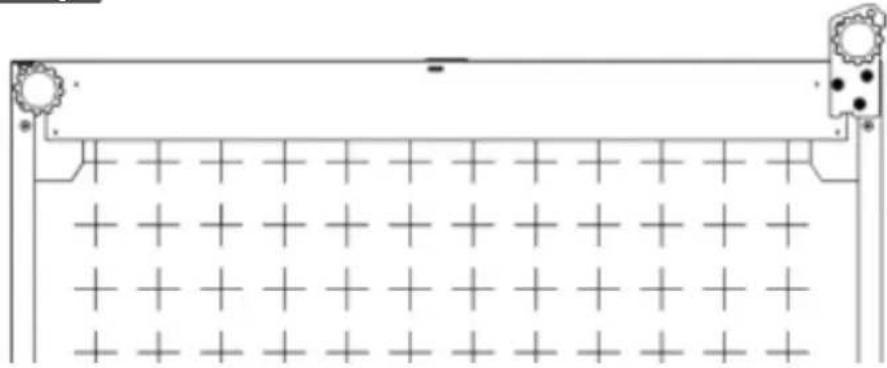

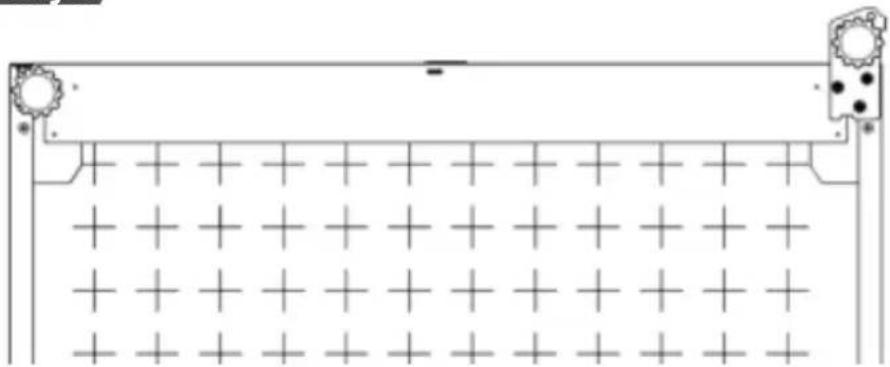

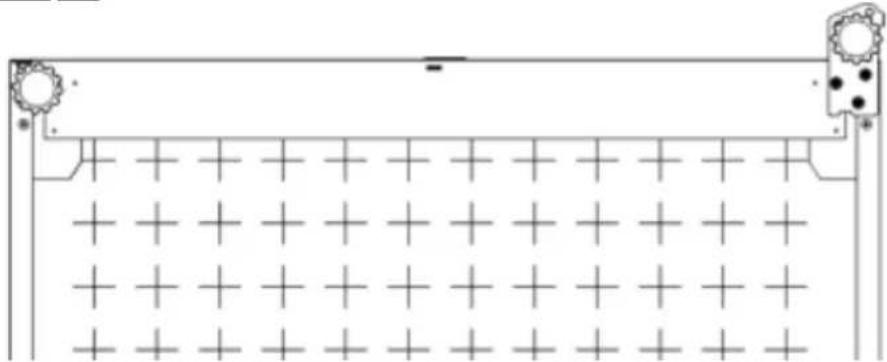

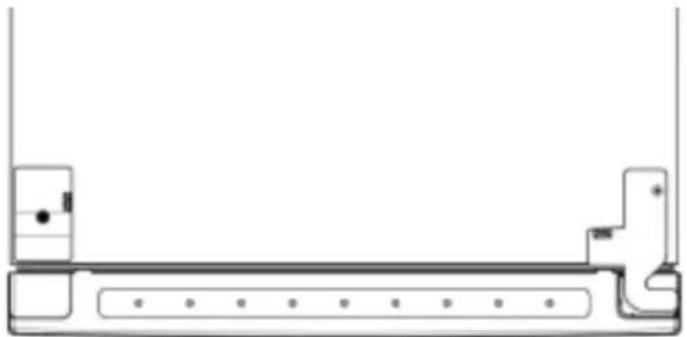

Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed. Please prepare the following items in advance: Left upper hinge × 1 Left middle hinge × 1 left upper hinge cover × 1 left lower hinge assembly × 1 right upper decorative cover × 1 left door stop × 2 1.Close the door and remove the screws from the upper hinge cover with a cross screwdriver. Remove the hinge cover, then disassemble the connection terminal, remove the top hinge and remove the door. Remove left screw cover. 2.Take out the middle hinge screw with a cross screw driver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door. 3.Laying down the refrigerator, and remove the lower hinge and leveling angle at the bottom of the refrigerator.Operation keys

4.Remove the left decorative cover on the upper end of the door, and install the right decorative cover prepared before (Note: put the wiring harness into the decorative cover). Install the left door stopper on the left side of the upper and lower door, and install the stop prepared before.

replacement of upper and lower door stop is the same) removed leveling angle to the right side, and install the lower door. 5.Install the left lower hinge assembly prepared in advance on the left side, install the previously 6.Install the prepared middle hinge in the left mounting position and install the previously removed screw cover into the right screw hole. ENOperation keys

4.Remove the left decorative cover on the upper end of the door, and install the right decorative cover prepared before (Note: put the wiring harness into the decorative cover). Install the left door stopper on the left side of the upper and lower door, and install the stop prepared before.

replacement of upper and lower door stop is the same) removed leveling angle to the right side, and install the lower door. 5.Install the left lower hinge assembly prepared in advance on the left side, install the previously 6.Install the prepared middle hinge in the left mounting position and install the previously removed screw cover into the right screw hole. ENEN

Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.EN 15EN

Ambient temperature ranges℃ + 10 to + 32 + 16 to + 3

+ 16 to + 38 + 16 to + 43T Class Extended temperate Temperate Subtropical Tropical Table 1 Climate classes

d temperate:‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; temperate:‘ this refrigerating appliance is intended to be

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled. The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To retum your used device, please use the return and ollection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycing. Safe recovery instructions

N + 10 to + 32+ 16 to + 32+ 16 to + 38+ 16 to + 43T
