USER MANUAL WM2044CW LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the washer is installed correctly and safely. Leave these instructions near the washer after installation for future reference.

MACHNÉ À LÀVERVER

GUIDEDDEULUSALHSATHUR ET DIRECTIVES INSTINATION

Designed specially to use only HE (High-Efficiency) detergent

To contact LG Electronics, 24 hours a day, 7 days a week:

1-888-LGCANADA

Or visit us on the Web at: ca.lge.com

Abstract black-and-white graphic of a stylized garment with flowing lines and geometric shapes (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

Basic Safety Precautions 3-6

PARTS AND FEATURES

Special Features 7

Key Parts and Components 8

INSTALLATION INSTRUCTIONS

Choose the Proper Location 9

Clearances 9

Flooring 10

Unpacking and Removing Shipping Bolts ...... 11

Connecting the Water Lines 12

Connecting the Drain Line 13

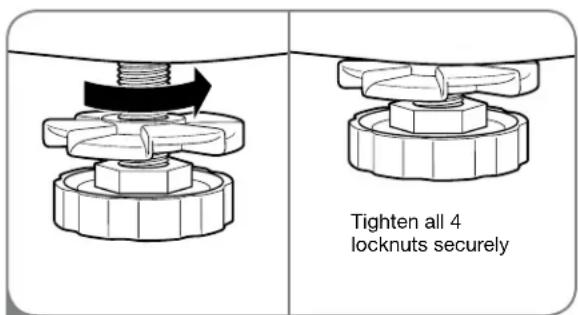

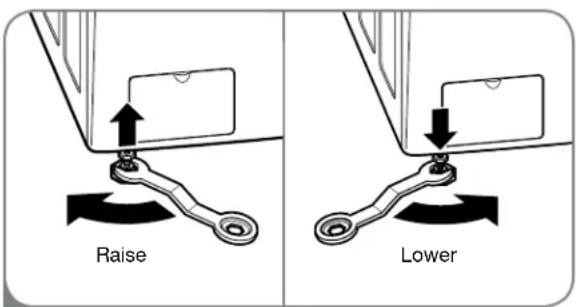

Leveling the Washer 14

HOW TO USE

Sorting Wash Loads 15

Selecting Detergent 16

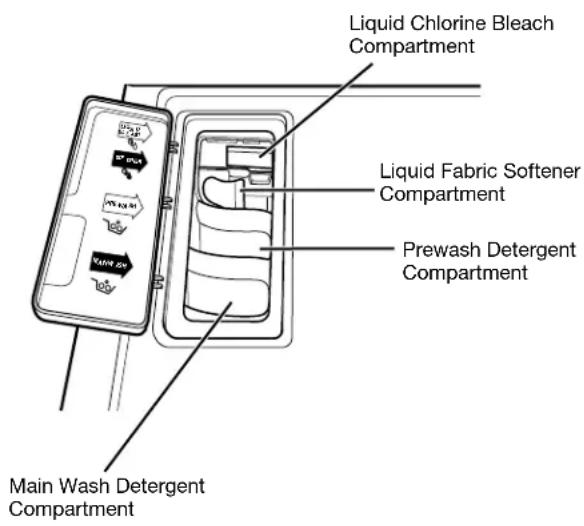

About the Dispenser 16

Loading the Dispenser 17

Control Panel Features 18

Cycle Guide 19

The Time and Status Display 20

Operating the Washer 21

Cycle Setting Buttons 22

Custom Program 23

Cycle Option Buttons 24

Special Functions 25

CARE AND CLEANING

Regular Cleaning 26

Cleaning the Washer 27

Maintenance 28-29

TROUBLESHOOTING

Normal Sounds You May Hear 30

Before Calling for Service 30-32

SPECIFICATIONS

Key Dimensions and Specifications 33

WARRANTY 35

THANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG washing machine

combines the most advanced

washing technology with simple

operation and high efficiency.

By following the operating and care

instructions in this manual, your

washer will provide you with many

years of reliable service.

Product Registration Information

Model:

Serial Number:

Date of Purchase:

The model and serial number can be located on the rating plate on the front of the washer.

Silhouette of a clothes rack with a cloth and a spray bottle, no text or symbols present

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Your Safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.

These words mean:

ADANGER:

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING:

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

BASIC SAFETY PRECAUTIONS

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Before use, the washer must be properly installed as described in this manual.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.
• Before the washer is removed from service or discarded, remove the door to prevent children from climbing inside.

• Do not install or store the washer where it will be exposed to the weather or freezing temperatures.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or attempt any servicing other than as described in this manual. We strongly recommend that any service be performed by a qualified individual.
• See Installation Instructions for grounding requirements.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
• Turn off the water taps and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.
• Always check the inside of the washer for foreign objects before loading laundry. Keep the door closed when not in use.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

⚠ WARNING: Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can cause serious injury, fire, electrical shock, or death.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY INSTRUCTIONS FOR INSTALLATION

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are packed in the washer for installer's reference. If the washer is moved to a new location, have it checked and reinstalled by a qualified service person. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
• This washer must be plugged into a 120VAC, 60Hz grounded outlet. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Do not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak damage.

• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow these warnings can cause serious injury, fire, electrical shock, or death.

• The washer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

• Never unplug your washer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• When installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• The washer must be installed and electrically grounded by a qualified service person in accordance with local codes to prevent shock hazard and assure stability during operation.
• Washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in back or other injury.
• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious leak damage.
• Do not install the washer in humid spaces to reduce the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY INSTRUCTIONS FOR USE, CARE AND CLEANING, AND DISPOSAL

⚠ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Unplug the washer before cleaning to avoid the risk of electric shock.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.
• Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.
• Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.
• Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Do not combine laundry products for use in one load unless specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.

• Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, push in the cycle selector knob and allow the drum to coast to a complete stop before reaching inside. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to comply with these warnings could result in serious personal injuries.

• Destroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers. Failure to comply with these warnings could result in serious personal injuries.
• Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels. Failure to comply with these warnings could result in serious personal injuries.
• Remove the door to the washing compartment to avoid the danger of children or small animals getting trapped inside before your washer is removed from service or discarded. Failure to do so can result in serious personal injury or death.

SAVE THESE INSTRUCTIONS

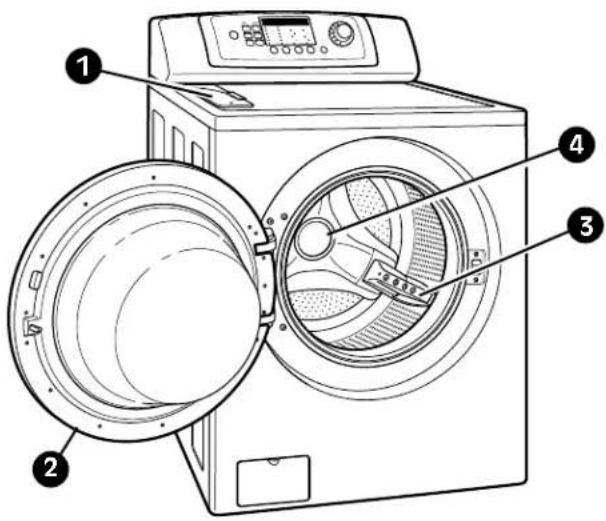

SPECIAL FEATURES

1 DETERGENT DISPENSER DRAWER

This four-compartment drawer provides separate dispensers for prewash and main wash detergent, liquid bleach, and liquid fabric softener.

② EASY-ACCESS LOCKING DOOR

Extra-large door locks during operation and features a delay to prevent the door from being opened until the washer interior has cooled and the water level has lowered.

3 ROLLERJETS

The RollerJet system enhances wash performance while reducing fabric wear. Integrated jets spray clothes to further improve washing efficiency.

4 DIRECT-DRIVE MOTOR

Direct-drive motor eliminates the belt and pulleys found on most washers to provide improved performance and reliability while increasing energy efficiency.

Diagram of a washing machine with labeled parts including front door, side door, and fan assembly

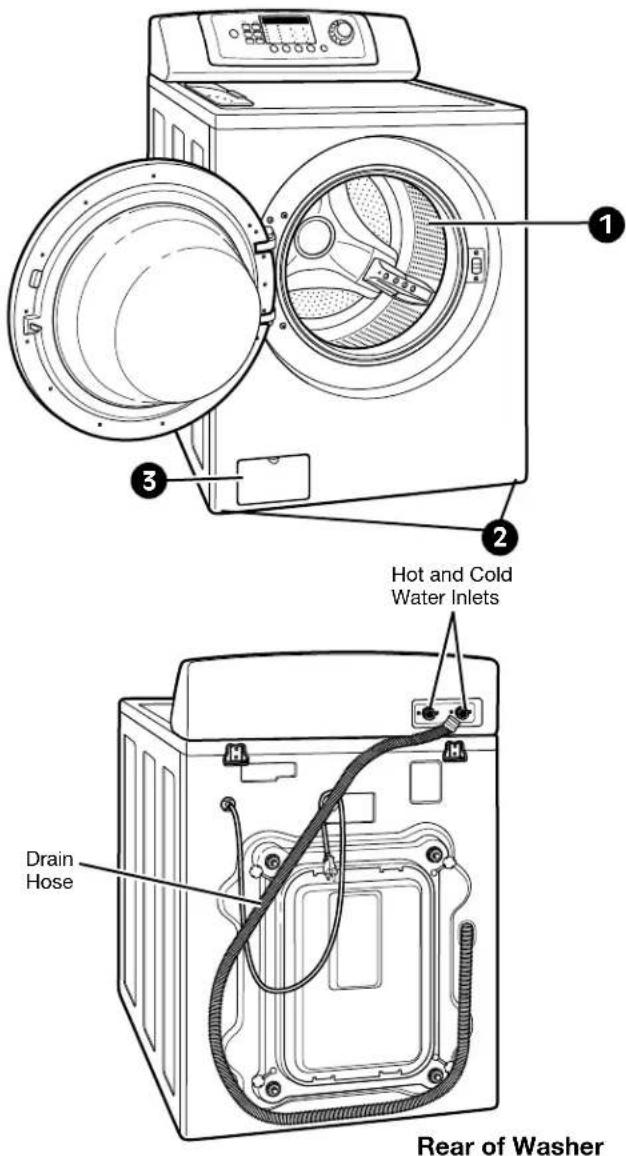

KEY PARTS AND COMPONENTS

In addition to the special features and components outlined in the Special Features section, there are several other important components that are referenced in this manual.

1 LARGE-CAPACITY STAINLESS STEEL DRUM

The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow easier access for large items.

② LEVELING FEET

Four leveling feet (two in the front and two in the back) adjust to improve washer stability on uneven floors.

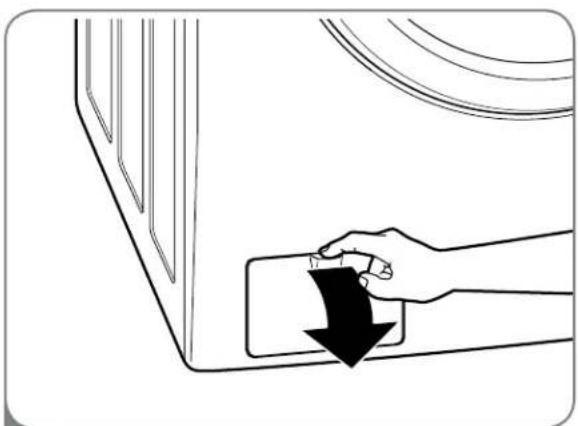

3 DRAIN ACCESS PANEL

Provides access to the drain line and drain pump filter.

1 2 3 Hot and Cold Water Inlets Drain Hose Rear of Washer

Included Accessories

shipping bolts and adjusting leveling feet)
Tie Strap (for securing drain hose)
Elbow Bracket (for securing drain hose)

• Washer is heavy! Two or more people are required when moving and unpacking the washer. Failure to do so can result in back or other injury.
• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• Properly ground washer to conform with all governing codes and ordinances. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
• The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.

- Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

Power Outlet

• The power outlet must be within 60 in. (1.5 m) of either side of the washer.
• The appliance and outlet must be positioned so that the plug is easily accessible.
• Do not overload the outlet with more than one appliance.
• The outlet must be grounded in accordance with current wiring codes and regulations.
• Time-delay fuse or circuit breaker is recommended.

NOTE: It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician.

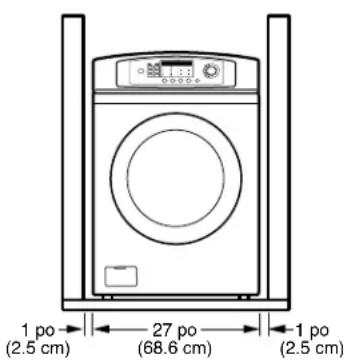

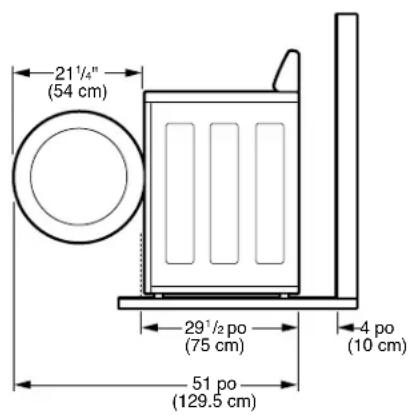

CLEARANCES

21¼″ (54 cm) 29½ po (75 cm) 51 po (129.5 cm) 4 po (10 cm)

1 po (2.5 cm) 27 po (68.6 cm) 1 po (2.5 cm)

To ensure sufficient clearance for water lines and airflow, allow minimum clearances of at least 1 in. (2.5 cm) at the sides and 4 in. (10 cm) behind the unit. Be sure to allow for wall, door, or floor moldings that may increase the required clearances.

Allow at least 24 in. (61.2 cm) in front of the washer to open the door.

FLOORING

• To minimize noise and vibration, the washer MUST be installed on a solidly constructed floor. See the NOTE at right.
• Allowable slope under the entire washer is 1^ maximum.
• Carpeting and soft tile surfaces are not recommended.
• Never install the washer on a platform or weakly supported structure.

NOTE: Please note that the floor must be strong and rigid enough to support the weight of the washer when fully loaded, without flexing or bouncing. If your floor has too much flex in it, you may need to reinforce it to make it more rigid. A floor that is adequate for a top-loading washer may not be rigid enough for a front-loading washer, due to the difference in the spin speed and direction. If the floor is not solid, your washer may vibrate and you may hear and feel the vibration throughout your house.

UNPACKING AND REMOVING SHIPPING BOLTS

When removing the washer from the carton base, be sure to remove the foam tub support in the middle of the carton base.

If you must lay the washer down to remove the base packaging materials, always lay it carefully on its side. Do NOT lay the washer on its front or back.

IMPORTANT: To prevent internal damage during transport, the washer is equipped with 4 shipping bolts and plastic retainers. These bolts and retainers MUST be removed before operating the washer.

- Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washer. The cord is secured to the back of the washer with a shipping bolt to help prevent operation with shipping bolts in place.

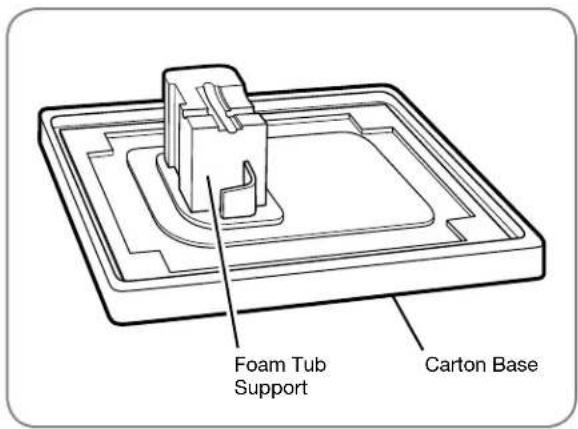

Foam Tub Support Carton Base

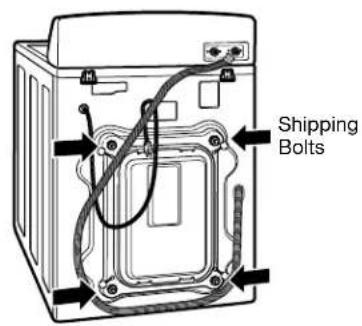

Shipping Bolts

1 Starting with the bottom 2 shipping bolts, use the included wrench to remove the 4 shipping bolts by turning them counterclockwise.

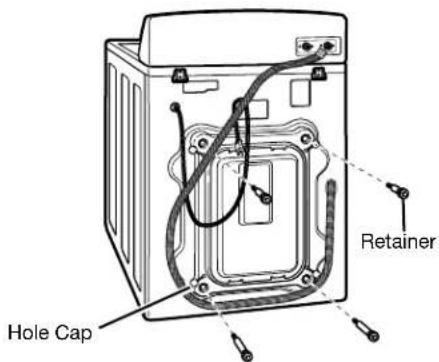

Hole Cap Retainer

2 Remove the retainers by turning them slightly while pulling. Rotate and press the hole caps into the shipping bolt holes.

NOTE: Save the bolts and retainers for future use. To prevent damage to internal components, the shipping bolts and retainers must be installed when transporting the washer.

CONNECTING THE WATER LINES

• IMPORTANT: Use new hoses when installing the washer. Do NOT reuse old hoses.
• IMPORTANT: Use ONLY the inlet hoses provided by LG with this laundry product. Aftermarket hoses are not guaranteed to fit or function correctly. Other hoses may not tighten correctly and could cause leaks. Subsequent damage to product or property will not be covered under the terms of LG's warranty.
• Water supply pressure must be between 14.5 PSI and 116 PSI (100\~800 kPa). If the water supply pressure is more than 116 PSI, a pressure reducing valve must be installed.
• Periodically check the hose for cracks, leaks, and wear, and replace the hose if necessary.
• Make sure that the water lines are not stretched, pinched, crushed, or kinked.
• The washer should never be installed or stored in a location subject to freezing temperatures. Damage to the water lines and internal mechanisms of the washer can result. If the washer was exposed to freezing temperatures prior to installation, allow it to stand at room temperature for several hours before use.

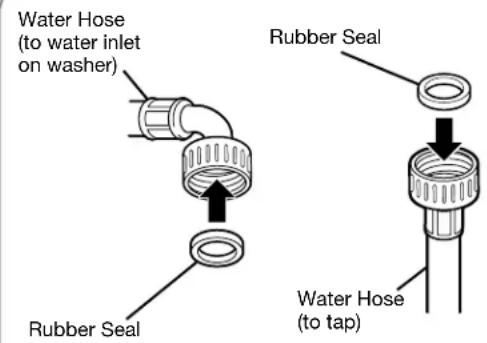

Water Hose (to water inlet on washer) Rubber Seal Rubber Seal Water Hose (to tap)

1 Insert a rubber seal into the threaded fittings on each hose.

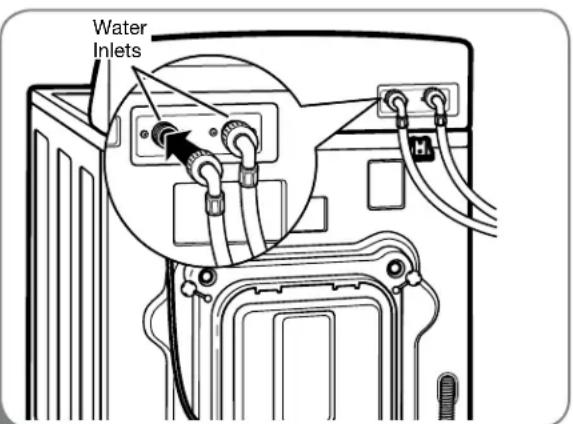

Water Inlets

2 NOTE: Do not cross-thread the hose fittings. Attach the hot water line to the red hot water inlet on the back of the washer. Attach the cold water line to the blue cold water inlet on the back of the washer. Tighten the fittings securely.

Water Tap

3 Attach the hot water line to the hot water tap. Attach the cold water line to the cold water tap.
Tighten the fittings securely. Open the water taps fully to check for leaks.

CONNECTING THE DRAIN LINE

• The drain hose should always be properly secured. Failure to properly secure the drain hose can result in flooding and property damage.
• Do not install the end of the drain hose higher than 96 in. (244.8 cm) above the bottom of the washer.
• The drain must be installed in accordance with any applicable local codes and regulations.
• Make sure that the water lines are not stretched, pinched, crushed, or kinked.

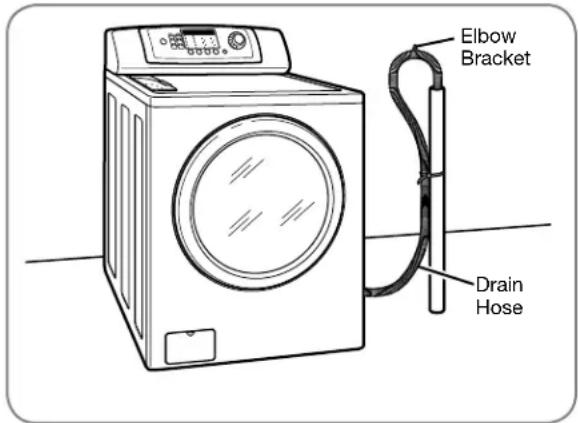

Option 1: Standpipe

Elbow Bracket Drain Hose

Clip the end of the hose into the elbow bracket. Insert the end of the drain hose into a standpipe. Use tie strap to secure the drain hose in place.

NOTE: Total height of the hose end should not exceed 96 in. (244.8 cm) from the bottom of the washer.

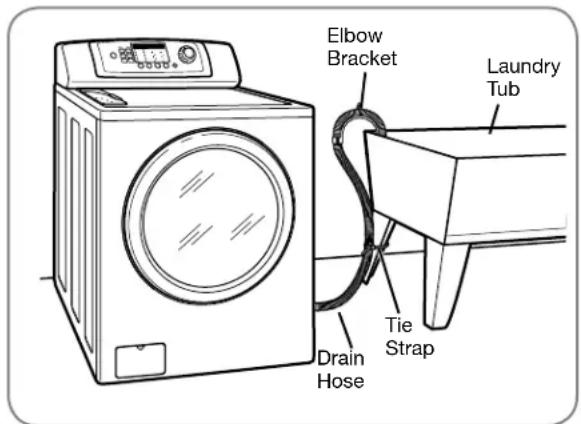

Option 2: Laundry Tub

Elbow Bracket Laundry Tub Tie Strap Drain Hose

Clip the end of the hose into the elbow bracket. Hang the end of the drain hose over the side of the laundry tub. Use tie strap to secure the drain hose in place.

NOTE: Total height of the hose end should not exceed 96 in. (244.8 cm) from the bottom of the washer.

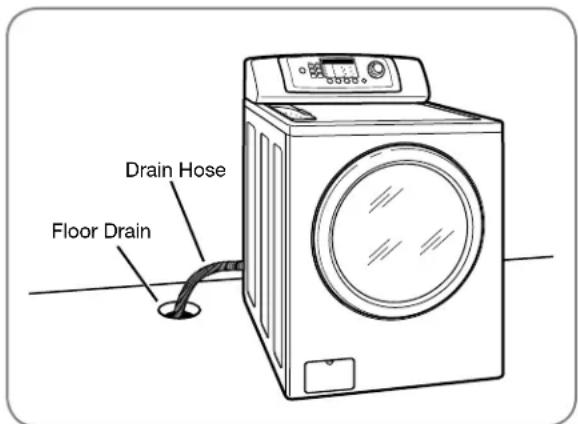

Option 3: Floor Drain

Drain Hose Floor Drain

Insert the end of the drain hose into the floor drain. Secure the hose in place to prevent it from moving.

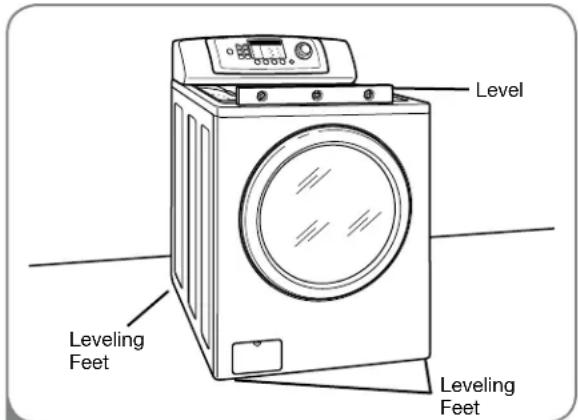

LEVELING THE WASHER

The drum of your new washer spins at very high speeds, up to 1000 RPM. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

NOTE: Adjust the leveling feet only as far as necessary to level the washer. Extending the leveling feet more than necessary can cause the washer to vibrate.

- All four leveling feet must rest solidly on the floor. Rock the washer gently from corner to corner to make sure that the washer does not rock.

Level Leveling Feet Leveling Feet

1 Position the washer in the final location, taking special care to not pinch, strain, or crush the water and drain lines. Place a level across the top of the washer.

Raise Lower

2 Loosen the locknuts on all 4 leveling feet until you can turn the feet with the included wrench. Turn clockwise to raise the washer or counterclockwise to lower it.

Tighten all 4 locknuts securely

3 Once the washer is level from side to side and front to back, tighten all locknuts securely.

Make sure that all 4 leveling feet are in firm contact with the floor.

NOTE: To make sure that the washer is properly level, run the washer with a test load: place approximately 6 pounds of laundry in the machine. Then press POWER, press RINSE+SPIN, and then press the START/PAUSE button. See the following sections for additional information on cycle selection and operation.

Verify that the washer does not rock or vibrate excessively during the spin cycle. If the washer vibrates or shakes, adjust the leveling feet until the washer is stable and retest.

SORTING WASH LOADS

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Fabric Care Labels
Machine wash cycle

Water temperature

Warm (40°C/105°F)
Cold/cool (30°C/85°F)

Hot (50°C/120°F)
Bleach symbols

Grouping Similar Items

For best results, sort clothes into loads that can be washed with the same wash cycle.

Different fabrics have different care requirements. Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones. The chart below shows recommended groupings.

Sort Laundry...
by Colors by Soil by Fabric by Lint

Whites Heavy	Delicates Lint Producer
Lights Normal	Easy Care Lint Collector
Darks Light	Sturdy

Loading the Washer

• Check all pockets to make sure that they are empty. Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.
• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.
• Pretreat heavily stained areas for best results.
• Combine large and small items in a load. Load large items first.
• Large items should not be more than half of the total washload.
• The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer should close easily.
• To prevent an out-of-balance load, do not wash single items. Add one or two similar items to the load. Large, bulky items, such as a blanket, comforter, or bedspread should be washed individually.
• Do not wash or spin waterproof clothes.
• When unloading the washer, check under the door seal for small items.

Silhouette of a black rectangular device with a circular lens and a hole (no text or symbols)

SELECTING DETERGENT

IMPORTANT: Your washing machine is designed for use with only High-Efficiency (HE) detergents. HE detergents are formulated specifically for front-load washers and contain suds-reducing agents. Always look for the HE symbol when purchasing detergent.

HE detergents produce fewer suds, dissolve more efficiently to improve washing and rinsing performance, and help to keep the interior of your washer clean.

Using a regular detergent may cause oversudising and unsatisfactory performance.

IMPORTANT: Do not place or store laundry products, such as detergent, bleach, or liquid fabric softener, on top of your washer or dryer. Wipe up any spills immediately. These products can damage the finish and controls.

Designed specially to use only HE (High-Efficiency) detergent

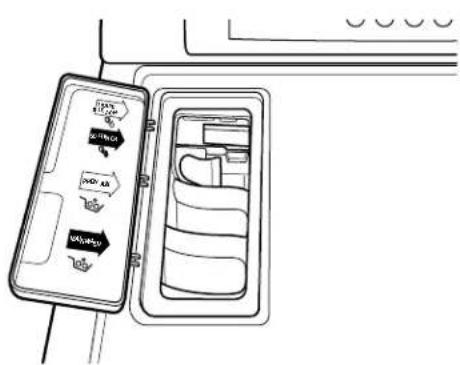

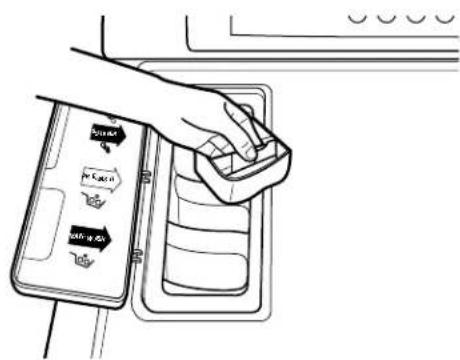

ABOUT THE DISPENSER

The automatic dispenser consists of four compartments which hold:

• Liquid chlorine bleach.
• Liquid fabric softener.
• Liquid or powdered detergent for prewash.
• Liquid or powdered detergent and color-safe bleach for main wash.

All laundry products can be added at once in their respective dispenser compartments. They will be dispensed at the appropriate time for the most effective cleaning.

After adding the laundry products to the dispenser, close the dispenser drawer.

To add detergent, bleach, and fabric softener to the automatic dispenser:

1 pen the dispenser drawer.
2oad the laundry products into the appropriate compartments.
3 Slowly close the dispenser drawer to avoid early dispensing of the laundry products.

NOTE: It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

Liquid Chlorine Bleach Compartment Liquid Fabric Softener Compartment Prewash Detergent Compartment Main Wash Detergent Compartment

LOADING THE DISPENSER

Prewash Detergent Compartment

Add liquid or powdered detergent to this compartment when using the Prewash option. Always use HE (High-Efficiency) detergent with your washing machine.

- The amount of detergent added for the Prewash option is 1/2 the amount recommended for the main wash cycle. For example, if the main wash cycle requires one measure of detergent, add 1/2 measure for the Prewash option.

NOTE: If liquid detergent is to be used for the main wash when using the pre-wash option, the liquid detergent cup accessory must be used in main wash dispenser to prevent the main wash liquid detergent from being dispensed immediately.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the main wash cycle, which is added to the load at the beginning of the cycle. Always use HE (High-Efficiency) detergent with your washing machine.

Never exceed the manufacturer's recommendations when adding detergent. Using too much detergent can result in detergent buildup in clothing and the washer. Either powdered or liquid detergent may be used.

• When using liquid detergent, make sure the liquid detergent cup and insert are in place. Do not exceed the maximum fill line.
• When using powdered detergent, remove the insert and liquid detergent cup from the compartment. Powdered detergent will not dispense with the liquid detergent cup and insert in place.

NOTE: Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type.

Designed specially to use only HE (High-Efficiency) detergent

Liquid Bleach Compartment

This compartment holds liquid chlorine bleach, which will be dispensed automatically at the proper time during the wash cycle.

• Do not add powdered or liquid color-safe bleach to this compartment.
• Always follow the manufacturer's recommendations when adding bleach. Do not exceed the maximum fill line. Using too much bleach can damage fabrics.
• Never pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.

Fabric Softener Compartment

This compartment holds liquid fabric softener, which will be automatically dispensed during the final rinse cycle.

• Always follow the manufacturer's recommendations when adding fabric softener. Do not exceed the maximum fill line. Using too much fabric softener may result in stained clothes.
• Dilute concentrated fabric softeners with warm water. Do not exceed the maximum fill line.
• Never pour fabric softener directly onto the load or into the drum.

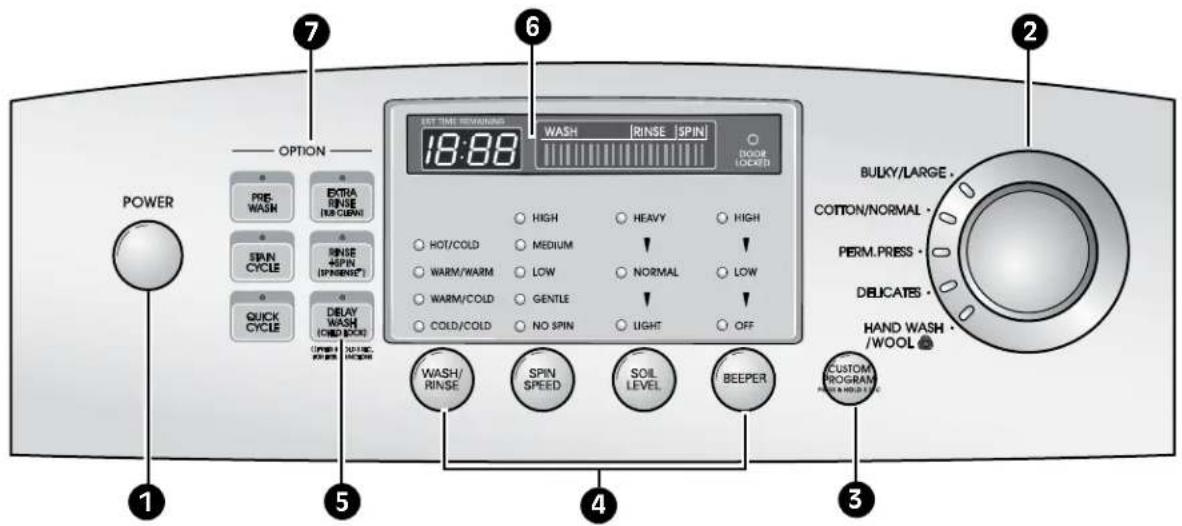

CONTROL PANEL FEATURES—WM2044C*

POWER OPTION PRE- WASH EXTRA RINSE (NUR CLEAN) SPAIN CYCLE RINSE "APPIN" (IPPENSIBLE) QUICK CYCLE DELAY WASH (CLOSE LOCK) UPRAW WHIP WHIP WHIP 18:88 SET TIME REMAURING WASH RINSE SPIN DOOR LOCKED HIGH HEAVY HIGH HOT/COLD MEDIUM LOW NORMAL LOW WARM/WARM GENTLE NO SPIN LIGHT OFF WASH/ RINSE SPIN SPEED SOIL LEVEL BEEPER CUSTOM PROGRAM WHIP & MOUL 2016 BULKY/LARGE - COTTON/NORMAL - PERM.PRESS - DELICATES - HAND WASH - /WOOL + CUSTOM PROGRAM

1 POWER ON/OFF BUTTON

Press to turn the washer ON. Press again to turn the washer OFF.

NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost.

2 CYCLE SELECTOR KNOB

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. These settings can be adjusted using the cycle setting buttons anytime before starting the cycle.

Press this knob to START the selected cycle. If the washer is running, use this knob to PAUSE the cycle without losing the current settings.

NOTE: If you do not press the cycle selector knob within 4 minutes of selecting a cycle, the washer automatically turns off.

3 CUSTOM PROGRAM BUTTON

Press the CUSTOM PROGRAM button to save and recall a customized wash cycle for future use.

You can save the Cycle, Wash/Rinse Temperature, Spin Speed, and Soil Level settings, as well as other cycle options.

4 CYCLE SETTING BUTTONS

Use these buttons to adjust the desired cycle options for the selected cycle.

5 DELAY WASH BUTTON

Press this button to delay the start of the wash cycle. Each press of the button increases the delay time by one hour, up to 9 hours.

6 TIME AND STATUS

The display shows the settings, estimated time remaining, options, and status messages for your washer.

7 OPTION BUTTONS

The option buttons allow you to select additional cycle options and will light when selected. Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds.

For detailed information about the individual options, please see the following pages.

CYCLE GUIDE—WM2044C\*

The cycle guide below shows the options and recommended fabric types for each cycle.

Cycle	Fabric type	Wash/Rinse Temp.	Spin speed	Soil Level	Pre-Wash	Quick Cycle	Stain Cycle	Extra Rinse	Rinse+ Spin
Bulky/ Large	Large items such as blankets and comforters.	Warm/Cold	Gentle	Normal
		Warm/Warm Hot/Cold Cold/Cold	Low Medium No Spin	Heavy Light
Cotton/ Normal	Cotton, linen, towels, shirts, sheets, jeans, mixed loads	Warm/Cold	High	Normal
		Warm/Warm Hot/Cold Cold/Cold	No spin Low Medium	Heavy Light
Perm. Press	Dress shirts/ pants, wrinkle free clothing, poly/ cotton blend clothing, table cloths	Warm/Cold	Medium	Normal
		Warm/Warm Hot/Cold Cold/Cold	High No spin Gentle Low	Heavy Light
Delicates	Dress shirts/ blouses, nylons, sheer or lacy garment	Cold/Cold	Low	Normal
		Warm/Cold Warm/Warm	Medium No spin Gentle	Heavy Light
Hand Wash/ Wool	Items labeled “hand washable”	Warm/Cold	Low	Normal
		Warm/Warm Cold/Cold	No spin Gentle	Light

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

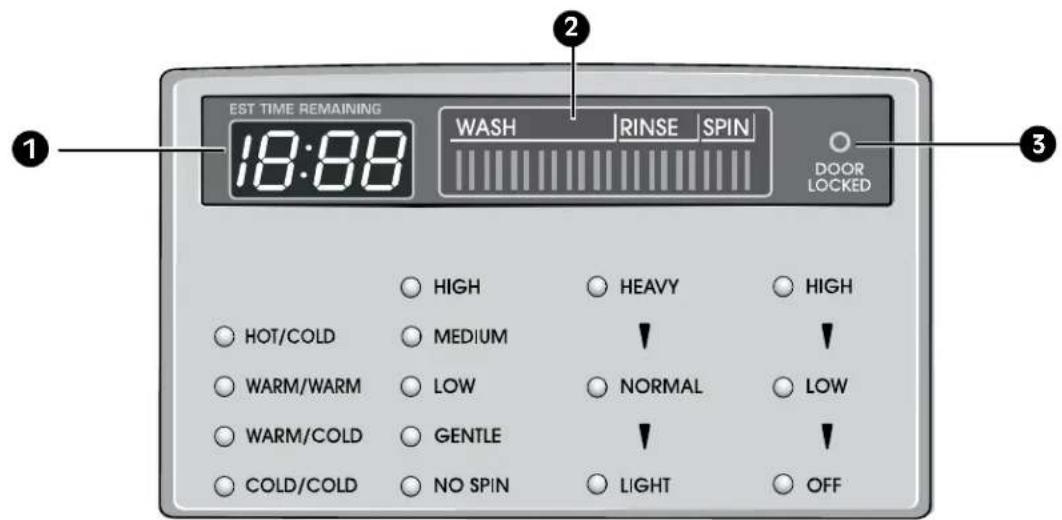

THE TIME AND STATUS DISPLAY

The time and status display shows the cycle progress and estimated time remaining, cycle options, and other status messages for your washer.

EST TIME REMAINING 18:88 WASH RINSE SPIN DOOR LOCKED HIGH HEAVY HIGH HOT/COLD MEDIUM WARM/WARM LOW NORMAL LOW WARM/COLD GENTLE COLD/COLD NO SPIN LIGHT OFF

① ESTIMATED TIME REMAINING

When the cycle selector knob is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle.

NOTE: The cycle time displayed may appear much longer than that of a top-loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

3 DOOR LOCK INDICATOR

Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the cycle selector knob to stop the washer.

NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the DRAIN & SPIN cycle to drain excess water. Do not try to force open the door.

② CYCLE COMPLETION INDICATOR

Shows how much of the current wash cycle has been completed.

Once you have loaded the washer and added laundry products (detergent, bleach, and/or fabric softener):

1 Press the ON/OFF button to turn on the washer. The lights around the cycle selector knob will illuminate.
2 Turn the cycle selector knob to the desired cycle. The display will show the preset Rinse/Wash Temperature, Spin Speed, Soil Level, and Option settings for that cycle.
3 If you would like to change the settings for that cycle, press the appropriate cycle settings button(s) until the indicator light for the desired setting is lit.

WASH/ RINSE SPIN SPEED SOIL LEVEL BEEPER

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

4 Select any additional cycle options, such as PRE-WASH, STAIN CYCLE, qUICK CYCLE, EXTRA RINSE, RINSE + SPIN, or DELAY WASH, by pressing the button for that option.

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

5 Press the cycle selector knob to begin the cycle. The door will latch, the display will change, and the washer will calculate the estimated time remaining. Once

the washer has calculated the estimated total cycle time, the washer will start. To pause the cycle at any time, press the cycle selector knob

NOTE: The cycle time displayed may appear much longer than that of a top-loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the DRAIN & SPIN cycle to drain excess water. Do not try to force the door open.

Washing time can be reduced significantly for small or lightly soiled loads by selecting the Speed Wash cycle and setting the Soil Level button to Light.

6 When the load is finished, the beeper (if set) will sound and the door will unlock.

Remove damp clothes from the washer immediately. Check under the door seal for small items.

CYCLE SETTING BUTTONS

Each cycle has preset settings that are selected automatically. You may also customize the settings using the cycle setting buttons. Press the button for that setting until the indicator light for the desired value is lit.

The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency. It may seem there is no water inside the drum in some cycles, but this is normal.

NOTE: To protect your garments, not every wash/ rinse temperature, spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details.

WASH/RINSE

Selects the wash and rinse temperature

combination for the selected cycle. Press the WASH/RINSE button until the indicator light for the desired setting is lit.

• Your washer features a heating element to boost the hot water temperature for Extra Hot settings. This provides improved wash performance at normal water heater settings.
• Select the water temperature suitable for the type of load you are washing. Follow the fabric care label for best results.
• Warm rinses are regulated at approximately 86°F (30°C).
• Warm rinses leave the loads drier than cold rinses. Warm rinses can increase wrinkling.
• In cold climates, a warm rinse makes the load more comfortable to handle.
• Cold rinses use less energy, and the rinse temperature depends on the cold water at the faucet.

SPIN SPEED

The washer drum spins at up to 1,000 RPM. This

extracts more water from clothes, reducing drying time and saving energy.

Press the SPIN SPEED button until

the indicator light for the desired setting is lit. Some fabrics, such as delicates, require a slower spin speed.

The Drain & Spin cycle:

The Spin Speed button also activates the Drain & Spin cycle to drain the tub and spin clothes; for example, if you want to remove clothes before the cycle has ended.

To activate the DRAIN & SPIN cycle:

1 Press the ON/OFF button to turn on the washer.
2 Press the SPIN SPEED button.
3 Select the desired spin speed. NOTE: If NO SPIN is selected, the washer will drain only.
4 Press the START/PAUSE button.

SOIL LEVEL

Adjusts the selected cycle to allow more time for

heavily soiled clothes or less time for lightly soiled clothes. Press the SOIL LEVEL button until the indicator light for the desired setting is lit.

BEEPER

Press repeatedly to adjust the volume of

the beeper. You may turn the end-of-cycle beeper on or off with the BEEPER button.

CUSTOM PROGRAM

CUSTOM PROGRAM allows you to store a customized wash cycle for future use. It allows you to save favorite temperature, spin speed, soil

level, and other options for a cycle, and then recall them at the touch of a button.

To store a Custom Program:

1 Select a cycle.
2 Adjust the Wash/Rinse Temperature, Spin Speed, and Soil Level to the desired settings.
3 Set any other desired options.
4 Press and hold the CUSTOM PROGRAM button for 3 seconds. You will hear two beeps to confirm the settings have been stored.

IMPORTANT: If you press and hold the CUSTOM PROGRAM button for 3 seconds, you will overwrite any previously stored CUSTOM PROGRAM.

To recall a Custom Program:

1 Press and release the CUSTOM PROGRAM button. The stored settings will be displayed.
2 Press and release the START/PAUSE button to start the cycle. The washer will start automatically.

CYCLE OPTION BUTTONS

Your washing machine features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds.

To Add Cycle Options to a Cycle:

1 Turn on the washer and turn the cycle selector knob to select the desired cycle.
2 Use the cycle setting buttons to adjust the settings for that cycle.
3 Press the cycle option button(s) for the option you would like to add. The cycle option buttons, will light when selected.
4 Press the cycle selector knob to start the cycle. The washer will start automatically.

NOTE: To protect your garments, not every wash/ rinse temperature, spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details.

DELAY WASH

Once you have selected the cycle and other settings, press this button to delay the start of the wash cycle. Each press of the button increases the delay time by one hour, up to 9 hours.

PREWASH

Select this option to add a 16-minute prewash and spin cycle to the chosen cycle. This is especially useful for heavily soiled items.

RINSE+SPIN

Select this option to rinse and spin a load separately from a regular cycle. This can be helpful in preventing fresh stains from setting in fabrics.

To activate the Rinse+Spin cycle:

1 Press the ON/OFF button to turn on the washer.
2 Press the RINSE+SPIN button.
3 Press the cycle selector knob.

EXTRA RINSE

This option will add an extra rinse cycle to the selected cycle. Use this option to help ensure the removal of detergent or bleach residue from fabrics.

STAIN CYCLE

Select this option for heavily stained clothes, such as play clothes or work clothes. Stain Cycle will add extra wash time to the selected cycle, as well as an additional rinse cycle.

QUICK CYCLE

The Quick Cycle offers a quick cycle time. Suggested uses include freshening newly purchased clothes, or clothing that has been packed away.

SPECIAL FUNCTIONS

The option buttons also activate special functions, including CHILD LOCK, SPINSENSE™ and TUB CLEAN. Press and hold the option button marked with the special function for 3 seconds to activate.

CHILD LOCK

Use this option to prevent unwanted use of the washer or to keep cycle settings from being changed while the washer is operating. Press and hold the DELAY WASH button for 3 seconds to activate

or deactivate CHILD LOCK.

Once CHILD LOCK is selected, the display will alternate between CL and the

time remaining, and all controls are disabled. The washer can be locked during a cycle.

SPINSENSE™

SPINSENSE™ can be used to help reduce or eliminate vibrations, especially on wood floor installations.

To activate SPINSENSE™:

While the washing machine is running in any cycle, press and hold the RINSE+SPIN button for 3 seconds.

The RINSE+SPIN button light will remain lit while the washer is running to show that SPINSENSE ^TM is active. The SPINSENSE ^TM function will remain active for every cycle, even after a power failure.

To cancel SPINSENSE™:

Press and hold the RINSE+SPIN button for 3 seconds to turn off the SPINSENSE ^TM function.

TUB CLEAN

A buildup of detergent residue can occur in the wash tub over time and can lead to a mildewy or musty smell. The TUB CLEAN cycle is specially designed to remove this buildup. Press and hold the EXTRA RINSE button for 3 seconds to activate this cycle. Add liquid chlorine bleach to the bleach compartment. After the cycle has ended, open the door and allow the drum interior to dry completely.

NOTE: Do NOT use this cycle with clothes, and do NOT add detergent or fabric softener.

HAND WASH/WOOL

• Only woolen items that are designated as "Machine-Washable" should be washed in this washing machine
• Wash only small loads for optimum fabric care (less than 8 lbs.)
• Only neutral (wool safe) detergents should be used (Only a small quantity of detergent is needed due to the small load size and low volume of water in the cycle.)
• The HANDWASH/WOOL cycle uses a gentle tumble action and low speed spin for ultimate fabric care

WOOLMARK

The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0708

REGULAR CLEANING

WARNING:

• Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electrical shock or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean washer. They will damage the finish.

Cleaning the Exterior

Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth.

IMPORTANT: Do not use methylated spirits, solvents, or similar products.

Never use steel wool or abrasive cleansers; they can damage the surface.

Care and Cleaning of the Interior

Use a towel or soft cloth to wipe around the washer door opening, door seal, and door glass. These areas should be kept clean to ensure a watertight seal. Be sure to wipe under the inside rubber seal to remove any moisture or soil.

Always remove items from the washer as soon as the cycle is completed. Leaving damp items in the washer can cause wrinkling, color transfer, and odor.

Run the TUB CLEAN cycle regularly to remove detergent buildup and other residue.

Removing the Stain in Door Seal

NOTE: Wear rubber gloves and eye protection while performing the following procedure:

① Dilute 3/4 cup (177 ml) liquid chlorine bleach with 1 gallon (3.8 L) of warm/hot water.
2 Use this solution to wipe down all surfaces of the gasket to remove the deposits that are causing any odor. (Be sure to fold back the lip of the gasket to get under the edge where residue can build up.)
3 Wipe the gasket with a dry cloth.

Leave the door open to allow the gasket to dry completely. Do not use undiluted bleach as this will damage the gasket. Follow the manufacturer's instructions for proper use of bleach. If the gasket cannot be cleaned properly, it should be replaced.

Storing the Washer

If the washer will not be used for an extended period of time and is in an area that could be exposed to freezing temperatures:

① Turn off water supply tap.
2 Disconnect hoses from water supply and drain water from hoses.
3 Plug the power cord into a properly grounded electrical outlet.
4 Add 1 gallon of nontoxic recreational vehicle (RV) antifreeze to the empty wash drum. Close door.
5 Select the spin cycle and let washer spin for 1 minute to drain out all the water.

NOTE: Not all of the RV antifreeze will be expelled.

6 Unplug the power cord, dry the drum interior with a soft cloth, and close the door.
7 Remove the inserts from the dispenser. Drain any water in compartments and dry the compartments.
8 Store the washer in an upright position.
9 To remove the antifreeze from the washer after storage, run washer through a complete cycle using detergent. Do not add laundry!

Removing Lime Buildup

If you live in an area with hard water, lime scale can form on internal components of the washer. Use of a water softener is recommended in areas with hard water. If a descaler is used, make sure that it is suitable for use in a washer, and run the TUB CLEAN cycle before washing clothing.

Lime scale and other spots may be removed from the stainless steel drum using a stainless steel cleaner. Do NOT use steel wool or abrasive cleansers; they can damage the surface.

CLEANING THE WASHER

Cleaning the Dispenser

The dispenser should be cleaned periodically to remove buildup from detergent and other laundry products.

NOV MUSU

1 Open the dispenser lid.

Diagram showing a hand holding a device with labeled buttons and a tray, likely illustrating a mobile phone or app interface.

2 Lift the two-compartment container, tilt slightly to the left, and remove from the main dispenser.

Diagram showing hand cleaning a refrigerator with labeled directional arrows and a hand holding a tool.

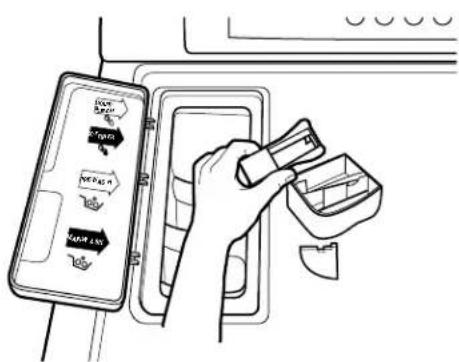

3 Remove the caps covering the siphon tube for the bleach and softener.

MAINTENANCE

Cleaning the Water Inlet Filters

If the washer detects that water is not entering the dispenser, an error message will show on the display. If you live in an area with hard water, this may be caused by clogged inlet filters.

IMPORTANT: Use extreme care when removing and cleaning the filters. If the filters cannot be cleaned or are damaged, do NOT operate the washer without the inlet filters. Contact LG Customer Service or a qualified LG servicer.

Line drawing of a device rear panel with connectors and a switch (no text or symbols)

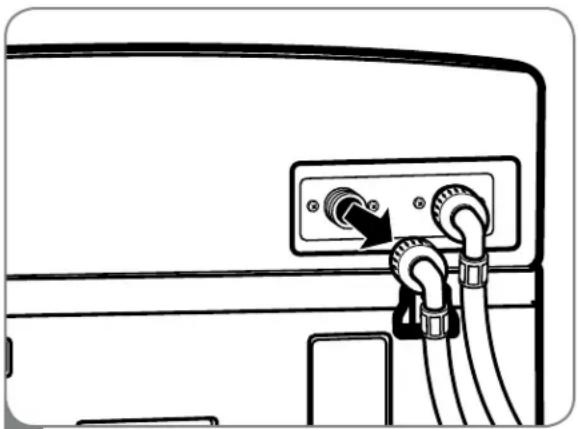

1 Turn off both water taps completely. Unscrew the hot and cold water lines from the back of the washer.

IMPORTANTE: Use ONLY the inlet hoses provided by LG with this laundry product. Aftermarket hoses are not guaranteed to fit or function correctly. Other hoses may not tighten correctly and could cause leaks. Subsequent damage to product or property will not be covered under the terms of LG's warranty.

2 Carefully remove the filters from the water inlets, and soak them in white vinegar or a lime scale remover, following the manufacturer's instructions. Rinse thoroughly before reinstalling.

Press the filters back into place and reattach the water lines. Do NOT operate the washer without the inlet filters.

MAINTENANCE (cont.)

Cleaning the Drain Pump Filter

Lint and other objects may accumulate and clog the drain pump filter. If the washer fails to drain properly, unplug the washer and allow the water to cool, if necessary, before proceeding.

Line drawing of a hand pressing down on a wall-mounted device with a black arrow indicating the process (no text or symbols)

1 Open the drain pump filter access panel.

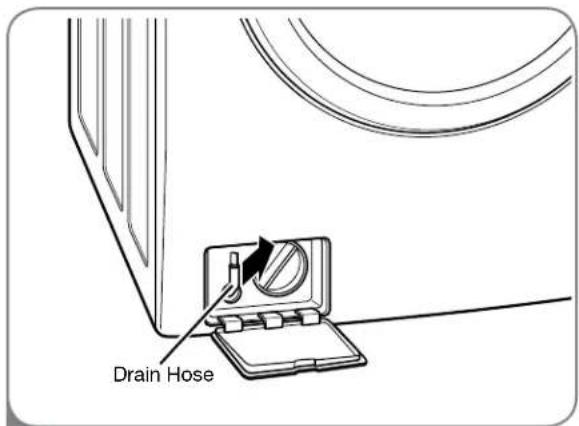

Drain Hose

2 Unclip the drain hose and pull it out. Place the end of the drain hose in a pan, bucket, or floor drain to catch water.

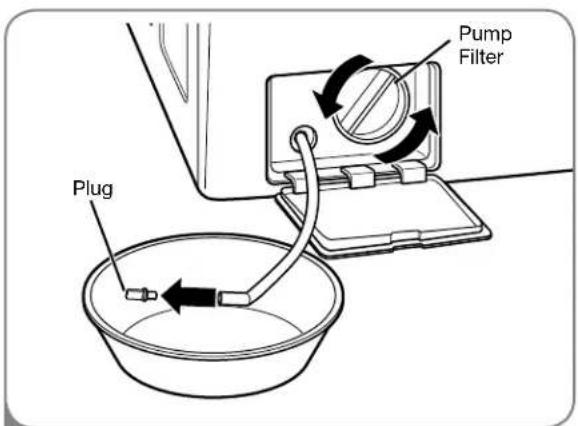

Plug Pump Filter

3 Remove the plug from the drain hose, and allow the water to drain completely.

Twist the pump filter counterclockwise to remove. Remove any lint and foreign objects from the pump filter.

Reverse the above steps to reinstall the drain pump filter and drain hose. Be sure to close the cover panel when finished.

NORMAL SOUNDS YOU MAY HEAR

The following sounds may be heard while the washer is operating. They are normal.

Clicking:

Door lock relay when the door locks and unlocks.

Spraying or hissing:

Water spraying or circulating during the cycle.

Humming or gurgling:

Drain pump pumping water from the washer at the end of a cycle.

Splashing:

Clothes tumbling in the drum during the wash and rinse cycles.

BEFORE CALLING FOR SERVICE

Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washer does not function properly or does not function at all, check the following before you call for service.

Problem Possible Causes Solutions
Rattling and clanking noise	·Foreign objects, such as keys, coins, or safety pins, may be in drum or pump.	·Stop washer and check drum and drain filter for foreign objects. If noise continues after washer is restarted, call for service.
Thumping sound	·Heavy wash loads may produce a thumping sound.·Washer load may be out of balance.	·This is normal. If sound continues, washer is probably out of balance. Stop and redistribute wash load.·Stop and redistribute wash load.
Vibrating noise	·Shipping bolts and/or packaging materials not removed.·Wash load may be unevenly distributed in the drum.·Not all leveling feet are resting firmly on the floor.·Floor not rigid enough.	·See Installation Instructions for removing shipping bolts and packaging.·Stop washer and rearrange wash load.·Adjust the leveling feet. Make sure all four feet are in firm contact with the floor while the washer is in the spin cycle with a load.·Make sure that the floor is solid and does not flex. Refer to “Flooring” in the Installation section.
Water leaking around washer	·Fill hose connection is loose at tap or washer.·House drain pipes are clogged.	·Check hoses. Check and tighten hose connections.·Unclog drain pipe. Contact a plumber if necessary.
Excessive sudsing	·Too much detergent or incorrect detergent.	·Reduce detergent amount or use low-sudsing detergent.Cohuse detergent with the HE(High-Efficiency) logo.
Staining	·Laundry products added to washer drum.·Washer not unloaded promptly.·Clothes not properly sorted.	·Load laundry products into the dispenser.·Always remove items from the washer as soon as the cycle is complete.·Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones.

BEFORE CALLING FOR SERVICE (cont.)

Problem Possible Causes Solutions
Water in the washer drains slowly or not at all, or the display shows:	Drain hose is bent, pinched, or clogged.The drain filter is clogged.	Make sure the drain hose is free of clogs, kinks, etc., and is not pinched behind or under the washer.Clean the drain filter. See theUser Maintenance Instructionssection.
Washer fills with water slowly or not at all, or the display shows:	Water supply taps are not open fully.Water line hoses are kinked, pinched, or bent.Water inlet filters are clogged.Water pressure to tap or house is too low.	Make sure that the water taps are open fully.Make sure the hoses are not kinked or pinched.Be careful when moving the washer.Clean the inlet filters. See theUser Maintenance Instructionssection.Check another faucet in the house to make sure that household water pressure is adequate.
Washer will not turn on	Power cord is not properly plugged in.House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60-Hz. outlet.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
Washer won't spin, or the display shows:	The door is not closed properly.	Make sure that the door is closed properly and press the START/PAUSE button. After starting a cycle, it may take a few moments before the drum begins to turn or spin. The washer will not spin unless the door is locked (DOOR LOCK will appear in the display).If the door is closed and locked and the open door error message is displayed, call for service.
Door will not unlock when cycle is stopped or paused	Interior temperature of washer is too high.Water level in washer is too high.	The washer door has a safety lock to prevent burns.Allow the washer to cool until the DOOR LOCK indicator turns off in the display.Allow the washer to complete the programmed cycle, or run the DRAIN & SPIN cycle to drain the water.
Wash cycle time is longer than usual	The washer automatically adjusts the wash time for the amount of laundry, water pressure, water temperature, and other operating conditions.	This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle.
Musty or mildewy odor in washer	Incorrect or too much detergent has been used.Inside of tub not cleaned properly.	Use only HE (High-Efficiency) detergent in accordance with the manufacturer's instructions.Run the TUB CLEAN cycle regularly. Be sure to wipe around and under the door seal frequently.Clean around door seal/glass to prevent odor or mildew:1. wipe dry the door seal/glass and the door opening area2. wipe around the inner drum/door seal and the lower door seal

BEFORE CALLING FOR SERVICE (cont.)

Problem Possible Causes Solutions
Wrinkling	Washer not unloaded promptly.Washer overloaded.Hot and cold water inlet hoses are reversed.	Always remove items from the washer as soon as the cycle is complete.The washer can be fully loaded but the drum should not be tightly packed, and the door should close easily.Hot water rinse can set wrinkles in garments. Check the inlet hose connections.
The display shows:	Load is too small.Load is out of balance.The washer has an imbalance detection and correction system. If individual heavy articles are loaded (bath mat, bath robe, etc.) and the imbalance is too great, the washer will make several attempts to restart the spin cycle. If an imbalance is still detected, the washer will stop and the error code will be displayed.	Add 1 or 2 similar items to help balance the load.Rearrange items to help balance the load.
The display shows:	Control error.	Unplug the washer and call for service.
The display shows:	Water level is too high due to a faulty water valve.	Close the water taps, unplug the washer, and call for service.
The display shows:	The water level sensor is not working correctly.	Close the water taps, unplug the washer, and call for service.
The display shows:	Thermal overload protection circuit in the motor has been tripped.	Allow the washer to stand for 30 minutes to allow the motor to cool; then restart the cycle. If the LE error code still appears, unplug the washer and call for service.
The display shows:	A power failure has occurred.	Restart the cycle.

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this manual may vary due to constant product improvements.

Model WM2044C*
Description Front-Loading Washer
Electrical Requirements	120 VAC @ 60 Hz.
Max. Water Pressure 14.5~116 PSI (100~800 kPa)
Dimensions 27"(W) X 29 68.6 cm (W) X 75 cm (D) X 111.5 cm (H), 129.5 cm (D with door open)	12 "(D) X 44"(H), 51"(D with door open)
Net Weight 190 lb. (86 kg)
Max. Spin Speed 1,000 RPM

NOTES

LG ELECTRONICS, INC. LG WASHING MACHINE LIMITED WARRANTY - CANADA

Visit our web site: www.LG.ca

LG Electronics Canada, Inc.

LIMITED WARRANTY

Should your product prove to be defective in materials or workmanship under normal use during the warranty period listed below, which warranty period runs from the original date of purchase, LG Electronics will, at its option, repair or replace the product at no charge to you.

The warranty is valid only to the original purchaser of the product, during the warranty period, as long as it is in Canada.

LG Washing Machine Warranty Period

Components	Parts	Labour
All Parts	1 Year	1 Year (In-Home Service)
Controller	3 Years	1 Year (In-Home Service)
Drum Tub	5 Years	1 Year (In-Home Service)
DD Motor (Stator, Rotor, Hall sensor)	7 Years	1 Year (In-Home Service)

No other warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS, OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLICABLE TO THIS PRODUCT.

Some Provinces or Territories do not allow for the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you (the original purchaser) specific legal rights and you may also have other rights, which vary from province to province or territory to territory.

THE ABOVE WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver and pickup, install, instruct or replace house fuses, or connect house wiring or plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pest, fire, floods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use or contrary to the instructions outlined in the product's owners manual.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation or maintenance.
5. Products with altered or removed serial numbers.

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by you (the owner).

CUSTOMER ASSISTANCE INFORMATION:

To obtain Warranty Coverage:	Retain your Bill of Sale to prove the date of purchase.A copy of your Sales Receipt must be submitted when warranty service is provided.This warranty is invalid if the factory applied serial number has been altered or removed from the product.
To obtain Product or Customer Service Assistance:	Call 1-888-LG-CANADA (542-2623)Press the appropriate menu option, and have your product model and serial numbers and your postal code ready.
To obtain the nearest Authorized Service Center:	Access our web-site at: www.LG.ca (Service Option) or Call 1-888-LG-CANADA (542-2623)Press the appropriate menu option, have your product model & serial numbers & your postal code ready.

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ

Silhouette of a clothes rack with a cloth and a spray bottle, no text or symbols present

INSTRUCCIO IOSN ISMPARTAIS DESSECUISIÉ CURIT

LISEZ TOUTES LES DIRECTIVES AVANT D'UTILISER L'APPAREIL

Diagram of a washing machine with labeled parts including front door, side door, and interior fan assembly

PIÈCES SET CACARTACRISTROQUES

COMPOSANTES ET PIÈCES PRINCIPALES

Black silhouette of a washing machine (no text or symbols)

SÉLECTION DU DÉTERGENT

HAND WASH/WOOL (Less. Main/Laine)

Diagram showing a hand holding a device with labeled buttons and a tray, likely illustrating a mobile phone or app interface.

Diagram showing hand using a tool to adjust or remove a device with directional arrows and labels like 'NEW', 'CHANGE', and 'CHANGE LIST'.

Line drawing of a device with two hoses and a switch, no text or symbols present

Illustration of a hand pressing down on a wall-mounted device with a black arrow indicating downward motion (no text or symbols)

LG Electronics Canada, Inc.

GARANTIE LIMITÉ E
