TBIG28IXC - Microwaves THOMSON - Free user manual and instructions
Find the device manual for free TBIG28IXC THOMSON in PDF.
| Product type | Built-in microwave |
| Brand | Thomson |
| Model | TBIG28IXC |

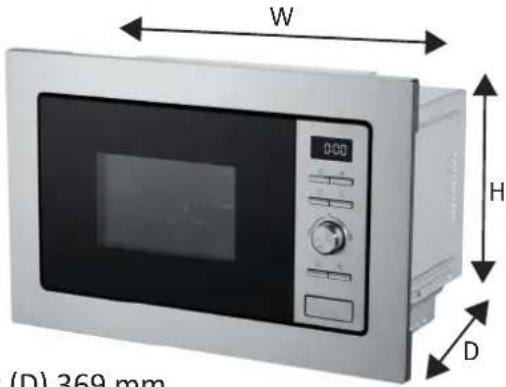

| Exterior dimensions (H x W x D) | 382 x 594 x 369 mm |
| Cavity dimensions (H x W x D) | 251 x 344 x 331 mm |
| Net weight | 15.7 kg |
| Capacity | 25 L |
| Power supply | 230 V ~ 50 Hz |
| Microwave output power | 900 W |
| Microwave input power | 1450 W |
| Grill input power | 1000 W |
| Frequency | 2450 MHz |
| Main functions | Microwave, Grill, Combined cooking (C-1, C-2), Weight defrost (100-2000 g) and time defrost, Quick cooking, Timer, Auto menu (21 programs), Sequential cooking (2 stages), Child safety lock |
| Included accessories | Glass turntable, Guide ring, Wire rack, Pizza pan, User manual |
| Control type | Rotary knob + touch keys |
| Display | Digital display |
| Safety | Child safety lock, automatic shut-off at end of cooking, door safety locks, overload protection |
| Maintenance and cleaning | Clean with warm soapy water, do not use abrasive products or steam cleaner, do not wash accessories in the dishwasher |
| Installation | Built-in in a 60 cm cabinet, minimum height 850 mm from floor, do not install above a heat source |
| Repairability | Interior lamp not replaceable by user, contact authorized service center |
Frequently Asked Questions - TBIG28IXC THOMSON
User questions about TBIG28IXC THOMSON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual TBIG28IXC - THOMSON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TBIG28IXC by THOMSON.
USER MANUAL TBIG28IXC THOMSON
THOMSON MICRO-ONDES ENCASTRABLE TBIG28IXC
THOMSON
TBIG28IXC
MICRO-ONDES ENCASTRABLE
INBOUWMAGNETRON
BUILT-IN MICROWAVE


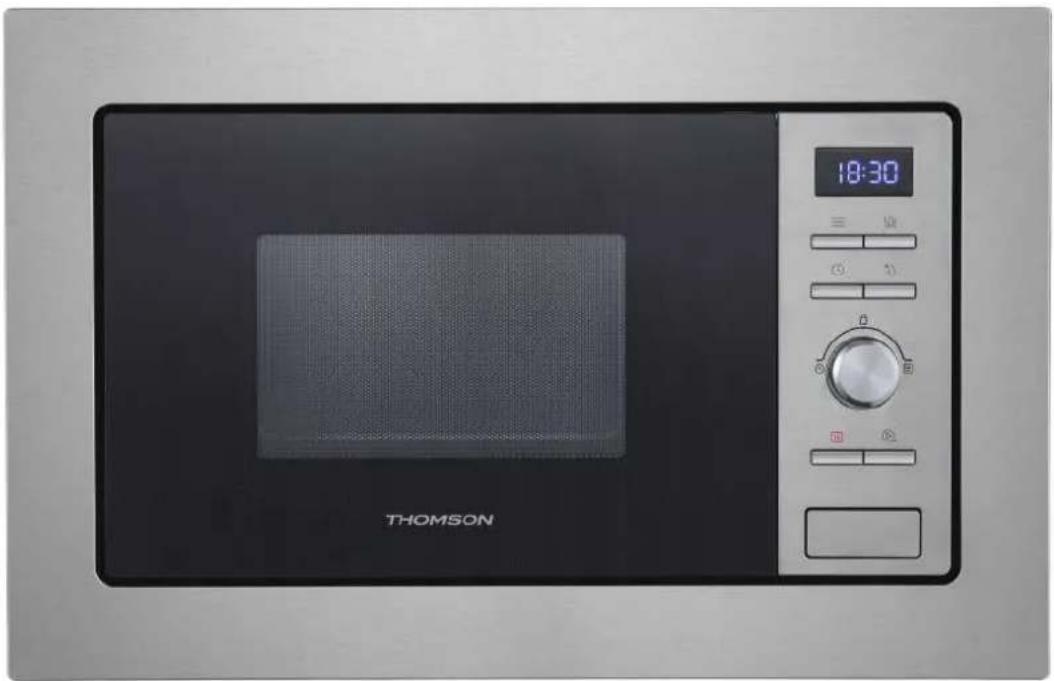

Thomson microwave oven with digital display showing 18:30, no visible text or symbols on the device itself.Table des matières
AVERTISSEMENTS 2
CONSIGNES DE SÉCURITÉ IMPORTANTES 8
USTENSILES DE CUISSON 9
DESCRIPTION DU FOUR 11
INSTALLATION 12
PANNEAU DE CONTRÔLE 16
UTILISATION 17
Générales 17
Régler l'horloge 17
Technical line drawing of a microwave oven and its internal structure (no text or symbols)Hotline Darty France
PROBLEEMOPLOSSING 26
VERWIJDERING....27
WAARSCHUWINGEN
✿ BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN LEES ZORGVULDIG DOOR EN BEWAAR VOOR LATERE RAADPLEGING.
Technical line drawing of a microwave oven and its internal structure (no text or symbols)| Display | Magnetron | Grill |
| C-1 | 55% | 45% |
| C-2 | 34% | 66% |
IMPORTANT SAFETY INSTRUCTIONS....7
COOKING UTENSILS....8
OVEN OVERVIEW....9
INSTALLATION....10
CONTROL PANEL 14
OPERATION 15
General 15
Setting the Clock....15
Microwave Cooking....15
Grill Cooking....16
Combination Cooking....16
Defrosting by Weight....16
Defrosting by Time....17
Speed Cooking....17
Kitchen Timer....17

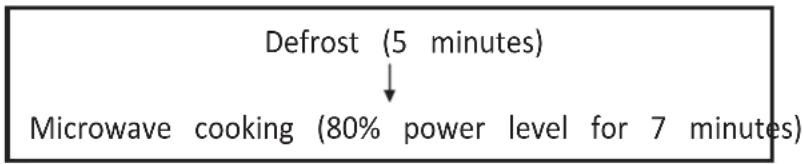

Multi-Stage Cooking....18
Auto Menu....19
Child Lock....21
Foods....21
CLEANING AND MAINTENANCE....22
SPECIFICATIONS....24
TROUBLESHOOTING....24
DISPOSAL 25
WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
- farm houses;
– by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
This appliance can be used by children ages
from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
◆WARNING: If the door or door seals are
damaged, the oven must not be operated until
it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in sealed containers since they are liab to explode.
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye on the oven due to possibility of ignition.
The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of ignition or fire.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
- Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
◆Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
◆Regarding the instructions of the details for cleaning the door seals, cavities, adjacent parts and the surfaces in contact with food, refer to the section “Cleaning and Maintenance” on pages GB-22&GB-23 of the manual.
The oven should be cleaned regularly and any food deposits removed.
◆Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
◆The appliance must be operated with any cabinet door open.
◆Group 2, Class B equipment
This equipment is Group 2 equipment as it intentionally generates radio-frequency energy for treating material and is designed to be used in domestic premises or an establishment directly connected to the low voltage electricity distribution network supplying buildings used for domestic purposes (Class B).
◆After each cooking cycle, the cooling fan will continue to run for a while to ensure quick cooling and safe operation of the oven.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be ke away unless continuously supervised.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface which may result in shattering of the glass.
A steam cleaner is not to be used.
The appliance must not be installed behind a decorative door in order to avoid overheating.
The temperature of accessible surfaces may be high when the appliance is operating.
These surfaces can get hot.
◆Regarding the instructions for the all necessary spaces with dimensions, the method of fixing and how the appliance is to be fixed to its support, refer to the section “INSTALLATION”.
✿ WARNING: Accessible parts may become hot during use. Young children should be kept away.
WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
◆ Metallic containers for food and beverages are not allowed during microwave cooking.
The appliance shall not be cleaned with a steam cleaner.
The microwave oven is intended to be used built-in.
The plug must be remained easily accessible after installation of the appliance.
The lamp inside the product is used for lighting of the product. This lamp is not suitable for household room illumination.
◆ Care should be taken not to displace the turntable when removing containers from the appliance.
The appliance must not be installed equal or higher than 900 mm above the floor.
The lamp in the oven cannot be replaced by user.
IMPORTANT SAFETY INSTRUCTIONS
- When you will not use the microwave oven for a long of time, please disconnect it from the supply mains, to do you must remove the plug from the supply outlet.
- The plug shall be the main disconnection device and shall remain accessible at all times.
- The microwave oven cannot be operated with the door (due to the safety interlocks built into the door mechanism which switch off the cooking functions when the door is opened. Operating the microwave oven with the door operation could result in harmful exposure to microwave energy. It is important not to tamper with the door mechanism.
- Do not let water or any other liquid enter the oven thr the ventilation slots.
- Do not place any object between the oven front face ar door or allow soil or cleaner residue to accumulate on se surfaces.
- Avoid using straight-sided containers with narrow necks.
- Stir any liquid before placing the container back into the microwave oven half way through the heating time.
- After heating, always allow standing time, stir or shake the contents and carefully check the temperatures before consumption.
COOKING UTENSILS
Utensils should be checked to ensure that they are suitable for use in the microwave oven.
Materials you can use in microwave oven
| Utensils | Remarks |
| Browning dish | Follow manufacturer's instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break. |
| Dinnerware | Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. |
| Glass jars | Always remove lid. Use only to heat food until it's warm. Most glass jars are not heat resistant and may break. |
| Glassware | Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. |
| Oven cooking bags | Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. |
| Paper plates and cups | Use for short-term cooking/warming only. Do not leave oven unattended while cooking. |
| Paper towels | Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. |
| Parchment paper Use | as a cover to prevent splattering or a wrap for steaming. |
| Plastic | Microwave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be sl pierced or vented as directed by package. |
| Plastic wrap | Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. |
| Thermometers Microwave Use as a | wave-safe only (meat and candy thermometers). |
| Wax paper Use as a | cover to prevent splattering and retain moisture. |
Materials to be avoided in microwave oven
| Utensils | Remarks |
| Aluminium tray | May cause arcing. Transfer food into microwave-safe dish. |
| Food carton with metal handle | May cause arcing. Transfer food into microwave-safe dish. |
| Metal or metal-trimmed utensils | Metal shields the food from microwave energy. Metal trim may cause arcing. |
| Metal twist ties | May cause arcing and could cause a fire in the oven. |
| Paper bags | May cause a fire in the oven. |
| Plastic foam | Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. |
| Wood | Wood will dry out when used in the microwave oven and may split or crack |
NOTES:
- Care should be taken when removing utensils or the glass turntable, as they may become hot during cooking.
- Only use a thermometer that is designed for use in the microwave oven.
- Ensure the turntable is in place when you operate the oven.
OVEN OVERVIEW

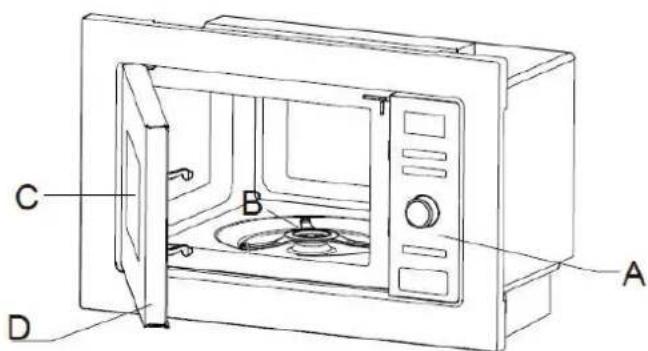

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray
➢ Turntable ring assembly
Instruction Manual
A. Control panel
B. Turntable ring assembly
C. Observation Window
D. Door assembly
E. Grill rack
F. Pizza pan


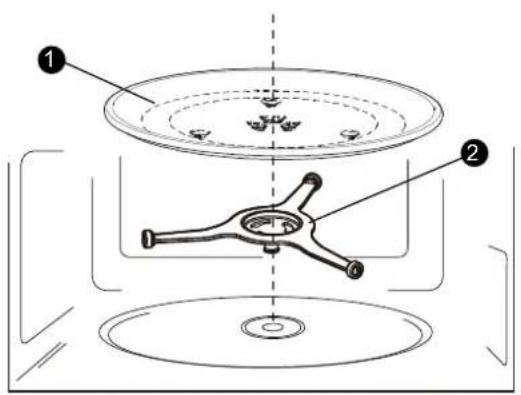

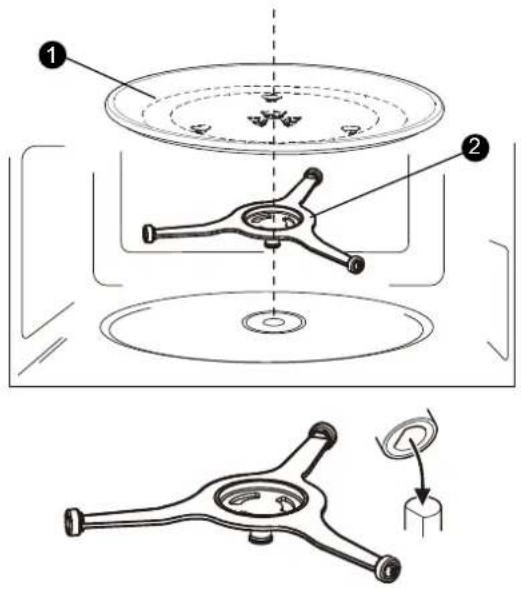

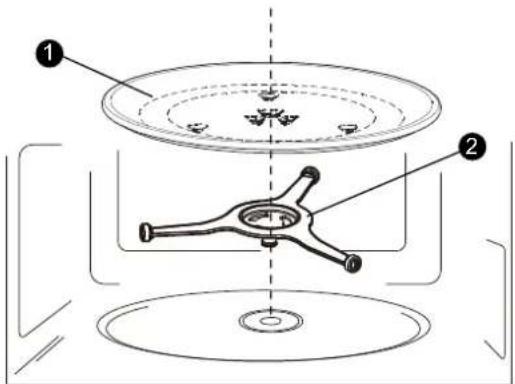

- Never place the glass tray ^1 upside down. The glass tray should never be restricted.
- Both glass tray and turntable ring ^② must always be used during cooking.
- All food and containers of food must always be placed on the glass tray for cooking.
- If glass tray or turntable ring cracks or breaks, stop using your microwave oven and contact your nearest authorised service centre.
INSTALLATION
CAUTION: Please read the manual carefully before installation!
PREPARATION
Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install the microwave oven if it is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface
Do not remove the light brown Mica cover that is attached to the inside of the oven cavity to protect the magnetron.
- This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

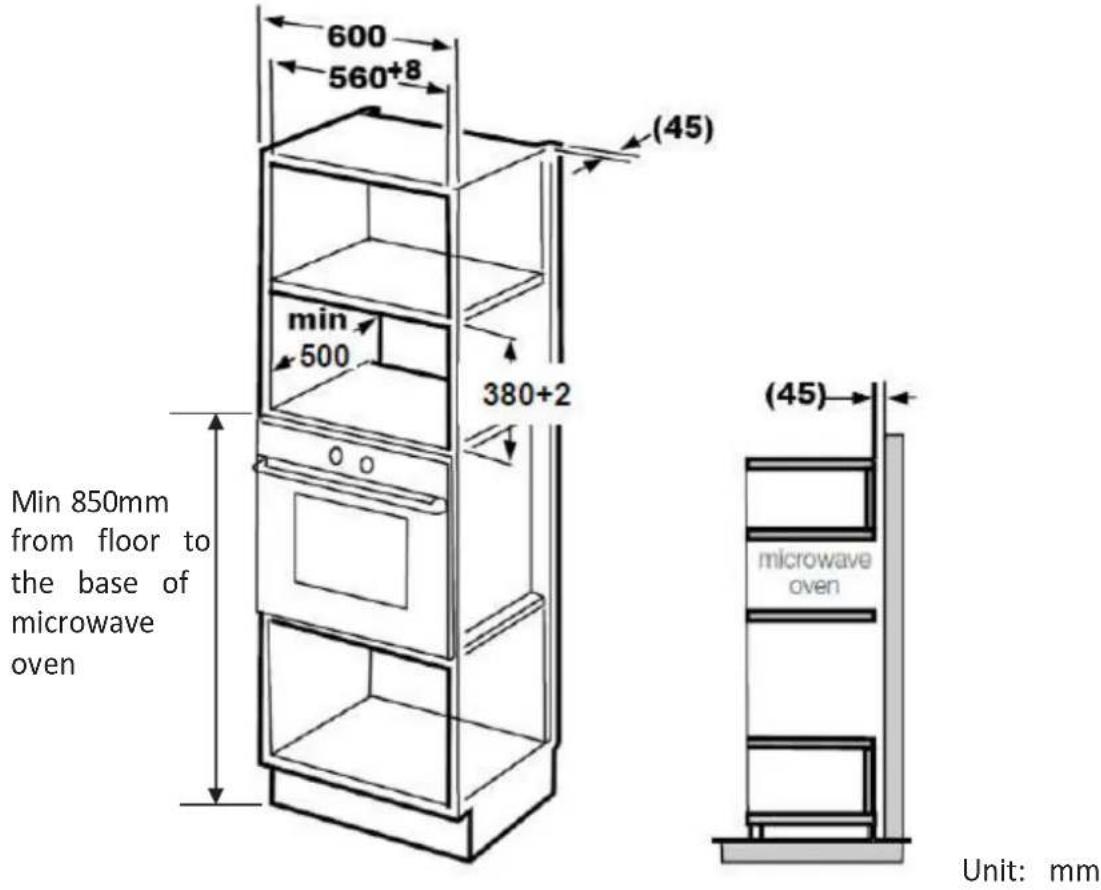

- The appliance can be installed in a 60cm wide wall-mounted cupboard (at least 55cm deep and 85cm off the floor.)
- The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• The mains voltage must correspond to the voltage specified on the rating label.
- Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.
- Place the oven as far away from radios and TV as possible.
- Operation of microwave oven may cause interference to your radio or TV reception.
- WARNING: Do not install the oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would

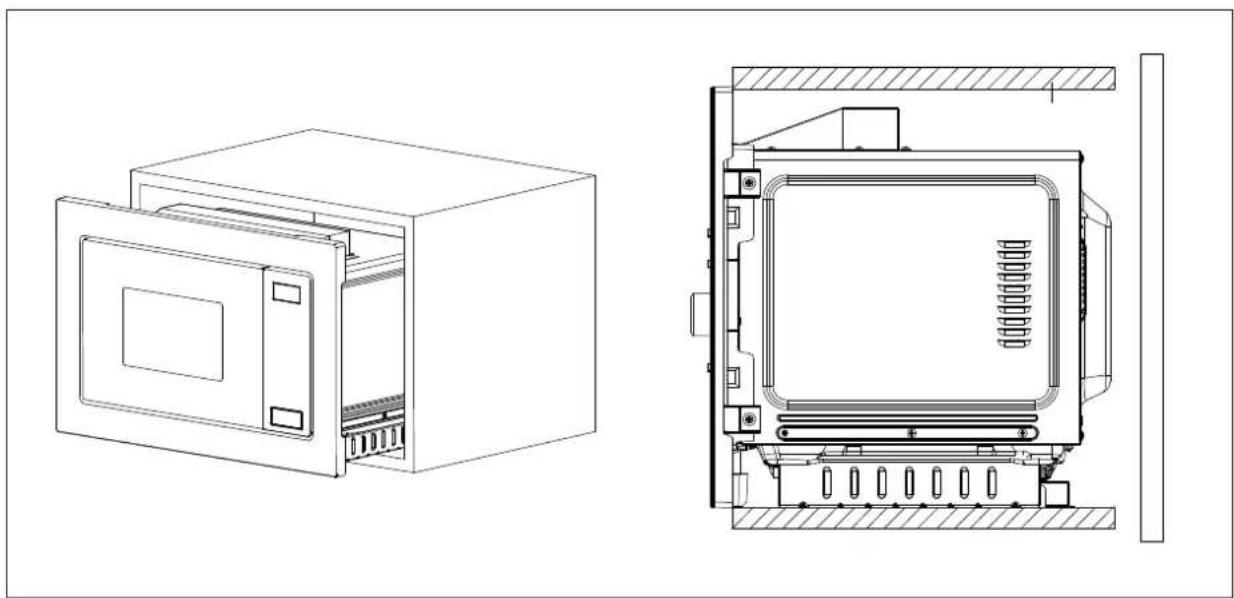

Build-in furniture
The build-in cabinet must not have a rear wall behind the appliance and must have a minim installation height of 850mm. Do not cover ventilation slots and air intake points.

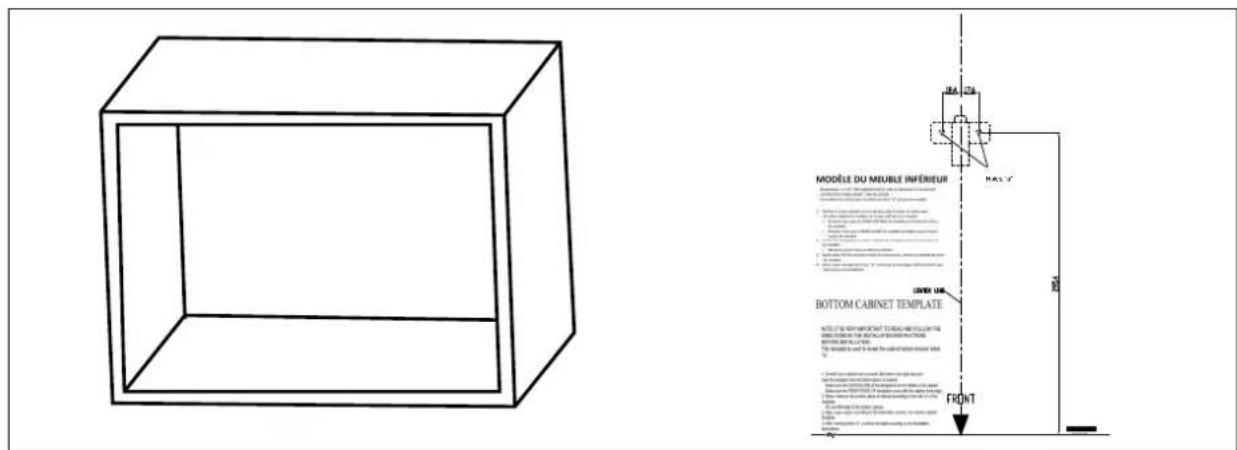

- Read the instructions on the bottom cabinet template and place the template on the bottom of the cabinet.
- Make marks on the bottom plane of the template according to marks 'a' on the templ

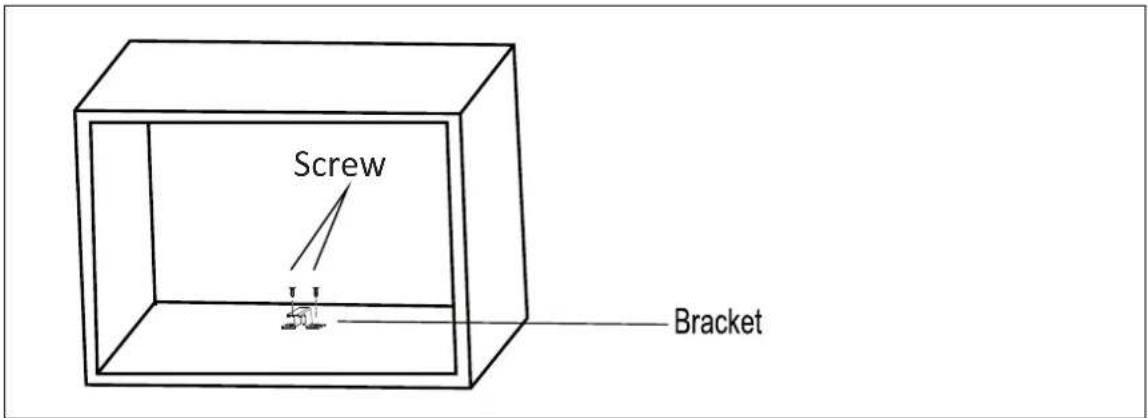

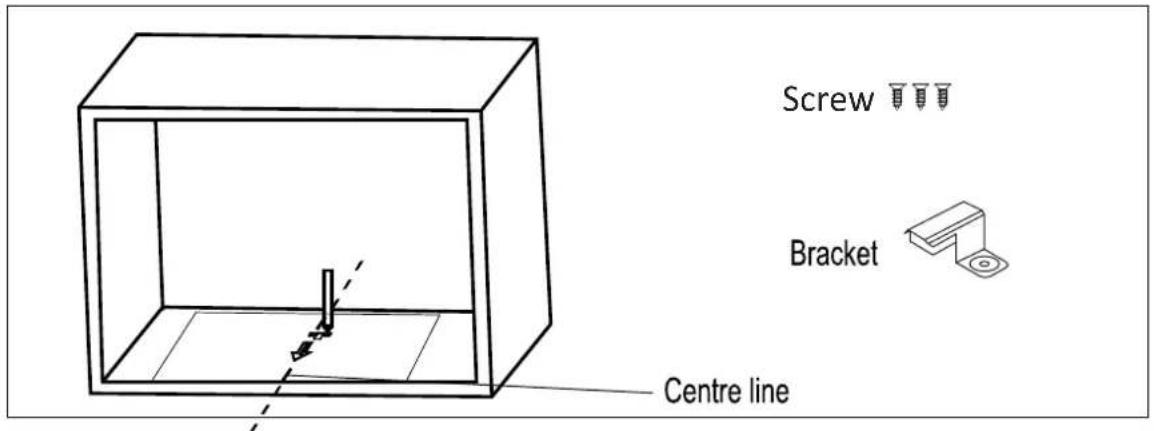

- Remove the bottom cabinet template and fix the bottom bracket with screws.
-

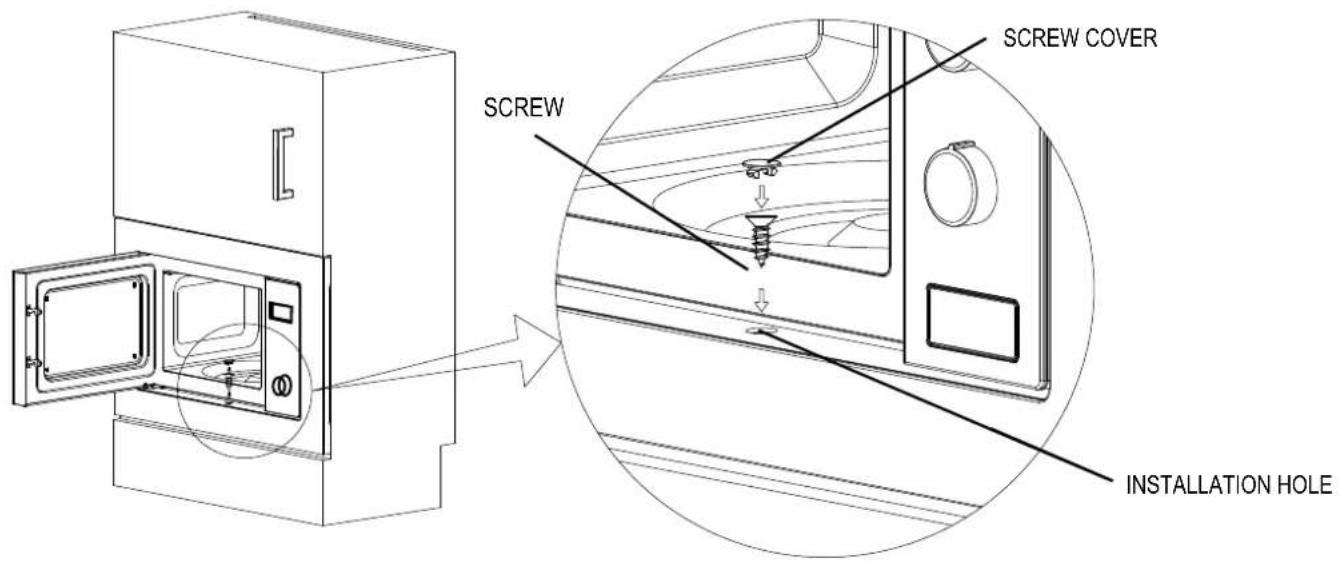

Install the microwave oven into the cabinet.
-
Make sure the back of the oven is locked by the bracket.
- Do not trap or kink the power cord.
CONTROL PANEL
Display
Cooking time, power, indicators and present time are displayed.
Microwave cooking
Press this button to set microwave power level.
Grill / Microwave + Grill cooking
Press this button to set a grill cooking programme or one of two microwave + grill cooking modes.
Kitchen timer / Clock
Press this button to set the kitchen timer or clock.
Defrosting by weight or time
Press this button to defrost food by weight or time.
Time/ Weight /Auto Menu dial
Rotate this dial to select auto menus or select time or weight.
Stop/Cancel button
Press this button to cancel setting or reset the oven before setting a cooking programme.
- Press once to temporarily stop cooking or press twice to cancel cooking completely.
- This button is also used to activate/deactivate child lock function.
Start/+30Sec./Confirm button
- Press this button to start a cooking programme or set speed cooking programme.
- Press this button to confirm the setting.
OPERATION
When the oven is plugged in, the display will show "0:00" and a beep sound will be heard.
General
- Press □ once to temporarily stop cooking. You can resume cooking by pressing ▶+30s, or press □ twice to cancel the cooking programme.
• After the cooking time has elapsed, the oven will beep five times and return to the standby state.
Setting the Clock
- Press twice. The display will show the clock symbol ^L .
• The hour digits will flash on the display.
-
While the hour digits are flashing, turn 🔍 to adjust the hour digits, the input hour should be a 24-hour time value.
-
Press to confirm. The minute digits will flash.
-
While the minute digits are flashing, turn to adjust the minute digits.
-
Press to confirm the setting. “:” will flash on the display.
- The clock symbol will disappear from the display.
NOTE: During clock setting, if you press 11 , the oven will return to the previous state. In this case, your clock setting will not be saved.
Microwave Cooking
- Press once. "P100" will flash on the display.
• The symbol ≈ ≈ will appear on the display.
- Repeatedly press ≈ or turn 🍴 to select a microwave power level.
| Power Level | 100% | 80% | 50% | 30% | 10% |
| Display | P100 | P80 | P50 | P30 | P10 |
-
Press ▶+30S to confirm.
-
Turn 📷 to adjust the cooking time from 5 seconds (0:05) to 95 minutes (95:00).
-
Press ▶ to start cooking.
NOTE: You can check the cooking power during cooking by pressing.
Grill Cooking
- Press once.
- "G" and the symbol will appear on the display.
-
Press ▶+30S
-
Turn to set the grilling time from 5 seconds (0:05) to 95 minutes (95:00).
-
Press to start cooking.
NOTE: After half of the set grill time, the oven will beep twice to remind you to turn the food over in order to have a better effect of grilling food. After food is turned over, close the oven door to continue cooking. If you don't do anything, the oven will just continue cooking.
Combination Cooking
This function allows you to combine microwave and grill cooking on two different settings.
- Repeatedly press ∪ until "C-1" or "C-2" appears on the display.
- The symbols and will appear on the display.
| Display | Microwave | Grill |
| C-1 | 55% | 45% |
| C-2 | 34% | 66% |
- Press _+30S to confirm the setting.
- Turn 📄 to set the cooking time from 5 seconds (0:05) to 95 minutes (95:00).
- Press _+30S to start cooking.
Defrosting by Weight
You can use the oven to defrost food based on the weight selected. The defrosting time and level are automatically set once the weight is entered. The frozen food weight ranges from 102000g.
- Press once. The display will show "d01".
- The two symbols ≈ and ⚙ will appear on the display.
-
Turn 📄 to select the desired food weight.
-
Press +30s to start defrosting.
NOTE: During defrosting, the oven will beep twice to remind you to turn the food over. After food is turned over, close the oven door then press 🏠 +30S to continue cooking. If you don't do anything, the oven will just continue cooking.
Defrosting by Time
You can also choose to defrost food by entering the defrosting time yourself.
- Press twice. The display will show "d02".
- The two symbols and will appear on the display.
-
Turn to select the desired defrosting time from 5 seconds (0:05) to 95 minutes (95:00).
-
Press to start defrosting.
NOTE: The defrosting power is P30 and cannot be changed.
Speed Cooking
- In standby state, press +30S to cook with 100% power level for 30 seconds. Each time you press this button, the cooking time will be increased by 30 seconds. The maximum cooking time is 95 minutes.
- In standby state, turn anticlockwise to choose cooking time, then press +30s to cook with 100% microwave power.
- During microwave cooking, grill cooking, combination cooking and defrost by time process, press to increase the cooking time. Each time you press this button, the cooking time will be increased by 30 seconds.
NOTE: This function cannot work during defrost by weight and auto menu cooking.
Kitchen Timer
You can use your microwave oven as a kitchen timer. The kitchen timer can be set up to 95 NOTE: The kitchen timer does not start or stop the microwave oven.
- Press Ⓛ once. The display will show "00:00".
- The symbol ⏻ will appear on the display.
-
Turn to adjust the kitchen time from 5 seconds (0:05) to 95 minutes (95:00).
-
Press to confirm setting.
• The symbol 📊 will flash on the display.
- When the set time has elapsed, the buzzer will sound 5 times.
- The display will return to the clock time and the symbol will disappear from the display.
Multi-Stage Cooking
Your oven can be programmed for up to 2 automatic cooking sequences. Defrosting can only be the first stage.
NOTE: Auto cooking cannot be selected in a cooking program.
Suppose you want to set the following cooking program:
- Press twice. The display will show "d02"
- The two symbols and will appear on the display..
-
Turn to select the defrosting time until "5:00" is displayed.
-
Press once. "P100" will flash on the display.
- The symbol with appear on the display.
-
Turn or press again to select the microwave power level until "P80" is displayed.
-
Press to confirm.
-
Turn to select the cooking time until "7:00" is displayed.
-
Press +30S to start cooking.
- The two symbols and will flash on the display.
- After one cooking stage is finished, a beep sound will be heard, indicating the next cooking stage has begun.
- The symbol ≈ will flash on the display. When booking is finished, the oven will sound five times.
- The symbol ≈ ≈ will disappear from the display.
Auto Menu
For the food in the following table, it is not necessary to programme the cooking power a Take the following steps:
- In standby state, turn clockwise to select the desired menu from the table below.
- “A1” to “A21” will flash on the display whilst the two symbols and will appear on the display.
-
Press to confirm. "A1" to "A21" will stop flashing.
-
Turn to select the food weight.
- The symbol g will also appear on the display.
- Press to start cooking.
- The two symbols and will flash.
| Menu | Weight | Display | Power Level |
| A1Frozen Pizza | 200 g | 200 g | C-2(34% microwave +66% Grill) |
| 400 g | 400 g | ||
| A2Meat | 250 g | 250 g | P80 |
| 350 g | 350 g | ||
| 450 g | 450 g | ||
| A3Fish | 250 g | 250 g | P80 |
| 350 g | 350 g | ||
| 450 g | 450 g | ||
| A4Vegetable | 200 g | 200 g | P100 |
| 300 g | 300 g | ||
| 400 g | 400 g | ||
| A5Potatoes without skin | 2(400g) | 2 | P100 |
| 4(800g) | 4 | ||
| A6Potatoes with skin | 2(400g) | 2 | P100 |
| 4(800g) | 4 | ||
| A7Fresh spinach | 200 g | 200 g | P100 |
| 400 g | 400 g | ||
| A8Frozen Green beans | 200 g | 200 g | P100 |
| 400 g | 400 g | ||
| A9Frozen Peas | 200 g | 200 g | P100 |
| 400 g | 400 g | ||
| A 10Frozen mix Vegetable | 200 g | 200 g | P100 |
| 400 g | 400 g | ||
| A 11Frozen Broccoli | 200 g | 200 g | P100 |
| 400 g | 400 g | ||
| A12Pasta | 50 g(450 ml cold water) | 50 g | P80 |
| 100 g(800 ml cold water) | 100 g | ||
| A13FrozenLasagna | 300 g | 300 g | C-1(56% crowave+45% Grill) |
| 600 g | 600 g | ||
| A14Quinoa | 100 g | 100 g | P100 / P50 |
| 200 g | 200 g | ||
| A15Couscous | 200 g | 200 g | P100 / P50 |
| 300 g | 300 g | ||
| A16Macaroni | 100 g | 100 g | P80 |
| 200 g | 200 g | ||
| A17Brown Rice | 200 g | 200 g | P100 / P50 |
| 300 g | 300 g | ||
| A18Oatmeal | 2 Serving | 2 | P100 / P50 |
| 4 Serving | 4 | ||
| A19Popcorn | 100 g 100 g P100 | ||
| A20Beverage | 1 cup (120 ml) | 1 | P100 |
| 2 cups (240 ml) | 2 | ||
| 3 cups (360 ml) | 3 | ||
| A21Melt Butter | 1 stick | 1 | P100 |
| 2 sticks | 2 |
Child Lock
The child lock prevents the oven from being operated unintentionally or by unsupervised childr
- To set the child lock, press and hold 11 for about 3 seconds. A long beep will sound and the symbol will appear on the display. In the lock state, all buttons are disabled.
- To cancel the child lock, press and hold 11 for about 3 seconds. A long beep will sound and the symbol will disappear from the display.
NOTE: This function is only available when the oven is not in operation.
Foods
Forbidden foods
If you choose a cooking method using microwaves, you should never:
- Attempt to fry food - it is impossible to control the temperature of the oil and other fats- fire-risk.
- Attempt to cook or warm up eggs in their shells, hard-boiled eggs with or without their shells or snails - they may explode.
- Attempt to cook food in an intact shell (e.g. chestnuts) or hard skin (tomatoes, potatoes, sausages) - always make a slit.
Food temperatures
The action of microwaves is such that only the food is heated. The container may, therefore, cold or cool while the food that it contains is burning hot.
To avoid any risk of burning, always stir before serving and check the temperature carefully by serving - especially to children.
Shake feeding bottles well and try a few drops on the back of your wrist to check the tem
Preparing food for cooking
Before warming feeding bottles and small pots, remove teats and covers.
Remember to cover the food in order to:
- avoid any splashing of the oven cavity,
- retain sufficient moisture for cooking.
Heating liquids
When heating liquids, a sudden overflow may occur when you take the container to remove the appliance. In fact, when the temperature reaches boiling point, steam tends to remain trap the liquid until it is disturbed.
To avoid this superheating effect and the consequent risk of scalding, always place a plastic s the liquid to be heated.
A container can easily be tested for microwave “transparency”:
Place the empty container on the turntable together with a glass of water and run the one minute at maximum power.
After one minute:
- if the container is cold, it is “transparent” and can be used for microwave cooking,
- if the container is warm or hot it is absorbent and must not be used for microwave cooking.
CLEANING AND MAINTENANCE
Before any cleaning or maintenance operation, disconnect the microwave oven from the mains supply and allow it to cool to room temperature.
General Advice
Frequent cleaning prevents the formation of smoke and bad odours during cooking and also sparking in the oven cavity and around the door seal.
Do not let food deposits or grease accumulate inside the oven cavity or on the door seal.
Make sure that the waveguide cover is kept clean at all times. Should food deposits or grease be allowed to accumulate on the cover, sparking will occur and may damage your oven invalidating the warranty.
Oven Door
Remove any food deposits and grease between the door seal and oven cavity using a damp cloth, it is important to keep this area clean at all times.
Interior Walls
Remove any grease splashes from the oven cavity walls with soap and water, then rinse and dry.
The door seal and oven cavity have to be particularly well cleaned to ensure the door will close properly and to avoid sparking between the oven cavity and door assembly.
Do not use abrasive products such as scouring pads which will damage the surfaces of the oven cavity and door.
Only warm soapy water must be used to clean stainless steel surfaces.
Outer Surfaces
To clean the outside surface, use a damp cloth.
Avoid using abrasive products such as scouring pads that may damage the cosmetic surfaces. Make sure water does not seep into the ventilation slots.
Accessories should be washed in warm soapy water by hand.
CAUTION:
Some waveguide covers can be easily damaged, take care when cleaning.
Do not wash accessories in a dishwasher.
Cleaning surfaces that come into contact with food
For hygiene safety the glass tray should be cleaned regularly as it may come into contact with food.
It should be cleaned with warm soapy water and dried thoroughly.
If the inside of the oven cavity and door seal are not kept perfectly clean, there is a danger of damage due to sparking inside the oven cavity invalidating the warranty.
Never scrape the oven cavity walls with sharp objects.
SPECIFICATIONS
Rated voltage and frequency: 230V\~ 50Hz
Rated input power (Microwave): 1450W
Rated input (Grill): 1000W
Rated output power (Microwave): 900W
Microwave frequency: 2450MHz
Dimensions (outer dimensions): (H) 382 x (W) 594 x (D) 369 mm
Dimensions (cavity / inner dimensions): (H) 251 x (W) 344 x (D) 331 mm
Weight (approx.): 15.7kg
TROUBLESHOOTING
| Normal Phenomena | |
| Microwave oven interfering TV reception | Radio and TV reception may be affected when the microwave oven is operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner and electric fan. It is normal. |
| Dim oven light During low power | Microwave cooking, the oven light may become dim. It is normal. |
| Steam accumulating on door, hot air out of vents | During cooking, steam may come out of food. Most of steam will escape from the vents. But some of them may accumulate on positions like the oven door. It is normal. |
| Oven operated accidentally with no food in. | It is forbidden to operate the appliance without any food inside. Failure to do so can cause damage to the interior of cause damage to the interior of the oven. |
| Problem Possible Cause Solution | ||
| Oven cannot be operated. | Power cord not plugged in tightly. | Unplug the appliance then plug again after 10 seconds. |
| There is something wrong with the mains socket. | Test the mains socket by plugging another appliance in. | |
| Oven does not heat up. Door | not closed well. Close door well. | |
| Glass tray makes noise when microwave oven operates. | Dirty roller and oven bottom | Refer to ‘CLEANING AND MAINTENANCE’ to clean dirty parts. |
| Glass tray is not positioned properly. | Position the glass tray properly. | |
Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Ets Darty et Fils (S.A.).
DISPOSAL
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for the appliance and package materials. This will help conserve natural resources and ensure that it is recycled in a man who protects health and the environment.
You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must disposed of separately from household waste when the appliance reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The appliance should be taken to your local collection point for recycling. Some collection p accept appliance free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
EU Declaration of Conformity
Product Description:
BUILT-IN MICROWAVE OVEN
Low Voltage Directive (LVD)
Eco design requirements for energy-related products (ErP)
RoHS
EMC:
EN 55011:2016+A11:2020
EN 55011:2016+A1:2017+A2:2021
EN 55014-2:2015
EN IEC 55014-2:2021
EN 55014-1:2017+A11:2020
EN IEC 55014-1:2021
EN IEC 61000-3-2:2019
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019
LVD :
EN 60335-1:2012/A15:2021
EN 60335-2-6:2015/A11:2020
EN 60335-2-25:2012/A2:2016
EN 62233:2008
ErP :
(EC) 1275/2008
(EU) 801/2013
EN 50564:2011
EN 50242:2016
EN 60350-1 :2013+A11:2014
EN 60350-2:2013+A11:2014
This declaration of conformity is drawn up under the sole responsibility of the manufacturer.
The person responsible for this declaration is:
Place, Date / Lieu :
Ivry-sur-Seine, mai 24, 2022
