USER MANUAL VPVR144NFE Veripart

Electrical schematic diagram with labeled components and wiring connections

Serial Number:

Climate classification SN / N / ST / T
Freezer compartment volume 161L
Fourstar compartment volume 161L
Voltage 220-240V~
Frequency 50Hz
Rated current 1.3A
Security class I
Power usage 140W
Energy consumption E16	0.347 kWh/24h
Energy consumption E32	0.673 kWh/24h
Temperature rise time	11h
Refrigerant	R600a,36g
Insulating agent	Cyclopentane
Freezing capacity (Kg/24h)	12
Product code	919557

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

Made in China

Batchcode:

VPVR144NFD

veripart

VPVR144NFD
Freezer

Electrical schematic diagram with labeled components and connections, including capacitors, relays, and meters

Serial Number:

Climate classification	SN / N / ST / T
Freezer compartment volume 161L
Fourstar compartment volume 161L
Voltage 220-240V~
Frequency 50Hz
Rated current 1.3A
Security class I
Power usage 140W
Energy consumption E16	0.278 kWh/24h
Energy consumption E32	0.54 kWh/24h
Temperature rise time	11h
Refrigerant	R600a,36g
Insulating agent	Cyclopentane
Freezing capacity (Kg/24h)	12
Product code 919560

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

Made in China

Batchcode:

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Freezer storage volume -	Opslagvolume vriezer / Volume de stockage du congélateur / Gefrierspeichervolumen
Fourstar storage volume -	Fourstar-opslagvolume / Volume de stockage Fourstar / Vier-Sterne-Speichervolumen
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung
Security class -	Veiligheids klasse / Classe de sécurité / Sicherheitsklasse
Power usage -	Stroomverbruik / Consommation d'énergie / Stromverbrauch
Energy consumption E16 -	Energieverbruik E16 / Consommation d'énergie E16 / Energieverbrauch E16
Energy consumption E32 -	Energieverbruik E32 / Consommation d'énergie E32 / Energieverbrauch E32
Temperature rise time -	Temperatuur stijging tijd / Temps de montée en température / Temperaturanstiegszeit
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Insulating agent -	Isolatiemiddel / Agent isolant / Isoliermittel
Freezing capacity -	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

1. VEILIGHEID 6

1.1 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

!WAARSCHUWING!

Simple line drawing of a vertical container with a black checkmark inside (no text or symbols)

Simple line drawing of a rectangular object with a black 'X' symbol on its surface and two small protrusions at the bottom (no text or symbols)

4. Reinig

Line drawing of a hand using a tool to lift or adjust a shelf panel (no text or symbols)

Diagram of a multi-panel refrigerator with two upward-pointing arrows indicating ventilation or airflow direction (no text or symbols present)

3.1 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of an adjustable wrench with a handle and spring (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Diagram of a screwdriver being adjusted to a bracket, showing tool movement (no text or symbols)

Pure technical diagram of a mechanical bracket with dashed arc and angle marker (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and mounting bracket (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

Diagram of a document being rotated with arrows indicating rotation, no text or symbols present

4. GEBRUIK

Z

1. Temperatuurinstelling

1.1 Safety warnings and regulations 31
1.2 Safety instructions: installation 32
1.3 Safety instructions: use 33

2. PRODUCT FEATURES 34

3. INSTALLATION 36

3.1 Door reversal instructions 38

4. USE 41

1. MAINTENANCE AND CLEANING 44
2. TROUBLESHOOTING 46
3. TAKING OUT OF SERVICE 49
4. SAFE DISPOSAL 50

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.

- Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.

- The warnings and safety instructions in this manual do not cover all possible circumstances and situations.

- If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
DANGER!	Fire hazard and/or flammable materials
WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE

You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at:

www.coolblue.nl/en/customer-service

1. SAFETY

1.1 SAFETY WARNINGS AND REGULATIONS

!WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance (only in cases where the cooling circuit is freely accessible).
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• When positioning the appliance, ensure that the power cable is not stuck or damaged.
• Do not use an extension lead or socket for this appliance.

CAUTION!

• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of freezerrant used.
• It is dangerous for people other than authorised technicians to carry out maintenance or repairs with cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.

ATTENTION!

- This appliance is intended for domestic use and similar applications such as:

staff kitchens in shops, offices and other work environments;

farms and guests in hotels, motels, B&B and other residential environments;

catering and similar non-retail applications.

• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.
• Food storage times recommended by the food manufacturer must be observed.
• Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.

1.2 SAFETY INSTRUCTIONS: INSTALLATION

DANGER!

Risk of fire / flammable materials.

CAUTION!

• The appliance is heavy. Take care when handling and wear protective gloves and closed footwear.
• It is dangerous for persons other than authorised service technicians to carry out maintenance on electrical components (plug, power cable, compressor, etc.) or to carry out repairs with the cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• If you detect any damage to the appliance or the power cable, do not connect the appliance but contact the service department (see contact details on page 35).
• The power cable must be attached behind the appliance and must not be exposed or loose.
• Make sure that the power cable of the installed appliance is always easily accessible.
• This appliance requires a standard 220-240V 50Hz socket with 2-pole earthing. The power cable of this appliance is equipped with a 2-pole plug suitable for standard wall sockets with earthing to minimise the risk of electric shocks.
• On first installation (or after turning the door) wait at least four hours before connecting the appliance to the power. This allows the oil to flow back into the compressor.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• Incorrect use of the earthed plug may cause an electric shock.
• This appliance is not intended for use as a built-in freezer.
• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance
• will function correctly, but energy consumption may increase slightly.
• This appliance is not suitable for use with an inverter.
• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• Do not install this appliance in spaces that are too damp or too cold.
• Do not expose the appliance to rain.
• The total volume of the space in which the appliance is installed divided by the amount of freezerrant of the appliance must not be less than 8 g/m^3 . The amount of freezerrant contained in the appliance can be found on the type plate.
• The lamp supplied with this appliance is only for use in this appliance and is not intended for other applications.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table below.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct).

This type of freezer has climate range SN, N, ST, T.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.3 SAFETY INSTRUCTIONS: USE

CAUTION!

Observe the following instructions to avoid food contamination:

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

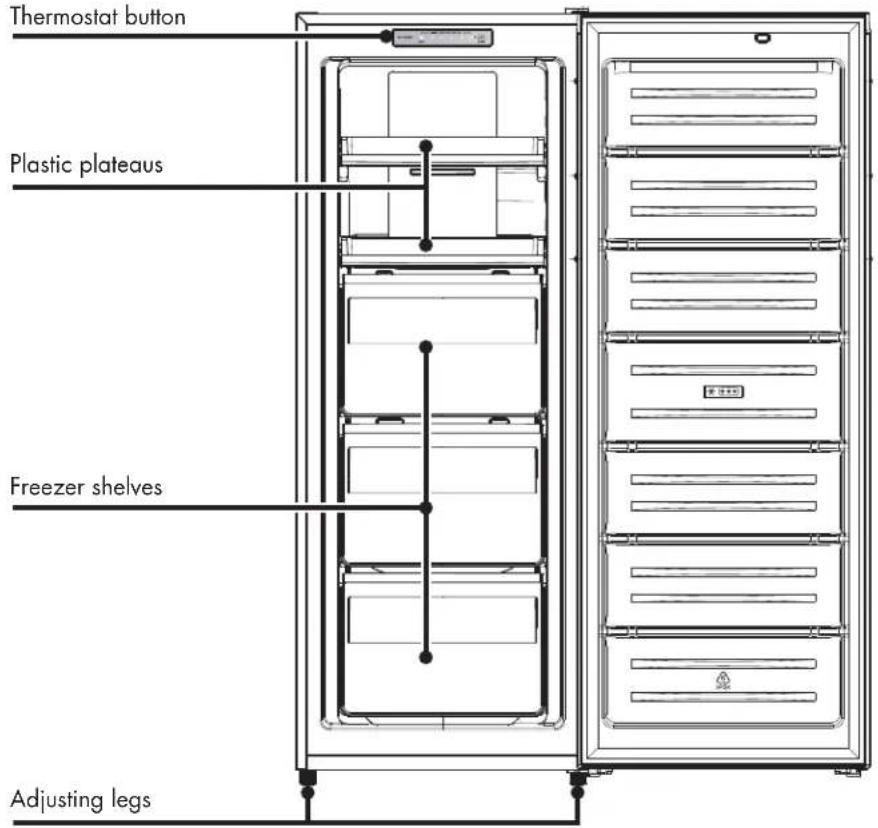

2. PRODUCT FEATURES

Thermostat button Plastic plateaus Freezer shelves Adjusting legs

W G H

E D F F B C A

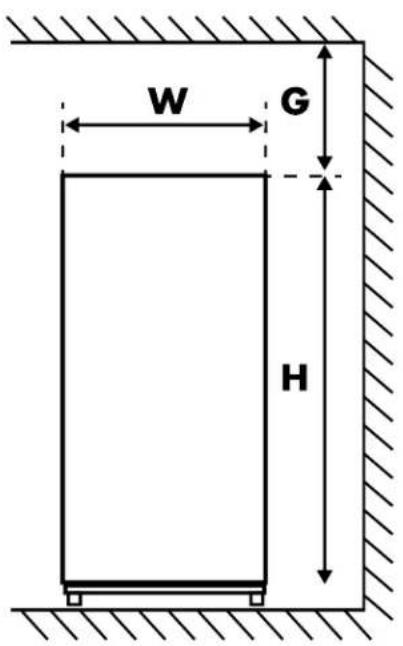

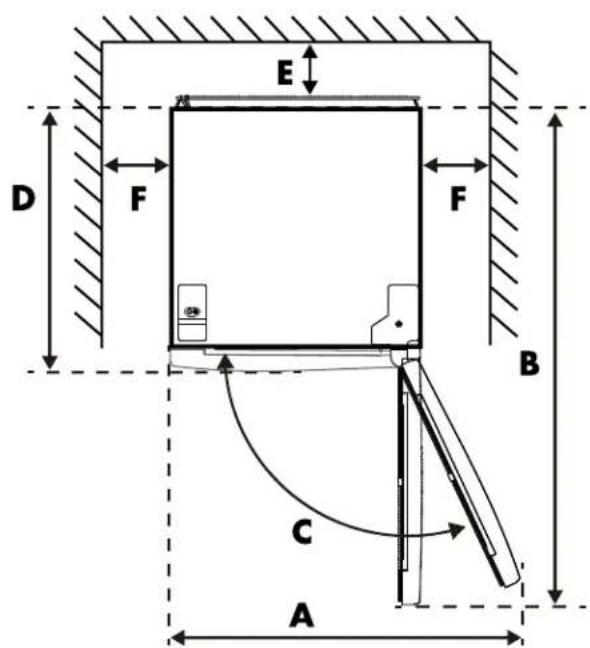

• Figure 1. Front view • Figure 2. Top view

WDHABC(°) EFG
55cm 59,4cm 144cm	84cm 115cm 115		°	min. 5cm	min. 10cm min. 5cm

*Figures 1 and 2 illustrate the space required for the appliance.

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Guarantee

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en/customer-service. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the refrigerator in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

VERIPART CONTACT DETAILS
Address: Weena 664, 3	012 CN, Rotterdam
Website www.coolblue.nl	l/en/customer-service

3. INSTALLATION

Before installing the appliance, carefully review the safety information (section 1).

⚠️! Warning!

When the appliance is installed, check that the earthing wire and the circuit breaker work normally.

If vibration noise occurs because the freezer is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the device away from the wall.

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

The location where you place your appliance should be well ventilated and the air should not be too hot. Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption. Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• To reverse the direction in which the door opens, go to section 3.1.
• During operation, the appliance emits heat to the environment.
  Therefore there must be at least 5 cm clearance on the top, at least 10 cm on both sides and at least 5 cm on the back of the fridge (see also page 34).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it may affect the performance of the gasket seal or even lead to a failure of your appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur.
• When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

Simple line drawing of a vertical container with a black checkmark inside (no text or symbols)

Simple line drawing of a rectangular device with a black 'X' symbol on the front panel (no text or labels)

4. Clean

Clean the interior and all internal accessories with lukewarm water and some neutral soap before first use to remove the typical smell of a brand new appliance. Dry everything carefully. Do not use solvents or abrasive powders; these will damage the coating.

5. Wait

Wait four hours before connecting the appliance so that the oil can flow back to the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. The appliance must be earthed. The power cable is supplied with an earthed plug for this purpose. If the socket is not earthed, connect the appliance to a separate earth according to current regulations and consult a qualified electrician. Insert the mains plug into the socket to start the compressor. After 1 hour, open the freezer door. If the temperature in the freezer compartment is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

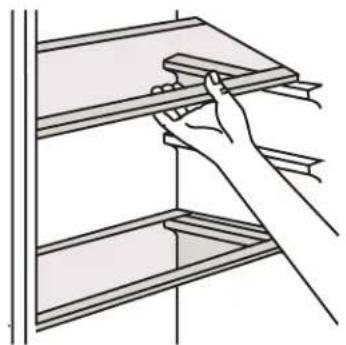

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

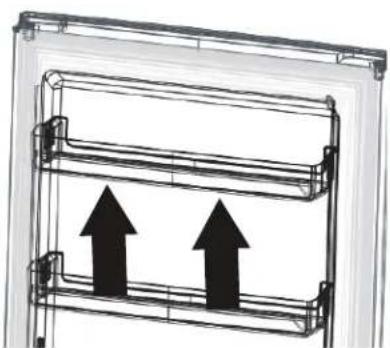

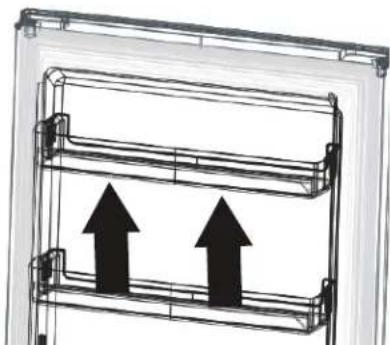

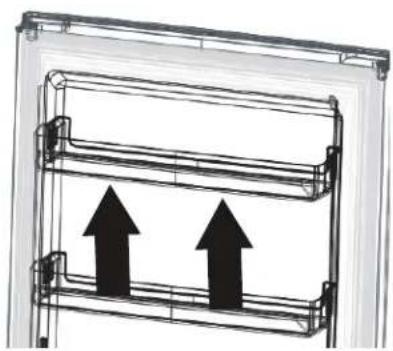

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

8. Storing food

See Section 4 "Use".

Line drawing of a hand using a tool to lift or adjust a metal shelf (no text or symbols)

Diagram of a refrigerated refrigerator with two upward-pointing arrows indicating airflow or movement (no text or symbols present)

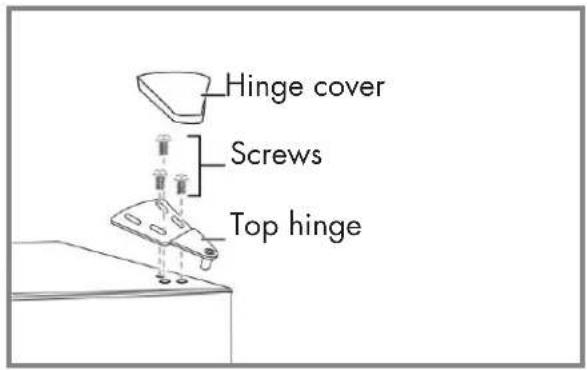

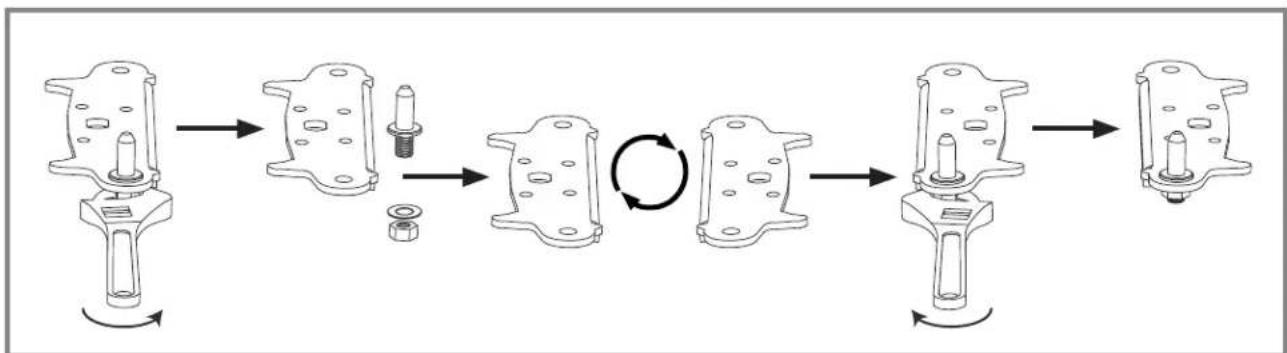

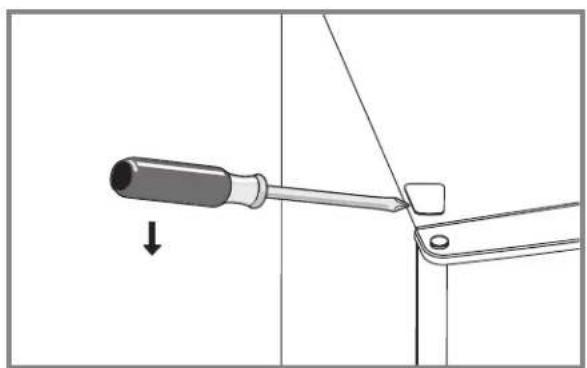

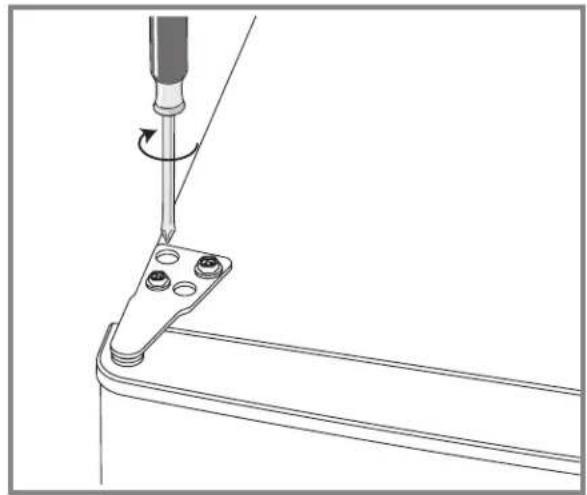

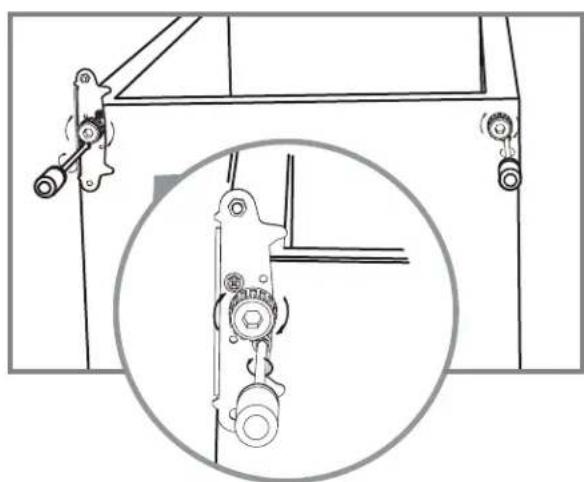

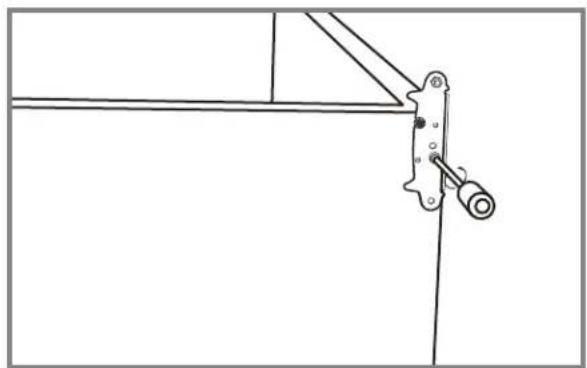

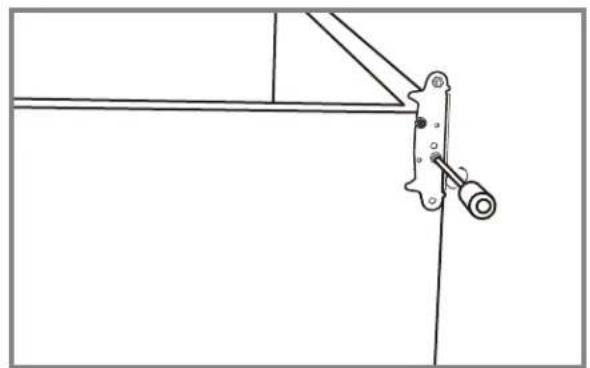

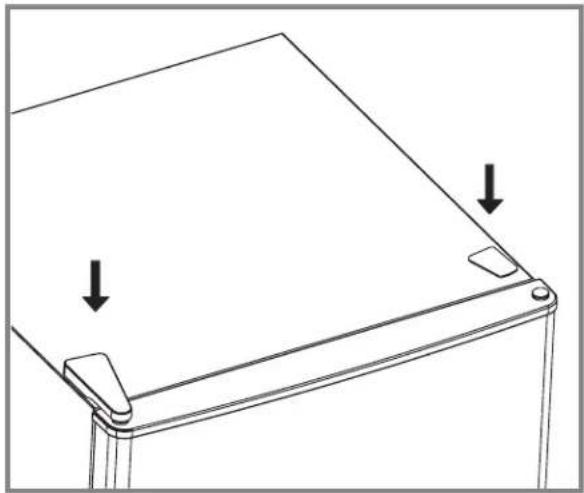

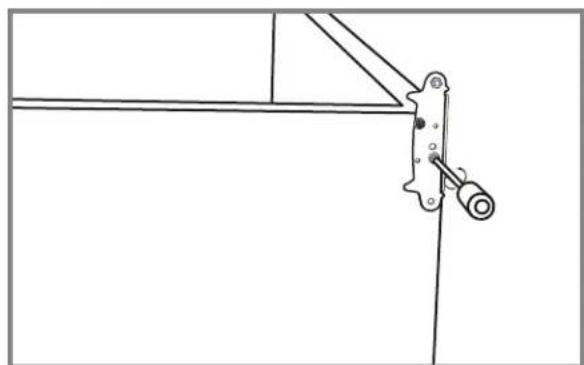

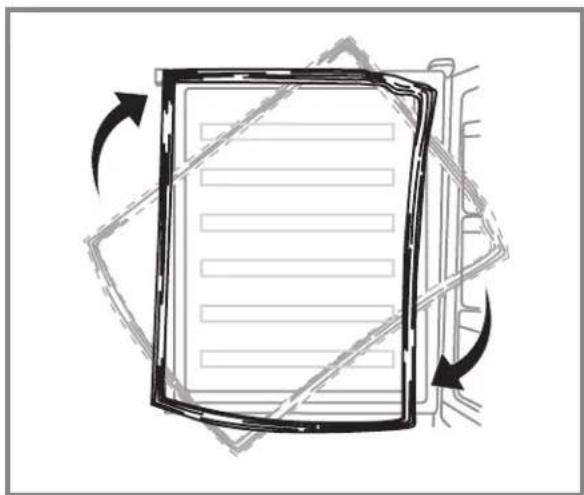

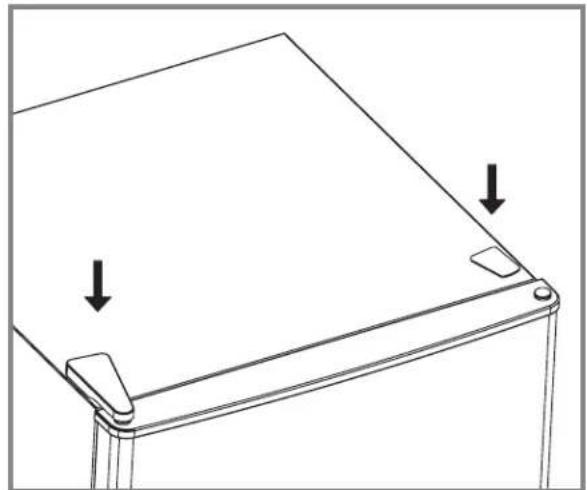

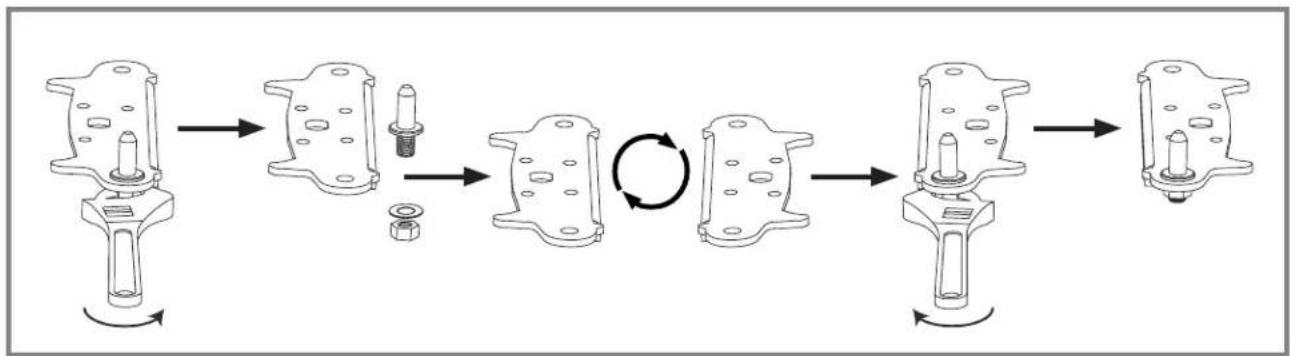

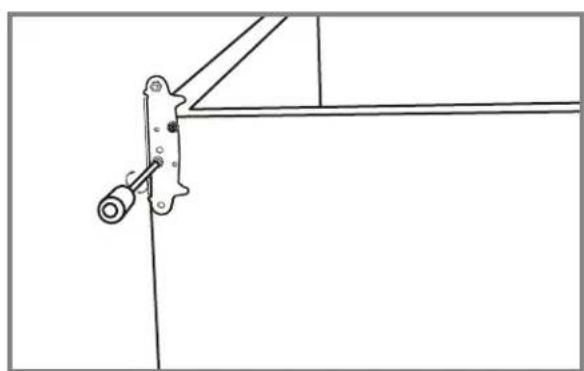

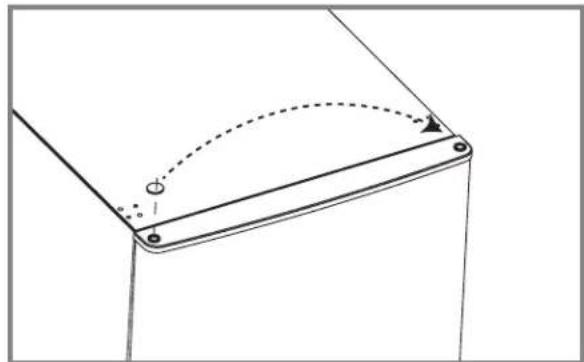

3.1 DOOR REVERSAL INSTRUCTIONS

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.
• Keep all removed parts to remount the door later.
• Do not lay the appliance down flat. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.

Necessary tools:

Line drawing of a screwdriver with no text or symbols

• Crosshead screwdriver

Line drawing of a screwdriver with no text or symbols

- Flat head screwdriver

Line drawing of an adjustable wrench with a handle and spring (no text or symbols)

- Adjustable spanner

1. Unplug and empty the appliance.

2. Remove the cover of the right hinge. Unscrew the top hinge and dismantle it.

3. Dismantle the cover of the left hinge.

Hinge cover Screws Top hinge

Diagram of a screwdriver being inserted into a tool, with an arrow indicating the direction (no text or symbols present)

1. Dismantle the cover of the door and mount it on the other side. Lift the door off the hinge and place it on a soft surface to avoid scratches.

Pure technical diagram of a mechanical bracket with dashed arc indicating motion (no text or symbols)

1. First dismantle both adjusting legs. Then dismantle the hinge bracket on the bottom right-hand side of the appliance. Unscrew the hinge pin from the bracket. Turn the bracket over and screw the hinge pin back on.

Pure mechanical linkage diagram without any text, numbers, or symbols

1. Install the hinge bracket on the other side of the device. Then replace the two adjusting legs.

Pure mechanical linkage diagram without any text, numbers, or symbols

Technical line drawing of a vehicle door mechanism with gear assembly (no text or symbols)

1. Remount the door. Make sure the door is level horizontally as well as vertically so that the gaskets close properly on all sides before tightening the top hinge.

1. Put the hinge bracket in place and screw it to the top of the appliance.

* use a spanner to tighten if necessary.

Technical line drawing of a mechanical assembly with a tool and mounting bracket (no text or symbols)

1. Place the two covers over the hinge points.

Line drawing of a flat-panel electronic device with two downward arrows indicating mounting points (no text or symbols)

1. Remove the refrigerator and freezer door gaskets, then rotate and reattach them. Check that the door is level both horizontally and vertically when the door is closed. If necessary, readjust the adjusting legs.

Diagram of a document being rotated by a curved arrow, showing page layout and rotation direction (no text or symbols)

4. USE

1. Temperature setting

The freezer temperature can be set by pressing the 'Set' button.

The temperature setting is confirmed if the 'Set' button is not pressed within 5 seconds.

After this, the desired temperature is set and this is shown on the display.

The following settings are possible:

-14, -16, -18, -20 and -22 and 'Super Freeze'. The recommended setting is -18 °C.

SMART TEMPERATURE CONTROL * -14 -16 -18 -20 -22 °C SET SUPER SUPER/3s

2. Super Freeze

Press the 'Set' button for 3 seconds to select the 'Super Freeze' mode, after which the 'Super' symbol lights up on the display.

Press the 'Set' button again for 3 seconds to turn off 'Super Freeze' mode, after which the 'Super' symbol on the display goes out.

When 'Super Freeze' mode is on, the temperature inside the compartment cools down quickly, which prevents the loss of nutritional value of the food and keeps freshness intact.

* The appliance uses more energy than usual in 'Super Freeze' mode. The most energy-efficient mode for this appliance is -18 °C

3. Door alarm

If the door remains open for more than 90 seconds, the door alarm goes off. You can turn this off by closing the door properly or by pressing the 'Set' button.

4. Temperature alarm

If the temperature in the freezer exceeds -6 °C for more than 6 hours, the alarm goes off.

In addition to the alarm going off, the 5 indicator lights on the temperature display also flash (the 'Super' light and the 4 digit lights from '-14' to '-20').

The alarm goes off automatically when the temperature drops below -10 degrees.

You can also press the 'Set' button to stop the alarm.

Precautions for use

• On first use or after a long period of downtime: run the appliance for at least 4 hours at -22 degrees before placing products in the freezer.
• After 24 hours, set the temperature control back to the recommended position of -18 degrees.
• The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the rating label, which is explained on page 33.
• The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.
• Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.
• Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.

Food storage

• The freezer is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours is for this refrigerator: 12kg .
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• The temperature of the freezer is kept below -18°C. This allows food to be stored for a long time. The storage period on the packaging must be observed.
• The ideal temperature setting for the freezer is -18°C. It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.
• Allow hot food to cool to room temperature before putting it in the freezer.
• Only freeze fresh and thoroughly cleaned foods.
• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.
• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.

• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.

• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.

• Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.
• Packaging bags you use should be dry, in case several packaging bags are frozen together.
• Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.
• To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free.
• The freezer drawers are intended to preserve food for a long time. The drawers are best used as follows:
• Bottom drawer for raw meat, poultry, fish.
• Middle drawer for frozen vegetables, fries.
• Top drawer for ice cream, frozen fruit, deep frozen pastries.

Tips for shopping for frozen food

• When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the star rating. This is usually the period stated as "Best before", found on the front of the packaging.
• Check the temperature of the frozen food cabinet in the shop where you buy frozen food.
• Make sure the frozen food package is in perfect condition.
• Always buy frozen products last on your shopping trip or visit to the supermarket.
• Try to keep frozen items together whilst shopping and on the journey home, as this will help to keep the food cooler.
• Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep the frozen foods cold longer.
• For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
• Use quality food and handle it as little as possible. When food is frozen in small quantities, it will take less time for it to freeze and thaw.
• Estimate the amount of food that needs to be frozen. When freezing large amounts of fresh food, adjust the temperature control knob to the low mode to lower the freezer temperature so, food can be frozen quickly and retain its freshness.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

For hygienic reasons, the inside of the appliance, including accessories, should be cleaned regularly.

! CAUTION!

• Remove the plug from the socket before cleaning.
• Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.

! ATTENTION!

- The electrical parts of the appliance may only be cleaned with a dry cloth.

Note!

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

Defrosting

This freezer is a no-frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

Interior and exterior cleaning

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all freezer drawers and clean with a soft cloth or sponge moistened with warm water or neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, defrost the freezer, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. Caution!

ATTENTION!

• Before solving the problem, switch off the power supply.
• If the following descriptions do not solve your problem, please contact our customer service: www.coolblue.nl/en/customer-service
• Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all.	- The control knob for the temperature is wrong.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room.- The power has failed.	- Set the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.- Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the appliance.	- There is spoiled food in the appliance.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
The compressor works continuously.	- Too many products are stored at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the next section.
The side panels are hot.	- This is normal.The heat exchanger components are on the side of the appliance.Immediately after installation, the sides become hot, after the fridge reaches its internal temperature, the temperature of the side panels will decrease.
Abnormal noise	- The appliance is not stable/level.- The appliance is making contact with the wall or other objects.- 'Super Freeze' mode has been turned on.	- Readjust the appliance's adjusting legs.- Move the appliance slightly.- This is normal. 'Super Freeze' mode uses the maximum power of the appliance.
The temperature cannot be set.	- 'Super Freeze' mode has been turned on.	- See Section 4 'Use' to deactivate 'Super Freeze' and set the temperature.
The appliance freezes too much.	- The temperature of the appliance is set too high.- 'Super Freeze' mode has been turned on.	- See Section 4 for information on how to set the temperature. The recommended temperature setting for this appliance is -18°C.- See Section 4.3 for information on how to turn off 'Super Freeze' mode.
The alarm goes off.	- The door is open.- The temperature in the appliance is too high.- In addition to the alarm going off, the 5 indicator lights on the temperature display also flash (the 'Super' light and the 4 digit lights from '-14' to '-20').	- Make sure the door is completely closed and stays closed.- Press the 'Set' button to deactivate the alarm.- Lower the ambient temperature by opening windows or doors or using blinds.- Allow hot food to cool to room temperature before putting it in the freezer.- See Section 4.4 for more information.

7. TAKING OUT OF SERVICE

Switching off and storage

If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.
- Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
- Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
- Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
- Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
- The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

CAUTION!

Waste processing

• Freezerrants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a freezerrant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

Creative Commons recycling symbol with recycling curve and no disposal bin icon

The materials used in this appliance marked with this symbol are recyclable.

This marking indicates that this product should not be disposed of via household waste throughout the EU. In order to prevent damage to the environment or human health as a result of uncontrolled waste, it must be processed responsibly so that raw materials can be reused sustainably. Use the existing collection systems or contact the shop where you purchased the product if you want to dispose of the used product. There, the product is recycled in an environmentally friendly way.

• Old cooling appliances still have value. Responsible disposal ensures that valuable raw materials can be recycled. Of course, the appliance may not be disposed of with (domestic) residual waste, but it must be collected or returned to the environmental station of your municipal waste processing company.
• The freezerrants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.
• Information on how to dispose of old appliances and packaging correctly can be found at your local municipal waste processing company.

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN Rotterdam

The Netherlands

Made in China

MANUEL D'UTILISATION

CONGÉLATEUR

VPVR144NFE

VPVR144NFD

veripart

TABLE DES MATIÈRES

AVANT-PROPOS

54

1. SÉCURITÉ 56

Simple line drawing of a vertical container with a black checkmark inside (no text or symbols)

Simple line drawing of a rectangular object with a black 'X' symbol on the front face (no text or labels)

4. Nettoyage

Line drawing of a hand using a tool to lift or adjust a shelf panel (no text or symbols)

Diagram of a multi-level storage unit with two upward-pointing arrows indicating flow or movement (no text or symbols)

3.1 INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a screwdriver with no text or symbols

- Tournevis cruciforme

Line drawing of an adjustable wrench with a handle and spring (no text or symbols)

- Clé à molette

Line drawing of a screwdriver with no text or symbols

- Tournevis plat

Diagram showing a screwdriver being inserted into a tool, with an arrow indicating the direction of insertion (no text or symbols present)

Pure technical diagram of a mechanical bracket with dashed curved line and circular nodes (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Line drawing of a flat-panel electronic device with two downward arrows indicating mounting points (no text or symbols)

Diagram of a document being rotated by a curved arrow, showing page layout and rotation direction (no text or symbols)

4. UTILISATION

PROBLÈME CAUSE POSSIBLE SOLUTIONS

2. PRODUKTMERKMALE 85

3. INSTALLATION 87

Simple line drawing of a vertical container with a black checkmark inside (no text or symbols)

Simple line drawing of a rectangular device with a black 'X' symbol on the front panel (no text or labels)

4. Reinigung

Line drawing of a hand installing or adjusting a shelf panel on a metal shelf (no text or symbols)

Diagram of a refrigerated refrigerator with two upward-pointing arrows indicating airflow or movement (no text or symbols present)

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Diagram showing a screwdriver being inserted into a tool, with an arrow indicating the direction of insertion (no text or symbols present)

Pure technical diagram of a mechanical bracket with dashed curved line indicating motion (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Line drawing of a flat-panel electronic device with two downward arrows indicating mounting points (no text or symbols)

Diagram of a document being rotated by a curved arrow, showing page layout and rotation direction (no text or symbols)

4. BENUTZUNG

Creative Commons recycling symbol with recycling and rejection icons

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN Rotterdam

The Netherlands

Made in China
