DOM478 - Electric razor LIVOO - Free user manual and instructions

Product type	Electric lint shaver
Brand	Livoo
Model	DOM478
Category	Electric shaver
Power supply	DC 5V via included USB cable
Charging time	8 to 10 hours for full charge
Charging indicator	Indicator light
Main functions	Removal of lint and pilling from clothes
Components	Protective metal grid, rotating blades, lint reservoir, antistatic cleaning brush
Reservoir capacity	Approximately 50 ml (estimate)
Dimensions (L x W x H)	Approximately 15 x 5 x 5 cm (estimate)
Weight	Approximately 200 g (estimate)
Maintenance and cleaning	Clean the grid, rotating blades and reservoir with the provided brushes; do not clean while charging
Safety	Non-replaceable batteries; use only the provided USB cable; do not immerse in water
Spare parts and repairability	Repairs by qualified personnel only; non-replaceable battery
Intended use	Household, on flat and smooth garments; avoid seams and raised areas
Package contents	Device, USB cable, antistatic cleaning brush, blade cleaning brush
Warranty	Standard manufacturer's warranty
General information	Indoor use only; complies with WEEE directive

Frequently Asked Questions - DOM478 LIVOO

How to charge the Livoo DOM478 shaver?

Connect the provided USB cable to the device and a USB power source. Full charging takes 8 to 10 hours. The indicator light shows the charging status.

Can I use the device on all types of fabric?

Yes, but avoid thin or delicate clothes by paying attention to folds. Do not go over seams, raised areas, pins or accessories. Do not use on worn or torn clothes.

How to clean the lint reservoir?

After use, turn off the device and remove the reservoir. Empty it and clean it with the antistatic brush or a damp cloth. Let it air dry.

Are the blades replaceable?

No, the blades are not replaceable by the user. In case of wear, contact Livoo customer service.

Can I use the shaver while charging?

It is not recommended to use the device while charging. Unplug it before use.

How to clean the rotating blades?

Use the provided blade cleaning brush to remove stuck lint. You can also open the metal grid and gently clean the rotation axis.

What to do if the device does not turn on?

Check that the battery is charged. Plug in the USB cable and wait a few minutes. If the indicator does not light up, contact customer service.

Is the device suitable for pet hair?

Yes, the antistatic brush is designed for pet hair. Run the brush over the garment before using the shaver for best results.

Can I immerse the device in water?

No, never immerse the device in water or any other liquid to avoid electrical hazards. Clean it with a damp cloth.

Where to find the manual in French?

The manual is available for free download on notice-facile.com. You can also request a translation by email.

USER MANUAL DOM478 LIVOO

Purple livoo brush cleaner with circular filter array and mesh grille (no visible text or symbols)

Livoo

Version : v.1.0

Figure 1

Figure 2

Line drawing of a hand holding a circular object on a sleeveless shirt, with no text or symbols present.

Figure 3

Line drawings of a hair dryer with open lid, showing internal components and exploded view (no text or symbols)

Figure 4

Symbol of a trash bin crossed with two crossed lines, no text or labels present

capabilities or lack of experience or knowledge, if they are properly supervised or instructed in the safe use of the appliance and in the understanding of the risks involved. Children must not play with the device. Cleaning and maintenance must not be carried out by unsupervised children.

1. Only qualified and authorized persons are allowed to carry out repairs on your device. Any repair that does not comply with the standards can considerably increase the level of risk for the user!
2. Defects resulting from improper handling, damage or repairs attempted by third parties will void the product warranty. This also applies to normal wear and tear and to the device's accessories.
3. Indoor use only.
4. Unplug the unit before cleaning.
5. If using an adapter (not supplied), use only with a 230V \~ 50Hz power supply.

6. This appliance is intended to be in domestic and similar applications, such as:

7. Staff kitchen areas in stores, offices and other professional environments

8. Farms
   • Guests in hotels, motels and other residential environments
9. Bed and breakfast type environments.

Technical Specifications

Voltage : DC 5.0 V with supplied USB cable

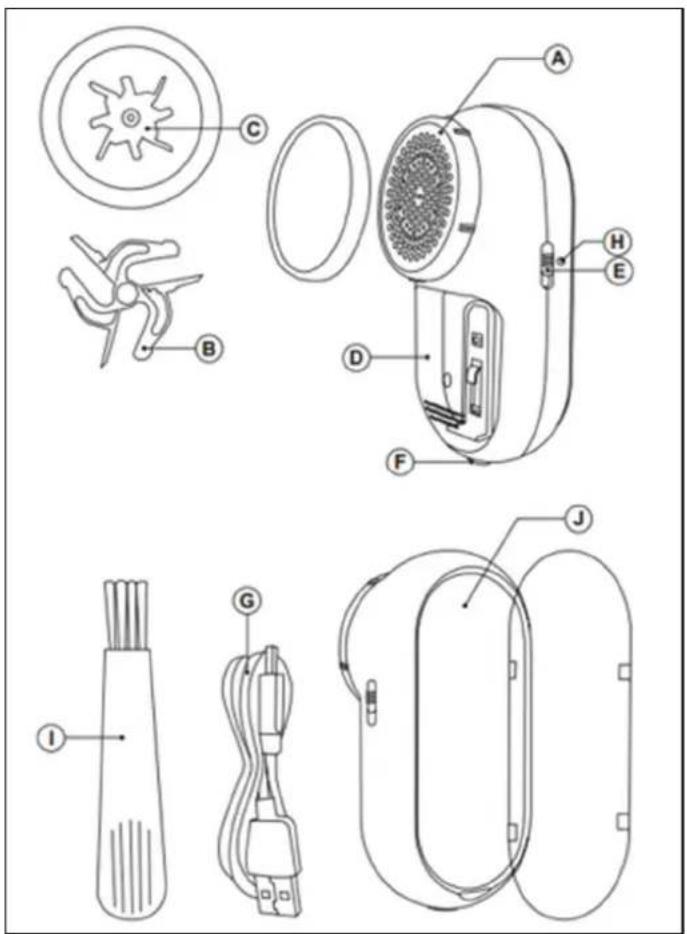

Drawing of the device yfigure 1)

	Protection of the metal blades	F	Plug-in socket and tank ejection button
B	Rotating blades	G	Charger
C	Internal rotation axis	H	Charge indicator light
D	Lint tank I Blade and spindle cleaning	brush
E	ON/OFF button J Antistatic cleaning	brush

Before to use:

When using the device õor the õirst time, make sure it is õully charged. \~or a õull charge, 8 to 10 hours are required.

Also make sure that you remove all packaging örom the product.

The antistatic cleaning brush will be useõul òor pet hair and dust oõ any kind. We recommend that you run this brush over the garment beõore proceeding to cut the lint.

\~or clothing:

• Be very careûul not to go over certain parts oõ the garment.
• Pins and other accessories on the garment should be removed.
• Do not use the machine on worn garments or garments with holes.

Use of the device

Place the garment on a ôlat, smooth surôace.

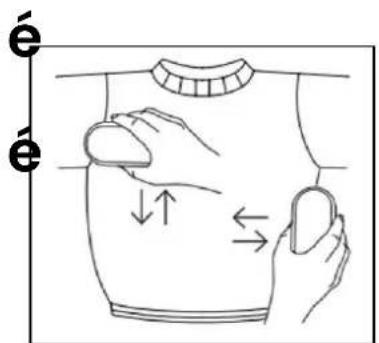

úse your shaver õrom the right to the leôt oõ the garment õor best results. (\~igure 1)

\~or diōōicult garments, you can make diōōerent passes by alternating right to leōt and up and down. (\~figure 2)

\~or õine or delicate garments, be careõul not to make a crease when shaving with the lint-õree shaver.

\~or clothes with relieôs, do not pass over these relieôs to avoid damaging the seams.

ôfter use :

Switch off the appliance after use. Remove the tank and empty it.

Cleaning and maintenance

Do not clean the product while it is plugged in ōor charging. Úse a damp cloth with a ōew drops oõ detergent and let it air dry. Be very careõul when using this type oõ product.

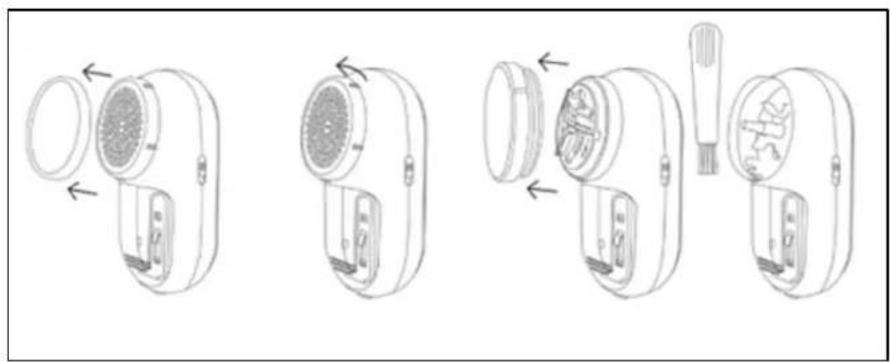

You can clean diōōerent parts oō the device: (Figure 3)

• The protective metal grid
• The rotating blades and the rotation axis
• The lint tank

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration
- Product inōrmation is subject to change without prior notice.
