Product Type	Motorized multimedia cart with electric lift
Brand	Optoma
Model	RISE 5105
Maximum load	50 kg
Power supply	Mains (grounded power outlet)
Main functions	Motorized height adjustment, anti-collision detection, wheel brakes
Safety	Emergency stop via control panel, disconnect before moving
Maintenance and cleaning	Clean with a dry cloth only
Spare parts and repairability	Use only original parts; no repairable parts inside the lift system
General information	Installation by a certified technician; respect the maximum load; move only on flat, stable ground

Frequently Asked Questions - RISE 5105 OPTOMA

What is the maximum load of the RISE 5105?

The maximum load is 50 kg. Do not exceed this limit to avoid any risk of instability or tipping.

How to move the cart safely?

Before moving the device, unplug the power cord and lower the screen to the lowest position. Move it only on a flat and stable surface. The wheel brakes must be locked during use.

What to do in case of collision or obstacle during lifting?

The system automatically detects collisions and stops. Release the control panel to stop the movement. Check the obstacle before trying again.

Can I install the RISE 5105 myself?

Installation must be carried out by a certified technician to ensure safety and proper operation. Incorrect installation can cause serious injury.

What types of screens are compatible?

The RISE 5105 is designed for screens with a maximum load of 50 kg, with a suitable mounting (VESA standard). Use the appropriate mounting accessories provided.

How to clean the cart?

Use a dry cloth to wipe the device. Do not use water, solvents, or abrasive products.

What to do in case of electrical malfunction?

Immediately unplug the device from the power outlet and contact a certified technician. Never open the lift system as it contains live parts.

Can the RISE 5105 be fixed to the floor or wall?

This model is a motorized stand designed to be placed on the floor. It is not intended for wall mounting. See the RISE 2005 range for wall-mounted versions.

How to use the anti-collision function?

The anti-collision function is activated automatically. If an obstacle is detected during lifting, the movement stops. This system protects the screen but is not designed as a human safety device.

What are the item numbers of the RISE 5105?

The item numbers are: 7351050, 7351051, 7351052, 7351053, 7351054, 7351055. Refer to the product label for the exact number.

USER MANUAL RISE 5105 OPTOMA

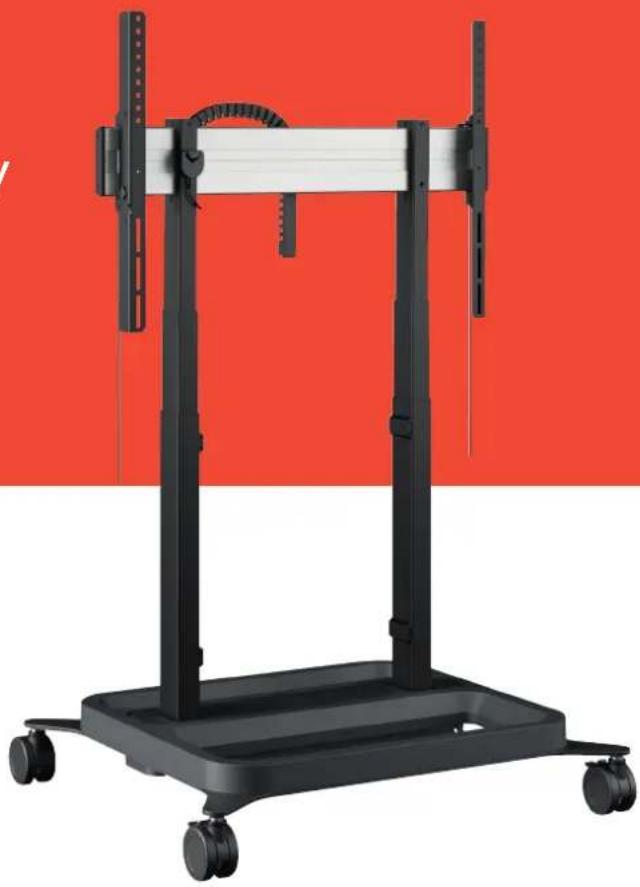

Motorized Display Lift Trolley

5105 & 5108

5205 & 5208

5305 & 5308

Black industrial machine stand with vertical supports and a horizontal bar (no visible text or symbols)

Mechanical support stand with vertical supports and a horizontal bar (no text or symbols visible)

Black and white photo of a mobile phone stand with wheels, against a solid red background (no text or symbols visible)

Installation & User Manual

DE Produkthandbuch

Declaration of Conformity 10

Mounting Instructions 19

User Instructions 31

Product Data Sheet 33

Checklist 39

Contact Details 40

Important safety information for both installer and user

Installer: Before starting the installation read the safety instructions, the mounting regulations and rest of this product manual carefully. Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the certified installer's responsibility to make sure all mounting systems/accessories are properly assembled and installed using the instructions provided. User: Please carefully read the below safety information and user manual (if included) before using the height adjustable mount or trolley. This ensures a proper working unit and avoids accidents.

Electrical Safety

Connect unit to a properly grounded outlet only. Make sure, the unit can be immediately separated from the power outlet. Only use unit in dry rooms, protect it from water and other liquids. Only wipe unit with dry cloth. Do not open lift unit. RISK OF ELECTRIC SHOCK. There are no serviceable parts inside. In case of dysfunction unplug unit from power outlet and call an authorised technical service person. Do not overrun line cord or damage it in any other way. Replace damaged line cords immediately with new identical ones.

Mechanical safety

Assure installation of unit by authorized service person only. Only use original mounting parts provided with the system and do not use attachments not recommended by the manufacturer. Do not improperly load unit: For the max. load of unit please refer to the page with the specification sheet in this manual. Do not exceed: Use with heavier screens may result in instability causing tipping over resulting in death or serious injury! The height adjustable feature of this unit will not function properly if the weight exceeds the given maximum load. Use this mounting system only for its intended use as described in these instructions. Do not hang on unit. VERY HEAVY UNIT. Severe risk of injury when unit tips over due to improper usage.

The socket connections of the unit and the wall socket must be easily accessible. Disconnect mains plug before moving the product.

The unit is not dripping or splash water protected. Do not place objects filled with liquids on or spray the unit. To reduce the risk of electric shock: Always unplug the unit from the electrical outlet before cleaning.

Always keep product's motion path free from obstacles. Before moving the unit up or down assure at least a safety distance of 20 cm/7.9 inch from any part of the unit to any other fitment in order to avoid shear traps or squeezing points. In case of accident please release operating panel. Movement of unit will stop immediately.

Anti-Collision - Function and intended use

Collision detection is a system to detect contact between the display lift system and an object, in order to mitigate the effects of the impact. This collision detection system is intended for protection of the display lift hardware, however is explicitly not intended as a safety mechanism to prevent personal injury.

Does your unit have wheels?

Only operate unit on plane and stable floors. Move unit on plane floors only. Risk of tilting when overrunning floorunevennesses, door sills and similar. VERY HEAVY UNIT. Severe risk of injury when unit tips over.

Lock brakes of front wheels when operation unit. Always move your trolley with the screen in the lowest position.

Mounting regulations WARNING

A correct mounting is extremely important and this is not the responsibility of Vogel's Products. Faulty mounting may result in injury to persons or damage to equipment. Vogel's Products will not be responsible in any way if the product has been mounted incorrectly. Mounting fittings are not included with the product for reasons of safety, since the properties and bearing strength of walls/ceilings are specific for each case. Suitable mounting fittings must be selected based on the material of the wall/ceiling.

Obtain advice from a specialist in the field or from a specialist shop concerning the choice of mounting fittings. It is the responsibility of the installer to ensure that the wall/ceiling can support at least four times the combined weight of the screen/projector and bracket. The maximum load for this product is given in these mounting instructions. The instructions for installation and use of the screen/projector must also be followed with respect to the location and attachment of the screen/projector.

In case of technical issues please contact your installer

Additional safety information

1. Power rating: Technical guideline

The lifting system is equipped with an Y-cable. The first lead of the Y-cable is used for the internal power supply of the lift system (400W). The installer has the possibility to connect a screen and other peripherals of max 900W to the other lead of the Y-cable.

The total system (lift system + peripherals) can therefore draw a maximum of 900W + 400W = 1300W.

2. Stability of equipment

Never place the equipment in an unstable location. A monitor/ white board set may fall, causing serious personal injury or death.

Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- Using stands/ frame recommended by the manufacturer of the motorized display lift, monitor and whiteboard sets.

- Ensuring the monitor and whiteboard set are not overhanging the edge of the sup porting frame.

- Educating children about the dangers of climbing on furniture to reach the monitor and whiteboard set or its controls.

If the existing set is going to be retained and relocated, the same considerations as above should be applied.

To prevent injury, the equipment set must be securely attached to the floor/ wall and the trolley must be in a stable location in accordance with the installation instructions.

3. Caution:

This stand or carrier is intended for use only with a display/ monitor of max. 86 inch and/or whiteboard RISE A2ef where: e: Can be 1 or 3 for a whiteboard mounted on a wall mounted model and 2 or 4 for a whiteboard mounted on a trolley or stand; f: Can be 6 for a 65 inch whiteboard or 7 for a 75 inch white board or 8 for a 86 inch whiteboard. Use with other equipment may result in instability causing injury.

UK DECLARATION OF CONFORMITY

Name and address of manufacturer / EU-AR:	Vogel's ProductsHondsruglaan 935628 DB EindhovenNetherlands
THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF:
Product identification:	RISE Motorized Display Lift Floor Stand/Floor-Wall/TrolleySee appendix A for a list of all products covered by this declaration
THE PRODUCTS MENTIONED IN THIS DECLARATION ARE IN CONFORMITY WITH:
EU Community Legislation	Machinery Directive 2006/42/ECElectroMagnetic Compatibility (EMC) Directive 2014/30/EURestriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Harmonised standards	Safety of machineryEN ISO 12100:2010EN ISO 13857:2019Safety of electrical equipmentEN IEC 62368-1:2020+A11:2020Electromagnetic Compatibility (EMC)EN 55014-1:2017EN 55014-2:2015EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2017Restricted substances in electrical productsEN IEC 63000:2018
SIGNED FOR AND ON BEHALF OF:
Place and date of issue:	Eindhoven, 18 January 2022
Signature:
Name, function:	Gerard Kanters, Quality ManagerVogel's Products
Company name:
	APPENDIX A:The following products are covered by this EU declaration of conformity:RISE 2005 MOTORIZED WALL 50 Art. Nr. 7320050, 7320051, 7320052, 7320053, 7320054, 7320055RISE 2008 MOTORIZED WALL 80 Art. Nr. 7320080, 7320081, 7320082, 7320083, 7320084, 7320085RISE 5105 MOTORIZED STAND 50 Art. Nr. 7351050, 7351051, 7351052, 7351053, 7351054, 7351055RISE 5108 MOTORIZED STAND 80 Art. Nr. 7351080, 7351081, 7351082, 7351083, 7351084, 7351085RISE 5205 MOTORIZED TROLLEY 50 Art. Nr. 7352050, 7352051, 7352052, 7352053, 7352054, 7352055RISE 5305 MOTORIZED TROLLEY 50 Art. Nr. 7353050, 7353051, 7353052, 7353053, 7353054, 7353055RISE 5208 MOTORIZED TROLLEY 80 Art. Nr. 7352080, 7352081, 7352082, 7352083, 7352084, 7352085RISE 5308 MOTORIZED TROLLEY 80 Art. Nr. 7353080, 7353081, 7353082, 7353083, 7353084, 7353085

EU DECLARATION OF CONFORMITY

(In accordance with EN ISO/IEC 17050-1)

Name and address of manufacturer / EU-AR:	Vogel's ProductsHondsruglaan 935628 DB EindhovenNetherlands
THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF:
Product identification:	RISE Motorized Display Lift Floor Stand/Floor-Wall/TrolleySee appendix A for a list of all products covered by this declaration
THE PRODUCTS MENTIONED IN THIS DECLARATION ARE IN CONFORMITY WITH:
EU Community Legislation	Machinery Directive 2006/42/ECElectroMagnetic Compatibility (EMC) Directive 2014/30/EURestriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Harmonised standards	Safety of machineryEN ISO 12100:2010EN ISO 13857:2019Safety of electrical equipmentEN IEC 62368-1:2020+A11:2020Electromagnetic Compatibility (EMC)EN 55014-1:2017EN 55014-2:2015EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2017Restricted substances in electrical productsEN IEC 63000:2018
SIGNED FOR AND ON BEHALF OF:
Place and date of issue:	Eindhoven, 18 January 2022[IMAGE]APPENDIX A:The following products are covered by this EU declaration of conformity:RISE 2005 MOTORIZED WALL 50 Art. Nr. 7320050, 7320051, 7320052, 7320053, 7320054, 7320055RISE 2008 MOTORIZED WALL 80 Art. Nr. 7320080, 7320081, 7320082, 7320083, 7320084, 7320085RISE 5105 MOTORIZED STAND 50 Art. Nr. 7351050, 7351051, 7351052, 7351053, 7351054, 7351055RISE 5108 MOTORIZED STAND 80 Art. Nr. 7351080, 7351081, 7351082, 7351083, 7351084, 7351085RISE 5205 MOTORIZED TROLLEY 50 Art. Nr. 7352050, 7352051, 7352052, 7352053, 7352054, 7352055RISE 5305 MOTORIZED TROLLEY 50 Art. Nr. 7353050, 7353051, 7353052, 7353053, 7353054, 7353055RISE 5208 MOTORIZED TROLLEY 80 Art. Nr. 7352080, 7352081, 7352082, 7352083, 7352084, 7352085RISE 5308 MOTORIZED TROLLEY 80 Art. Nr. 7353080, 7353081, 7353082, 7353083, 7353084, 7353085

EU-CONFORMITEITSVERKLARING

DÉCLARATION DE CONFORMITÉ UE

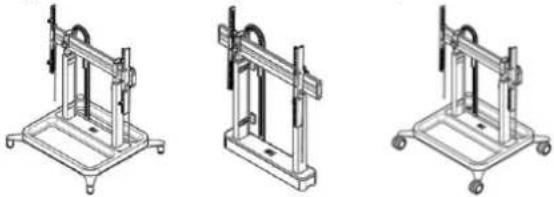

Three technical line drawings of mechanical lifting devices with no visible text or symbols

EN IEC 62368-1:2020+A11:2020

Three technical line drawings of a mechanical device with no visible text or symbols

EN IEC 62368-1:2020 A11:2020

MAX POWER (WATT) = 400W MAX DISPLAY EXTRA DEVICES+ = MAX 900W

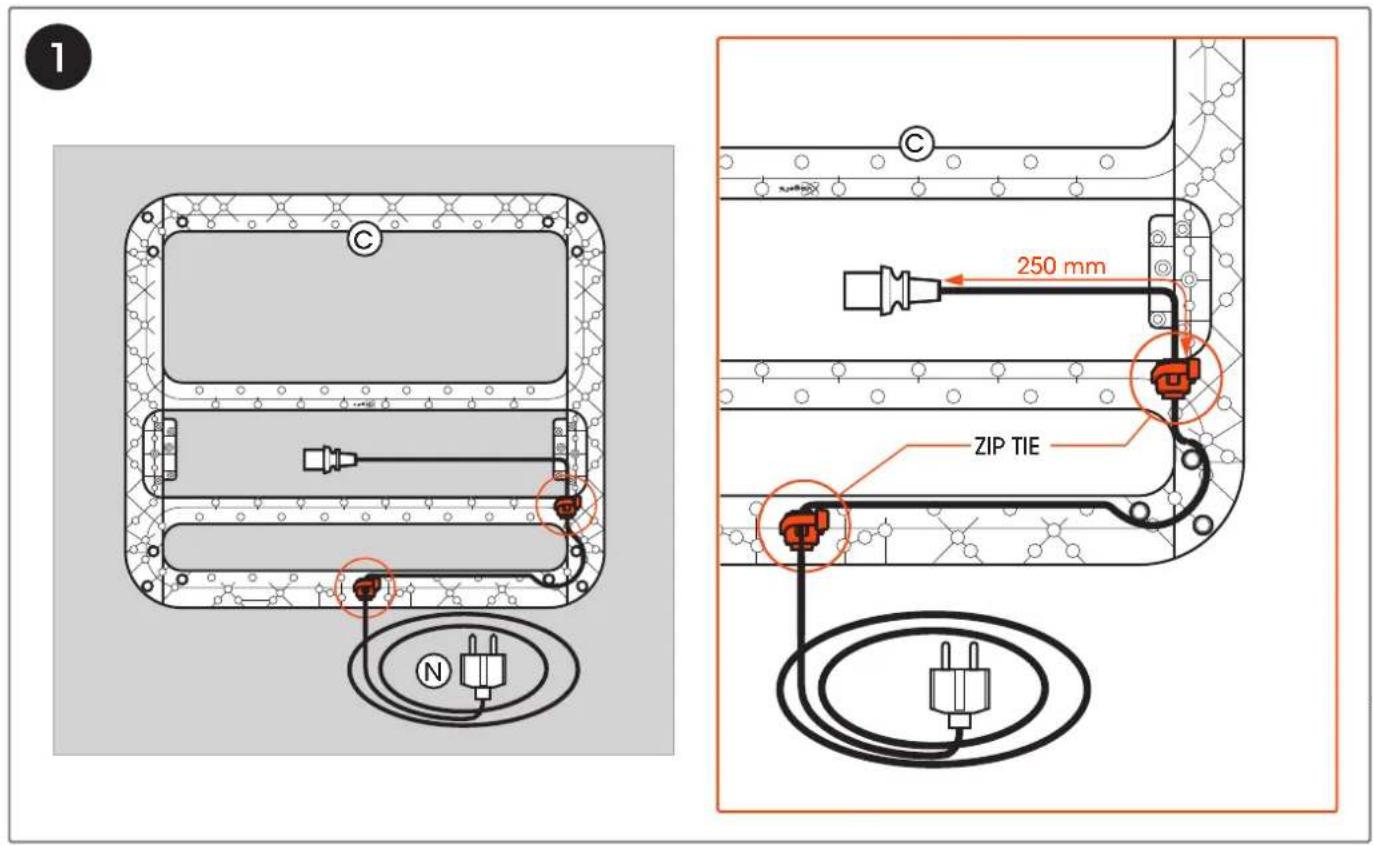

1 C 250 mm ZIP TIE N

www.vogels.com

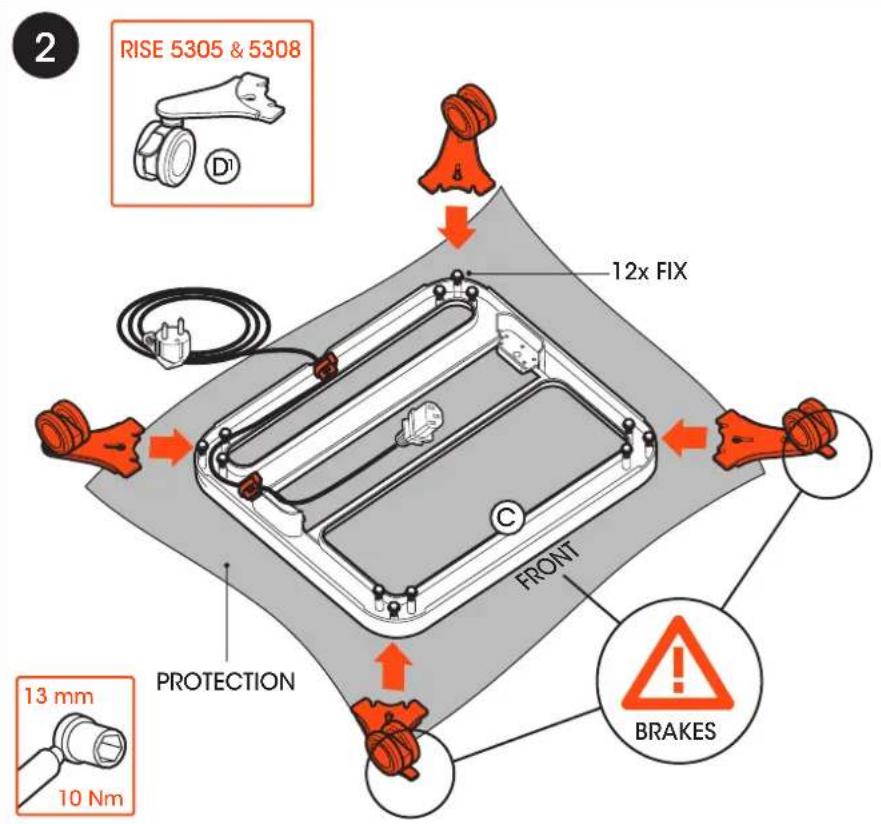

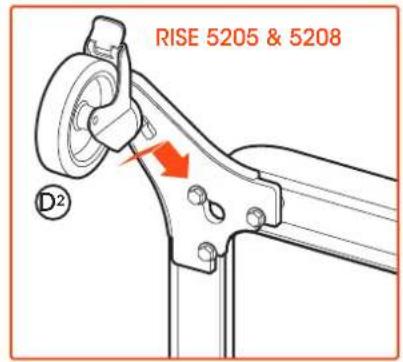

2 RISE 5305 & 5308 12x FIX PROTECTION 13 mm 10 Nm FRONT BRAKES

RISE 5205 & 5208 D²

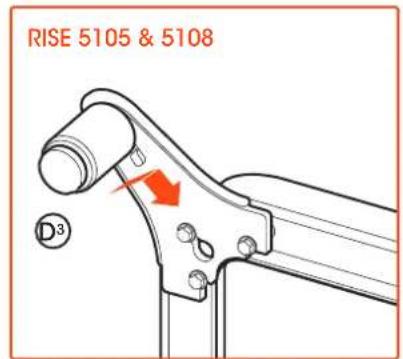

RISE 5105 & 5108 D3

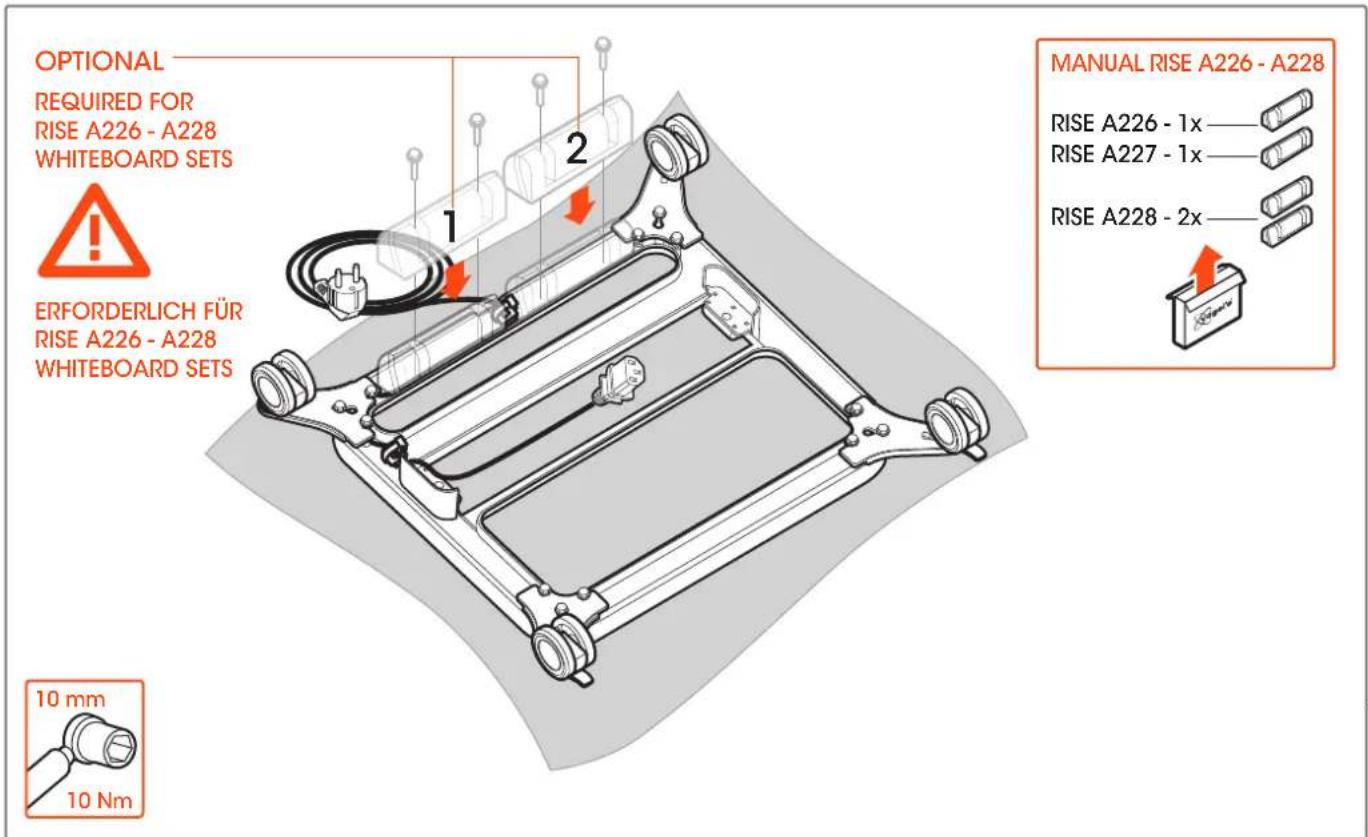

OPTIONAL REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS 1 2 10 mm 10 Nm MANUAL RISE A226 - A228 RISE A226 - 1x—— RISE A227 - 1x—— RISE A228 - 2x—— 10 mm

www.vogels.com

3

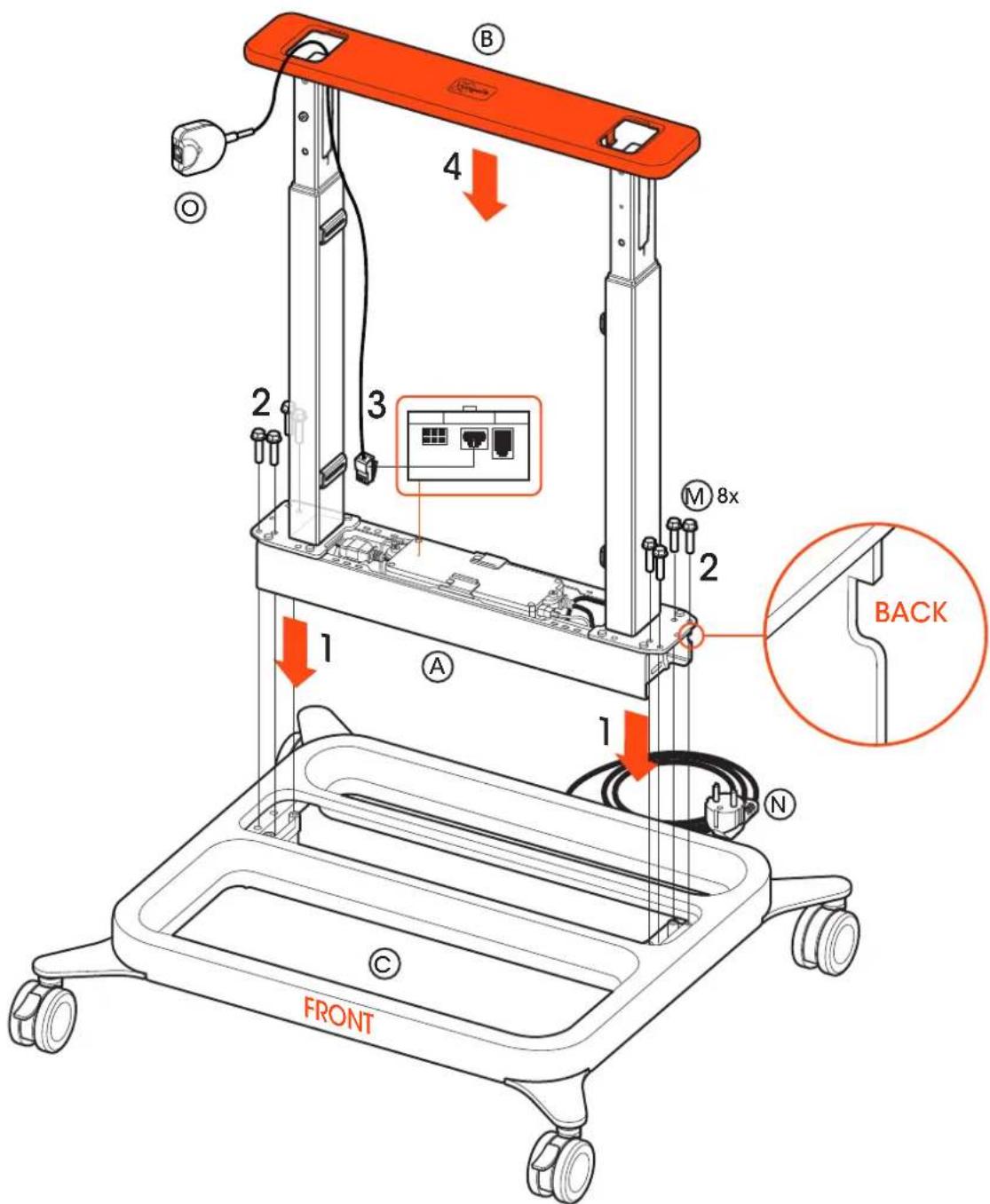

B 4 2 3 M 8x 2 1 A 1 N BACK FRONT

www.vogels.com

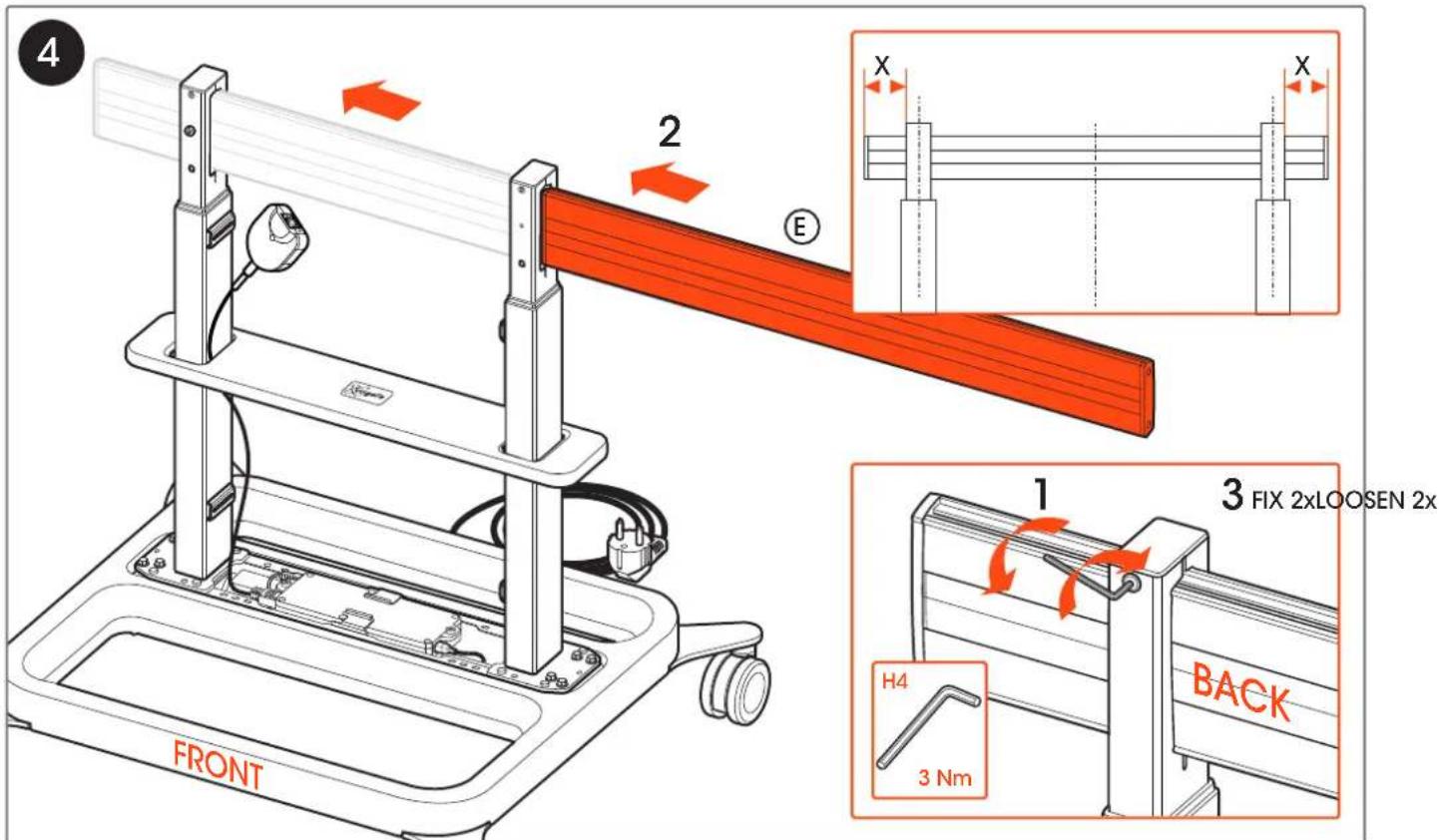

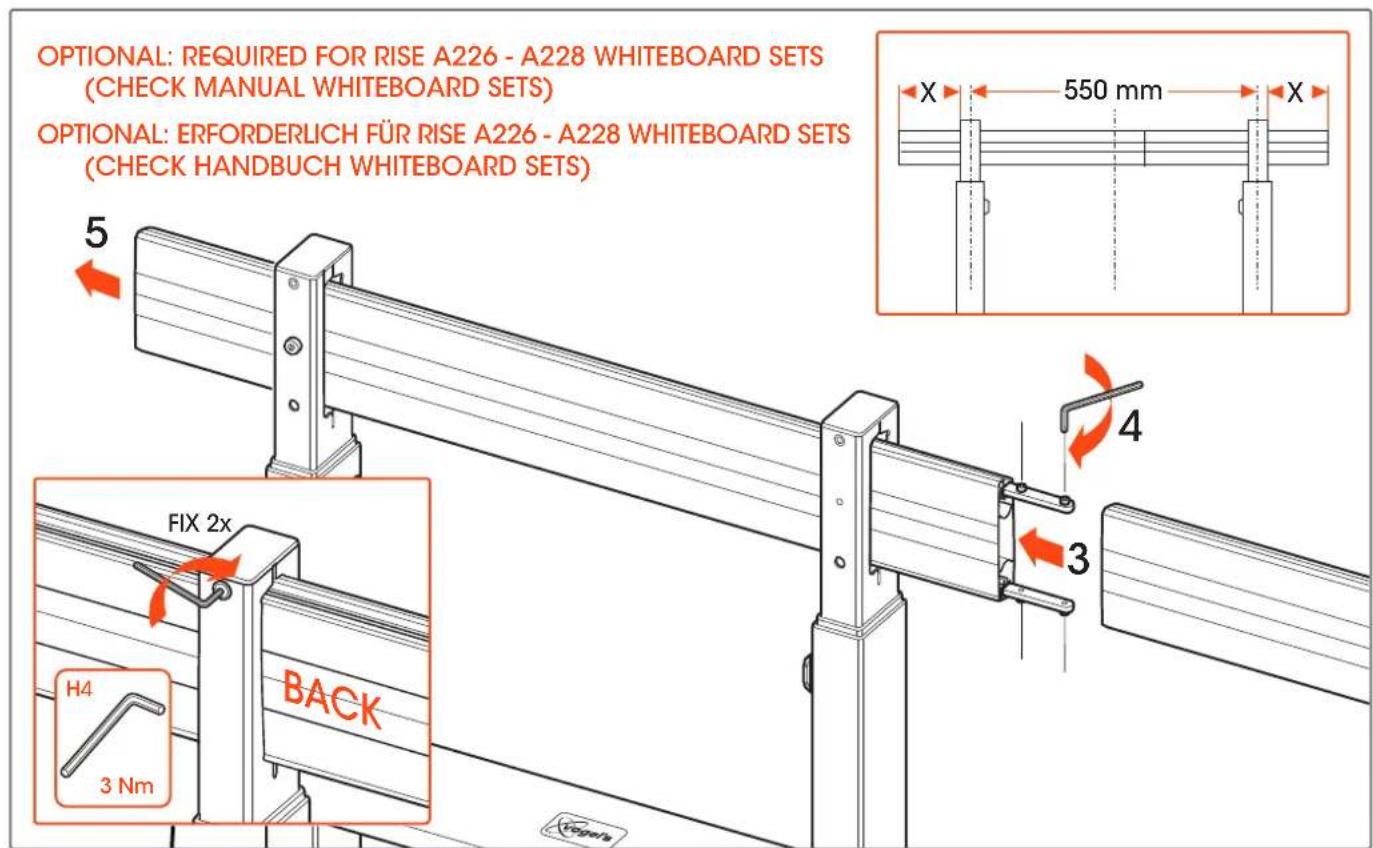

4 2 E X X 1 3 FIX 2xLOOSEN 2x BACK H4 3 Nm FRONT

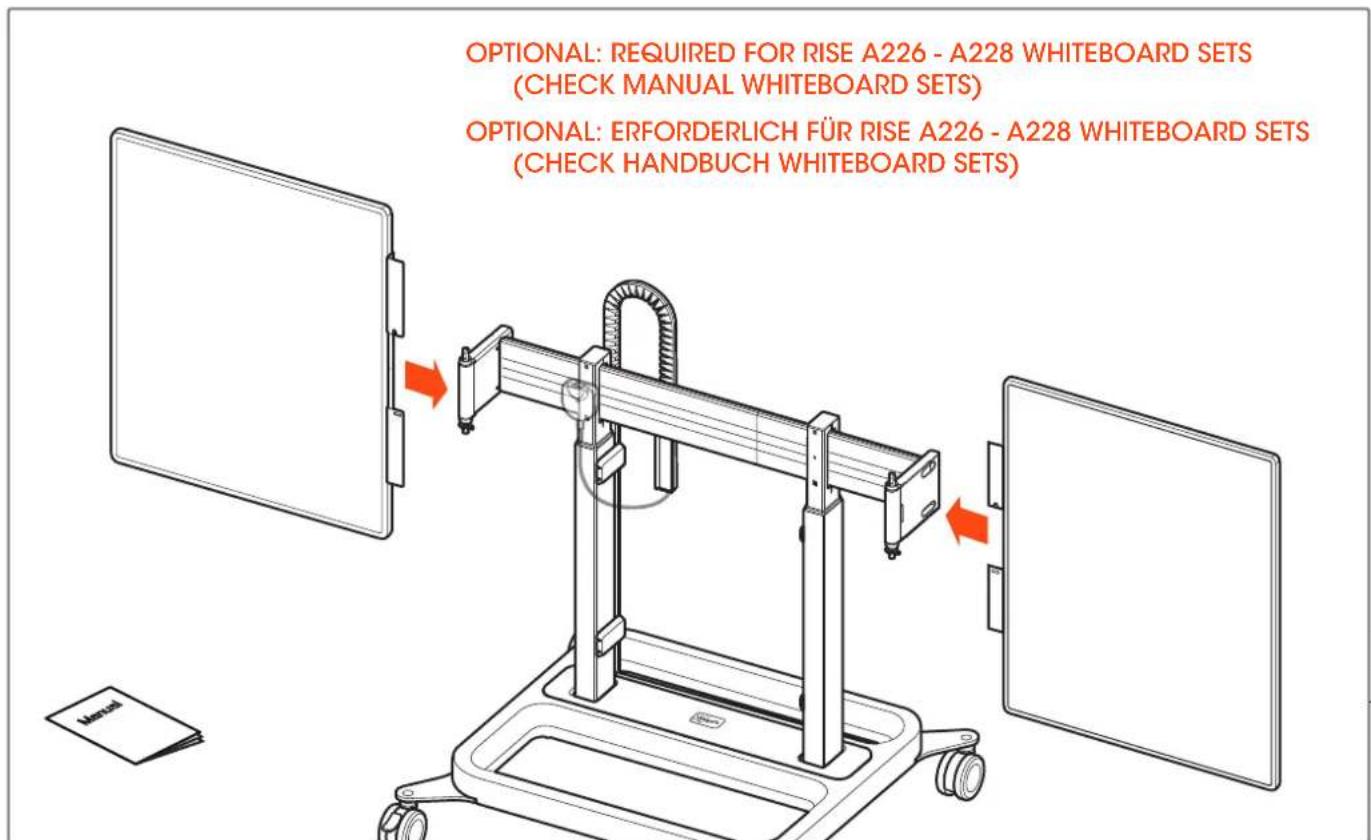

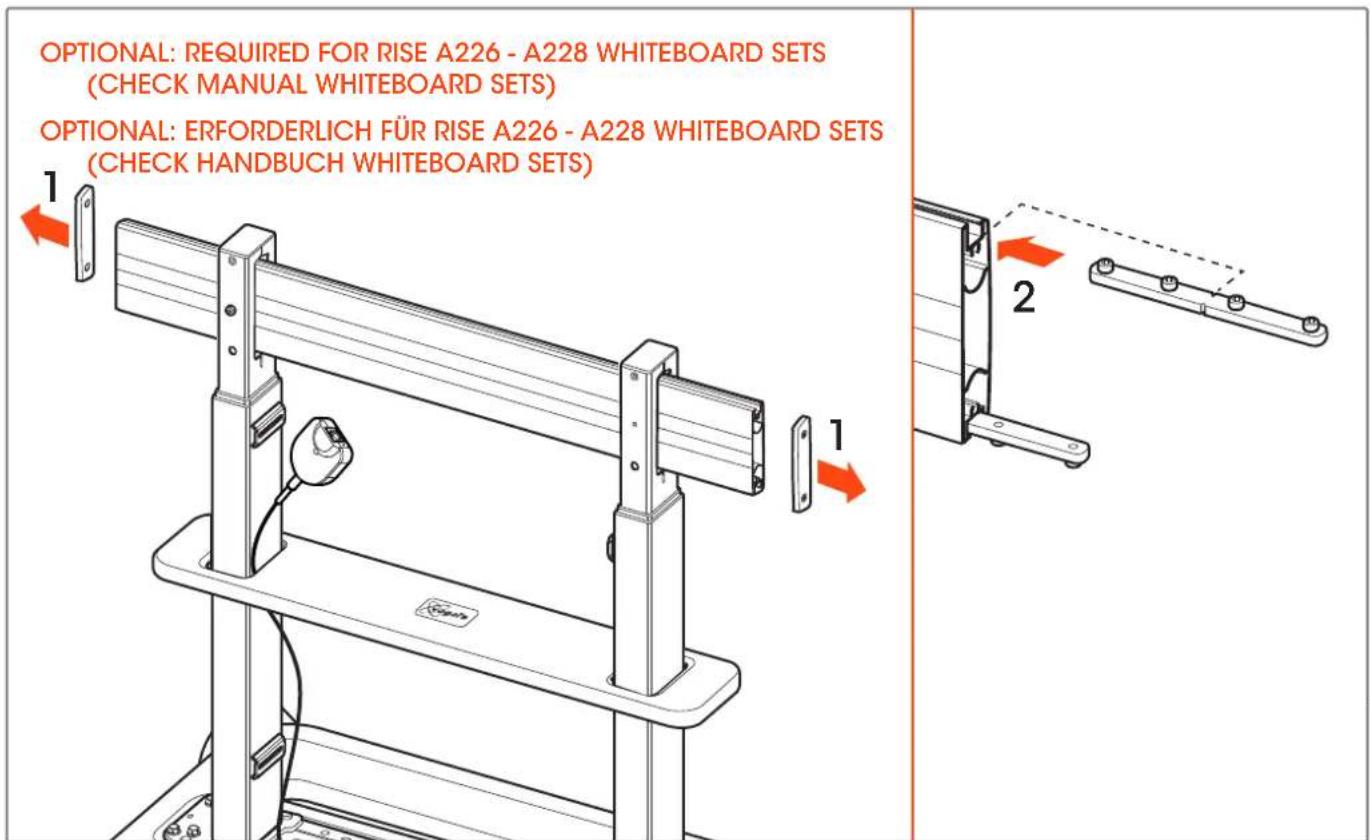

OPTIONAL: REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS (CHECK MANUAL WHITEBOARD SETS) OPTIONAL: ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS (CHECK HANDBUCH WHITEBOARD SETS)

www.vogels.com

OPTIONAL: REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS (CHECK MANUAL WHITEBOARD SETS) OPTIONAL: ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS (CHECK HANDBUCH WHITEBOARD SETS) 5 4 3 FIX 2x H4 3 Nm BACK Vogers

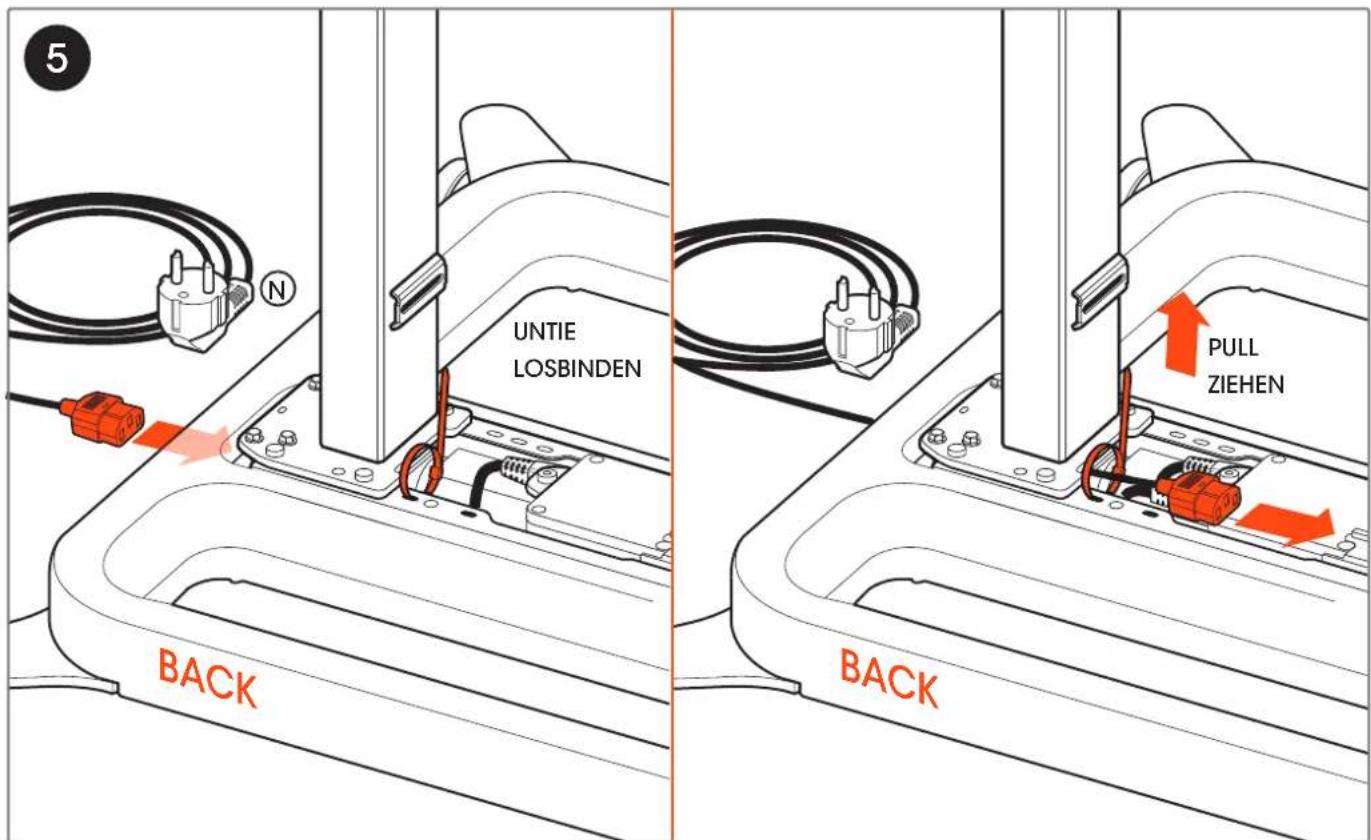

5 UNTIE LOSBINDEN PULL ZIEHEN BACK BACK

www.vogels.com

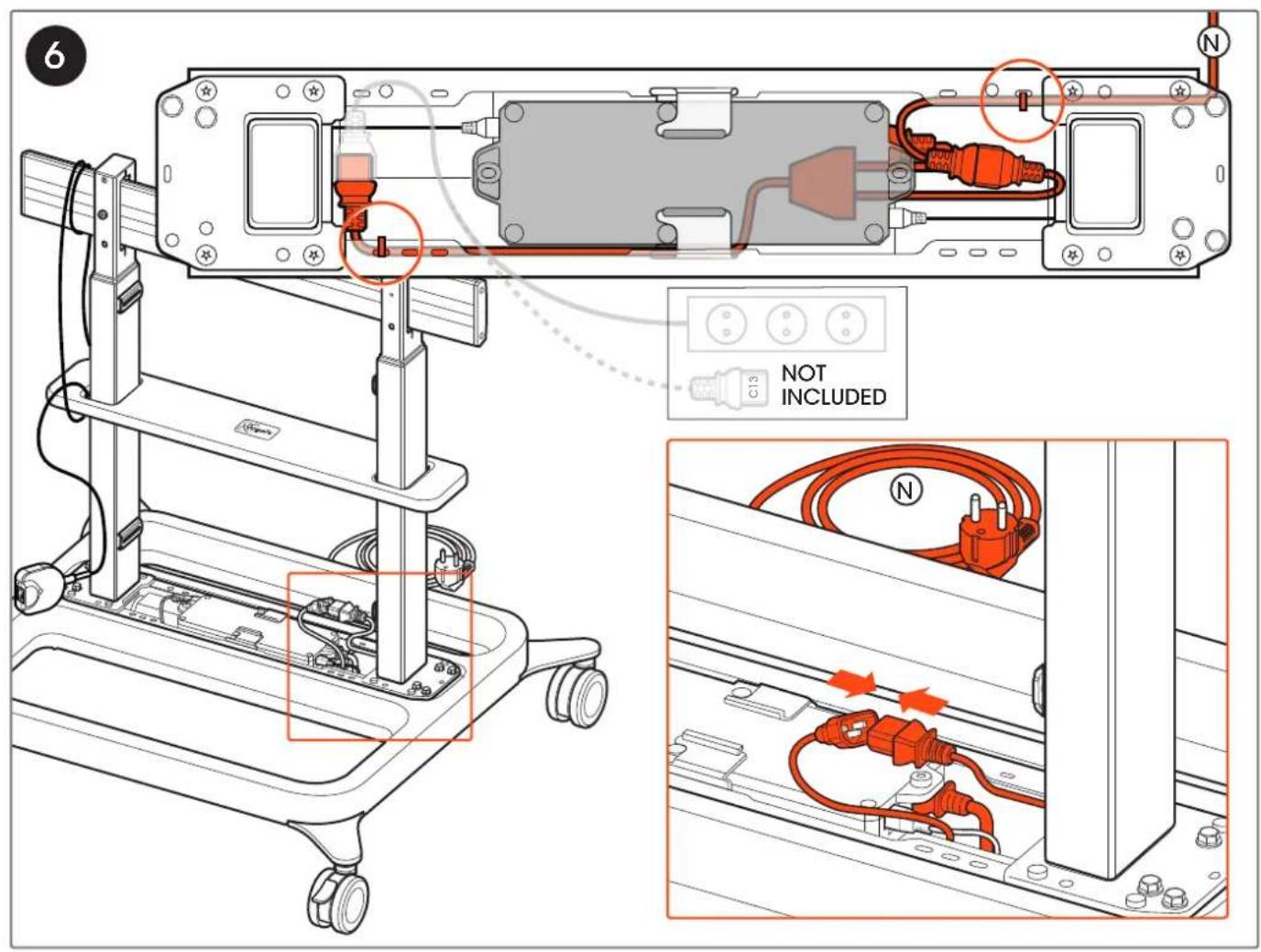

6 NOT INCLUDED C13

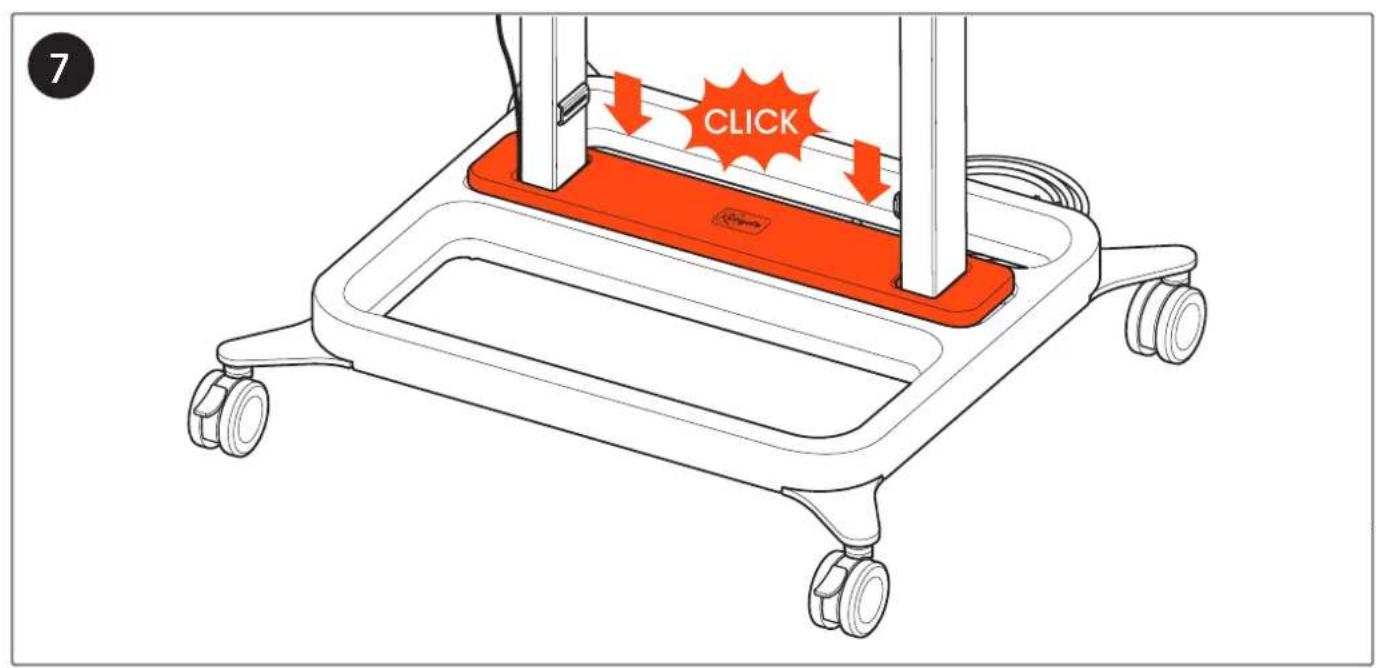

7 CLICK

www.vogels.com

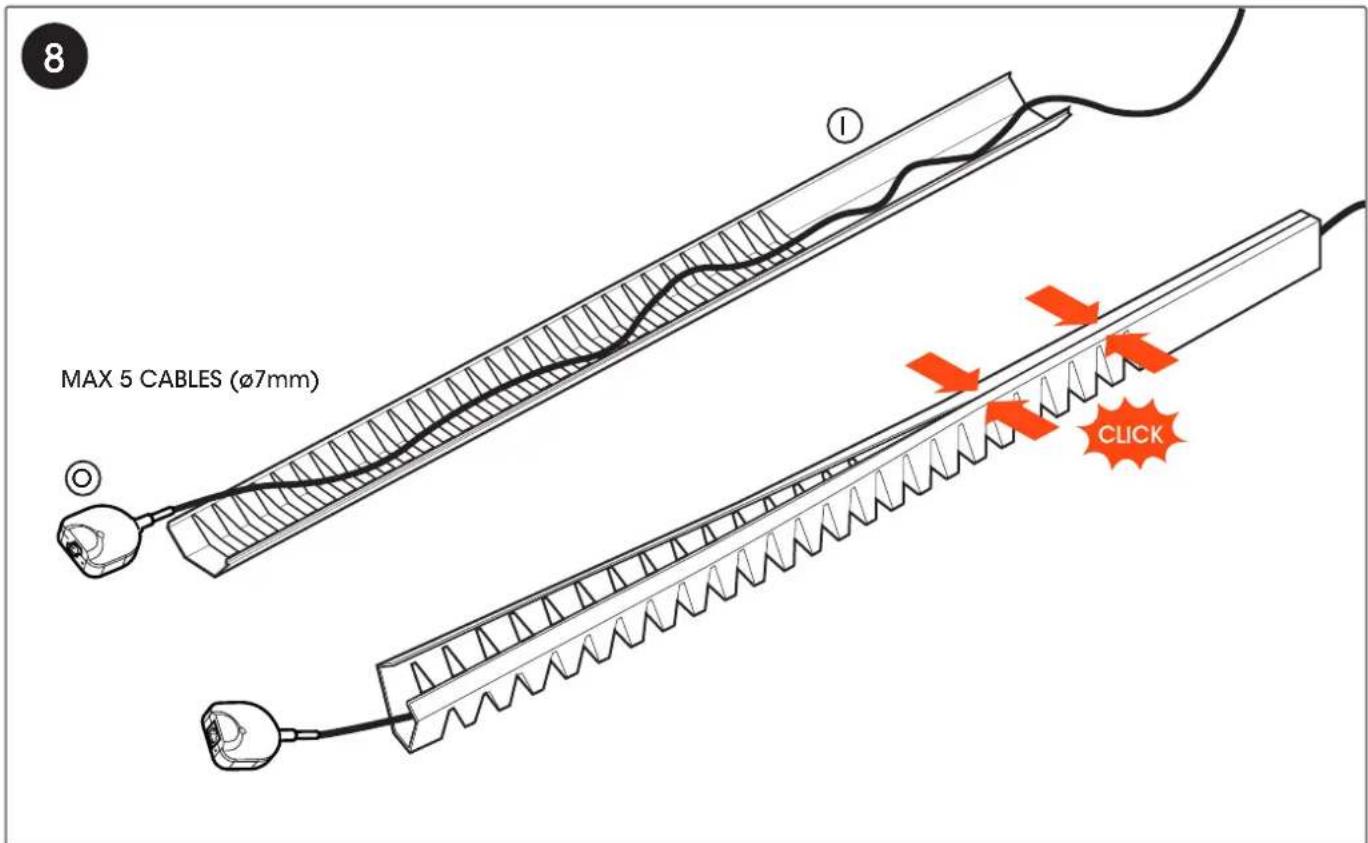

8 MAX 5 CABLES (ø7mm) ○ I CLICK

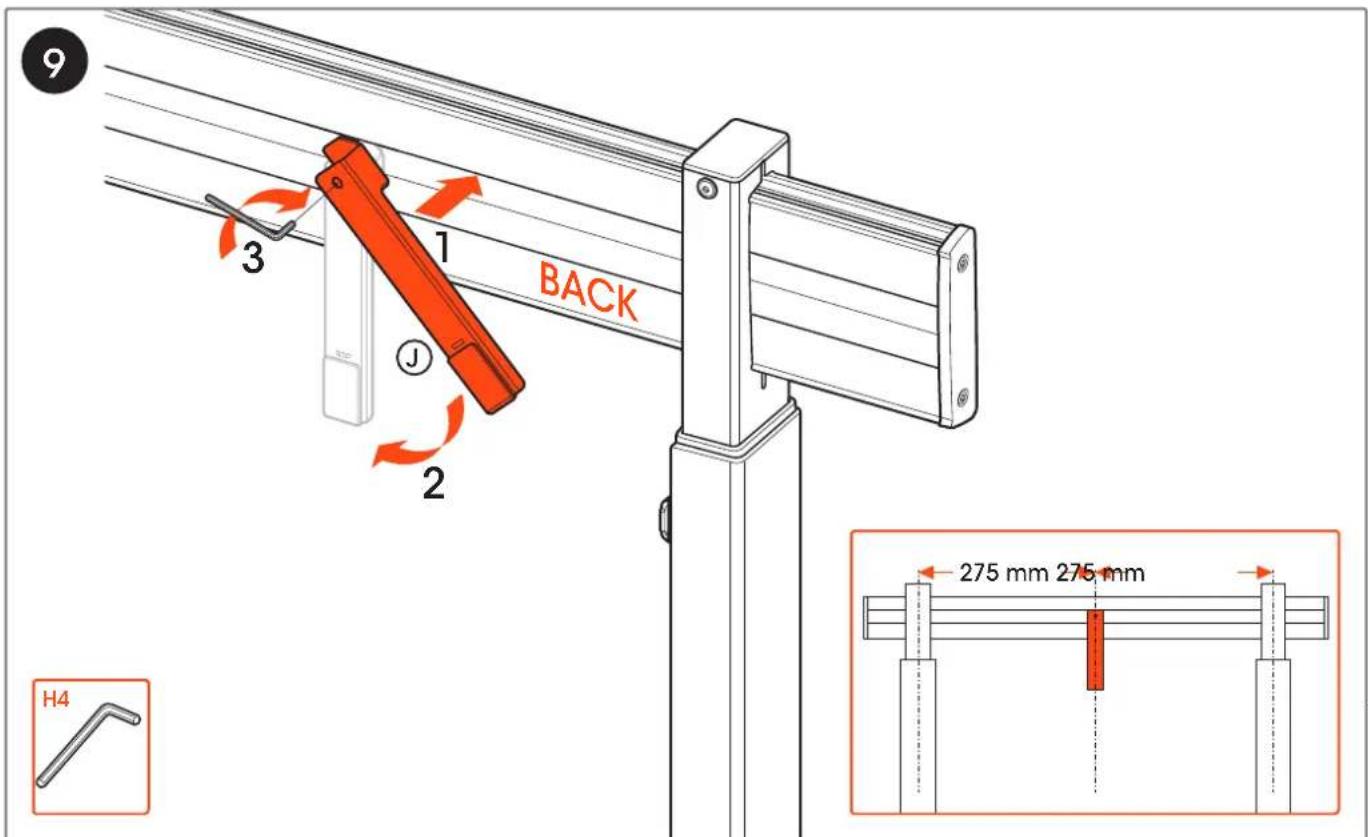

9 1 BACK 3 J 2 H4 275 mm 275 mm

www.vogels.com

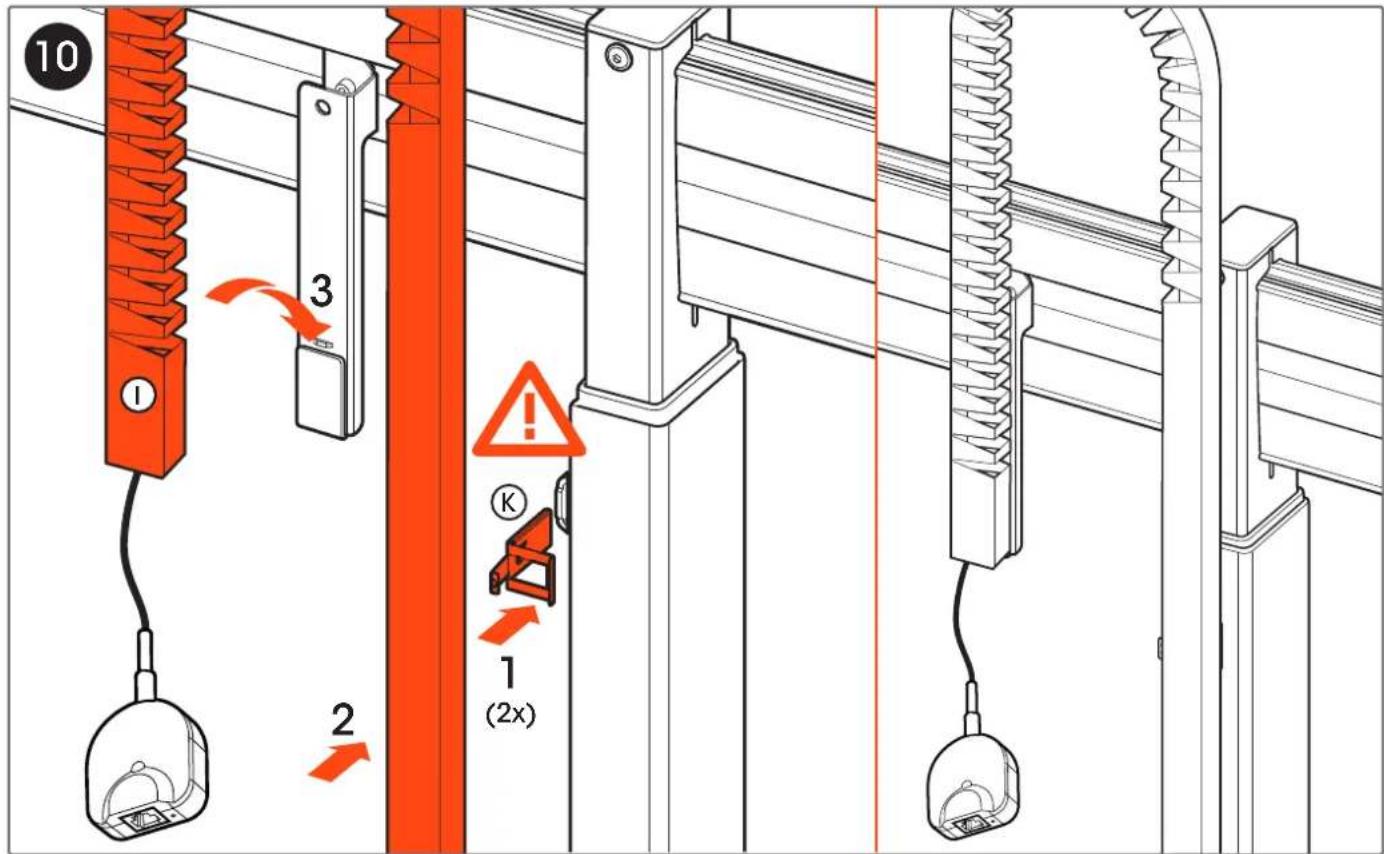

10 3 2 1 (2x) K

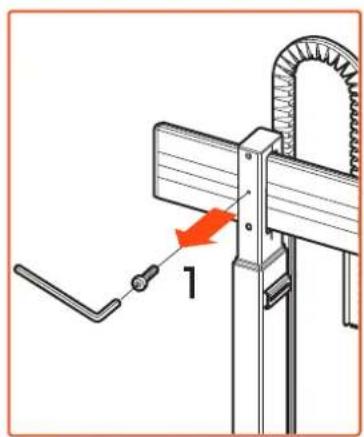

11

1

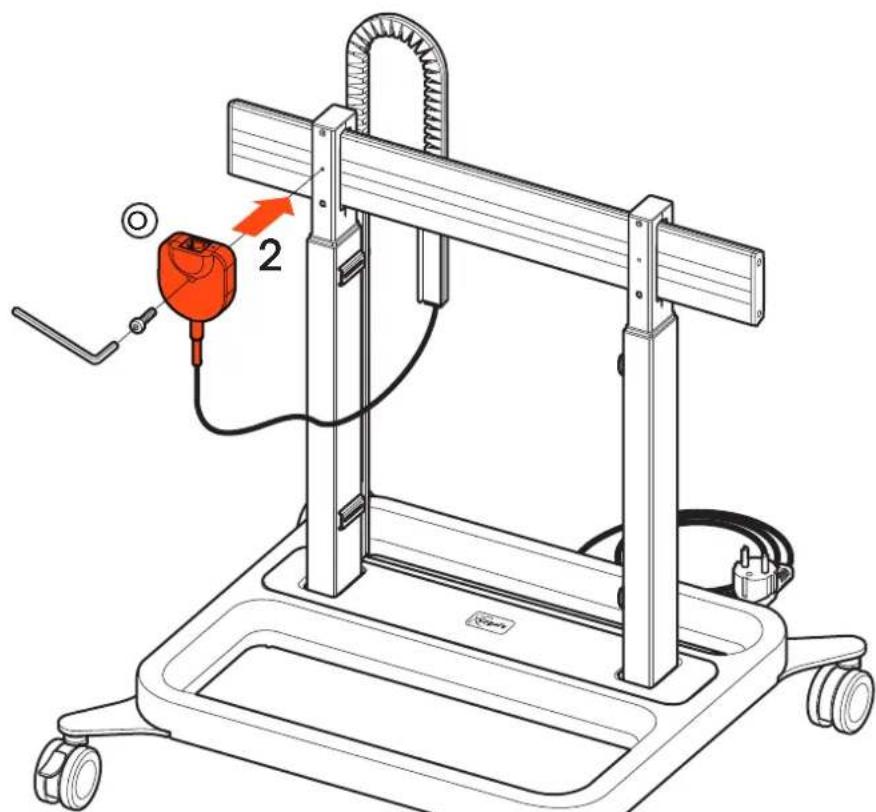

Technical diagram of a mechanical testing setup with labeled components and a red indicator '2'

www.vogels.com

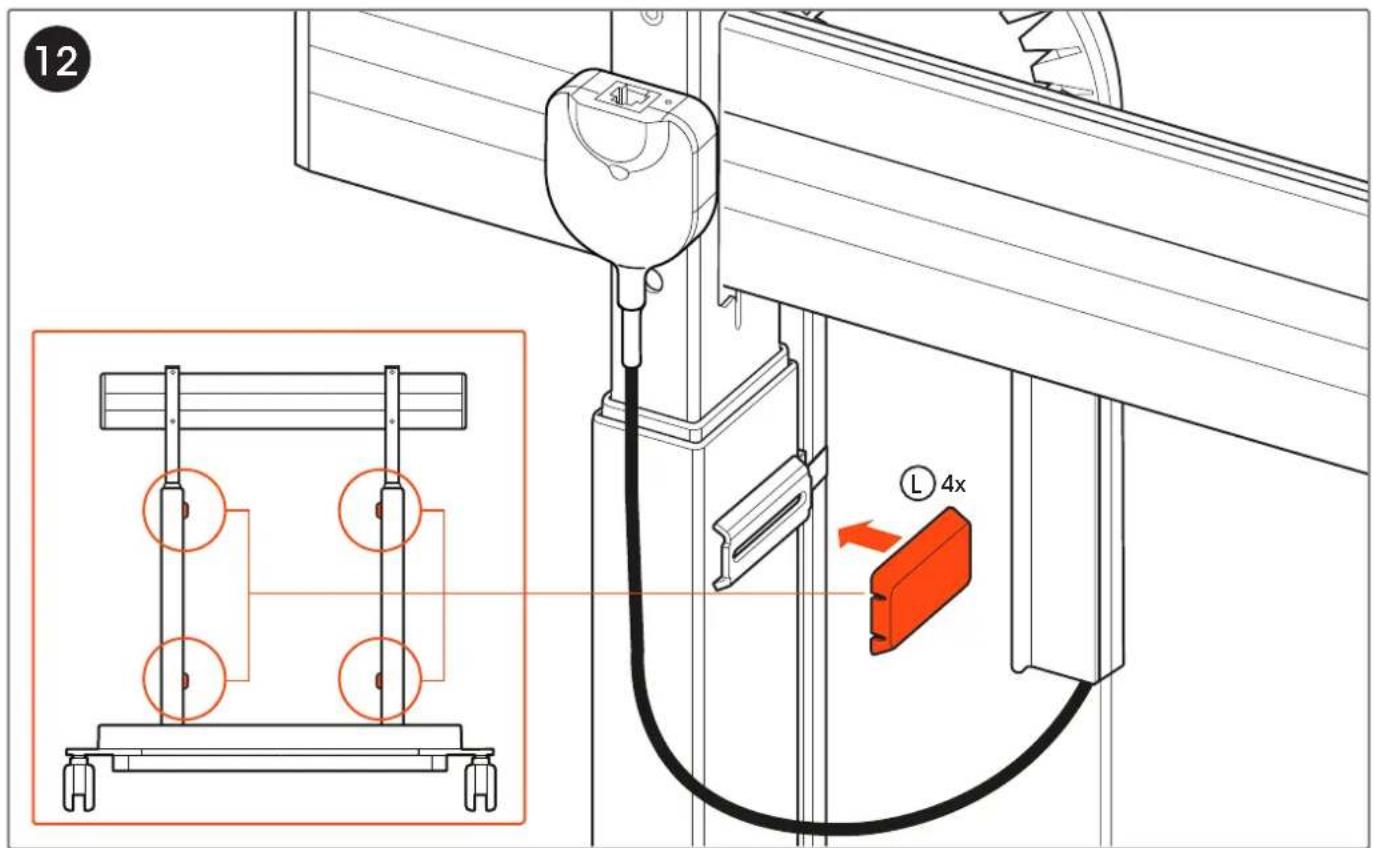

12 L 4x

OPTIONAL: REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS (CHECK MANUAL WHITEBOARD SETS) OPTIONAL: ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS (CHECK HANDBUCH WHITEBOARD SETS)

www.vogels.com

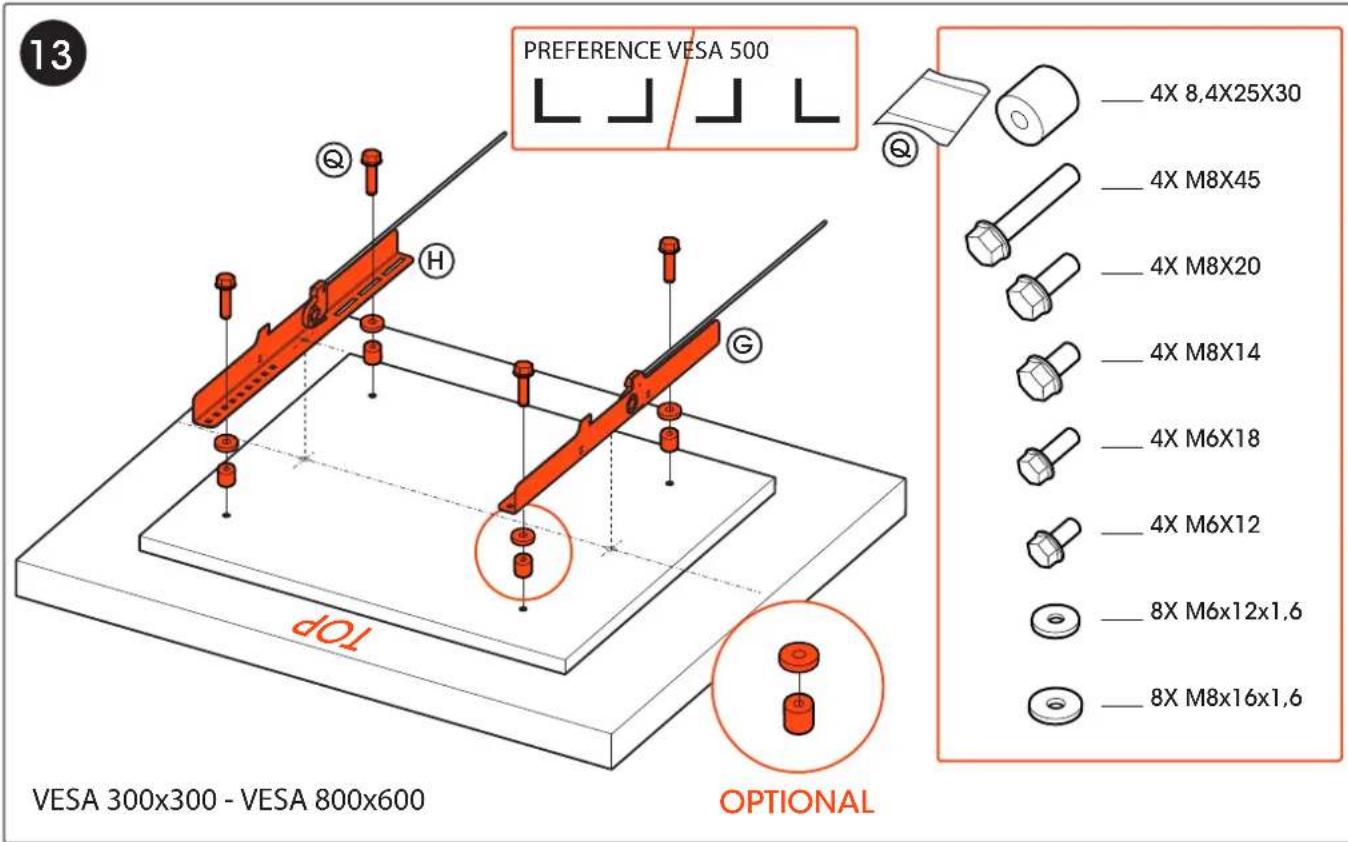

13 PREFERENCE VESA 500 4X 8,4X25X30 4X M8X45 4X M8X20 4X M8X14 4X M6X18 4X M6X12 8X M6x12x1.6 8X M8x16x1.6 TOP OPTIONAL VESA 300x300 - VESA 800x600

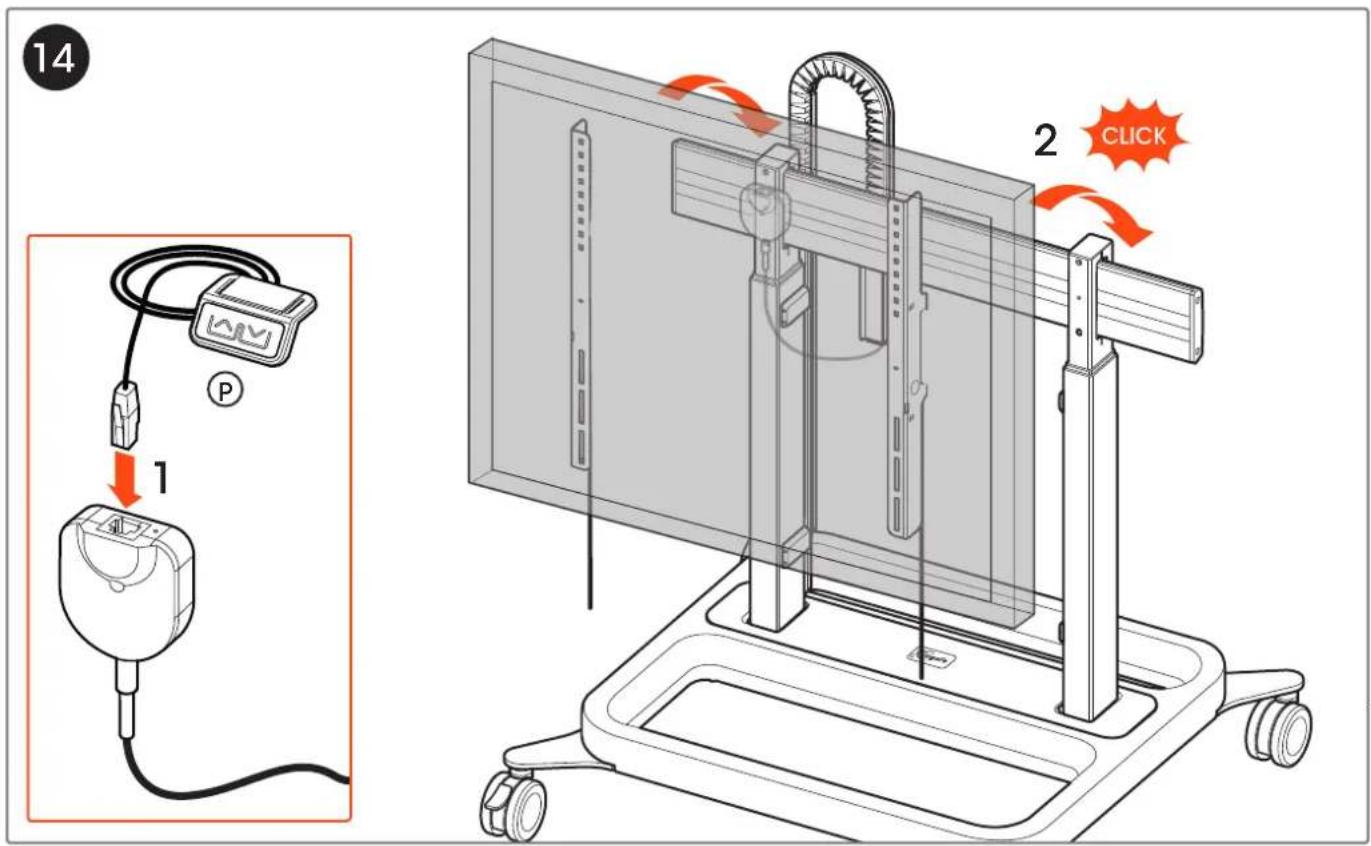

14 1 2 CLICK

www.vogels.com

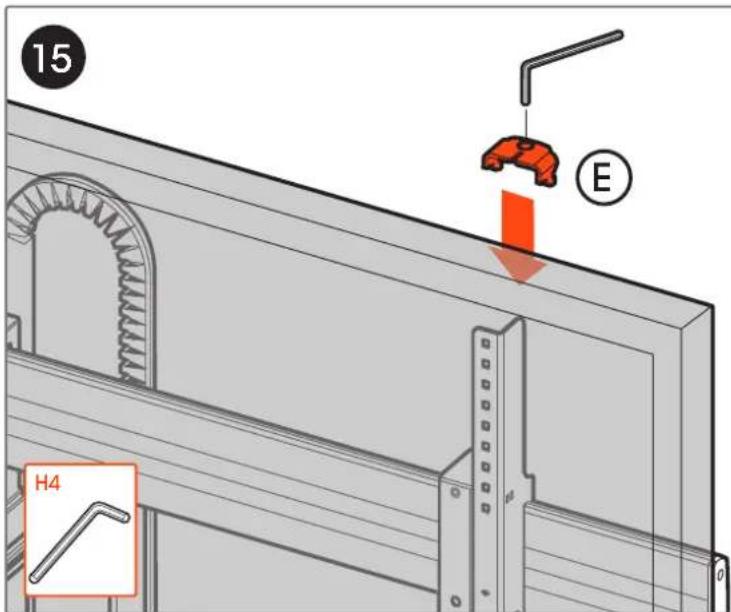

15 E H4

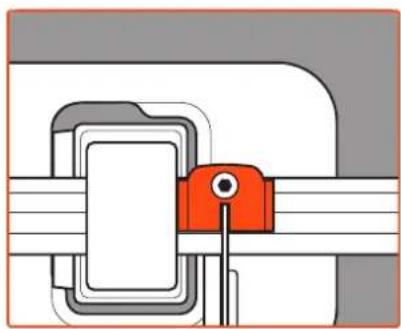

Mechanical assembly diagram showing a red clamp or bracket inserted into a white component (no text or symbols visible)

16 110 - 230V 1 CLEAN SÄUBERN PRESS 10 SEC. ⏻ DRÜCKEN 10 SEK. ⏻ ✓ ✗

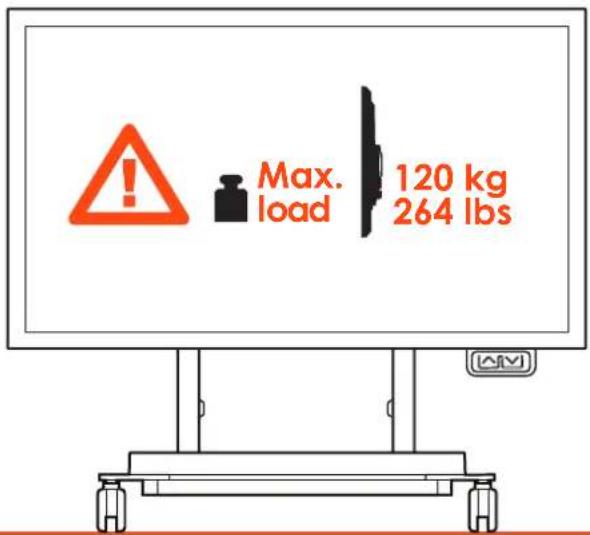

MAXIMUM LOAD OF THIS PRODUCT IS 120 KG / 264 LBS.

MAXIMALE BELASTUNG FÜR DIESES PRODUKT IST 120 KG / 264 LBS.

Max. load 120 kg 264 lbs

GB Caution! Risk of crushing

Do not place objects under the lift system

Diagram showing a hand pressing a button on a monitor with warning symbols and red arrows indicating upward and downward directions.

2

Simple line drawing of a rectangular board with wheels and a small label 'B' (no text or symbols on the board itself)

Silhouette of a woman holding a child's hand, no text or symbols present

3

TURN OFF CHILD LOCK

Simple line drawing of a monitor mounted on a stand with a small device and orange directional arrows (no text or symbols)

PRESS BOTH BUTTONS 2 SEC.

BEIDE TASTEN 2 SEK. DRÜCKEN

UP DOWN

CHILD LOCK AFTER 5 MIN.

KINDERSICHERUNG

NACH 5 MINUTEN

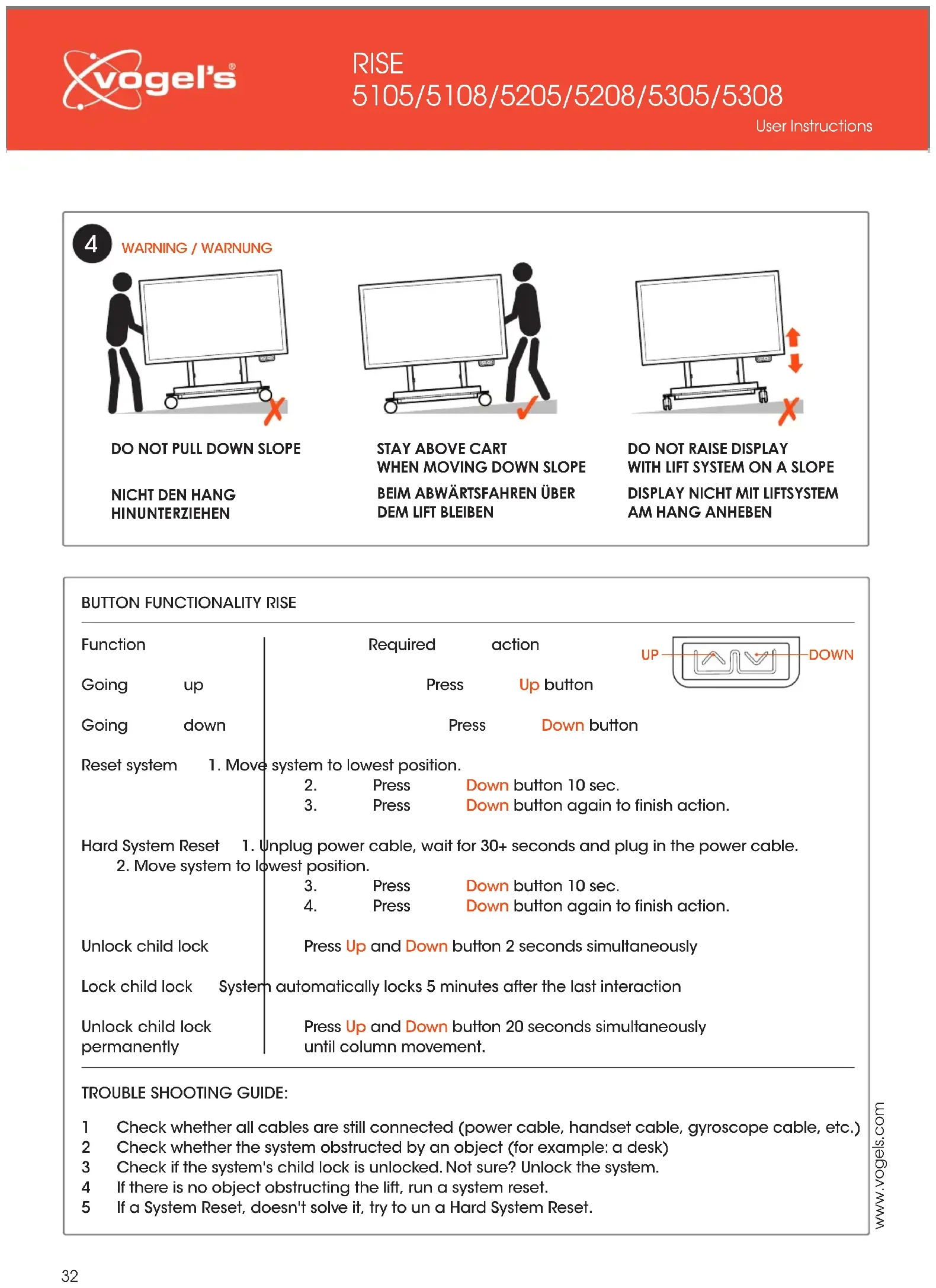

WARNING / WARNUNG

Simple line drawing of a person standing next to a large whiteboard with a cart, no text or symbols present.

DO NOT PULL DOWN SLOPE
NICHT DEN HANG HINUNTERZIEHEN

Simple line drawing of a person pushing a large whiteboard with a red checkmark (no text or symbols)

STAY ABOVE CART WHEN MOVING DOWN SLOPE BEIM ABWÄRTSFAHREN ÜBER DEM LIFT BLEIBEN

Simple line drawing of a whiteboard with wheels and directional arrows indicating movement (no text or symbols)

DO NOT RAISE DISPLAY WITH LIFT SYSTEM ON A SLOPE DISPLAY NICHT MIT LIFTSYSTEM AM HANG ANHEBEN

BUTTON FUNCTIONALITY RISE

Function		Required action
Going	up	Press	Up button
Going	down	Press	Down button
Reset system	1. Move system to lowest position.
	2. Press Down button 10 sec.
	3. Press Down button again to finish action.
Hard System Reset	1. Unplug power cable, wait for 30+ seconds and plug in the power cable.
	2. Move system to lowest position.
	3. Press Down button 10 sec.
	4. Press Down button again to finish action.
Unlock child lock	Press Up and Down button 2 seconds simultaneously
Lock child lock	System automatically locks 5 minutes after the last interaction
Unlock child lock permanently	Press Up and Down button 20 seconds simultaneously until column movement.

TROUBLE SHOOTING GUIDE:

1 Check whether all cables are still connected (power cable, handset cable, gyroscope cable, etc.)
2 Check whether the system obstructed by an object (for example: a desk)
3 Check if the system's child lock is unlocked. Not sure? Unlock the system.
4 If there is no object obstructing the lift, run a system reset.
5 If a System Reset, doesn't solve it, try to un a Hard System Reset.

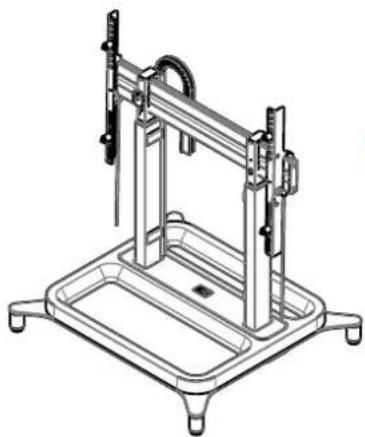

Technical line drawing of a mechanical clamp or support frame with mounting base (no text or symbols)

Product data sheet

RISE 5105 Motorized display lift floor stand 50 mm/s

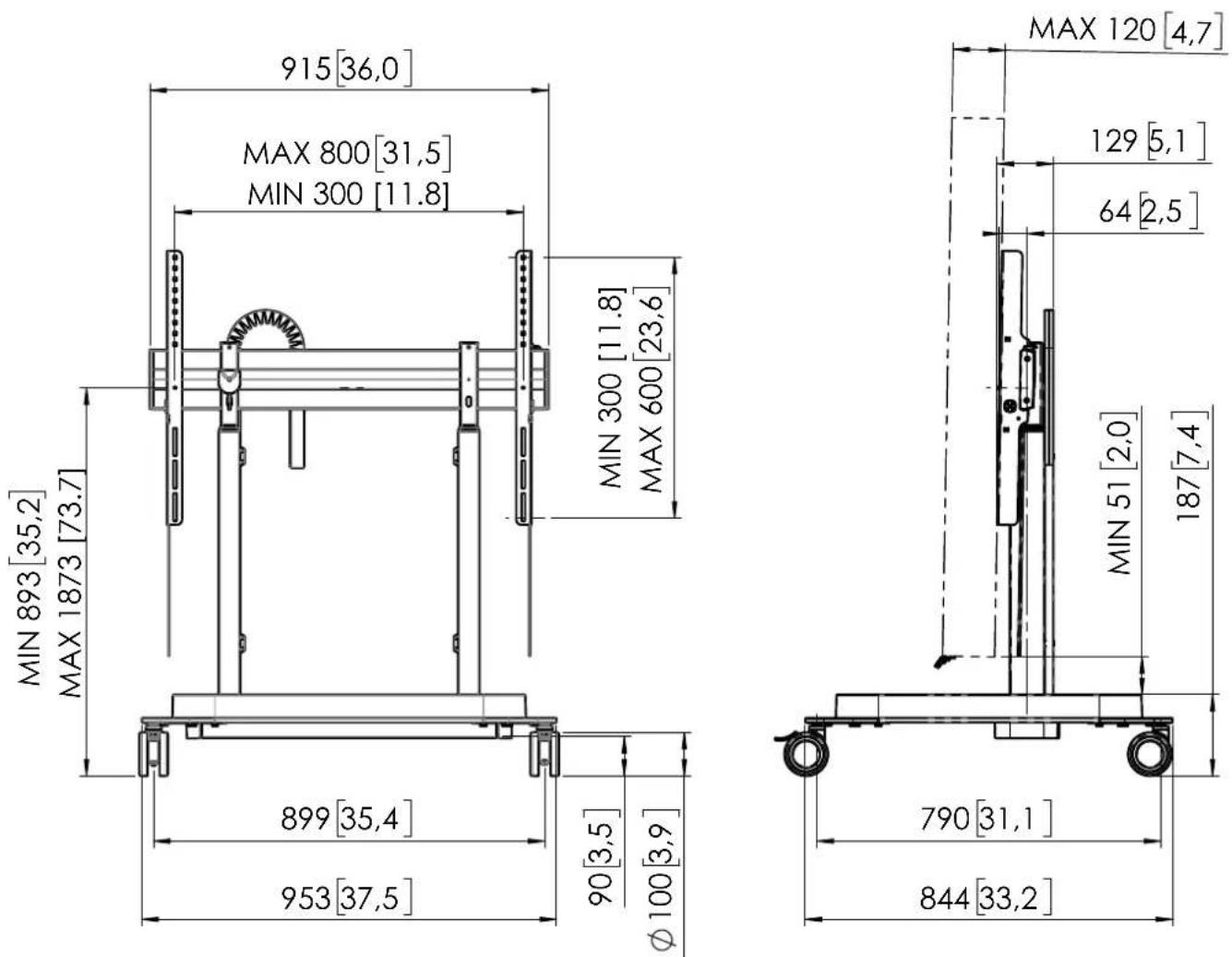

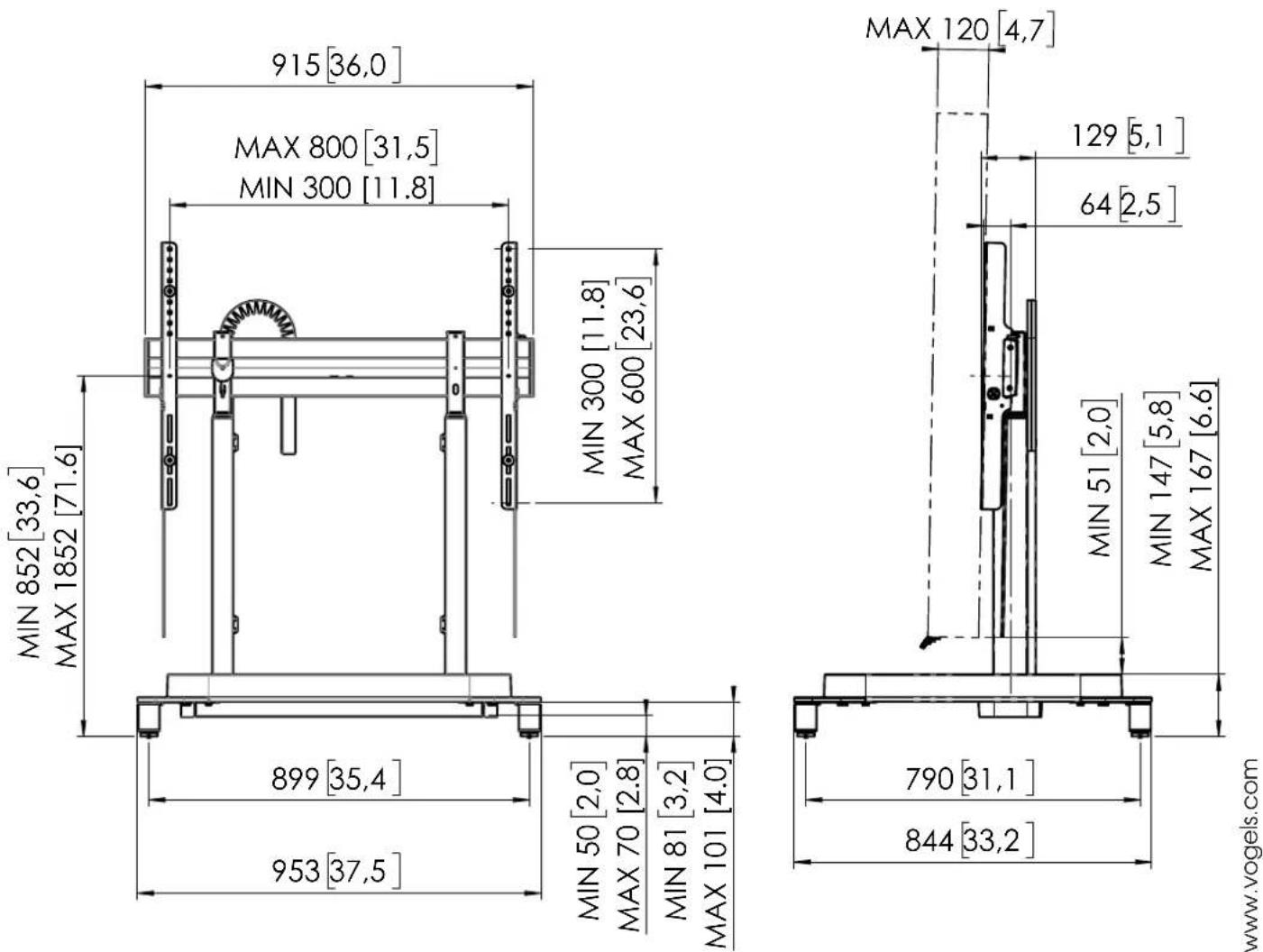

Dimensions in mm [inch]

Screen sizes:

55 inch - 86 inch

Max load:

120 kg / 264,5 lbs

Net weight:

38,9 kg / 85,8 lbs

Gross weight:

42,8 kg / 94,4 lbs

CE

Power supply:

100-240V \~ 50/60Hz

Rated current:

EU/UK: 6A, US/CA: 15A

Power consumption lift system:

400W

Max power external devices:

900W

www.vogels.com

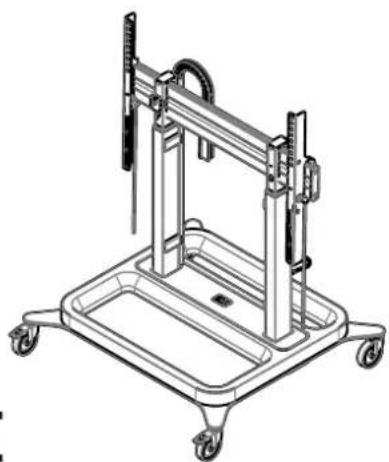

Technical line drawing of a mechanical clamp or support frame with mounting base (no text or symbols)

Product data sheet

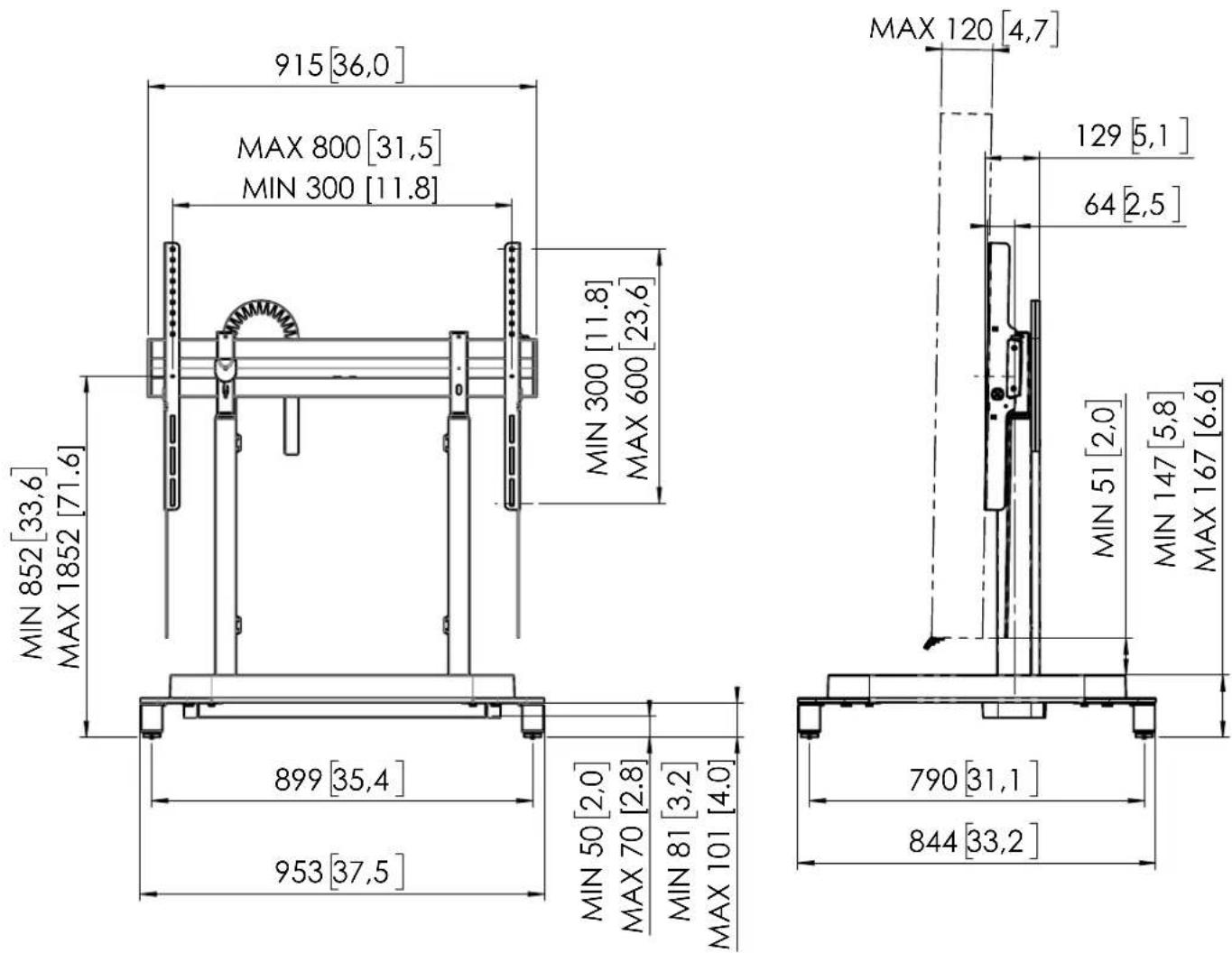

RISE 5108 Motorized display lift floor stand 80mm/s

Dimensions in mm [inch]

Screen sizes:

55 inch - 86 inch

Max load:

120 kg / 264.5 lbs

Net weight:

39,9 kg / 88.0 lbs

Gross weight:

43,8 kg / 96.6 lbs

CE

Power supply:

100-240V \~ 50/60Hz

Rated current:

EU/UK: 6A, US/CA: 15A

Power consumption lift system:

400W

Max power external devices:

900W

www.vogels.com

Technical line drawing of a mechanical support system with wheels and a central frame (no text or symbols)

CE

Power supply:

100-240V \~ 50/60Hz

Rated current:

EU/UK: 6A, US/CA: 15A

Power consumption lift system:

400W

Max power external devices:

900W

Product data sheet

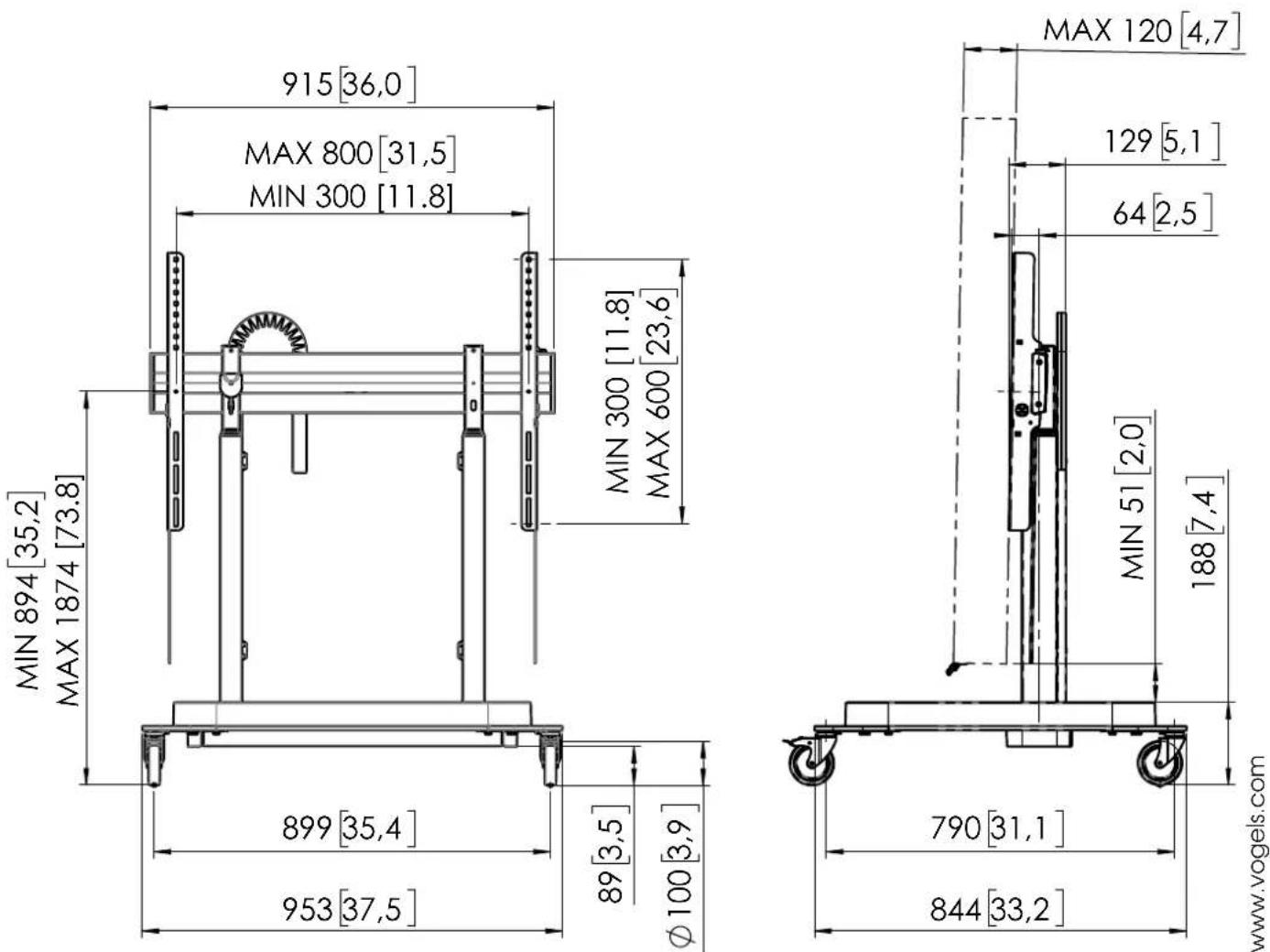

RISE 5205 Motorized display lift trolley 50 mm/s

Dimensions in mm [inch]

Screen sizes:

55 inch - 86 inch

Max load:

120 kg / 264.5 lbs

Net weight:

39.3 kg / 86.6 lbs

Gross weight:

43.7 kg / 96.3 lbs

Technical line drawing of a mechanical support system with wheels and a central frame (no text or symbols)

CE

Power supply:	100-240V ~ 50/60Hz
Rated current:	EU/UK: 6A, US/CA: 15A
Power consumption lift system:	400W
Max power external devices:	900W

Product data sheet

RISE 5208 Motorized display lift trolley 80 mm/s

Dimensions in mm [inch]

Screen sizes:	55 inch - 86 inch
Max load:	120 kg / 264.5 lbs
Net weight:	40.3 kg / 88.8 lbs
Gross weight:	44.7 kg / 98.5 lbs

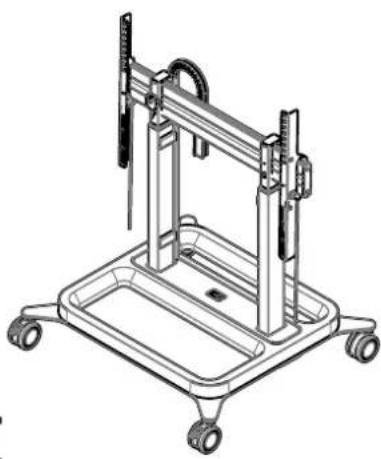

Technical line drawing of a mechanical support system with wheels and vertical supports (no text or symbols)

CE

Power supply: 100-240V \~ 50/60Hz

Rated current: EU/UK: 6A, US/CA: 15A

Power consumption lift system: 400W

Max power external devices: 900W

Product data sheet

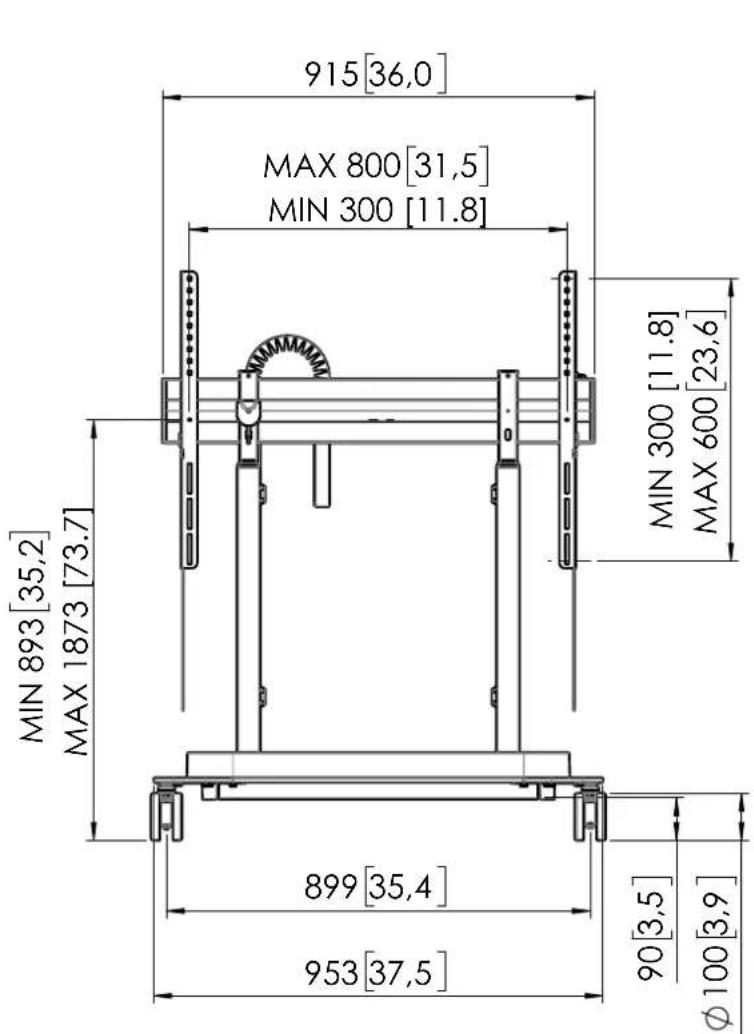

RISE 5305 Motorized display lift trolley 50mm/s

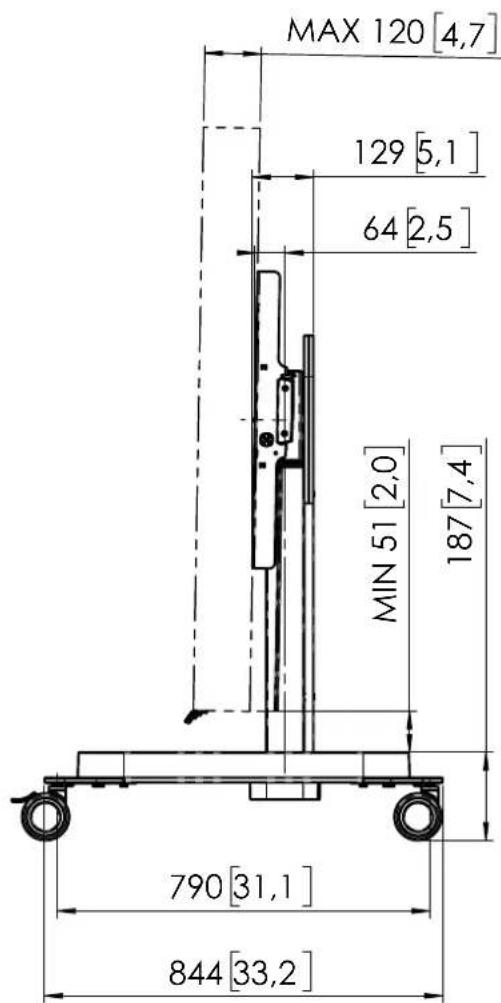

Dimensions in mm [inch]

Screen sizes: 55 inch - 86 inch

Max load: 120 kg / 264.5 lbs

Net weight: 40.1 kg / 88.4 lbs

Gross weight: 44.5 kg / 98.1 lbs

915[36,0] MAX 800[31,5] MIN 300 [11.8] MIN 893[35,2] MAX 1873 [73.7] 899[35,4] 953[37,5] 90[3,5] φ100[3,9] MIN 300 [11.8] MAX 600 [23,6]

MAX 120 [4,7] 129 [5,1] 64 [2,5] MIN 51 [2,0] 187 [7,4] 790 [31,1] 844 [33,2]

www.vogels.com

Technical line drawing of a mechanical support system with wheels and vertical supports (no text or symbols)

CE

Power supply: 100-240V \~ 50/60Hz

Rated current: EU/UK: 6A, US/CA: 15A

Power consumption lift system: 400W

Max power external devices: 900W

Product data sheet

RISE 5308 Motorized display lift trolley 80mm/s

Dimensions in mm [inch]

Screen sizes: 55 inch - 86 inch

Max load: 120 kg / 264.5 lbs

Net weight: 41.1 kg / 90.6 lbs

Gross weight: 45.5 kg / 100.3 lbs

915[36,0] MAX 800[31,5] MIN 300 [11.8] MIN 300 [11.8] MAX 600 [23,6] MIN 893 [35,2] MAX 1873 [73.7] 899 [35,4] 953 [37,5] 90 [3,5] Ø100 [3,9] MAX 120 [4,7] 129 [5,1] 64 [2,5] MIN 51 [2,0] 187 [7,4] 790 [31,1] 844 [33,2]

CHECKLIST

RISE Motorized Display Lift Trolley: 5105 & 5108, 5205 & 5208, 5305 & 5308

☐ Check whether maximum total weight of screen + peripherals does not exceed 120kg
☐ Check whether maximum power of screen + peripherals does not exceed 900W
☐ Check whether the wheels with brakes are attached to the front of the product in case of whiteboard: check whether the counterweights are attached
□ Check whether the power cord has strain relief
☐ Check that all cables are neatly secured, concealed and do not come into contact with sharp edges
□ Check if the gyroscope is mounted correctly
☐ Check if component F (Figure 15) is attached
□ Check if the handset is mounted correctly
☐ Check whether the plug is easily accessible
☐ Check that there are no obstacles in the movement area of the product (bottom + top)
☐ Check whether the child lock is functioning correctly
☐ Check whether there is at least a distance of 51mm between floor and screen in the lowest position

NAME : ____

DATE : ____

SIGNATURE :

Vogel's Products BV

HONDSRUGLAAN 93,

5628 DB EINDHOVEN,

THE NETHERLANDS

T+31(0)402647400

E [e-mail]

W www.vogels.com

(GB) Subject to printing errors and technical amendments.
(NL) Drukfouten en technische wijzigingen voorbehouden.
(F) Sous réserve de fautes d'impression et de modifications techniques.
(D) Für Druckfehler übernehmen wir keine Verantwortung. Technische Änderungen vorbehalten.
(E) Reservados errores de imprenta y sujete a modificationes.
(I) Con riserva di modifiche techniche e di eventueli errori di stampa.
(P) Reserva-se a ocorrência de gralhas e de modificações técnicas.
(H) Nyomdahibák és technikai változtatások joga fenntartva.
(PL) Zastrzega się możliwość występowania błędów drukarskich i zmian technicznych.
(RUS) Возможны ошибки при печати и технические модификации.
