Product type	Freestanding fridge-freezer
Brand	Proline
Model	PSBS946SL
Dimensions (H x W x D)	1770 x 900 x 590 mm
Net weight	77 kg
Power supply	220-240 V ~ 50 Hz
Energy class	F
Annual consumption	359 kWh/year
Total volume	442 L
Fridge volume	291 L
Freezer volume	148 L (4 stars)
Freezing capacity	10.5 kg/24 h
Autonomy in case of power cut	9.5 h
Refrigerant	R600a (isobutane) – 75 g
Defrosting	Automatic (No Frost)
Lighting	LED (class G, not user-replaceable)
Noise level	40 dB(A) – class C
Operating ambient temperature	10 °C to 38 °C
Number of fridge shelves	4
Number of freezer drawers	1 drawer + 2-star zone
Special functions	ECO mode, Super freeze, open door alarm
Warranty	2 years
After-sales service	Spare parts within 15 working days

Frequently Asked Questions - PSBS946SL PROLINE

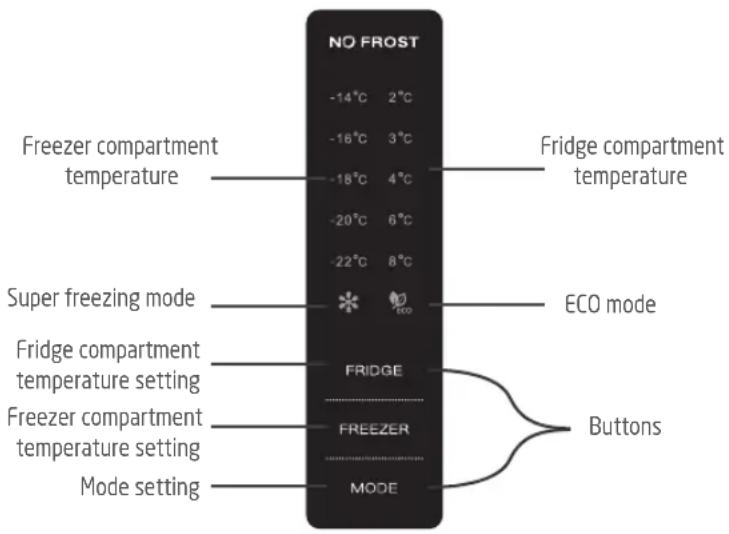

How to adjust the fridge temperature?

Press the FRIDGE button repeatedly to scroll through the temperatures (2°C, 3°C, 4°C, 6°C, 8°C). The temperature flashes for 5 seconds, then the setting is confirmed.

What to do in case of a power cut?

Do not open the door. Frozen food stays frozen for up to 9.5 hours. Never refreeze fully thawed food.

How to clean the interior of the appliance?

Unplug the appliance, remove food and removable parts. Use a soft damp cloth with mild detergent (vinegar or baking soda). Do not use abrasive products. Dry thoroughly before plugging back in.

How to change the bulb?

The LED lamp cannot be replaced by the user. If it stops working, contact an approved repair center.

What is the ECO mode for?

ECO mode saves electricity. It automatically adjusts temperatures based on ambient temperature. To activate, press MODE repeatedly until the ECO symbol flashes.

How to use quick freezing?

Press MODE repeatedly until the Super freeze symbol flashes. The appliance cools to -25°C for 50 hours. Activate it 24 hours before freezing large quantities of fresh food.

Why is the appliance making unusual noises?

Check that the appliance is level and not touching the wall. Normal noises include the motor and refrigerant circulation. If noise persists, adjust the feet or move the appliance away from obstacles.

What to do if the door does not close properly?

Clean the door gasket with a damp cloth to remove residues. If the gasket is deformed, gently heat it with a hairdryer then let it cool in the closed position. Check that nothing is blocking the door.

How to defrost the freezer?

This appliance is equipped with the No Frost system: defrosting is automatic. No manual action required. Frost is removed automatically.

Where to find spare parts?

Contact the after-sales service of FNAC DARTY or Vanden Borre. Parts are delivered within 15 working days. Call 0978 970 970 (France) or 02 334 00 00 (Belgium).

USER MANUAL PSBS946SL PROLINE

Exterior view of a modern stainless steel refrigerator with control panel, displayed in a kitchen setting (no visible text or symbols)

MANUEL D'UTILISATION HANDLEIDING

Color gradient bar transitioning from black to white (no text or symbols)

TABLE DES MATIÈRES

MISES EN GARDE IMPORTANTES......2

DESCRIPTION DU PRODUIT....7

AVANT D'INSTALLER L'APPAREIL....8

INSTALLATION....9

TEMPÉRATURE AMBIANTE....12

UTILISATION DE VOTRE RÉFRIGÉRATEUR CONGÉLATEUR.....12

DÉGIVRAGE....20

NETTOYAGE ET ENTRETIEN....20

GUIDE DE DÉPANNAGE....22

FICHE D'INFORMATION SUR LE PRODUIT....24

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE......27

MISE AU REBUT....28

FR

NL

EN

MISES EN GARDE IMPORTANTES

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

Avertissements

Technical line drawing of a mechanical assembly with no visible text or symbols

AVANT D'INSTALLER L'APPAREIL

Three technical line drawings showing mechanical assembly steps: top-down, front-down, and top-right (no text or symbols)

Simple line drawing of a pipette above a workbench with no text or symbols

Pure technical line drawing of a mechanical bracket or mounting structure without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting holes and a tool (no text or symbols)

Line drawing of a refrigerator with front and back doors (no text or symbols)

Simple line drawing of a mechanical setup with a tool and two figures, no text or symbols present.

Illustration showing two workers installing a wall-mounted device and a mechanical component with rotational flow arrows (no text or symbols)

Pure technical line drawing of a two-cylinder train or container system with wheels and no text or symbols

FR

NL

EN

TEMPÉRATURE AMBIANTE

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

la temperature.

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1278430

Diagram showing a refrigerator with an open door and a labeled component, illustrating the door's internal structure.

VERIFICATION DE LA TEMPERATURE DANS LA ZONE LA PLUS FROIDE

Color palette bar with grayscale shades and a small crosshair symbol (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

VOOR INSTALLATIE VAN HET APPARAAT

Simple line drawing of a laboratory setup with a pipette above a workbench (no text or symbols)

1. Ontkoppel de kabelboom.

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Line drawing of a refrigerator with two doors, one open and one closed, showing internal compartments (no text or symbols)

Simple line drawing of a ladder with two people and a pencil, no text or symbols present

Illustration showing two workers installing a wall-mounted device and a mechanical component with rotational flow arrows (no text or symbols)

Simple line drawing of a two-cylinder train on a track (no text or symbols)

FR

NL

EN

OMGEVINGSTEMPERATUUR

UW DIEPVRIES KOELKAST

Fruit (droog of in siroop), eiwit, rundvlees (rauw), hele kip, lam (rauw), fruitcakes

12 maanden

Nooit vergeten:

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color gradient bar transitioning from black to white with a horizontal line (no text or symbols)

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1278430

Diagram showing a refrigerator with an open door and a numbered label pointing to the interior panel.

VERIFICATIE VAN DE TEMPERATUUR IN DE KOUDSTE ZONE

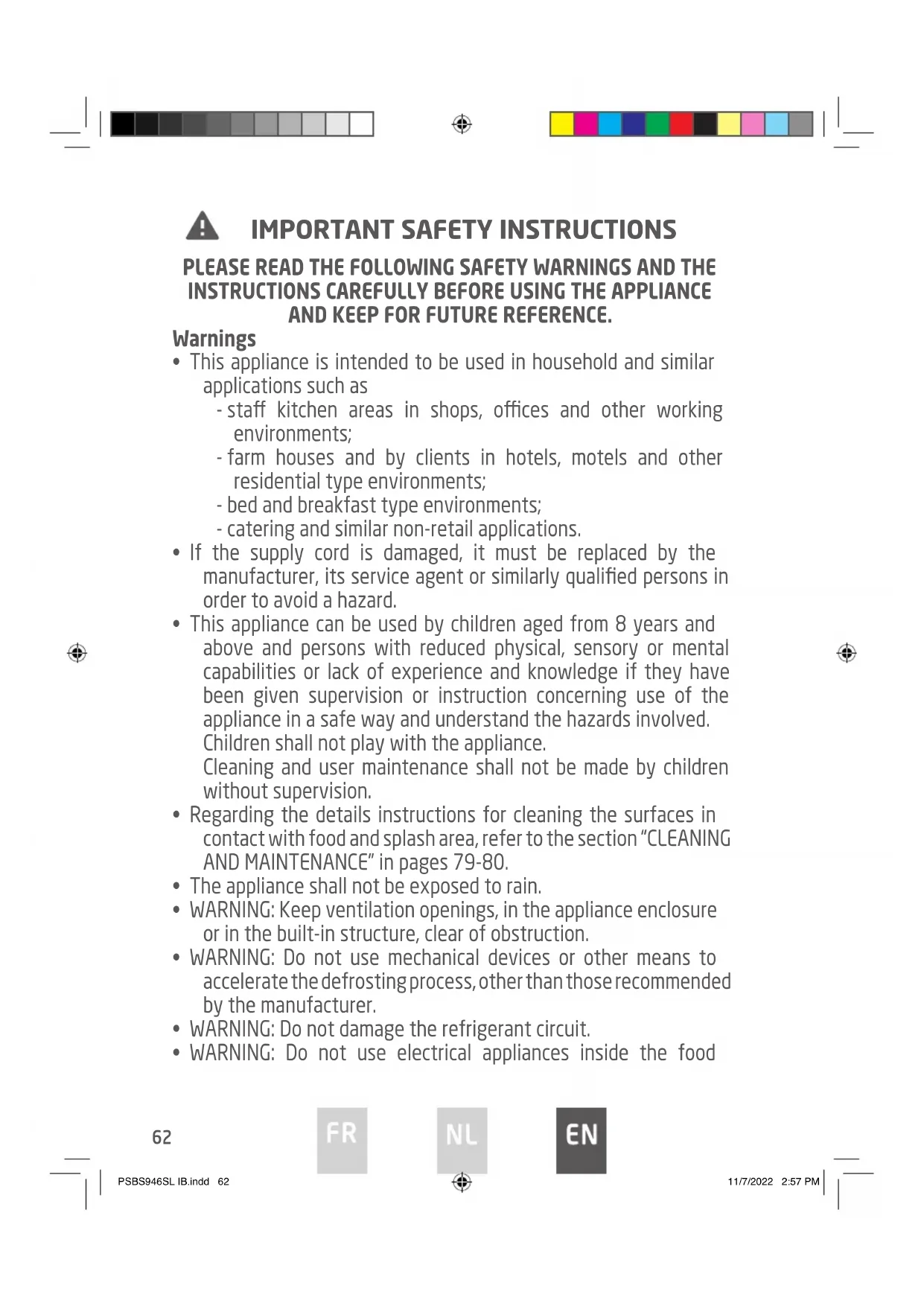

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  Cleaning and user maintenance shall not be made by children without supervision.
• Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "CLEANING AND MAINTENANCE" in pages 79-80.
• The appliance shall not be exposed to rain.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.
• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

- For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

- For handling:

Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

- For handling:

• Always handle the appliance to avoid any damage.
- WARNING: For making ice (ice cubes), use potable water only.
- Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

Warning; Risk of fire / flammable materials

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety Precautions

• Keep all packaging away from children as there is risk of suffocation.
• The plug must be accessible when the refrigerator freezer is in position.
• Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly and pull it out.

• Place the refrigerator freezer in a dry place - avoid areas of high moisture or humidity.

• Keep the refrigerator freezer out of direct sunlight.

• Do not place the refrigerator freezer near stoves, fires or heaters.
• Do not use electrical appliances in the refrigerator freezer.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Never use the base, doors etc. to stand on or as supports.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freezer burns' on the lips.
• Effervescent drinks should not be stored in the freezer compartment.
• The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
  The refrigerant (R600a) is flammable.

- WARNING – Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

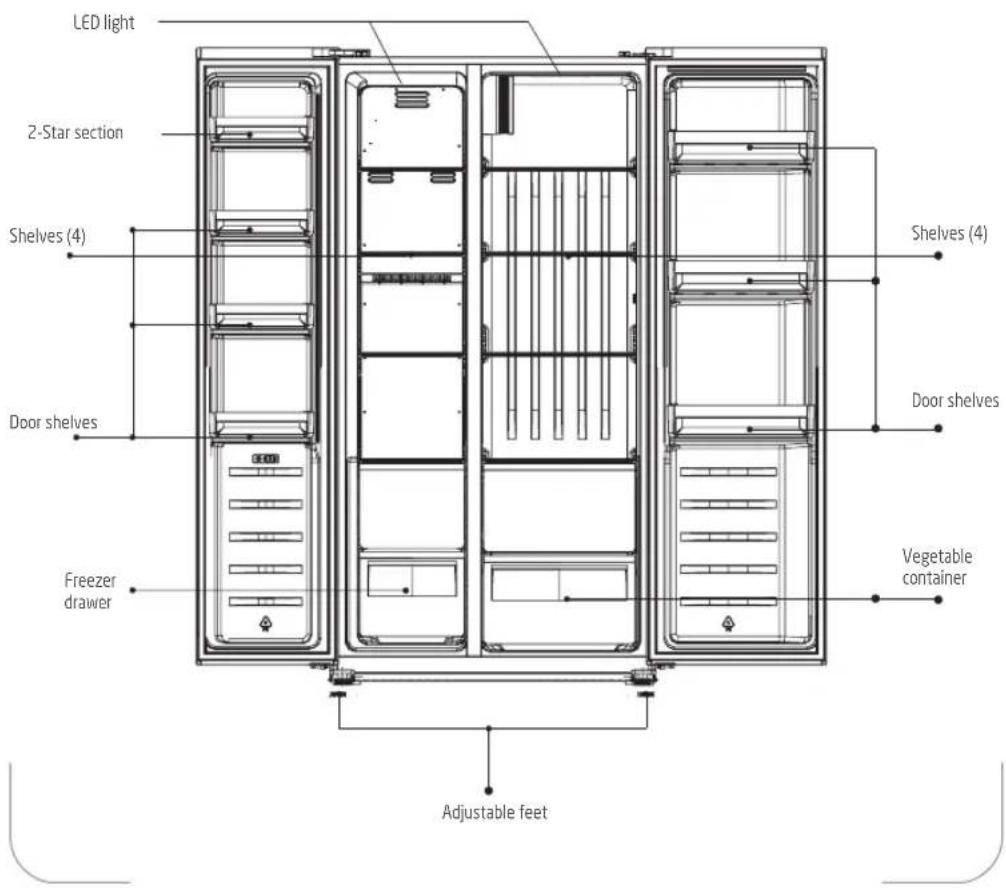

PRODUCT OVERVIEW

Freezer compartment Refrigerator compartment

LED light 2-Star section Shelves (4) Door shelves Freezer drawer Shelves (4) Door shelves Vegetable container Adjustable feet

Recommended food arrangement

Refrigerator compartment (4°C):

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top section: canned food, bread, cake...

Middle section: dairy products, readymade food, desserts...

Bottom section: meat, meat products, delicatessen ...

Container: fresh fruit, vegetables, salads...

Refrigerator door shelves (2°C \~ 8°C):

Top/middle section: eggs, butter, cheese...

Bottom section: beverages, cans, bottles...

Freezer compartment (-18°C):

Top/middle section: Cakes and pastries

Dairy products such as cheese and butter

Bottom drawer : Cooked meat and fish

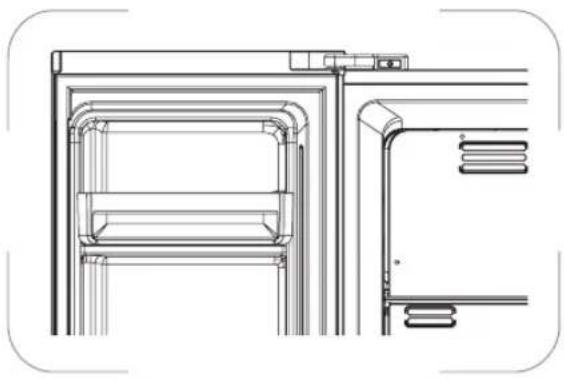

NOTE :

It is advised not to place ice cream at the 2-star section.

For optimal freezing, please place ice cream at the rear portion of the Freezer compartment close to the air vents.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

67

11/7/2022 2:57 PM

INSTALLATION

Removing the doors

Tools required : Philips screwdriver, Flat bladed screwdriver

• Ensure that the appliance is unplugged and empty.
• To take the door off, it is necessary to tilt the appliance backwards. You should rest the appliance on something solid so that it will not slip during the door removing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the appliance flat as this may damage the coolant system.

• It is better that 2 people handle the appliance during assembly.

• Unscrew the hinge cover with the Philips screwdriver.

• Disconnect the harness.

• Unscrew the top hinge.

Simple line drawing of a mechanical setup with a pipette above a workbench (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

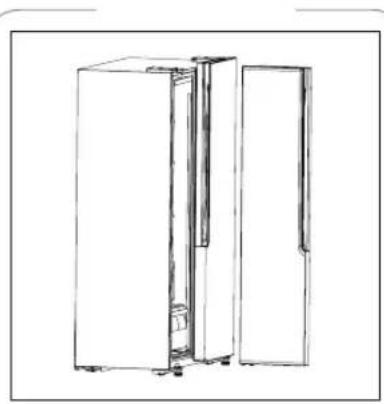

1. Lift the door and place it on a soft pad. Then remove the other door following the same steps.

Line drawing of a refrigerator with front and back doors (no text or symbols)

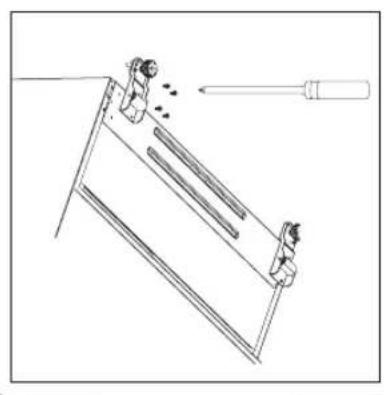

1. Unscrew bottom hinges.

Simple line drawing of a ladder with two people and a pointer, no text or symbols present

1. After the appliance is positioned, install the doors following the steps above in reverse order.

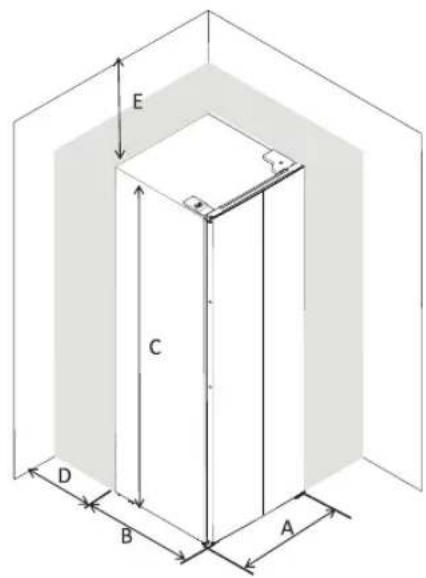

Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow 50 mm of space between the back of the refrigerator freezer and the wall and at least 50 mm of space from the side to the wall, a height of over 50 mm from its top.

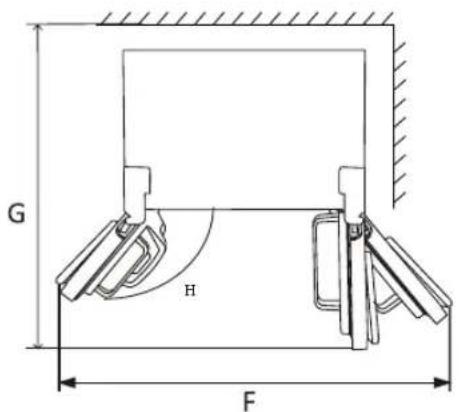

E C D B A

Unit: mm

A 900 F 1800

B 590 G 1490

C 1770 H 135°

D min 50

E min 50

G H F

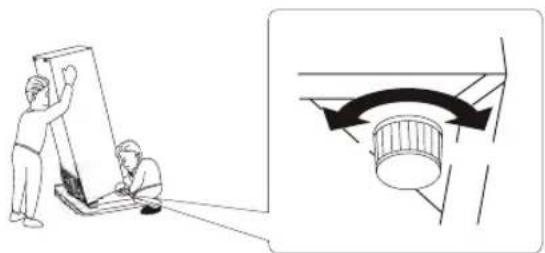

Adjust the feet to keep the refrigerator freezer level.

Illustration showing two scenes: a person installing a door panel and another inspecting a cylindrical component with rotational arrows (no text or symbols)

Technical line drawing of a dual-side water tank or container system with wheels and a horizontal ground line (no text or symbols)

70

FR

NL

EN

AMBIENT TEMPERATUE

This appliance is designed to operate in ambient temperature between 10^ C and 38^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ C and food spoilage may occur.

Before placing food in the appliance

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

Hints for fresh food refrigeration

• Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4^ .
• Higher temperature setting inside the appliance may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its freshness and aroma.
• Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment.
• To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one.
• It is recommended to defrost the food inside the fridge.
• Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance.

Hints for refrigeration

• Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days.
• Fruit and vegetables: clean thoroughly (eliminate the soil) and place them

in the refrigerator.

• It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator.
• Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator.
• Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close them with a cap and place them on the door bottle shelf.
• Always refer to the expiry date of the products to know how long to keep them.

Adjusting the temperatures and functions

Control Panel and display

NO FROST -14°C 2°C -16°C 3°C -18°C 4°C -20°C 6°C -22°C 8°C Fridge compartment temperature Super freezing mode Fridge compartment temperature setting Freezer compartment temperature setting Mode setting FRIDGE FREEZER MODE Fridge compartment temperature ECO mode Buttons

72

FR

NL

EN

The LED display will be illuminated for about 2 minutes when opening the fridge door.

The LED display will be illuminated by any button operation and will stay illuminated for about

2 minutes after the last button operation.

Setting the Fridge Compartment Temperature

Repeatedly press FRIDGE to set the desired temperature in the fridge compartment in a cycle of 2^ C, 3^ C, 4^ C, 6^ C, 8^ C. The temperature will be confirmed after flashing for 5 seconds.

NOTE: You can adjust the fridge compartment temperature in a user defined mode and in Super freezing mode.

Setting the Freezer Compartment Temperature

Repeatedly press FREEZER to set the desired temperature in the freezer compartment in a cycle of -14^ , -16^ , -18^ , -20^ , -22^ . The temperature will be confirmed after flashing for 5 seconds.

NOTE: You can adjust the freezer compartment temperature in a user defined mode.

Setting a mode

You can repeatedly pressMODE to select the desired operating mode from the following options: ECO - Super freezing - User defined.

- When ECO mode is selected, the symbol will be lit.

- When Super freezing mode is selected, the symbol temperature symbol will be lit.

- When User defined mode is selected, you can adjust the temperatures of fridge and freezer compartments by pressing the buttons FRIDGE and FREEZER.

ECO mode

Select this mode when you want to save power.

Repeatedly press MODE until the mode symbol washes. After 5 seconds,

the appliance has entered ECO mode and the ECO mode symbol is lit steadily on the display.

The temperature display for freezer and fridge will change based on ambient temperature.

To deactivate this mode, repeatedly pressMODE until the mode symbol diappears from the display. The temperature display for fridge and freezer compartments will return to the previous setting.

Super freezing mode

This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance.

Repeatedly press MODE until the mode symbol washes. After 5 seconds, the appliance has entered Super freezing mode and the Super freezing mode symbol is lit steadily on the display.

The appliance will automatically adjust the temperature in the freezer compartment to the coldest level -25°C.

• This mode will be automatically deactivated after 50 hours of operation.
• To manually deactivate this mode, repeatedly press MODE until no mode symbol ✦ appears on the display.

NOTE:

• If you plan to freeze a large quantity of fresh food at the same time, it is recommended that you set Super freezing mode 24 hours ahead.
• In Super freezing mode, the appliance will work hard, which means the running noises will be slightly louder than during normal operation.

Power failure

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 9.5 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Freezing and storing food in the freezer compartment

Using the freezer compartment

• To store deep-frozen food
- To make ice cubes
- To freeze food

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:
  Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing:
  Types of vegetables, which are usually consumed raw, such as lettuce or

radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

Making ice cubes

Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer compartment.

If the ice cube tray is stuck to the compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

Door opening alarm

If the door is left open for approximately 60 seconds, the alarm will sound.

To turn off the alarm, you can close the door.

Operating noises

Normal noises

• Motors are running.
  • Refrigerant is flowing through the tubing.

Moving your refrigerator freezer

• Unplug the refrigerator freezer.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator freezer.
• Tape the door shut.
• Be sure the refrigerator freezer stays in the upright position during transportation.
• If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Energy saving tips

For the most energy efficient use of your appliance:

• Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Regularly defrost the refrigerator freezer to remove the layer of frost.
• Ensure that the fridge and freezer doors are always closed properly..

DEFROSTING

This appliance is equipped with a frost free system.

This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

CLEANING AND MAINTENANCE

Always unplug the appliance before cleaning.

1. Take out the food and store in a cool location.
2. Remove all removable parts, such as shelves, vegetables containers, drawers etc.
3. Use a soft damp cloth or paper towel to clean the interior and exterior including all different drainage area and water evacuation port.

4. Wipe up spills in the fridge and freezer compartment with a damp cloth immediately.

5. Use a mild cleanser such as dish detergent or use either some baking soda or vinegar to clean the splash area.

6. Place a small amount of detergent, vinegar, or baking soda in a bowl and add warm water to it. Dip a towel or cloth into the cleaning solution and wash the inside of your appliance.

7. Clean the removable parts using a clean sponge or soft cloth in warm soapy water. Rinse and dry thoroughly before replacing them.

- Do not use abrasive or chemical cleaning agents.

1. Clean the door liners and gaskets using a clean sponge or soft cloth and a mild detergent in warm water.

- Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

1. Dry all surfaces thoroughly and then plug in the appliance. Adjust the temperature.
2. Put the food back in the appliance.

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

The LED light in the fridge/freezer compartment cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent.

80

PSBS946SL IB.indd 80

FR

NL

EN

11/7/2022 2:57 PM

TROUBLESHOOTING

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service.

Warning!

Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.

Problem Possible Causes & Solution
Appliance does not operate.	Check that the appliance is plugged into the mains socket properly and that the outlet is switched on.Check the fuse is not blown.Check the circuit breaker is not tripped.
Unusual noises	Re-adjust the feet to ensure the appliance is level.Check that the appliance is not touching the wall or other objects. Move the appliance slightly.Check that a component, e.g. a pipe, on the rear of the appliance is not touching another part of the appliance or the wall. If necessary, carefully bend the component out of the way.
Inadequate refrigeration	Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.Check that the door is closed completely.Ensure that the door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has reached its set temperature.

Color gradient bar transitioning from black to white with no text or symbols

Door seal fails to be tight.

Remove foreign matters on the door seal. Heat the door seal and then cool it for restoration. (or blow it with an electrical drier or use a hot towel for heating)

82

PSBS946SL IB.indd 82

FR

NL

EN

11/7/2022 2:57 PM

PRODUCT INFORMATION SHEET

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Etablissements Darty & fils © | Proline
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model Identifier: PSBS946SL
Type of refrigerating appliance:
Low-noise appliance: no Design type: freestanding
Wine storage appliance: no Other refrigerating appliance: yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimeter)	Height 1770		Total volume (dm3 or l) 442Width 900
	Depth 590
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pw)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		359	Climate class:	Extended temperate/ Temperate/ Subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		no

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	-	-	-	-
Wine storage	no	-	-	-	-
Cellar	no	-	-	-	-
Fresh food	yes	291,0	4	-	A
Chill	no	-	-	-	-

FR

NL

EN

0-star or ice-making no — — —
1-star no — — —
2-star no — — —
3-star no — — —
4-star yes 148.0 -18 10.5 A
2-star section yes 3.0 -12 – A
Variable temperature compartment	no — — —
For 4-star compartments
Fast freeze facility			yes
For wine storage appliances
Number of standard wine bottles			—
Light source parameters (a) :
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer : 24 monthsAdditional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found :www.darty.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures
  • ranging from 10 °C to 32 °C.
• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from
• 16 °C to 32 °C.
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database:

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1278430

Rated voltage and frequency	220-240V~ 50Hz
Refrigerant/Amount	R600a / 75g
Insulation blowing gas	Cyclopentane
Rated current	1.5A
Rated input power	150W
Electric shock protection class	Class I
Rated defrosting power	240W
Temperature rise time	Power cut safe 9.5h
Net weight	77 kg

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DARTY

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height.

In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

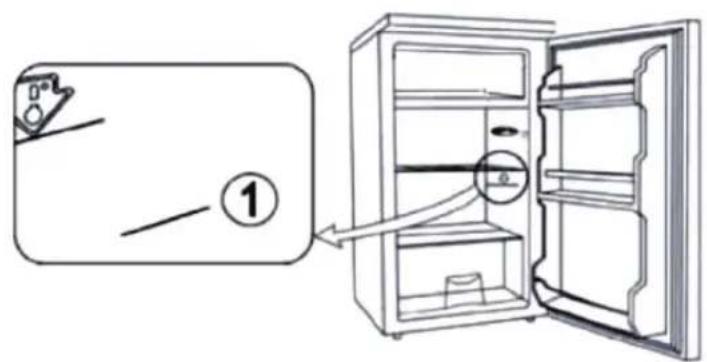

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator with an open door and a labeled component, illustrating the door's internal structure.

88

CHECKING THE TEMPERATURE IN THE COLDEST AREA

Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should increase the thermostat setting and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting

Temperature too high, adjust the thermostat

89

11/7/2022 2:57 PM

FNAC DARTY

EU Declaration of Conformity

Product Description:

Front view of a modern stainless steel refrigerator with two doors (no visible text or labels)

Marque -

Brand /Merk /Marca:

Proline

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Color gradient bar transitioning from black to white with no text or symbols

PROLINE
