USER MANUAL PLF242L PROLINE

Illustration of a milk carton, cheese, and bread bowl (no text or symbols)

Viandes rouges

Line drawing of a biological or geological cross-section with irregular polygonal patterns (no text or symbols)

Volailles

Simple line drawing of a roasted chicken with legs and decorative trim (no text or symbols)

Illustration of a fish with scales and fins, no text or symbols present

Illustration of various vegetables including carrots, mushrooms, and a pumpkin (no text or symbols)

INVERSION DU SENS D'OUVERTURE DE LA PORTE

Diagram of a tool interacting with a cylindrical object, showing a handle and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Diagram of a screwdriver holding a tool, with an arrow indicating direction (no text or symbols present)

Pure geometric diagram showing a curved dashed line and two marked points on a rectangular base (no text or symbols)

Technical line drawing of a vehicle front view with a circular inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Line drawing of a flat-panel object with two downward arrows indicating orientation (no text or symbols)

Abstract diagram of a folded document with directional arrows indicating rotation (no text or symbols)

CONSEILS D'ÉCONOMIE D'ÉNERGIE

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/988179

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE

Warning symbol with exclamation mark and circular dot (no text or numbers)

Diagram showing refrigerator door with open refrigerator and labeled component, illustrating door turning process

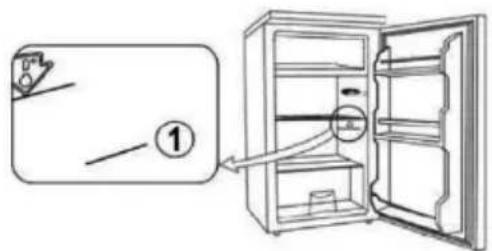

VERIFICATION DE LA TEMPERATURE DANS LA ZONE LA PLUS FROIDE

WARNINGS....2
IMPORTANT SAFETY INSTRUCTIONS....5
NAMES OF PARTS....6
BEFORE INSTALLING THE FRIDGE....6
INSTALLATION 7
AMBIENT TEMPERATURE....7
BEFORE PLACING FOOD IN THE FRIDGE 7
TEMPERATURE CONTROL....8
MOVING YOUR APPLIANCE....8
STORING FOOD IN THE FRIDGE....8
DOOR CONVERSION....12
TIPS FOR SAVING ENERGY....14
OPERATING NOISES....15
CLEANING AND MAINTENANCE....15
TROUBLESHOOTING....16
SPECIFICATIONS 16
PRODUCT INFORMATION SHEET.... 17
REPAIR AND SPARE PARTS SERVICE....19
DISPOSAL....20

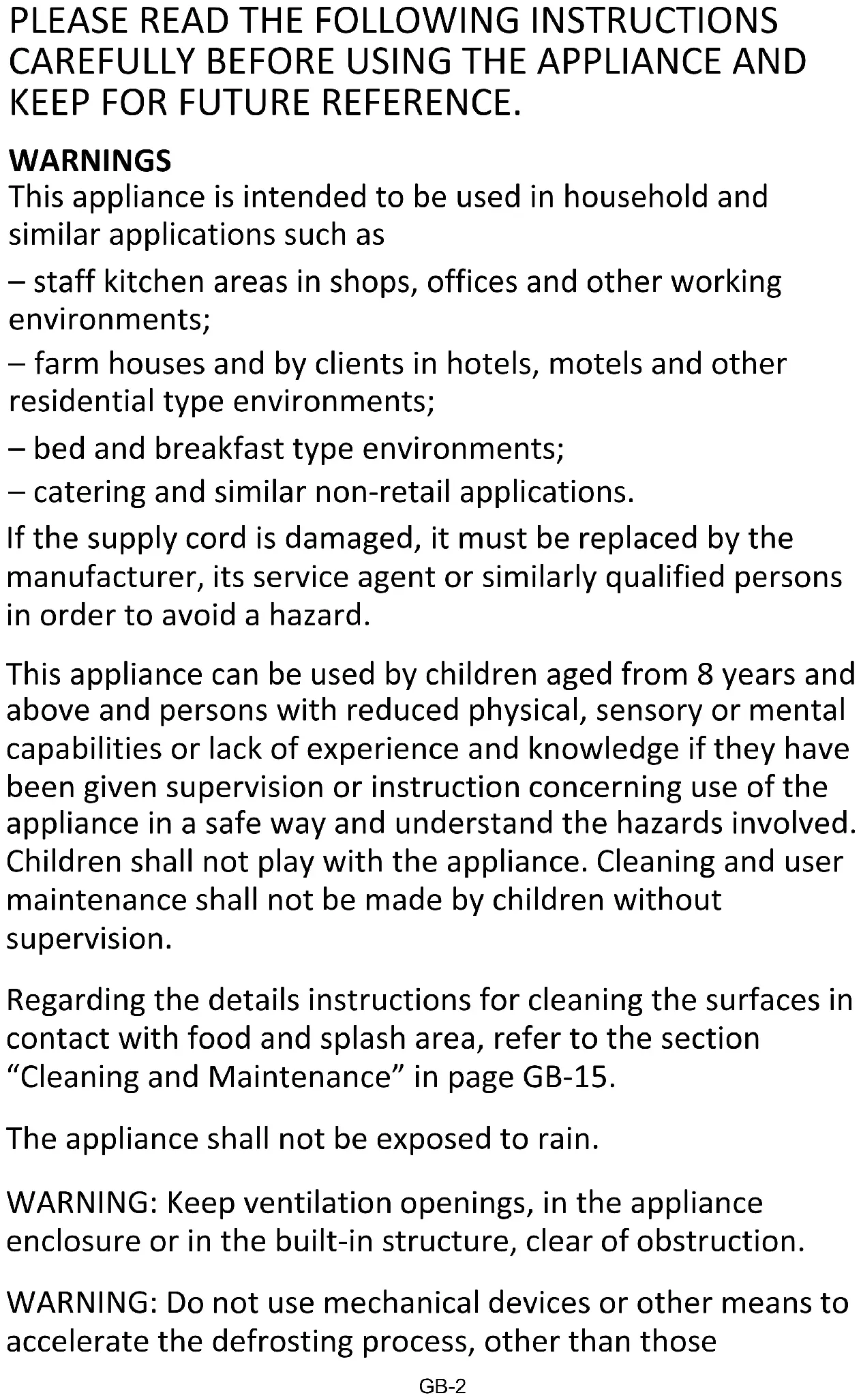

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "Cleaning and Maintenance" in page GB-15.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any

components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

Warning; Risk of fire / flammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old fridge with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Do not stand or support yourself on the base or door, etc.

Dispose of your old appliance

Refrigerators contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

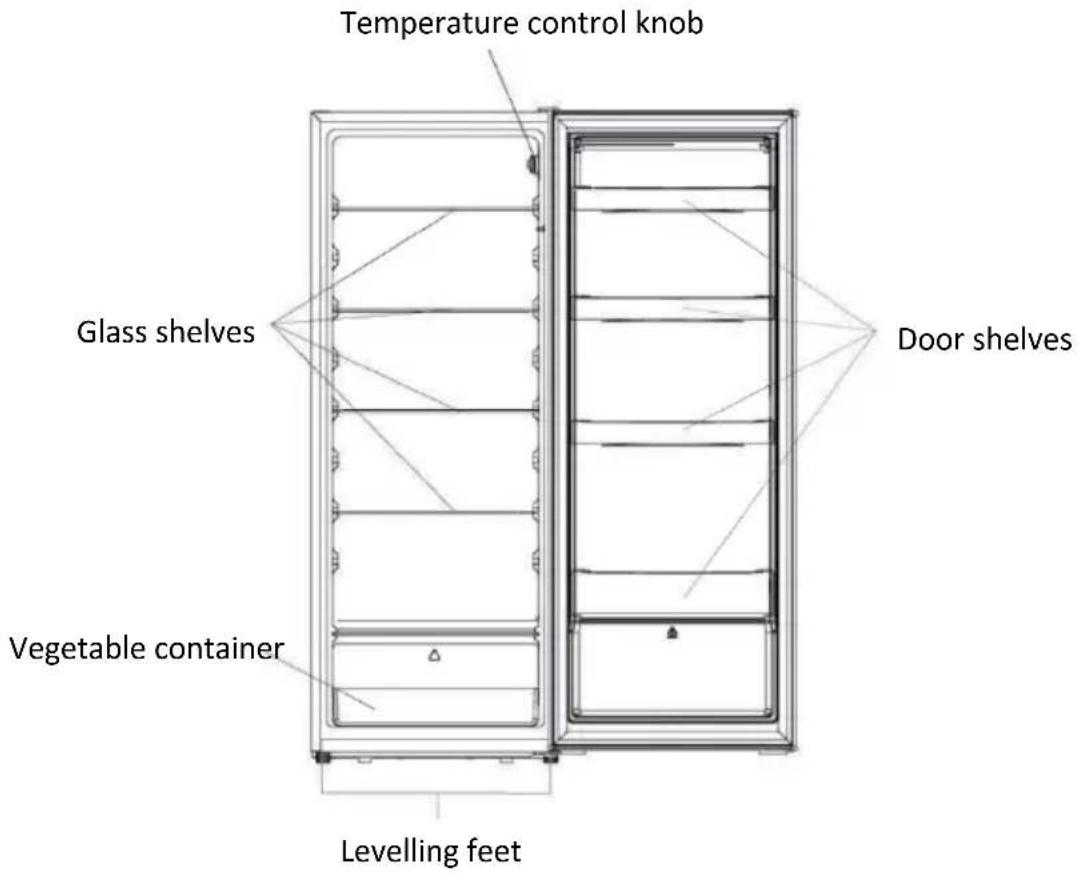

NAMES OF PARTS

Temperature control knob Glass shelves Door shelves Vegetable container Levelling feet

Recommended food arrangement

Refrigerator compartment (4°C)

Cold air sinks so the bottom part is the coldest.

Store your food in the optimal space to enjoy the fresh taste.

Top section :	canned food, bread, cake...
Middle section :	dairy products, readymade food, desserts, meat, meat products, delicatessen ...
Container :	fresh fruit, vegetables, salads...

Door shelves (2°C \~ 8°C)

Top section :	eggs, butter, cheese...
Middle section :	beverages, cans, bottles...
Bottom section :	beverages, cans, bottles...

BEFORE INSTALLING THE FRIDGE

Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home.

Ensure that the plug remains accessible after installation.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 16^ C and 38^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the fridge will rise above 4^ C and food spoilage may occur.

BEFORE PLACING FOOD IN THE FRIDGE

- Remove all packaging.

- Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature.

- Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside it. Adjust the control knob as desired to suit your individual preference.

0 is off setting

1 is cold setting

7 is coldest setting

4 5 3 6 2 7 1 0

In the off position (0) the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.

The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended ‘use by /best before/best by/’ date stamped on them. Store them in the refrigerator compartment and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs can be stored in the fridge.

Illustration of milk carton, cheese, and breadboard (no text or symbols)

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Simple line drawing of a biological or geological cross-section (no text or symbols)

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Simple line drawing of a whole roasted chicken with legs and decorative base (no text or symbols)

Fish and seafood

- Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.

- If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.

- Keep shellfish chilled at all times. Use within 1 -2 days.

Line drawing of a fish with scales and decorative elements (no text or symbols)

Precooked foods and leftovers

• These should be stored in suitable covered containers so that the food will not dry out.

- Keep for only 1 – 2 days.

- Reheat leftovers only once and until steaming hot.

Vegetable and fresh fruit

Illustration of fresh vegetables including carrots, tomatoes, and a gourd (no text or symbols)

- The vegetable container is the optimum storage location for fresh fruit and vegetables.

• Take care not to store the following at temperatures of less than 7^ C for long periods:

Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes.

- Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.

- Do not refrigerate avocados (until they are ripe), bananas, mangoes.

DOOR CONVERSION

If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the upper hinge cover.

Diagram of a tool interacting with a mechanical component, showing a handle and a downward arrow (no text or symbols)

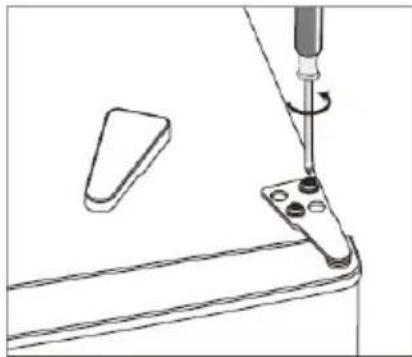

1. Remove the screws that fix the upper hinge. Remove the upper hinge.

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

1. Remo ve the top left screw cover.

Diagram of a screwdriver being inserted into a tool, showing mechanical components and an arrow indicating direction (no text or symbols present)

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Pure geometric diagram showing a curved dashed line and a circular marker on a rectangular base (no text or symbols)

1. Unscrew bottom hinge. Then remove the adjustable feet from both sides.

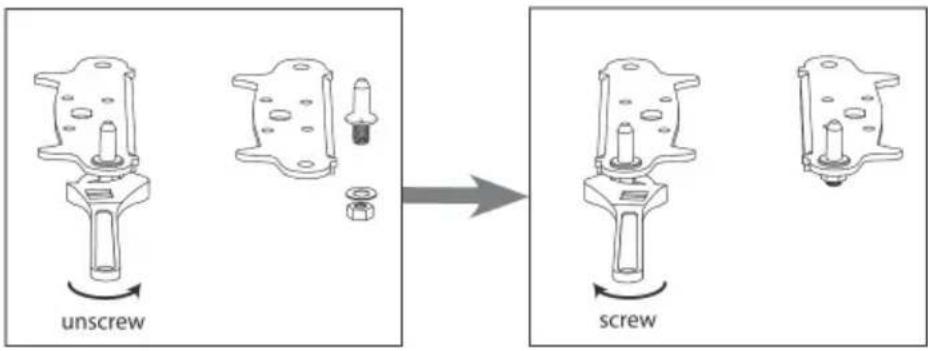

2. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew screw

1. Refi t the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

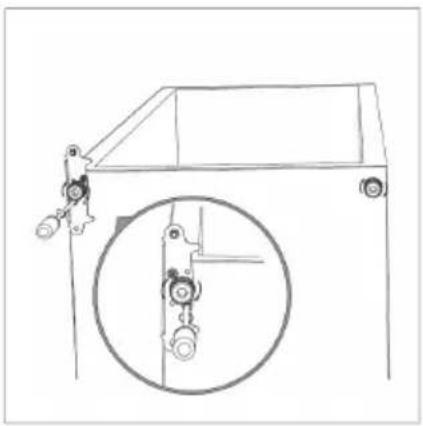

1. Re-fit the upper hinge while refitting the upper door. Do not fully tighten the screws.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

1. Check the door is aligned horizontally and vertically and that all seals make good contact with the cavity all the way around the cavity opening before finally tightening the hinges. Re-fit the hinge cover and screw cover. Re-adjust the levelling feet, if necessary.

Line drawing of a folded paper or plastic sheet with two arrows indicating downward force or alignment (no text or symbols)

1. Detach the door gasket and then attach it after rotating.

Abstract diagram of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

- Ensure your fridge has adequate ventilation as recommended in the installation instructions.

- Allow warm food and drinks to cool down before placing in the appliance.

- Keep door openings to a minimum.

- Open the appliance as briefly as possible.

- Ensure that the fridge door is always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
  • Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Set the temperature control knob to the off position (0) and disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and adjust the temperature control knob as desired.
6. Put the food back into the appliance.

Cleaning Tips

• Remove all shelves, door shelves, vegetable containers, removable accessories (such as egg tray and ice cube tray if included) and/or drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch, temperature control knob and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wetsponge and soft brush (such as toothbrush) to remove any stuck-on food.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem Possible causes Possible solution
Appliance does not operate.	No electricity at power outlet. Check that the plug is correctly connected and power switched on.
Noises Cabinet not stable or level. See installation section.
Appliance not cool	Temperature setting not correct.	See temperature control section.
	Frequent door openings.	Minimise door openings to allow temperatures to stabilise.
	Large amount of food recently added.

SPECIFICATIONS

Electric shock protection class I
Rated voltage and frequency 220-240V~	50Hz
Input power	90W
Refrigerant/Amount	R600a/30g
Rated current	0.55A
Net weight	38kg
Insulation blowing gas Cyclopentane

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | Proline
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: PLF242L
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1426	Total volume (dm3 or l)		242
	Width	544
	Depth	556
EEI		125	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		130	Climate class:		temperate/subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	242,0	4	—	A
Chill	no	—	—	—	—
0-star orice-making	no	—	—	—	—
1-star no — —	— —
2-star no — —	— —
3-star no — —	— —
4-star no — —	— —
2-star section no — — —	—
Variable temperature compartment	no — — —
For 4-star compartments
Fast freeze facility no
For wine storage appliances
Number of standard wine bottles —
Light source parameters (°) :
Type of light source LED
Energy efficiency class —
Minimum duration of the guarantee offered by the manufacturer : 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

^(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

- Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.

- Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

This refrigerating appliance is not suitable for freezing foodstuffs.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/988179

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com240978 970 97024 Hours7 Days a week9 Rue des Bateaux-Lavoirs,94200 Ivry-sur-Seine,France

Vanden Borrein alle vertrouwenwww.vandenborre.be02 334 00 008 AM – 6 PMMon to Sat[Slesbroekstraat 1011600 Sint-Pieters-LeeuwBelgium

Vanden Borre

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Warning symbol with exclamation mark inside a downward arrow (no text or numbers)

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator with an open door and a labeled component, illustrating the internal structure and assembly.

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should

increase the thermostat and wait for 12 hours before checking the indicator

again.

After loading the refrigerator or opening the door, the indicator may turn

white for a few seconds.

Correct setting

Temperature too high – adjust the thermostat

Inhoudsopgave

WAARSCHUWINGEN....2

BELANGRIJKE VEILIGHEIDSVOORZORGEN 5

BENAMING VAN DE ONDERDELEN 6

VOORDAT U DE DIEPVRIEZER INSTALLEERT 6

INSTALLATIE 7

OMGEVINGSTEMPERATUUR....7

VOORDAT U LEVENSMIDDELEN IN DE KOELKAST 7

TEMPERATUURREGELING 8

UW APPARAAT VERPLAATSEN....8

HET IJSVAK ONTDOOIEN 12

DE DEUROPENING OMKEREN....12

TIPS OM ENERGIE TE BESPAREN....15

GELUIDEN VAN UW APPARAAT 15

REINIGEN EN ONDERHOUD....15

PROBLEMEN OPLOSSEN 16

PRODUCTINFORMATIEBLAD....17

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN....19

VERWIJDERING....20

LEES DE VOLGENDE INSTRUCTIES AANDACHTIG DOOR ALVORENS HET APPARAAT TEGEBRUIKEN ENBEWAAR ZEVOOR LATERE RAADPLEGING.

WAARSCHUWINGEN

UW APPARAAT VERPLAATSEN

Illustration of a milk carton, cheese bowl, and milk carton (no text or symbols)

Rood vlees

Line drawing of a biological or geological cross-section (no text or symbols)

Gevogelte

Line drawing of a whole roasted chicken with legs and decorative trim (no text or symbols)

Illustration of a fish with scales and surrounding coins (no text or symbols)

Simple line drawing of a three-pie pizza with toppings (no text or symbols)

Illustration of assorted vegetables including carrots, bok choy, and a gourd (no text or symbols)

DE DEUROPENING OMKEREN

Diagram of a tool interacting with a cylindrical object, showing a handle and an arrow indicating direction (no text or symbols present)

Line drawing of a mechanical assembly with a tool and component (no text or symbols)

Diagram of a screwdriver being inserted into a mechanical clamp or bracket (no text or symbols present)

Simple line drawing of a 3D rectangular prism with a curved dashed line and marked points (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted, showing a bracket and mounting plate (no text or symbols)

Simple line drawing of a flat-panel object with two downward arrows indicating orientation (no text or symbols)

Abstract geometric diagram with overlapping lines and arrows, no text or symbols present

TIPS OM ENERGIE TE BESPAREN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/988179

Warning symbol with exclamation mark and circular dot (no text or numbers)

Diagram showing a refrigerator with an open door and a numbered component, likely illustrating the interior or storage mechanism.

VERIFICATIE VAN DE TEMPERATUUR IN DE KOUDSTE ZONE

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU)2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 18, 2022

- DocuSigned by:

Prndrag Petricevic

-EA30F3FB8F314D0...

ASSURANCE SERVICE FNAC DARTY QUALITY
