USER MANUAL PLC2300WH PROLINE

Exterior view of a modern office building (no signage)

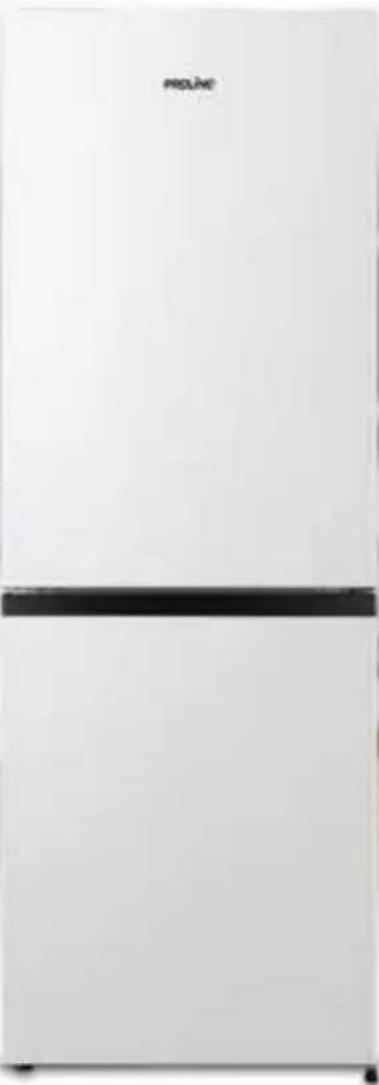

Front view of a white rectangular appliance with a black horizontal bar at the bottom (no visible text or symbols)

Interior kitchen scene with appliances and a wooden counter (no visible text or symbols)

MANUEL D'UTILISATION HANDLEIDING

TABLE DES MATIÈRES

MISES EN GARDE IMPORTANTES......p. 02
DESCRIPTION DU PRODUIT......p. 07
AVANT D'INSTALLER L'APPAREIL....p. 09
INSTALLATION ......p. 09
TEMPÉRATURE AMBIANTE....p. 11
UTILISATION DE VOTRE RÉFRIGÉRATEUR CONGÉLATEUR.....p. 11

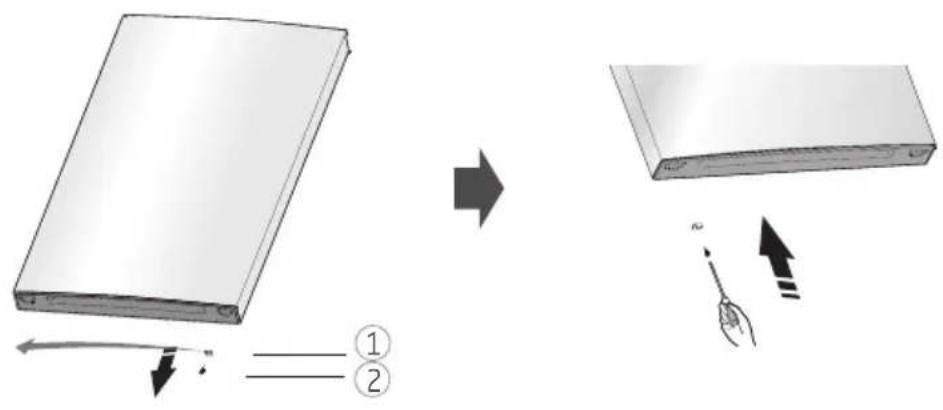

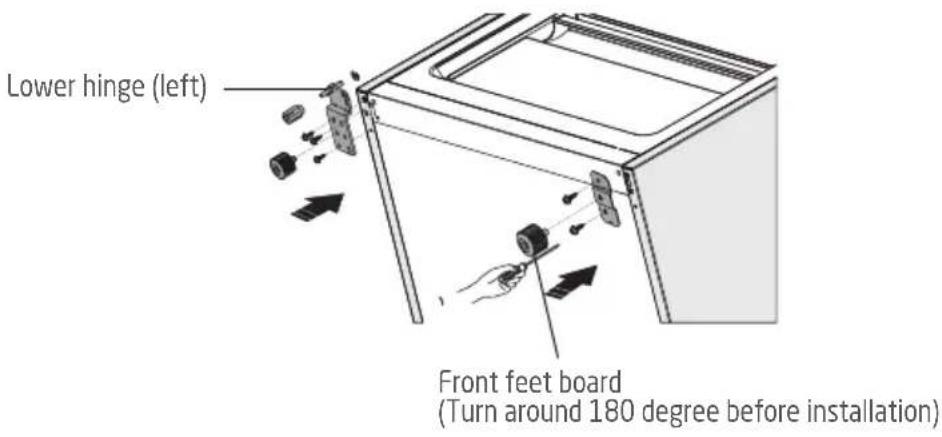

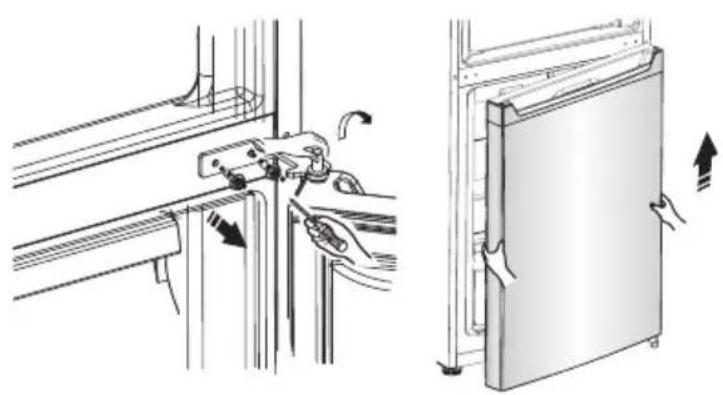

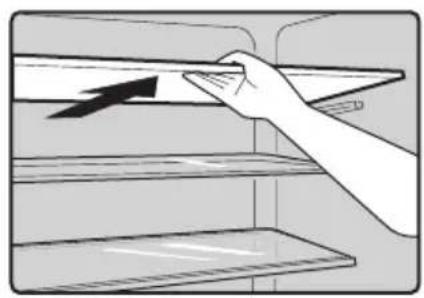

INVERSION DU CÔTÉ D'OUVERTURE DE LA PORTE......p. 17
DÉGIVRAGE....p. 23
NETTOYAGE ET ENTRETIEN......p. 24
GUIDE DE DÉPANNAGE ......p. 25
SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE......p. 30
MISE AU REBUT....p. 31

MISES EN GARDE IMPORTANTES

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

AVERTISSEMENTS

Illustration of a tray with six circular cavities (no text or symbols)

Pure geometric diagram of a rectangular frame with internal triangular cutouts (no text or symbols)

Illustration of a hand placing a shelf with a black arrow on the tray (no text or symbols)

Illustration of two hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Simple line drawing of a door with arrows indicating upward motion (no text or symbols)

Diagram illustrating the process of adding a component to a device, showing steps labeled 1 and 2.

Technical illustration showing a mechanical assembly with arrows indicating motion, alongside a close-up of a door panel (no text or symbols present)

Diagram illustrating a 3D object being processed with directional arrows and labeled parts, including numbered annotations.

Diagram of a refrigerator interior with numbered parts and a hand holding a device, showing internal components and directional arrows.

Line drawing of a hand holding a rectangular object with a downward arrow symbol, no text or labels present

Illustration of a refrigerator with hands holding the door and a downward arrow indicating compression (no text or symbols)

Diagram showing a hand holding a screwdriver above a container with falling weights and a downward arrow indicating motion or force.

Illustration of two hands holding a rectangular object with arrows indicating downward motion (no text or symbols)

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1172053

Diagram showing a refrigerator with an open door and a numbered component, likely illustrating a storage or cleaning process.

Empty white rectangle with black border (no text or symbols)

Line drawing of a tray with six circular cavities (no text or symbols)

Isometric line drawing of a rectangular frame with internal geometric patterns (no text or symbols)

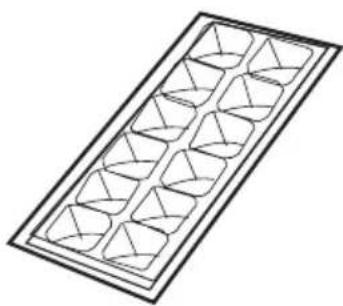

Eierrek x 2 Ice cube tray

UW DIEPVRIES KOELKAST

Illustration of a hand placing a black arrow on a shelf with shelves (no text or symbols)

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Diagram illustrating three-step assembly of a mechanical component with directional arrows indicating movement or assembly.

Line drawing of a door with arrows indicating direction, no text or symbols present

Diagram illustrating a process of adding a component to a rectangular object, with numbered steps and directional arrows.

Technical illustration showing a mechanical assembly with arrows indicating motion, alongside a simplified view of a door panel (no text or symbols present)

Diagram illustrating a process of adding a component to a device, with numbered steps and directional arrows.

Diagram of a device interior with numbered parts and directional arrows indicating movement or operation

Line drawing of two hands holding a rectangular object with a downward arrow symbol (no text or labels)

Illustration of hands holding a refrigerator with a downward arrow symbol (no text or labels)

Diagram showing a hand holding a screwdriver above a panel with a downward arrow and a small inset image below, indicating a process or operation.

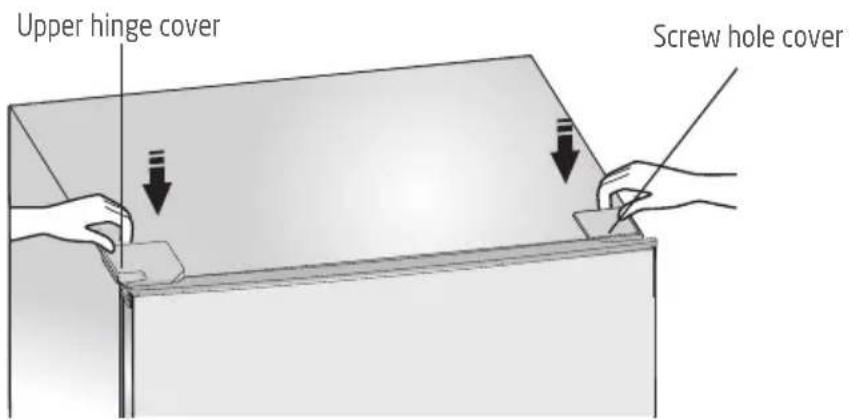

1. Maak de schroefgatkap en de bovenste scharnierkap vast.

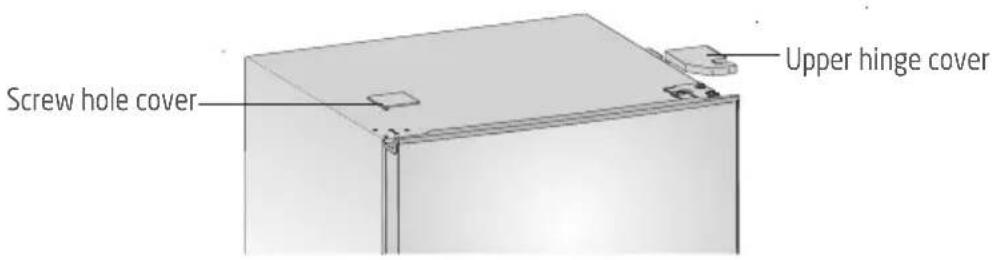

Bovenste scharnierkap Schroefgatkap

Illustration of two hands holding a rectangular object with downward arrows indicating force or movement (no text or symbols)

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1172053

Diagram showing a refrigerator with a door and a labeled component, illustrating the interior space and internal structure.

Empty white rectangle with black border (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "CLEANING AND MAINTENANCE" in page 89.
• The appliance shall not be exposed to rain.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.
• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

- For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

- For installation, servicing:

Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

- For handling:

Always handle the appliance to avoid any damage.

- WARNING: For making ice (ice cubes), use potable water only.

- Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

• WARNING; Risk of fire / flammable materials.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety Precautions

• Keep all packaging away from children as there is risk of suffocation.
• The plug must be accessible when the refrigerator freezer is in position.
• Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly and pull it out.

• Place the refrigerator freezer in a dry place – avoid areas of high moisture or humidity.

• Keep the refrigerator freezer out of direct sunlight.

• Do not place the refrigerator freezer near stoves, fires or heaters.
• Do not use electrical appliances in the refrigerator freezer.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Never use the base, doors etc. to stand on or as supports.
• Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns’ on the lips.
• Effervescent drinks should not be stored in the freezer compartment.
• The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
  The refrigerant (R600a) is flammable.
• WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

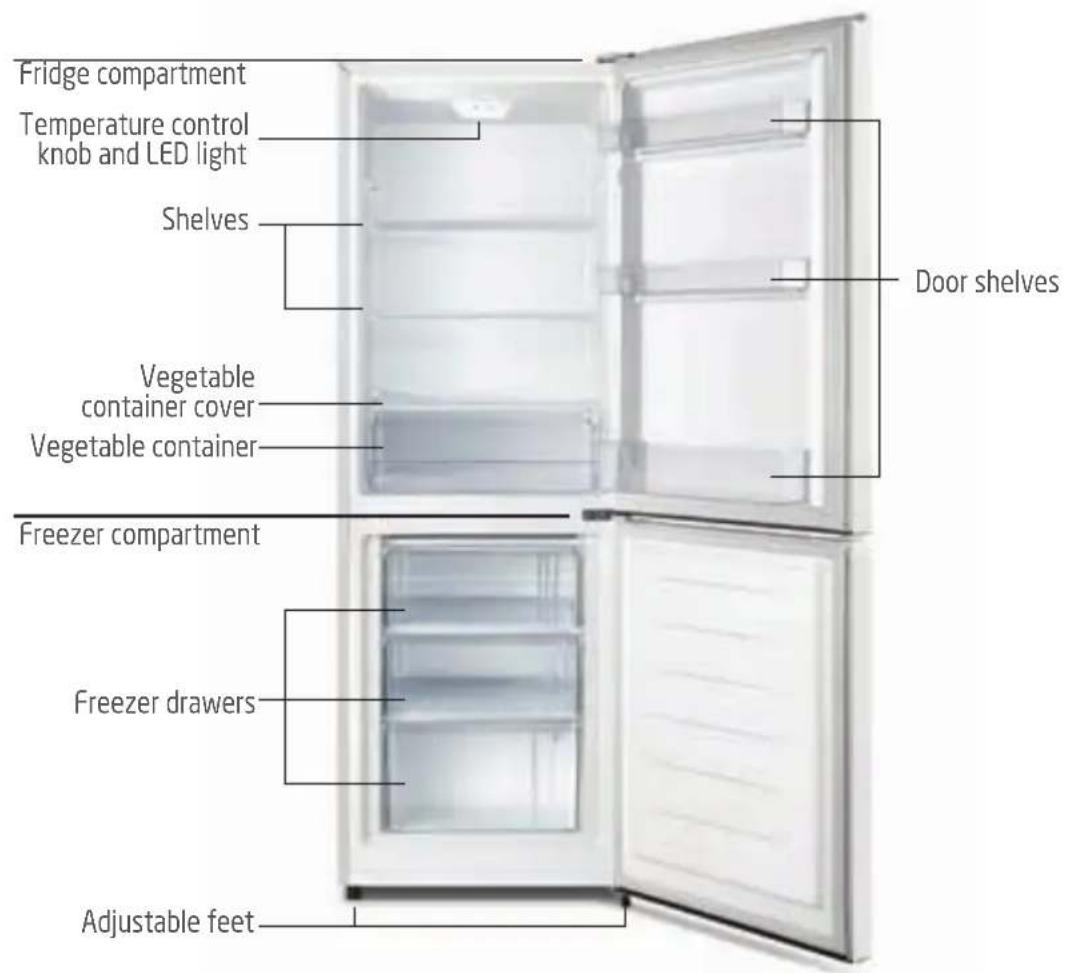

PRODUCT OVERVIEW

Fridge compartment Temperature control knob and LED light Shelves Door shelves Vegetable container cover Vegetable container Freezer compartment Freezer drawers Adjustable feet

Line drawing of a tray with seven circular cavities (no text or symbols)

Pure geometric diagram of a rectangular frame with internal triangular cutouts (no text or symbols)

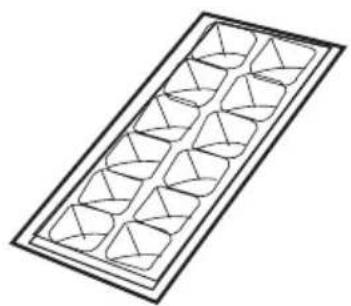

Egg tray x 2 Ice cube tray

Recommended food arrangement

Refrigerator compartment (4°C):

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top section:	canned food, bread, cake...
Middle section:	dairy products, readymade food, desserts...
Bottom section:	meat, meat products, delicatessen ...
Container:	fresh fruit, vegetables, salads...

Refrigerator door shelves (2°C \~ 8°C):

Top/middle section:	eggs, butter, cheese...
Bottom section:	beverages, cans, bottles...

Freezer compartment (-18°C):

Top/middle drawers :	Cakes and pastriesDairy products such as cheese and butter
Bottom drawer :	Cooked meat and fish

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

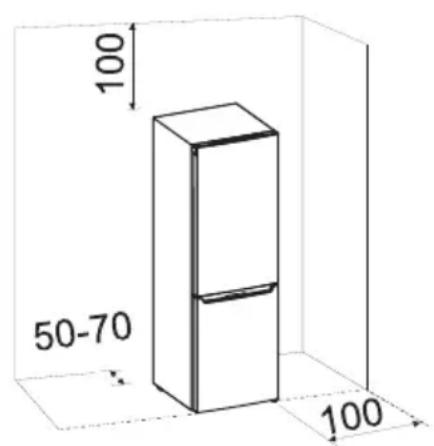

To ensure adequate ventilation for the appliance, allow 50 \~ 70 mm of space between the back of the refrigerator freezer and the wall and at least 100 mm of space from the side to the wall, a height of over 100 mm from its top. Adjust the feet to keep the refrigerator freezer level.

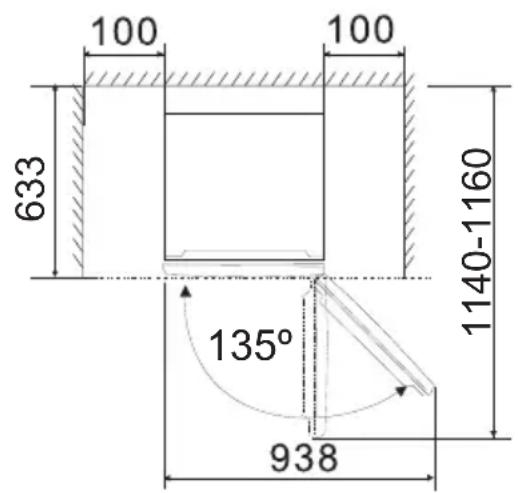

Unit: mm

100 50-70 100

100 100 633 1140-1160 135° 938

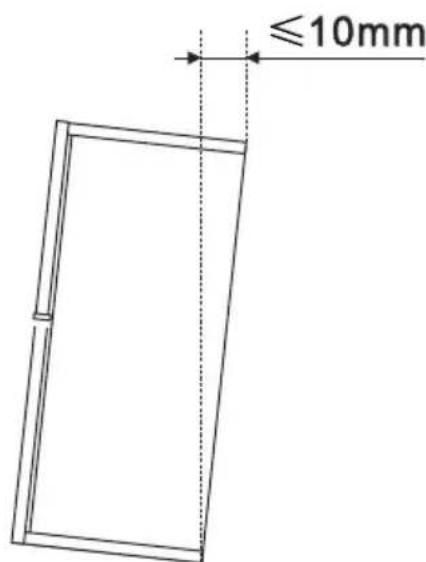

Tips for proper levelling

Tilt the refrigerator freezer slightly backwards (the front should be a little higher than the back). If it is tilted correctly, the front doors should close by themselves when they are opened to less than 45 degrees. To achieve a balanced rear tilt, adjust the front feet.

Generally, the front of the refrigerator freezer is recommended to be approximately 10 mm higher than the back.

≤10mm

AMBIENT TEMPERATUE

This appliance is designed to operate in ambient temperature between 16^ C and 38^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ C and food spoilage may occur.

Before placing food in the appliance

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

Hints for fresh food refrigeration

• Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4^ .
• Higher temperature setting inside the appliance may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its freshness and aroma.
• Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment.
• To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one.
• It is recommended to defrost the food inside the fridge.
• Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance.

Hints for refrigeration

- Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days.

- Fruit and vegetables: clean thoroughly (eliminate the soil) and place them

in the refrigerator.

• It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator.
• Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator.
• Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close them with a cap and place them on the door bottle shelf.
• Always refer to the expiry date of the products to know how long to keep them.

Adjusting the temperature

Close-up of a toothbrush with teeth and a numbered label '7' (no other text or symbols visible)

Plug in the appliance.

Adjust the temperature control knob to the desired position from "1" (cold) to "7" (coldest).

The first time your turn the appliance on, set the temperature control knob to "7" and run for at least 2 hours before putting foods inside.

The temperature control knob has 7 temperature settings and a 0 setting (OFF).

"1" is the cold setting and "7" is the coldest setting.

The setting of "4" is recommended for normal usage.

To stop cooling the appliance, turn the temperature control knob to "0".

Power failure

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 11.5 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Freezing and storing food in the freezer compartment Using the freezer compartment

• To store deep-frozen food
- To make ice cubes
- To freeze food

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:
  Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing:
  Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shell fish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before this date expires.
• Check that the food was not already frozen. Indeed, frozen food that has

thawed completely must not be refrozen.

- Once defrosted, food should be consumed quickly.

Making ice cubes

Recommended temperature control setting for ice making is "7".

Fill the ice cube tray with 3/4 full of drinking water and place in the freezer compartment.

If the ice cube tray is stuck to the compartment, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

Operating noises

Normal noises

• Motors are running.
  • Refrigerant is flowing through the tubing.

Moving your refrigerator freezer

• Unplug the refrigerator freezer.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator freezer.
• Tape the door shut.
• Be sure the refrigerator freezer stays in the upright position during transportation.
• If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Energy saving tips

For the most energy efficient use of your appliance:

• Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.

• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.

• Keep door openings to a minimum.

• Open the appliance as briefly as possible.
• Regularly defrost the refrigerator freezer to remove the layer of frost.
• Ensure that the fridge and freezer doors are always closed properly.

DOOR CONVERSION

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if required.

Warning ! When reversing the door, ensure that the appliance is unplugged from the mains socket. To reverse the door, the following steps are generally recommended.

1. Stand the appliance upright. Open the door to take out all the shelves. Close the door.

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

1. Remove the screw hole cover and upper hinge cover on the top panel of the appliance.

Screw hole cover Upper hinge cover

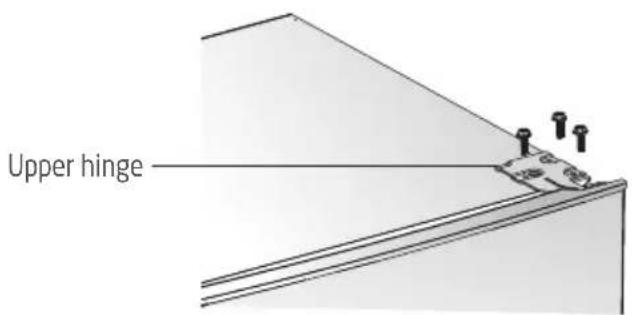

1. Unscrew the screws that fix the upper hinge using an 8 mm socket driver or spanner.

Upper hinge

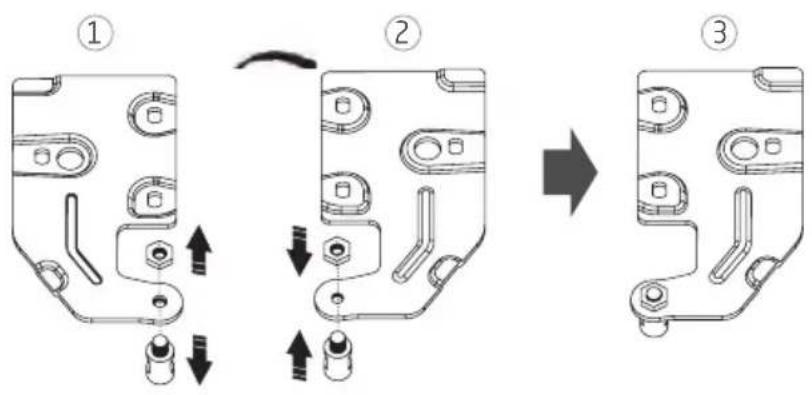

1. Remove the upper hinge axis, transfer it to reversed side and tighten securely.

1. Remove the upper door from the middle hinge by carefully lifting the door upwards.

Line drawing of a door with arrows indicating direction, no text or symbols present

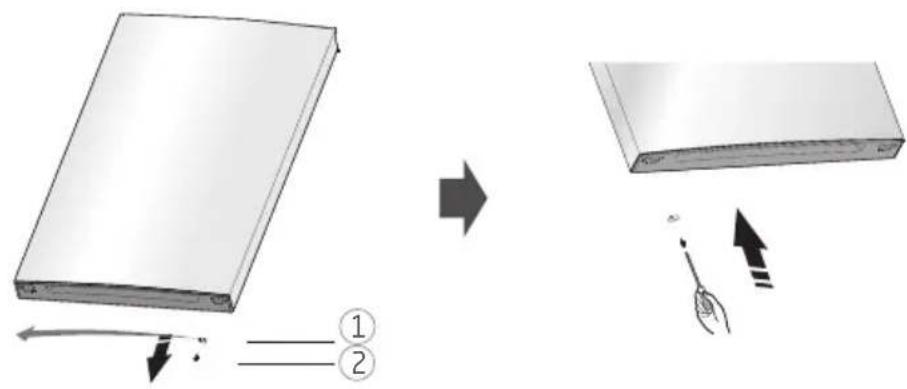

1. Place the upper door on a smooth surface. Loosen the screw ② and stop block ①, then install them to the left side and tighten securely.

Diagram illustrating a process of adding a component to a device, with numbered steps and directional arrows.

1. Unscrew the screws which fix the middle hinge to the appliance, then remove the middle hinge that holds the lower door in place. Remove the lower door by lifting it upwards.

Technical illustration showing a door lock mechanism and its side view of a refrigerator (no text or symbols present)

1. Place the lower door on a smooth surface. Loosen the screw ② and stop block ①, then install them to the left side and tighten securely.

Diagram illustrating the process of adding a component to a device, showing steps labeled ① and ②.

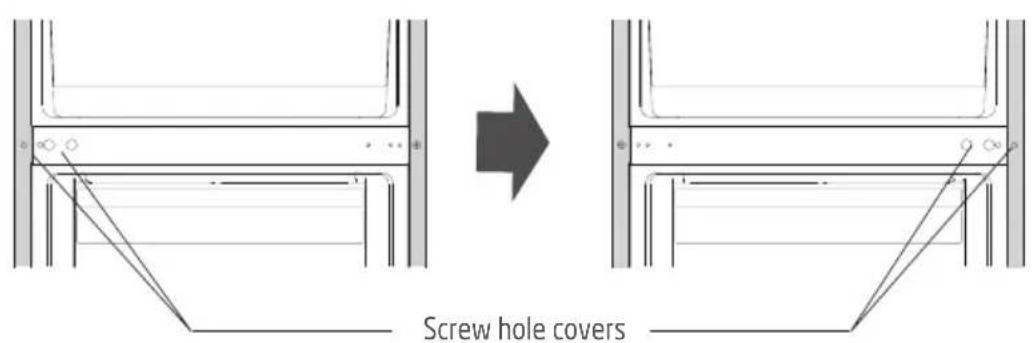

1. Change the screw hole covers on the middle cover plate from left to right.

Screw hole covers

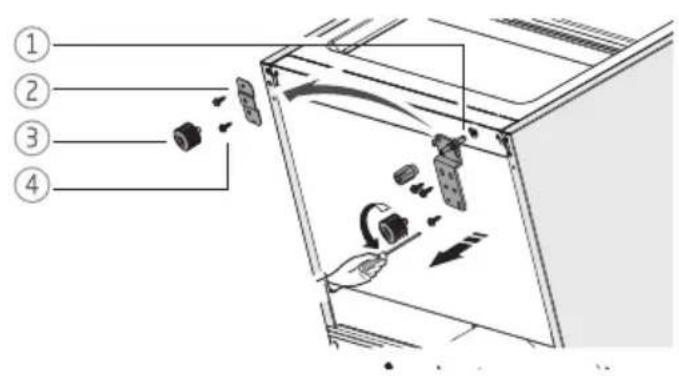

1. Lay the appliance on soft foam packaging or similar material. Remove both adjustable feet ③ and front feet board ② Unscrew the screws that fix the lower hinge ① on the bottom of the appliance and then remove the lower hinge.

Diagram of a refrigerator interior with numbered parts and directional arrows indicating movement or operation

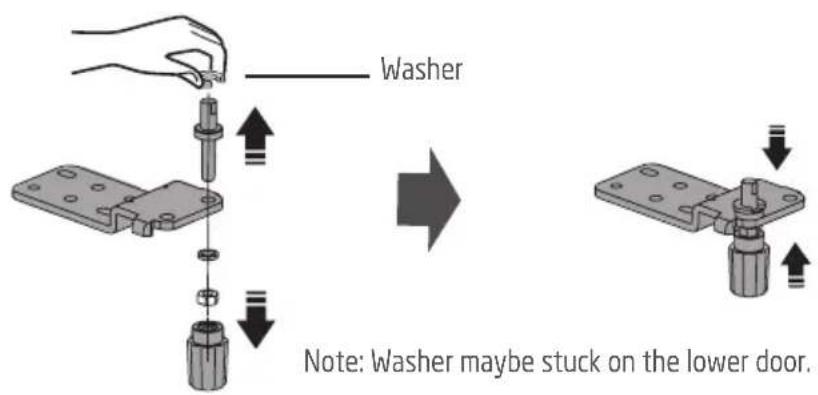

1. Unscrew the lower hinge axis and install it on the hole of the reverse side. Tighten into position. Fix the lower hinge on the opposite side with the screws.

Washer Note: Washer maybe stuck on the lower door.

1. Replace the lower hinge to the left side and fix it with screws. Replace the front feet board to the other side and fix it with the screws. Install the adjustable feet.

Lower hinge (left) Front feet board (Turn around 180 degree before installation)

1. Fit the lower door to the appliance, ensuring the lower hinge axis is inserted into the bottom hole of the lower door. Tighten the lower hinge bolt.

Line drawing of hands holding a rectangular object with a downward arrow symbol (no text or labels)

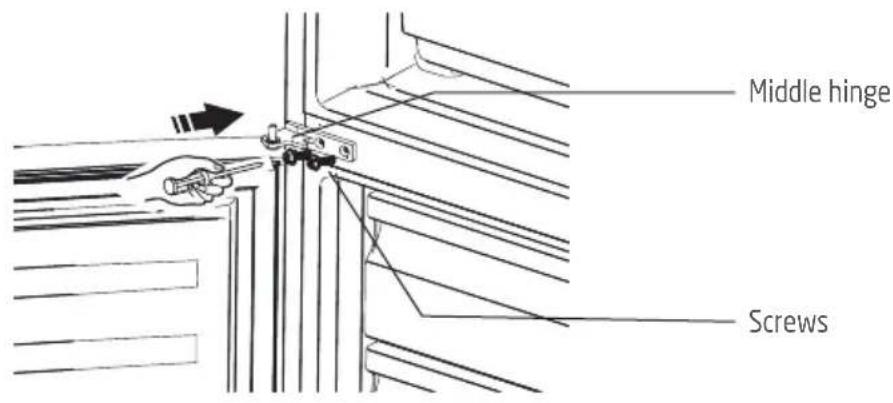

1. Rotate the middle hinge by 180^ . Fix the middle hinge to the middle part of the appliance.

Middle hinge Screws

1. Fit the upper door to the appliance, ensuring the middle hinge axis is inserted into the bottom hole of the upper door. Tighten the middle hinge bolt.

Illustration of a refrigerator with hands holding the door and a downward arrow indicating a drop (no text or symbols present)

1. Fit the upper hinge to the top panel of the appliance and tighten the screws.

Diagram showing a hand holding a screwdriver above a door, with arrows indicating downward force and key symbols below.

1. Fit the screw hole cover and upper hinge cover.

Upper hinge cover Screw hole cover

1. Open the upper door and install the door shelves, then close it.

DEFROSTING

Refrigerator compartment defrosts automatically.

The defrosted water flows down to a drip tray located at the back of the appliance and is evaporated automatically.

Defrosting the freezer compartment

The freezer compartment should be defrosted regularly.

Defrost the freezer compartment whenever the thickness of ice layer reaches 10mm.

1. Set the temperature control knob to the 0 position and unplug the appliance before defrosting.
2. Take out foods and drawers from the freezer compartment and keep these foods in a cool place.
3. Use a plastic scraper (not supplied) to remove the ice.
4. To speed up the process, place a bowl of warm water in the freezer compartment.
5. Clean and reload the freezer compartment after defrosting.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food and drawers back in the freezer compartment.

CLEANING AND MAINTENANCE

Always unplug the appliance before cleaning.

1. Take out the food and store in a cool location.
2. Remove all removable parts, such as shelves, vegetables containers, drawers etc.

3. Use a soft damp cloth or paper towel to clean the interior and exterior including all different drainage area and water evacuation port.

4. Wipe up spills in the fridge and freezer compartment with a damp cloth immediately.

5. Use a mild cleanser such as dish detergent or use either some baking soda or vinegar to clean the splash area.

6. Place a small amount of detergent, vinegar, or baking soda in a bowl and add warm water to it. Dip a towel or cloth into the cleaning solution and wash the inside of your appliance.

7. Clean the removable parts using a clean sponge or soft cloth in warm soapy water. Rinse and dry thoroughly before replacing them.

- Do not use abrasive or chemical cleaning agents.

1. Clean the door liners and gaskets using a clean sponge or soft cloth and a mild detergent in warm water.

- Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

1. Dry all surfaces thoroughly and then plug in the appliance. Adjust the temperatures.

2. Put the food back in the appliance.

The LED light in the fridge compartment cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent.

TROUBLESHOOTING

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service.

Warning!

Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.

Problem Possible Causes & Solution
Appliance does not operate.	Check that the appliance is plugged into the mains socket properly and that the outlet is switched on.Try adjusting the temperature control knob to a colder position.
Noises from the appliance	The sounds below are normal:Compressor running noisesAir movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boilingClicking noise before the compressor starts
	Other unusual noises are due to the reasons below and may need you to check and take actions:The cabinet is not level.The back of appliance touches the wall.Bottles or containers fallen or rolling
The motor runs continuously.	It is normal to frequently hear the sound of the motor, and under the following circumstances the motor will run continuously.The temperature control knob is set to a colder setting.Large quantity of warm food has recently been stored in the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After you install the appliance or it has been switched off for a long time
Inadequate refrigeration	Turn the temperature control knob to a colder setting and allow several hours for the temperature to stabilize. Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.Check that the door is closed completely.Ensure that the door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has reached its set temperature.
Bad smell in the appliance	Food with strong odour should be packed tightly before being put inside the appliance.Please check whether there is any deteriorated item or whether the door seals are left dirty for a long time.
Water dripping on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout under the top of the compressor may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the appliance away from the wall to check the pan and spout.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Etablissements Darty & fils © | Proline

Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France

Model identifier: PLC2300WH

Type of refrigerating appliance:

Low-noise appliance:	no	Design type:	freestanding
Wine storage appliance:	no	Other refrigerating appliance:	yes

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimeter)	Height 1613		Total volume ( dm^3 or l)	230
	Width 550
	Depth 557
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		263	Climate class:	temperate/subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		no

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no — —
Wine storage	no — —
Cellar	no — —
Fresh food	yes 159,0 4 – M
Chill	no — —
0-star or ice-making	no — —
1-star	no — —
2-star	no — —
3-star	no — —
4-star	yes 71,0 -18 3,2 M
2-star section	no — —
Variable temperature compartment	no — —
For 4-star compartments
Fast freeze facility no
For wine storage appliances
Number of standard wine bottles –
Light source parameters (a):
Type of light source LED
Energy efficiency class –
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

^(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database:

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1172053

Rated voltage and frequency	220-240V~ 50Hz
Refrigerant/Amount	R600a / 65g
Insulation blowing gas	Cyclopentane
Rated current	0,6A
Electric shock protection class	Class I
Max. lamp power	1,5W
Temperature rise time	Power cut safe 11,5 h
Net weight	50kg

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DARTY

Vanden Borre

in alle vertrouwen

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

The coldest part of the refrigerator

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height.

In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

Installing the temperature indicator

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING : This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator interior with labeled parts and a numbered step indicator

Checking the temperature in the coldest area

Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room

temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should increase the thermostat setting and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

OK

Empty white rectangle with black border (no text or symbols)

Correct setting Temperature too high, adjust the thermostat

FNAC DARTY

EU Declaration of Conformity

Product Description:

Front view of a white refrigerator with two horizontal black buttons (no visible text or symbols)

Marque -

Brand /Merk /Marca:

Proline

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-2-24: 2010 + A1: 2019 + A2: 2019

EN 60335-1: 2012 + A11: 2014 + A13: 2017+ A1: 2019 + A14: 2019 + A2: 2019

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/341

(EU) 2021/340

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-2-14:2013 + A11:2015 + A1:2019

EN 60704-1:2010 + A11:2012

EN 60704-3:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

ASSURANCE SERVICE QUALITY FNAC DARTY

PROLINE

Etablissements Darty & Fils @, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
