USER MANUAL GS153 LIVOO

Thank you for choosing a Livoo product! Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day. That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en. Livoo, your daily companion till social networks

Safety Instructions Please, take time to read well the instruction sheet before the first use and keep them for a future use. A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. After removing the wine cooler from the package,

make sure it is in good condition. In case of doubt, @livoo_officiel

@Livoo ENwww.livoo.fr do not use it and contact an authorized service center.

2. This wine cooler can only be used in the use of

which it was designed. The manufacturer will not respond for any damage due to improper use or repairs made by unqualified personnel.

3. Make sure your electrical installation matches

the one on the rating plate.

4. For your protection, this appliance must be

properly connected to a grounded outlet. Do not cut or remove the earth wire from the supplied power cable.

5. The safety instructions do not by themselves

eliminate any danger completely and proper accident prevention measures must always be used.

6. Never leave the appliance unsupervised when in

7. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

8. Only use the appliance for domestic purposes

and in the way indicated in these instructions.www.livoo.fr

9. Before cleaning the wine cooler, make sure it is

unplugged. Never clean the unit with an acid preparation, medical, dilution, gasoline, oil or any other kind of chemical substance that could damage the refrigerator.

10. Keep the unit away from heat sources and out of

11. Unplugged the electric cable of the electrical

supply network before any operation of cleaning; maintenance and assembly of accessories when it is left unattended.

12. Never use the appliance outside and always

place it in a dry environment.

13. Never use accessories that are not

recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

14. WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

15. WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance

16. Unplug the appliance when not in use.www.livoo.fr

17. Do not store explosive substances such as

aerosol cans with a flammable propellant in this appliance.

18. WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

19. Do not move the appliance once it is full, as this

may deform the appliance body and cause repairs. Electrical components must not be directly accessible.

20. In case liquid is accidentally spilled (broken

bottle, etc.) on electrical components (motor, etc.), please disconnect the mains plug immediately.

21. The appliance is not intended to be operated by

means of external timer or separate remote-control system.

22. Keep this manual with the appliance. If the

appliance is to be used by a third party, this instruction manual must be supplied with it.

23. This appliance can be used by children aged

from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack ofwww.livoo.fr experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 24.Children shall not play with the appliance.

25. Cleaning and user maintenance shall not be

made by children without supervision.

26. Keep the appliance and its cord out of reach of

27. Children aged from 3 to 8 years are allowed to

load and unload refrigerating appliances. 28.Regarding the information pertaining to the use, replacing light and cleaning of the appliance, thanks to refer to the below paragraph of the manual. 29.WARNING: Verify that the ventilation openings are kept clean and unobstructed.

30. WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

31. This refrigerating appliance is not intended to be

used as a built-in appliance.www.livoo.fr

32. Clean regularly surfaces that can come in

contact with food and accessible drainage systems.

33. Clean water tanks if they have not been used for

48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

34. Store raw meat and fish in suitable containers in

the refrigerator, so that it is not in contact with or drip onto other food.

35. One-, two- and three-star compartments are

not suitable for the freezing of fresh food.

36. If the refrigerating appliance is left empty for

long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

37. Opening the door for long periods can cause a

significant increase of the temperature in the compartments of the appliance.

38. CAUTION: Do not damage the refrigerant circuit.

39. This appliance is intended to be used exclusively

for the storage of wine.

40. This refrigerating appliance is not suitable

for freezing foodstuffswww.livoo.fr

41. This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments

• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician

• Clean regularly surfaces accessible drainage systems.

• Danger: Risk of child entrapment. Before you throw away your old wine cooler. Take off the door. Leave the shelves in place so that children may not easily climb inside.

• To reduce the risk of fire, replace the fuse only with an identical fuse.

• Because the insulation blowing gases are combustible, professional service people is required to dispose the refrigerators out of use

• Always follow the installation instructions carefully.

• Periodically check the door seals and make sure they always close efficiently. If this is not the case, please contact your service department

• The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

• Avoid touching walls as much as possible wall and/or is in contact with hot elements (compressor, capacitor) to avoid fire hazards. All information on this refrigeration appliance is available on the EPREL Database (European Product Database for energy labelling), as defined in the Commission Delegated Regulation (EU) 2019/2016. This database allows you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL database by scanning the QR code on your appliance's energy label or by going directly to www.ec.europa.eu and entering the model of your refrigeration appliance.www.livoo.frwww.livoo.fr

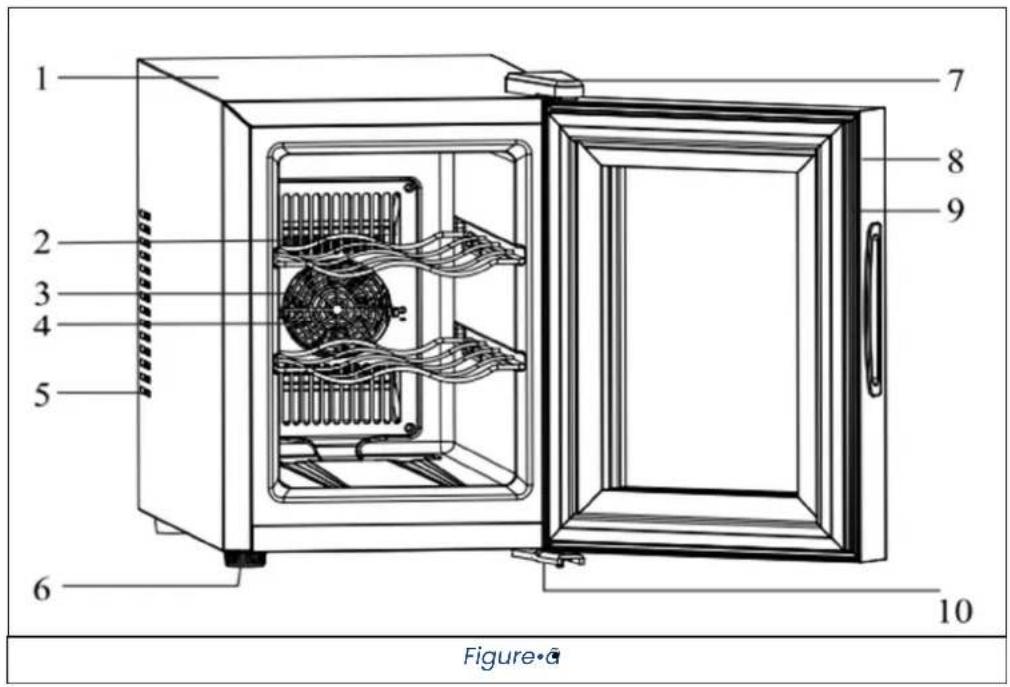

Technical Specifications 100V-240V~ 50Hz-60Hz 58W Capacity: 17L Climate class: N Temperate (N): "This refrigeration appliance is intended to be used in the following conditions: Consumption: 75 kWh/year Gas : Cyclopentane Drawing of the device (figure 1)

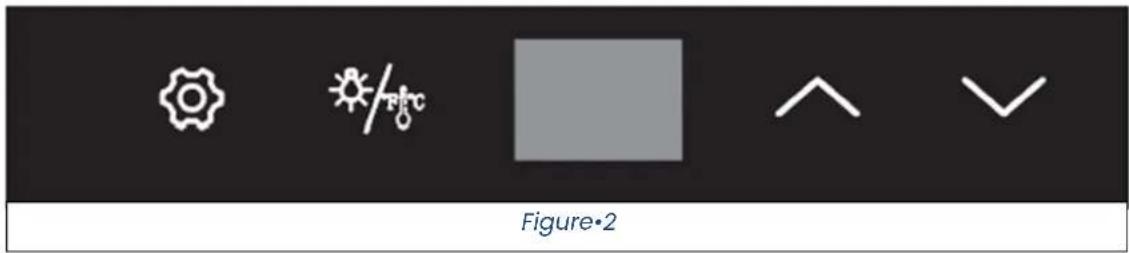

Use of the device Control panel (figure 2) You can turn on or off by pushing the button once. The light will be turned off after 10 minutes. You can select the temperature setting from Celsius or Fahrenheit degree by pushing the button for 2 seconds. You can set the desired temperature by pushing button to increase temperature or button to decrease temperature. Your wine cooler is equipped with automatic control panel lock, it will activate 20 seconds after touching any buttons. Push the button for 2 seconds to unlock the control panel. You will hear a BEEP sound. Ventilation (figure 3) When setting a wine cooler, ventilation should be considered seriously, please refer to the following. The distance between the wall and the side of the appliance should be at least 20 mm.www.livoo.fr Leave at least 50 mm of space at the back of the appliance to allow good air circulation The air flowing around the appliance must not heat up Electric diagram(figure 4) How to minimize the energy consumption What is the optimal temperature? When the surrounding temperature is 25°c and the appliance has no load, it will take around 3.5 hours to decrease the temperature from 25°C to 17°C. The appliance is recommended to be designed at 17°C.the energy consumption is 0.205kWh/24h. If the setting temperature is higher than 17°C, the energy consumption will be lower. if the setting temperature is lower than 17°C, the energy consumption will be higher. Where to locate your wine cellar? It is recommended you install the wine cooler in a place where the ambient temperature is between 16- 32°c/ 61-90°f. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8-18°c /44-64°f may not be reached. It is not designed to be placed in a garage or unheated basement. Storage capacity NOTE: You can place 6 standard bottles in this model. Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage. Recommended Temperatures for cooling Wine Red Wines

• When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LCD readout. This is normal and it is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

• The wine cooler will have better performance at ambient of 20-25 degree.

• After plug in appliance allow it to cool down for 2-3 hours before placing beverage.

• Ventilation is very important for wine cooler; the inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the wine cooler.

• If leakage occurs (which can be easily detected due to the unpleasant smell), please: Switch off the wine cooler immediately Ventilate the room thoroughly Call for the after sales service department

• Position your wine cooler so that the plug is accessible.

• Keep your wine cooler out of direct sunlight.

• Do not place next to heat generating appliance. Recommended configuration :www.livoo.fr The following configuration for the shelves is the recommended for energy saving: 2 shelves and 1 rack in the lower zone. Cleaning and maintenance Unplug the appliance and remove all items including shelves. Wash the inside surfaces with a warm water and dry them with clean soft cloth. Use a dry cloth to clean. How to change the light Screw out the lamp cover. Screw out the old lamp PCB. Pull out the connecting wire from the lamp PCB ,then

eplace with a new light PCB and plug in the connecting wire. Install the lamp PCB well. Install the lamp cover well Trouble shooting guilds I case the product is not working properly, please check and handle according to the following methods. If the situation cannot be changed, please contact the local after-sales service center in time. Failure: no cooling Possible reason

Check the electricity supply, or change a new plug

Failure: poor cooling performance

Clean the dust from the fan

Fan broken contact the after-sales service Poor heat pump contact the after-sales service Ground is not flat Place a stability mat. Check if the wine cooler is not in contact with an external object

Failure: frost or ice inside Possible reason

Stop working for at least one hour, then restart it

Spare parts for this model are available at www.livoo.fr. These parts will be available for up to one year after the last product is sold and while stocks last. Possible reason

High ambient temperature

The room temperature is hotter than normal

The door is opened too often

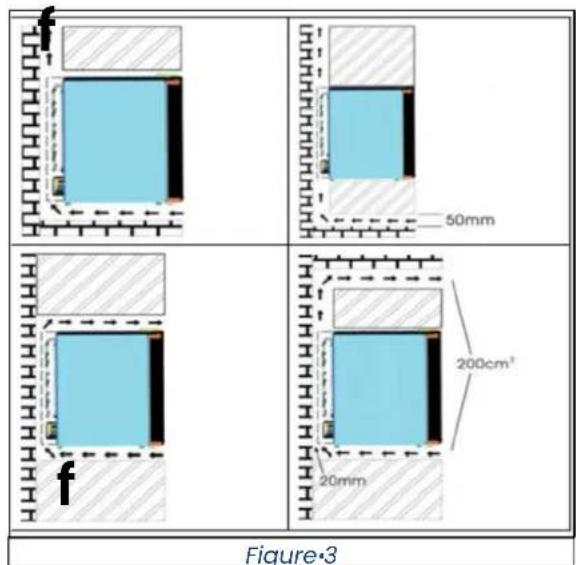

Install wine cooler according to our ventilation instruction

sales servicewww.livoo.fr The minimum warranty period for the device is 2 years from the date of purchase. Access to the model information stored in the product database: see QR code (Figure 5). Correct disposal of the unit (Electrical and Electronic Equipment). (Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration

• Product information is subject to change without prior notice.
