Product type	Compact digital camera
Brand	Olympus
Model	Camedia D575 Zoom (also D-575ZOOM / C-360ZOOM / X-350)
Sensor	CCD 1/2.5", 4.23 million gross pixels, 3.2 million effective
Lens	Olympus 5.8-17.4 mm, f/3.1-5.2 (equiv. 35-105 mm in 35 mm), 5 elements in 3 groups
Optical zoom	3x
Digital zoom	Up to 10x (combined with optical zoom)
Maximum resolution	2048 × 1536 pixels (SHQ)
Image formats	JPEG (DCF), Motion JPEG video (QuickTime)
Shooting modes	Program Auto (P), Portrait, Landscape+Portrait, Landscape, Night Scene, Self-portrait, Video
Exposure metering	Digital ESP, spot
Shutter speed	1 to 1/1000 sec (2 sec in Night Scene mode)
Built-in flash	Modes: auto, red-eye reduction, fill-in, off; range approx. 0.2-3 m
Self-timer	10 seconds
Focus	Automatic (AF), focus lock
Viewfinder	Real-image optical
LCD screen	TFT 1.8", 85,000 pixels
Storage media	xD-Picture Card (16 MB to 512 MB)
Connectors	USB mini-B, A/V OUT (MONO) jack, DC-IN jack
Power source	1 CR-V3 lithium battery or 2 AA batteries (alkaline or Ni-MH); optional AC adapter
Dimensions (W × H × D)	108 × 57.5 × 36.5 mm
Weight	165 g (without battery or card)
Menu languages	French, English, German, Spanish, Japanese, etc.

Frequently Asked Questions - Camedia D575 Zoom OLYMPUS

What type of memory card should I use?

Use a xD-Picture Card from 16 MB to 512 MB. Insert it with the index area facing the lens until it clicks.

How to turn on the camera?

Open the lens barrier completely until it clicks. The lens extends and the LCD screen turns on. To turn off, gently close the barrier.

How to insert batteries?

Slide the battery compartment cover, insert 2 AA batteries (alkaline or Ni-MH) observing polarity, or a CR-V3 lithium battery. Close the cover by pressing and sliding.

How to set the date and time?

Open the barrier, press OK/Menu, select MODE MENU > SETUP tab > Date/time (X). Use the arrow buttons to set the year, month, day and time. Confirm with OK.

How to use the flash?

Press the flash mode button (lightning bolt) several times to select: Auto (no icon), Red-eye reduction (eye), Fill-in (lightning), Off (lightning with cross). The orange lamp next to the viewfinder indicates the flash is ready.

How to take a close-up (macro) photo?

In shooting mode, press the close-up button (flower) to activate the mode. A flower icon appears. The camera focuses between 20 and 50 cm. Press the shutter button halfway then fully.

How to delete a photo?

In playback mode (press the Display button with barrier closed), select the photo with the arrow buttons, then press OK/Menu. Choose ERASE and confirm with YES.

What to do if the screen displays 'CARD FULL'?

Replace the card with an empty one or delete photos (after backing them up on a computer). You can also use a higher capacity card (up to 512 MB).

How to transfer photos to a computer?

Connect the camera to the computer using the provided USB cable. Turn on the camera in playback mode (barrier closed). The computer recognizes the camera as a removable disk. Copy the image files. The CAMEDIA Master software (provided on CD) can also be used.

How to reset all settings?

Go to the MODE MENU > SETUP tab > ALL RESET. Select YES to restore factory settings. The date/time settings will also be reset.

USER MANUAL Camedia D575 Zoom OLYMPUS

Line drawing of a Olympus CAMEDIA digital camera (no text or symbols on body)

CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO

ENGLISH....2

FRANÇAIS....46

DEUTSCH 90

ESPAÑOL....134

CONTENTS

GETTING STARTED 4

MENU FUNCTIONS 16

SHOOTING BASICS 23

ADVANCED SHOOTING 31

PLAYBACK 32

PRINT RESERVATION /DIRECT PRINT 38

DOWNLOADING PICTURES TO A COMPUTER ..... 40

ERROR CODES 42

SPECIFICATIONS 43

These instructions are only for quick reference. For more details on the functions described here, refer to the "Reference Manual" on CD-ROM.

For connection to the PC or installation of provided software, refer to the Software Installation Guide included in the CD-ROM package.

En

2 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ Before using your camera, read this manual carefully to ensure correct use.
We recommend that you take test shots to get accustomed to your camera before taking important photographs.
These instructions are only a basic manual. For more details on the functions described here, refer to the Reference Manual on the CD-ROM.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : D-575ZOOM/C-360ZOOM/X-350

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York 11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

En

For customers in Europe

"CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. "CE" mark cameras are intended for sales in Europe.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
- All other company and product names are registered trademarks and/or trademarks of their respective owners.
- The standards for camera file systems referred to in this manual are the "Design Rule for Camera File System/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

En 3

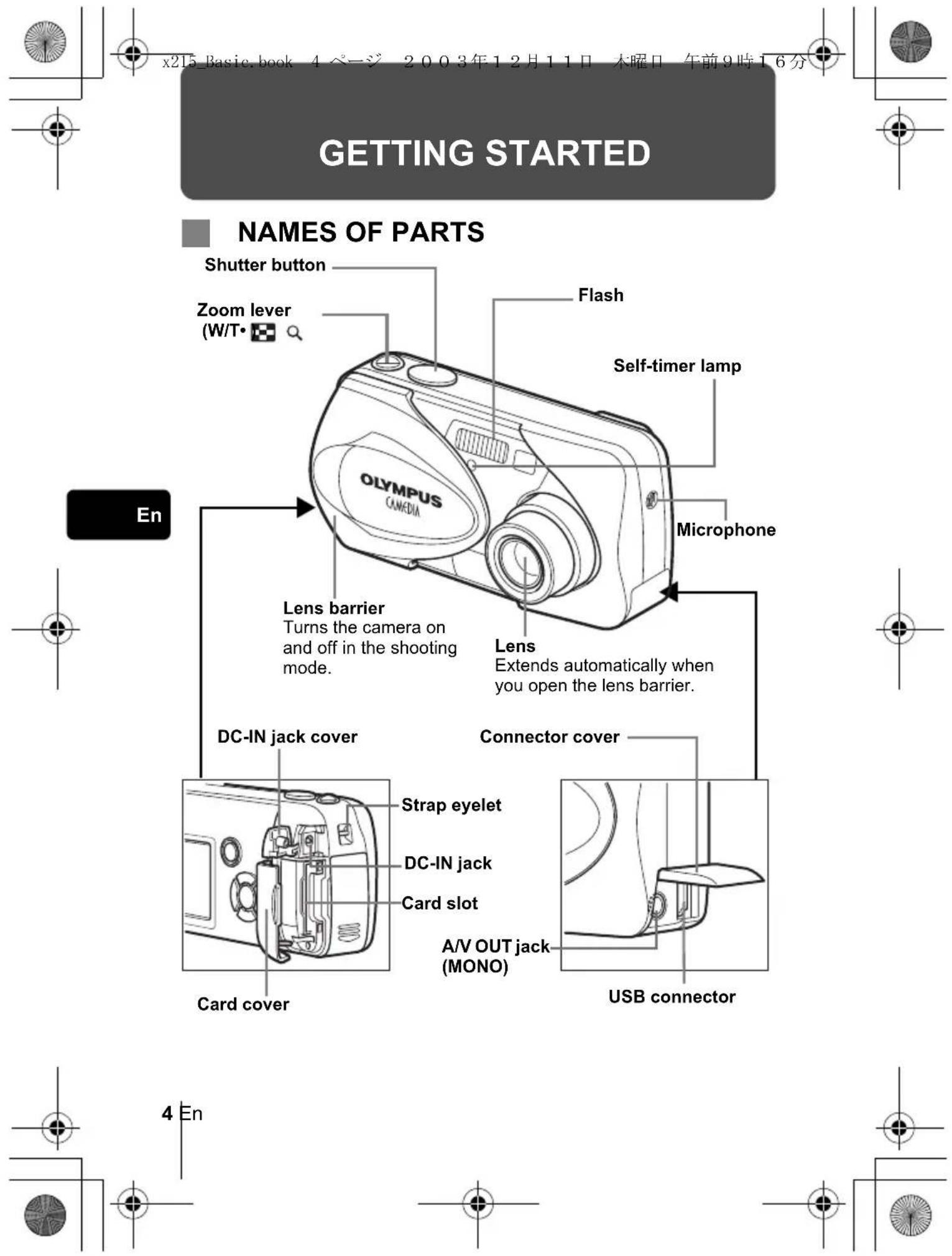

x215_Basic.book 4 ページ 2003年12月11日 木曜日 午前9時16分 GETTING STARTED NAMES OF PARTS Shutter button Zoom lever (W/T·) Flash Self-timer lamp Microphone En Lens barrier Turns the camera on and off in the shooting mode. Lens Extends automatically when you open the lens barrier. DC-IN jack cover Connector cover Strap eyelet DC-IN jack Card slot A/V OUT jack (MONO) USB connector Card cover 4 En

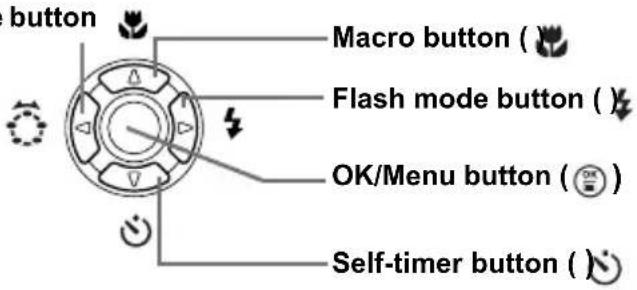

Arrow pad

Buttons on the arrow pad have their respective functions. They are also used as direction buttons. and indicate which button to be pressed.

Shooting mode button (Virtual dial)

button Macro button ( Flash mode button ( ) OK/Menu button ( Self-timer button ( )

En

Playback button ( QUICK VIEW) Turns the camera on and off in the playback mode. Switches to the playback mode in the shooting mode. Viewfinder Monitor Arrow pad ( ) Battery compartment cover Tripod socket

Viewfinder

Orange lamp Green lamp net mark

En 5

MONITOR INDICATIONS

Shooting mode

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 +2.0 [ ] No 2018× 32.0.15 Still picture

1 2 5 6 8 9 10 Movie 12 13 14 15 17

En

	Items Indications
1	Shooting mode , , , ,	Dewall Dewall Dewall Dewall Dewall Dewall Dewall
2	Battery check ,	Dewall Dewall
3	Green lamp	Dewall
4	Flash standbyCamera movement warning/Flash charge	DewallDewall
5	Macro mode ,	DewallDewall
6	Flash mode , ,	DewallDewallDewall
7	Sequential shooting ,	DewallDewall
8	Self - timer	Dewall
9	Record mode SHQ, HQ, SQ1, SQ2
10	Sound record	Dewall
11	Resolution	2048×1536, 1600×1200, 640×480, etc.
12	Metering	Dewall
13	Exposure compensation	-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
14	White balance	DewallDewall, DewallDewall
15	AF target mark	[ ]
16	Memory gauge	DewallDewallDewallDewall
17	Number of storable still picturesRemaining recording time	1500:36

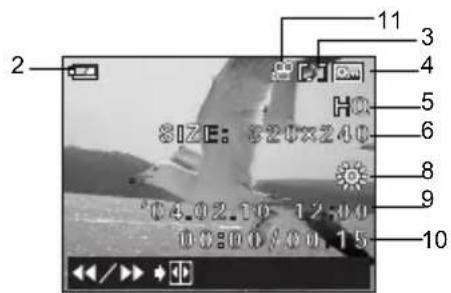

Playback mode

Screens when the Information display is set to ON are shown below.

1 2 3 4 5 6 7 8 9 10 104,02,10 12:30 FILE: 100-1016

Still picture Movie

2 SIZE: $20x240 04.02.10 12:00 00:00/00 15 11 3 4 5 6 8 9 10

	Items Indications
1	Print reservation,Number of prints	× 10
2	Battery check ,
3	Sound record	[√]
4	P ro t e c t
5	Record mode SHQ, HQ, SQ1, SQ2
6	Resolution	2048× 1536, 1600 × 1200, 640 × 480, etc
7	Exposure compensation	-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
8	White balance WB AUTO, , , ,
9	Date and time '04.02.10 12:30
10	File number (still picture),Number of framesElapsed time/Total recording time (movie)	100-0016,1600:00/00:15
11	Movie

En

En 7

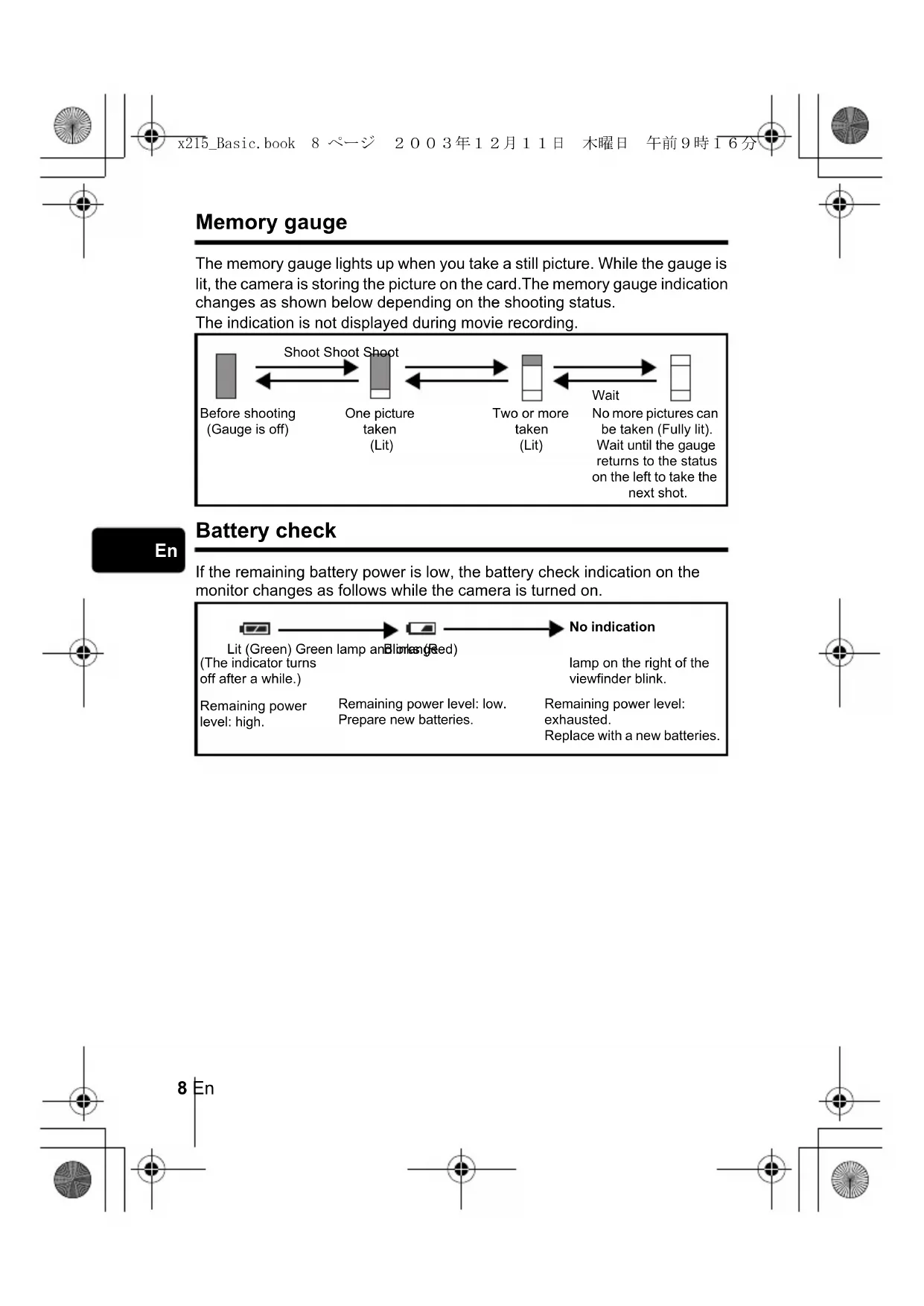

Memory gauge

The memory gauge lights up when you take a still picture. While the gauge is lit, the camera is storing the picture on the card. The memory gauge indication changes as shown below depending on the shooting status.

The indication is not displayed during movie recording.

En

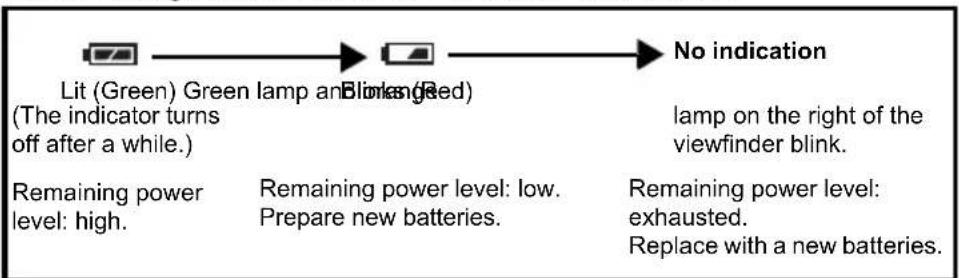

Battery check

If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on.

8 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ATTACHING THE STRAP

1 Thread the short end of the strap through the strap eyelet.

2 Thread the long end of the strap through the loop that has already gone through the eyelet.

3 Pull the strap tight, making sure that it is securely fastened and does not come loose.

Strap eyelet

LOADING THE BATTERIES

En

1 Make sure that:

• The lens barrier is closed.
• The monitor is off.
• The lamp on the right of the viewfinder is off.

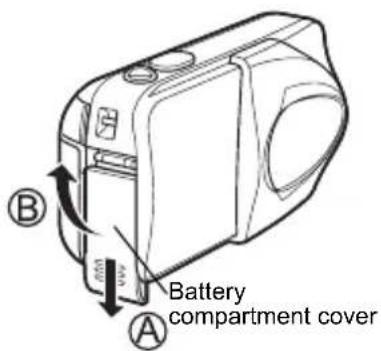

2 Slide the battery compartment cover in the direction of Ⓐ

• The battery compartment cover is unlocked and opened in the direction of Ⓑ
- Use the ball of your finger to slide the cover. Do not use your fingernail as this could result in injury.

Battery compartment cover A B

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En 9

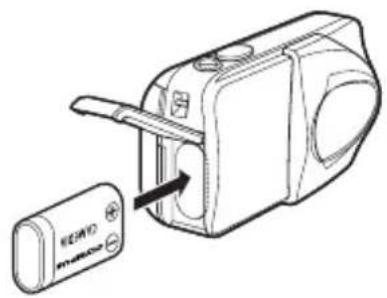

3 Insert the batteries, making sure that they are correctly oriented as shown in the illustration.

The battery insertion direction mark is provided inside of the battery compartment.

When using AA (R6) batteries When using CR-V3 lithium battery pack

Battery insertion direction mark LR6x2 or CR-V3x1

There is a mark showing the correct way to insert the AA batteries on the bottom of the camera.

B250 PH-850

When using a lithium battery pack, insert it in the direction as shown in the illustration.

4 Close the battery compartment cover, then press it down Ⓒ and slide it in the direction shown Ⓓ.

- If the battery compartment cover seems hard to close, do not force it. With the battery compartment cover shut, press the mark firmly and push it in the direction indicated by D.

Technical diagram of a mechanical device with labeled parts C and D, showing directional arrows indicating movement or force.

Important

• CR-V3 lithium battery cannot be recharged.
- Do not peel off the label from a CR-V3 lithium battery pack.
- Manganese (zinc-carbon) batteries cannot be used.

10 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

INSERTING A CARD

"Card" in this manual refers to the xD-Picture Card. The camera uses the card to record pictures.

1 Make sure that:

• The monitor is off.
• The lens barrier is closed.
• The lamp on the right of the viewfinder is off.

2 Open the card cover.

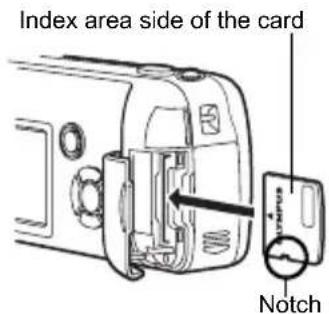

3 Face the card the correct way and insert it into the card slot as shown in the illustration.

• Insert the card while keeping it straight.
• The card stops with a click when it is inserted all the way.
• Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.
• If the card is not inserted all the way, data may not be written to the card.

Index area side of the card Notch

En

Line drawing of a camera module with no visible text or symbols

The position of the card inserted correctly

4 Close the card cover securely.

Removing the card

Make sure that:

• The lens barrier is closed.
• The monitor is off.
• The lamp on the right of the viewfinder is off.

- Push the card all the way in to unlock it, then let it return slowly. The card is ejected a short way and then stops. Hold the card straight and pull it out.

Note

Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot.

En 11

Pure geometric lines and shapes without any text, numbers, or symbols

When shooting pictures (Shooting mode)

Power on: Open the lens barrier fully.

The camera turns on in the shooting mode. The lens extends and the subject is displayed on the monitor.

If the lens does not extend when the lens barrier is opened, there is a possibility that the barrier is not fully open. Open the lens barrier fully until you feel it click.

Diagram of a digital camera with directional arrows indicating movement (no text or symbols)

En

Power off: Close the lens barrier slightly until it almost touches the lens barrel.

The lens barrier stops just before it touches the lens and the lens retracts. Wait until the lens is fully retracted before closing the lens barrier completely.

The camera turns off. (The monitor also turns off.)

Diagram showing two views of a digital camera with directional arrows indicating motion (no text or symbols)

Note

- Do not push the lens barrier forcefully against the lens as this may damage the lens or cause it to malfunction.

12 En

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

When playing back pictures (Playback mode)

Power on: Press (Playback) with the lens barrier closed.

The camera turns on in the playback mode. The monitor turns on and the last picture taken is displayed.

If no pictures have been taken yet, or the xD-Picture card is empty, the message "NO PICTURE" is displayed on the monitor.

Playback button ( )

Power off: Press.

The monitor and the camera turn off.

En

Playback button (

Line drawing of a digital camera with adjustment knobs and buttons (no text or symbols)

3

En 13

SELECTING A LANGUAGE

1 Open the lens barrier fully.

2 Press

• The top menu is displayed.

3 Press on the arrow pad to select MODE MENU.

4 Press to select the SETUP tab, and press.

5 Press to select, and press.

• The green frame moves to the selected item.

6 Press to select a language, and press.

7 Press again to exit the menu.

8 Close the lens barrier to turn the camera off.

SETTING THE DATE AND TIME

1 Open the lens barrier fully.

2 Press

• The top menu is displayed.

3 Press on the arrow pad to select MODE MENU.

4 Press to select the SETUP tab, and press.

5 Press to select, and press.

- The green frame moves to the selected item.

6 Press to select one of the following date formats: Y-M-D (Year/Month/Day), M-D-Y (Month/Day/Year), D-M-Y (Day/Month/Year). Then press

- Move to the year setting.

- The following steps show the procedure used when the date and time settings are set to Y-M-D.

14 En

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

7 Press to set the year, and press to move to the month setting.

• To move back to the previous setting, press
• The first two digits of the year are fixed.

8 Repeat this procedure until the date and time are completely set.

- The camera only displays the time in 24-hour time system ("2 p.m." would be "14:00").

9 Press

- For a more accurate setting, press ☑ when the time signal hits 00 seconds. The clock starts when you press the button.

10 Close the lens barrier to turn the camera off.

Note

- The date and time settings will be returned to the factory default settings if the camera is left without the battery for approximately 3 days.

En

Pure geometric lines and shapes without any text, numbers, or symbols

En 15

When you turn on the camera and press the top menu is displayed on the monitor. The functions of this camera are set from the menus. This chapter explains how the menus work, using the shooting mode screens.

How to use the menus

1 Press to display the top menu. Press .
2 Press to select a tab, and press.
3 Press to select an item, and press.
4 Press to select a setting. Press to complete setting. Press again to exit the menu and return to shooting status.

16 En

Shortcut menus

Shooting mode

DRIVE

Selects a shooting mode from (Single-frame shooting) and (Sequential shooting).

(movies)

Selects whether to record sound when shooting a movie.

Sets the image quality and resolution.

Still picture : SHQ, HQ, SQ1, SQ2

Movie : HQ, SQ

En

MONITOR OFF (MONITOR ON)

Sets whether or not the monitor is turned on when the camera is turned on. If the monitor is set not to turn on, the top menu displays MONITOR ON when the camera is turned on.

Pure geometric lines and shapes without any text, numbers, or symbols

En 17

Playback mode

Runs through all saved pictures one after another. It is displayed when the camera is playing back still pictures.

MOVIE PLAYBACK

Plays back movies. It is displayed when a movie is selected.

INFO

Displays all the shooting information on the monitor.

ERASE

Erases the selected still picture or movie.

18 En

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Mode menus

The MODE MENU has 4 tabs. Press to select a tab and display the associated menu items.

These instructions are only for quick reference. For more details on the functions described here, refer to the "Reference Manual" on CD-ROM.

Shooting mode

CAMERA tab PICTURE tab CARD tab SETUP tab ESP / ESP 0.0 DIGITAL ZOOM OFF OFF OFF

En

CAMERA tab

ESP/ Selects the	metering method from ESP and .
	Adjusts the brightness of the image (Exposure compensation).
DIGITAL ZOOM	Enables the zoom shooting at larger magnification than the maximum optical zoom.
(still pictures)	Sound can be recorded when taking still pictures.
	Allows pictures to be taken as close as 7 cm/2.8" from the subject.
PANORAMA Allows panorama pictures to be taken with Olympus CAMEDIA-brand cards.
2 IN 1 Combines	two still pictures taken in succession and stores them as a single picture.

PICTURE tab

WB Sets the appropriate white balance according to the light source.

CARD tab

CARD SETUP Formats a card.

En 19

En

SETUP tab

ALL RESET Selects whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
PW ON/OFF SETUP	Sets the picture that is displayed on the monitor when the power is turned on and off.
	Selects whether the beep sound (used for warnings, etc.) should be turned on or off.
REC VIEW Selects whether to display pictures on the monitor while saving them to a card.
FILE NAME Changes how file names are assigned.
PIXEL MAPPING	Checks the CCD and image processing functions for errors.
	Adjusts the brightness of the monitor.
	Sets the date and time.
VIDEO OUT Selects NTSC or PAL according to your TV's video signal type. TV video signal types differ depending on the region.

20

En

Playback mode

PLAY tab EDIT tab CARD tab SETUP tab CAROSEDT PLAY ON OFF OFF CARD SETUP

PLAY tab

	Protects pictures from accidental erasure.
	Rotates pictures 90 degrees clockwise or counterclockwise.
	Stores print reservation information on the card.
	Adds sound to a still picture already taken.

En

EDIT tab

BLACK&WHITE	Creates a black and white picture and saves it as a new picture.
SEPIA Creates a sepia-toned picture and saves it as a new picture.
	Makes the file size smaller and saves it as a new file.
INDEX Creates an index picture of a movie in 9 frames.
EDIT Edits a movie.

CARD tab

CARD SETUP Erases all image data stored on the card. (ALL ERASE, FORMAT)

En 21

SETUP tab

ALL RESET Selects whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
PW ON/OFF SETUP	Sets the picture that is displayed on the monitor when the power is turned on and off.
SCREEN SETUP	Registers a picture you took to be displayed on the startup/shutdown screen.
	Selects whether the beep sound (used for warnings, etc.) should be turned on or off.
	Adjusts the brightness of the monitor.
	Sets the date and time.
VIDEO OUT Selects NTSC or PAL according to your TV's video signal type. TV video signal types differ depending on the region.
	Selects the number of frames in the index display.

En

22

En

SHOOTING BASICS

Shooting mode

This camera allows you to take still pictures and record movies. This camera has 7 shooting modes to choose from depending on the shooting conditions and the effect you want to achieve.

The factory default setting of the shooting mode is PROGRAM AUTO. For normal shooting which does not require any special setting or effect, you do not need to follow this procedure.

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.

2 Press Ⓜ (○).

- The screen for selecting the shooting mode (virtual dial) is displayed.

MODE PROGRAM AUTO SELECT♦ OK GO♦ OK

Virtual dial screen

En

3 Select the mode best suited to your purpose from the following.

- Press to select the mode.

4 Press OK

- The shooting mode is set, and the virtual dial screen disappears. Even if the button is not pressed, the mode will be set and the screen will disappear.

En 23

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Used for regular photography. The camera automatically makes the settings for natural color balance. Other functions, such as the flash mode and metering, can be adjusted manually.

(Portrait)

Suitable for taking a portrait-style shot of a person. The camera automatically sets the optimal shooting conditions.

(Landscape + Portrait)

Suitable for taking photos of both your subject and the landscape. The camera automatically sets the optimal shooting conditions.

(Landscape)

Suitable for taking photos of landscapes and other outdoor scenes. The camera automatically sets the optimal shooting conditions.

(Night scene)

Suitable for shooting pictures in the evening or at night. The camera sets a slower shutter speed than is used in normal shooting. If you take a picture of a street at night in any other mode, the lack of brightness will result in a dark picture with only dots of light showing. In this mode, the true appearance of the street is captured. The camera automatically sets the optimal shooting conditions. If you use the flash, you can take pictures of both the subject and the background.

(Self portrait)

Enables you to take a picture of yourself while holding the camera. Point the lens towards yourself and the focus will be locked on you. The camera automatically sets the optimal shooting conditions. The zoom is fixed in the Wide position and cannot be changed.

(Movie)

Lets you record movies. Sound is recorded at the same time. The focus and zoom are locked. If the distance to the subject changes, focus may be compromised.

24 En

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

TAKING STILL PICTURES

You can take still pictures using either the monitor or the viewfinder. Both methods are easy as all you have to do is to press the shutter button.

Taking still pictures using the monitor

1 Open the lens barrier fully.

• Slide the lens barrier fully open until it clicks.
  • The lens extends and the monitor turns on.

2 Decide the composition while looking at the image on the monitor.
3 Press the shutter button gently (halfway) to adjust the focus.

- Focus and exposure are locked, when the green lamp lights steadily. (Focus Lock)

- When the flash is ready to fire, the mark lights.

4 Press the shutter button all the way (fully).

• The camera takes the picture, and a beep sounds.
- When the green lamp stops blinking, you can take the next picture.
- The orange lamp on the right of the viewfinder blinks while the picture is stored on the card.

Taking still pictures using the viewfinder

1 Open the lens barrier fully.

• Slide the lens barrier open until it clicks.
  • The lens extends and the monitor turns on.

2 Decide the composition while looking at the image in the viewfinder.
3 Take the picture by following the same procedure as for shooting using the monitor.

En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En 25

IF CORRECT FOCUS CANNOT BE OBTAINED (FOCUS LOCK)

When correct focus cannot be obtained on the subject you want to shoot, you can focus the camera on another point at roughly the same distance (focus lock) and take the picture as explained below.

1 Open the lens barrier fully.

• The camera turns on in the shooting mode.
• The lens extends and the monitor turns on.

2 Position the AF target mark on the subject you want to focus on.

- When shooting a hard-to-focus subject, point the camera at an object about the same distance away as the subject.

P H:24483152630

AF target mark

En

3 Press the shutter button halfway until the green lamp lights.

• When the green lamp lights steadily, the focus and the exposure are locked.
• When the green lamp blinks, the focus and exposure are not locked. Release your finger from the shutter button, re-position your subject and press the shutter button halfway again.

4 Keeping the shutter button pressed halfway, recompose your shot.

P [ ] HQ: 2048×1530.30

Green lamp

5 Press the shutter button fully.

26 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

RECORDING MOVIES

You can record movies with this camera. Sound is recorded at the same time. The focus and zoom are locked. If the distance to the subject changes, focus may be compromised.

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.

2 Press (a) to display the virtual dial screen.

3 Press to select, the press.

• Movie recording is set and the camera returns to the shooting mode.
• On the monitor, the mark and the remaining recording time of the current memory card are displayed.

4 Decide the composition while looking at the image on the monitor.
5 Press the shutter button halfway.
6 Press the shutter button fully to start recording.

• The orange lamp on the right of the viewfinder lights.

- While recording a movie, the camera fixes its focus and zoom.

- During movie recording, sights red.

7 Press the shutter button again to stop recording.

• The orange lamp blinks while the movie is stored on the card.
• When the remaining recording time has been used up, recording stops automatically.

En

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

En 27

Note

• During movie recording, the flash is disabled.
• It takes longer to store movies than still pictures.

Notes for recording movies over a long time

• Recording will continue until the card is full unless stopped by pressing the shutter button.
• A long recorded movie cannot be edited.
• If a single movie recording uses up all of the card's memory, create space on the card by deleting the movie or downloading it to a PC.

En

28 En

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

ZOOMING IN ON A SUBJECT (OPTICAL ZOOM)

Telephoto and wide-angle shooting are possible at 3× magnification (the optical zoom limit, equivalent to 35 mm - 105 mm on a 35 mm camera). By combining the optical zoom with the digital zoom, zoom magnification can be increased to a maximum of approximately 10×.

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.

2 Push/pull the zoom lever while observing the subject in the monitor.

3 Take the picture.

Note

• Pictures taken with the digital zoom may appear grainy.

En

USING THE FLASH

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.

2 Press 📋 (⚡).

• The current flash setting is displayed.

3 Press ( ) to change the flash mode to your desired setting.

• Each time you press the flash mode changes in the following sequence: AUTO - 📷 - .

4 Press the shutter button halfway.

- When the flash is set to fire, the orange lamp remains lit.

5 Press the shutter button fully to take the picture.

En 29

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Auto-flash (No indication)

The flash fires automatically in low light or backlight conditions.

Red-eye reduction flash ( )

The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.

Fill-in flash ( )

The flash fires regardless of the available light.

Flash off ( )

The flash does not fire even in low light conditions.

USING THE SELF-TIMER

This function is useful for taking pictures where you want to be included in the photograph. Fix the camera securely on a tripod on set it on a level surface for self-timer shooting.

En

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.

2 Press 📋 🔍 ).

- The current self-timer setting is displayed.

3 Press ☑ ( ) to switch the self-timer mode on or off.

- The setting changes between ON and OFF each time is pressed. When the self-timer mode is selected, is displayed on the monitor.

4 Take the picture.

- The self-timer lamp lights up for approximately 10 seconds, and starts blinking. After blinking for approximately 2 seconds with a beep sound, the picture is taken.

- The self-timer mode is automatically canceled after one shot.

30 En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ADVANCED SHOOTING

SEQUENTIAL SHOOTING

This function allows you to take a rapid succession of still pictures by pressing and holding the shutter button (approximately 10 pictures at 1.5 frames per second by Sequential shooting in HQ mode). As you can choose the best picture from a series of sequential shots, you are recommended to use this mode when taking pictures of a moving subject. Focus, exposure and white balance are locked at the first frame. You can also erase the unwanted shots afterwards.

MENU FUNCTIONS - Mode menus

SELECTING THE METERING AREA

In a backlight situation, your subject may appear dark if the picture is taken with the normal metering value (Digital ESP metering). In this case, by changing the metering area to the center of the viewfinder screen (Spot metering), a subject can be shot with optimal exposure regardless of the background light.

ESP (Digital ESP): Meters the center of the viewfinder and the area around it separately to obtain the optimum exposure.

(Spot metering): Meters only the center of the viewfinder to obtain the appropriate exposure for the subject.

MENU FUNCTIONS - Mode menus

MACRO MODE SHOOTING

The macro mode allows you to shoot at a distance of 20 cm to 50 cm (0.7 ft. to 1.6 ft.) from your subject.

1 Open the lens barrier fully.
2 Press ( ) .
3 Press (4) to switch the macro mode on or off.
4 Take a picture.

En

En 31

VIEWING STILL PICTURES

1 Press with the lens barrier closed.

- The monitor turns on and displays the last picture taken. (Single-frame playback)

2 Use the arrow pad to play back other pictures.

Jumps to the picture 10 frames back.

Displays the previous picture.

Displays the next picture.

Jumps to the picture 10 frames ahead.

En

3 Press to cancel playback.

• The monitor and camera turn off.

QUICK VIEW

This function lets you play back pictures while the camera is in the shooting mode. This is useful when you want to check shooting results and resume shooting quickly.

1 Press (QUICK VIEW) while in the shooting mode.

2 Press the shutter button halfway or to return to the shooting mode.

Close-up playback

Pictures displayed on the monitor can be enlarged in steps up to 4 times the original size.

1 Press with the lens barrier closed.

• The monitor turns on and displays the last picture taken.

32 En

2 Use the arrow pad to display the still picture you want to enlarge.

- You cannot enlarge pictures with

3 Pull the zoom lever toward .T ^Q

• The magnification increases each time the zoom lever is pulled.
• To return the picture to the original size (1x), push the zoom lever toward w^ .

Index display

This function lets you show several pictures at the same time on the monitor. The number of pictures shown can be 4, 9 or 16.

1 Press with the lens barrier closed.

- The monitor turns on and displays the last picture taken. (Single-frame playback)

2 Push the zoom lever toward to enter the index display mode.

• Use the arrow pad to select the picture.
  • To return to single-frame playback, pull the zoom lever toward ^Q

MOVIE PLAYBACKVIEWING MOVIES

1 Press with the lens barrier closed.
• The monitor turns on.
2 Use the arrow pad to display the picture with .
3 Press OK
• The top menu is displayed.
4 Press to select MOVIE PLAYBACK.
5 Press to select PLAYBACK, and press.

- The movie is played back. When playback ends, the display automatically returns to the beginning of the movie.

- Fast forward/fast rewind functions are available during playback.

: Fast forward. Each press switches the speed between ×1, ×2 and ×20.
: Fast rewind. Each press switches the speed between ×1, ×2 and ×20.

En \$3

En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En 33

- The MOVIE PLAYBACK menu is displayed again after playback ends. PLAYBACK : Plays back the entire movie again. FRAME BY FRAME : Plays back the movie manually one frame at a time. EXIT : Leaves the movie playback mode. Press to select from PLAYBACK, FRAME BY FRAME or EXIT, and press

When FRAME BY FRAME is selected

: Displays the first frame of the movie.
: Displays the last frame of the movie.
: Displays the next frame. The movie can be played continuously by holding the button down.
: Displays the previous frame. The movie can be played continuously in reverse by holding the button down.
: Displays the MOVIE PLAYBACK menu.

En

PROTECTING PICTURES

You are recommended to protect important pictures to avoid accidentally erasing them.

1 Press with the lens barrier closed.

• The monitor turns on.

2 Use the arrow pad to display the picture you want to protect.

3 Press

• The top menu is displayed.

4 In the top menu, select MODE MENU → PLAY → oₙ, and press Ⓞ.

5 Press 🔒 to select ON, and press Ⓞ.

• To cancel protection, select OFF.

- Press again to exit the menu.

Note

- Protected pictures cannot be erased by the single-frame/all-frame erase function, but they are all erased when you execute format.

34 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ERASING PICTURES

This function enables you to erase recorded pictures. You can choose the single-frame erase or the all-frame erase.

Note

• You cannot erase pictures that are protected. Cancel the protection before erasing such pictures.
• Once erased, pictures cannot be restored. Be careful not to accidentally erase pictures you want to keep.

Single-frame erase

This function erases only the picture displayed on the monitor. The all-frame erase function can be used to erase all the pictures on the card at once.

1 Press with the lens barrier closed.

• The monitor turns on.

2 Use the arrow pad to display the picture you want to erase.

3 Press . OK

• The top menu is displayed.

4 Press to select ERASE.

5 Press to select YES, and press.

• The picture is erased and the menu is closed.

All-frame erase

1 In the playback mode top menu, select MODE MENU → CARD → CARD SETUP, and press 🔒

2 Press to select ALL ERASE, and press.

3 Press to select YES, and press.

- All the pictures are erased.

En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En \$35

CARD SETUP FORMATTING CARDS

This function lets you format a card. Formatting prepares cards to receive data. Before using non-Olympus cards or cards which have been formatted on a PC, you must format them with this camera.

All existing data, including protected pictures, are erased when the card is formatted. Make sure that you transfer important data to a PC before formatting a card in use.

1 In the top menu, select MODE MENU → CARD → CARD SETUP, and press 🔒

• Shooting mode The FORMAT screen is displayed.
• Playback mode The CARD SETUP screen is displayed.

2 If the FORMAT screen is displayed, press to select YES.

If the CARD SETUP screen is displayed, press to select FORMAT, and press.

When the FORMAT screen appears, press to select YES.

3 Press

- The BUSY bar is displayed and the card is formatted.

36 En

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

PLAYBACK ON A TV

Use the AV cable provided with the camera to play back recorded images on your TV. Both a still picture and a movie can be played back. For a movie, the recorded sound is also played back along with the movie.

1 Make sure that the TV and camera are turned off. Connect the A/V OUT jack on the camera to the video input terminal on the TV using the AV cable.

Connect to the TV's video input (yellow) and audio input (white) terminals. Connector cover A/V OUT jack (MONO) AV cable

En

2 Turn the TV on and set it to the video input mode.

- For details of switching to video input, refer to your TV's instruction manual.

3 Press.

• The last picture taken is displayed on the TV. Use the arrow pad to select the picture you want to display.
• The close-up playback, index display and slideshow functions can also be used on a TV screen.

Note

• You are recommended to use the optional AC adapter when using the camera with a TV.
• Make sure that the camera's video output signal type is the same as the TV's video signal type.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En 37

PRINT RESERVATION /DIRECT PRINT

WITH PRINT RESERVATION (DPOF)

DPOF is short for Digital Print Order Format. DPOF is the format used to record automatic print information from digital cameras.

If a card containing print reservation data is taken to a print shop that supports the DPOF format, the pictures can be printed according to the DPOF reservations. Or pictures can be printed out at home on a personal DPOF-compatible printer.

All-frame reservation

Use this feature to print all the pictures stored on the card. Select the desired number of prints and whether you want the date and time included.

Single-frame reservation

Use this feature to print only selected pictures. It is also used to change the reserved number of prints and the date/time settings. Display the frame to be printed and select the desired number of prints.

Resetting the print reservation data

This function allows you to reset all the print reservation data for pictures stored on the card.

38 En

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

DIRECT PRINT (PictBridge)

By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly without the use of a computer.

PictBridge is the standard for connecting digital cameras and printers of different makers and printing out pictures directly.

PRINT Prints the selected picture.

ALL PRINT Prints all the pictures stored on the card.

MULTI PRINT Prints one picture in multiple layout format.

ALL INDEX Prints an index of all the pictures stored on the card.

PRINT ORDER Prints the pictures according to the print reservation data on the card. If no print reservations have been made, this option is not available.

Options for the print mode and other settings

• Available options for some settings such as the print mode and paper size may differ depending on the type of printer. For details, refer to the instruction manual of your printer.

En

For more details, refer to the "Reference Manual" on CD-ROM.

Pure geometric lines and shapes without any text, numbers, or symbols

En 39

• QuickTime is needed for playing back movies. QuickTime is included on the provided software CD.
• If you want to process images, make sure to download them to your computer first. Depending on the software, image files may be destroyed if the images are processed (rotated, etc.) while they are on the card.

FOR OTHER OS USERS

Users running other OS cannot use the provided USB cable to connect the camera directly to a computer.

● Windows 95 ● Windows NT ● Mac OS before OS 9

You can download images directly to your computer using a PC card adapter.

Does your computer have a USB interface?

Is there a port marked on your computer?

En

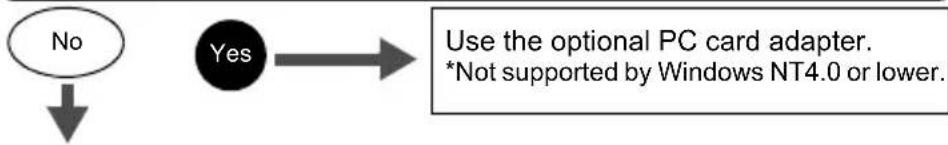

Does your computer have a built-in PC card slot?

Consult your nearest Olympus representative.

For more details, refer to the "Reference Manual" on CD-ROM.

For connection to the PC, refer to the "Software Installation Guide" included in the CD-ROM package.

En 41

ERROR CODES

Monitor indication	Possible cause Corrective action
!NO CARD	The card is not inserted, or it cannot be recognized.	Insert a card or insert a different card.If the problem persists, format the card. If the card cannot be formatted, it cannot be used.
!CARD ERROR	There is a problem with the card.	This card cannot be used. Insert a new card.
!WRITE-PROTECT	Writing to the card is prohibited.	Read-only setting is applied to the card by a PC. Cancel the setting using the PC.
!CARD FULL	The card is full. No more pictures can be taken or no more information such as print reservation can be recorded.	Replace the card or erase unwanted pictures. Before erasing, download important images to a PC.
NO PICTURE	There are no pictures on the card.	The card contains no pictures. Record pictures.
!PICTUREERROR	The selected picture has a problem, therefore it cannot be played back on this camera.	Use image processing software to view the picture on a PC. If that cannot be done, the image file is damaged.
CARD-COVER OPEN	The card cover is open. Close the card cover.
	The card is not formatted. Format the card.All data on the card is deleted.

En

Pure geometric diagram with intersecting lines and circular shapes (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

SPECIFICATIONS

Product type : Digital camera (for shooting and displaying)

Recording system

Still picture : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable : Exif 2.2, Digital Print Order Format (DPOF), standards PRINT Image Matching II, PictBridge

Movie : QuickTime Motion JPEG support

Memory : xD-Picture Card (16 - 512MB)

No. of storable pictures

When a 16MB card : Approx. 6 frames (SHQ: 2048 × 1536) used Approx. 20 frames (HQ: 2048 × 1536)

Approx. 32 frames (SQ1: 1600 × 1200)

Approx. 165 frames (SQ2: 640 × 480)

No. of effective pixels : 3,200,000 pixels

Image pickup : 1/2.5" CCD solid-state image pickup, 4,230,000 pixels (gross)

Lens : Olympus lens 5.8 mm to 17.4 mm, f3.1 to 5.2, 5 elements in 3 groups (equivalent to 35 mm to 105 mm lens on 35 mm camera)

Photometric system : Digital ESP metering, spot metering

Shutter speed : 1 to 1/1000 sec. (Night Scene mode: 2sec)

Shooting range : 50 cm (1.6 ft.) to (normal) 20 cm to 50 cm (0.7 ft. to 1.6 ft.) (macro mode)

Viewfinder : Optical real image viewfinder

Monitor : 1.8" TFT color LCD display, 85,000 pixels

Outer connector : DC-IN jack, USB connector (mini-B), A/V OUT jack (MONO)

Automatic calendar : 2000 up to 2099 system

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation) -20°C to 60°C (-4°F to 140°F) (storage)

Humidity : 30% to 90% (operation)/10% to 90% (storage)

Power supply : 1 CR-V3 lithium battery pack, or 2 AA (R6)

alkaline batteries or NiMH batteries.

AC adapter (optional)

Manganese (zinc-carbon) batteries cannot be used.

Dimensions : 108 mm (W) × 57.5 mm (H) × 36.5 mm (D)

(4.2" × 2.2" × 1.4")

(excluding protrusions)

Weight : 165 g (0.4 lb.) (without batteries or card)

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

En

44 En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

x215_Basic.book

45 ページ

2003年12月11日

木曜日 午前9時16分

TABLE DES MATIÈRES

GUIDE RAPIDE DE DÉMARRAGE 48

FONCTIONS DU MENU 60

PRISE DE VUES – INSTRUCTIONS DE BASE ..... 67

PRISE DE VUE ÉLABORÉE 75

AFFICHAGE 76

RÉSERVATION D'IMPRESSION/

IMPRESSION DIRECTE....82

TRANSFERT DES PHOTOS VERS UN ORDINATEUR....84

CODES D'ERREUR 86

CARACTÉRISTIQUES 87

Fr

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Touches fléchées

Pure geometric diagram with intersecting lines and circles, no text or symbols present

FIXATION DE LA COURROIE

Diagram of a camera with labeled parts A and B, showing directional arrows indicating movement or rotation.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Diagram showing a battery being inserted into a device with Chinese text labels

Technical diagram of a mechanical device with labeled parts C and D, showing directional arrows indicating movement or force.

Important

Line drawing of a camera module with an arrow pointing to the internal components (no text or symbols)

Encoche

Line drawing of a camera module with no visible text or symbols

MISE EN MARCHE/ARRÊT

Diagram of a digital camera with directional arrows indicating movement (no text or symbols)

Fr

Mise hors-tension:

Diagram showing a device being opened into a closed camera, with no text or symbols present.

Remarque

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Menus Raccourcis

Mode prise de vue

DRIVE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Menus Mode

Onglet PICTURE [PHOTO]

Onglet SETUP [CONFIG]

Onglet PLAY [LECTURE] Onglet EDIT Onglet CARD [CARTE] Onglet SETUP [CONFIG] CARSETENT PLAY

Onglet PLAY [RECTURE]

Onglet SETUP [CONFIG]

Pure geometric diagram with intersecting lines and circles, no text or symbols present

PRISE DE VUE FIXE

SI UNE MISE AU POINT SATISFAISANTE EST IMPOSSIBLE (MÉMORISATION DE LA MISE AU POINT)

P [ ] HQ:2048x1536:30

Voyant vert

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr 71

Remarque

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ZOOM AVANT SUR UN SUJET (ZOOM OPTIQUE)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr 73

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr 75

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

AFFICHAGE SUR UN TÉLÉVISEUR

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr 81

Pure geometric lines and shapes without any text, numbers, or symbols

Fr 83

TRANSFERT DES PHOTOS VERS UN ORDINATEUR

Pure geometric diagram with intersecting lines and circular shapes (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

x215_Basic.book

89 ページ

2003年12月11日

木曜日 午前9時16分

INHALT

ERSTE SCHRITTE 92

MENÜFUNKTIONEN 104

GRUNDSÄTZLICHE AUFNAHMEFUNKTIONEN .... 111

Adresse : 2 Corporate Center Drive, Melville, New York11747-3157, USA

Telefonnummer : 1-631-844-5000

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pfeiltasten

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ANBRINGEN DES TRAGERIEMENS

Pure geometric lines and shapes without any text, numbers, or symbols

De 97

Line drawing of a device with a battery and a switch inserted, showing no text or symbols.

Technical diagram of a device with labeled parts C and D, showing directional arrows indicating movement or assembly.

Wichtig

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Line drawing of a camera module with no visible text or symbols

Diagram of a digital camera with directional arrows indicating movement (no text or symbols)

De

Diagram showing a device being processed into a closed camera, with arrows indicating motion direction (no text or symbols present)

Hinweis

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Wiedergabe- Taste ( ▶

Wiedergabe- Taste ( ▶

De

De 101

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De 103

MENÜFUNKTIONEN

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

MODE-Menüs

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Wiedergabemodus

Menüanzeiger PLAY [W.GAB] Menüanzeiger EDIT [BEARB.] Menüanzeiger CARD [KARTE] Menüanzeiger SETUP [EINR]

Menüanzeiger PLAY [W.GAB]

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

EINZELBILDMODUS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De 115

Hinweis

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De 117

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

De 119

WIEDERGABE

Circular mechanical component with six symmetrical slots and central hub (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

WIEDERGABE AUF EINEM FERNSEHGERÄT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De 125

De

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Line drawing of a hairpin being cut with a spring, showing the handle and angle (no text or symbols)

Enganche de la correa

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es 141

Diagram of a handheld device with a battery and switch, showing internal components (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (C and D), no readable text or symbols present.

Importante

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Technical line drawing of a camera module with no visible text or symbols

Diagram of a digital camera with directional arrows indicating movement or force (no text or symbols)

Diagram showing two views of a digital camera with directional arrows indicating motion (no text or symbols)

Nota

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

147

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Menús de modo

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

OPERACIONES BÁSICAS

Modos de fotografía

Pure geometric lines and shapes without any text, numbers, or symbols

Es 155

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

FOTOGRAFÍA DE IMÁGENES FIJAS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

SI NO SE PUEDE OBTENER UN ENFOQUE CORRECTO (BLOQUEO DE ENFOQUE)

P [ ] HQ 2048x153630

Lámpara verde

158 Es

Pure geometric diagram with intersecting lines and circles, no text or symbols present

GRABACIÓN DE VÍDEOS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Nota

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ZOOM DE ACERCAMIENTO SOBRE EL SUJETO (ZOOM ÓPTICO)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Es

165

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

169

Pure geometric diagram with intersecting lines and circular shapes (no text or symbols)

174 Es

ESPECIFICACIONES

Conector exterior : Jack DC-IN, conector USB (mini-B), jack A/V OUT (MONO)

Es

Pure geometric lines and shapes without any text, numbers, or symbols

Es

175

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS AMERICA INC.

Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital

Olympus Europa GmbH

Premises/Goods delivery: Wendenstrasse 14-18, 20097 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com

or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg,

Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

* Please note some (mobile) phone services/provider do not permit access or

request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to

the above mentioned number please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

© 2004 OLYMPUS CORPORATION

Printed in Japan

1AG6P1P1976-- VT747001
