USER MANUAL Camedia D40 Zoom OLYMPUS

DIGITAL CAMERA/APPAREIL PHOTO NUMÉRIQUE DIGITALKAMERA/CÁMARA DIGITAL

C-40ZOOM/D-40ZOOM

BASIC MANUAL

■Before using your camera, read this manual carefully to ensure correct use.
■We recommend that you take test shots to get accustomed to your camera before taking important photographs.
These instructions are only for quick reference. For more details on the functions described here, refer to the software CD's instructions on CD-ROM.

MANUEL DE BASE

Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : C-40ZOOM/D-40ZOOM

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Trademarks

- IBM is a registered trademark of International Business Machines Corporation.

- Microsoft and Windows are registered trademarks of Microsoft Corporation.

•Macintosh is a trademark of Apple Computer Inc.

- All other company and product names are registered trademarks and/or trademarks of their respective owners.

- The standards for camera file systems referred to in this manual are the "Design Rule for Camera File System/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

CONTENTS/TABLE DES MATIÉ/INHALT/CONTENIDO

ENGLISH 2

FRANÇAIS 46

DEUTSCH 90

ESPAÑOL 134

CONTENTS

NAMES OF PARTS 4

HOW TO USE THIS MANUAL 15

GETTING STARTED 16

SHOOTING BASICS 19

ADVANCED SHOOTING 32

PLAYBACK 34

PRINT SETTINGS 38

TRANSFERRING PICTURES TO A COMPUTER 40

OPTIONAL ACCESSORIES 41

ERROR CODES 42

SPECIFICATIONS 44

These instructions are only for quick reference. For more details on the functions described here, refer to the software CD's instructions on CD-ROM.

NAMES OF PARTS

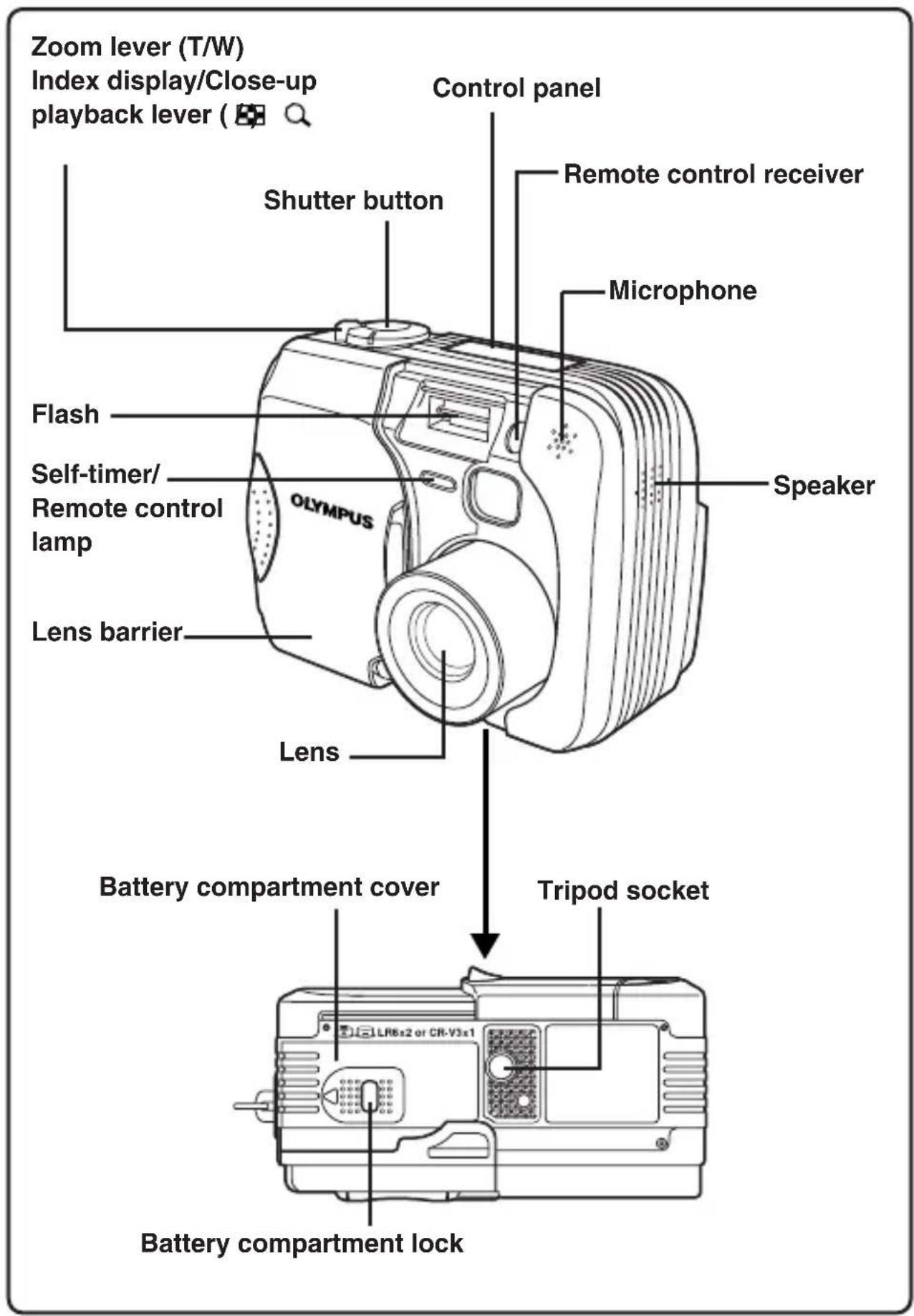

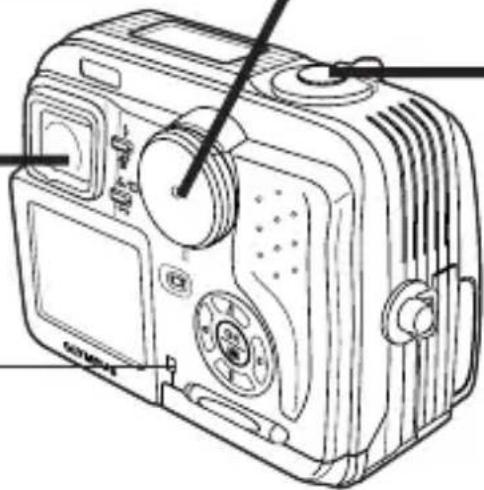

Camera

Zoom lever (T/W) Index display/Close-up playback lever ( Shutter button Control panel Remote control receiver Microphone Flash Self-timer/ Remote control lamp Olympus Speaker Lens barrier Lens Battery compartment cover Tripod socket Battery compartment lock

Macro/Spot button ( ✓/☐ Protect button ( ✓) Rotation button Mode dial ( AUTO , ✓ , ✓ , ✓ , ✓ ) ✓ , ✓ , ✓ , ✓ , ✓ , ✓ ) Remote control receiver Flash mode button ( ✓ Erase button ( ✓ ) Viewfinder Monitor Monitor button ( ☐ ) Card access lamp Card cover OK/Menu button Manual focus button ( ✓ ) Arrow pad (△▽◀◀) Strap eyelet (refer to the "Quick-start guide" included in the package.) Connector cover Multi connector (USB, A/V OUT) DC-IN jack

NAMES OF PARTS

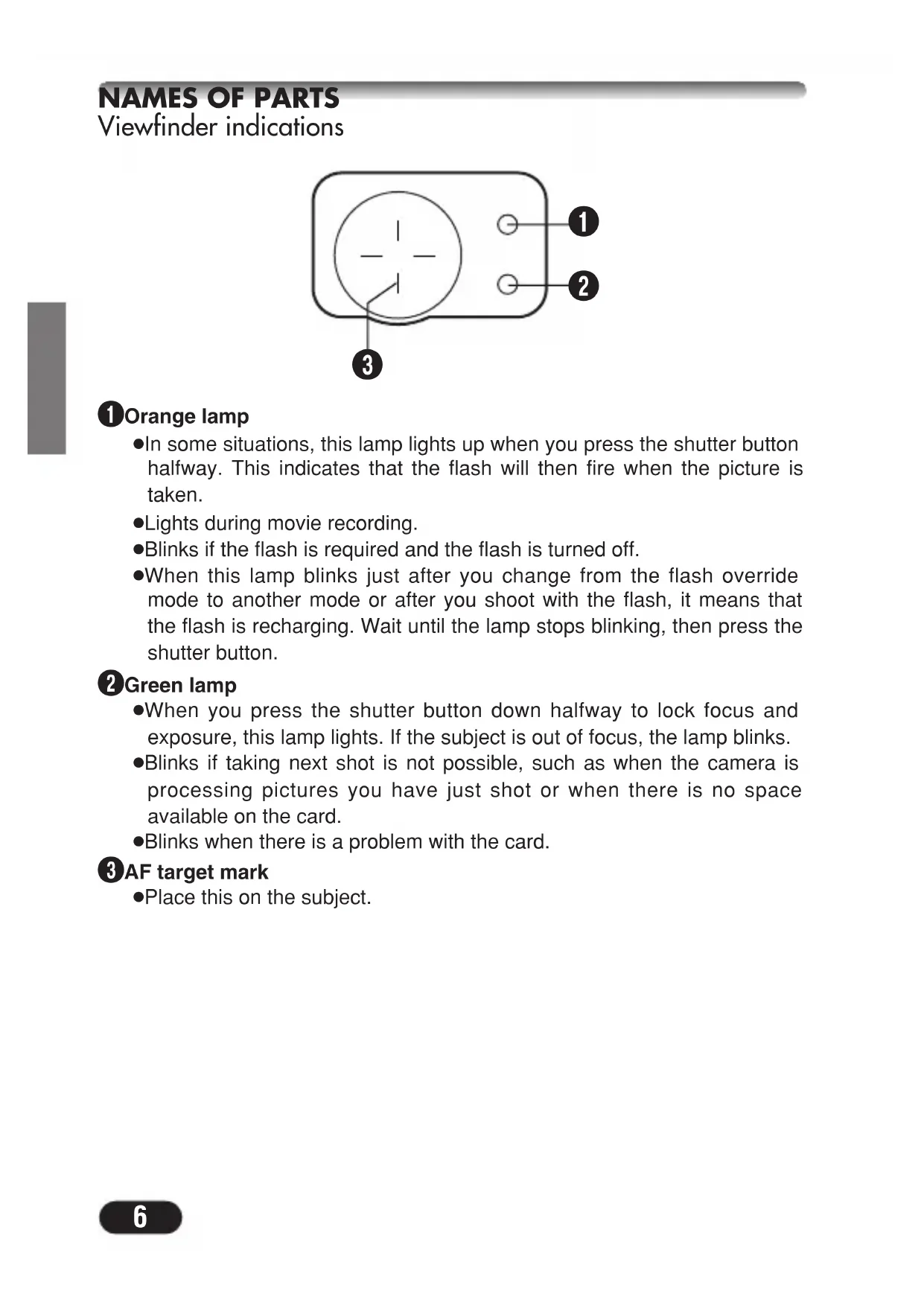

Viewfinder indications

① ② ③

①Orange lamp

• In some situations, this lamp lights up when you press the shutter button halfway. This indicates that the flash will then fire when the picture is taken.
  ●Lights during movie recording.
• Blinks if the flash is required and the flash is turned off.
• When this lamp blinks just after you change from the flash override mode to another mode or after you shoot with the flash, it means that the flash is recharging. Wait until the lamp stops blinking, then press the shutter button.

2 Green lamp

• When you press the shutter button down halfway to lock focus and exposure, this lamp lights. If the subject is out of focus, the lamp blinks.
• Blinks if taking next shot is not possible, such as when the camera is processing pictures you have just shot or when there is no space available on the card.
  ●Blinks when there is a problem with the card.

3 AF target mark

- Place this on the subject.

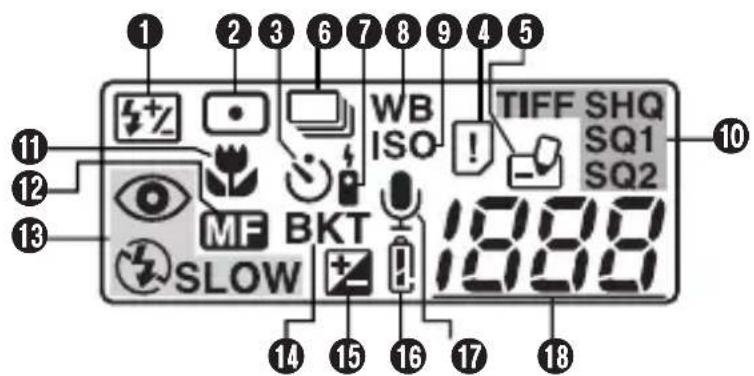

Control panel indications

1 2 3 6 7 8 9 4 5 WB ISO TIFF SHQ SQ1 SQ2 MF BKT SLOW 10 14 15 16 17 18

1Flash intensity control

●Displayed when the amount of the light emitted by the flash is adjusted.

② Spot metering mode

●Displayed when the Spot metering mode is set.

3Self-timer

●Displayed when the self-timer is activated.

4 Sequential shooting

- Displayed when the drive mode is set to Sequential shooting or AF Sequential shooting.

5 Remote control

●Displayed when remote control shooting is activated.

6 White balance

●Displayed when the White balance is set to any mode except AUTO.

7ISO

●Displayed when the ISO is set to any mode except AUTO.

8 Card error

- When the power is turned on, the camera checks the card. If there is a problem with the card, this indication appears.

⑨Card writing

●Displayed when recorded pictures are being written to a card.

10Record mode (TIFF, SHQ, HQ, SQ1, SQ2)

- Displays the record mode. If SHQ or HQ is set to ENLARGE SIZE, the corresponding indication blinks.

11 Macro mode

●Displayed when the macro mode is engaged.

12 Manual Focus

●Displayed when locking focus using the Manual focus function.

NAMES OF PARTS

Control panel indications (Cont.)

1 2 3 6 7 8 9 4 5 WB ISO TIFF SHQ SQ1 SQ2 MF BKT SLOW 10 11 12 13 14 15 16 17 18 18:00

13Flash mode

- Displayed when the flash mode is selected by pressing the (flash mode) button.

No indication: Auto-flash : Red-eye reduction flash

: Fill-in flash SLOW: Slow synchronization flash

④ : Off (flash override)

14 Auto-bracket

●Displayed when the drive mode is set to the Auto-bracket mode.

15 Exposure compensation

●Displayed when exposure compensation is set to any value except 0.

16Battery check

- When remaining battery power is low, the battery check indication changes as follows:

- Be aware that the time when the battery check indication appears varies depending on the type of batteries used.

17Sound record

●Displayed when the sound record mode is set to "ON".

18 Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining (mode only)

●Displays available movie recording time.

Card error

- Displayed if there is a problem with the card. See "Error codes".

Monitor indications — Shooting information

The indications vary depending on the shooting mode.

If you shoot using the monitor for a long time, noise may appear on pictures.

The information below is always displayed in the shooting mode.

The information below is displayed for about 3 seconds after operating the buttons/mode dial or closing the menus.

P F4.8 1/600 0.0 P F4.8 1/600 0.0 SLOW1 AF ISO100 HQ 2272x1704

*The illustrations show examples of indications displayed when the mode dial is set to P.

① Shooting mode

●Displays the shooting mode.

AUTO : Full-auto mode, 🎨 Portrait mode, : Landscape-Portrait mode, ▲ Landscape-Scene mode, : Night Scene mode, : Se Portrait mode, P: Program mode, A: Aperture priority mode, S: Shutter priority mode, M: Manual mode, 📂 My Mode, 😊: Movie mode

②Aperture value

●Displays the current aperture value.

③Shutter speed

●Displays the current shutter speed.

4 Exposure compensation

●Displays the current exposure (brightness) compensation value.

Exposure differential (M mode only)

●Displays the difference between the exposure determined by the currently selected aperture and shutter speed compared to the exposure level considered optimal by the camera.

⑤ AF target mark

- Place this on the subject.

NAMES OF PARTS

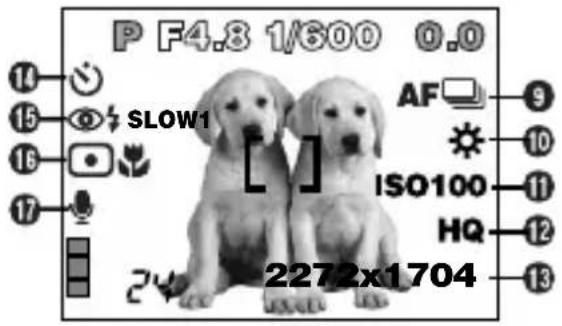

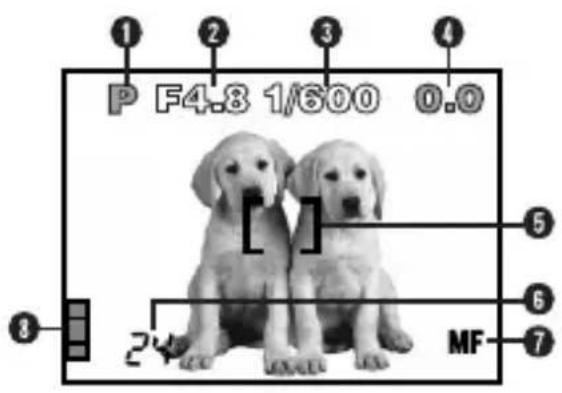

Monitor indications — Shooting information (Cont.)

P F4.8 1/600 0.0 24 MF

6 Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining (mode only)

●Displays available movie recording time.

⑦ Manual Focus

●Displayed when locking focus using the Manual focus function.

8 Memory gauge

●Displays the amount of space used by the pictures stored in the built-in memory. If you take pictures continuously, the indication changes as shown below.

The memory gauge changes depending on the number of storable pictures or seconds remaining.

P F4.8 1/600 0.0 SLOW1 2272x1704

9Drive mode

●Displayed when the drive mode is set on the menus.

□ : Single-frame shooting : Sequential shooting

AF : AF Sequential shooting BKT : Auto-bracket

10 White balance

●Displayed when WB is set on the menus.

●Displays the ISO (AUTO, 100, 200 or 400) selected on the menus. When set to AUTO, the ISO changes to 100 when the mode dial is set to A/S/M. When AUTO is selected, the ISO is automatically increased in low-light situations when the flash is not used. This is to prevent blurring from camera movement.

12Record mode TIFF/SHQ/HQ/SQ1/SQ2

●Displays the record mode selected on the menus.

13Number of pixels

- Displays the number of pixels used for the resolution setting that is currently selected.

14 Self-timer/remote control

●Displayed when self-timer/remote control shooting is activated.

😊: Self-timer shooting

Remote control shooting

NAMES OF PARTS

Monitor indications — Shooting information (Cont.)

P F4.8 1/600 0.0 14 SLOW1 AF ISO100 HQ 2272x1704

15Flash mode

- Displayed when the flash mode is selected by pressing the (flash mode) button.

No indication: Auto-flash : Red-eye reduction flash

§ : Fill-in flash

SLOW1/ SLOW2/ SLOW1: Slow synchronization flash

④ : Off (flash override)

16 Spot metering/Macro mode

- Displayed when the Spot metering/Macro mode is selected by pressing the 📄/☐ (Macro/Spot) button.

No indication: Digital ESP

●Displayed when is set on the menus.

Monitor indications — Playback information

INFO setting on the Menu allows you to select how much information to display.

Still picture playback information

1 2 3 4 5 x10 HQ 6 8 9 '01.12.23. 21:56 20 7

When INFO is set to OFF

HQ SIZE: 2272x1704 F2.8 1/800 +2.0 ISO400 '01.12.23 21:56 FILE: 100-0020

When INFO is set to ON

①Battery check

●The battery check indication changes as follows:

No indication

Fully charged Low power No power

- Be aware that the time when the battery check indication appears varies depending on the type of batteries used.

2Print reserve

●Displayed when the Print reserve is set.

3Number of prints

●Displays the number of prints.

4 Sound record

●Displayed when sound is recorded.

5Protect

●Displayed when the picture is protected.

6Record mode
7Frame number
8Time
9Date
●The year 2001 is displayed as 01.
10Number of pixels (resolution setting)
⑪ Aperture value
12Shutter speed
13 Exposure compensation
14 White balance
15ISO
16File number

NAMES OF PARTS

Monitor indications — Playback information (Cont.)

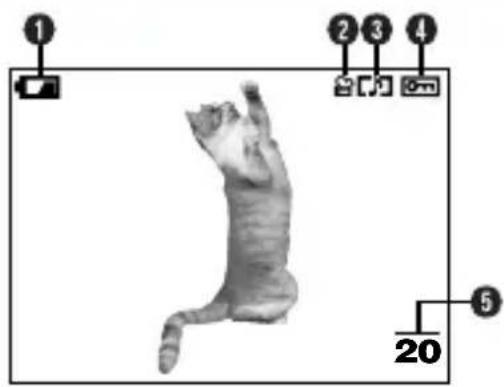

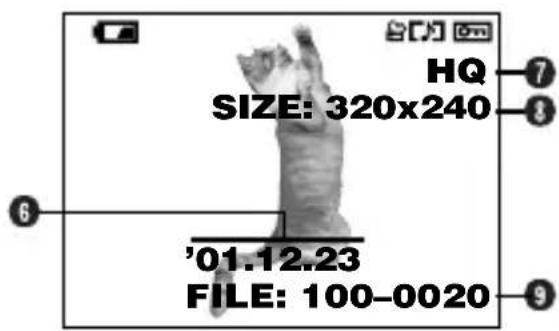

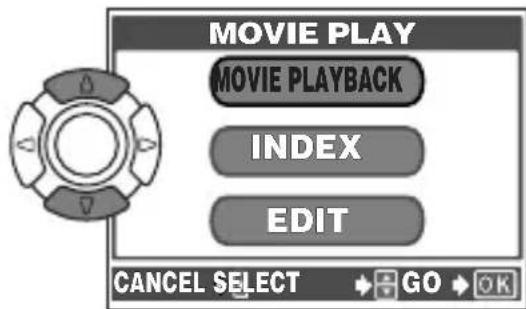

Movie playback information

When INFO is set to OFF

HQ SIZE: 320x240 '01.12.23 FILE: 100-0020

When INFO is set to ON

①Battery check
2 Movie mark
3 Sound record

●Displayed when sound is recorded.

4 Protect
●Displayed when the picture is protected.
5Frame number
6Date

●The year 2001 is displayed as 01.

⑦Record mode
8 Number of pixels
9 File number

●During movie playback, the recording time appears as follows:

Note:

●The indications that appear on a movie picture that has been selected and displayed from the thumbnail display are different from those that appear when the movie picture is displayed using the Movie play function.

HOW TO USE THIS MANUAL

The instructions in this manual use a series of numbers for each operating procedure and button/dial illustration. Follow these numbers in order when operating the camera.

Before using the following function, set the mode dial to any of the positions shown.

Row of eight black-and-white icons representing various application or service categories, including profile, landscape, photo, P, A/S/M, and video.

Means "Press this button".

If a button is shown in black, press it as part of the step.

△, ▽, ◀ and ▷ used in instructions correspond to the buttons on the arrow pad as shown.

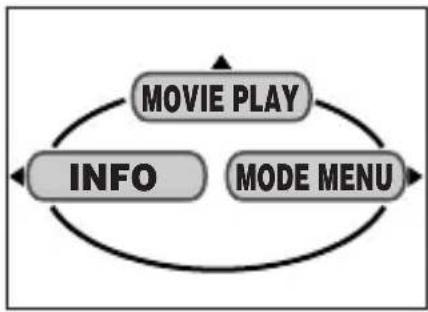

Symmetrical diagram with four directional arrows pointing outward around a central circular shape (no text or symbols)

Set the functions in the menus in the order of these arrows. Before using the menus, read "Using the Menus", for details.

In the top menu, select MODE MENU → CAMERA → A/S/M → M.

GETTING STARTED

Loading the batteries

This camera uses a CR-V3 lithium battery pack or 2 AA (R6) NiMH batteries, NiCd batteries, alkaline batteries or lithium batteries.

Important:

• CR-V3 lithium battery packs cannot be charged.
• Do not peel the label on a CR-V3 lithium battery pack. If an insulating sheet covers the terminals, peel it off ONLY from the terminals.

1 Make sure the camera is turned off (i.e. the lens barrier is closed and the monitor if turned off).

4 2 3 Press.

Olympus CAMDA ① ②

When using a lithium battery pack

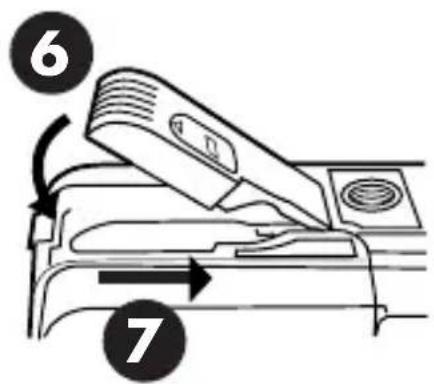

6 7

●Using the AC power adapter (optional)

Use an AC adapter designed for the area where the camera is used. Consult your nearest Olympus dealer or Service center for details.

Inserting/ejecting the card

Be sure to use a 3V (3.3 V) card. Non-Olympus 3 V (3.3 V) cards must be formatted with the camera. Do not use a 5 V card or a 2 MB card.

1 Make sure the camera is turned off (i.e. the lens barrier is closed and the monitor if turned off).

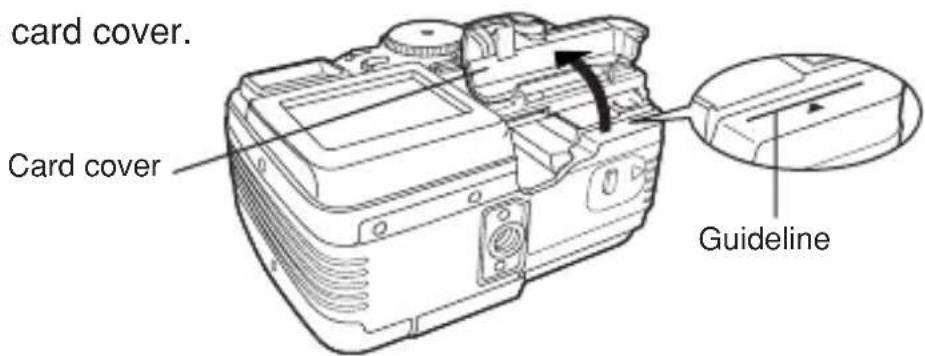

2 Open the card cover.

card cover. Card cover Guideline

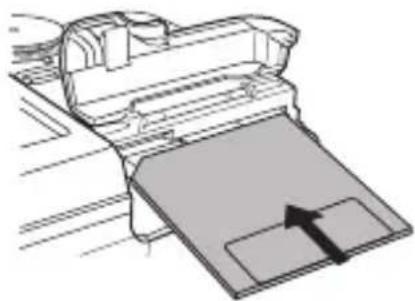

3 Inserting the card

Insert the card all the way with the contact area facing towards the lens side so that the label's edge is aligned with the guideline (◀) printed on the camera.

• Insert the card while keeping it straight. Be sure not to insert it an angle.
• Note the orientation of the card. If it is inserted incorrectly, it may become jammed.
• If the card is not inserted fully, the card cover will not close. Closing the card cover forcibly will damage the card cover.

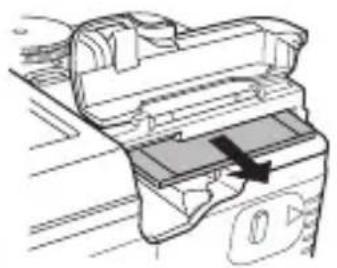

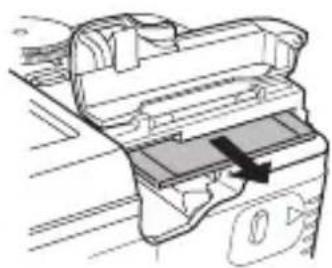

3 Ejecting the card

Grasp the card and pull in straight out.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

4 Close the cover tightly.

GETTING STARTED (Cont.)

Power on/off

Shooting mode

① Set the mode dial to the desired position.
② Open the lens barrier.

●The camera turns on and the lens extends.
- Startup image is displayed on the monitor.
- If the lens does not extend, the lens barrier is not fully open.

③Partially close the lens barrier to turn the camera off (about halfway to the lens). Wait until the lens is retracted completely.

- Do not push the lens barrier against the lens.

4 Close the lens barrier all the way.

●The power turns off.
- Shutdown image is displayed on the monitor.

Playback mode

①Press the (monitor) button.

●The monitor turns on and startup image is displayed.
- If the lens barrier is open, press twice quickly to enter the playback mode.

②Press the button again.

- Shutdown image is displayed on the monitor, then the monitor turns off.

Date/time setting

① Open the lens barrier to turn on the camera and enter the shooting mode.
②Press to display Menu.
③ Press ▷ on the arrow pad to select MODE MENU.
4 Press ▽ to select SETUP, then press ▷.
5 Press △▽ to select ⊕, then press ▷.
6 When is selected in green on the screen, press to select the date format.

- Select any one of the following formats:

DMY (Day/Month/Year)

MDY (Month/Day/Year)

YMD (Year/Month/Day)

- This step and the following steps show the procedure used when the date and time settings are set to Y-M-D.

⑦ Press ▷ to move to the year (Y) setting.

8 Press to set the year. When the year is set, press to move to the month (M) setting.

• Repeat this procedure until the date and time are completely set.
• To move back to the previous setting, press ◀.

9Press

Press 📄.

●The camera returns to the menu screen.

Note:

• The current settings stay the same even when the power is turned off, unless they are readjusted.
• The date setting will be canceled if the camera is left with no batteries for 2 – 3 days. If this happens, set the date again.

SHOOTING BASICS

Shooting mode setting — Mode dial

Full-auto shooting

Allows you to take still pictures using NO special functions or manual adjustments. The camera sets optimal focusing and exposure. Suitable for simple shooting.

Portrait shooting

Suitable for shooting a portrait-style shot of a person. This mode features an in-focus subject against a blurred background. The camera automatically sets the optimal shooting conditions.

Landscape-Portrait shooting

For example, if you want to take a picture with a beautiful background, you will want to have both your subject and the background in focus. The camera automatically sets the optimal shooting conditions.

Landscape-Scene shooting

Suitable for taking pictures of landscapes and other outdoor scenes landscape. The camera focuses on a distant subject (tree, mountain, etc.) and the picture comes out clear. Since blues and greens are reproduced vividly in this mode, the Landscape-Scene mode is excellent for shooting natural scenery. The camera automatically sets the optimal shooting conditions.

SHOOTING BASICS (Cont.)

Night Scene shooting

Suitable for shooting pictures in the evening or at night. The camera sets a slower shutter speed than is used in normal shooting. For example, if you take a picture of a street at night in the AUCle, the lack of brightness

will result in a dark picture with only the sparkle of lights such as street lamps appearing. In the Night Scene shooting mode, the true appearance of the street can be captured. The camera automatically selects the optimal settings for this type of shooting condition.

Self-Portrait shooting

Enables you to take a picture of yourself while holding the camera. Point the lens towards you and take a shot. The focus is locked on you (shooter). The camera automatically selects the optimal settings for this type of shooting condition. Zooming is not possible.

Program shooting

Allows you to take still pictures. The camera sets aperture and shutter speed. Other functions, such as flash modes and drive modes, can be adjusted manually.

Aperture priority/Shutter priority/Manual shooting

Allows you to set aperture and/or shutter speed manually. When the mode dial is set to A/S/M, the following items can be set with the menus:

A (Aperture priority shooting)

You set the aperture and the camera sets the shutter speed.

S (Shutter priority shooting)

You set the shutter speed and the camera sets the aperture.

M (Manual shooting)

You set both the aperture and shutter speed.

My Mode

Allows you to take still pictures. Your favorite settings can be saved in MY MODE SETUP (in the menu's SETUP). Customized settings are activated when the power is turned on in the mode. The shortcut menu can also include different items than the shortcut menus in the P or A/S/M mode.

Movie record

Allows you to record movies. The camera sets the aperture and shutter speed automatically. Even if the subject moves during recording or the distance to the subject changes, correct focusing and exposure are maintained continuously.

Using the menu

When displaying menus, the first screen that appears on the monitor is called the top menu. The contents of this menu change depending on the mode. On the top menu, two types of menus are available: MODE MENU and the other menus (shortcut menus).

Shortcut menu

The shortcut menu consists of the items other than MODE MENU on the Top menu. These can be replaced with your favorite items, but only when the mode dial is set to P, A/S/M or 📂Just pressing the arrow pad buttons according to the marks shown next to each item will lead you directly to their screens.

(ex. P mode top menu)

Mode menu

MODE MENU (displayed on the top menu) contains all the functions that are available and is divided into four tabs: CAMERA, PICTURE, CARD, and SETUP. These can be selected with the tabs on the left of the screen by using .

How to Set a Function in MODE MENU

①On the top menu, enter MODE MENU.
② Select a tab (CAMERA, PICTURE, CARD, or SETUP) by using △▽. Press ▷.
③ Select the function you want by using △▽. Press ▷.
4 Select your settings by using △▽. Press 📋.

SHOOTING BASICS (Cont.)

Menu functions (Shooting)

For more details on the functions described here, refer to the reference manual that is included with the software CD-ROM instructions on CD-ROM. Some function settings may not be available depending on the mode. Factory default settings of some functions vary depending on the mode.

CAMERA

Display	Function	Setting
[HXKS]	Sets self-timer shooting or remote control shooting.
DRIVE	Changes the drive modes, or sets autobracketing.
ISO	Adjusts the ISO sensitivity.	AUTO, 100, 200, 400
P/A/S/M	When the mode dial is set to A/S/M: Exposure mode can be selected from A (Aperture priority auto), S (Shutter priority auto), or M (Manual mode). When the mode dial is set toExposure mode can be selected from P, A, S or M.	P, A, S, M
	Controls the flash intensity.	-2EV to +2EV
SLOW	Allows you to take pictures of night scenes.	SLOW1,SLOW,SLOW2
NOISE REDUCTION	Reduces the electrical noise on images during long exposures.	OFF, ON
DIGITAL ZOOM	Zooming is possible to a maximum of approx. 7x using digital image processing.	OFF, ON
FULLTIME AF	Continuously focuses without pressing the Shutter button halfway.	OFF, ON
(for still pictures)	Adds sound after shooting.	OFF, ON
PANORAMA	Makes a panoramic image.	—
FUNCTION	Changes the picture color.	OFF, BLACK&WHITE, SEPIA,WHITE BOARD,BLACK BOARD

BKT

PICTURE (not available in the

Display	Function	Setting
	Sets the record mode resolution.	TIFF, SHQ*, HQ*, SQ1, SQ2
WB	Adjusts the white balance according to the light source.	AUTO, PRESET (★, 📋, ⚙, ⚡), 📊
WB*	Makes the color bluer/redder.	—
SHARPNESS	Sets the level of picture sharpness.	—
CONTRAST	Sets the picture contrast.	—
SATURATION	Adjusts the level of color depth without changing tint.	—

*For clearer large-sized prints, Enlarge Size is available in these modes.

CARD

Display	Function	Setting
CARD SETUP	Formats the card.	—

SETUP

Display	Function	Setting
ALL RESET	Determines whether or not current camera settings are stored.	OFF, ON,
■)	Sets the beep sound used for warnings, etc.	OFF, LOW, HIGH
SHUTTER SOUND	Sets the type of shutter sound effect and the volume.	OFF, 1/2, (LOW, HIGH)
PW ON SETUP	Sets the picture displayed on the monitor and the sound output when the power is turned on.	SCREEN/SOUND (OFF, 1, 2)
PW OFF SETUP	Sets the picture displayed on the monitor and the sound output when the power is turned off.	SCREEN/SOUND (OFF, 1, 2)

SHOOTING BASICS (Cont.)

SETUP

Display	Function	Setting
REC VIEW	Sets whether or not the picture being recorded is displayed immediately after shooting.	OFF, ON
MY MODE SETUP	Customizes settings, which are activated in the mode.	PRESENT, RESET, CUSTOM
SLEEP	Sets the sleep timer.	30SEC, 1MIN, 3MIN, 5MIN, 10MIN
FILE NAME	Specifies how to record file names on the card.	RESET, AUTO
PIXEL MAPPING	Checks the CCD and image processing circuit for errors.	—
	Adjusts the brightness of the monitor.	—
	Sets the date/time.	—
m/ft	Sets the measurement units during manual focus.	m, ft
SHORT CUT	Replaces any of the 3 functions except MODE MENU on the top menu with other menu selections.	All functions included in the CAMERA & PICTURE menus

The following functions are not in the MODE MENU. They are located in the shortcut menu. The functions available depend on the shooting mode.

Function	Shooting mode
	AUTO
	AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO auto
DIGITAL ZOOM
WB

* Records sound during movie recording.

Menu functions (Playback)

Setting methods on the playback menu are similar to the shooting menu.

Display		Function	Setting
*1		Displays all stored pictures automatically (Slide-show).	—
INFO		Changes the amount of picture information displayed.	ON, OFF
		Stores printing information required for DPOF printers.	—
MOVIE PLAY*2		Plays back movies, edits movies or saves movies as indexed still pictures.	MOVIE PLAYBACK, EDIT, INDEX
MODE MENU	PLAY*1	Adds sound to recorded pictures.	—
	CARD CARD SETUP	Erases all pictures and formats the card.	ALL ERASE, FORMAT
	SETUP	Changes camera settings. →SETUP menu

*1 Available only during still picture playback.
*2 Available only during movie playback.

SHOOTING BASICS (Cont.)

SETUP

Display	Function	Setting
ALL RESET	Determines whether or not current camera settings are stored.	ON, OFF
VOLUME	Sets playback sound volume, as well as the volume of the sound selected in PW ON SETUP and PW OFF SETUP.	—
■)	Sets the beep sound used for warnings, etc.	ON, OFF
PW ON SETUP	Sets the picture displayed on the monitor and the sound output when the power is turned on	SCREEN/SOUND (OFF, 1, 2)
PW OFF SETUP	Sets the picture displayed on the monitor and the sound output when the power is turned off.	SCREEN/SOUND (OFF, 1, 2)
SCREEN SETUP	Registers a stored picture so that you can select it in PW ON SETUP and/or PW OFF SETUP.	—
■	Adjusts the brightness of the monitor.	—
○	Sets the date/time.	—
■	Sets the number of pictures displayed at one time during playback.	4, 9, 16

Aperture setting — Aperture priority shooting

1 In the top menu, select MODE MENU → CAMERA → P/A/S/M → A.

2 To increase the aperture value (F value), press .

To decrease the aperture value (F value), press .

Shutter speed setting — Shutter priority shooting

1 In the top menu, select MODE MENU → CAMERA → P/A/S/M → S.

2 To set the shutter speed faster, press .

To set the shutter speed slower, press .

Aperture & Shutter speed setting — Manual shooting

1 In the top menu, select MODE MENU → CAMERA → P/A/S/M → M.

2 To set the shutter speed faster, press △.

To increase the aperture value (F value), press ◀.

To decrease the aperture value (F value), press ▷.

To set the shutter speed slower, press .

Using My Mode

1 In the top menu, select MODE MENU → CAMERA → P/A/S/M → Select a mode.

SHOOTING BASICS (Cont.)

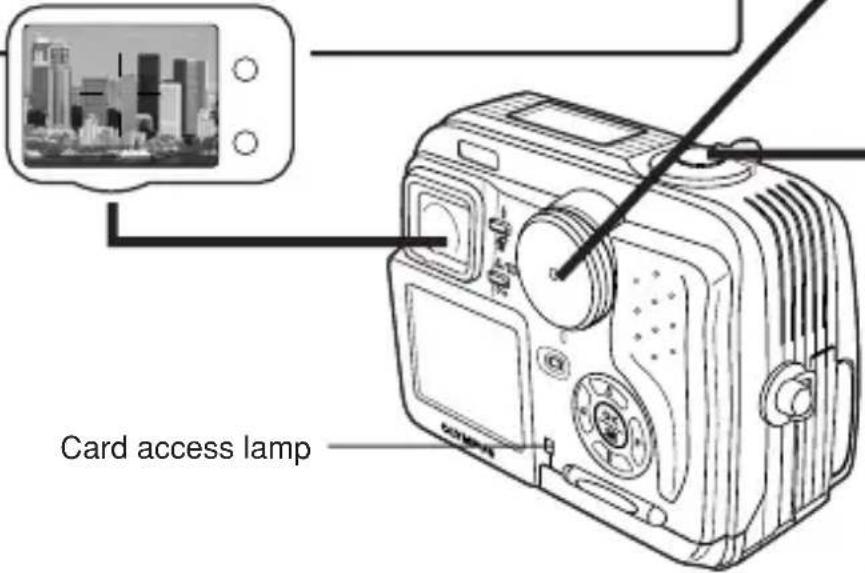

Taking still pictures

1 Set the mode dial to any of the following positions and open the lens barrier.

Shooting mode: ,AUTO, P, A/S/M,

2 Point the camera towards a subject while viewing through the viewfinder.

Card access lamp

3 To focus on the subject, press the shutter button halfway, slowly and gently.

- When the subject is in focus, the green lamp lights up.

Black-and-white cityscape illustration with a sun icon pointing to the right (no text or symbols)

Green lamp

4 To start shooting, press the shutter button gently all the way (fully).

●The green lamp and card access lamp blink and the camera begins storing pictures on the card.

Note:

- NEVER open the card cover, eject the card, remove the batteries, or pull the plug of an optional AC adapter when the card access lamp is blinking. Doing so could destroy stored pictures and prevent storage of pictures you have just taken.

Recording movies

Viewfinder

Black-and-white photo of two dogs in a natural setting, with a sun icon pointing to the right (no text or symbols)

Green lamp

2 Point the camera towards the subject and compose the picture while viewing through the monitor.

F4.8 1,600 0.0 [ ]

1 Set the mode dial to and open the lens barrier.

●The monitor turns on.

Card access lamp

amp

Diagram showing three stages of a robotic arm or sensor system with motion indicators and labeled components.

3 Press the shutter button halfway.

●The green lamp on the viewfinder lights up.

4 Press the shutter button all the way to start recording.

●The orange lamp lights up during movie recording.

●During movie recording, correct focus is maintained.

- When the sound recording mode is set to ON, sound can be recorded with movies.

AF target mark

Black-and-white photo of a lion and a baby standing in a grassy field, with no visible text or symbols.

Seconds remaining

5 Press the shutter button all the way again to stop recording.

●The card access lamp blinks and the camera starts writing the movie to the card.

- If you use all the displayed seconds remaining, shooting finishes automatically and the camera starts writing the movie to the card.

SHOOTING BASICS (Cont.)

■To zoom in on a subject, press the zoom lever towards T. To shoot a wider picture, press the zoom lever towards W.
■Telephoto/Wide-angle shooting is possible at up to 2.8x magnification (optical zoom limit). By combining the digital zoom with the 2.8x optical zoom, zoom magnification up to 7x (equivalent to 35 mm–245 mm on a 35 mm camera) is possible.
■How to shoot using the monitor

→Press the (monitor) button and then follow steps 3 and 4 in "Taking still pictures".

Zoom lever W T W T

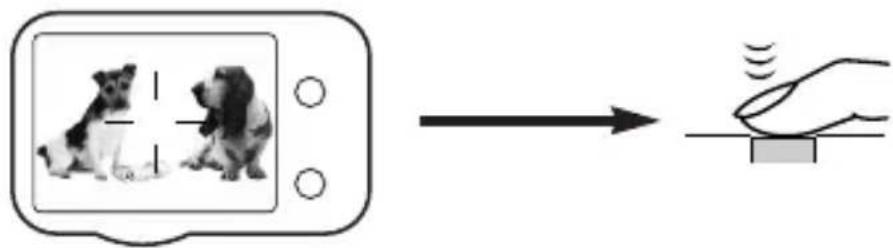

■ Focus lock AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO

If the subject of your composition is not within the AF target mark and focusing is not possible, try the following:

1 Position the AF target mark over the subject. Press the shutter button halfway to lock the focus.

Illustration of a dog and a dog sitting together, with no visible text or symbols

2 Compose your picture (point the camera towards the subject) while keeping the shutter button pressed halfway.

Diagram showing a dog image before and after scanning a hand gesture, with directional arrow indicating motion or interaction.

■Manual focus P A/S/M

If Auto focus is unable to lock, use manual focus.

1 Hold down for more than 1 second.
When the focus distance selection screen appears on the monitor, press ▷ to select MF.
2 Press to select the focus distance.
3 Hold down for more than 1 second to save the setting.
4 Shoot.
5 To cancel the saved MF setting, hold down again for more than 1 second to display the focus distance selection screen.
6 To return to the AF mode, press ◀ to select AF, then press

■Using the flash AUTO A/S/M

Auto-flash (No display (factory default setting)) :

Automatically fires in low-light and backlight conditions.

Red-eye reduction flash

Significantly reduces the phenomenon of "red-eye" (subject's eyes appearing red).

Fill-in flash

Always fires regardless of the lighting conditions.

Flash off

For situations where flash is prohibited, or when not using the flash.

Slow Synchronization SLOW1 SLOW2 SLOW3

Adjusts the flash for slow shutter speeds. In the top menu, select MODE MENU → CAMERA → ⚡ SLOW → ⚡ SLOW1, ⚡ SLOW2 or Ⓞ ⚡ SLOW.

Press the (flash mode) button repeatedly until the desired flash mode indication appears.

ADVANCED SHOOTING

Drive mode

Single-frame shooting ☐Shoots 1 frame at a time when the shutter button is pressed all the way. (normal shooting)

Sequential shooting ☐Shoots pictures sequentially. Focus, exposure and white balance are locked at the first frame.

AF Sequential shooting AF Shoots pictures sequentially. Focus is adjusted for each frame automatically. The AF Sequential shooting speed is lower than normal sequential shooting.

Auto bracketing BKT : Shoots multiple frames of the same picture, each with a different exposure value. Focus and white balance are locked at the first frame.

In the top menu, select MODE MENU → CAMERA → DRIVE → select a mode.

Spot metering

There are 2 metering methods: Digital ESP metering and spot metering.

Digital ESP metering: Meters the center of the subject and the area around it.

Spot metering: Exposure is determined by metering within the AF target mark. In this mode, a subject can be shot with optimal exposure regardless of the background light. In the working range of the macro mode, spot metering is also available (spot metering+macro mode).

Press the button repeatedly until (Spot metering) or (Spot metering+Macro mode) appears on the control panel.

■Macro mode shooting

Usually focusing is slow when you get as close as 0.1 m - 0.8 m (0.3 ft - 2.6 ft) to the subject. However, in the mode focusing is performed quickly. The (macro) mode allows you to shoot close to the subject (within 0.1 m - 0.8 m (0.3 ft - 2.6 ft)). With the zoom lever is pressed to the maximum W position, you can fill the entire frame with your subject.

If you are close to a subject, the picture area in the viewfinder is different from the picture that the camera actually records. For macro mode shooting, we recommend using the monitor.

Press the Button repeatedly until (Macro mode) or (Spot metering+Macro mode) appears on the control panel.

■Exposure Compensation

This function allows you to make fine changes to the present exposure setting. In some situations, you may get better results when the exposure that the camera sets is compensated (adjusted) manually. You can adjust between +/-2.0 in 1/2 steps.

Adjusts towards – (images become darker)

Adjusts towards + (images become brighter)

Viewing still pictures

1 Press the (monitor) button with the lens barrier closed. OR

Press (monitor button) twice quickly while in the shooting mode (Quick View).

●The monitor turns on and the recorded picture appears.

2 Display the desired pictures using the arrow pad. •Pictures indicated by are movie frames. Jumps to the picture 10 frames behind. Displays the next picture. Jumps to the picture 10 frames ahead. Displays the previous picture. Zoom lever Turning the zoom lever towards T: Enlarges the picture. W: Displays multiple pictures at the same time.

3 To return to the shooting mode quickly (available only when the camera entered playback mode using Quick View), press the shutter button halfway.

●The monitor turns off. Shoot pictures using the viewfinder.

Playing back movies

1 Display the movie frame (picture with you want to play back. See steps 1 and 2 in "Viewing still pictures".

2 Press to display menu.

OK 4 P P P sc

3 Press △ on the arrow pad to select MOVIE PLAY.

●The card access lamp blinks while movie data is accessed.

4 Press △▽ to select MOVIE PLAYBACK on the MOVIE PLAY screen. To exit this screen, press ◀.

MOVIE PLAY MOVIE PLAYBACK INDEX EDIT CANCEL SELECT GO OK

5 Press to start Playback.

• When playback finishes, the screen returns to the beginning of the movie.
• If is pressed again when the movie playback is finished, the MOVIE PLAYBACK screen appears. To exit the movie playback mode, press to select EXIT, then press

6 To return to the shooting mode quickly (available only when the camera entered playback mode using Quick View), press the shutter button halfway.

PLAYBACK (Cont.)

■Protect (Protecting Images Against Accidental Erasure)

1 Display the picture you want to protect by using the arrow pad.

2 Press oThe picture is now protected.

●To cancel protection, press again.

■Single-Frame Erase

1 Select a picture you wish to erase by using the arrow pad.

- If the picture is protected, cancel the protection.

2 Press the (erase) button. The ERASE screen is displayed.

3 Press △ to select YES.

4 Press to erase the picture.

- To cancel erasing, select NO in step 3 and press , or press the button again.

All-Frame Erase

This function erases all still pictures and movies in the card, except protected ones.

1 In the top menu, select MODE MENU → CARD → CARD SETUP → ALL ERASE.

2 Press ☐. The ALL ERASE screen is displayed.

3 Press △ to select YES.

4 Press to start erasing.

●A bar is displayed to show the progress of erasing.

●To cancel erasing, select NO in step 3 and press

Note:

- It is not possible to erase protected pictures or pictures stored on a card that has a write-protect seal.

- Once erased, pictures cannot be restored.

1 Make sure that the TV and camera power are off.

2

Connect to the TV's video input (yellow) and audio input (white) terminals. AV cable Connect to the multi connector (A/V OUT).

3 Press the (monitor) button to turn on the camera and turn on the TV. Switch the TV to video input.

- For details on switching to video input, refer to your TV's instruction manual.

4 Select an image by using the arrow pad.

●The selected image will be displayed on the TV.

■Pictures can be rotated only when they are played back on a TV. With picture rotation, you can turn them horizontally, 90 degrees clockwise, or counter-clockwise.

Press.

Note:

- Video signal is either NTSC or PAL compatible depending on the standard in the intended area of distribution.

PRINT SETTINGS

Selected images can be reserved in a card for printing on a printer or at a photo lab that supports the DPOF (Digital Print Order Format) system.

- Print reserve cannot be performed for a picture displayed with

Single-frame print reserve

1 Play back a still picture. Press to display the top menu.
2 Press ▽ to select PRINT ORDER in the top menu. The PRINT ORDER screen appears. Press △ ▽ on the arrow pad to select , then press .
3 Select a frame you want to print using single-frame playback or index display. Press 📄The menu appears.
4 Select an appropriate Print reserve setting (see below) using the arrow pad.

MORE: Sets the number of prints, date/time and trim size. → Go to Step 5.

SINGLE PRINT: Sets single-frame print and the date. Trimming setting is not available. →Go to Step 6.

CANCEL: Cancels the Print reserve. → Go to Step 6.

END: Completes the Print reserve. → Go to Step 7.

5 In the screen, set x (number of prints), (datetime) and (trimming). When setting is complete, press ⚙A picture is played back.
6 Press ⏻ to display the top menu again (as in Step 4). Press ◀ to select END. The PRINT ORDER screen appears. To perform Print Reserve for more pictures, repeat steps 3 – 6.
7 Press ◀ repeatedly until the PRINT ORDER screen disappears. The top menu appears.
8 Press to exit the top menu. Make sure that the Print Reserve mark, number of prints and date/time are displayed on the selected images.

All-frame print reserve

Allows you to store print data for all the pictures on the card, as well as allowing you to choose how many prints you want.

Trimming print reserve

You can print an enlarged part of a recorded picture.

Resetting print reserve

Allows you to reset all Print Reserve settings for pictures stored on a card.

1 Play back a still picture. Press to display the top menu.

2 Select PRINT ORDER in the top menu to display the PRINT ORDER SETTING screen by pressing ▽. If Print Reserve data is NOT stored on the card, the PRINT ORDER SETTING screen does not appear.

3 Press △▽ to select RESET, then press .

4 Press ◀ to return to the top menu. Press ⏻ to exit from the top menu.

• To remove the selected image only, select KEEP, then set the number of prints in single-frame print reserve to 0.
• To perform print reserve for additional pictures, select KEEP. Print reserve can be added to the print reserve data already stored on the card.

Note:

●This camera cannot be directly connected to printers.
- If a card contains DPOF reservations set by another device, entering reservations using this camera may overwrite the previous reservations. Be sure to use this camera for reservations.

TRANSFERRING PICTURES TO A COMPUTER

By connecting the camera to a computer with the provided USB cable, images on a card can be transferred to the computer. Some OS's (operating systems) may need a special setup when connecting to the camera for the first time. Follow the chart below.

Even if your computer has a USB connector, data transfer may not function correctly if you are using one of the operating systems listed below or if you have an add-on USB connector (extension card, etc.).

●Windows 95/NT 4.0
●Windows 98 upgrade from Windows 95
●Mac OS 8.6 or lower (except Mac OS 8.6 equipped with USB MASS Storage support 1.3.5 installed at the factory)
●Data transfer is not guaranteed on a homemade PC system.

Note on using CAMEDIA Master 2.5 software

• When using CAMEDIA Master 2.5, click on “Removable Disk”, not “My Camera”. Under Mac OS, the disk drive will be labeled “Untitled”.
  ●To use CAMEDIA Master software, read its instructions.

Saving directly from a card

Card adapters enable you to save images on your personal computer without having to connect your camera directly to your computer.

For the latest information on available adapters, consult our Customer Support Center.

Computer operating environment Required devices
Personal computer equipped with Floppy disk adapter 3.5" floppy disk-drive
Personal computer equipped with a PC card PC card slot (PCMCIA) or an external PC card reader/writer	adapter
Personal computer equipped with a USB port Olympus	-brand removable media reader/writer

For more details, refer to the software CD's instructions on CD-ROM.

OPTIONAL ACCESSORIES

As of August 2001

●Camera case
●Photo printers for Olympus digital cameras
●AC adapter
●Standard SmartMedia card (8/16/32/64/128MB)
●Floppy disk adapter
●PC card adapter
●Olympus-brand removable media reader/writer
●NiMH battery
●NiMH battery charger

Visit the Olympus home page for the latest information on optional items. http://www.olympus.com/

ERROR CODES

If there is a problem with your camera, a blinking error code will appear.

Control panel	Monitor	Possible causes	Corrective action
		The card is not inserted, or it cannot be recognized.	Insert the card correctly.Insert a different card.
		No more pictures can be taken.	Replace the card or erase unneeded pictures.
		Writing to the card is prohibited.	If you are taking pictures, remove the write-protect adhesive seal.
		Cannot record, play back or erase pictures in this card.	If the card is dirty, wipe the gold contacts with a clean tissue and insert it again. If the problem is still not corrected, this card cannot be used.
		The recorded image cannot be played back with this camera.	Download the image to a personal computer and use image processing software to view it. If that cannot be done, the image file is partially damaged.
		The card is not formatted.	Format the card.
		There are no pictures in the card, so there is nothing to play back.	Insert a card which contains images.
		There is no empty space in the card, so it cannot record new information such as print data and sound.	Replace the card or erase unneeded pictures.
		The card cover is open.	Close the card cover.
	Empty screen	The temperature inside the camera is too high.	Remove the battery and wait until the camera cools down.
Other indications	Consult your nearest Olympus dealer or customer support department (see back cover).

SPECIFICATIONS

Product type Digital camera (for shooting and displaying)
Recording SystemStill Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)), TIFF (non-compression), Digital Print Order Format (DPOF)Sound with still images Wave formatMovie QuickTime Motion JPEG support
Memory 3V (3.3V) SmartMedia, 4 MB - 128 MB (all cards except 2 MB)
No. of storable pictures Record without sound(When a 16 MB 1 frame (TIFF: 2272 x 1704) card is used) Approx. 5 frames (SHQ: 2288 x 1712)Approx. 16 frames (HQ: 2272 x 1704)Approx. 49 frames (SQ1: 1280 x 960 NORMAL)Approx. 165 frames (SQ2: 640 x 480 NORMAL)
No. of effective pixels 3,950,000 pixels
Image pickup device 1/1.8" CCD solid-state image pickup4,130,000 (gross)
Recording image 2272 x 1704 pixels (TIFF/HQ)resolutions 2288 x 1712 pixels (SHQ)2048 x 1536 pixels (TIFF/SQ1)1600 x 1200 pixels (TIFF/SQ1)1280 x 960 pixels (TIFF/SQ1)1024 x 768 pixels (TIFF/SQ2)640 x 480 pixels (TIFF/SQ2)3200 x 2400 pixels (SHQ/HQ)2816 x 2112 pixels (SHQ/HQ)2560 x 1920 pixels (SHQ/HQ)
Lens Olympus lens 7.25 mm to 20.3 mm, f 2.8 to f 4.8,7 elements in 5 groups (equivalent to 35 mm to 98 mm lens on 35 mm camera), aspherical glass
Photometric system Digital ESP metering, Spot metering system
Aperture	W : f 2.8, f 3.4, f 4.0, f 4.8, f 5.6, f 8.0T : f 4.8, f 5.6, f 8.0
Shutter speed Used with mechanical shutterStill 1/2 to 1/1000 sec. (M mode: 16 to 1/1000 sec.;when slow synchronization is used: 4 to 1/1000 sec.)Movie 1/30 to 1/10000 sec.
Viewfinder Optical real image viewfinder
Monitor 1.5" TFT color LCD display,approx. 114,000 pixels
Battery charging time Approx. 6 sec. (at normal temperature with new for flash batteries)
Autofocus TTL system autofocus, Contrast detection system,Focusing range: 0.1 m to ∞ (0.3 ft to ∞)
Outer connector DC-IN jack, Multi connector (USB 1.0 compatible, A/V OUT)
Automatic calendar Up to 2031 system
Operating environmentTemperature 0°C to 40°C (32°F to104°F) (operation)-20°C to 60°C (-4°F to 140°F) (storage)Humidity 30% to 90% (operation)10% to 90% (storage)
Power supply For batteries, use a CR-V3 lithium battery pack,or 2 AA (R6) NiMH batteries, NiCd batteries,Alkaline batteries or lithium batteries.AC adapter (optional)Manganese (zinc-carbon) batteries cannot be used.
Dimensions(W) X (H) X (D)	87 mm x 68.5 mm x 43.5 mm(3.4" x 2.6" x 1.7")
Weight	190 g (0.4 lb) (without batteries/card)

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

Adresse : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Secondes restantes (mode uniquement)

P F4.8 1/600 0.0 24 MF

Secondes restantes (mode uniquement)

Row of eight black-and-white icons representing various application or service categories, including profile, landscape, photo, P, A/S/M, and video.

Symmetrical diagram with four directional arrows pointing outward around a central circular shape (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

4 Refermer correctement le couvercle.

PRÉPARATIFS (Suite)

Menu Mode (MODE MENU)

Black-and-white cityscape photo of a modern skyline with high-rise buildings and waterfront (no visible text or symbols)

Line drawing of a vintage digital camera with visible ports and buttons (no text or symbols)

Black-and-white cityscape illustration with a sun icon overlay (no text or symbols)

Voyant vert

Black-and-white photo of a group of animals outdoors, possibly dogs or mammals, with no visible text or symbols.

Voyant vert

F4.8 1/600 0.0 [ ]

Diagram showing three-step process of a device with sensor waves, likely demonstrating a motion or sensing procedure.

Black-and-white photo of two lions in a grassy field, no visible text or symbols

Secondes restantes

PRISE DE VUE DE BASE (Suite)

Illustration of a dog sitting on a dog's head with a crosshair overlay, next to a blank rounded rectangle (no text or symbols)

Diagram showing a device with two dogs and a hand interacting with a sensor, illustrating the process of sensor interaction.

Line drawing of a vintage camera with visible internal components and no text or symbols

Diagram showing camera control buttons with 'OK' labels and a hand pointing to the screen

P F4.8 1/600 0.0 24 MF

5 AF-Markierung

Row of eight black-and-white icons representing personal, cultural, and media-related symbols or icons.

Symmetrical diagram with four directional arrows pointing outward around a central circular component (no text or symbols)

Diagram showing a device being inserted into a container with labeled parts 6 and 7, indicating step 7.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

MODE MENU

Circular mechanical component with four symmetrical slots and central bore (no text or symbols)

Black-and-white cityscape photo of a modern skyline with high-rise buildings (no visible text or symbols)

Schreibanzeige

Line drawing of a vintage digital camera with visible ports and buttons (no text or symbols)

Black-and-white cityscape photo with a camera lens icon overlay (no text or symbols)

Grüne Sucher-LED

Black-and-white photo of a horse in a field with a sun icon pointing to its right side (no text or symbols)

Grüne Sucher-LED

Black-and-white photo of a group of lions in a grassy field, no visible text or symbols

Schreibanzeige

Diagram showing three-step process of a device with sensor waves, likely demonstrating a scanning or scanning process.

Illustration of a dog and a dog sitting together, with no visible text or symbols

Diagram showing a hand interacting with a dog, illustrating the process from image to digital interface.

Diagram of a digital camera with labeled parts and connections, including a hand icon and wireless signal indicator.

T W W T Q

OK 4 M M Pf M OK

Responsible : Olympus America Inc.

Dirección : 2 Corporate Center Drive, Melville, New York 11747-3157 U.S.A.

P F4.8 1/600 0.0 2 4 MF

P F4.8 1/600 0.0 24 mm MF

CÓMO USAR ESTE MANUAL

Row of eight black-and-white icons representing personal, landscape, photo, video, and audio-related symbols.

Significa "Presionar este botón".

Symmetrical diagram with four directional arrows pointing outward around a central circular component (no text or symbols)

4 2 3 Pulse.

OLYMPUS CAMDA

Diagram showing a device being opened into a tray, labeled with parts 6 and 7 indicating steps of operation.

Diagram of a printer or printer with an open lid and arrow indicating print direction (no text or symbols present)

Diagram of a vehicle interior showing a door handle and seat area with an arrow indicating a component (no text or symbols present)

Black-and-white cityscape photo of a modern skyline with skyscrapers, framed within a rounded rectangular frame (no text or symbols visible)

Black-and-white icon of a city skyline with a sun symbol, no text or symbols present

Lámpara verde

Black-and-white photo of a landscape with sun rays and a circular icon (no text or symbols)

Lámpara verde

F4.8 1/600 0.0 [ ]

Diagram showing three-step process of a device with sensor waves, likely demonstrating a motion or sensing procedure.

Black-and-white photo of a group of lions in a grassy field, no visible text or symbols

Seconds remaining

Illustration of a dog and a dog sitting together, with no visible text or symbols

Diagram showing a dog image being processed by a hand with sound waves, indicating sound or perception.

Enfoque manual

San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan Customer support (Japanese language only): Tel. [phone] Tokyo

OLYMPUS AMERICA INC.

Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://support.olympusamerica.com/

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://olympus.com/digital/

Adobe [Photoshop] Support

Adobe software updates and technical information can be obtained at:

http://www.adobe.com/support/

OLYMPUS OPTICAL CO. (EUROPA) GMBH.

Premises/Goods delivery: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel. [phone]

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

Hotline Numbers for customers in Europe:

Tel. [phone] for Germany

Tel. [phone] for Austria, Belgium, Denmark, France,

Netherlands, Norway, Sweden, Switzerland,

United Kingdom

Tel. [phone] for Finland, Italy, Luxembourg, Portugal,

Spain, Czech Republic

Tel. [phone] for Greece, Croatia, Hungary, and the rest of

Europe

Our Hotline is available from 9 am to 6 pm (Monday to Friday)

E-Mail: [e-mail]

© 2001 OLYMPUS OPTICAL CO., LTD.
