Product type	Heated display cabinet
Brand	Buffalo
Model	GF455
Dimensions (H x W x D)	582 x 755 x 390 mm
Weight	23 kg
Capacity	60 litres (approx.)
Electrical supply	230 V, 50 Hz, 650 W, 2.85 A
Temperature range	30 to 90 °C
Heat-up time (0 to 90 °C)	Approximately 28 minutes
Door type	2 sliding glass doors
Shelves	3 adjustable shelves
Water tank	Yes, capacity 0.5 L
Interior lighting	Interior lamp with green (power) and red (temperature reached) indicator
Thermostat	Adjustable
Intended use	Keeping food warm (does not cook)
Cleaning	Warm soapy water, do not immerse
Safety	Unplug before cleaning, allow to cool
Electrical connection	Earthed plug (green/yellow wire)
Repairs	Entrust to a qualified technician or Buffalo agent
Warranty	Complies with CE standards

Frequently Asked Questions - GF455 BUFFALO

How to install the Buffalo GF455 heated cabinet?

Place the unit on a flat, stable surface. Remove the protective film. Insert the display glass into the top then bottom slides. Place the shelves on the fixing pins. Insert the sliding doors with handles facing outward. Plug into a suitable mains socket.

What is the capacity and dimensions of the cabinet?

Dimensions are 582 x 755 x 390 mm (HxWxD) for a weight of 23 kg. Capacity is approximately 60 litres, with 3 shelves.

What temperature can the unit reach and how to adjust it?

The temperature range is 30 to 90 °C. Use the thermostat to set the desired temperature. The unit heats up to a maximum of 90 °C.

How to clean the heated cabinet?

Turn off and unplug the unit before cleaning. Allow to cool. Use warm soapy water to wipe the interior. Do not immerse or use a pressure washer.

Can the unit cook or reheat cold food?

No, this unit is designed only for keeping already hot food warm. It is not suitable for cooking or reheating cold food.

What to do if the unit does not heat and the green light is off?

Check that the unit is plugged in and switched on. If the plug or cord is damaged, contact a qualified technician. Also check the mains power supply.

Why does the red light remain off while the unit heats?

This may indicate a fault with the indicator light. Contact a Buffalo agent or a qualified technician for replacement.

What is the power consumption of the cabinet?

The unit operates at 230 V / 50 Hz with a power of 650 W and a current of 2.85 A.

Do I need to add water to the unit?

Yes, pour approximately 0.5 L of water into the water tank provided. This helps maintain humidity.

How should I dispose of the unit at the end of its life?

Do not throw it away with household waste. In accordance with the WEEE directive, take it to an approved recycling centre to protect the environment.

USER MANUAL GF455 BUFFALO

Exterior view of a stainless steel office oven with mesh grating and two black objects on the side (no visible text or symbols)

NL Warmhoudkast

Handleiding

PT Vitrina quente

Cleaning, Care and Maintenance .... 3

Troubleshooting 3

Technical Specifications 3

Electrical Wiring 4

Compliance 4

NL

Inhoudsopgave

Veiligheidstips 5

Inleiding 5

Verpakkingsinhoud 5

Installatie 6

Werking 6

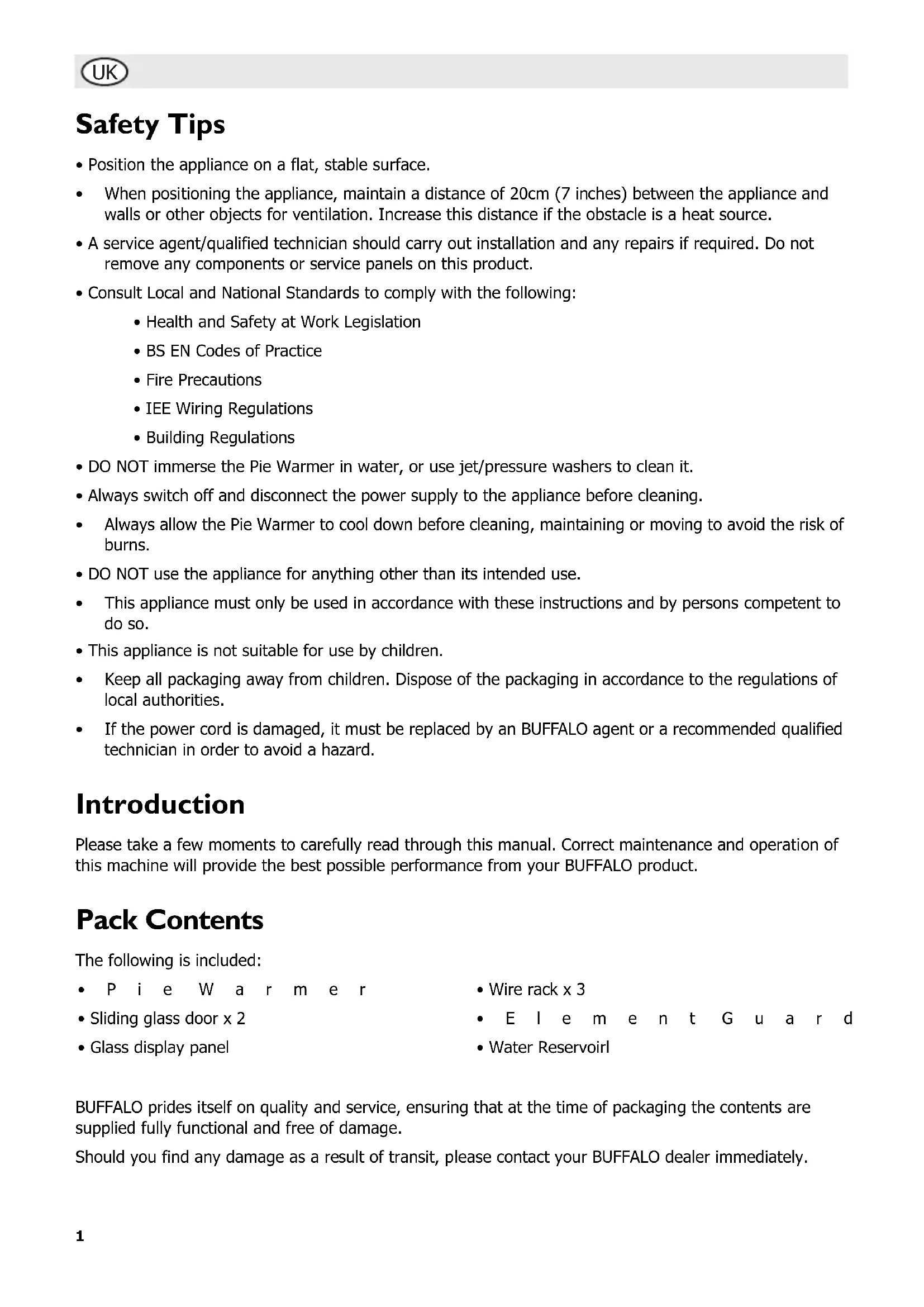

- Position the appliance on a flat, stable surface.

- When positioning the appliance, maintain a distance of 20cm (7 inches) between the appliance and walls or other objects for ventilation. Increase this distance if the obstacle is a heat source.

- A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

- Consult Local and National Standards to comply with the following:

• BS EN Codes of Practice
- Fire Precautions
• IEE Wiring Regulations
• Building Regulations

• Health and Safety at Work Legislation

• DO NOT immerse the Pie Warmer in water, or use jet/pressure washers to clean it.
• Always switch off and disconnect the power supply to the appliance before cleaning.
- Always allow the Pie Warmer to cool down before cleaning, maintaining or moving to avoid the risk of burns.
• DO NOT use the appliance for anything other than its intended use.
- This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not suitable for use by children.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• P i e W a r m e r
• Sliding glass door x 2

• Glass display panel

• Wire rack x 3
  • Element Guard

• Water Reservoir

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

To install the Pie Warmer:

I. Remove the Pie Warmer from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from its surfaces.

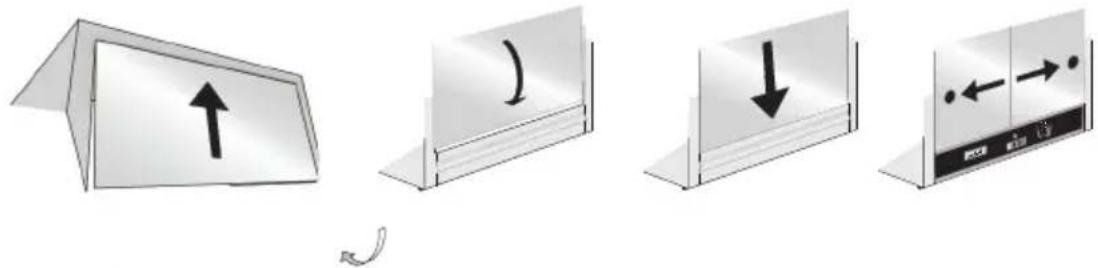

2. Take the glass display panel and raise it at an angle into the upper track at the rear of the unit [Fig. 1].
3. Once at the top of the track, position the bottom of the glass above the lower track [Fig. 2].
4. Carefully lower the glass into the bottom track [Fig. 3].

Fig. 1

1. Slide the wire racks into the bracket on the inner side of the Pie Warmer.
2. Insert the two sliding door panels in the same manner as the display panel. Ensure the handles are located towards the outside edges of the appliance [Fig. 4].
3. Connect the plug to a suitable mains socket and turn on the power supply.

Operation

Note: This appliance is for maintaining temperature only. It is NOT suitable for cooking products or heating products from cold.

I. Add water (0.5L) to the water reservoir
2. Set the thermostat to the desired temperature.
3. The unit will cycle on and off to maintain the set temperature.
The green indicator light and illuminated interior lamp shows when the unit is switched on. The red indicator light shows when the desired temperature has been reached.

Note: The appliance has a maximum temperature setting of 90°C.

Cleaning, Care and Maintenance

• Always turn Off the appliance and disconnect from the power supply before cleaning.

- Allow the appliance to cool before cleaning.

- The inner body of the appliance should be wiped down at the end of each day's operation. Additional cleaning may be required depending on frequency of use.

- Warm soapy water is recommended for cleaning. Cleaning agents may cause damage or leave harmful residues when used for a prolonged period on stainless steel.

- A BUFFALO dealer or qualified technician should carry out repairs if required.

Troubleshooting

If your BUFFALO Pie Warmer develops a fault, please check the following table before making a service call.

Fault Probable	Cause Action
The unit is not heating up and the green indicator light is Off	The unit is not switched on Check	the unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
The unit heats up but the red indicator light is Off	Indicator light is faulty Call BUFFALO agent or qualified technician
The unit is not heating up or heats up slowly and the indicator light is On	Incorrect operation Ensure:	• thermostat has been set correctly• doors are closed• thermostat sensor bulb has not been removed or damaged
	Thermostat failure Call BUFFALO agent or qualified technician
	Element failure	Call BUFFALO agent or qualified technician

Technical Specifications

Model	Voltage	Power	Current	Dimensions h x w x d (mm)	Weight (kg)	Approx. Pie Capacity	Heat up Time (to 90°C)	Operating Temperature Range
GF454	230 50Hz	350W	1.52A	500 x 595 x 390	16	30	27 minutes	30 - 90°C
GF455	230, 50Hz	650W	2.85A	582 x 755 x 390	23	60	28 minutes	30 - 90°C

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad • Declaração de conformidade • Överensstämmelseförsäkran •
  • Overensstemmelseserklæring • Konformitetserklæring • Selvitys vaatimustenmukaisuudesta •

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento • Pie Warmer Enhetstyp • Udstyrstype • Type utstyr • Laitteen tyyppi:

EMC Directive 2004/108/ECLVD Directive 2006/95/EC

EN55014-1:2006+A1:2009+A2:2009,

EN61000-3-2:2006+A1:2009+A2:2009

EN61000-3-3:2008, EN55014-2:1997+AI:2001

+A2:2008, EN60335-1:2002+A11:2004+A1:2004

+A|2:2006+A2:2006+A|3:2008+A|4:2010+A|5:2001,E

N60335-2-49:2003+AI:2008, EN62233:2008

BUFFALO

Fourth Way

Avonmouth

Bristol

BSII 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
