Thoroughly read this booklet before use and save it for future reference.

Twin Tub Washing Machine Instruction Manual

CE RECYCLABLE

CE RECYCLABLE

CONTENTS:

Introduction

Technical Parameters and Specifications

Structure and Parts

Washing Instructions

Attention Points

Maintenance

Troubleshooting

Wiring Diagram

Introduction

Thank you for purchasing this semi-automatic washing machine. The design of this product uses the specially patented technology of cabinet integration. The entire body casing is made of plastic, thus ensuring that your semi-automatic washing machine will never be affected by rust. Compared to other general twin tub washing machines, the washer is relatively lighter and allows you to save more space.

Through the integration of new technology, this washer with large wave pulsator and new water flow, will not only ensure less twisting of clothing, but also produce better cleaning and washing results. The water inlet, sprinkling, spin-drying and water flow functions are also made available to save time and labor and reduce water consumption.

We trust that you will be satisfied with your purchase of this beautifully designed and attractive semi-automatic washing machine.

Technical parameters and specifications

Model	Water capacity		Input power		Power source
	high	low	wash	spin	voltage	hertz
WMR3700TWIN	24L	18L	240W	120W	220-240V	50/60Hz

Structure and parts of product

Labeled diagram of a washing machine interior with numbered parts for identification

10 11 12

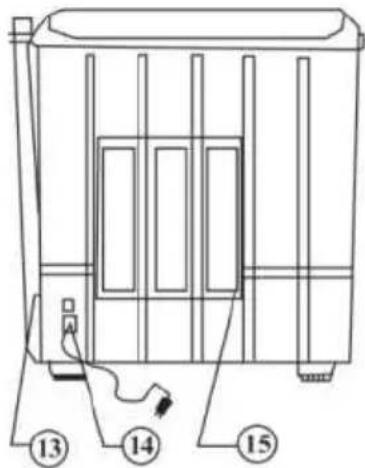

Technical diagram of a mechanical device with numbered components labeled 13, 14, and 15

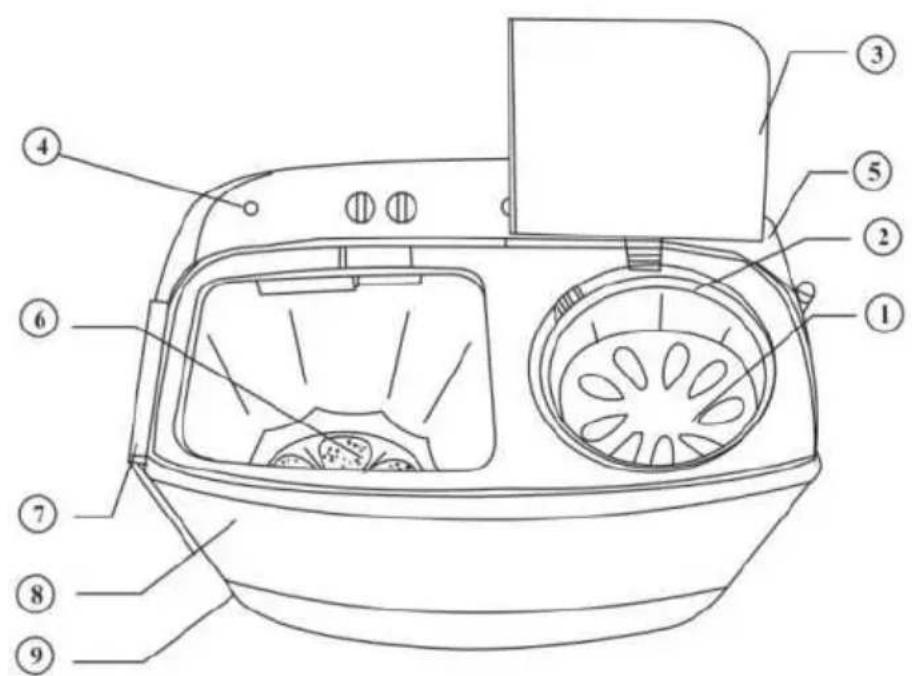

1. spin cap
2. spin tub
3. spin cover
4. water inlet
5. control panel
6. pulsator
7. wash cover

8. cabinet

9. Bottom

10. wash timer switch
11. wash & drain selector switch

12. spin timer switch

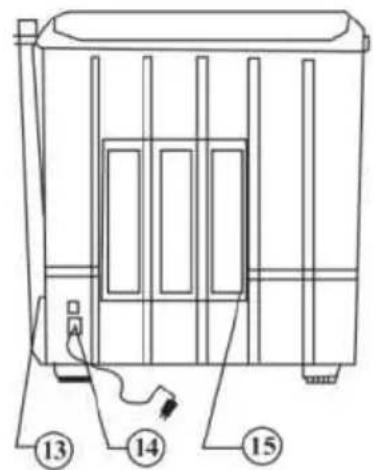

13. drain hose

14. power wire
15. back cover

Washing Instructions

Preparation

1. Place the machine on a level surface
2. The plug seat should have a safe grounded connection.
3. Lay down the overflow hose.
4. Use the water inlet hose to connect the water tap to the water inlet.
5. Adjust the water level based on the type of material and weight of the clothing.
6. Turn on the power.

Washing

1. Set the “wash & drain selector switch” according to the type of material and weight of the clothes.
2. Set the "wash & drain selector switch" to the wash position.
3. Set the “wash timer” and place the clothes into the tub, adjust the water level to the proper position and put the proper amount of detergent into the wash tub.
4. Set the "wash timer" and the washing machine will start to wash.
5. After washing, set the “wash & drain” selector switch to the drain position to start draining off water.

Spinning

1. After spinning, set the water inlet hose connected to the water inlet to the spin tub position for 20-30 seconds.
2. According to the “spin timer” process, spin the clothes for 1min\~5min, repeat once or twice.

Rinsing

1. After spinning, the spin tub will stop. Open the spin cover and transfer the clothes from the spin tub to the wash tub to prepare for rinsing.
2. Repeat the washing process, but do not add any detergent.

Attention Points

Technical diagram showing a device with labeled components including 'gave1', 'sawage box', and 'davon'.

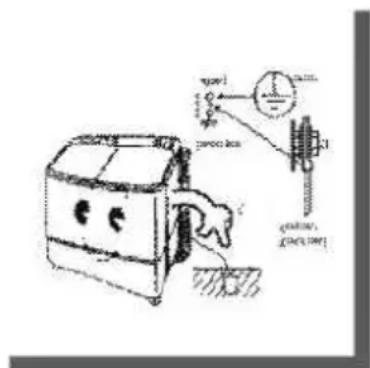

For your own safety, ensure that the ground connection is correct.

Illustration of a person holding a large object with a hand above, possibly a device or tool (no text or symbols visible)

Never put your hands into the spin tub while it is working.

Simple line drawing of a person holding a device with a cross symbol above (no text or symbols present)

Never wash textiles that contain volatile materials to avoid machine damage or water blockage due to contamination.

Simple line drawing of a hand pressing down with a curved arrow indicating downward motion (no text or symbols)

The timer should always be turned clockwise

Cartoon illustration of a sad, anthropomorphic cube character with arms and legs, surrounded by expressive motion lines (no text or symbols)

When abnormal sounds/movements occur during operation, stop the washing machine as soon as possible and check. (Please refer to troubleshooting, page 7.)

50000 C

When washing, the water temperature should be below 60^ C, otherwise the plastic components may deform.

Maintenance

After use, pull out the plug to prevent accidents.

Illustration of a person cleaning a wall with a magnifying glass (no text or symbols)

When cleaning the washing machine use a soft cloth, this will prevent scratches on the surface of the cabinet.

Illustration of a person reacting to a device with raindrops and spray, no text or symbols present

Do not place the washing machine outdoors or in damp areas such as the bathroom.

Cartoon illustration of a person sitting on a large object with arrows indicating motion or pressure, surrounded by smaller figures (no text or symbols)

Do not put heavy objects on top of the washing machine.

Simple line drawing of a person standing near a box with hands and legs, no text or symbols present

Do not place the washing machine near heat generating items such as gas cookers.

Troubleshooting

Problem	Reason	Solution
The pulsator is too slow	Power cut or switch off Switch on the power
	Transmission belt left off	Assemble the transmission belt
	Belt pulley has become loose	Tighten the belt
	Pulsator is blocked Remove the block
The pulsator does not rotate	Belt is loose Tighten the belt or renew it
	The clothes in the spin dry tub are loose	Tighten the belt and the screw
Abnormal noise and vibration	The clothes in the spin dry tub are unbalanced	Replace the clothes in the tub
	Something is jammed between the pulsator and the wash tub	Remove the jammed object(s).
Water leaks from the wash tub	Wash tub was not connected tightly to the hose	Reconnect and tighten the hose
Spin-dry basket does not rotate	The light switch has a loose contact	Adjust the contactor of the switch
	The fixed screw of the spin dry basket or shaft coupling is loose	Tighten the screw
	The shaft of the spin dry basket is twined by the textile	Remove the textile
	Brake dragline is loose Tighten the dragline
The spin tub does not drain	Something has fallen into the space between spin tub and spin dry basket	Remove the object

Attention: If the problem cannot be resolved, please contact the Service Center.

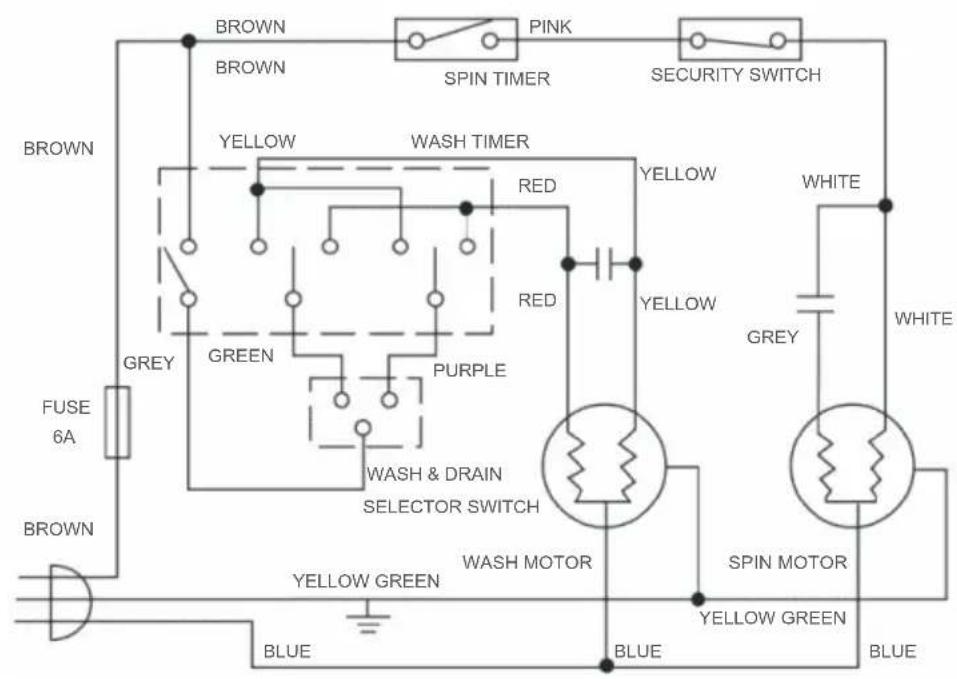

Wiring Diagram

	Washing Spinning
Rated voltage 220-240V~		220-240V~
Rated frequency 50/60 Hz 50/60 Hz
Rated energy consumption power 240 W 120 W

BROWN BROWN SPIN TIMER PINK SECURITY SWITCH YELLOW WASH TIMER RED YELLOW GREEN RED YELLOW WHITE GRIEY WHIT FUSE 6A GREEN PURPLE WASH & DRAIN SELECTOR SWITCH WASH MOTOR SPIN MOTOR YELLOW GREEN BLUE BLUE BLUE BLUE BROWN
