BEKO RFSM200T40WN - Freezer
📄 95 pages English EN Download 💬 AI Question 11 questions ⚙️ Specs
Notice BEKO RFSM200T40WN - page 2
View the manual : Français FR Deutsch DE English EN Nederlands NL
Pick your language and provide your email: we'll send you a specifically translated version.
Product typeFreezer
BrandBeko
ModelRFSM200T40WN
Net capacity200 L (estimated)
Dimensions (H x W x D)154 x 60 x 60 cm (estimated)
Net weight50 kg (estimated)
Power supply220-240 V, 50 Hz
Power consumption100 W (estimated)
RefrigerantR600a
Special featuresQuick freezing, Open door alarm, Automatic defrost
Number of drawers4
Interior lightingYes (internal lamp)
Door reversibilityYes
Child safetyDoor lock (key provided)
Spare partsAvailable for 10 years
Warranty24 months
Noise level42 dB (estimated)
Climate classN-ST (estimated)
Annual energy consumption250 kWh (estimated)

Frequently Asked Questions - RFSM200T40WN BEKO

How to adjust the freezer temperature?
Use the freezing adjustment button on the control panel to select the desired temperature between - (warmer) and - - - (colder).
What to do if the open door alarm sounds?
Close the freezer door or press any button on the display to stop the audible signal. The alarm triggers after 1 minute of open door.
How to activate the Quick Freezing function?
Press the Quick Freezing button. The corresponding icon lights up. The function automatically deactivates after 25 hours or when the required temperature is reached.
Can I freeze hot food?
No, always let food cool to room temperature before placing it in the freezer to avoid overloading the cooling system.
How to clean the freezer interior?
Use a damp cloth soaked in a solution of warm water and baking soda (1 teaspoon per 0.5 L). Dry thoroughly. Never use abrasive products or solvents.
What to do if the compressor does not start?
Wait about 6 minutes: the thermal protection device may have been activated after a power cut. If the problem persists, contact after-sales service.
Why is there condensation on the interior walls?
This may be due to frequent door opening, a very humid environment, or uncovered liquid foods. Reduce openings and store food in closed containers.
How to reverse the door opening direction?
Follow the instructions in the manual (Door Reversibility section) proceeding in the indicated numerical order. Unplug the appliance before any handling.
Where to find the serial number and rating plate?
The rating plate is located on the left wall inside the freezer. It indicates the gas type, voltage, and other technical information.
How long can I store frozen food?
At a temperature of -18 °C or below, food can be stored for several months. Respect expiration dates and manufacturer's recommendations.

User questions about RFSM200T40WN BEKO

1 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

Does the BEKO RFSM200T40WN freezer defrost automatically?
Frequently Asked Questions - 24 d
Response Notice-Facile

Yes, the BEKO RFSM200T40WN freezer defrosts automatically. The freezer compartment is equipped with an automatic defrosting system that operates without any intervention on your part.

Cooling is provided by a compressor using the refrigerant R600a (flammable gas), which maintains the compartment at a minimum temperature of -18°C. It is normal to hear noises when the compressor starts - this is part of the regular operation of the appliance.

Additionally, the freezer features a fast freezing function that lowers the temperature below the set values. This function automatically deactivates after 25 hours or when the required temperature is reached.

Respond (be the first)

Download the instructions for your Freezer in PDF format for free! Find your manual RFSM200T40WN - BEKO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RFSM200T40WN by BEKO.

USER MANUAL RFSM200T40WN BEKO

RECYCLED & RECYCLABLE PAPER

BEKO RFSM200T40WN - 1

RECYCLED AND RECYCLABLE PAPER

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

  • Read the manual before installing and operating the product.
  • Make sure you read the safety instructions.
  • Keep the manual in an easily accessible place as you may need it later.
  • Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful tips. Warning against dangerous conditions for life and property. Warning against electric voltage.

i INFORMATION
ENERGThe model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/
SUPPLIER'S NAMEMODEL IDENTIFIER
AA

CONTENTS

1 Your Freezer 3

2 Safety and environment instructions 4

3 Installation 8

Points to be paid attention to when the relocation of the freezer .8

Electrical connection 9

Disposing of the packaging 9

Disposing of your old freezer 9

Placing and Installation. 10

4 Preparation 12

5 Using your freezer 13

Freezing fresh food 14

Recommendations for preservation of frozen food 14

Placing the food 14

Deep-freeze information 15

6 Maintenance and cleaning 16

Protection of plastic surfaces 16

7 Troubleshooting 17

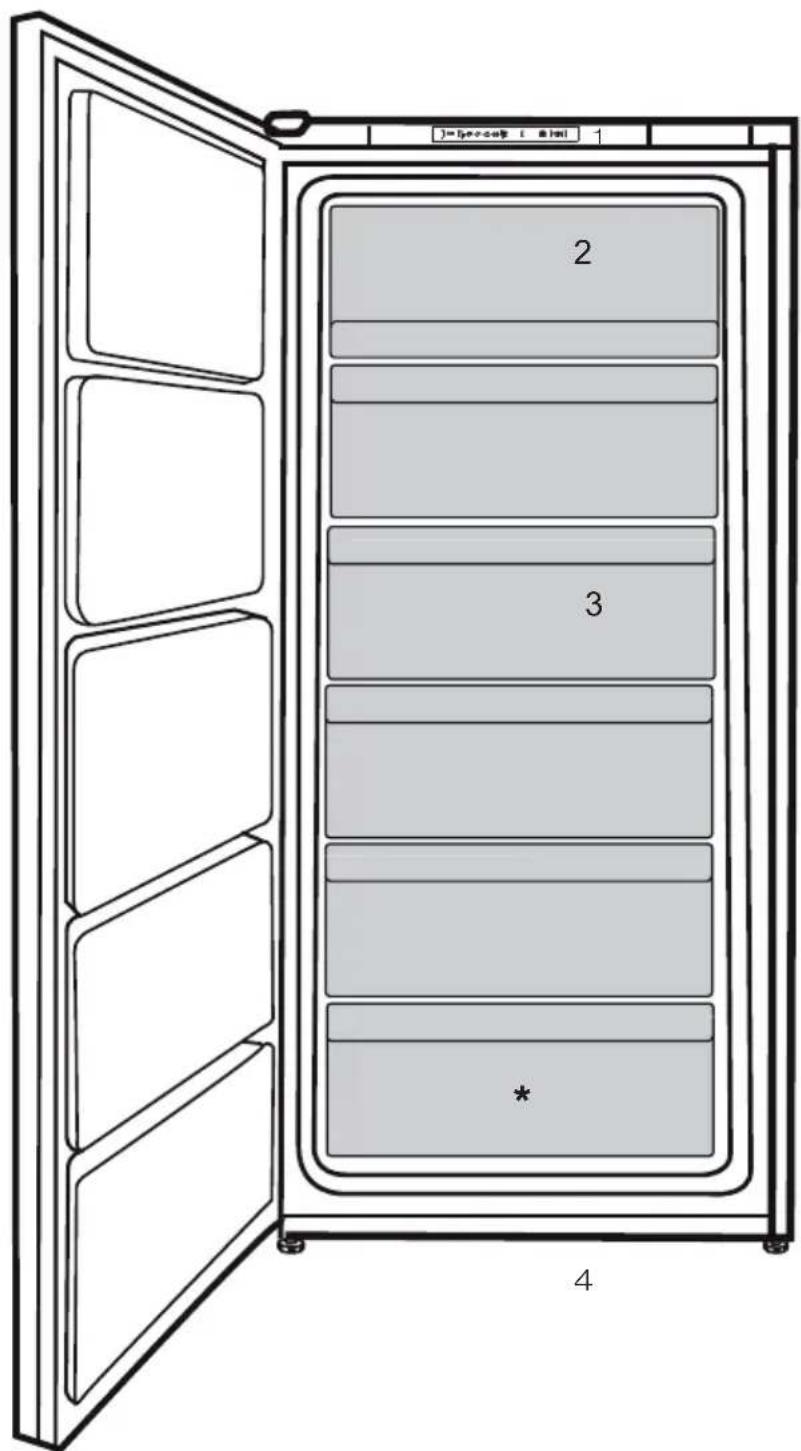

1 Your Freezer

BEKO RFSM200T40WN - Your Freezer - 1

  1. Thermostat
  2. Flap (Fast-Freeze compartment)
  3. Drawers
  4. Adjustable front feet

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

  • staff kitchen areas in shops, offices and other working environments;
  • farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

1.1. General safety

  • This product should not be used by persons with physical, sensory or mental disabilities, without sufficient knowledge and experience, or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device. In case of malfunction, unplug the device. After unplugging, wait at least 5 minutes before plugging in again.
  • Unplug the product when not in use.
  • Do not touch the plug with wet hands! Do not pull the cable to unplug, always hold the plug.
  • Do not plug in the refrigerator if the socket is loose.
  • Unplug the product during installation, maintenance, cleaning and repair. If the product will not be used for a while, unplug the product and remove any food inside.
  • Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

BEKO RFSM200T40WN - General safety - 1

BEKO RFSM200T40WN - General safety - 2

  • Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
  • Do not wash the product by spraying or pouring water on it! Danger of electric shock!
  • In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
  • Plug the product into an earthed socket. Earthing must be done by a qualified electrician. If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.
  • Do not touch frozen food with wet hands! It may adhere to your hands!
  • Do not place liquids in bottles and cans into the freezer compartment. They may explode.
  • Place liquids in upright position after tightly closing the lid.
  • Do not spray flammable substances near the product, as it may burn or explode.
  • Do not keep flammable materials and products with flammable gas

(sprays, etc.) in the refrigerator.

  • Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
  • Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off. Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
  • Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts. Take care not to trap the power cable.

BEKO RFSM200T40WN - General safety - 3

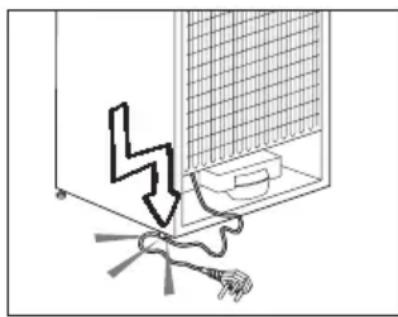

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

  • Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
  • If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
  • Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.
  • Use drinking water only.

1.2. Intended use

  • This product is designed for home use. It is not intended for commercial use.
  • The product should be used to store food and beverages only.
  • Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
  • The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
  • Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

  • Keep packaging materials out of children's reach.
  • Do not allow the children to play with the product. If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

BEKO RFSM200T40WN - Compliance with WEEE Directive and Disposing of the Waste Product - 1

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with

normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

  • This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

3 Installation

The manufacturer will not be liable for any event caused by disregarding the information supplied in this user manual.

Points to be paid attention to when the relocation of the freezer

  1. Your freezer should be unplugged. Before transportation of your freezer, it should be emptied and cleaned.
  2. Before it is re-packaged, shelves, accessories, risper, etc. inside your freezer should be fixed with adhesive tape and secured against impacts. Packaging should be adequate and the transportation rules on the package should be strictly observed.
  3. Original packaging and foam materials should be kept for future transportations or moving. Before you start the freezer,

Check the following before you start to use your freezer:

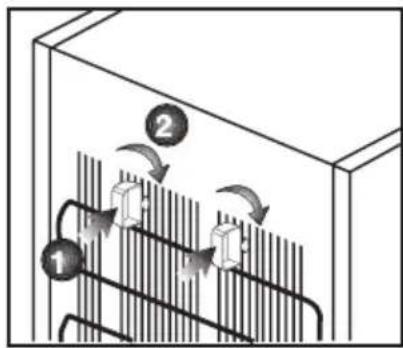

  1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your freezer and the wall. (The picture is drawn up as a representation and may not be identical with your product.)

BEKO RFSM200T40WN - Check the following before you start to use your freezer: - 1

  1. Clean the interior of the freezer as recommended in the "Maintenance and cleaning" section.
  2. Connect the plug of the freezer to the wall socket. When the freezer door is opened, the internal lamp will turn on.

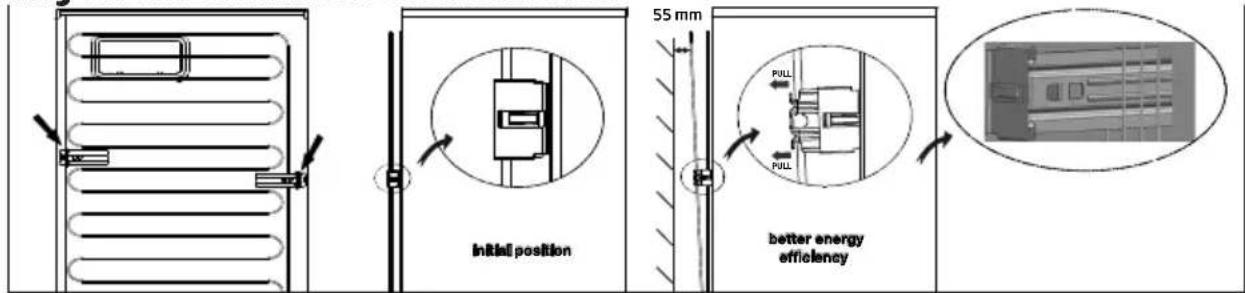

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in the picture below.

*may not be available in all models

BEKO RFSM200T40WN - *may not be available in all models - 1

  1. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running, and this is quite normal.
  2. Front edges of the freezer may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket that is protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

  • The power plug must be easily accessible after installation.
  • Electrical safety of your freezer shall be guaranteed only if the earth system in your house complies with standards.
  • The voltage stated on the label located at the left inner side of your product should be equal to your network voltage.
  • Extension cables and multi plugs must not be used for connection. A damaged power cable must be replaced by a qualified electrician.

Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your freezer is produced from recyclable materials.

Disposing of your old freezer

Dispose of your old freezer without giving any harm to the environment.

  • You may consult your authorized dealer or waste collection center of your municipality about the disposal of your freezer.

Before disposing of your freezer, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

If the entrance door of the room where the freezer will be installed is not wide enough for the freezer to pass through, then carefully remove the doors of your freezer and pass it sideways through the door.

  1. Install your freezer to a place that allows ease of use.
  2. Keep your freezer away from heat sources, humid places and direct sunlight.
  3. There must be appropriate air ventilation around your freezer in order to achieve an efficient operation. If the freezer is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
  4. Place your freezer on an even floor surface to prevent jolts.

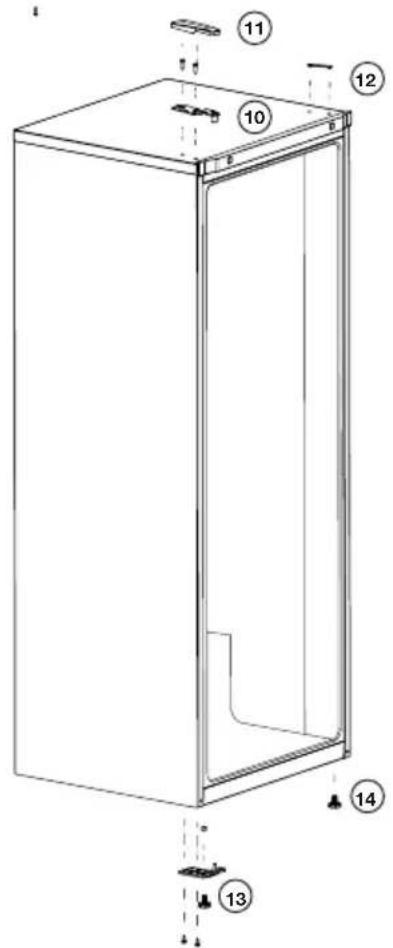

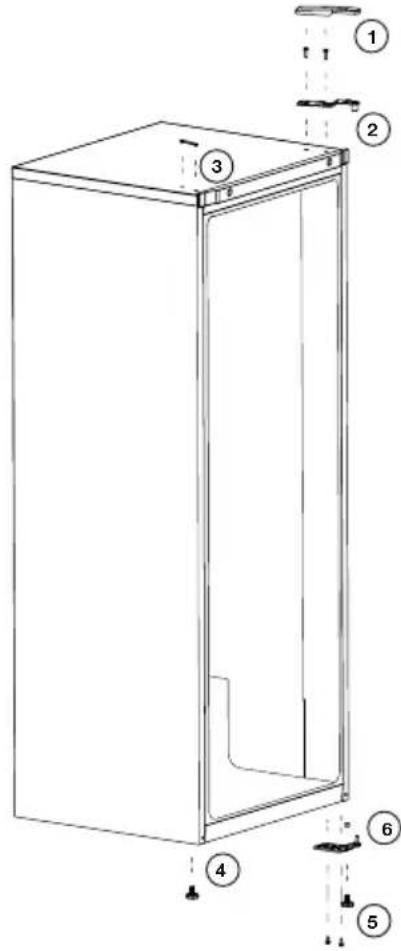

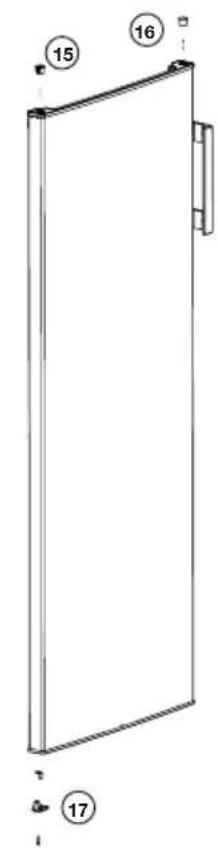

Reversing the doors

Proceed in numerical order.

BEKO RFSM200T40WN - Reversing the doors - 1

BEKO RFSM200T40WN - Reversing the doors - 2

BEKO RFSM200T40WN - Reversing the doors - 3

BEKO RFSM200T40WN - Reversing the doors - 4

4 Preparation

  • For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance';
  • Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
  • The ambient temperature of the room where you install your refrigerator should at least be -15°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
  • Please make sure that the interior of your refrigerator is cleaned thoroughly. If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
  • When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
  • The door should not be opened frequently.
  • It must be operated empty without any food in it.
  • Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "Recommended solutions for the problems" section.
  • Original packaging and foam materials should be kept for future transportations or moving.
  • The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
  • Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
  • In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
  • Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.
  • Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. In this energy saving function, functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy while maintaining the freshness of your foodstuff.

5 Using your freezer

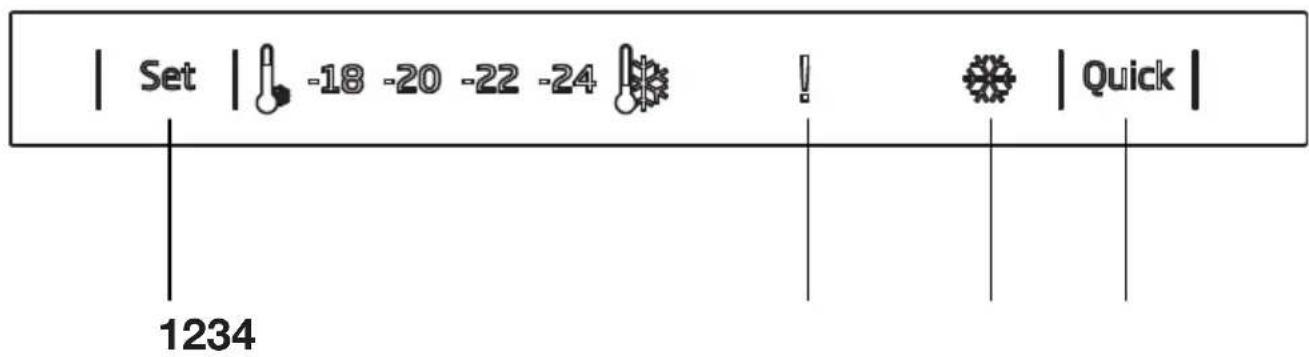

BEKO RFSM200T40WN - Using your freezer - 1

1.Freezer Set Function

This function allows you to make the freezer compartment temperature setting.

Press this button to set the temperature of the freezer compartment to - (warmest), -, ..., - - - (coldest) respectively.

2.High Temperature Error / Warning Indicator

This light comes on during high temperature failures and error warnings.

3-Quick Freeze Indicator

This icon lights when the Quick Freeze function is active.

4-Quick Freeze Function

When you press Quick Freeze button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the freezer compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to activate this feature before putting the food into the freezer.

Quick Freezer indicator will remain

lit when the Quick Freezer function is enabled. To cancel this

function, press the Quick Freezer button again. The Quick Freezer indicator will turn off and return to its normal settings.

If you do not cancel it, Quick Freezer will cancel itself automatically after 2 hours or when the freezer compartment reaches the required temperature. This function is not recalled when power restores after a power failure.

Figures in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

Freezing fresh food

  • It is preferable to wrap or cover the food before placing it in the refrigerator.
  • Hot food must cool down to room temperature before putting it in the refrigerator.
  • The foodstuff that you want to freeze must be fresh and in good quality.
  • Foodstuff must be divided into portions according to the family's daily or meal-based consumption needs.
  • Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
  • Materials used for packaging must be tear-proof and resistant to cold, humidity, odor, oils, and acids, and they must also be airtight. Moreover, they must be well closed and made from easy-to-use materials suitable for deep freeze usage.
  • Frozen food must be used immediately after thawing and should never be re-frozen.
  • Please observe the following instructions to obtain the best results.
  • Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
  • Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
  • Take special care not to mix already frozen food and fresh food.

Recommendations for preservation of frozen food

  • Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a frozen food storage compartment. To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:
  • Put packages in the freezer as quickly as possible after purchase.
  • Ensure that contents are labeled and dated.
  • Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelvesVarious frozen food such as meat, fish, ice cream, vegetables and etc.
Egg tray Egg
Fridge compartment shelvesFood in pans, covered plates and closed containers
Fridge compartment door shelvesSmall and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables andFruits
Freshzone compartment Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when placed in a refrigerator in order to maintain good quality.

It is possible to keep food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING!

  • Foodstuff must be divided into portions according to the family's daily or meal-based consumption needs.
  • Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
  • Materials necessary for packaging:
  • Cold-resistant adhesive tape
  • Self-adhesive labels, rubber rings, pen

Materials used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils, and acids.

Foodstuff to be frozen should not be allowed to come in contact with previously frozen items to prevent their partial thawing.

be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and should never be re-frozen.

Activate the "quick freeze function" at least 24 hours before loading fresh food. - Put 2 ice packs (if available) inside the bottom drawer. - Place fresh food on the shelves of the 2nd and 3rd from the bottom. (Maximum capacity can be achieved by removing the drawers.)

6 Maintenance and cleaning

Never use gasoline, benzene or similar substances for cleaning purposes. We recommend that you unplug the appliance before cleaning. Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it. Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface. Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. Make sure that no water enters the lamp housing and other electrical items. If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

Check door seals regularly to ensure they are clean and free from food particles. To remove door racks, remove all the contents and then simply push the door rack upwards from the base. Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces. Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

  • The power plug is not fully settled. >> Plug it in to settle completely into the socket.
  • The fuse connected to the socket powering the product or the main fuse is blown. >> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

  • The door is opened too frequently >> Take care not to open the product's door too frequently. The environment is too humid. >> Do not install the product in humid environments.
  • Foods containing liquids are kept in unsealed holders. >> Keep the foods containing liquids in sealed holders. The product's door is left open. >> Do not keep the product's door open for long periods.
  • The thermostat is set to too low a temperature. >> Set the thermostat to the appropriate temperature.

Compressor is not working.

  • In case of sudden power failure or pulling the power plug off and putting it back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

Defrosting is active. >> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. The product is not plugged in. >> Make sure the power cord is plugged in. - The temperature setting is incorrect. >> Select the appropriate temperature setting. The power is out. >> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

  • The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

  • The new product may be larger than the previous one. Larger products will run for longer periods.
  • The room temperature may be high. The product will normally run for long periods in higher room temperature. The product may have been recently plugged in or a new food item is placed inside. >> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. Large quantities of hot food may have been recently placed into the product. >> Do not place hot food into the product.
  • The doors were opened frequently or kept open for long periods. >> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
  • The freezer or cooler door may be ajar. >> Check that the doors are fully closed.
  • The product may be set to a temperature that is too low. >> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
  • The cooler or freezer door washer may be dirty, worn out, broken, or not properly seated. Clean or replace the washer. A damaged or torn door washer will cause the product to run for longer periods to maintain the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

  • The freezer compartment temperature is set too low. Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

  • The cooler compartment temperature is set too low. Set the cooler compartment temperature to a higher degree and check again.

The food items kept in the cooler compartment drawers are frozen.

  • The cooler compartment temperature is set too low. Set the cooler compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

  • The cooler compartment temperature is set too high. Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant

parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

  • The doors were opened frequently or kept open for long periods. Do not open the doors too frequently. The door may be ajar. Fully close the door. The product may have been recently plugged in or a new food item is placed inside. This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. Large quantities of hot food may have been recently placed into the product. Do not place hot food into the product.

Shaking or noise.

  • The ground is not level or durable. If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
  • Any items placed on the product may cause noise. Remove any items placed on the product.

The product is making noise of liquid flowing, spraying, etc.

The product's operating principles involve liquid and gas flows. This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

  • Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
  • The doors were opened frequently or kept open for long periods. Do not open the doors too frequently; if open, close the door. The door may be ajar. Fully close the door.

There is condensation on the product's exterior or between the doors.

The ambient weather may be humid, this is quite normal in humid weather. The condensation will dissipate when the humidity is reduced.

The interior smells bad.

The product is not cleaned regularly. Clean the interior regularly using sponge, warm water and carbonated water. Certain holders and packaging materials may cause odour. Use holders and packaging materials without free of odour. The foods were placed in unsealed holders. Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

  • Food packages may be blocking the door. Relocate any items blocking the doors. The product is not standing in full upright position on the ground. Adjust the stands to balance the product. The ground is not level or durable. Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

The food items may be in contact with the upper section of the drawer. Reorganize the food items in the drawer.

If the surface of the product is hot.

  • High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

DISCLAIMER / WARNING

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the "Self-Repair" section).

Therefore, unless otherwise authorized in the "Self-Repair" section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC.

However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/ warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee.

Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles, door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the

instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair.

Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board, inverter board, display board, etc.

The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years. During this period, original spare parts will be available to operate the refrigerator properly.

The minimum duration of guarantee of the refrigerator that you purchased is 24 months.

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BEKO

Model : RFSM200T40WN

Category : Freezer
