Product Type	Wine Cooler / Beverage Cooler
Brand	NewAir
Model	AB850B
Voltage	110-120 V
Frequency	60 Hz
Current	1.3 A
Power Consumption	85 W
Capacity (cans)	90 cans
Storage Capacity	2.2 ft³
Temperature Range	3 °C to 18 °C (37 °F to 65 °F)
Refrigerant	R600a (1.09 oz)
Number of Shelves	3 shelves
Door Material	Stainless Steel
Interior Lighting	LED
Adjustable Thermostat	Yes (settings 1 to 7)
Door Lock	Yes
Leveling Legs	Yes (front)
Manual Defrost	Recommended if frost accumulates
Recommended Cleaning	Warm water and mild detergent every 6 months
Limited Warranty	1 year (parts and labor)

Frequently Asked Questions - AB850B NewAir

How to adjust the temperature of the AB850B wine cooler?

Turn the temperature selector on the control panel. The settings range from 1 (warmest) to 7 (coldest). Setting 0 turns off the unit. The temperature range is 37 °F to 65 °F (3 °C to 18 °C).

What to do if the door does not close properly?

Check that nothing is blocking the door. Make sure the door gasket is clean and in good condition. If necessary, replace the gasket. Avoid opening the door too frequently or leaving it open for a long time.

Why is my cooler making noise?

Noise may be due to an uneven level. Adjust the leveling legs. Ensure the unit is installed with adequate ventilation (at least 2 inches at the back, 4 inches above). A too-low temperature setting can also cause noise.

How to clean the interior of the AB850B?

Unplug the unit and remove all contents. Wash the interior with warm water and a mild detergent. Do not use abrasive cleaners. Also clean the door gasket with soapy water.

How often should I defrost the unit?

Defrost when you notice excessive frost buildup. To defrost, set the thermostat to 4 or 5 for 30 to 60 minutes, then return to 1 or 2. If frost persists, unplug and let it melt, then remove ice with a plastic utensil.

What are the required clearance distances for installation?

The unit requires adequate air circulation. Observe these clearances: sides: 3/4 inch (19 mm), top: 4 inches (100 mm), back: 2 inches (50 mm). Do not install the unit in a built-in cabinet.

Can I use an extension cord to plug in the unit?

No, never use an extension cord. Plug the unit directly into a grounded outlet. Using an extension cord may cause fire or electric shock and voids the warranty.

How many cans can I store in the AB850B?

The capacity is 90 standard cans. The storage volume is 2.2 cubic feet. Do not overload the shelves to ensure proper air circulation.

What to do if a red light is flashing inside?

This indicates frost buildup. Follow the defrosting procedure: unplug, let the frost melt, manually remove ice, then plug back in. Make sure the temperature is not too low and there is no excess moisture.

What is the warranty of the NewAir AB850B wine cooler?

The limited manufacturer's warranty covers 1 year from the purchase date for parts and labor against defects in materials or workmanship. The buyer assumes shipping costs. To claim the warranty, contact [e-mail] with proof of purchase.

USER MANUAL AB850B NewAir

90-Can Beverage Fridge

Black refrigerator with multiple beverage cans on the glass, one labeled 'newair' (no other text or symbols visible)

OWNER'S MANUAL

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole NewAir family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on NewAir.

As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us:

For questions regarding your product, please contact us at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

Connect with Us:

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Specifications 5

Register Your Product Online....6

Safety Information & Warnings 7

Parts List....8

Parts Diagram....8

Assembly & Installation 9

Operating Instructions....10

Temperature Adjustment .... 10

Optimizing Performance....10

Cleaning & Maintenance....11

Cleaning Your Cooler....11

Defrosting Your Cooler....11

Moving Your Cooler 11

Troubleshooting....12

Limited Manufacturer's Warranty 13

SPECIFICATIONS

MODEL NO.	AB-850B
VOLTAGE:	110 – 120 V
CURRENT:	1.3A
FREQUENCY:	60Hz
POWER CONSUMPTION:	85W
BOTTLE CAPACITY:	90 cans
STORAGE CAPACITY:	2.2 cu. ft.
TEMPERATURE RANGE:	37°F - 65°F
REFRIGERANT:	R600a (1.09 oz)

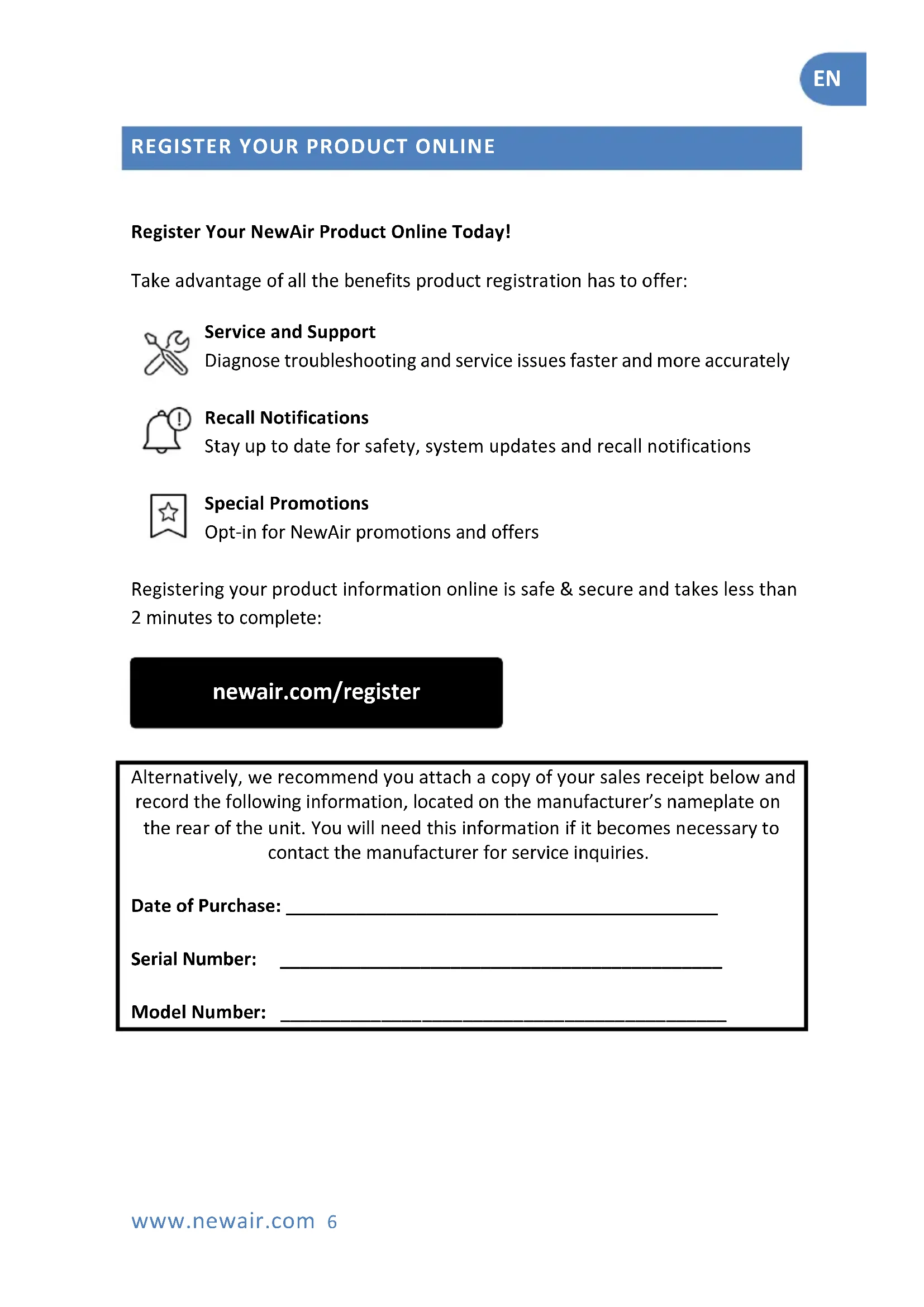

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number: ____

Model Number: ____

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:

Shock Hazard – Electrical Grounding Required

• Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.
• Altering or cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire, loss of property and/or life, and will void the warranty.
• Never use an extension cord to connect power to the unit.
• Avoid operating this beverage cooler in excessively moist or humid environments.

Important Precautions:

• Do not lift unit by door handle.
• Never install or operate the unit behind closed doors.
• Failure to clean the condenser every six months can cause the unit to malfunction.
• Allow unit temperature to stabilize for 24 hours before use.
• Do not block any internal fans.
• Keep the beverage cooler away from hazardous materials or combustible/flammable substances.
• Use only genuine supplier's replacement parts. Imitation parts can damage the unit, affect its operation or performance, and may void the warranty.

Attention: Child Entrapment Risk!

To prevent the risk of child entrapment, do not allow children to operate, play with, or crawl inside the unit. If the unit will not be used for an extended period of time, remove the door and leave the shelves in place so that children cannot crawl inside. Also remove the door when disposing of the unit.

PARTS LIST

When you receive your unit, carefully remove the exterior and interior packaging. It is recommended that you retain the packaging for future use.

Check to make sure the following parts are included:

• 3 Shelves
  • 1 instruction manual

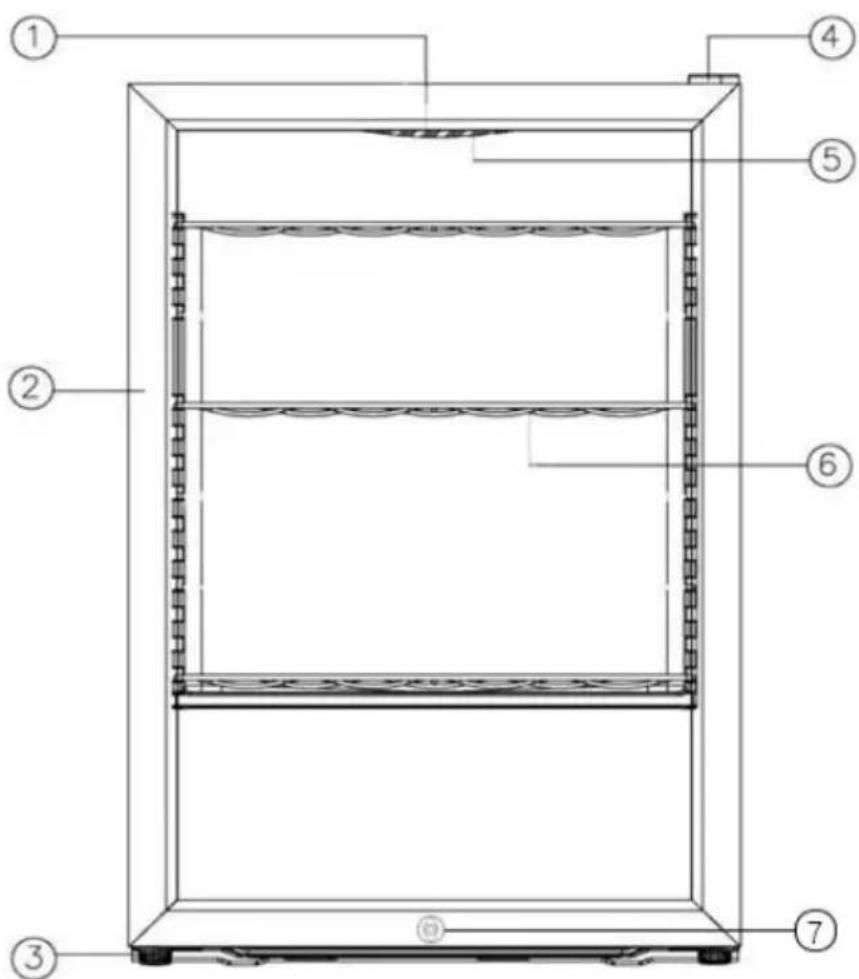

PARTS DIAGRAM

Technical diagram of a multi-level storage or drying unit with numbered components for identification.

1. Mechanical temperature control panel
2. Stainless steel door

3. Beverage cooler foot

4. Door hinge

5. Interior LED light
6. Shelf
7. Lock

ASSEMBLY & INSTALLATION

Before connecting the appliance to a power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

This beverage cooler is a freestanding unit and should not be built in to surrounding cabinetry. Allow for proper air clearance around the cooler. The recommended clearances are as follows:

Sides: 34 " (19 mm)

Top: 4" (100 mm)

Back: 2" (50 mm)

Before operating your beverage cooler for the first time, follow these steps:

1. Clean the interior surface of the unit with lukewarm water and a soft cloth.
2. Place the cooler on a level surface that will be strong enough to support the unit when it is fully loaded. To level your cooler, adjust the front feet located at the bottom of the unit.
3. Install the cooler away from direct sunlight and heat sources such as stoves, heaters, or radiators. Direct sunlight may affect the unit's acrylic coating, and nearby heat sources can increase electrical consumption. Extreme cold or hot ambient temperatures may also prevent proper performance.
4. Once the cooler is plugged in, let the beverage cooler run for at least 30 minutes. Do not change the temperature or adjust any settings at this time.

OPERATING INSTRUCTIONS

TEMPERATURE ADJUSTMENT

4 5 3 6 2 7 1 0

1. Thermostat

Diagram of a circular object with labeled parts and internal features, including a central dark sphere and surrounding circles.

1. Light Switch
2. Led Light

Your beverage cooler can be set to your desired temperature. The unit's temperature range is 37^ to 65^ (3°C to 18°C).

The temperature scale runs from 1, the warmest setting, to 7, the coldest setting. The 0 position is an OFF setting which can be used when the beverage cooler is standing empty.

Avoid setting the thermostat too high or the beverage cooler may be unable to achieve satisfactory cooling temperatures.

OPTIMIZING PERFORMANCE

• To ensure maximum performance and efficiency, be sure to place your beverage cooler in an area where there is proper air circulation. (See installation instructions above for proper clearances.)
• For proper internal air circulation, do not overfill your beverage cooler. When storing beverages, keep them away from the rear wall. To allow free circulation of cold air, don't pack beverages too tightly on the shelves.
• Do not place the unit in direct sunlight.
• Do not place heated beverages or food in your cooler.
• Do not store perishable food in your beverage cooler. The unit's interior temperature may not be low enough to prevent spoilage.
• Do not place heavy objects on top of the beverage cooler.

CLEANING & MAINTENANCE

CLEANING YOUR COOLER

How to clean your cooler:

• Unplug the cooler and remove anything inside.
• Wash the inside of the unit with a solution made of warm water and neutral detergent. Do not use abrasive cleaners.
• Use mild, soapy water to clean the unit's door seal.
• To ensure efficient operation, also thoroughly clean the back and bottom of the beverage cooler.
• To clean the outside of the unit, use a mild detergent and warm water.

DEFROSTING YOUR COOLER

To prevent ice buildup on the inside of the beverage cooler, it may be necessary to defrost occasionally:

1. Turn the temperature control to #4 or #5.
2. Wait 30 to 60 minutes.
3. Turn control knob back to #1 or #2.

If you notice an excess of frost buildup inside the unit, take these steps to remove it:

1. Unplug the beverage cooler.
2. Allow frost to melt from the inside of the cooler. If necessary, use a plastic utensil to scrape ice from the interior surface.
3. Dry thoroughly before plugging it in again.

MOVING YOUR COOLER

To move your cooler:

• Remove anything stored inside.
• Securely tape down all loose parts located inside the unit.
• Turn the leveling feet up to the base in order to avoid damage.
• Tape the door shut.
• Be sure the cooler stays in an upright position during transportation.

TROUBLESHOOTING

Problem	Possible Causes	Solution
The beverage cooler does not cool.	The unit may be plugged in using a different voltage.	Check if using the wrong voltage.
	The circuit breaker may be tripped or there is a blown fuse.	Reset the circuit breaker or check for a broken fuse
The beverage cooler is not cold enough.	The external environment may require a higher setting.	Lower the temperature of the cooler.
	The cooler may be placed too close to a heat source.	Keep the cooler away from direct sunlight or other heat sources.
	There is insufficient ventilation.	Place the beverage cooler in an area with proper ventilation and clearances.
	The door is not completely closed or the door seal is not working properly.	Close the door tightly. Do not open the door frequently and do not keep the door open for extended periods of time. Replace the seal on the door if necessary.
The beverage cooler seems to make too much noise.	The unit is not leveled.	Adjust the unit's feet and ensure the product is level.
	There is insufficient ventilation. The unit is too close to a wall or another surface.	Allow sufficient clearance around the unit.
An interior red light is flashing.	The set temperature is too low.	Adjust the set temperature so that it is higher than the beverage cooler's interior temperature.
Frost is building up in the unit.	There is excess humidity or the interior temperature is too low.	Turn off the beverage cooler, unplug it, and remove the frost buildup manually. Reconnect the power once the ice has thawed.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
  • Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
  • Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
  • Use of force or damage caused by external influences
  • Partially or completely dismantled appliances
• Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].
