Product type	Garden fire pit
Brand	Blumfeldt
Model	Krakatoa
Usage	Outdoor only
Main material	Steel
Dimensions (approx.)	Diameter 60 cm, height 40 cm
Weight (approx.)	12 kg
Fuel capacity	Logs up to 30 cm
Included accessories	Fire basket, legs, shelf, poker, rain cover
Fasteners	22 screws M6 x 12 mm, 22 nuts M6
Assembly required	Yes, tools not provided
Recommended ignition	Paper or dry wood, no lighter fluid
Extinguishing	Let it burn out or smother with sand, never water
Cleaning	Damp cloth, mild detergent, no abrasive
Maintenance	Check tightness and damage before each use
Safety	Heat-resistant gloves, distance from children/animals, stable fireproof surface
Not suitable	Commercial use, indoor, garages, enclosed spaces
Maximum temperature	Not specified, but may discolor the steel
Warranty	2 years (depending on retailer)

Frequently Asked Questions - Krakatoa Blumfeldt

How to assemble the Krakatoa fire pit?

First attach the base to the legs using the M6 screws and nuts, then the shelf, finally the body to the bottom. Use a suitable screwdriver. See diagram in the manual.

Can I use the fire pit indoors?

No, it is strictly for outdoor use. It produces toxic fumes that can cause suffocation in an enclosed space.

What fuel to use?

Use dry firewood or paper. Never use gasoline, alcohol fuel, or lighter fluid.

How to safely extinguish the fire?

Let the fuel burn out or smother the flames with sand. Never use water, as it could damage the fire pit and cause burns.

Does the fire pit rust?

The steel may discolor and rust over time. Regular cleaning and storing away from rain (with the cover) will prolong its life.

How to clean the fire pit?

Wait until it is completely cool. Use a damp cloth with a mild detergent. Avoid abrasive or oven cleaners.

Are there burn risks?

Yes, the metal surface becomes very hot. Wear heat-resistant gloves and do not touch the fire pit until fully cooled.

Can I leave the fire unattended?

No, never leave the fire pit unattended while in use. Embers may fall and cause a fire.

How to store the fire pit?

Store it only when completely cool and ashes removed. Use the rain cover to protect the inside if stored outside.

What if a part is damaged?

Regularly inspect screws, nuts, and the structure. If a component is damaged, have the fire pit repaired before using it again.

USER MANUAL Krakatoa Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

English 11

Español 19

Français 27

Italiano 35

SICHERHEITSHINWEISE

WARNUNG

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

EINZELTEILE

Black metal outdoor chair with slatted backrest and metal frame (no text or symbols visible)

Collection of mechanical components including heat sinks, planks, and a fork (no text or symbols visible)

Two 3D rectangular panels, one white and one gray, tilted diagonally (no text or symbols)

Simple 3D diagram of a vertical metal frame structure with mounting holes (no text or symbols)

3D rendering of a black metal enclosure with slatted top and front frame (no text or symbols)

3D rendering of a metal enclosure with vertical slats and a flat frame (no text or symbols)

Black rectangular object with a flat base and small feet at the bottom, resembling a container or box (no text or symbols visible)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

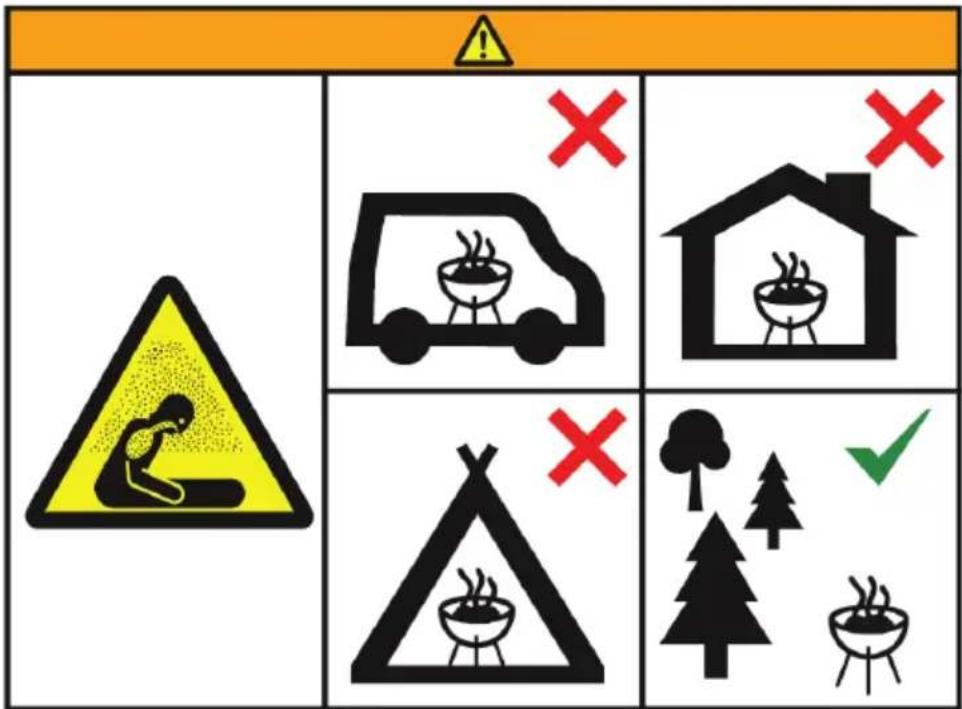

WARNING

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a yellow warning triangle and four quadrants with red X marks.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

INDIVIDUAL PARTS

Black metal outdoor chair with slatted backrest and metal frame (no text or symbols visible)

Collection of industrial heat exchangers and grilles with no visible text or symbols

No.	Quantity Description	Picture
1 2x	Fire basket housing
2 1x	Fire basket bottom
3 1x	Shelf
4 2x	Feet
5 1x	Poker
6 1x	Rain cover
7 22x	Screw M6 x 12 mm
8 22x	Nut M6

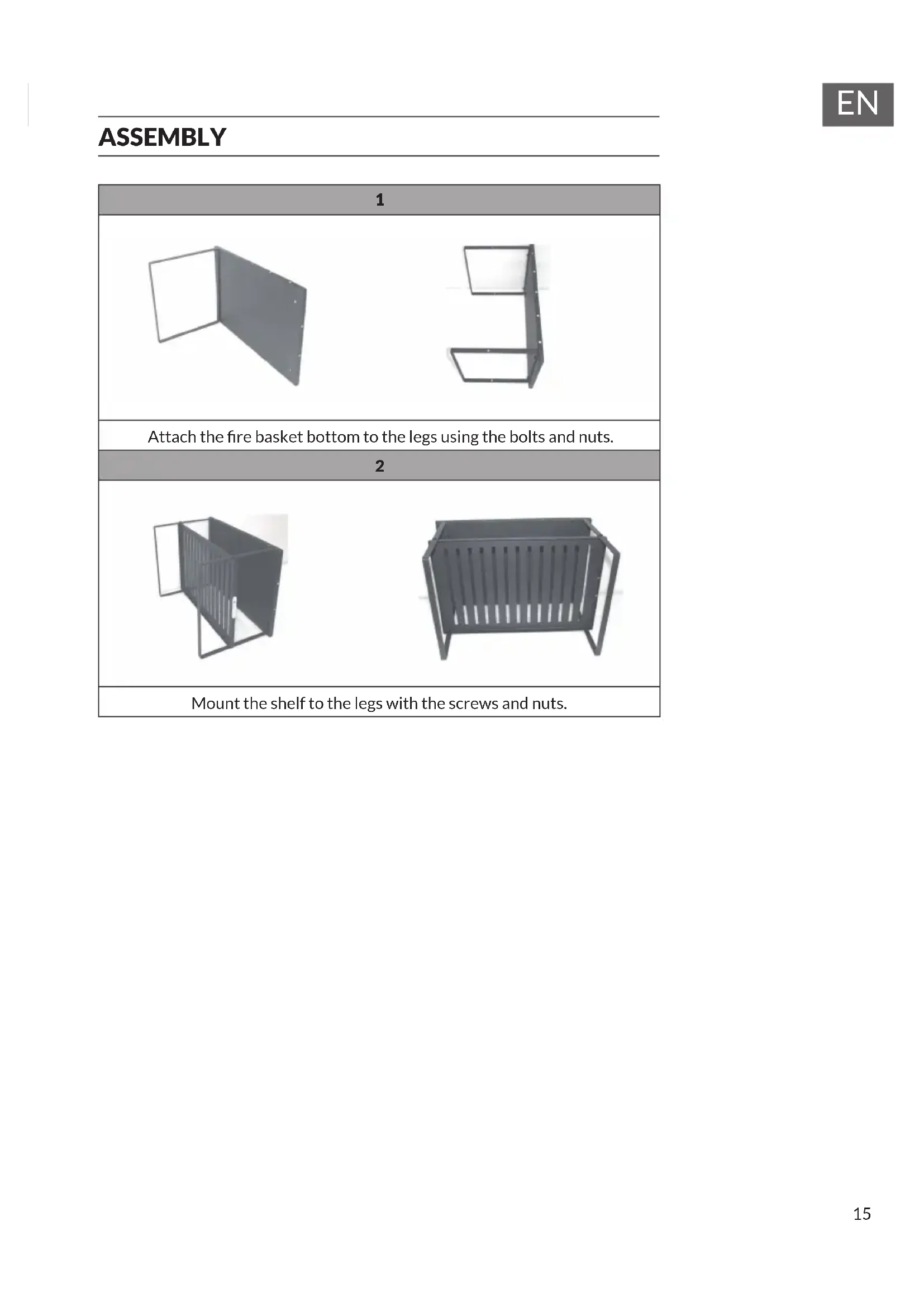

ASSEMBLY

EN

1

Two open gray panels with white borders, no text or symbols visible

Simple 3D diagram of a vertical metal frame structure with mounting holes (no text or symbols)

Attach the fire basket bottom to the legs using the bolts and nuts.

2

3D rendering of a black metal enclosure with open doors (no text or symbols)

3D rendering of a metal enclosure with vertical slats and two handles (no text or symbols)

Mount the shelf to the legs with the screws and nuts.

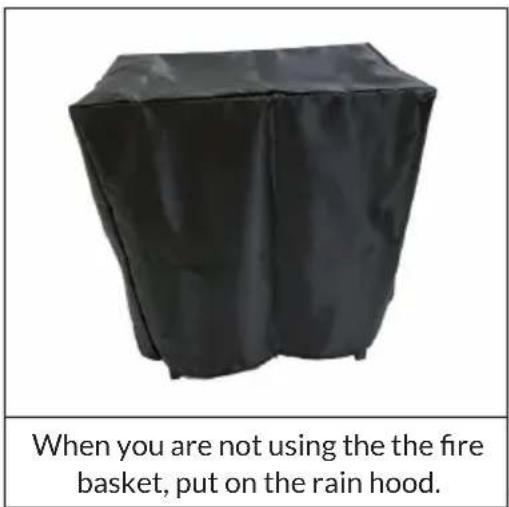

When you are not using the the fire basket, put on the rain hood.

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Warning sign with pictograms and symbols, including a warning triangle, a vehicle, a house, a tent, trees, and a checkmark.

¡Atención!

¡NO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

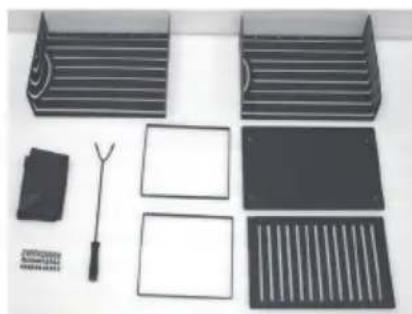

PARTES INDIVIDUALES
