AF128123.2 - Deep fryer Emerio - Free user manual and instructions

Product type	Air fryer
Brand	Emerio
Model	AF128123.2
Power	1350 W
Input voltage	220-240 V ~ 50/60 Hz
Temperature range	80 °C to 200 °C
Timer	1 to 60 minutes
Capacity	Approx. 3.5 L (MAX level)
Preset functions	9 menus: Fish, Cake, Drumstick, Fries, Bacon, Chicken, Steak, Shrimp, Bread, Vegetables
Basket material	Non-stick steel
Cleaning	Dishwasher-safe basket and tray; exterior cleaned with a damp cloth
Safety	Auto shut-off, overheat protection, hot outer surface
Warranty	2 years
Country of origin	Netherlands (Emerio B.V.)

Frequently Asked Questions - AF128123.2 Emerio

How to use the air fryer for the first time?

Before first use, remove all packaging, clean the basket and tray with hot water and dish soap, then wipe the interior and exterior with a soft cloth. Heat the machine at medium power (about 180°C) for 10 minutes without food to burn off any manufacturing residues. This operation may produce slight smoke and an odor, which is normal.

Can I add oil to the basket?

No, never pour oil or any other liquid into the basket. The air fryer uses hot air to cook food with very little oil. If you desire a crispier result, you can brush a small amount of oil on the food before placing it in the basket.

How to clean the basket and tray?

Let the appliance cool for at least 30 minutes. Remove the basket and tray, wash them with hot water and dish soap using a non-abrasive sponge. They are also dishwasher safe. Never use abrasive cleaners. Dry them completely before reassembling.

Why is white smoke coming out of the appliance?

This can happen when cooking fatty foods (e.g., greasy meats). Oil dripping to the bottom of the basket heats up and produces white smoke; this is normal and safe. Clean the bottom of the basket after each use to avoid residue. If smoke is black, unplug the appliance immediately.

My fries are not crispy, what to do?

Make sure to dry the fries thoroughly after cutting, as moisture makes them soggy. Use firm potatoes and cut them into thin sticks for better crispiness. Add half a tablespoon of oil and shake the basket halfway through cooking. Slightly increase the temperature or cooking time.

What does error code E1 or E2 on the display mean?

Codes E1 and E2 indicate a problem with the temperature sensor: E1 means the sensor is open circuit, E2 means short circuit. In both cases, stop using the appliance and contact a professional or after-sales service for repair.

Can I bake a cake or quiche in this air fryer?

Yes, you can use an oven-safe mold or dish that fits the basket size. Place the dish directly in the basket on the tray. Preheat the appliance and follow the times and temperatures of the 'Cake' menu (30 min at 160°C). Cooking times may vary; check doneness with a knife.

How to set temperature and cooking time manually?

Turn on the appliance with the standby button. Use the '+' and '-' buttons to adjust the temperature (in 5°C increments) and time (in 1-minute increments). You can also press and hold for quick adjustment. Then press the start/pause button to begin cooking.

Is it necessary to preheat the air fryer?

Preheating is recommended for even cooking. Use the 'Preheat' menu (5 min at 80°C) or heat the empty appliance for about 4 minutes at the desired temperature. When the appliance is already hot, add 3 minutes to the cooking time to compensate.

What is the maximum amount of food I can put in the basket?

Do not exceed the MAX level indicated inside the basket. For fries, the optimal quantity is 500 grams per batch. If you put too much food, cooking will be uneven. Cook in small batches for best results.

USER MANUAL AF128123.2 Emerio

Black air fryer with digital display and fried food being opened (no visible text or symbols)

Abstract black logo design with three curved shapes and a registered trademark symbol (no text or labels)

Smart Fryer

(EN)

(DE)

(FR)

(SE)

(NL)

(PL)

(ES)

CE

Content – Inhalt – Teneur – Innehåll – Inhoud – Treść – Contenido

Instruction manual – English ...... - 2 -

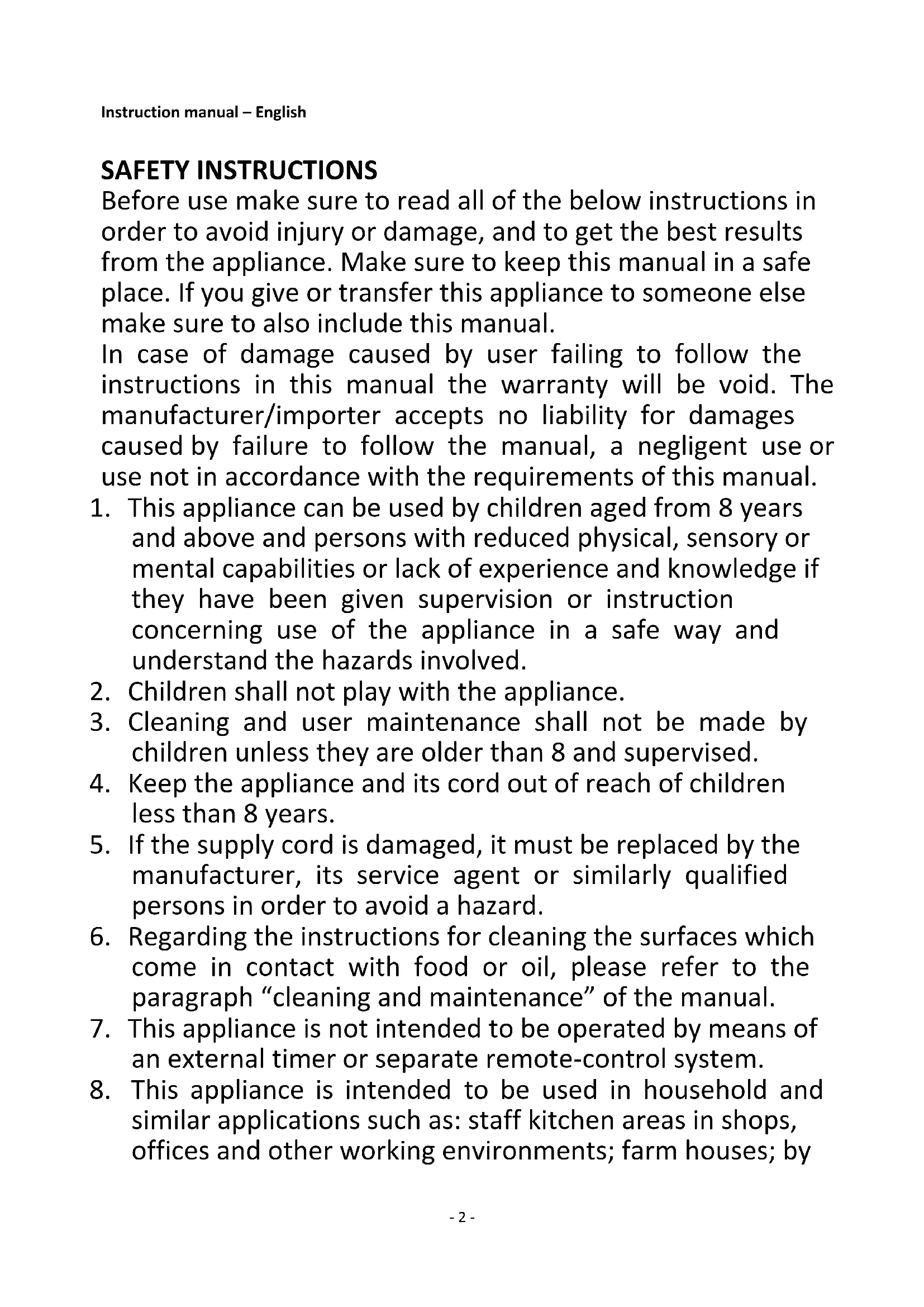

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by

clients in hotels, motels and other residential type environments; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

3. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.

12. Do not use the appliance for other than intended use.

13. Do not wind the cord around the appliance and do not bend it.

14. Place the appliance on a stable, level surface from which it cannot fall off.

15. Please prevent the product to be exposed to excessive dirt and humidity.

16. Clean the product itself with a slightly damp cloth.

17. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).
18. Do not place the appliance against a wall or against other appliance. Leave at least 10cm free space on the back and sides and above the appliance.
19. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.
20. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
21. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

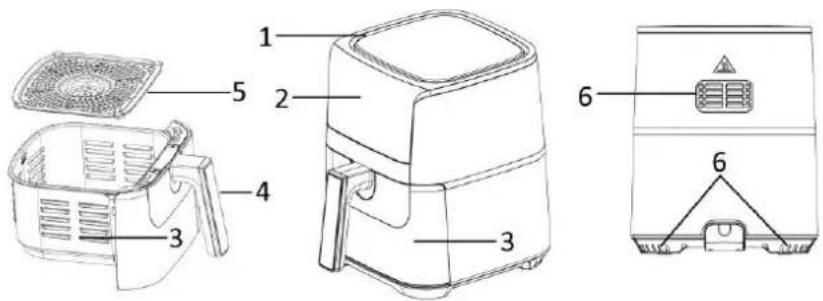

PARTS DESCRIPTION

1. Air inlet
2. Control panel and display
3. Basket
4. Basket handle
5. Frying grill
6. Air outlet

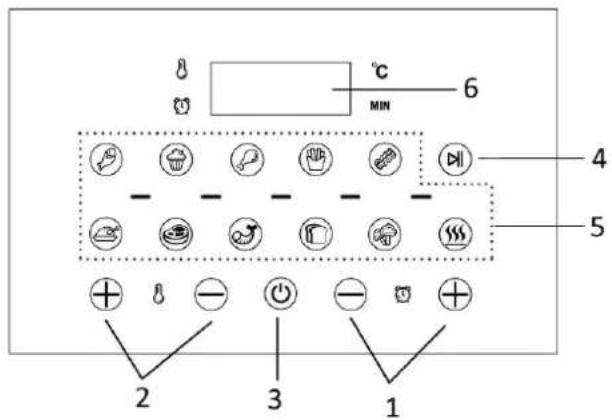

Control penal and display

1. Timer control (Press “+” or “-” to adjust the time from 1 to 60 minutes)
2. Temperature control (Press “+” or “-” to adjust the temperature from 80°C to 200°C)
3. Standby / off button
4. Start / pause button
5. Menu buttons
6. Timer and temperature display

Menu buttons

Menu		Default time (min)	Default temperature (°C)
	Fish	20	160
	Cake	30	160
	Drumstick	20	200
	Chips	15	200
	Bacon	10	180
	Chicken	30	200
	Steak	20	180
	Shrimp	20	160
	Bread	20	160
	/egetable	15	160
	Preheat	5	80

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See "cleaning

and maintenance") Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.
4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket into the appliance. Make sure they are placed correctly and closed completely.
   Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.
5. Connect the power plug to a suitable outlet. The machine is now standby.
6. Press the standby button once. The other icons will be on. Press the buttons "+" or "-" to set your desired temperature (5 degrees / press) and time (1 minute / press) for the ingredients. You can also long press "+" or "-" for rapid adjustment.
7. You can also press the menu buttons to directly choose the cooking functions. If you wish to adjust the time and temperature a little, please press "+" or "-" to make adjustment.
8. Press the start / pause button; the appliance starts working.
9. When the whole cooking process is finished, the appliance will stop working and the timer will ring 5 times. You can also manually pause the appliance by pressing the start/ pause button or turn off the appliance by pressing the standby/ off button.
10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance. Set the temperature and the timer to a few extra minutes. Then press the start/pause button to run the appliance again. NOTE: You can also pull out the basket to check and shake the ingredients during cooking process. When you slide back the basket, the appliance will continue to work with the selected setting.
11. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one;
    To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.
    Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the pan.
12. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

Memory function

If power failure happens during operation or suspension, the appliance can still remember the set program within 2 hours after the power failure, and continue to operate according to the original program after the power is re-energized.

FRYING TIPS

1. The optimal amount for crispy fries is 500 grams.

2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.

3. Some ingredients require shaking halfway through the preparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.

4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.
5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.
6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.
7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed.

Food	Min-max Amount (g)	Time (mins)	Temp (°C)	Notes
Thin frozen chips	300-750	12-20	200	Turn if needed
Thick frozen chips	300-750	12-24	200	Turn if needed
Home-made potato chips	300-750	18-22	180	Add 1/2 tbsp of oil, shake
Beefsteak	100-600	8-20	180	Turn if needed
Chicken chops	100-500	10-14	180	Turn if needed
Hamburger	100-600	7-14	180	Turn if needed
Sausage rolls	100-800	13-15	200	Turn if needed
Chicken drumstick	100-700	18-22	200	Turn if needed
Chicken breast	100-700	10-15	180	Turn if needed
Spring roll	100-800	8-10	200	Turn if needed
Vegetable	100-800	10-18	160

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.

3. Never use abrasive cleaners or sponges.

4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.

5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning brush to remove any food residues.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not pressed the start/ pause button to turn on the appliance.	Press the start/ pause button to turn on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is too high.	Put smaller batches of ingredients in the basket. Smaller batches are fired more evenly.
	The temperature is too low or the time is not enough.	Press “+” to adjust the temperature to the required temperature or cook extra time.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway during cooking.	Shake food halfway during the cooking time.
Fried snacks are not crispy	You used a type of snacks which shall be cooked in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crisper result.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients, oil will leak into the pan. The oil preduces white smoke and the pan may heat up. This does not affect the cooking result or hurt the appliance.
	The pan still contains grease residues from previous use.	Clean the pan properly after each use.
Fresh fries are fried unevenly.	Haven’t use the right potato type.	Use fresh potatoes and make sure that they stay firm during frying
	Haven’t rinse the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy	The crispiness of the fries depends on the amount of oil and water in the fries	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result
		Add slightly more oil for a crisper result
E1	During operation, the temperature sensor is open-circuit.	Contact a professional for repairing
E2	During operation, the temperature sensor is short-circuit.	Contact a professional for repairing

TECHNICAL DATA

Operating voltage: 220-240V\~ 50-60Hz

Power: 1350W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,

without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service
