Curling Iron - Curling iron Lollabiz - Free user manual and instructions

Product type	Professional 4-in-1 curling iron
Model	TP-201
Voltage	100-240 V (universal)
Frequency	50/60 Hz
Power	45 W
Temperature range	120 °C (250 °F) - 230 °C (450 °F)
Temperature setting	LCD display with + and - buttons
Number of barrels	4 interchangeable barrels of different sizes
Barrel material	Tourmaline ceramic (negative ion emitter)
Cord length	2 m, 360° swivel
Auto shut-off	After 60 minutes of inactivity
Included accessories	4 barrels, heat-resistant glove, user manual
Safety	Barrel locking function, overheating protection, heat-proof glove
Maintenance and cleaning	Clean with a damp cloth after complete cooling
Warranty	12 months (excluding user damage)
Weight	Approximately 400 g (estimated)
Heating type	PTC heating

Frequently Asked Questions - Curling Iron Lollabiz

How to change the barrel of the curling iron?

To change the barrel, insert the new barrel deep into the main tube, then turn the locking ring clockwise to lock it. Make sure the device is turned off and cooled before proceeding.

How to set the temperature?

Turn on the device by rotating the ON/OFF button to the left for 3 seconds. The LCD screen displays 180°C by default. Use the '+' and '-' buttons to increase or decrease the temperature from 120°C to 230°C.

Does the curling iron shut off automatically?

Yes, the curling iron has a safety auto shut-off after 60 minutes of inactivity. To turn off manually, rotate the ON/OFF button counterclockwise for 3 seconds.

Can I use the curling iron on wet hair?

No, your hair must be dry and detangled before use. Using on wet hair may damage the hair and the device.

How to clean the curling iron?

Unplug the device and let it cool completely. Clean the barrels and handle with a damp cloth. Make sure the device is dry before reusing. Do not use abrasive products.

What temperature to choose for my hair?

For fine or damaged hair, use 120°C-140°C. For normal to thick hair, use 140°C-170°C. For thick or stubborn hair, use 170°C-190°C. Do not exceed 230°C to avoid damaging the hair.

Is the heat-resistant glove mandatory?

The glove is provided to protect your hand when wrapping hair around the hot barrel. It is strongly recommended to avoid burns, but only offers temporary protection.

How to know if the barrel is properly locked?

After inserting the barrel, turn the locking ring until it clicks. The barrel should not move. If heating does not work, check that the barrel is properly inserted and locked.

Can I use an extension cord?

No, using an extension cord is not recommended for safety reasons. Plug the device directly into a wall outlet.

What to do if the device falls into water?

Immediately unplug the device from the wall outlet. Do not put your hands in the water. Have the device checked by an authorized service center before reusing.

USER MANUAL Curling Iron Lollabiz

Lollabiz Hair Curling Iron

Handleiding

Repeating wavy line pattern with no text or symbols

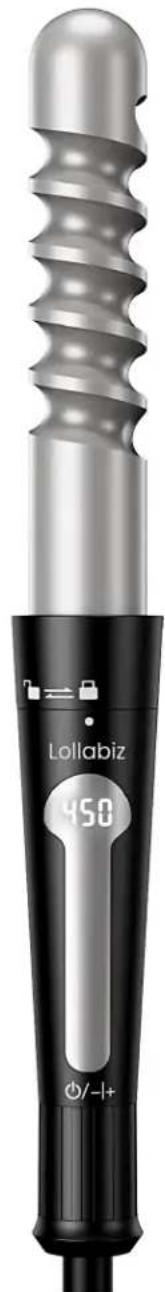

Close-up of a Lollabiz curling iron with a digital display showing '450' and control buttons (no readable text beyond branding)

EN Thank you for buying the Lollabiz Hair Curler

To read your manual in English go to page 10

Close-up of a mechanical component with a cylindrical shaft and mounting base, enclosed in a circular frame (no text or symbols visible)

Close-up of a black cylindrical object with metallic edges and a lock symbol, enclosed in a circular frame (no text or labels)

HOE TE GEBRUIKEN:

11 Important Safety Instructions
13 Technical specifications
14 How to use
15 Extra information

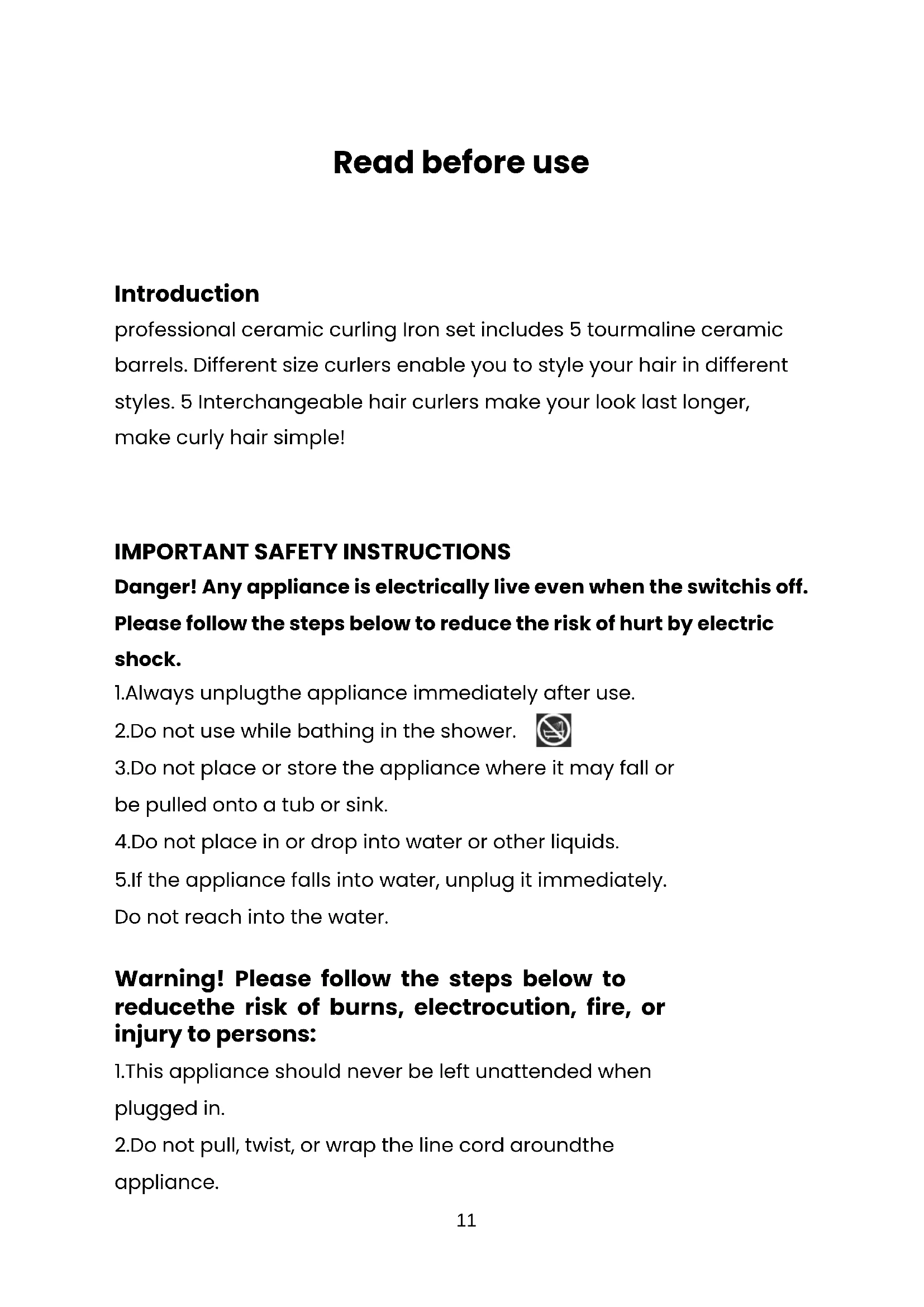

Read before use

Introduction

professional ceramic curling Iron set includes 5 tourmaline ceramic barrels. Different size curlers enable you to style your hair in different styles. 5 Interchangeable hair curlers make your look last longer, make curly hair simple!

IMPORTANT SAFETY INSTRUCTIONS

Danger! Any appliance is electrically live even when the switchis off. Please follow the steps below to reduce the risk of hurt by electric shock.

1. Always unplug the appliance immediately after use.

2.Do not use while bathing in the shower.

1. Do not place or store the appliance where it may fall or be pulled onto a tub or sink.

2. Do not place in or drop into water or other liquids.

3. If the appliance falls into water, unplug it immediately.

Do not reach into the water.

Warning! Please follow the steps below to reduce the risk of burns, electrocution, fire, or injury to persons:

1. This appliance should never be left unattended when plugged in.

2.Do not pull, twist, or wrap the line cord around the appliance.

1. This appliance should not be used by/on, or near childrenor individuals with certain disabilities.
2. Use this appliance only for its intended use, as described in this manual. Do not use attachment not recommended by the manufacturer.
3. Never operate this appliance if has a damaged cord or plug, does not work properly, had been dropped or damaged, or dropped into water. Return the appliance to an authorized service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into opening or hose.
6. Do not use outdoor or operate where aerosol(spray) products are being used or where oxygen is being administered.
7. Unit is hot when in use. Never let heated surfacecontact with eyes or skin.
8. Do not place the device directly on any surface while it is hot or plugged in.
9. Never black the air opening of the appliance or place on the soft surfaces such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint and other debris.
10. Do not use an extension cord with this appliance.
    13.Do not touch the hot surfaces of the appliance.
11. Do not attempt to touch the housing of your appliance near the barrel, as it is hot when in use.

Note

1. DO NOT PUT IT IN THE TRAVELING STORAGE CASE BEFORE IT COOLED DOWN.
   2.A universal heat-protective gloveshad been supplied to help protect the hand from temporary contact with the barrel when wrapping the hair around the appliance.
2. Note that the heat-resistant glove is only designed to give initial contact protection.
3. Discomfort will occur if your hair has prolonged contact with the hot Never leave your electrical appliance on and unattended.

TECHNICAL SPECIFICATIONS

Product name	5-in-1 interchangeable curling iron set
Model	TP-201
Voltage	100V-240V
Frequency	50Hz-60Hz
Power	45W
Temprature setting 230°F	(120°C) -450°F (230°C)

FEATURES

• 4 different interchangeable curling iron barrels and sizes to allow maximum versatility
• Adjustable LCD Temperature Display allows easy control over the temperature.
• Quality Tourmaline Ceramic: the tourmaline curlingwand can produce negative ions to eliminate frizz and static electricity.
• 360^2m Swivel Cord for easy and convenient use in a limited space; PTC heater for safe operation.
  • Universal dual voltage:100-240V/50-60 Hz.
• 'Lock' function ensures the barrels will never come off.
• Safe Operation: The hair curlingwand shuts down automatically after being unused for 60 minutes.

OPERATING INSTRUCTIONS

How to replace barrels:

1. Insert the barrel into the main wand deeply.
2. Rotate the main retaining ring clock-wisely to lock.

Note:

• If the heating function does not work, check if the curling iron is installed correctly, please.
• To install correctly the curling iron and avoid poor power contact, press the barrel into the base to make it seamless, then lock the lock ring.
• You need to press the switch and hold it for three seconds to turn on the curling iron.

HOW TO USE:

Make sure your hair is dry and not tangled before use.

1. Select your barrel size and insert it into the handle. Make sure it is in the unlocked position, then lock.
2. Connect the plug into the power socket.
3. Twist the ON/OFF button to the left for 3 seconds to turn on the device. The LCD screen will flash and display a temperature of 350^ F ( 180^ C).
4. Set the required temperature using the '+' and '-' button located on the handle. Twist the button to the left for 1 second to '-' the temperature and to the right for 1 second to '+' the temperature. The maximum heat reaches 450^(230^) .
5. Allow the curling iron to reach operating temperature fully, you'd better wearing heat-resistant glove heat protection before use.
6. Use the heat-resistant glove to separate a section of hair and wind it around the barrel. Hold the hair in place for approximately 5-10 seconds.
7. Release the hair and repeat the process on another section of hair.
8. Turn off the device by twist the ON/OFF button to the left for 3 seconds after work.
9. Let the device totally cool down before storing or changing barrels.

BEST TEMPERATURE FOR DIFFERENT HAIR QUALITY:

Temperature	Hair Type
250°F(120°C)-290°F(140°C)	Delicate, thin, easy-to-curl hair
290°F(140°C)-330°F(170°C)	Average to thick or treated hair
330°F(170°C)-370°F(190°C)	Thick or wavy hair

CLEANING AND MAINTENANCE

This product needs to clean up regularly due to hair care residue.
1. Unplug the appliance and let it cool completely before cleaning it.
2. Use a damp cloth to clean carefully. Make sure the appliance is completely dry before using it again.

ENVIRONMENTAL PROTECTION

The product, packaging materials and accessories are made with recyclable materials, classifying waste into recycling and reusing categories for recycling useful materials.

WASTE DISPOSAL

The mark on the product, use instructions and packaging indicates this product can't be disposed of as general domestic waste after its service life. Please consult local government for recycling according to waste categories.

LIMITED WARRANTY

We provided 12 months warranty to ensure the quality of our products. Man-made damage and negligent use will forfeit the warranty.

Disclaimer

Changes reserved; specifications are subject to change without stating grounds for doing so.

FR Indice

Two circular diagrams showing mechanical components with lock symbols, no text or labels present.

COMMENT UTILISER:
