Product Type	Storage Cabinet
Brand	South Shore
Model	Fiesta 7146
Item Number	971- Storage Cabinet
Assembly Required	Yes, instructions included
Anti-tip device	Recommended, included or compatible
Cleaning	Soft or slightly damp cloth, then wipe with a clean dry cloth
Warranty	Limited 5-year warranty against defects in materials and workmanship
Intended Use	Household, normal use
Safety	Do not place heavy objects on top, do not open more than one drawer at a time, attach to wall if possible
Customer Service	[e-mail] / 1-877-586-5339 (Canada/United States)

Frequently Asked Questions - Fiesta 7146 South Shore

How to assemble the Fiesta 7146 cabinet?

Follow the provided assembly instructions. Make sure you have all necessary tools and read the safety instructions before starting.

What is the maximum weight supported by the shelves?

Exact information is not provided, but it is recommended to place the heaviest items in the bottom drawers and not to overload the shelves.

How to clean the cabinet?

Use a soft or slightly damp cloth, then wipe with a clean dry cloth. Avoid abrasive cleaners or solvents.

What to do if the cabinet is unstable?

Check that the furniture is level. Slightly loosen the relevant screws, adjust and retighten. Use the provided anti-tip device or purchase one.

How to make a warranty claim?

Fill out the online registration form on southshorefurniture.com. Keep your proof of purchase. Contact customer service at [e-mail].

Can I paint or modify the cabinet?

The warranty does not cover personal modifications. Any modification may affect the safety and stability of the furniture.

Is the cabinet delivered assembled?

No, it requires assembly. Instructions and hardware are included.

How to prevent the cabinet from tipping?

Secure the cabinet to the wall with the anti-tip device. Place heavy items in the bottom drawers. Do not allow children to climb on drawers or doors.

Where can I find replacement parts?

Contact South Shore customer service to order replacement parts. The warranty covers replacement of defective parts.

What is the warranty period?

The limited warranty is 5 years from the date of purchase for defects in materials and workmanship.

USER MANUAL Fiesta 7146 South Shore

ASSEMBLY INSTRUCTIONS INSTRUCTIONS D'ASSEMBLAGE INSTRUCTIVO DE ARMADO

WARRANTY GARANTIE GARANTÍA

Line drawing of a three-tiered cabinet with two doors and handles (no text or symbols)

ADULT ASSEMBLY REQUIRED

DOIT ÊTRE ASSEMBLÉ PAR UN ADULTE

DEBE DE SER ARMADO POR UN ADULTO

ADVERTENCIA

Serious or fatal crushing injuries

can occur from furniture tip-over.

To help prevent tip-over:

- Place heaviest items in the lowest

drawers.

- Do not set TVs or other heavy

objects on the top of this product.

Never allow children to climb or

hang on drawers, doors, or shelves.

- Never open more than one drawer

at a time.

Use of tip-over restraints only

reduce, but not eliminate, the risk

of tip-over.

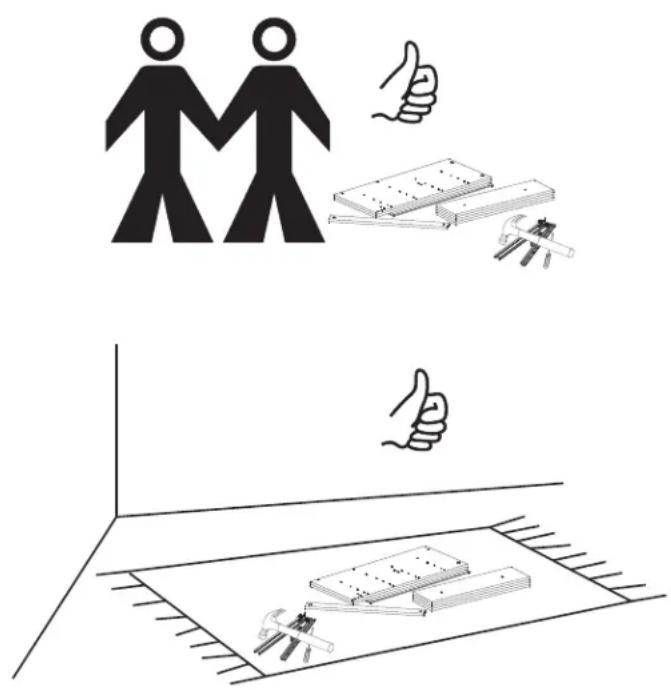

N.B.: It is important to carefully read all instructions before beginning the assembly and before use of the furniture. Keep the assembly instructions for future use and for warranty purposes.

Two technical diagrams showing a person using a tool to cut a cross-shaped object on a surface, with no text or symbols present.

* TOOLS REQUIRED/OUTILS REQUIS/HERRAMIENTAS REQUERIDAS:

- HAMMER /MARTILLO/MARTEAU

- STANDARD /PLANO/PLAT

- PHILLIPS/ÉTOILE/CRUZ

/ou/or o

- ROBERTSON/ /CUADRADOCARRÉ

Line drawings of three different types of screwdrivers: a hammer, a screwdriver with a circular end, and a screwdriver with a cross symbol (no text or labels present)

No crossed-out diagram of a drill bit with a diagonal line crossing through it (no text or symbols)

HARDWARE / QUINCAILLERIE / HERRAJE

39X	#90	10X	#144	1X	#199
4X	#99	18X	#158	14X	#231
1X	#116	12X	#171	8X	#251
8X	#122	12X	#180	4X	#803
4X	#143

* Hardware package may have spare parts.

3

4

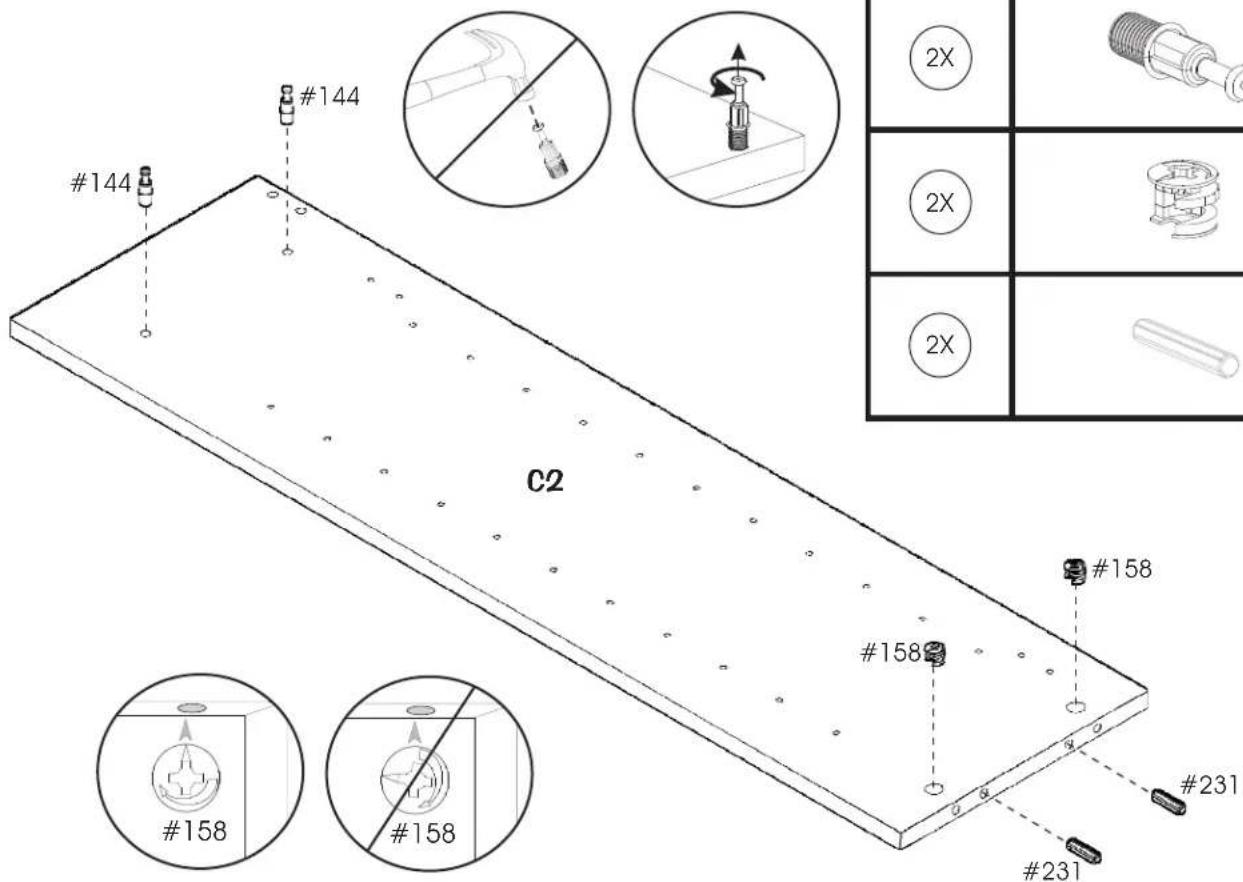

2X	#144
2X	#158
2X	#231

5

6

15

39X
3X

16

17

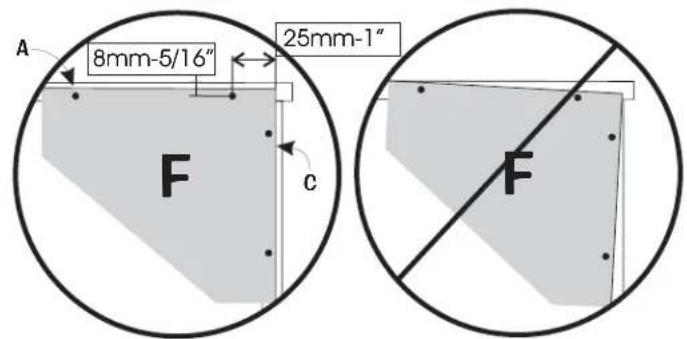

* Make sure the unit is level. Loosen the concerned screw(s), adjust, and tighten.

20

-Safety bracket installation
-Installation de l'équerre de sécurité -Instalación del escuadra de seguridad

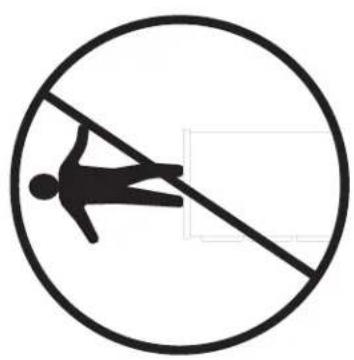

Prohibition sign showing a person running inside a circle with a diagonal line (no text or symbols)

Symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

• TO PREVENT THE UNIT FALLING ON CHILDREN
Locate a stud in the wall behind the unit.
Screw -199- under the top with -99-. And through the back of the unit with -116- into the solid part of the wall.
- If the safety braket is not in the box, please contact the consumers service in order to obtain another one before using the furniture.
•POUR EMPÊCHER LE MEUBLE DE BASCULER SUR LES ENFANTS
Localiser un colombage, dans la largeur du meuble.
Visser -199- sous le dessus du meuble avec -99-. Et à travers le dos du meuble avec -116-, dans la partie solide du mur. • Si le crochet est absent, veuillez contacter notre service aux consommateurs pour obtenir cette pièce avant l'utilisation
• POR IMPEDIR QUE EL MUEBLE VOLQUE SOBRE LOS NINOS.
Localizar una viga, en la anchura del mueble.
Atornillar -199- debajo la pieza del encima con -99-. Y a través del dorso del mueble con -116-, en la parte sólida del muro.
- Si falta el gancho de seguridad, deba ponerse en contacto con nuestro servicio al cliente para obtener un gancho antes de utilizar el mueble.

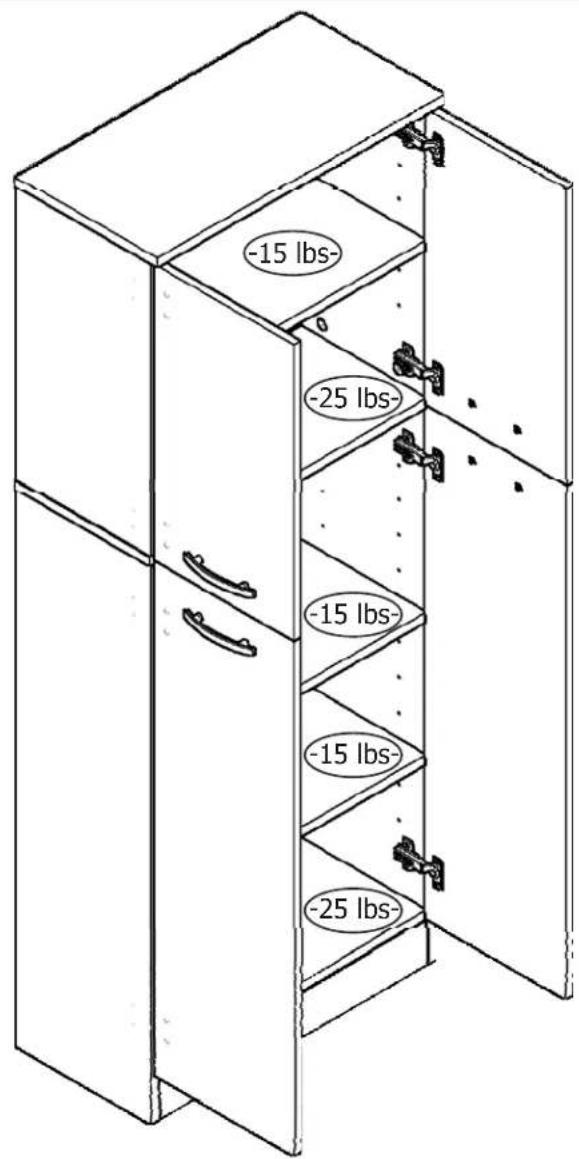

• This South Shore Industries product is designed to withstand the weight indicated on the plan. We are not responsible for the breakage of parts or any injury caused by the failure to comply with this recommendation
• Ce produit des Industries de la Rive Sud a été conçu pour résister aux poids mentionnés ci-contre. Nous ne sommes pas responsable du bris des pièces ou de toute blessure occasionnée par le non-respect de cette recommandation.
• Este producto las Industrias "South Shore" ha sido concebido para resistir el peso que se menciona aquí. No somos responsables del daño de piezas o cualquier otra lesión ocasionada por el no respesto de esta recomendación.

MAINTENANCE TIPS / CONSEILS D'ENTRETIEN / CONSEJOS DE MANTENIMIENTO

• Never let liquids or damp cloths sit on this furniture.
• Ne jamais laisser de liquide ou linge humide sur le meuble.
• Nunca deje un líquido o un trapo húmedo sobre el mueble.

• Never use chemical cleaning products. They can damage the finish. For cleaning, use only a slightly damp cloth and wipe dry.
• Ne jamais utiliser de nettoyeurs à base de produits chimiques, cela va endommager le fini. Utiliser seulement un linge légèrement humide.
• Nunca utilice limpiadores a base de químicos, estos dañaran le acabado. Use sólo un paño húmedo.

• To avoid dulling of the finish, do not place furniture in direct sunlight.
• Ne pas placer le meuble directement au soleil pour prévenir le ternissement.
• No exponga el mueble directamente al sol para prevenir empañamiento.

Symbol of no crossing a sun with radiating lines, enclosed in a circle (no text or numbers present)
