928511 - Air pistol Westfalia - Free user manual and instructions

Product type	Air compressor gun / Tire inflator with pressure gauge
Brand	Westfalia
Model	928511
Intended use	Inflating tires and other inflatable objects
Power source	Compressed air (external source)
Maximum working pressure	8 bar (do not exceed)
Connection	Standard quick coupler
Built-in pressure gauge	Yes
Pressure gauge accuracy	+/- 0.5 bar (estimated)
Main material	Metal and plastic
Dimensions (L x W x H)	Approximately 20 x 10 x 5 cm
Weight	Approximately 0.5 kg
Routine maintenance	Clean after use, check seals
Recommended cleaning	Dry cloth, no harsh solvents
Safety	Use a pressure regulator, disconnect after use, do not use flammable gases
Spare parts	Available through Westfalia customer service
Repairability	Do not repair yourself, contact customer service
Usage	Private use only, keep out of reach of children

Frequently Asked Questions - 928511 Westfalia

How to use the Westfalia 928511 air compressor gun?

Connect the gun to a compressor via a quick coupler. Set the pressure with a pressure regulator not to exceed the maximum pressure. Place the nozzle on the tire valve and press the trigger. Read the pressure on the pressure gauge. Release the trigger to stop.

What is the maximum pressure of the device?

The maximum working pressure is 8 bar. Never exceed this value to avoid injury or damage.

Can I use it with any compressor?

Yes, as long as the compressor provides compressed air and has a compatible quick coupler. Make sure the compressor output pressure does not exceed 8 bar, or use a pressure regulator.

How to maintain the air compressor gun?

After each use, clean the device with a dry cloth. Regularly check the condition of the seals and connections. Do not use solvents or abrasive products.

What to do if the pressure gauge seems defective?

If the pressure gauge does not display the pressure correctly, do not use the device. Contact Westfalia customer service for repair or replacement. Do not attempt to repair yourself.

Is it suitable for car tires?

Yes, this device is designed for tire inflation of cars, motorcycles, bicycles, etc. It is equipped with a pressure gauge to control pressure.

Can I inflate an air mattress with this device?

Yes, but use a very low pressure (0.1-0.3 bar) and monitor the pressure continuously. The device is not specifically designed for this, but it can be used with caution.

How to store the device?

Store the gun in a dry and clean place, away from dust and moisture. Disconnect it from the compressed air source after use.

What safety precautions should be taken?

Always use a pressure regulator. Never point the air stream at people or animals. Disconnect the device during maintenance. Do not use oxygen or combustible gas. Keep out of reach of children.

Where can I find spare parts?

Original spare parts are available from Westfalia customer service. Only use recommended parts to ensure safety and proper operation.

USER MANUAL 928511 Westfalia

Product photo of a gas pressure regulator with attached hose and valve (no text or symbols visible)

Original Instructions

5 Pcs Compressed Air Tool Set

Article No. 92 85 11

Instruction manuals provide valuable hints for using your new device.

They enable you to use all functions, and they help you avoid misunderstandings and prevent damage.

Please take the time to read this manual carefully and keep it for future reference.

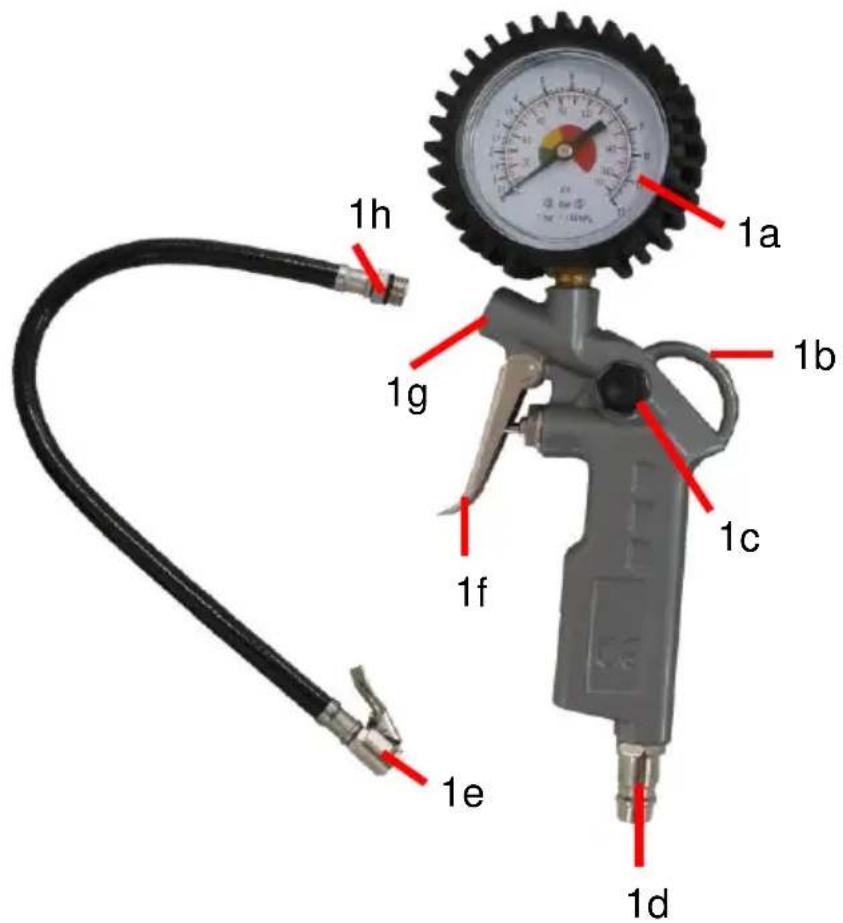

1h 1g 1f 1e 1d 1a 1b 1c

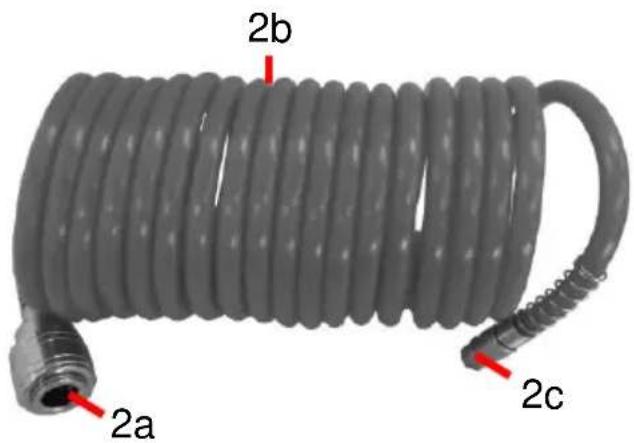

2b 2a 2c

Three mechanical components with a red scale bar labeled '3' at the bottom (no text or symbols on parts)

Please note the following safety notes to avoid malfunctions, damage or physical injury:

• Only use the device for domestic purposes. The tool is not designed for continuous, professional use.
• Only use the device according to this instruction manual and for the intended use.
• Persons with limited physical, sensorial or mental abilities are not allowed to use the compressed air tools, unless they are supervised and briefed for their safety by a qualified person.
• Keep the device out of reach of children.
• For your own safety always use the quick coupling adaptor to connect the device to the air supply and always regulate the working pressure by using a pressure regulator. Do not exceed the max. permitted working air pressure. Please refer to the Technical Data.
• Never use oxygen or flammable gases as source of energy.
• Check if all connections and hoses are mechanically secured and if they are functioning properly. Loose hoses may cause severe injuries. Only use quick coupling adaptors.
• Disconnect the air tool from the compressed air source before doing any maintenance work or when not in use.
• Do not modify the device in any way and do not use it for any unintended use. Only use original accessory. Not recommended accessory can bear a risk of danger.
• Do not continue using a damaged tool. Do not open the unit and do not try to repair it yourself. Contact a professional or our customer service.

Operation

Intended Use

• The device is designed to check the air pressure and to fill or deflate tyres, such as car, motorcycle, truck, or bicycle tyres.
• The intended use also includes an operation following the operating instructions.
• Any use beyond these parameters (different media, applying force) or any changes (reconstruction, no original accessory) can lead to serious risks and is regarded as use that is contrary to the intended purpose.

Before first Use

Unpack the device and check all parts for any damage in transit. Dispose of packaging materials or store them out of reach of children. There is risk of suffocation!

Notes

• The optimum air pressure of the car tyre not only provides safe performance and durability of your tyres – using the right tyre pressure, recommended by the automobile manufacturer, also can safe fuel.
• You will find the details on the comfortable minimum pressure for your tyres in the instruction manual of your vehicle or e.g. at the door pillar or behind the petrol cap.
• The compressed air, to refill the tyre, has to be oil free. Do not connect an oiler ahead of the unit. It is recommended to use a separate compressed air hose only for working with the device, because there may be oil residues on other compressed air hoses.

Measuring

1. Put the valve connector (1e) on the tyre valve. To do this, please press down the lever to unlock the clamping mechanism. As soon as you release the lever, the plug clamps at the valve.
2. Read the existing pressure from the manometer (1a).
   Outer rim of the scale = the unit in bar (1 bar = 100 kPa) Inner rim of the scale = the unit in psi.

Operation

Filling

1. Screw the air hose (1h) and the device (1g) together.
2. Connect the plug nipple (1d) of the device with a compressed air supply.
3. Put the valve connection (1e) on the tyre valve.
4. Press the trigger (6), compressed air flows into the tyre.

The moment you are filling in the air, the manometer (1a) shows a pressure that is a little bit higher than the actual tyre pressure. When you release the trigger, you can read the actual tyre pressure on the manometer.

Deflation of Air

If the tyre pressure is too high, use the deflation button (1c) and slowly reduce the air pressure to the desired value.

Technical Data

Pressure Range: from 0 – 10 bar

Diameter of Pressure Gauge: 6 cm

Tube Length: approx. 41 cm

Manometer Accuracy: ± 0.1 bar

Compressed Air Connection: 1/4"

Cleaning and Maintenance

• Do not allow foreign substances and dirt to enter the compressed air nozzle.
• Do not expose the manometer to vibrations or mechanical stress.
• Add a few drops of oil to the sealing of the trigger pin in regular intervals. Apart from that the device is maintenance free.

Storing

■ Store the device indoors in a dry place that is protected from dust, dirt and extreme temperatures.
■ Store the device out of reach of children.
■ For storing the device, use the hanger (1b).

declare by our own responsibility that the product

5 Pcs Compressed Air Tool Set

Artikel № 92 85 11

Article No. 92 85 11

is according to the basic requirements, which are defined in the European Directives and their amendments.

2006/42/EG

2006/42/EC

Maschinen

Machinery

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
