USER MANUAL Presrv PRKB24C01ASOD Zephyr

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

Safety Information Your safety and the safety of others are very important.We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER Danger means that failure to heed this safety statement may result in severe injury or death. WARNING Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. CAUTION Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

READ AND SAVE THESE INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance from the power supply before servicing. DANGER When using an electrical appliance, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. GENERAL SAFETY Ź To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water or spray any other liquid.Ź Unplug the appliance from the plug socket when not in use, when moving from one location to another and before cleaning. Ź To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.Ź Never operate the appliance in the presence of explosive and/or flammable fumes. Ź Never place the appliance or any of its parts near an open flame, cooking or other heating appliance.Ź Never operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is dropped or damaged in any manner.Ź The use of attachments not recommended by the manufacturer may be hazardous.Ź Never operate if the housing is removed or damaged.Ź A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.Ź Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).Ź This appliance is CFC and HFC free and contains small quantities of Isobutane (R600a), an environmentally friendly coolant. Ź You must ensure that the cooling circuit is undamaged when installing the appliance. However, if it becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which the appliance is located should be ventilated properly and according to state and local codes.Ź Never use an appliance with a damaged circuit.Ź Ensure that the ventilation openings to and from a built-in appliance are never blocked or covered.Ź No liability will be accepted for any damage caused by misuse of the appliance, or as a result of repairs carried out by unqualified person. In this case neither the warranty nor any other liability claims will apply.5 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information Ź Do not use mechanical devices to defrost refrigerator. Ź Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues. Ź Consult repair manual or owner’s guide before attempting to service this product. All safety precautions must be followed. Ź Dispose of properly in accordance with federal or local regulations. Ź Follow handling instructions carefully. Ź If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

READ AND SAVE THESE INSTRUCTIONS

SAFETY REQUIREMENTS DANGER Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing. WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING Do not damage the refrigerant circuit. WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. CAUTION Children should be supervised to ensure that they do not play with the appliance. WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Never operate any other electrical appliance inside this appliance. Ź Never attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. Ź Replace all access panels before operating. Ź Use two or more people to move and install the appliance. Failure to do so can result in back or other injury. Ź Never clean appliance parts with flammable liquids. These fumes can create a fire hazard or explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. Ź Never connect or disconnect the electric plug with wet hands. Ź It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned o by a switch or pull chain.6 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

READ AND SAVE THESE INSTRUCTIONS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be dierent or reduced, who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for. The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading wiring circuits that could cause a fire hazard from overheating. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended to be used in household and similar applications such as: Ź Sta kitchen areas in shops, oces and other working environments; Ź Farm houses and by clients in hotels, motels and other residential type environments;Ź Bed and breakfast type environments; Ź Catering and similar non-retail applications. LOCATION Ź The appliances are designed for either built-in, or free-standing installation.Ź Two people should be used when moving the appliance. Ź Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth. Ź Place the appliance on a floor that is strong enough to support it when it is fully loaded. Ź Never place the unit in damp areas. Ź Suitable for use in damp locations when installed in a GFCI- protected branch circuit. Intended for outdoor-covered patio or lanai area (For outdoor model only). Ź Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly. Ź The air vent at the front of the appliance must never be covered or blocked in any way.Ź Do not use the appliance near water, for example in a wet basement or near a sink. Ź The cooler may experience decreased cooling eciency if air flow is restricted due to a fully loaded cabinet. Ź This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.). DANGER Risk of child entrapment. Before you throw away your old refrigerator or freezer: İŰĘ* Leave the shelves in place so that children may not easily climb inside. WARNING Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.7 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

POWER FAILURE Most power failures are corrected within a few hours and should not aect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be o for a longer period of time, take the proper steps to protect your contents. Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted. DEFROST This unit is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate. VACATION Ź Short vacations: Leave the appliance operating during vacations of less than three weeks. Ź Long vacations: If the appliance will not be used for several months, remove all items and turn o the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary. MOVING Ź Make sure the appliance is empty. Ź Secure the shelves with tape. Ź Secure the door with tape. Ź Turn the adjustable foot up to the base to avoid damage Ź Protect the outside of the appliance with a blanket or similar item. Ź Be sure the appliance stays in the upright position during transportation. Ź If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components. Ź Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. Ź The appliance shall not be exposed to rain (For indoor model only). Ź Install outdoor kegerators in a well-ventilated area where the ambient temperature is above 50ºF and below 109ºF and above 50ºF and below 90ºF for indoor kegerators. Ź Damages caused by ambient temperatures of 40ºF or below are not covered by the warranty Ź If cooler is to be exposed to ambient temperatures of 50ºF or below for over 24 hours, the cooler should be unplugged to help prevent damages.

CABINET LEG ADJUSTMENT

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. To level the appliance:

1. Move the appliance to its final location.

2. Turn the leveling leg counter-clockwise as far as it will go, until

the top of the foot is touching the bottom of the chassis.

3. Slowly turn the leveling leg clockwise until the appliance is

level. CLEANING Ensure the appliance is unplugged before cleaning. Ź To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent. Ź Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth. Ź Clean the outside with a soft, damp cloth and some mild detergent. Ź It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry. Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.8 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

WARNING If it becomes dicult to breathe and/or your head starts to ache, high levels of CO₂ may be present. Close the main value on the tank, ventilate, and evacuate immediately. Safety Information

READ AND SAVE THESE INSTRUCTIONS

DISPOSAL This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government oce. Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With The Applicable Federal Or Local Regulations. FLAMMABLE REFRIGERANT Used. Ź The coolant circuit, particularly the heat exchange at the back/bottom of the unit, must not be damaged.Ź The symbol on the product or its packaging indicates that this product is not to be handled as normal household waste but is to be taken to a recycling collection point for electrical and electronic goods. By correctly disposing of this product you are contributing to the protection of the environment. Improper disposal endangers health and the environment. Further information about the recycling of the product may be obtained from your town hall or local waste collection department. ATTENTION Ź CO₂ can be dangerous. Handle with care. Ź Always check the Department of Transportation test date on the tank neck prior to installation. If it has been more than 5 years, return the CO₂ tank to your supplier. Ź Always connect the CO₂ tank to a regulator. Never connect it directly to the keg.Ź Always keep the CO₂ tank in an upright position.Ź Always keep CO₂ tanks away from heat, and store extra CO₂ tanks in cool locations (preferably under 70ºF).Ź Always ventilate the area after any leakage of CO₂.Ź Never overload the cabinet.Ź Never open the door unless necessary.Ź Never cover shelves with aluminum foil or any other shelf material which may prevent air circulation. Ź Should the appliance be left empty for long periods, it is suggested that the appliance be unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors from forming.

SAVE THESE INSTRUCTIONS

If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists causes of minor operating problems that you can correct yourself.9 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Introduction Thank you for purchasing your Zephyr product. Zephyr is dedicated to developing products that will enhance your lifestyle with superior quality and distinctive features. Please visit www.zephyronline.com for more information on your product and other Zephyr products. This manual contains important information regarding the proper installation, use, and maintenance of your kegerator. Following this manual will ensure that your product will work at its peak performance and eciency. For Your Records Please write down the model number and serial number below for future reference. Both numbers are located on the rating label on the back of your unit and inside the the unit towards the bottom of the cabinet and are needed to obtain warranty service. You may also want to staple your receipt to this manual as it is the proof of your purchase and may also be needed for service under warranty. Model Number: Serial Number: Date of Purchase: To better serve you, please do the following before contacting customer service: If you received a damaged product, immediately contact the retailer or dealer that sold you the product. Ź Read and follow this instruction manual carefully to help you install, use and maintain your kegerator. Ź Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. Ź Visit us on the web at http://www.zephyronline.com to download product guides, additional troubleshooting resources and up-to-date information. Ź If you need warranty service, our friendly customer service representatives are available on our website at http://zephyronline.com/contact or by telephone at 888-880-8368.10 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

List of Materials (1) Pro style door handle (2) Door handle screws (M4*40) (pre-installed) (2) Flat washers (Ő4.3*Ő8*0.5, M4) (pre-installed) (1) Reversible door hinge bracket (3) Door hinge bracket screws (M4*12) (1) Left door stopper (2) Self-tapping screws for left door stopper (ST3*16) (3) Decorative nails (2) Keys Kegerator Materials Built-in Installation Kit Materials (1) Drip tray (1) Velcro strap for CO₂ tank (5) Clear rubber pads for drip tray (1) Wrench (1) Adjustable insulation tube (1) Insulation tube gasket (3) Insulation tube gasket screws (ST4*12) (1) Threaded countertop flange (4) Threaded countertop flange screws for tap tower (M5*8) (1) 3mm Allen key (hex key) for drink guardrail accessory NOTE: A detailed list of materials will be provided per accessory or kit. NOTE: A Zephyr tap kit is required to complete installation, sold separately.11 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM

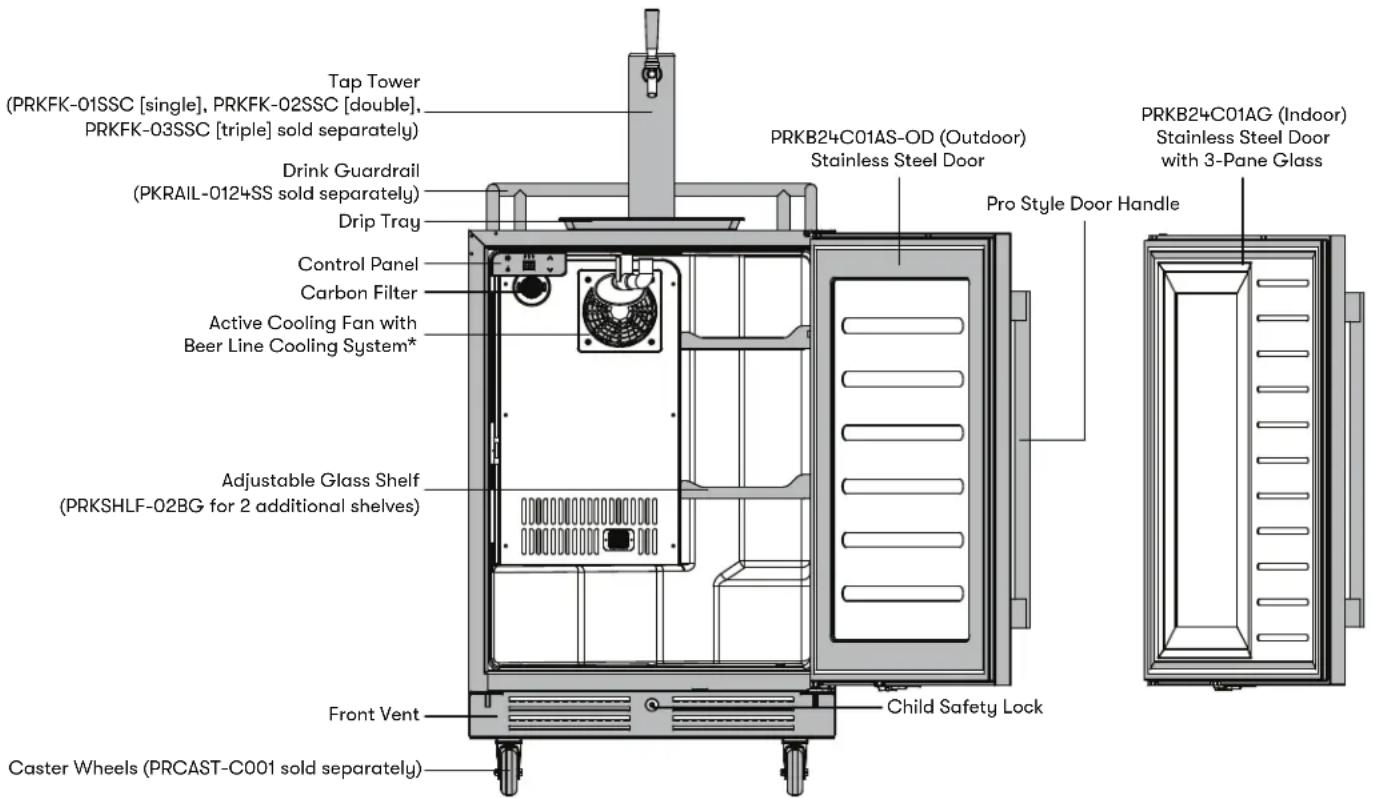

PRKB24C01AS-OD (Outdoor)Stainless Steel DoorPRKB24C01AG (Indoor)Stainless Steel Doorwith 3-Pane GlassPro Style Door Handle Child Safety LockCaster Wheels (PRCAST-C001 sold separately)Front VentAdjustable Glass Shelf(PRKSHLF-02BG for 2 additional shelves)Active Cooling Fan withBeer Line Cooling System Carbon FilterControl PanelDrip TrayDrink Guardrail(PKRAIL-0124SS sold separately)Tap Tower(PRKFK-01SSC [single], PRKFK-02SSC [double],PRKFK-03SSC [triple] sold separately)

Active cooling fan with beer line cooling system aids with keeping the beer lines cool and minimizing foam as it directs some of the air upwards into the faucet tower.14 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™Inlet Connection NutHand ValveCO₂ Gas TankHose BarbŰPressure Adjustment KnobPressure Relief Valve - RegulatorHigh Pressure GaugeLow Pressure Gauge

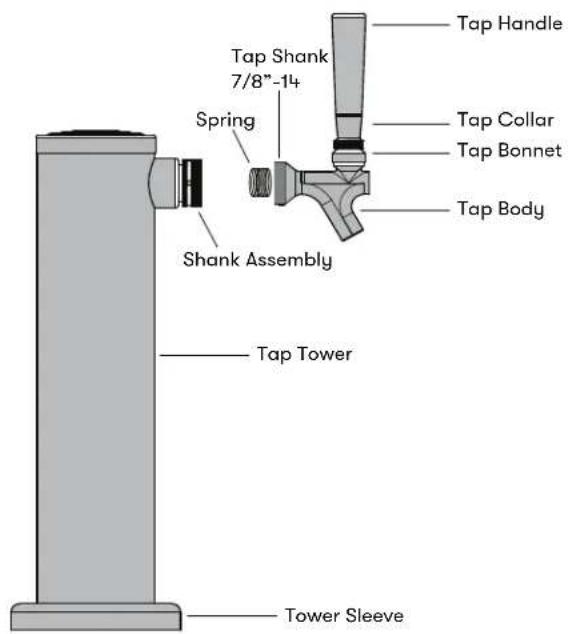

ŮėĚ Tap CollarTap BonnetTap BodyTap TowerTower SleeveShank AssemblySpringTap HandleTap Shank7/8”-14 Ůė₂ Tank and Regulator Coupler Handle20x13x3 Silicon WasherPlastic Stopper7/8”-14 Beer Line ShankBody SealD-Style ConnectionCheck Valve7/8”-14Gas Line ShankPressure Relief Valve - Keg Coupler NOTE: The CO₂ tank and regulator are components from the tap kits, sold separately. The pressure relief valve will be located between the high and low pressure gauges for double and triple regulators. There will be two shuto valves and hose barbs for double regulators and three shuto valves and hose barbs for triple regulators. NOTE: The tap tower and D-style keg coupler are components from the tap kits, sold separately. There will be number of openings for the tap tower depending on whether a single, double, or triple tap kit was purchased. The provided quantity of tap bodies and tap handles will align with the number of openings on the tap tower.15 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Dimensions Max 135° 23-7/8” 33-7/8” - 34-7/8” (leveling legs) 21-7/8”

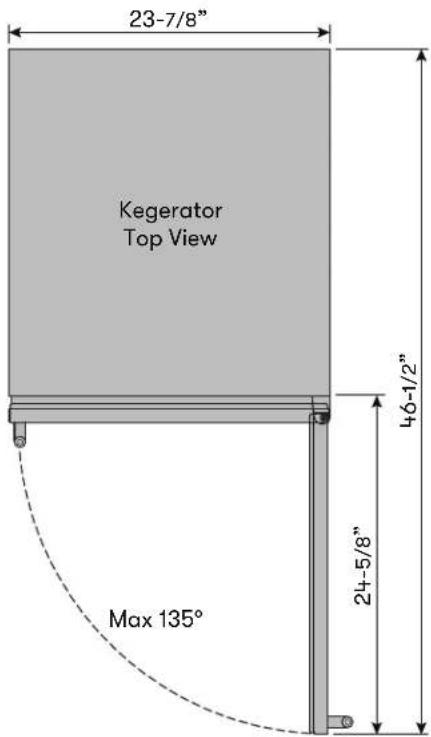

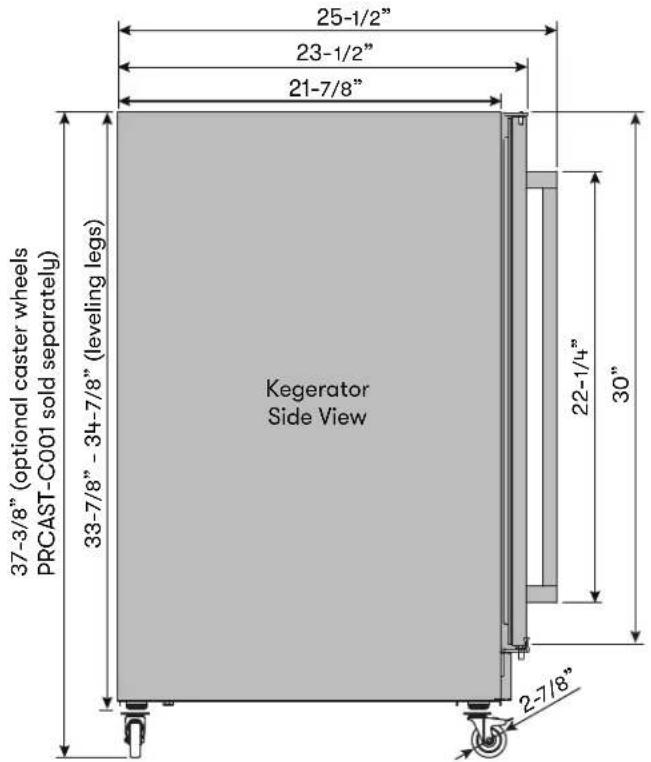

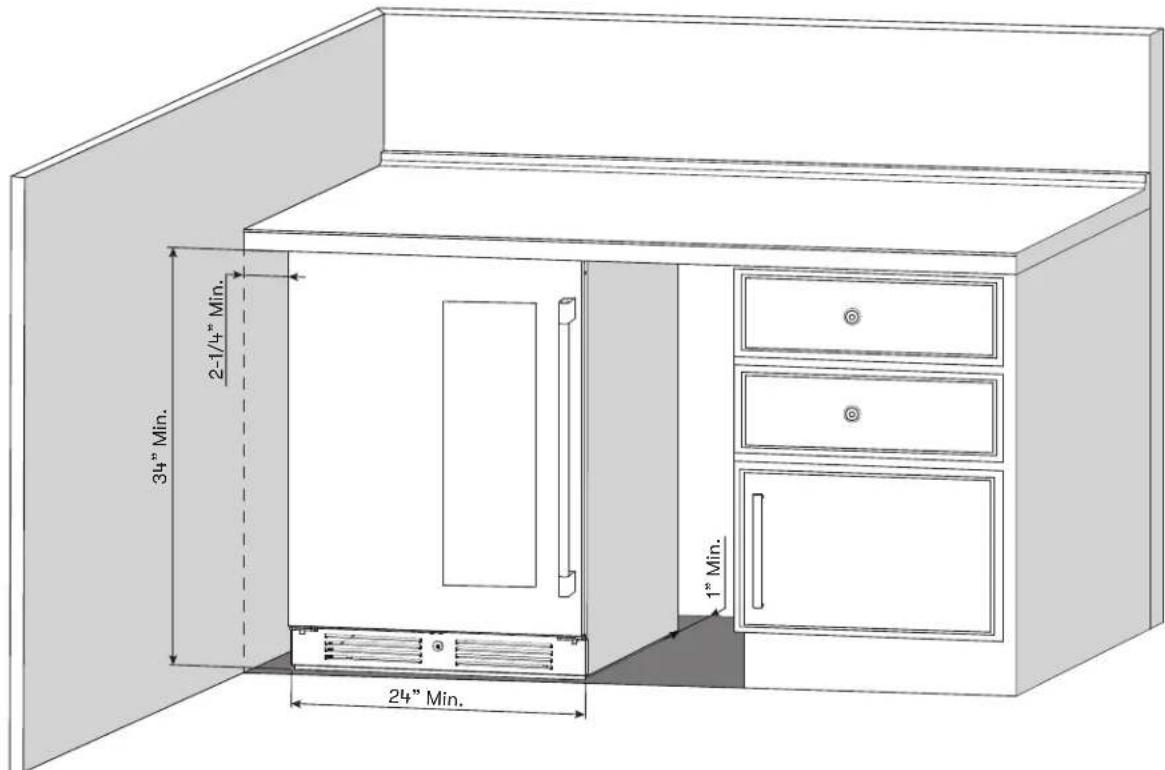

Installation Instructions Installation Clearance Requirements When installing the kegerator under a counter, follow the recommended spacing dimensions shown. Ź For proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in the diagram. Ź An installation next to a wall will require a minimum 2-1/4” door clearance to accommodate the Zephyr handle. Ź The cabinet should allow at least 24” for the width and 34” for the height to accommodate the kegerator. Ź The power cable is located on the back right of the unit and has a length of 78-11/16” to accommodate multiple outlet locations. Ź Once you are ready to install the unit, you must adjust the feet to level the kegerator. Ź This unit can be fully built-in to cabinetry and does not require any additional clearances besides what is referenced below. Ź The installation should allow the unit to be pulled forward for servicing, if necessary. Ź Install the included Zephyr Kegerator built-in kit by following the instructions on page 25. 1” Min.24” Min.2-1/4” Min.34” Min.17 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Carbon Filter A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors. The carbon filter should be replaced every 3-6 months depending on the unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every three months is ideal. Remove the carbon filter by turning counterclockwise to unlock from rear panel. Carbon Filter Replacement Part #: Z0F-C004 Zephyr Presrv Contemporary HandlesZephyr Presrv Pro HandlePart #: PRHAN-C101Part #: PRHAN-C102Part #: PRHAN-C104 Color: Stainless SteelColor: Brushed GoldColor: Matte Black Part #: PRHAN-C001 Color: Stainless Steel (included) Installing the Handle If contemporary handles are desired, refer below for the part number.

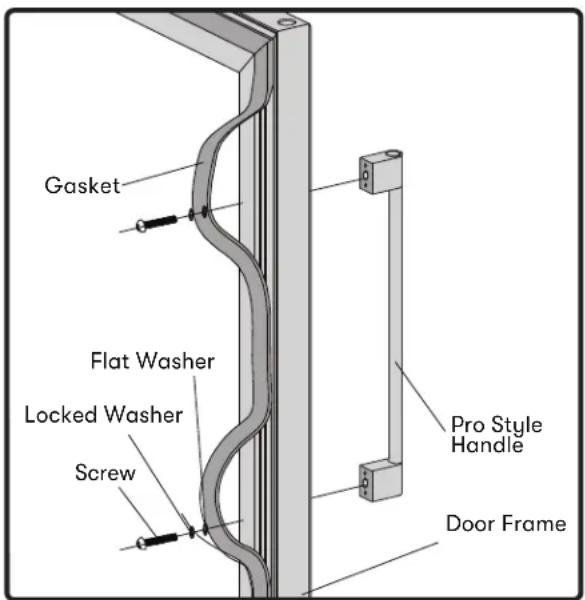

1. Push aside the door gasket on the side you wish to install the handle. Under the gasket you will see

two designated holes for handle installation and pre-installed screws.

2. Install the handle tightly as shown with two screws. Lock washers and flat washers are pre-

installed. Flat WasherLocked WasherScrewPro StyleHandleDoor FrameGasket18 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

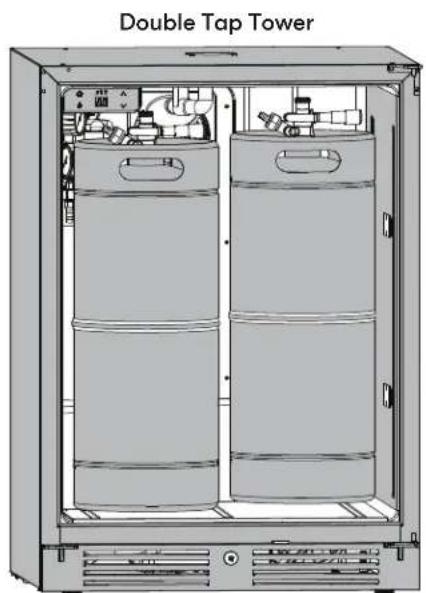

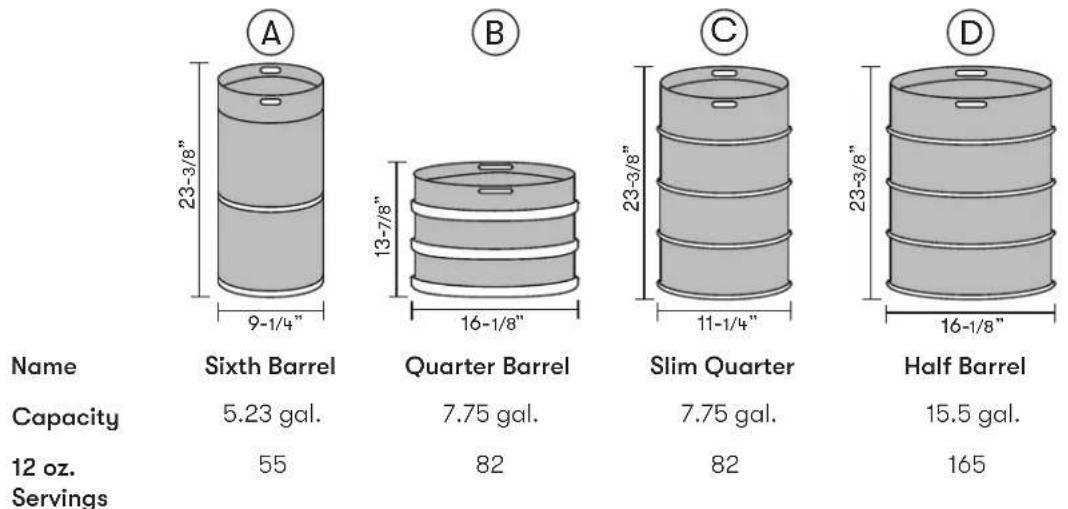

Installation Instructions Installing the Kegerator The Zephyr Kegerator & Beverage Cooler can be set up for multiple configurations. To convert the unit to a full beverage cooler, purchase the accessory, PRKSHLF-02BG, and see page 30 for more information. If you plan on using the kegerator for perishable foods, the temperature should be set to 40°F (4.5°C) or lower. If you intend to use the kegerator to dispense beer, purchase the appropriate single, double, or triple tap kit for your desired configuration. The Zephyr tap kit will include everything needed to get started, including the tap tower, tap(s), beer line(s), gas line(s), D-style keg coupler(s), regulator, and CO₂ tank. NOTE: The CO₂ tank will arrive empty and needs to be filled with CO₂ gas. Contact your local welding supply, sporting goods, or home brew shop for assistance.For built-in installation instructions, skip to page 25.The illustration below (FIG. A) shows the installation of a freestanding kegerator with a single tap kit (PRKFK-01SSC). Illustrations for double and triple tap kits are available on pages 23 and 24. A detailed list of materials is included with each tap kit.1. Remove all shelving and packaged components from the interior of the kegerator before proceeding. The kegerator can be plugged in, but ensure it is powered o before proceeding.2. Remove the black plastic insulation cap from the top of the kegerator (FIG. A1).NOTE: If you are setting up the kegerator as a full beverage cooler, leave the insulation cap installed.3. Place the black rubber gasket, included with the tap kit, on top of the kegerator and align the gasket with the screw holes (FIG. A2).4. Guide the beer line through the opening on top of the kegerator. Secure the tap tower to the kegerator using the included (4) M5 x 16 screws (FIG. A3).NOTE: If you are installing a double or triple tap, apply the included “Left Tap Label” and “Right Tap Label” stickers to the relevant beer lines before mounting the tower.

FIG. A19 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Wrench

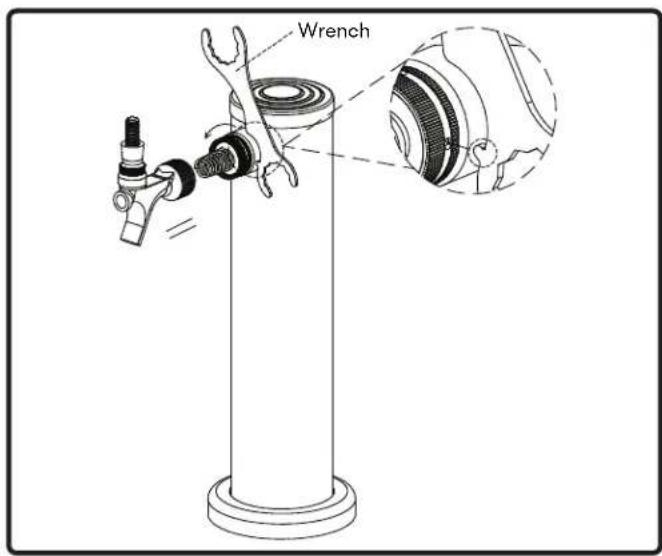

5. Attach the tap to the tap tower as shown in

FIG. B. Make sure the tap is aligned properly and turn the nut counterclockwise by hand. Fully tighten using the included wrench.

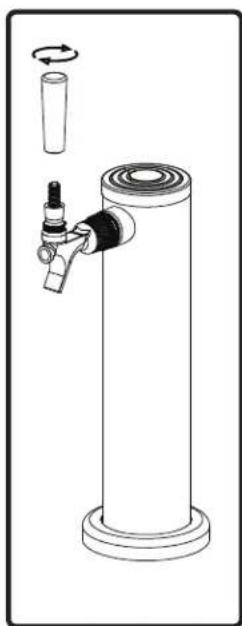

6. Screw the tap handle onto the tap shown in

FIG. C. NOTE: Tap handles are use a standard 3/8”-16 UNC thread to accommodate aftermarket tap handles.

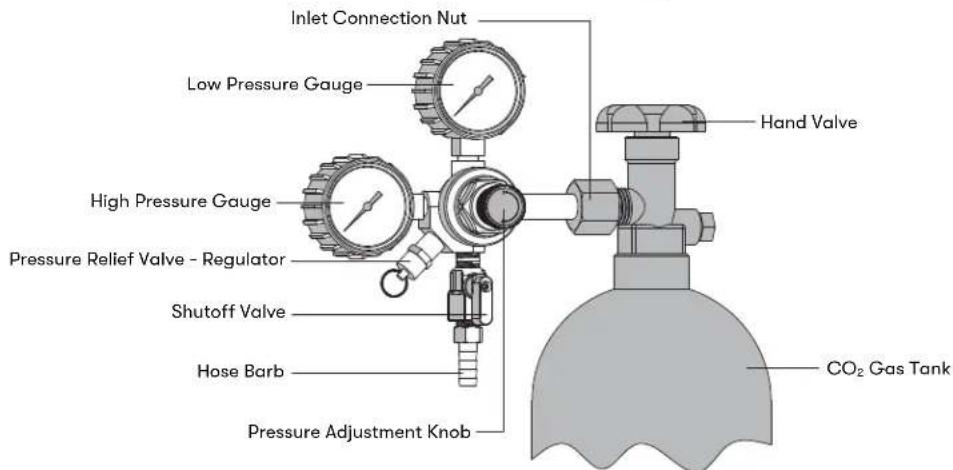

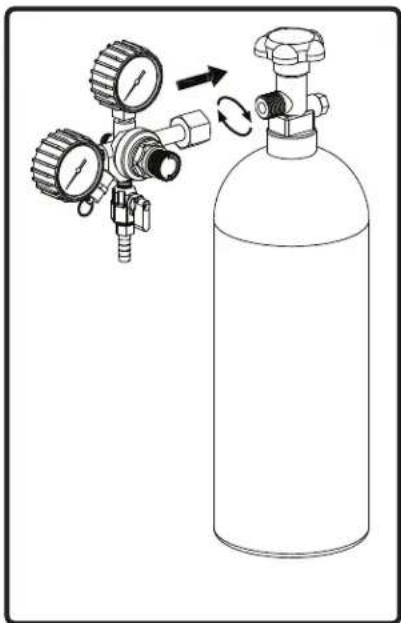

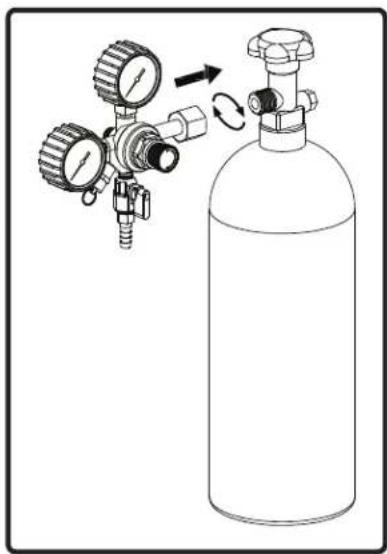

7. Ensure the hand valve on the CO₂ tank is

closed. Attach the regulator to the filled CO₂ tank and hand tighten the inlet connection nut (FIG. D). Use a wrench for an additioanl quarter turn, making sure to not overtighten the nut.

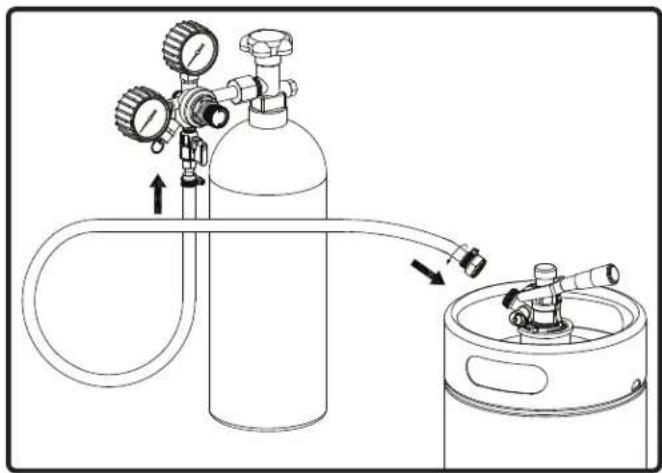

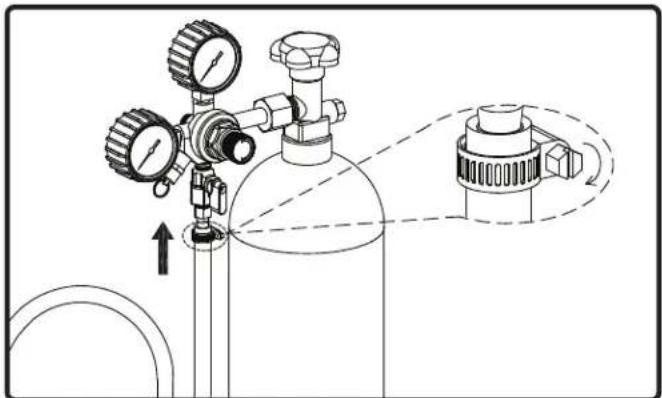

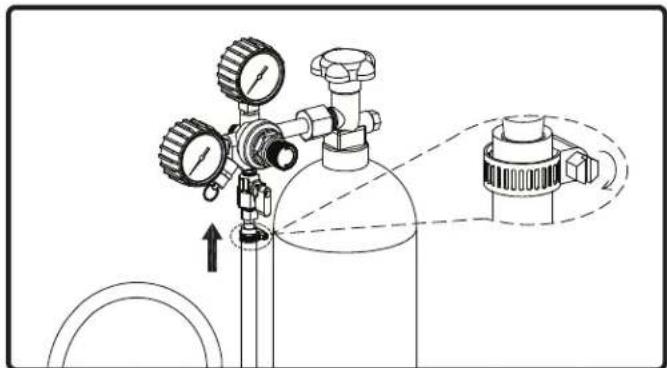

8. Attach the gas line to the hose barb on the

regulator shown in FIG. E. Secure using the included metal clamp and tighten using a flathead screwdriver.

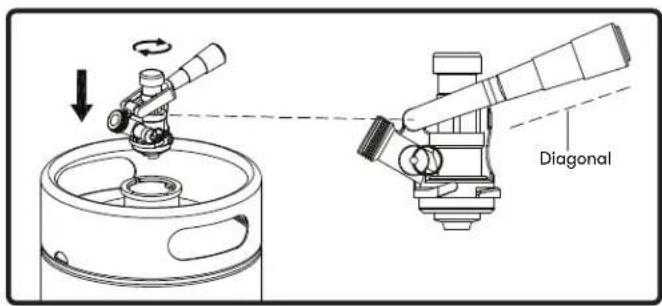

9. Connect the keg coupler to the beer keg, but

first make sure the handle of the keg coupler is disengaged in the diagonal/upper position. Refer to FIG. F for clarification. Insert the keg coupler into the beer keg and turn 25° clockwise to lock into place. Do not engage the handle yet.

FIG. BFIG. C FIG. DFIG. E

Installing the Kegerator20 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

10. Attach the opposite end of the gas line with the

pre-installed threaded nut to the keg coupler (FIG. G). Tighten using the included wrench. NOTE: Make sure the clear silicon check valve is inside the keg coupler before attaching the gas line. See page 14 for reference.

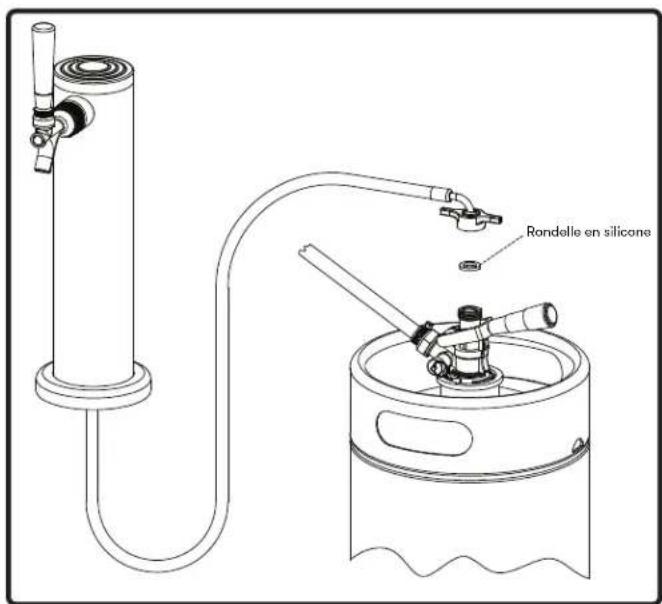

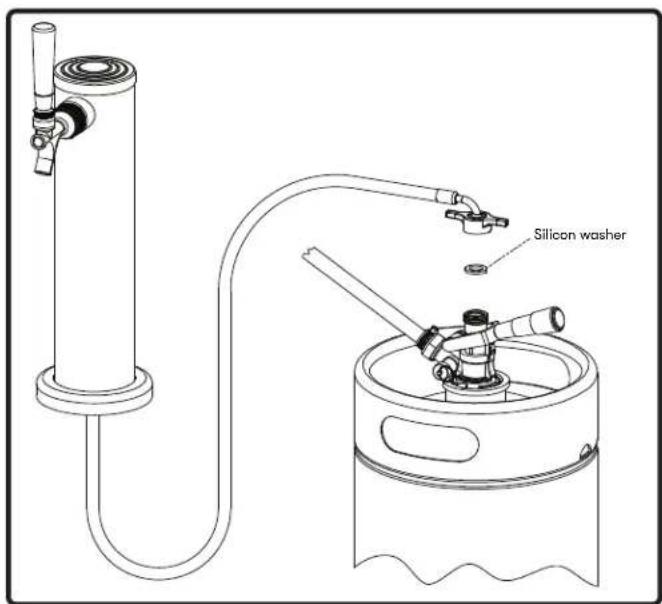

11. Place a silicon washer on top of the keg coupler

and connect the threaded nut from the beer line to the coupler (FIG. H). Tighten using the included wrench.

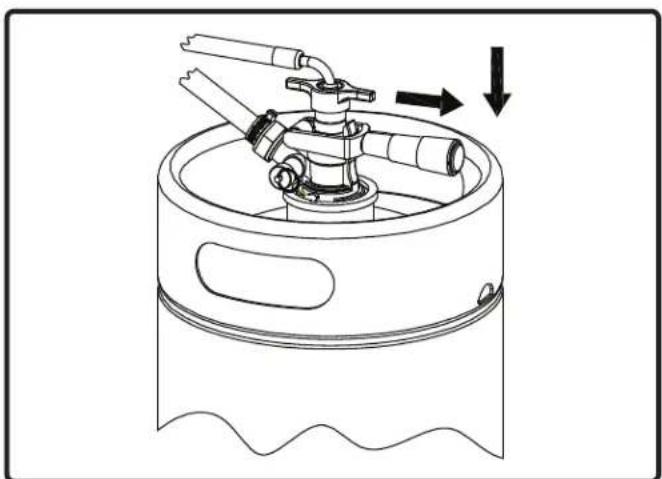

12. Tap the keg by pulling the keg coupler handle

outwards - away from the keg coupler and pushing it down to lock it into position (FIG. I). Listen for the “click” of the pull handle when it shifts into the final downward position and your keg will be tapped. NOTE: The keg needs to be tapped to fit in the kegerator, otherwise the keg coupler handle will be too high and will prevent the keg from fitting. Installation Instructions DiagonalFIG. FFIG. GSilicon washerFIG. HFIG. I Installing the Kegerator21 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

13. Calibrate the regulator. Refer to page 22 for

detailed instructions.

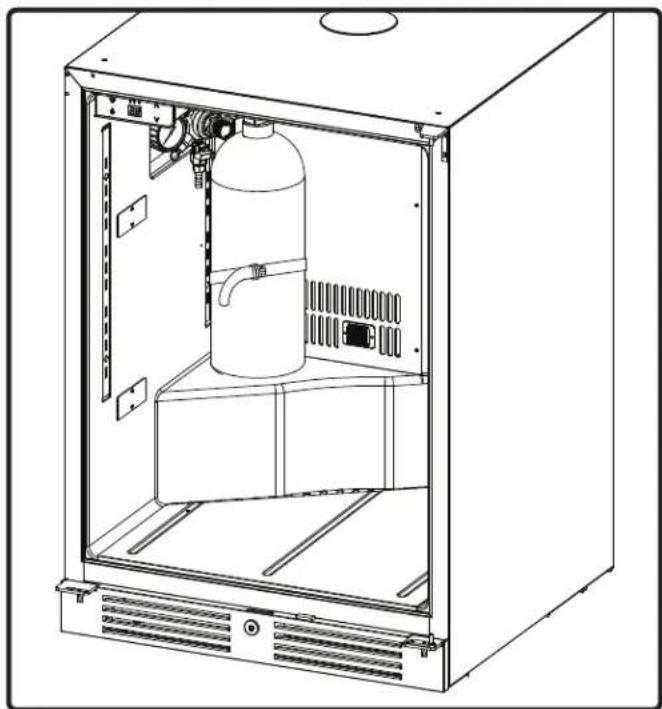

14. Place the CO₂ tank upright inside the left

corner of the kegerator and secure using the Velcro strap shown in FIG. J.

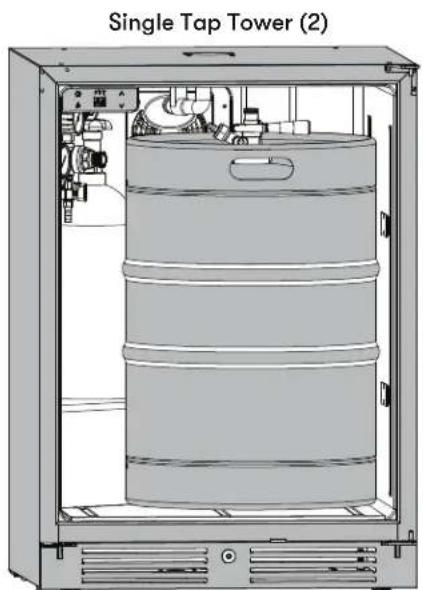

15. Place the beer keg inside the kegerator.

16. Power on the kegerator and set to the desired

temperature. We recommend waiting at least 24 hours before dispensing beer to allow the keg to get to temperature and settle.

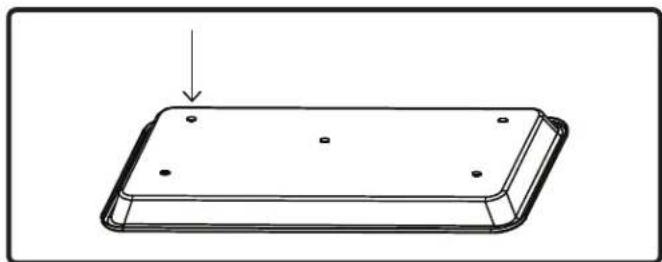

17. Attach (5) clear rubber pads underneath the

drip tray and place drip tray in front of the tap tower under the tap (FIG. K).

18. Enjoy your beer!

TIP: While the beer line cooling system will help keep the beer lines cool and minimize foam, it is important to fully pull on the tap handle when pouring your beer. Not fully pulling the tap handle will result in excess foam.

Installing the Kegerator22 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

Installation Instructions

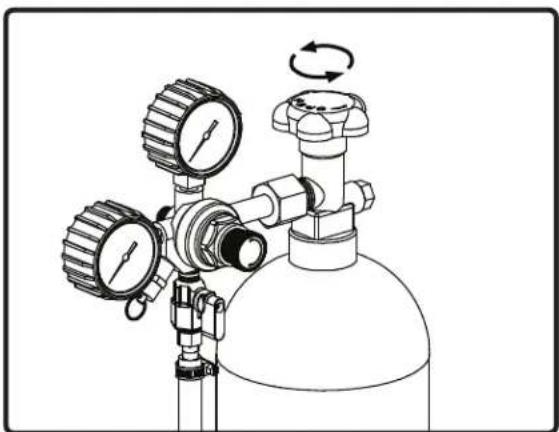

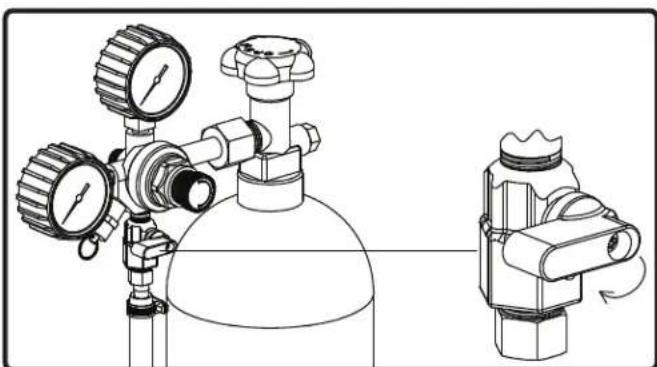

1. With the shuto valve on the regulator turned

o (perpendicular to the tubing), completely open the hand valve on the CO₂ tank (FIG. L).

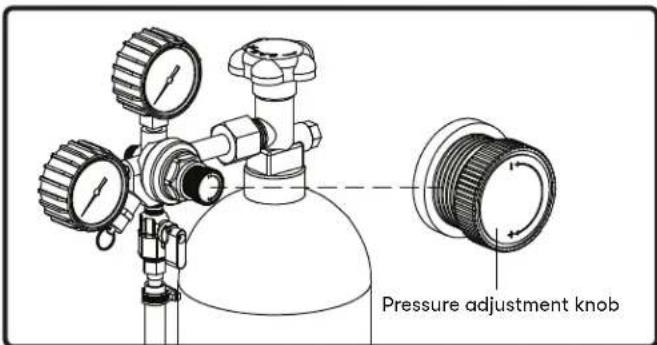

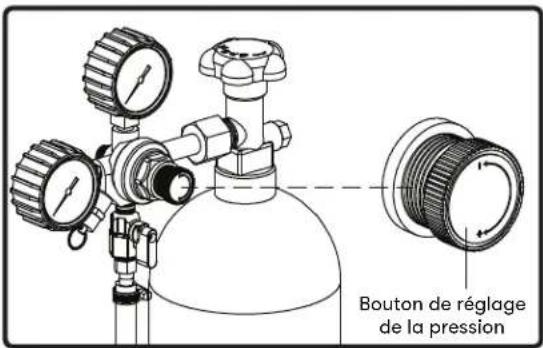

2. Turn the pressure adjustment knob until the

desired pressure is shown on the low pressure guage (FIG. M). We recommend setting the regulator between 10-12 PSI to start and adjust later as needed. Turn the knob clockwise to increase pressure and counterclockwise to decrease pressure. NOTE: Other conditions such as altitude or beer type may require additional adjustments.

3. Open the shuto valve on the regulator so it is

parallel with the tubing (FIG N).

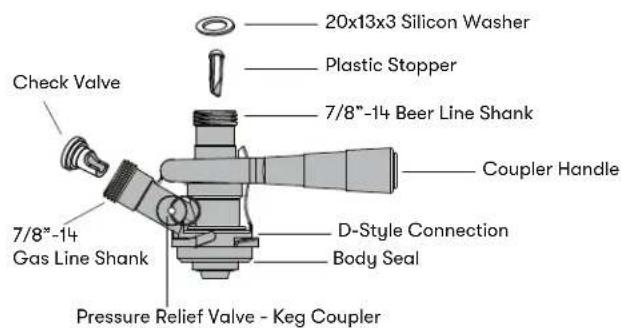

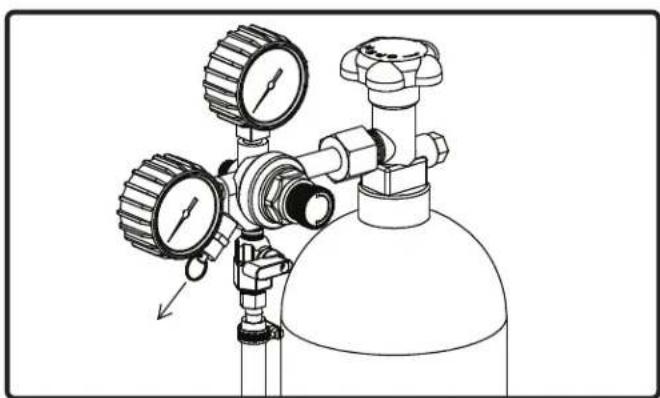

4. The keg coupler is designed with a pressure

relief valve (PRV) as shown in FIG. O. Briefly pull the ring on the PRV to allow CO₂ gas to vent. This will permit CO₂ gas to flow through the regulator and help obtain a more accurate reading on the low pressure guage. NOTE: We recommend following up on any adjustment to the regulator with a brief pull of the PRV ring to ensure an accurate output reading. Check for leaks. FIG. LPressure adjustment knobFIG. M Calibrating the Regulator

PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Double Tap Kit Installation - PRKFK-02SSC NOTE: The space required for double tower installation will prevent installation of glass shelving.24 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

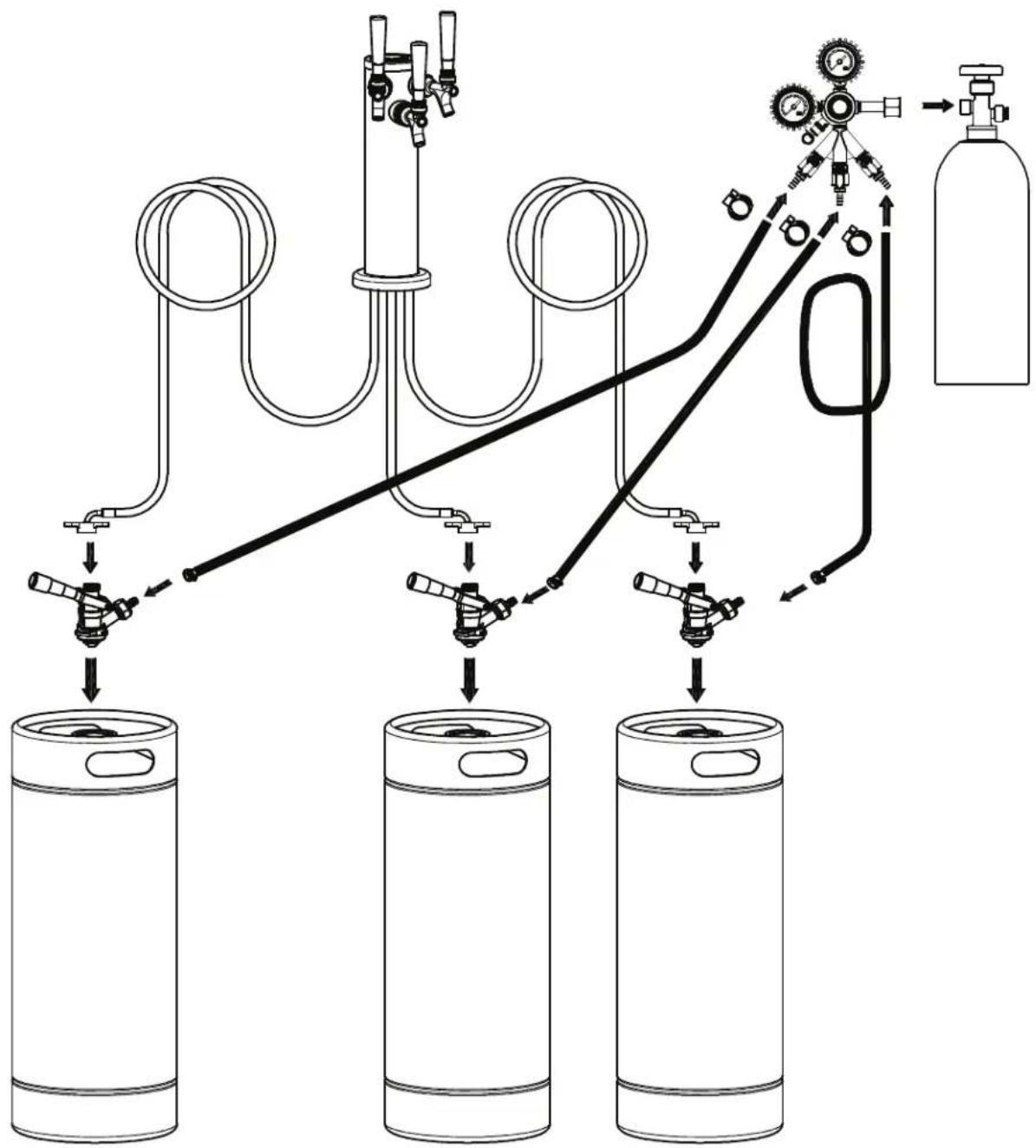

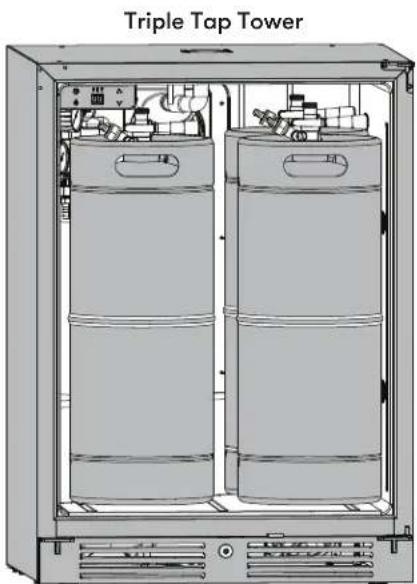

Installation Instructions Triple Tap Kit Installation - PRKFK-03SSC NOTE: The space required for triple tower installation will prevent installation of glass shelving.25 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Built-In Kit Installation Follow the instructions below to install the kegerator under a countertop. Remove all shelving and packaged components from the interior of the kegerator before proceeding. NOTE: If you are using the kegerator as a full beverage cooler without a tap kit, it will not be necessary to cut holes in the countertop or use the Zephyr Kegerator built-in kit. You can skip the built-in instructions below and simply slide the kegerator under the countertop. If you plan to use the kegerator with a tap kit to dispense beer, follow the instructions below to install the kegerator using the built-in kit. NOTE: The built-in kit is designed to accommodate a total countertop thickness between 1-1/4” and 2-1/4”. ThreadedCountertopFlangeDrill a 3” diameter holeWrenchThreadedCountertopFlangeFIG. L

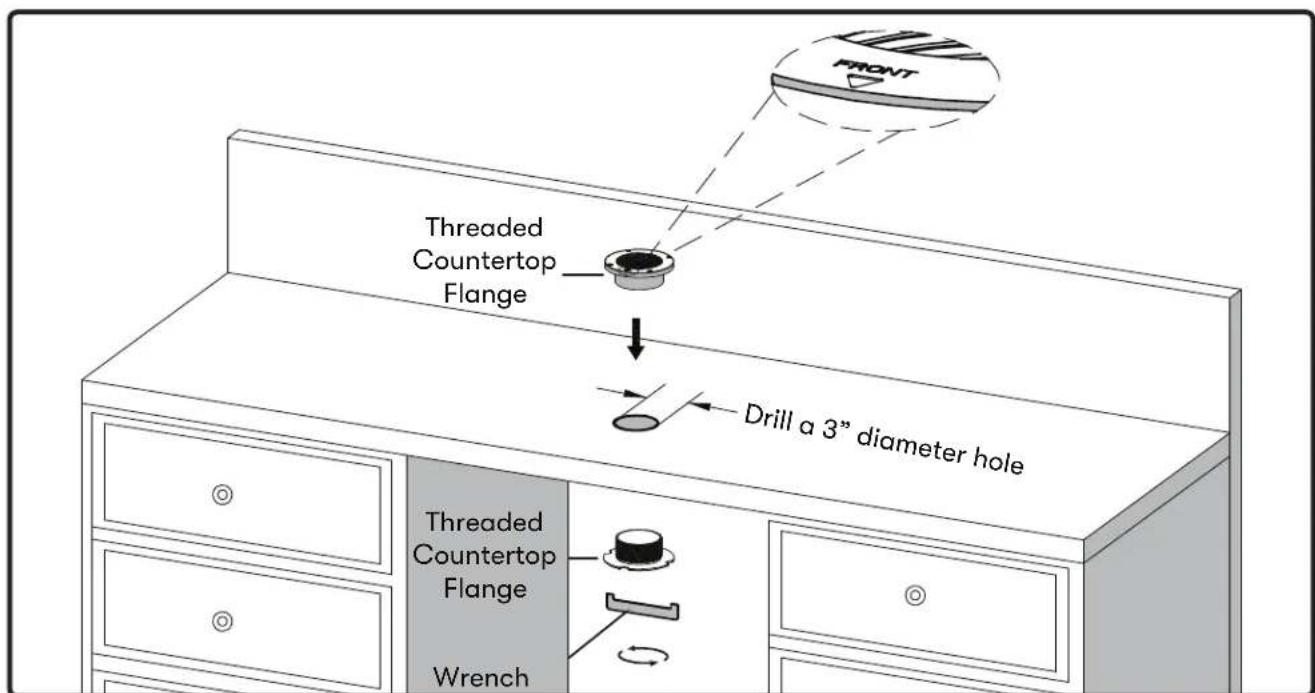

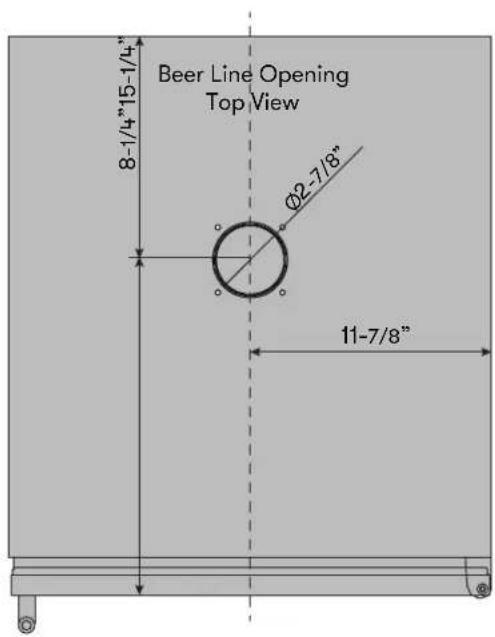

1. Drill a 3” diameter hole in the countertop. Refer to Beer Line Opening Top View on page 14 for

detailed dimensions. Install the threaded countertop flange to the countertop, making sure the direction of the arrow points outward from the countertop (FIG. L). Secure using the included wrench from underneath the countertop. NOTE: It is recommended to seek a professional to help cut the hole because dierent countertop materials will require dierent drill bits.26 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

Installation Instructions

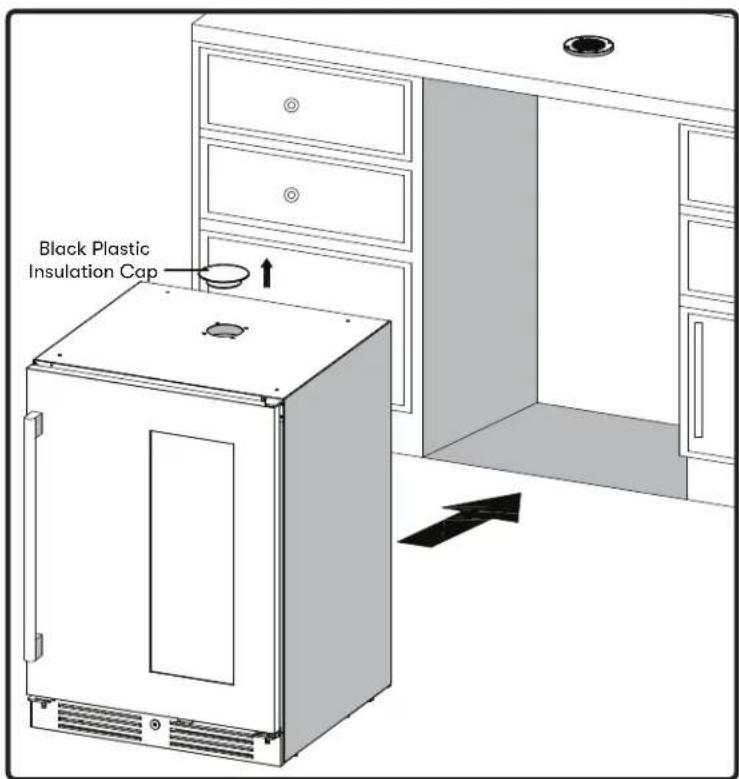

2. Remove the black plastic insulation

cap from the kegerator and slide the kegerator under the countertop and plug it in (FIG. M). Do not power on the kegerator yet.

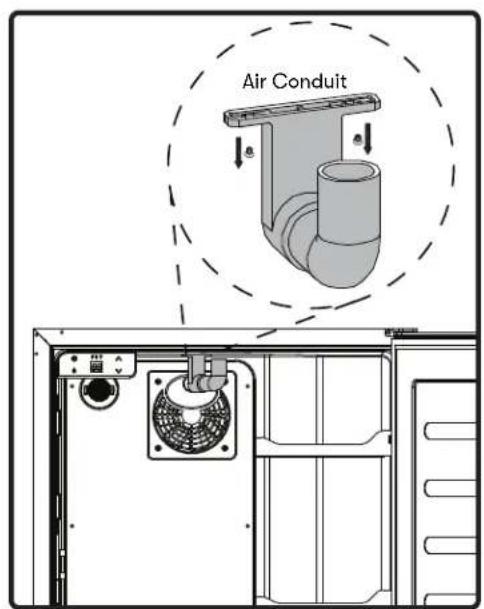

3. Remove the air conduit from the beer line

cooling system inside the kegerator by removing (2) screws (FIG. N).

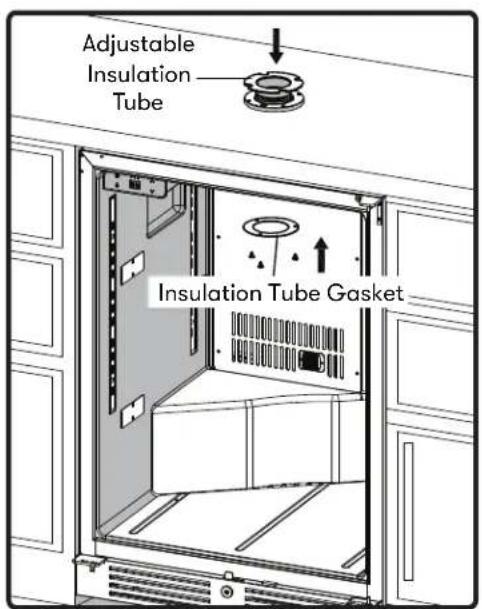

4. Install the adjustable insulation tube

through the top of the countertop and into the kegerator. Use the insulation tube gasket to secure the insulation tube to the ceiling of the kegerator using the included (3) ST*12 screws shown in FIG. O. NOTE: If you are using the built-in kit, there is no need to install the black rubber flange included with the tap kit. The rubber flange that is part of the adjustable insulation tube is sucient to create a seal. Black PlasticInsulation Cap FIG. M Air Conduit

Insulation Tube GasketAdjustableInsulation Tube Built-In Kit Installation27 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

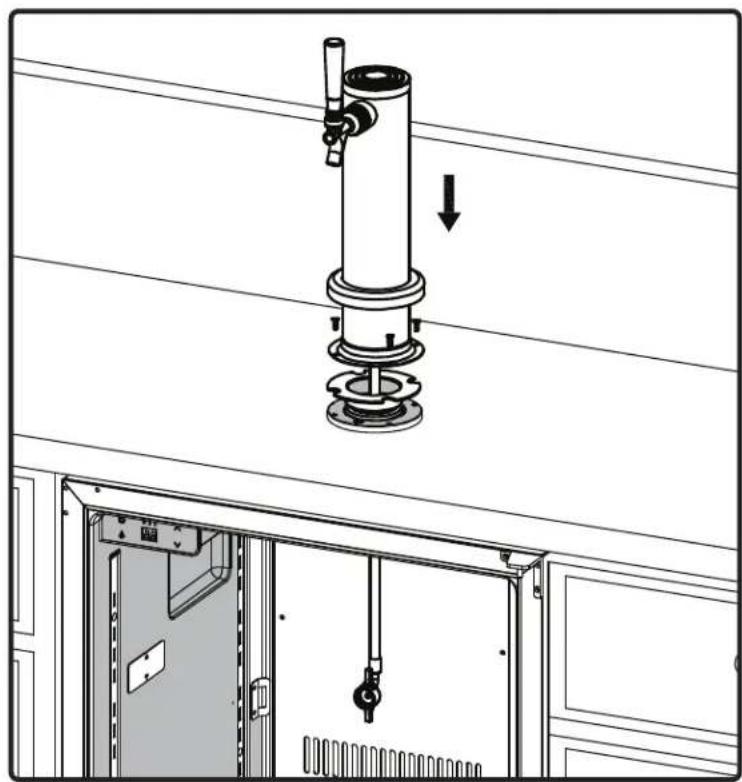

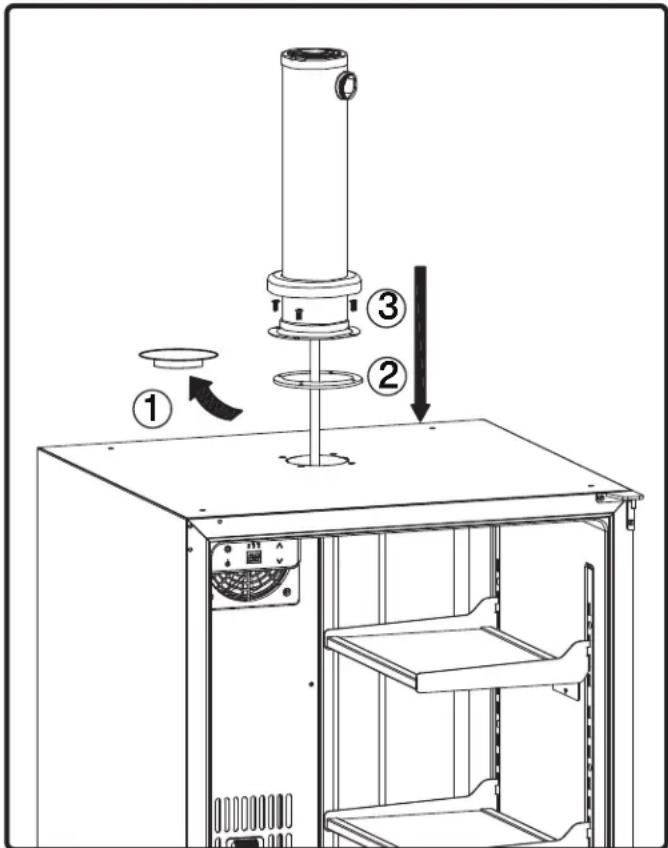

5. Install the tap tower by guiding the beer

line through the opening on top of the kegerator. Secure the tap tower to the threaded countertop flange using the (4) M5 x 8 screws included with the built- in kit rather than the (4) M5 x 16 screws included with the tap kit (FIG. P). NOTE: If you are installing a double or triple tap, apply the included “Left Tap Label” and “Right Tap Label” stickers to the relevant beer lines before mounting the tower.

6. Reinstall the air conduit by using the (2)

previously removed screws.

7. Complete the tap assembly by following

steps 5-18 on pages 19-21. FIG. P Built-In Kit Installation28 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

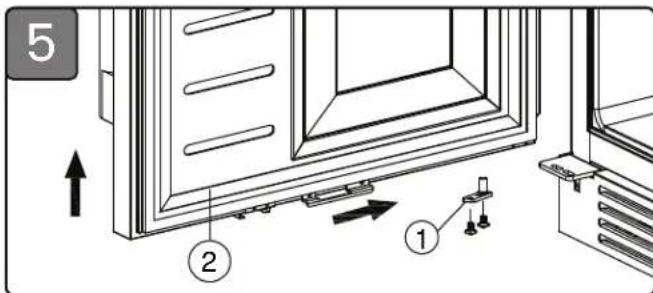

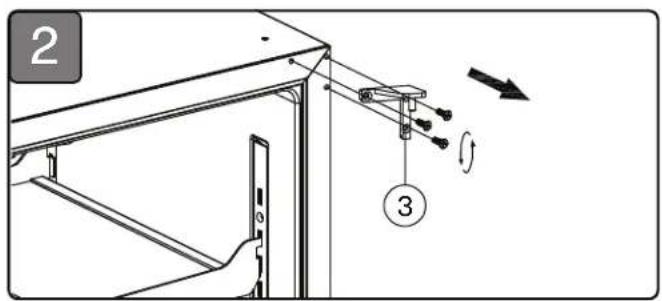

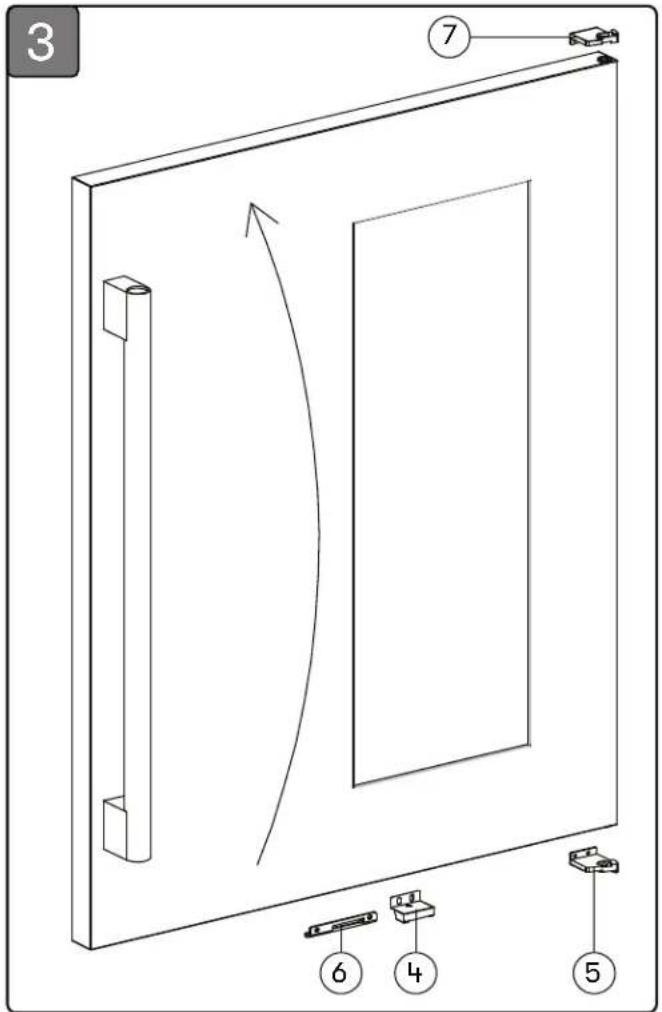

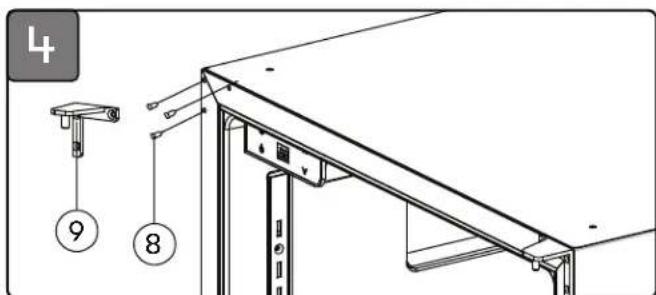

Installation Instructions Reversing the Door Swing of Your Appliance Should you desire to reverse the opening direction of the door, please follow the instructions below. Safely reversing the door swing of your appliance should require at least two people.

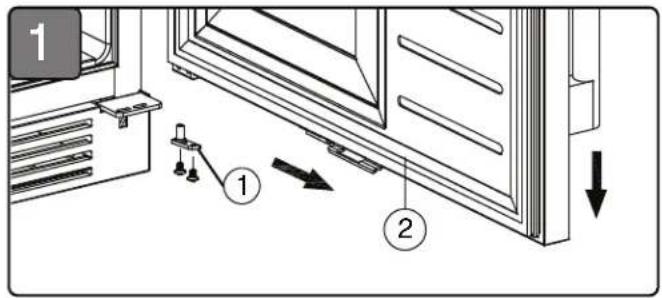

1. Remove the 2 screws from the lower door axis (1). Then remove the door (2) and remove the axis plate (1) from the door.2. Remove the 3 hinge screws from the top right hinge (3) and remove the top right hinge.3. Remove the door magnet (4), door stopper (5), and child safety lock catch (6) by 2 screws each from the bottom of the door. Then, install the door magnet, new door stopper (7), and child safety lock catch on the opposite side of the door frame. Rotate the door 180 degrees.

PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Reversing the Door Swing of Your Appliance 4. Remove the 3 decorative nails (8) from the top left of the cabinet. Install the decorative nails to the top right of the cabinet and install the new top hinge (9) from the hardware package at the top left of the cabinet with 3 screws.5. Reinstall the lower door axis (1) and door (2) once correctly aligned.

Installation Instructions Ź To prevent damaging the door or door gasket, make sure the door is open at least 90-degrees when pulling shelves out of the rail compartment. Ź The door opens to a maximum of 135 degrees with a door stop on the bottom hinge preventing the door from opening further. Installing the Glass Shelves Please follow the instructions below to properly install the glass shelves. The kegerator comes with two glass shelves that can hold 15 beer bottles or 15 12oz cans each, however, if you wish to install more glass shelves to increase your overall capacity, the part number is PRKSHLF-02BG.

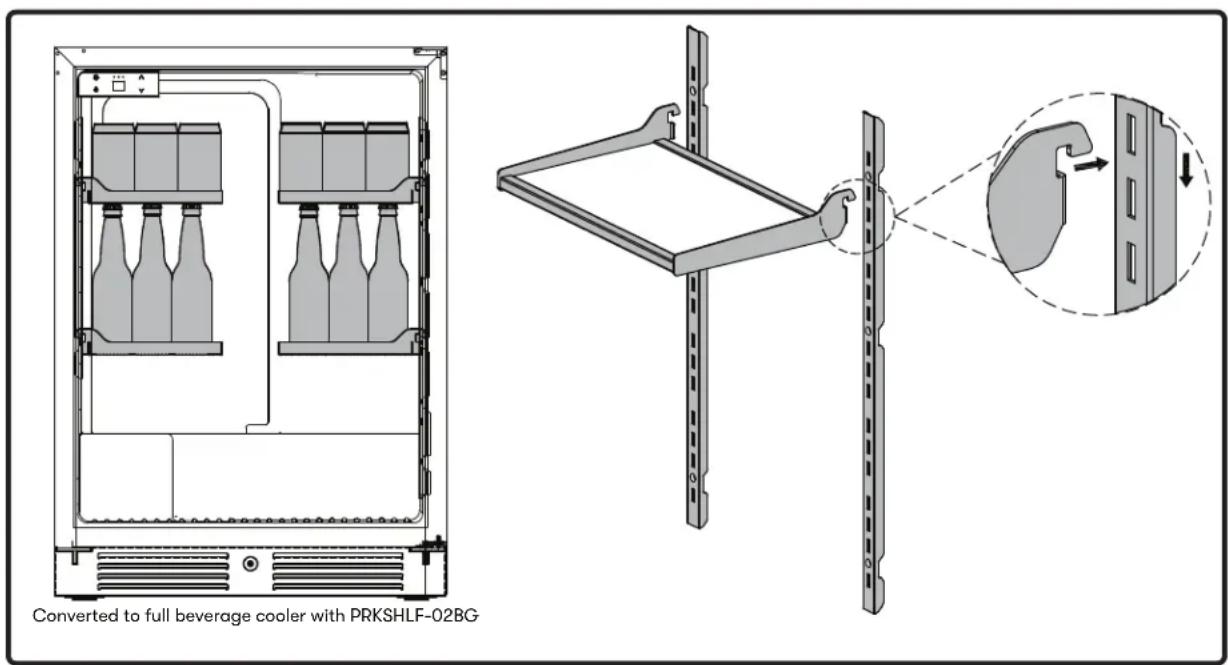

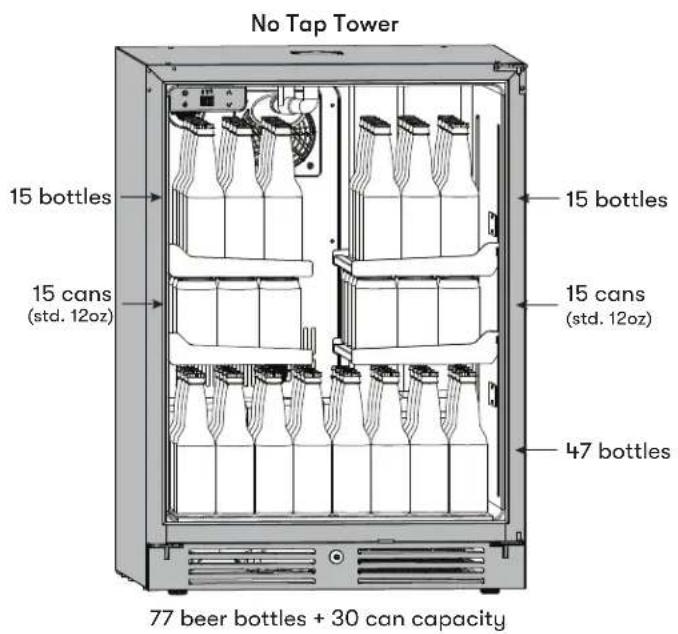

Converted to full beverage cooler with PRKSHLF-02BG

1. Completely open the kegerator door and unload any content that may obstruct the glass shelf

installation process.

2. The glass shelves have mounting hooks that can attach to both the left and right side of the

kegerator. Place the hooks into the mounting brackets as shown in the figure by slipping the hook into the bracket hole, which will secure it in place.

3. Load back any previously removed content and close the kegerator door.

CAUTION Max weight capacity of the glass shelf is 26.45lb. Exceeding this weight may damage the shelf.31 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Installing the Optional Caster Wheel Accessory To convert the stationary unit into a mobile unit, please follow the instructions below. Installing the optional caster wheel accessory should require at least two people to prevent injury. Optional Caster Wheel Accessory #: PRCAST-C001

1. Empty all contents within the kegerator and close the door afterwards. Lay the unit gently down

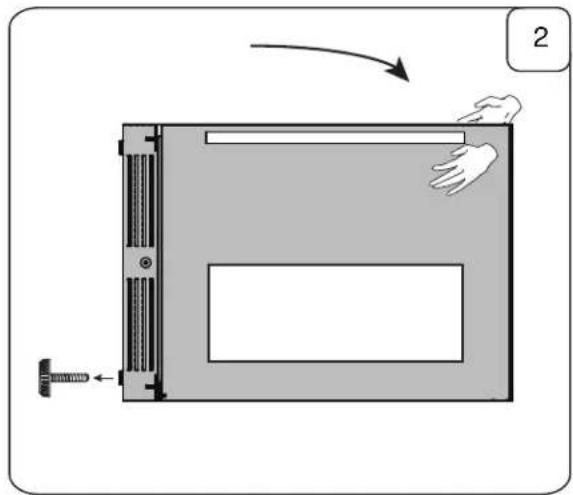

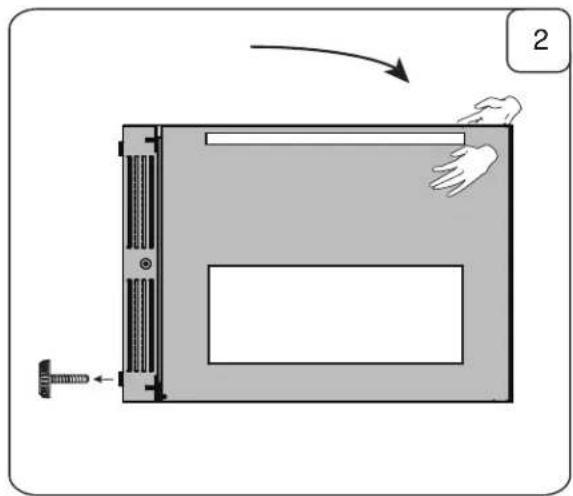

2. Remove the leveling legs from the kegerator by twisting the leveling legs counterclockwise. Perform

this step for each leveling leg.

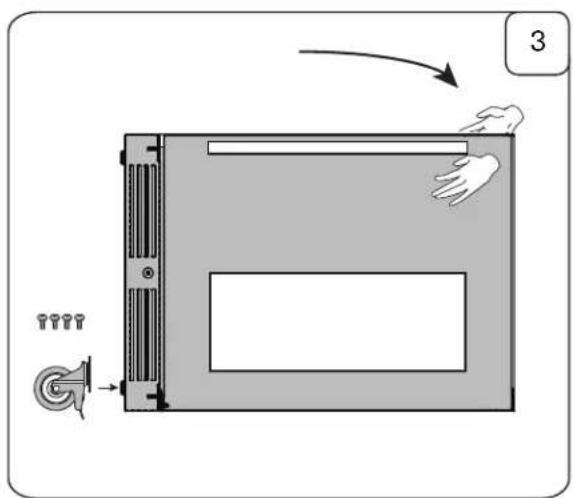

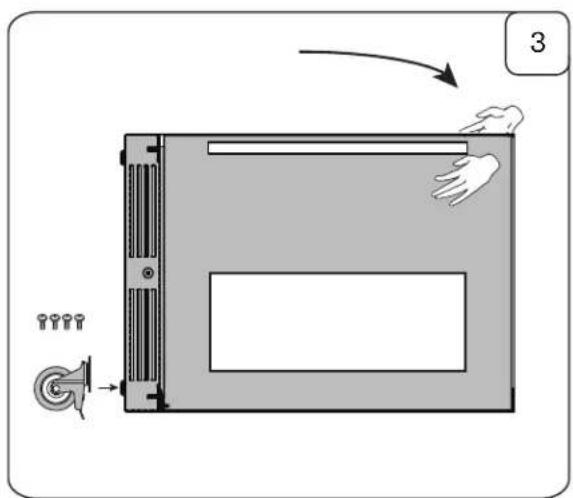

3. Install a caster wheel with 4 provided screws. Perform this step for each corner.

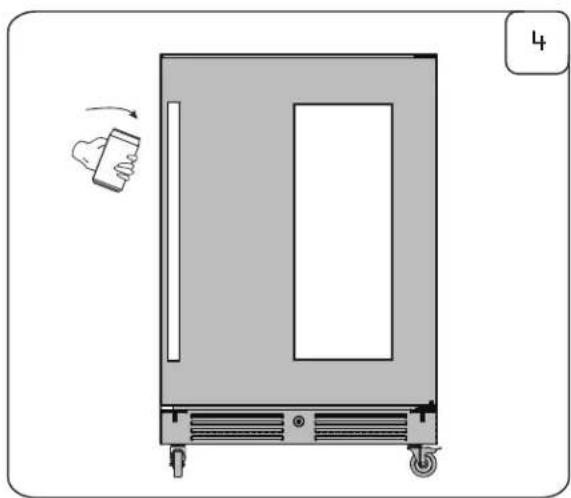

4. Set the kegerator back to its upright position. Place all contents back into the kegerator.

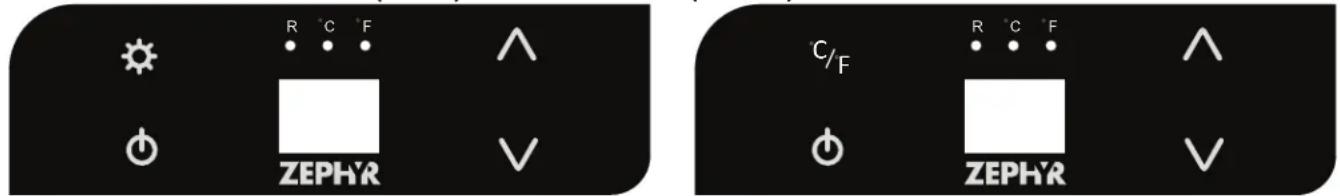

Operating Your Appliance If the unit is unplugged, power lost, or turned o, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the appliance may not start and will not keep the last set temperature. Using the Control Panel The kegerator has a temperature range from 32ºF-65ºF.

NOTE: The kegerator is equipped with a temperature memory function. If power is suddenly lost, the previous set temperature and light setting will be saved, and the cooler will return to this setting once power is restored. Power Button Press and hold this button for three seconds to power your unit on or o. While the unit is on, the R “Compressor Running” light may illuminate to indicate the internal compressor is active. Increase Temperature Press this button to increase the temperature by one (1) degree increments. 65ºF is the highest available temperature on this unit. Decrease Temperature Press this button to decrease the temperature by one (1) degree increments. 32ºF is the lowest available temperature on this unit. Interior Light (PRKB24C01AG only) Press this button to cycle through the dierent colors for the control panel and internal lights. ºC/ºF Selector (PRKB24C01AS-OD only) Press this button to switch the display temperature between Fahrenheit and Celsius. PRKB24C01AG can switch the display temperature by holding the Increase and Decrease Temperature buttons at the same time for two seconds.

Leaving drinks in temperatures of 32ºF or below for prolonged periods may cause bottles and cans to rupture. WARNING33 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Operating Your Appliance Internal Light PRKB24C01AG is equipped with (5) internal lights that can be set to Cloud White, Deep Blue or Amber colors. PRKB24C01AS-OD has (1) internal light in the Cloud White color. You can choose to display each color of light in two dierent modes: Display mode and Automatic Mode.* Display Mode The internal lights will stay constantly illuminated whether the door is open or closed. Display Mode is a custom/user-defined function, not a regular day to day function. Display mode is not available for PRKB24C01AS-OD. Automatic Mode The internal lights will illuminate each time the door is opened and fade o once the door is closed. This feature is triggered by a sensor located on the front vent, this sensor allows the refrigerator to recognize when the door is open or closed. *The default mode is Automatic Mode. To change between modes, press and hold the Interior Light button for 3 seconds. Door Open Alarm After 3 minutes of the door being open an alarm will sound and the display will flash with 00. Sabbath Mode Sabbath mode disables system responses to user-initiated activities and all external functions, including lighting, display and audible alarms. The unit will still maintain internal temperatures and set points. To enable or disable Sabbath mode, Press the Power Button and simultaneously press the Increase Temperature Button twice. The interior light and control display will go dark until the user disables Sabbath mode. NOTE: Although the display will not be visible, the temperature settings will remain active and preserve the internal temperature. Sabbath mode will remain active until it is disabled by the user.34 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

Operating Your Appliance Demonstration Mode In this mode, the compressor and fans never turn on but all other functions remain enabled. When in Demonstration Mode, the “R” indicator light will slowly blink indicating it is in Demonstration Mode.To enable or disable Demonstration mode, hold Power Button and tap Decrease Temperature Button twice. Temperature Alarm If the interior temperature is higher than 73ºF (23ºC), “HI” is shown on the temperature control panel and the temperature alarm will sound continuously after one hour. This indicates that the inner temperature is too high. If the inner temperature is lower than 23ºF (-5ºC), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after 15 minutes. If one of these situations occur, please reference the troubleshooting section for support.For the outdoor model, PRKB24C01AS-OD, the ambient temperature range is between 50ºF (10ºC) and below 109ºF (43ºC). For the indoor model, PRKB24C01AG, the ambient temperature range is between 50ºF (10ºC) and 90ºF (32ºC). Never use the indoor model outdoors. If the ambient temperature is expected to be below 50 degrees for over 24 hours, we recommend unplugging the unit to prevent damage.Never attempt to remove frost with a sharp object. WARNING Defrosting The kegerator is designed with an automatic defrost system. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up.If frost is preventing the door from closing properly, you may need to power the unit o until the frost melts (possibly up to 24 hours). Use a soft absorbent towel to dry the unit.35 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Operating Your Appliance Child Safety Lock The kegerator has a child safety lock designed to keep beverages within the cooler out of reach for children. Within the center of the front vent, a keyhole will be visible. To lock the kegerator, insert the provided key into the keyhole and turn the key counterclockwise. To unlock the kegerator, turn the key clockwise. Foot Lock Feature With the optional caster wheel accessory, PRCAST-C001, installed, the kegerator will become mobile. Each caster wheel has a foot lock lever to prevent the cooler from moving. By stepping on the lever, the caster wheel will be locked in place. Perform this action on each caster wheel to fully secure the unit. To release the locking mechanism, lift the foot lock lever. Perform this action on each caster wheel for the cooler to become mobile. 90°

Care and Maintenance Normal Sounds Your new kegerator may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. Ź Rattling noises may come from the flow of the refrigerant or the water line. Ź Items stored on top of the beverage cooler can also make noises. Ź The high eciency compressor may make a pulsating or high-pitched sound. Ź Water running from the evaporator to the water bin may make a splashing sound. Ź As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your beverage cooler. Ź You may hear air being forced over the condenser by the condenser fan. Cleaning the Unit Periodic cleaning and proper maintenance will ensure eciency, top performance, and long life. Interior Cleaning

1. Disconnect power to the unit.

2. Open the door and remove the contents and shelves.

3. With a clean cloth, wipe down the interior of the unit.

4. Reinsert the shelves and beverages.

5. Reconnect power to the unit.

Exterior Cleaning The outside of the unit is stainless steel. The unit may be cleaned with a stainless steel cleaner. Apply a nonabrasive cleaner, such as a soft scrub or sponge, dampen it, and rub the area in the same direction as the stainless steel grain. Use a stainless steel cleaner and follow the manufacturer’s instructions. Never use an abrasive or caustic cleaning agent as it could damage the exterior or cause discoloration.37 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Care and Maintenance Cleaning Components Exposed to Beer Frequent cleaning of components that are often exposed to beer will prevent bad tasting beer caused by buildup of deposits and bacteria. Cleaning these components will remove beer residue from from the tap and beer lines, keeping your beer tasting fresh. We recommend using the Zephyr Kegerator Beer Line Cleaning Kit, PRKCLN-001, to clean your beer lines every 6 weeks or each time the beer keg is replaced to maintain fresh tasting beer. Over time, a deep cleaning of the beer lines is required due to buildup. Please follow the instructions below for thoroughly cleaning the beer lines.

1. Close the CO₂ hand valve and remove all pressure with the pressure relief valve.

2. Disengage the keg coupler. Remove the gas line and beer line. Handle with care to prevent spilling

3. Remove the tap from the tap tower using the included wrench.

4. Soak the keg coupler and tap in warm water with some beer line cleaning solution for 30 minutes,

Reassemble everything once cleaned. Drip Tray Cleaning If there is a bad odor surrounding the kegerator, it is likely coming from the drip tray. The drip tray collects residual beer from the tap upon pouring, and if not periodically cleaned, will attract unwanted bacteria and mold. These microbes over time contribute to unpleasant smells. We suggest using these options below: Ź Rinse the drip tray after each use. Ź Clean the drip tray using soap and warm water after a few days of use. Ź Placing the drip tray in the dishwasher and running it. NOTE: Waiting a few seconds longer after pouring your beer will help lessen the amount of drip into your tray.38 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

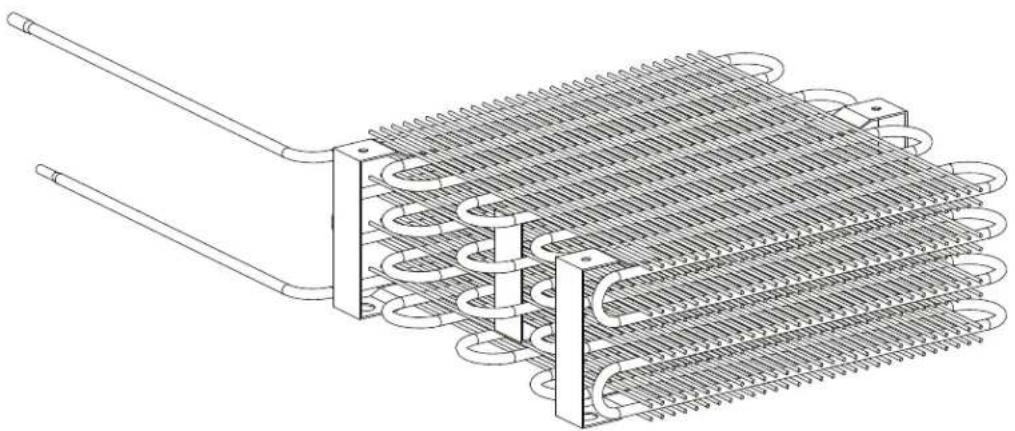

Care and Maintenance Cleaning the Condenser To maintain operational eciency, keep the front grille free of dust and lint. Clean the condenser when necessary. Depending on environmental conditions, more or less frequent cleaning may be necessary. Do not use any type of cleaner on the condenser unit. The condenser may be cleaned using a vacuum, soft brush, or compressed air. NOTE: It is recommended to clean the condenser at least once every six months. Disconnect the electrical plug of the unit before cleaning the condenser. WARNING 1. Remove the front grille.2. Clean the condenser coil using a vacuum, soft brush, or compressed air.3. Install the front grille.39 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Care and Maintenance Power Failure Most power failures are corrected within a few hours and should not aect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be o for a longer period of time, you need to take the proper steps to protect your contents. Moving Your Kegerator Ź Remove all items. Ź Securely tape down all loose items (shelves) inside your appliance. Ź Turn the adjustable leg all the way up (clockwise) to the base to avoid damage. Ź If caster wheels are installed, release the brake from each caster before attempting to move the appliance. Ź Tape the door shut. Ź Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item. Energy Saving Tips Ź The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight. Ź Ensure that the unit is adequately ventilated. Never cover air vents. Ź Only open the door for as long as necessary.40 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™

Care and Maintenance Extended Non-Use The following steps are recommended for periods of extended non-use, such from vacation, holidays, or prolonged shutdowns. If the unit will be exposed to temperatures of 40ºF (5ºC) or less, the below steps must be followed.

1. Remove all content from the unit.

2. Disconnect the electrical plug from the outlet and leave it disconnected.

3. If ice is on the evaporator, allow the ice to naturally thaw.

4. Clean and dry the interior of the unit. Ensure all water has been removed from the unit.

5. The door must remain open to prevent formation of mold and mildew. Open the door to a

minimum of 2” to provide necessary ventilation.41 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Frequently Asked Questions Ź What type of keg coupler is included with the Zephyr tap kit? Ź Zephyr kegeratures include a “D” style coupler which is the most common coupler used on North American beers. Ź What temperature should I set my kegerator at? Ź This depends on the style of beer. Lighter-bodied beers should be served between 34ºF and 38ºF whereas heavier and darker beers are typically better served around 40ºF and 44ºF degrees. However, this all depends on your pallet as some people prefer their beers cold and some prefer them warmer. Ź How long does it take for a new beer keg to reach the desired temperature? Ź There are many factors that determine this, such as if the keg was kept cold. We recommend letting the beer keg sit in the kegerator for up to 24 hours. Not only does this allow the keg to get to temperature, but it also gives it time to settle and reduce foaming issues. Ź How long will beer remain fresh in a keg? Ź Typically, 20 - 120 days depending on the type of beer and if it is stored at the proper temperature. Ź IPA’s and other “hoppy” beers only last a few weeks while light-bodied beers can last for a few months. Ź How many beers are in a keg? Ź Six barrel keg - 5.16gal, 55 12-oz beers Ź Quarter barrel keg - 7.75 gal, 82 12-oz beers Ź Half barrel keg - 15.5 gal, 165 12-oz beers Ź How many kegs can be dispensed from a 5lb CO₂ tank? Ź Six barrel keg - 13 to 16 kegs Ź Quarter barrel keg - 9 to 11 kegs Ź Half barrel keg - 5 to 6 kegs Ź How often should I clean the beer lines? Ź Each time the keg is changed or every 6 weeks. Ź How do I troubleshoot CO₂ leaks?

1. Pressurize the regulator to isolate the leak by turning the CO₂ tank valve counterclockwise

to turn on the tank.42 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide KEGERATOR & BEVERAGE COOLER INDOOR & OUTDOOR PRESRV™ Frequently Asked Questions

2. If the high-pressure guage needle moves, this is a good indication that you are receiving a

reading. You should be receiving a reading between 500 and 1,000 PSI, depending on the temperature of your tank, the ambient temperature, and altitude. If the needle moves, this is a good indication that you are receiving a reading.

3. Put pressure on the low-pressure side (this is the line that is pushing CO₂ to your kegs) by

turning the pressure adjusmtnet knob on the regulator clockwise until you receive a reading of 10 PSI.

4. Once the regulator is set to 10 PSI, shut o the valves that send gas out of the regulator by

turning them 90 degrees.

5. Turn your CO₂ tank o by turning the valve clockwise.

6. Check your pressure guage to see if the pin has moved at all.

Ź If it drops, you have a leak somewhere between the shut-o valves and the tank. Ź First, check the connection between the CO₂ tank and regulator. The most common place to find a leak is at this location. It can be easily fixed by tightening the connection with a wrench. Ź If you have a leak in the regulator, it can be fixed with Teflon tape or tightening the connection with a wrench. Be sure to only use Teflon tape on a tapered pipe thread (NPT) connection. It will fill in the gaps between the connection and prevent leakage. Ź If the needle doesn’t drop and your regulator is maintaining pressure, let the system sit for 15 to 20 minutes and the ncome back to see if the needle has moved. This method will spot any small leak you may have in your system. Ź If your needle drops, you may have a small leak in your regulator. Tighten the connection with a wrench. Ź If your needle still doesn’t drop, open your regulator valves one at a time to each beer line. If the needle drops after opening the valve, you’ll know that particular line or tube has a leak. Also, you will know that t he leak is occuring between the shuto valve and the keg.

7. Now that you know the general location of the leak, to find the precise location of the leak,

you need to pressurize the line again by turning the CO₂ tank back on.

8. Mix a solution of liquid dish soap with the water in a spray bottle. Generously spray all the

connections of the suspected leak zone including all threaded connections and lines.

9. If there is a leak, it will begin to bubble to indicate a leak at that location, when you spray

the connections. Ź If the leak is at the connection, tighten the connection with a wrench. Ź If the leak is on a hose, cut the damaged section out or replace it with a new hose. Ź If the leak is at the keg coupler connection, tighten until snug. If the silicon check valve in the coupler is damaged, replace it with the spare part from your spare parts bag.43 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting Possible Problem Possible Cause Solutions The appliance does not operate. Not plugged in. Ensure the appliance is plugged in and the power outlet has power. The appliance is turned o. Turn on the appliance. The circuit breaker tripped or has a blown fuse. Replace the broken fuse or reset the breaker. Sabbath mode may be enabled. See the Operating Your Appliance section and verify if Sabbath mode is disabled. The appliance is not cold enough. Temperature control setting is too high. Adjust the set temperature. External environment may require a higher setting. Keep the appliance away from sunshine or other heat sources. The door is opened too frequently or for long periods of time. Close the door tightly and do not open the door too frequently or for a long period of time. The door gasket is not sealed properly. Ensure the door gasket is not loose. Demonstration mode may be enabled. See the Operating Your Appliance section and verify if Demonstration mode is disabled. The cooler does not have sucient ventilation. Read and follow the “Installation Clearance Requirements” in the Installation Instructions section. The cooler has restricted air flow due to too much storage. Open space in the cabinet to allow air flow. If the outside temperature exceeds 115ºF, the unit may not operate optimally and will aect cooling. Place the cooler in an environment where is the temperature is above 50ºF and below 115ºF. The appliance turns on and o frequently. The room temperature is hotter than normal. Run the refrigerator at the appropriate ambient temperature. The door gasket is not sealed properly. Ensure the door gasket is not loose. The door is opened too frequently or for long periods of time. Close the door tightly and do not open the door too frequently or for a long period of time. The cooler does not have sucient ventilation. Read and follow the “Installation Clearance Requirements” in the Installation Instructions section. The door is not closed completely Make sure the door is completely closed.44 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide KEGERATOR & BEVERAGE COOLER INDOOR & OUTDOOR PRESRV™ Troubleshooting Possible Problem Possible Cause Solutions The body of the appliance is electrified. The unit is not properly grounded. Contact your local electrician to test your electrical grounding system. Frost is forming in the appliance. The environment is too humid. The unit uses an ‘auto-defrost’ system, under certain conditions, manual defrosting may be required. If frost builds up, you can try running the refrigerator on a warmer temperature setting, minimizing the number of times you open the door or unplugging the unit to allow the frost to melt. The ambient temperature is too low. The door is being opened too frequently. The appliance makes too much noise. The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in the appliance. It is normal that as each cooling cycle ends, you may hearing ratting or gurgling sounds caused by the flow of refrigerant in the appliance. The high eciency compressor may make a pulsating or high pitched sound. Contraction and expansion of the inside walls may cause popping and cracking noises. Some popping or cracking noises are normal. They are caused by expansion and contraction of the inside walls due to temperature changes. The unit is not level or is touching another appliance. Check to make sure the cooler is level and that it is non in contact with another appliance or furniture. The door will not close properly. The appliance is not level. Make sure the appliance is on a level surface. The door gasket is not installed correctly. Make sure the door gasket is properly installed. The gasket is dirty. Clean the door gasket. The shelves are out of position. Install the shelves correctly.45 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting Possible Problem Possible Cause Solutions The beer is foamy upon pouring. The tap handle is not being fully pulled. Fully pull back on the tap handle. The beer is warm. Allow the kegs to sit in the kegerator for at least 24 hours. There is excessive CO₂ pressure. Lower and adjust the CO₂ pressure to between 10-12 PSI. The beer lines are old. Either replace the beer lines or clean the beer line. The tap is clogged. Clean the tap. The beer is cloudy and hazy upon pouring. The temperature is too low, resulting in chill haze. Increase the temperature of the kegerator. The keg has something warm on it. Remove any item that is not cold from the keg. The beer is flat upon pouring. The tap handle is not being fully pulled. Fully pull back on the tap handle. The glasses that beer is being poured into are greasy. Wash the glasses thoroughly after each use and allow to air dry. Do not dry wipe. There is not enough CO₂ pressure. Refill the CO₂ tank if empty. Check the CO₂ tank valve, making sure it is open. Check for obstructions in the gas lines. Check the shuto valve from the regulator, making sure it is fully open. If the PSI is too low, raise the CO₂ pressure to between 10- 12 PSI. The beer is bad or o- tasting. The beer line or tap is dirty. Clean the beer line and tap with the beer line cleaning kit, PRKCLN-001. The gas lines are dirty. Replace the gas lines if they appear contaminated. The beer is old. Replace the keg with fresh beer.46 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide KEGERATOR & BEVERAGE COOLER INDOOR & OUTDOOR PRESRV™ Description Part Number Replacement Parts Replacement Charcoal Filter Z0F-C004 Optional Accessories Single Tap Kit PRKFK-01SSC Double Tap Kit PRKFK-02SSC Triple Tap Kit PRKFK-03SSC Beverage Cooler Kit, 2 Shelves PRKSHLF-02BG Drink Guardrail PRKRAIL-0124SS Beer Line Cleaning Kit PRKCLN-001 Caster Wheels PRCAST-C001 Contemporary Handle, Stainless Steel PRHAN-C101 Contemporary Handle, Brushed Gold PRHAN-C102 Contemporary Handle, Matte Black PRHAN-C104 To order parts, visit us online at http://store.zephyronline.com. List of Parts and Accessories NOTE: A detailed list of materials and instructions will be provided per accessory or kit.47 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty Five Year Limited Warranty for Compressor: For five years from the date of your original purchase of the Products, we will provide, free of charge, compressor parts to replace those that failed due to manufactur- ing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. Two Year Limited Warranty for Labor: (IIHFWLYHIRU SXUFKDVHVDVRI-DQXDU\)or two years from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at www.zephyronline.com/contact or by telephone at 888-880-8368 within 60 days of discovering the defect; (b)give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we deter- mine that the warranty exclusions listed above applyor if you fail to provide the necessary documentationto obtain service, you will be responsible for allshipping, travel, labor and other costs related to theservices. This warranty is not extended or restartedupon warranty repair or replacements. Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Warranty Exclusions: This warranty covers only repair orreplacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as filters, light bulbs, fuses; (b) any Products or parts which have been subject to freightdamage, misuse, negligence, accident, faulty installation orinstallation contrary to recommended installation instructions,improper maintenance or repair (other than by us); (c) commercialor government use of the Products or use otherwise inconsistent withits intended purpose; (d) natural wear of the finish of the Products orwear caused by improper maintenance, use of corrosive andabrasive cleaning products, pads, and oven cleaner products; (e)chips, dents or cracks caused by abuse or misuse of the Products;(f) service trips to your home to teach you how to use the Products;(g) damage to the Products caused by accident, fire, floods, actsof God; or (h) Custom installations or alterations that impactserviceability of the Products. (I) Damage to personal property orfood spoilage from use of this product. If you are outside our servicearea, additional charges may apply for shipping costs for warrantyrepair at our designated service locations and for the travel cost tohave a service technician come to your home to repair, remove orreinstall the Products. After the first year from the date of youroriginal purchase, you are also responsible for all labor costsassociated with this warranty. All Products must be installed by aqualified professional installer to be eligible for warranty repairs orservice. Limitations of Warranty: OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year and one-year periods described above if permitted by applicable law. Any oral or written descrip-tion of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. Please check our website for any additional product information, www.zephyronline.com For warranty support, contact us at www.zephyronline.com/contact -$12.030148 PRKB24C01AG & PRKB24C01AS-OD Use, Care, and Installation Guide

KEGERATOR &BEVERAGE COOLERINDOOR & OUTDOORPRESRV™
