USER MANUAL FG450 FAGOR

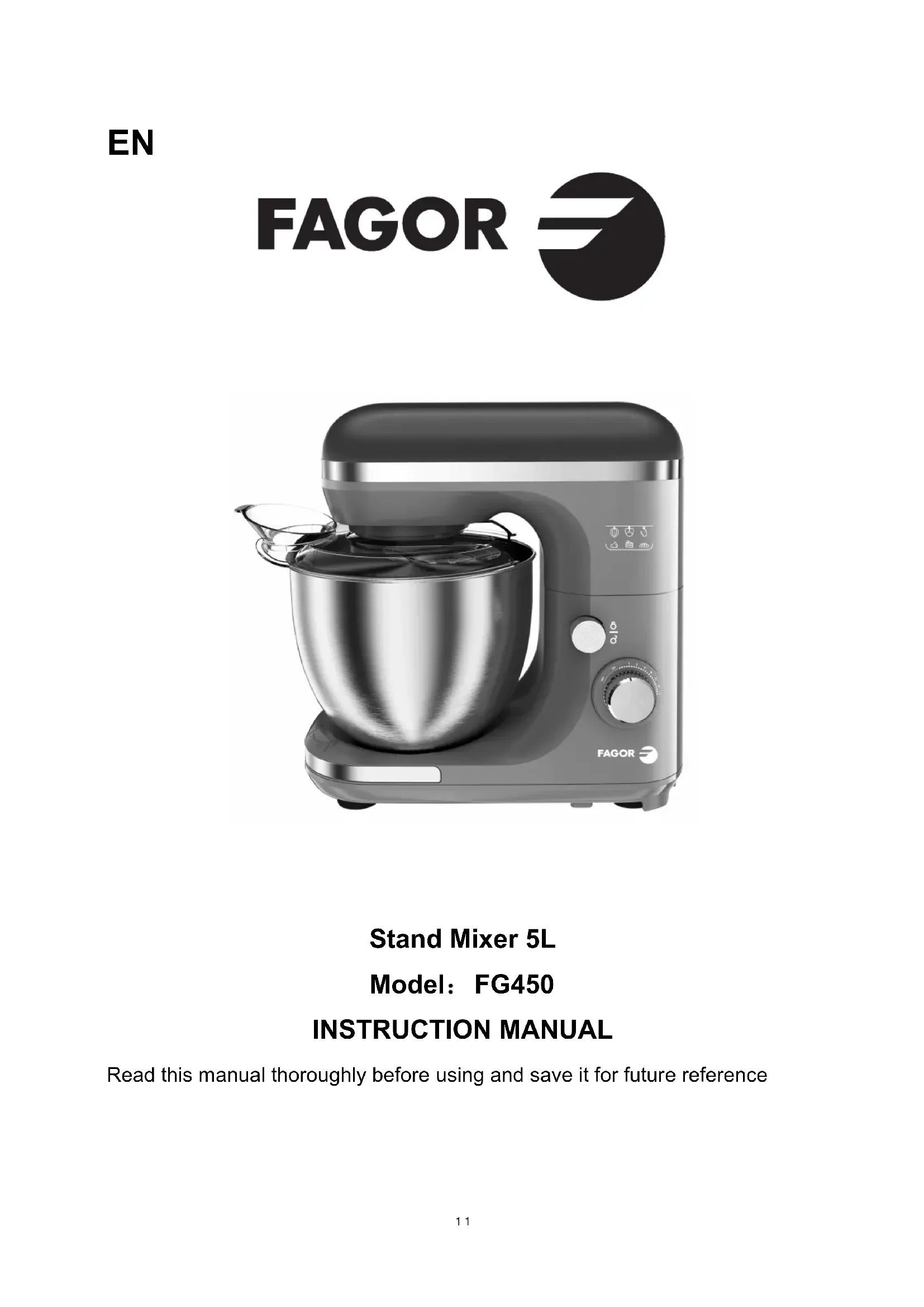

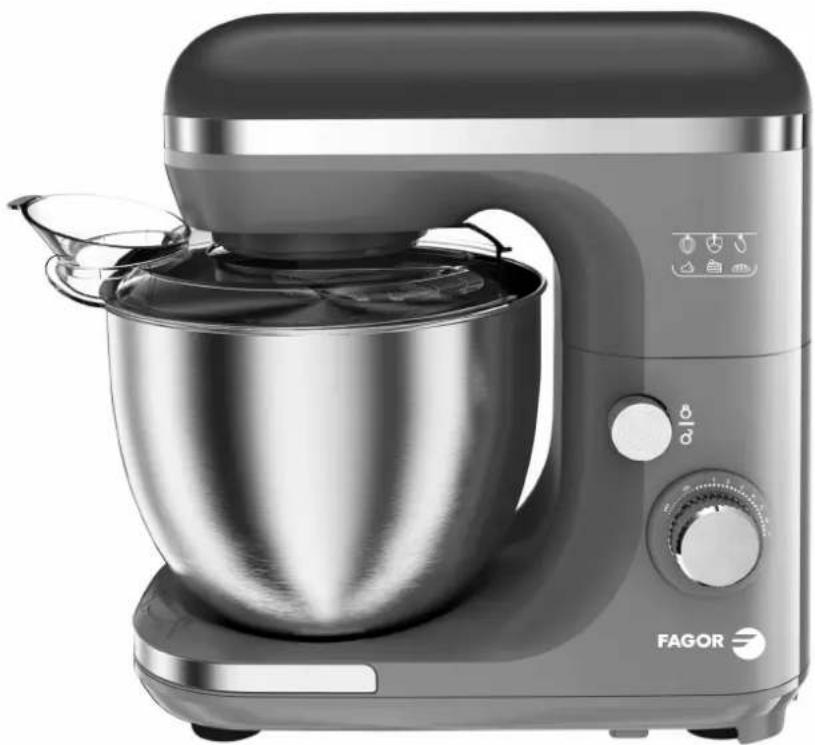

Stand Mixer 5L Model FG450 INSTRUCTION MANUAL Read this manual thoroughly before using and save it for future reference 11IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.

2. Before use, check that the voltage of your wall outlet

corresponds to the one on the rating plate which is on the bottom of the appliance.

3. Do not operate the appliance with a damaged cord or after

malfunction or has been damaged in any manner.

5. Do not immerse cord or the body of mixer into water as this

would give rise to electric shock.

6. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

7. Close supervision is necessary when your appliance is being

used near children or infirm persons.

8. Do not place an appliance on or near a hot gas or on a

9. Never eject beaters or dough hooks when the appliance is in

10. Do not leave mixer unattended while it is operating.

11. Unplug from outlet while not in use, before putting on or

taking off parts, and before cleaning.

12. The use of attachments not recommended by the

manufacturer may cause fire, electric shock or injury.

13. Remove beaters from mixer before washing.

14. Always check that the control is OFF before plugging

cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.

15. Avoid contacting with moving parts.

16. Keep hands, clothing, as well as spatulas and other

utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage.

17. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

18. Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

19. Children shall not play with the appliance.

20. Always disconnect the appliance from the supply if it is

13left unattended and before assembling, disassembling or cleaning.

21. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

22. There is potential injury from misuse.

23. Care shall be taken when handling the sharp cutting

blades, emptying the bowl and during cleaning.

24. Regarding the operating times, speed setting and rest

time, thanks to refer to the section "How to use the basic function "or “Processing Guide.”

25. Regarding the instructions for cleaning surfaces in

contact with food, thanks to refer to the section “Cleaning and Maintenance”.

26. This appliance is intended to be used in household and

similar applications such as: Staff kitchen areas in shops, offices and other similar working environments; in agricultural working environments; by customers in hotels, motels etc. and similar establishments in bed-and breakfast type environments.

27. Be careful if hot liquid is poured into the mixer as it can

14be ejected out of the appliance due to a sudden steaming.

28. The appliance is intended for domestic use indoors.

Product may be subject to change without prior notice BEFORE USING MIXER Before assembling the mixer, be sure the power cord is unplugged from the power outlet and the speed selector is in the 0 position.

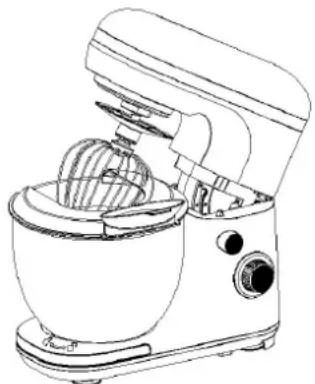

1. Depressing the tilt button, the head of mixer will automatically release and lock into

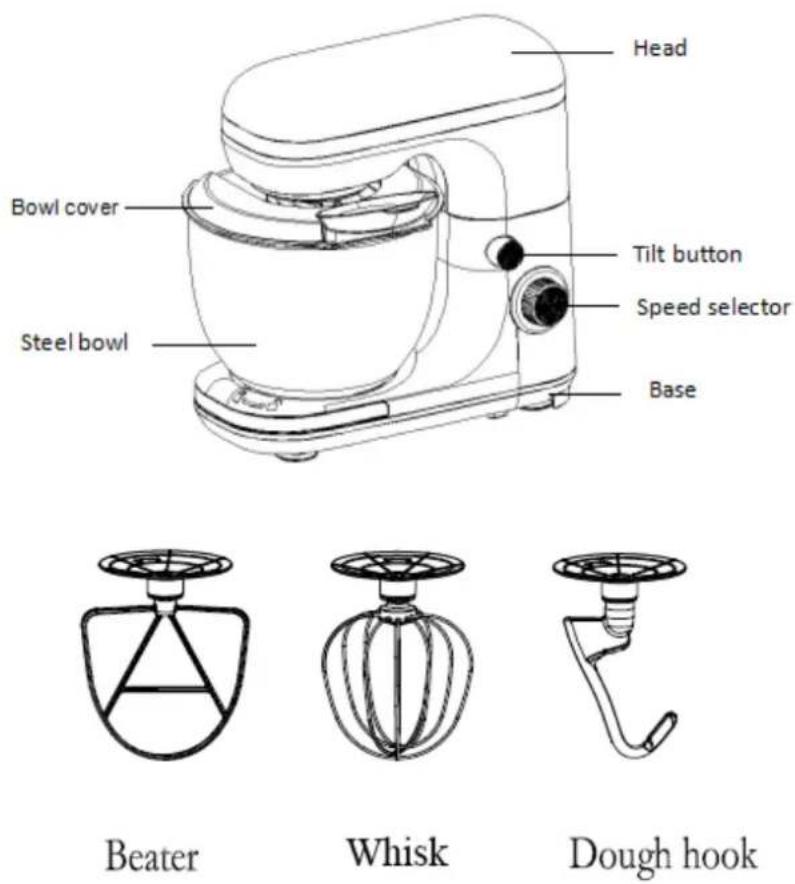

2. Select the desired attachments, which are depending on the mixing task to be

performed: beater for mixing and beating egg, and dough hook for kneading, the whisk for beating and frothing egg white.

3. Inserting the Beater/ dough hook/whisk directly, until it locks into position.

Note: Ensure the beater or dough hook or whisk is fully inserted into the appliance, otherwise your mixing results may be affected.

4. Place bowl on position. First place the bowl on the base, then turn the bowl in

clockwise until it lock into position (see fig.1).

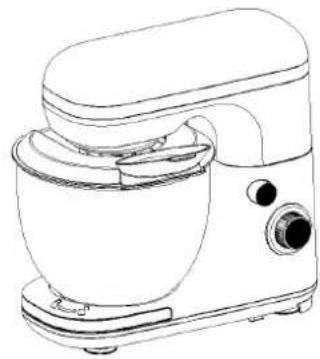

5. To lower the head and place beater / dough hook/whisk into the bowl by holding the

head with the one hand and ease the head down. A click sound will be heard when the head has reached the correct position.

6. And make sure the bowl cover in place (see fig.2).

1. Ensure that the speed selector is at the 0 position, then plug in the power source.

2. Turn the speed selector to your desired setting.

Warning: Do not stick knife, metal spoons, fork and so on into bowl when operating.

3. The max operation time per time shall not exceed 10 minutes and minimum 20

minutes rest time must be maintained between two consecutive cycles. When kneading Fig.1 Fig.2 16yeast dough, suggest the speed selector first use a low speed and then use high speed to achieve the best results. Note: during kneading, some flour may be adhered on the inside of the bowl, you shall remove the bowl cover, and scrape the flour on the inside wall of bowl by spatula to obtain well kneading results.

4. When mixing is completed, turn the speed selector to 0 position, unplug the cord from

5. Hold down the tilt button, the head of the mixer will automatically lift and lock into

6. If necessary, you can scrape the excess food particles by plastic spatula.

7. Pull out the beater/dough hook/whisk with a little force.

Caution: The speed selector must be at 0 position and the power outlet must be unplugged before pulling out the beater/dough hook/whisk.

CLEANING AND MAINTENANCE

1. Unplug the appliance and wait it completely cool down before cleaning.

Caution: the mixer cannot be immersed in water or other liquid.

2. Wipe over the outside surface of the head and base with a dampened cloth and polish

with a soft dry cloth.

3. Wipe any excess food particles from the power cord.

4. Immerse the bowl, beater, spatula, dough hook and whisk in warm soapy water for

complete cleaning. Then rinse under running water and wipe dry. There also can be placed in the dishwasher. COOKERY TIPS

1. Refrigerated ingredients, such as butter and eggs, then should be at room temperature

before mixing begins. Set these ingredients out ahead of time.

2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs

17into separate container first, then adding to the mixture.

3. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold

into dry ingredients only until just combined. Always use the low speed.

4. Seasonal temperature changes, temperature of ingredients and their texture variation

all play a part in the required mixing time and the results achieved.

REMOVAL OF APPLIANCES USED

Directive 2012/19/EU on waste electrical and electronic Equipment (WEEE) requires that the appliance uses are not disposed of using the normal municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment. The symbol of the dustbin is used on all products to remind the obligations for separate collection. Consumers should contact their local authorities or dealer regarding the steps to Test items Material Recommended Weight Beater Flour 150g suger 150g Butter 150g Eggs 3pcs Baking Soda

Dough hook Flour 500g water 300g Whisk Eggs 4pcs 18follow for the removal of their old appliance. If you proceed with the scrapping of old equipment, be sure to render useless what could be dangerous: disconnect the power cable flush with the device.

Never attempt to use your appliance, if it shows signs of damage or the power cord or plug is damaged. If the power cord is defective it is important to have it replaced with the after sales service to eliminate any danger. Only qualified and authorized persons are authorized to carry out repairs to your appliance. Any repairs not in accordance with standards could significantly increase the level of risk for the user! Defect resulting from improper handling, degradation or attempted repairs by third parties voids the warranty on the product. This also applies in case of normal wear and accessories from the appliance. Important! We recommend that you keep the packaging of your device at least for the duration of the warranty. The guarantee does not apply without the original packaging. Warranty: Your device has two years warranty. The warranty does not cover wear and breakage following a wrong use of the product.The customer is responsible for all returns. You remain responsible for the costs and risks associated with the product shipment; it is therefore recommended to ship the product with an acknowledgement of receipt and transport insurance in case of significant value of the product.

KEEP OUT OF REACH OF CHILDREN

Children should be supervised to ensure that they do not play with the appliance.
