USER MANUAL GSP 546 110 W AMICA

DISPOSAL OF OLD APPLIANCE 46

INSTALL THE APPLIANCE 47

PLACE YOUR APPLIANCE 47

WATER SUPPLY CONNECTION 47

WATER SUPPLY HOSE 47

LOAD DISHES INTO DISHWASHER 55

ADD DISHES DURING THE PROGRAMME: 61

CLEAN THE DISHWASHER 67

DISPLAY I BEDIENPANEL

USE Before you install the appliance

• Check the appliance for transport damage. Never install or use a damaged appliance. If in doubt, contact your seller.

• Carefully read the operating instructions before plugging dishwasher to a power outlet and using the appliance. Operating instruction include tips that will help you avoid the risk of injury and dam- age to the appliance. Keep dishwasher documen- tation in a safe place for possible future use.

• These operating instructions have been prepared for a range of appliances and some features de- scribed herein may not apply to your appliance. Before rst use

• See installation notes (below).

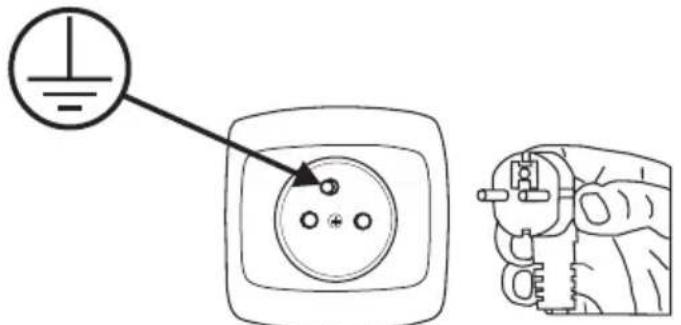

• Refer the grounding system installation to a qual- ied electrician.

• The manufacturer shall not be liable for any dam- age arising from the use of a non-grounded appli- ance.

• Before using the appliance, verify that the data given on the rating plate matches that of local power outlets.

• Do not plug in the appliance before and during installation.

• Always use the original plug that came with the appliance.

• Do not use an extension cord to connect the ap- pliance to the wall outlet. Extension cords are not suciently safe (e.g. they may overheat).

• Make sure the plug is easily accessible after in- stalling the appliance. Child safety

• This appliance can be used by children aged 8 years and older or persons with physical, mental or sensory handicaps, or those who are inexperi- enced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with the associated risks. Ensure that children do not- 42 - play with the appliance. Children should not be al- lowed to clean or maintain the appliance.

• Children less than 3 years of age shall be kept away unless continuously supervised.

• Do not allow children to play with the appliance.

• Dishwashing detergents can be caustic and irritate the eyes, mouth and throat. Read the safety notes from detergent manufacturer.

• Never leave children unsupervised when the ap- pliance is open. It can contain residue detergent.

• Dishwasher water is not suitable for drinking. Dan- ger of injury from the caustic chemicals.

• When you open the door during a programme, be careful as water temperature is high.

• To avoid injury always place long and sharp/point- ed items (e.g. forks, knives) in the cutlery basket, pointing down, or at on the top basket. Daily maintenance

• Use the appliance for household dishwashing only.

• Do not use solvents in the appliance as there is a risk of explosion.

• Do not sit or stand on the open door and do not place any objects on it. The device may overturn.

• Do not open the door when the appliance is oper- ating. Hot water or steam can be released.

• Do not leave the door open, because they it can pose a hazard.

• Washing tableware in a household dishwasher usually uses less energy and water than washing up by hand. In case of problems

• Refer repair and modications of the appliance to qualied technicians only.

• In the event of problems or repairs, unplug the appliance from the wall outlet:

• Unplug the appliance by pulling the plug,

• Turn o the circuit breaker.

• Do not pull the power cord, pull the plug only. Close the water supply. Recommendations

• Loading the dishwasher to the capacity indicated by the manufacturer will save energy and water.

• To save energy and water, rinse food residue of the dishes before loading the dishes into the dish- washer. Run the dishwasher with full load.- 43 -

• Do not put dishes with food leftovers in the appli- ance.

• Use pre-wash programme only when needed.

• Load bowls, cups and mugs bottom facing up.

• Do not load in the appliance any dishes that are not dishwasher safe and do not load too many dishes.

• It is not recommended to pre-rinse the tableware, as this leads to an increase in water and energy consumption. Dishes and utensils that are not suitable for dishwashers.

• Ashtrays, candles, cleaning pastes, paints, chem- icals, ferro-alloys;

• Forks, spoons and knives with a handle made of wood, ivory or Nacre, glued items contaminated with abrasive powders, acid or base

• Plastic dishes that are not resistant to high tem- perature, containers made of copper or tin;

• Aluminium and silver items (may be stained or loose lustre)

• Some delicate types of glass, porcelain with dec- orative prints, as prints may fade even after the rst wash; some crystal dishes as they may lose their transparency, glued silverware sensitive to high temperatures, lead crystal glass, chopping boards, items made with synthetic bres;

• Absorbent objects such as a sponge or kitchen cloths are not suitable for the dishwasher.

• Before buying dishes in the future make sure they are dishwasher safe.

• Pursuant to Commission Regulation (EU) 2019/2022, the minimum availability period for spare parts nec- essary to repair the appliance is 7 or 10 years de- pending on the type and purpose of the spare part.

• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.

• For more information about the product, please refer to the EU EPREL Product Database at https://eprel. ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy la- bel or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.eu- ropa.eu/- 44 - UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. Af- ter unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environ- ment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethyl- ene, polystyrene, etc.) should be kept away from children during unpacking.- 45 -

APPLIANCE In accordance with European Directive 2012/19/EU and local legislation re- garding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collec- tion centre collecting used electrical and electron- ic goods. The collectors, including local collection points, shops and local authority departments pro- vide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health haz- ards resulting from the presence of dangerous com- ponents and the inappropriate storage and process- ing of such goods.- 46 -

INSTALL THE APPLIANCE

PLACE YOUR APPLIANCE

• When choosing the place of installation, make sure you will be able to easily load and remove dishes and utensils from the dishwasher.

• Do not place the appliance in a room where the temperature can fall below 0°C.

• Before installing unpack the appliance following the instructions on the packaging.

• When you move the appliance do not handle it by the door or control panel.

• Leave some room on all sides to have convenient access to the dish- washer when cleaning.

• Make sure that when you set the dishwasher you do not crush the water supply and drain hose. Also, make sure that the appliance is not places on the power cord.

• Level the appliance using the adjustable legs. Proper level ensures trouble-free opening and closing the dishwasher doors.

• If the dishwasher door will not close properly, check that the appli- ance stands rmly on the oor, if not, adjust using the adjustable legs. Water supply connection Make sure that domestic water supply system is suitable for the dish- washer. It is recommended to install a lter in the water supply line to avoid damage to the appliance due to impurities (such as sand, clay, rust, etc.) that occasionally occur in water. This will also prevent accu- mulation of sediment after dishwashing. Note: When connecting to drinking water make sure that you connect the appliance using a safety device against drinking water contamination through backow (according to DIN EN 1717). We recommend that in- stallation, including water supply and electrical connections, and repairs are carried out by a qualied technician. Water supply hose Do not use the water supply hose from the old dishwash- er. Use the new water supply hose provided with the ap- pliance. Before connecting, rinse the hose with water. Connect the water supply hose directly to the water feed valve. The domestic water system pressure should be at least 0.03 MPa and up to 1 MPa. If the water pressure exceeds 1 MPa, install pressure reducing valve. When the connection is ready, open the valve completely and check for leaks. For safety reasons, close the water supply tap after every wash.- 47 - NOTE: Aquastop water supply is used in some dishwasher models. Dangerous volt- age could occur with Aquastop. Do not cut the Aquastop water supply. Do not allow it to bend or twist. Note: For safety reasons, close the water tap after every wash The drain hose The drain hose can be connected directly to a water drain or kitchen sink stub pipe. You can also drain the water directly into the sink using the special bracket (if available), placing the drain hose outlet on the kitchen sink edge. The drain hose connection should be made at least 50 cm and up to 110 cm from the oor. min 50cm/max 110cm min 50cm/max 110cm If the drain hose is longer than 4m, dishes may not be washed properly. The manu- facturer will not be held re- sponsible. Electrical connection Grounded plug must be connected to a grounded power outlet with a proper voltage. If there is no grounding, refer this to a qualied electri- cian. If you operate the appliance without proper grounding, the manu- facturer does not assume any liability for the possible resulting damage.

• Domestic electrical system must be protected with a 10-16A fuse.

• The appliance must be supplied with 220-240V/50Hz AC.

• Always use the plug provided with the appliance. When you operate the appliance at lower voltage the dishwashing eciency will deteri- orate and may damage the appliance.

• The power cord may only be replaced by authorized service or a qualied electrician. Failure to comply with these rules may lead to an accident.

• For safety reasons, you should always unplug the appliance after you have nished using it.

• In order not to avoid electric shock, do not remove the plug from the wall outlet with wet hands.

• When you unplug the appliance from the wall outlet, always pull the plug. Never pull the power cord.- 48 -

PREPARE THE APPLIANCE

FOR OPERATION Before rst use

• Before using the appliance, verify that the data given on the rating plate matches that of local power outlets.

• Remove all packing materials from inside of the appliance.

• Prepare special salt (water softener).

• Pour water into the special salt dispenser and then add about 1.5 kg of special salt (dishwasher salt).

• Pour rinse aid into the dispenser. The importance of water descaling A dishwasher requires soft water (with low calcium content) to oper- ate eciently. Otherwise, white residue main remain on the dishes and inside the appliance. This has a negative impact on the quality of dish- washing, rinsing and drying. When the water ows through the softener, ions responsible for the water hardness are removed, and the water becomes soft, for best dishwashing results. Depending on the degree of water hardness, the ions responsible for water hardness accumulate quickly inside the water softener. Therefore, the water softener must be regenerated to operate with the same eciency during the next wash. This is why special salt is used in the dishwasher. Add special salt Only use special salt intended for dishwashers. Any other type of salt that is not intended for use in a dishwasher, espe- cially regular kitchen salt, will damage the water softener. In the event of damage caused by the use of the wrong salt, the manufacturer’s war- ranty is void and we will not be liable for damage. Fill with special salt before running the washing programme. This will prevent spilled special salt or salty water from remaining on the bottom of the device, which may cause corrosion.

1. Remove the lower basket from the appliance and unscrew the special

2. Place the end of the funnel (included) in the hole and pour about 1.5

3. Pour water into the dispenser until full. It is normal that a small

amount of water spills out of the special salt dispenser.

4. After you ll the dispenser, screw the cap on.

5. When you l the dispenser with special salt, the add salt indicator

6. Start the washing programme immediately after lling the dispenser

with special salt (the quick wash is recommended). Otherwise, salty water can damage the lters, the pump or other important appliance components This is not covered by the warranty.- 49 - NOTE:

• Fill the special salt dispenser when the special salt indicator ( ) on the control panel lights up. Depending on the rate of salt dissolution, the special salt indicator may still be on even after lling the dispens- er.

• If there is no special salt indicator on the control panel (on some models), you can estimate when to top up the dispenser based on the number of wash cycles performed.

• If some special salt spills, run the soaking programme or a quick wash programme.

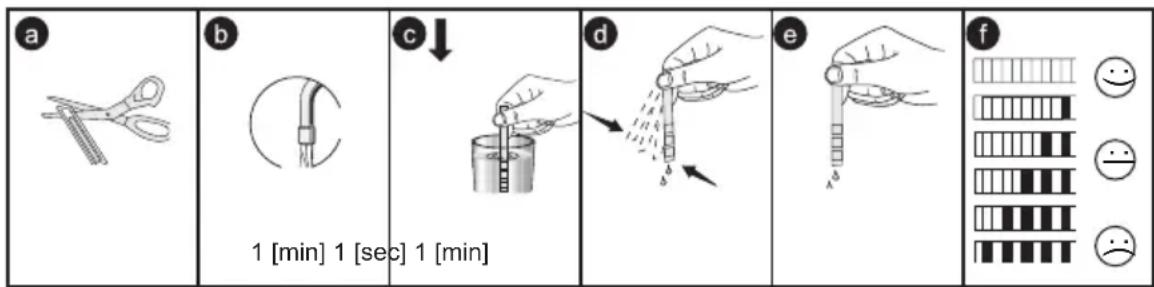

• Use only the special salt intended for dishwashers! The test strip The dishwashing eectiveness is linked to water hardness. Therefore, the appliance is equipped with a system to reduce the hardness of the water supply. The dishwashing eectiveness is improved when the sys- tem is set correctly. To check water hardness contact the municipal water company or determined the water hardness using test strip (if available). 1 [min] 1 [sec] 1 [min]

Multi-component (multitab) detergents (eg. 2-in-1, 3-in-1, etc.) There are three types of detergents:

1. Containing phosphates and chlorine,

2. Containing phosphates and no chlorine,

3. Containing no phosphates and no chlorine.

The latest tablets are generally phosphate-free. Since phosphates have water softening properties, we recommend adding salt to the container even if the water hardness is only 6°dH. If you use phosphate-free de- tergent where water is hard, white residue may be visible on the dishes. You can prevent this by increasing the amount of detergent. Chlorine-free detergents have less bleaching eect. Stains may not be entirely re- moved. Select the programme with a higher wash temperature. Generally, using multi-component detergents suitable results are ob- tained only under certain conditions. Such detergents contain rinse aid and/or special salt in a specic amount. It is recommended to use special salt when using multi-component tablets. What you should pay attention to when using these tablets.

• Always check the type of detergent used and whether it is a mul- ti-component product.

• Make sure that the detergent used is appropriate for tap water hard- ness.

• Follow the instructions on the product packaging.

• If the detergent is in the form of tablets, never place it the cutlery basket. Always place the tablet in the detergent dispenser compart- ment.

• The use of these detergents yields good results only in certain appli- cations. Using this type of detergent you should contact the manu- facturer for information about proper use.- 50 -

• If you use the detergent properly and dishwasher settings are correct you can save on salt and/or rinse aid.

• If dishwashing results while using 2-in-1 or 3-in-1 detergents are not satisfactory (traces of lime scale on the dishes), please contact the detergent manufacturer. The warranty does not cover complaints due to the use of multi-component detergents. Recommended use: For best results using multi-component cleaning agents, add special salt and rinse aid in the dishwasher and set the water hardness and amount of rinse aid to the lowest setting. The solubility of the detergent tablets made by dierent manufacturers can vary with regard to temperature and time. It is therefore not recom- mended to use detergent tablets in quick programmes. It is recommend- ed to use powder detergents in quick programmes. Always store detergents in a dry, cool place, out of reach of children. Add detergent to the dispenser immediately before using the appliance.

• Add special salt and rinse aid to dispensers.

• Set the water hardness to the highest level (6) and run an empty dishwasher.

• Adjust the water hardness.

• Adjust rinse aid setting.

Warning: Use only rinse aid designed for domestic dishwashers. Wipe

up spilled rinse aid with a cloth as it will cause the formation of large amounts of foam, and thus will reduce the dishwashing eectiveness. Water hardness table Water hardness German degrees [dH] French degrees [dF] British degrees [dE] Water hardness level indicator Special salt con- sumption [g/cycle] 1 0~5 0~9 0~6 H1 0 2 6-11 10-20 7-14 H2 9 3 12-17 21-30 15-21 H3 12 4 18-22 31-40 22-28 H4 20 5 23-34 41-60 29-42 H5 30 6 35-55 61-98 43-69 H6 60 If the water hardness is higher than the maximum values given in the table above, or if you use water from a deep well, it is recommended to use lters and water treatment equipment. NOTE: The factory settings are for the water hardness level 3. Close the door and switch on the appliance; Press the Program button for more than 5 seconds to start the water sof- tener set model within 60seconds after the appliance was switched on; Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6; Press the Power button to end the set up model.- 51 - The use of detergents Use a detergent for domestic dishwashers. On the market you can nd detergent intended for dishwashers in the form of powder, gel and tab- lets. The detergent must be placed in the dispenser before starting the dishwasher. Store detergent in a cool and dry place, out of reach of chil- dren. Do not overll the detergent dispenser, otherwise the detergent may not dissolve completely and leave streaks on the dishes. If you need more information on the detergent used, please contact the manufacturer directly.- 52 - Standard loading and test results: Upper basket 1 Cups 2 Saucers 3 Glass bowl 4 Dessert bowls 5 Glasses 6 Mugs 7 Oval platter 8 Small pot 9 Dessert plates 10 Soup plates 11 Cutlery basket 12 Melamine bowls 13 Oven pot 14 Melamine dessert plates 15 Dinner plates Lower basket Information for comparability test in accordance with EN

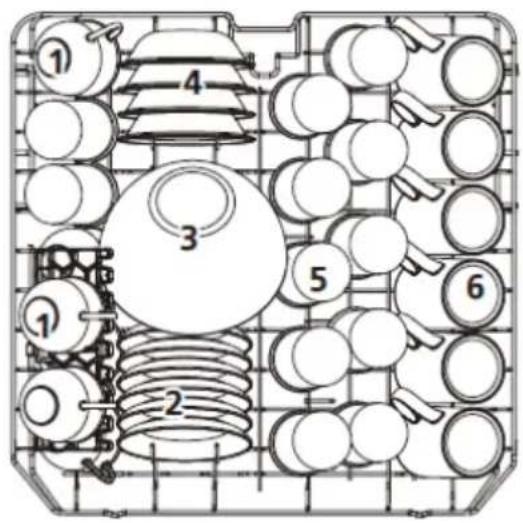

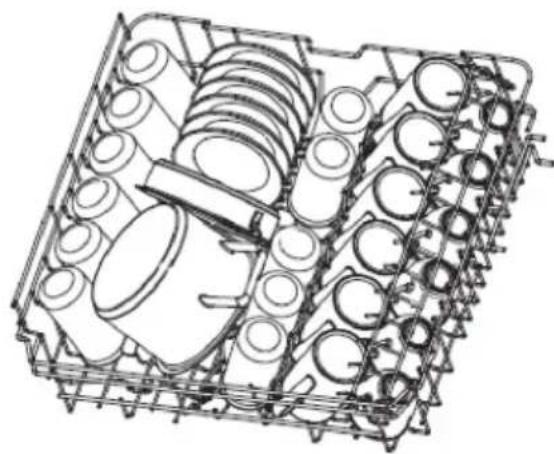

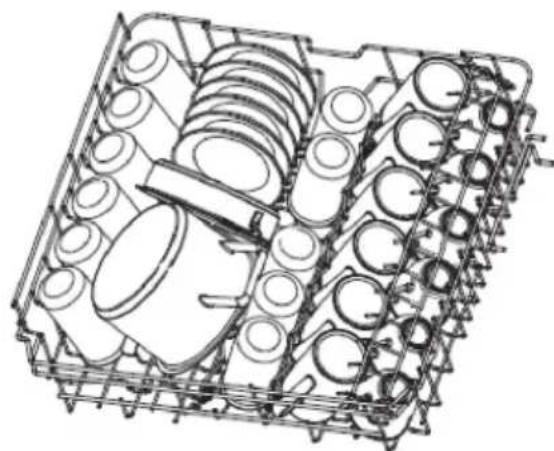

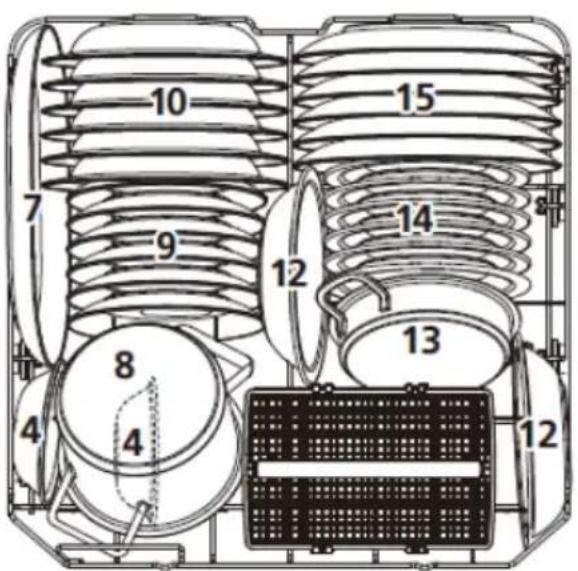

Capacity: 12 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: MAX Softener setting: H3 Cutlery basket Place knives and forks separately from each other, and make sure they- 53 - do not touch as this may cause poor washing results. For best washing results place knives and forks in the cutlery basket, and make sure: they do not touch and place objects in the middle. Item Cutlery 1 Soup spoons 2 Forks 3 Knives 4 Tea spoons 5 Dessert spoons 6 Serving spoons 7 Serving forks 8 Gravy ladles- 54 -

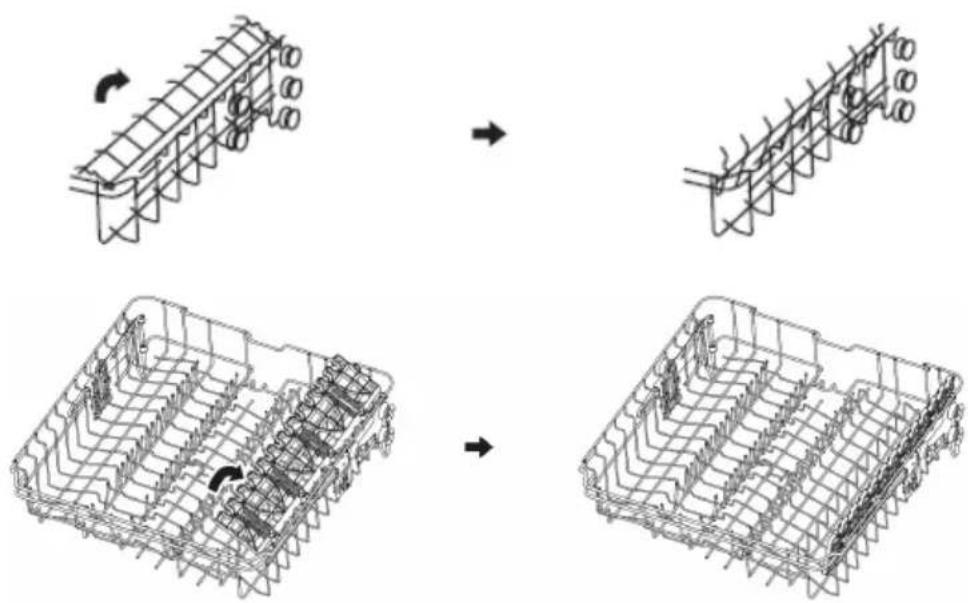

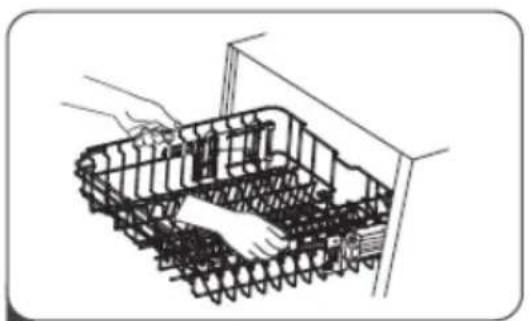

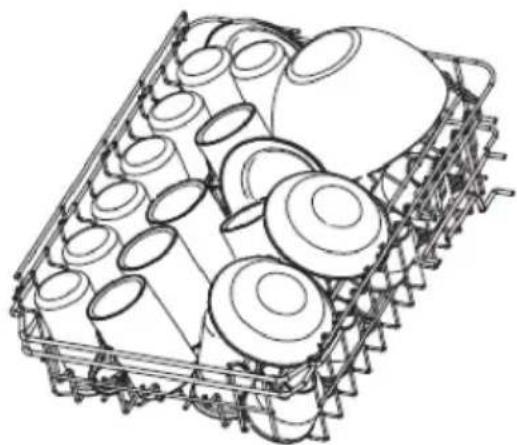

DISHWASHER Upper basket The upper basket is designed for washing delicate dishes such as glass- es, cups, plates, etc. Dishes that are placed in the upper basket should be less soiled than dishes in the lower basket. You can place long forks, knives and spoons horizontally on shelves so as not to obstruct the spray arms. Fold the mugs and cups shelves Fold the shelves to increase the capacity of the upper basket. You can place the glasses and mugs on the shelves. Raise the cup shelf to make more space in the basket for taller items. You can then lean the taller glasses against the shelf. It can also be removed if it is not needed.- 55 - Fold the dishwasher basket spikes The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards Tips for using the dishwasher basket: Adjust the upper basket Type 1: The height of the upper basket can be easily adjusted to accommodate tall pots and pans in the upper or lower basket. To adjust the height of the upper basket: Lower position

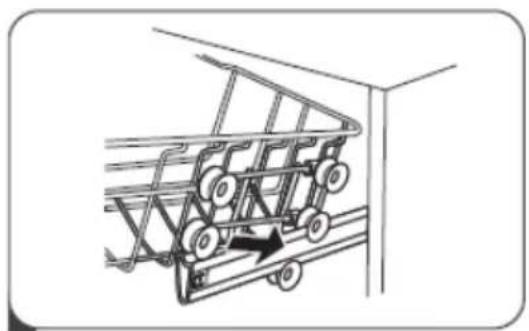

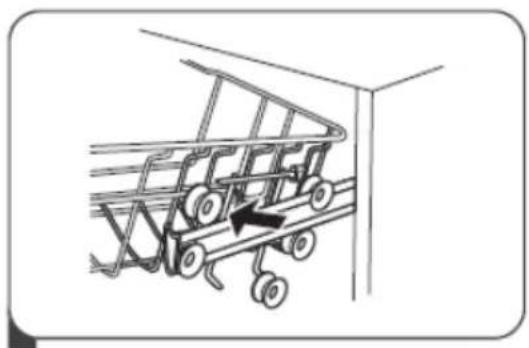

3. Mount the basket on the upper or lower rollers.

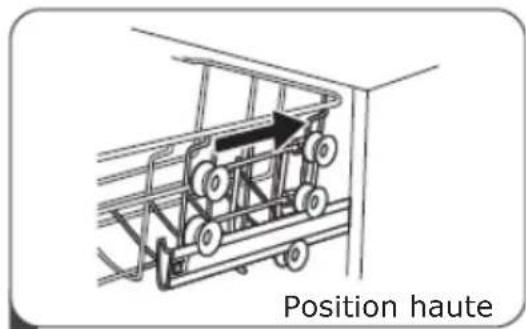

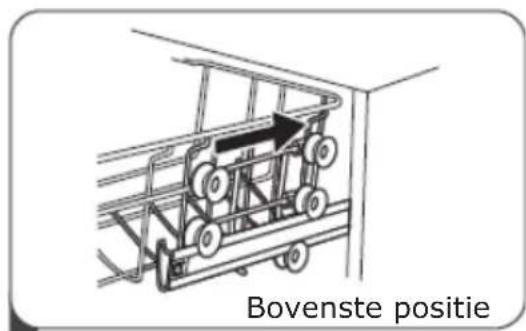

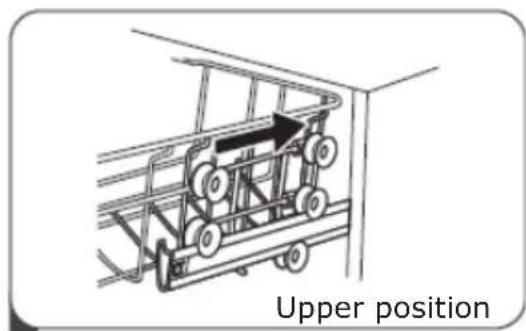

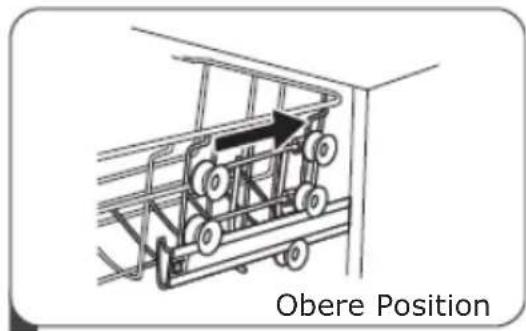

1. To raise the basket to the upper position, raise it until it is at the same

height on both sides. Make sure it is securely attached to the rails.

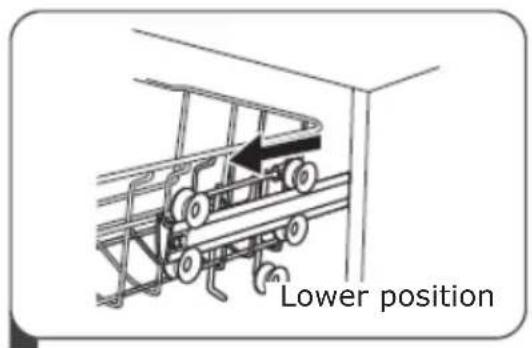

2. To lower the basket, push down and release the handles.- 57 -

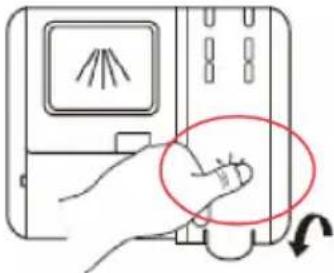

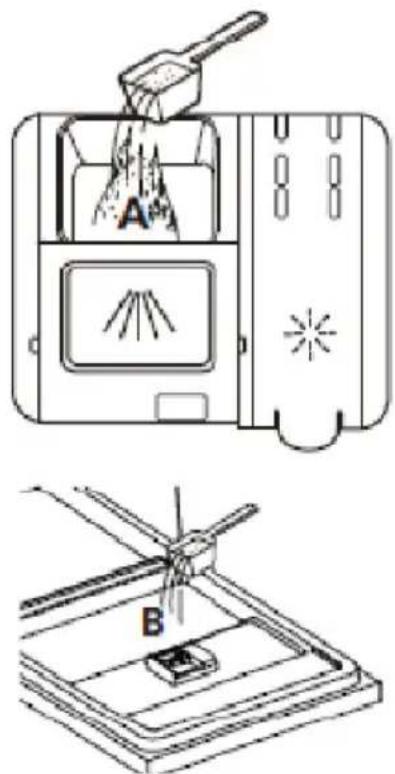

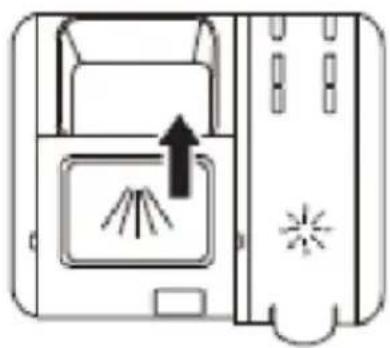

Fill the detergent dispenser Open the detergent dispenser ap by pressing the detergent dispenser tab to release the lock as shown in the gure. The detergent dispenser features volume marking. Using these markings (lines) you can measure the correct amount of detergent. The dispenser can accommodate a maximum of 30g of detergent. Open the pack with dishwasher detergent and in the case of heavily soiled dishes pour 25 cm³ detergent into the main wash compartment (A) or 15 cm³ for less soiled dishes (B). Depending on the amount of soil and the water hardness you may need to add more detergent. Move to the left Press home Pour the detergent into the larger chamber (A) for the main cycle. For a better washing result, espe- cially in the case of heavily soiled dishes, pour a small amount of detergent on the door. The extra detergent will be used during the pre-wash.

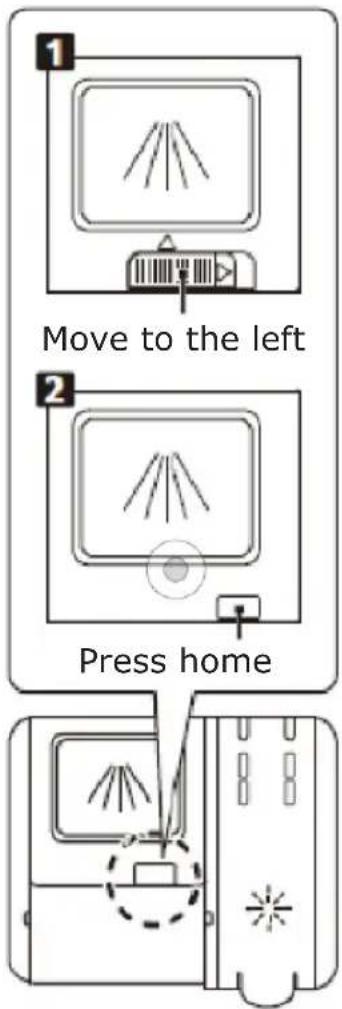

1. Open the lid by moving the

2. Open the lid by pressing the

release lever. Close the lid by moving it forward and pressing it.- 58 - Please note that the setting may be dierent depending on the water contamination. Follow the manufacturer's instructions on the detergent packaging. Add rinse aid to the dispenser and adjust setting Use rinse aid to prevent the formation of white water drops, lime scale spots, white streaks that may occur on the dishes, as well as to improve the drying process. Contrary to popular belief, it not only serves to ob- tain a shiny dishes, but also to facilitate drying. For this reason, make sure there is always sucient amount of rinse aid in the dispenser. Open the dispenser lid by lifting the tab. Pour the rinse aid into the dispens- er, take care not to overll. Close the lid when nished. Note: When closing the detergent dispenser, press marked location on the lid!- 59 - Adjust the rinse aid dispenser To achieve better drying results you can adjust how much rinse aid is used. Follow these steps.

1. Close the door and switch on the appliance.

2. Within 60 seconds after step 1, press and hold the „Program“ but-

ton for more than 5 seconds, then press the delay button to enter the desired setting. The rinse aid indicator blinks once every sec- ond.

3. Press the „Program“ button to select the desired setting according

to your local requirements. The following settings are available: D1- >D2->D3->D4->D5->D1, The most rinse aid is dispensed with the D5 setting The default setting is D3. Wait 5 seconds or press the power button to save the new setting and exit the rinse aid dispenser adjustment mode. Rinse aid level Selector position

TURN ON THE APPLIANCE

AND SELECT PROGRAMME

Turn on the appliance

1. Draw out the lower and upper basket, load the dishes and push them

back. It is commended to load the lower basket rst, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. Make sure that the water supply is

turned on to full pressure.

4. Close the door, press the Power button.

5. Choose a program, the response light will turn on. Then press the

Start/Pause button, the dishwasher will start its cycle. Change programme You can change the programme only if it runs for a short time. Other- wise the detergent is already dissolved in water and the water could be pumped out. In this case, rell the dispenser with detergent and start the washing program from the beginning. To reset your dishwasher, please follow the instructions below:

1. Press the Start/Pause button to pause the washing.

2. Press any program button for more than 3 seconds - the program will

3. Press the desired program button to select the desired program.

4. Press the Start/Pause button, after 1 seconds, the dishwasher will

start. Add dishes during the programme: You can add extra dishes at any time before detergent is released. In this case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

2. Wait 5 seconds then open the door.

3. Add the forgotten dishes.

5. Press the Start/Pause button after 10 seconds, the dishwasher will

start. WARNING! Be careful when opening the door during the dish-washing programme as hot steam can be released and cause scalding.- 61 - The dishwashing programme completes Press on/o button to turn o the appliance. Close water supply tap and open the dishwasher door. Wait a few minutes before unloading the dishwasher. Allow dishes to cool. Hot dishes are more susceptible to breakage. Also the dishes will dry. Turn o the dishwasher The programme is completed only when the programme indicator is on, but not ashing.

1. Press On/O button to turn o the appliance.

2. Close water supply tap!

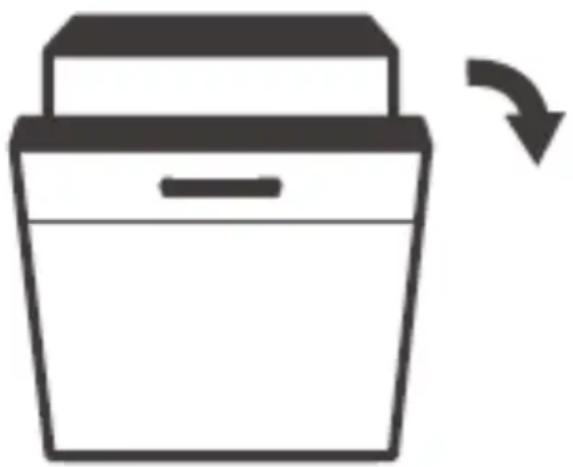

Open the door carefully. Hot dishes are more susceptible to breakage. Before unloading the dish- washer leave the dishes to cool for about 15 minutes. Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. This will allow the dishes to cool and dry. Unload the dishwasher It is normal that the dishwasher interior is wet. First remove dishes from the lower basket and then from the upper bas- ket. This will avoid water dripping from the upper basket on the dishes in the lower basket.- 62 -

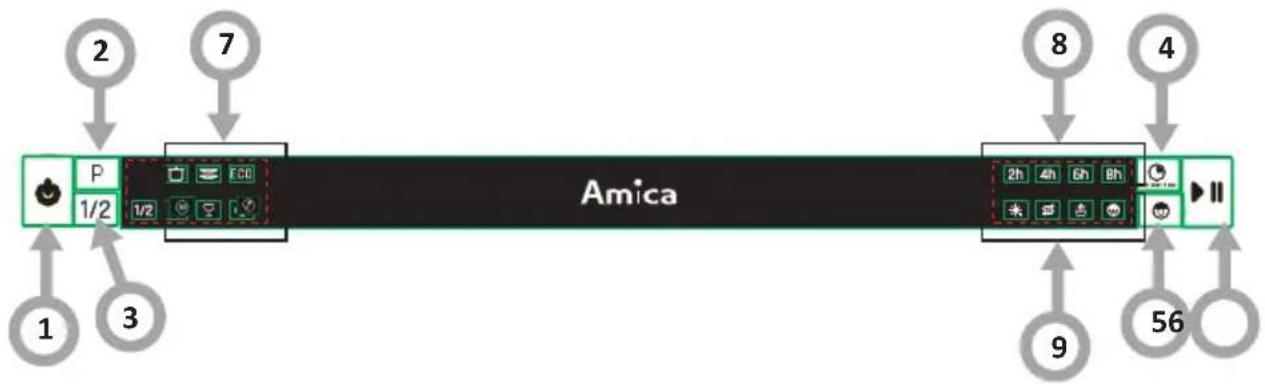

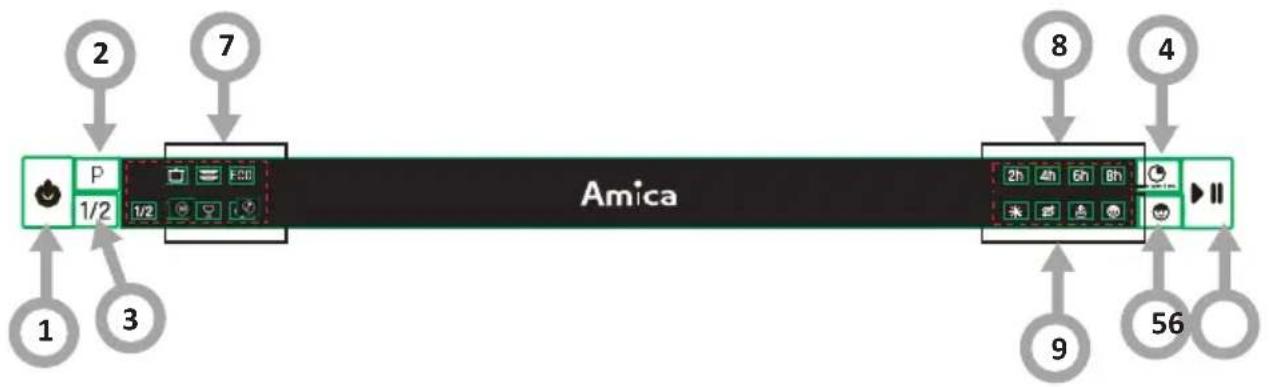

1. Power Press this button to turn on your dishwasher, the screen lights

2. Program Select the appropriate washing program, the selected program

indicator will be lit.

3. Half-load When you have about or less than 6 place setting dishware to

wash, you can choose this function to save energy and water. (It can only be used with Intensive, Universal, ECO, 90 min.).

Auto Open 3 sec. Press the button to set the delay time, corresponding indicator will be lit. The dishwasher door opens automatically at the end of the program, which improves the drying results. When you hold the button for 3 seconds, corresponding indicator will be lit.

5. Child lock This option allows you to lock the buttons on the control panel,

except the Power button, so children cannot accidently start the dishwasher by pressing the buttons on the panel. To lock or unlock the buttons on the control panel, hold the button for 3 seconds.

Pause To start the selected washing program or pause it when the dishwasher is working.

indicator Intensive Heavily soiled items include pots and pans. With dried on food. Universal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. ECO This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans. 90 min For normally soiled loads that need quick wash. Glass For lightly soiled crockery and glass. Rapid A shorter wash for lightly soiled loads that do not need drying.

indicator Rinse Aid If the indicator is lit, it means the dishwasher is low on dish- washer rinse aid and requires a rell. Salt If the indicator is lit, it means the dishwasher is low on dish- washer salt and needs to be relled. ERROR CODE ERROR CODE DESCRIPTION OF THE FAULT ACTION light icker eetly Longer inlet time. Faucets is not opened, or water intake is restricted,or water pressure is too low. light icker eetly Not reaching required temperature. Malfunction of heating ele- ment. light icker eetly Overow Some dishwasher element leaks. light icker eetly Failure of communica- tion between main PCB with display pcb. Open circuit or break wiring for the communication.- 64 - Automatic opening Automatic opening OpenDry. Automatic door open- ing. The appliance opens the door during the drying phase. The door that is slightly ajar provides better drying results with less energy consumption. Do not close the door as this may damage the appliance. If the automatic door opening function is used, do not obstruct the door. This may interfere with the operation of the door lock.- 65 - CLEANING AND MAINTENANCE Clean external surfaces Door and door seal: To remove food residue, clean the door gasket reg- ularly with a soft, moist cloth. When loading dishes into the dishwasher, food and drink residue may deposit on the sides of the dishwasher door. These surfaces are outside the dishwasher compartment and the water from the spray arms does not reach them. Remove any residue before closing the door. Control Panel Wipe the control panel ONLY with a soft, damp cloth.

WARNING: Do NOT use any spray cleaner to prevent water ingress into

the door lock and electrical components. Do not use any abrasive detergents or sharp cleaners on external surfac- es. Some paper towels may also leave scratches or marks on the surface. Clean internal surfaces Filter system The lter system at the bottom of the dishwasher compartment stops coarse residue during wash cycle. This residue can cause clogging of the lters. Regularly check the condition of the lters and rinse them under running water, if necessary. Clean the lters as follows.

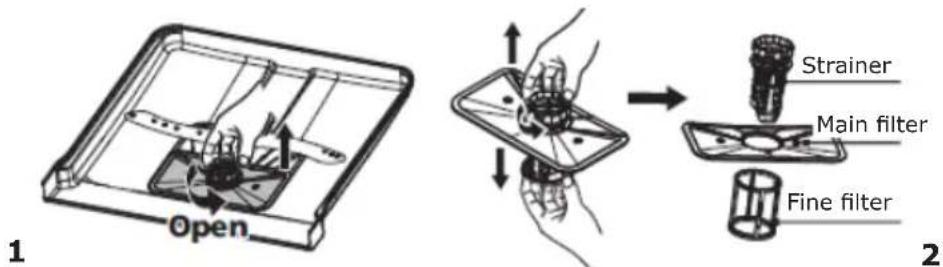

StrainerMain lterFine lter

1. Hold the strainer and turn it counter clockwise to unscrew. Lift the

lter up and remove it from the dishwasher.

2. The ne lter can be removed from the bottom of the lter assem-

bly. The strainer can be disengaged from the main lter by gently squeezing the edges and pulling.

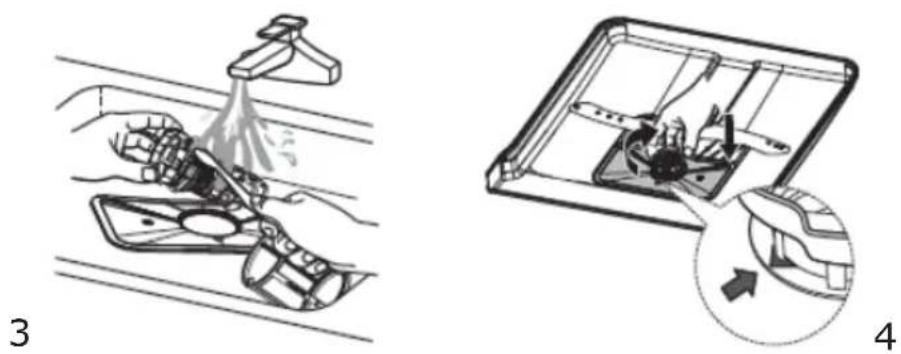

3. Larger residues can be rinsed under running water. Clean the lter

completely with a soft, clean brush.

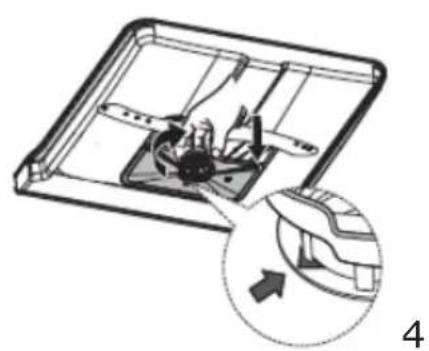

4. Install the lters in reverse order, place the lter insert and turn

clockwise as indicated by the arrow.

WARNING: Do not overtighten the lters. Carefully replace the lters

and install in place. Otherwise, contaminants can enter the dishwasher’s systems and cause clogging. NEVER: use the dishwasher without the lter assembly. Incorrect lter replacement can reduce the appliance eectiveness and cause damage to the dishes and cutlery. Spray arms It is necessary to clean the spray arms regularly for hard water chemi- cals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

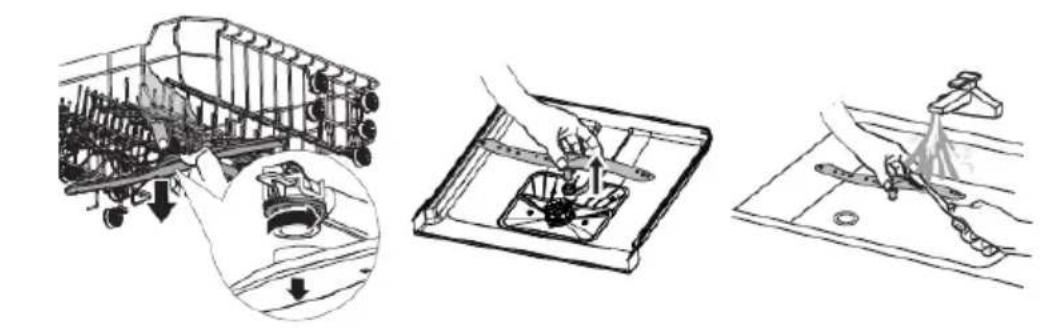

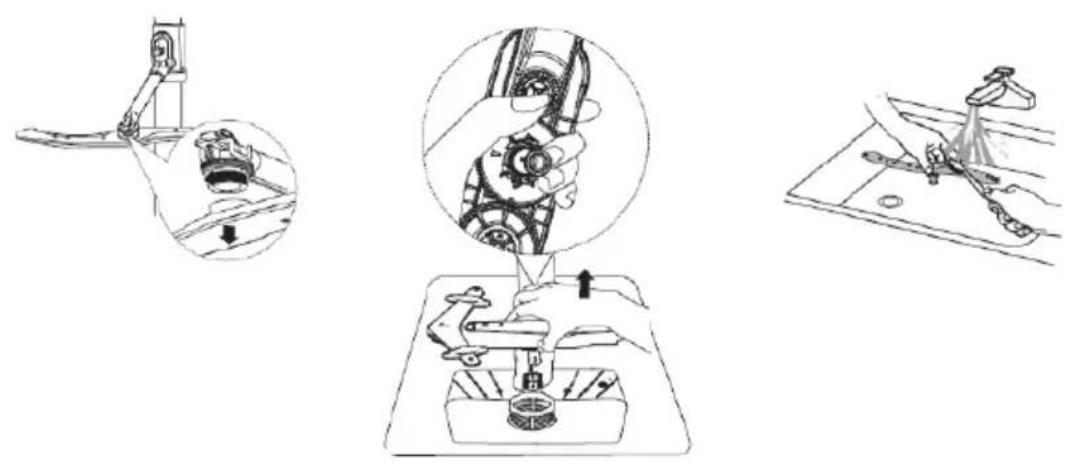

1. To remove the upper spray arm, hold the nut in the centre still and

rotate the spray arm counter-clockwise to remove it.

2. To remove the lower spray arm, pull out the spray arm upward.

3. Wash the arms in soapy and warm water and use a soft brush to

clean the jets. Replace them after rinsing them thoroughly. Clean the dishwasher Frost protection In winter, the dishwasher must be protected against freezing tempera- ture. After each wash:

1. Disconnect the dishwasher from power.

2. Turn o the water supply and disconnect the water inlet hose from the

3. Drain the water from the inlet hose and the water valve. (Collect the

4. Reconnect the water inlet hose to the water valve.- 67 -

5. Remove the lter and use a sponge to collect the water from the bot-

tom of the dishwasher. After each wash After each wash, close the water supply to the appliance and leave the door slightly ajar, so that moisture and odours are not trapped inside. Unplug the appliance Unplug the appliance from the wall outlet before any cleaning and main- tenance. Do not use solvents or abrasive detergents. Do not use solvents or abrasive detergents to clean the outer parts and the rubber seals of the dishwasher. Use only cloths and warm soapy water. To remove stains from the inside use a cloth dampened with water and a little vinegar or cleaning detergent intended specically for dishwashers. If the dishwasher is not used for a long time It is recommended to run the washing programme with an empty dish- washer, then unplug the appliance from power, close the water supply and leave the door slightly ajar. This protects the gaskets and prevents the formation of unpleasant odours in the appliance. Move the appliance If the appliance needs to be moved, try to keep it in an upright position. If absolutely unavoidable, you can rest the appliance on the back wall.- 68 -

PROBLEM SOLVING GUIDE

Problem Possible cause Solution The dishwasher will not start The appliance is not con- nected to the mains power Connect to the power supply Child lock is on (selected models) Turn o the Child Lock The dishwasher does not start The Delay start function is selected Wait for the programme to start The dishwasher door is open. Close the door. The temperature of water supplied to the dishwasher exceeds 70°C Reduce the temperature of the supplied water or wait until the water temperature is lower. The appliance does not ll with water Check that the water tap is open The wash cycle takes too long The duration of the wash programme varies depend- ing on how soiled the dishes are When heavy soil is de- tected, Auto and Optimal programmes automatical- ly extend the wash cycle duration Self-cleaning option (select- ed models) is selected When you select the self-cleaning option, the wash cycle time will be ex- tended to reach the disin- fection temperature The dishes are not clean enough The detergent is used incor- rectly Use the amount of deter- gent suitable for the water hardness and the selected wash programme or use a dierent detergent The dishes are arranged too close together. Rearrange the dishes in accordance with the instruc- tions. The selected wash pro- gramme is not suitable for the level of soil on the dishes Select a dierent pro- gramme The spray arm rotation is blocked Arrange the dishes again so that they do not block the spray arm. The dishes are not dry enough The rinse aid dispenser is empty Fill the rinse aid dispenser or increase the dispensed amount Dishes placed incorrectly in the dishwasher Rearrange the dishes in accordance with the instruc- tions. The selected programme dose not include the drying stage Select the wash program that includes drying- 69 - Stains and deposits on dishes Water too hard Change the water hard- ness settings according to the relevant points in the manual. The rinse aid dispenser is empty Fill the rinse aid dispenser or increase the dispensed amount Incorrect amount of deter- gent Change the water hard- ness and rinse aid settings according to the relevant points in the manual. The detergent was not fully released from the dispenser The detergent may be past the use-by date or may not be suitable Use a dierent detergent The 3 in 1 detergent con- tainer is blocked by dishes Rearrange the dishes in accordance with the instruc- tions. The water was not drained from the dishwasher The previous programme was not completed or was interrupted For information on how to select a suitable wash pro- gramme, please refer to the operating instructions Leftover food or glass has blocked the pump. Remove the cause of the blockage. The dishwasher does drain the water properly The drain is clogged Check the air trap. The drain hose is bent Make sure that the drain hose is correctly connected to the drain Foam in the dishwasher The wrong detergent was used Make sure that the deter- gent used is suitable for dishwashers Sediment on the walls of the dishwasher compart- ment The use of the wrong deter- gent resulted in a deposit Make sure that the deter- gent used is suitable for dishwashers Black or grey streaks on the dishes The aluminium dishes rubbed against the plates. It is not recommended to wash dishes and cutlery made of aluminum. The interior of the dish- washer is stained Coee and tea grounds Use a certied stain removal agent Noise Noise of the detergent dis- penser lid opening or water drain pump operating This is normal. Water leaks during opera- tion The dishwasher is not lev- elled Level the dishwasher Problem Possible cause Solution- 70 -

SALES SERVICE Warranty The manufacturer shall not be held liable for any damage caused by im- proper use of the product. Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer’s Authorized Service Point. For safety reasons, repairs should be re- ferred to professionals.

• Repairs carried out by unqualied persons may seriously endanger the appliance user.

• The minimum warranty period for the appliance oered by the man- ufacturer, importer or authorized representative is given in the war- ranty card.

• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating in- structions. In the event of appliance malfunction, request assistance or repair. If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identication sticker: For your convenience, please write it down below: Certifi cate of compliance CE and UKCA The Manufacturer hereby declares that this product complies with the general require- ments pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations
