USER MANUAL IonFlow Signature LightAir

IonFlow Signature IonFlow Evolution IonFlow Evolution Gold IonFlow 500

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

ITALIANO

NEDERLANDS

SVENSKA

DANSK

NORSK

SUOMI

POLSKI

TÜRKÇE

РУССКИЙ

日本語

中文(繁體)

中文(简体)

한국어

LAIFST

LAIFST-001

LAIFEV

LAIFEV-050502

LAIFSU2

SAFETY INSTRUCTIONS

Please read through the instructions before using this air purifier and keep this instruction manual in a safe place.

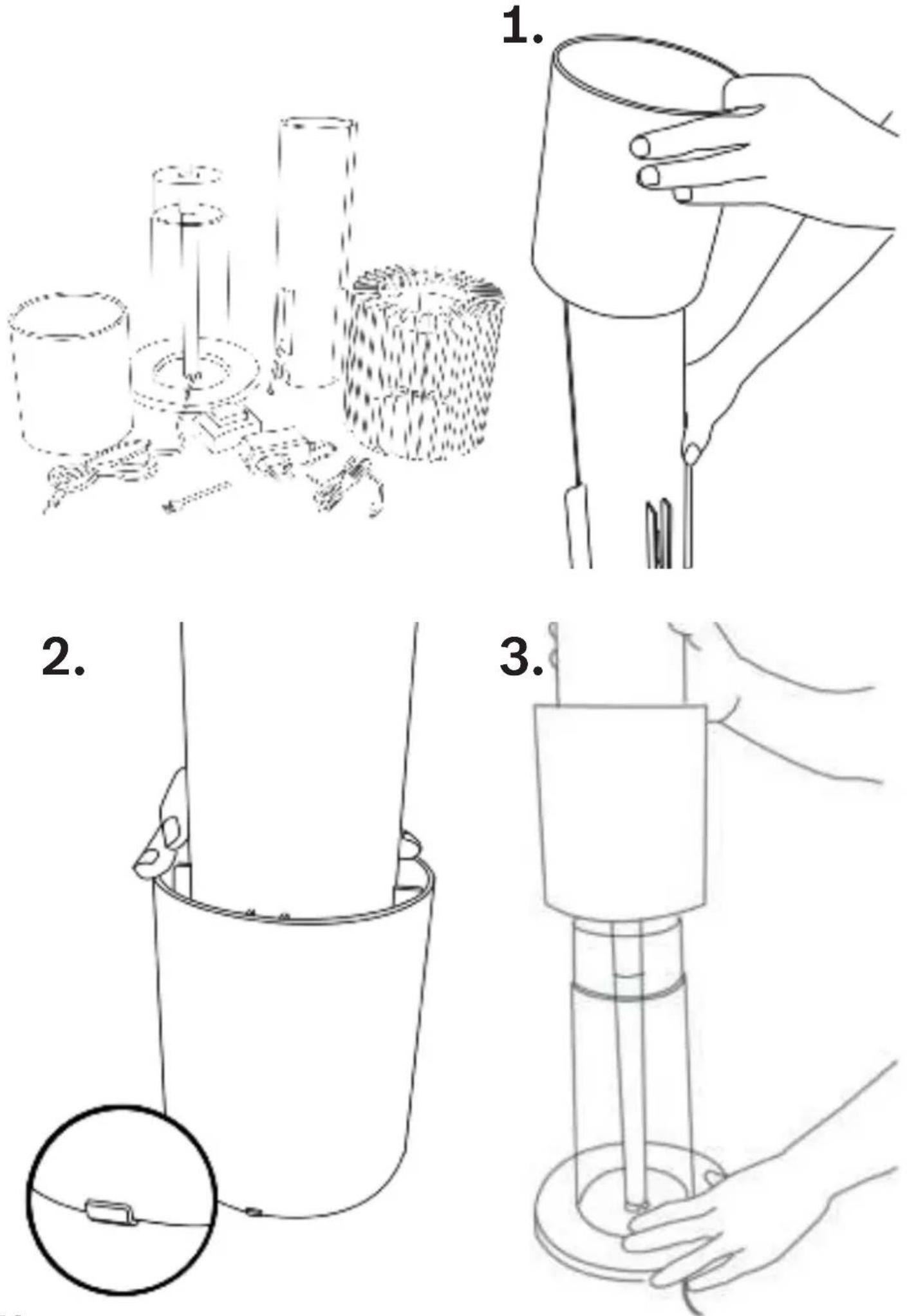

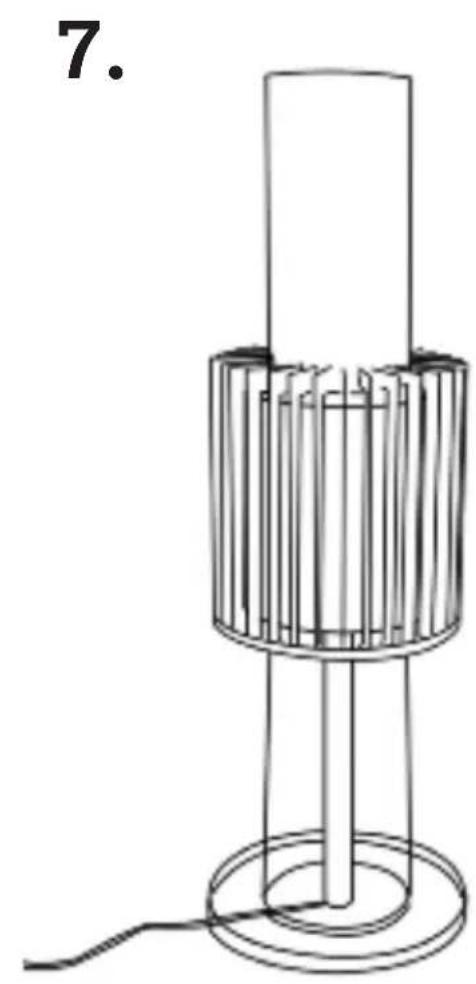

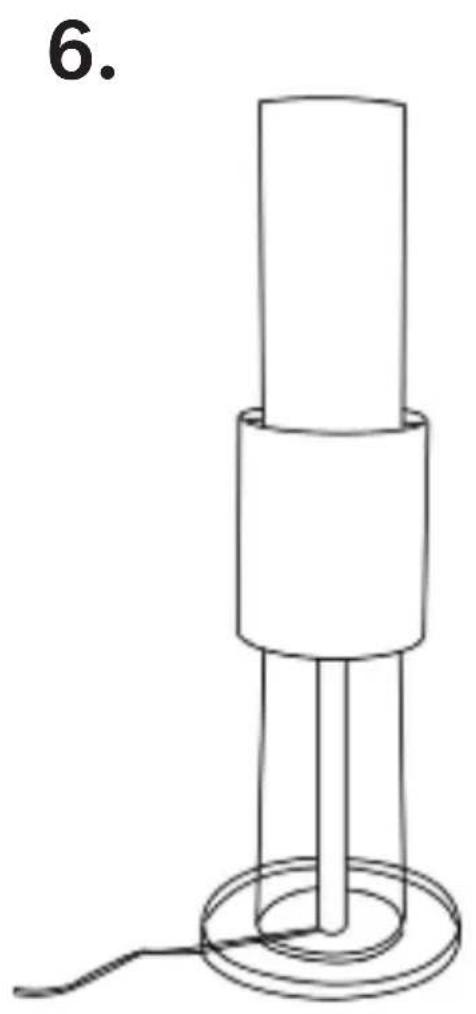

Guide for installation is found on page 74 (sketches).

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Ensure that the connected voltage supply is the same as marked on the rating label.

The appliance is only to be used with power supply unit provided with appliance.

The air purifier is an electrical appliance and should be treated as such. Be particularly careful to avoid accidents during installation, use, and maintenance.

The air purifier should be installed and cleaned by adults.

The air purifier should be installed according to the instructions, at the correct distance from a wall and placed on a secured and stable surface. If incorrectly placed, the air purifier may fall and cause injury to people or damage to its surroundings.

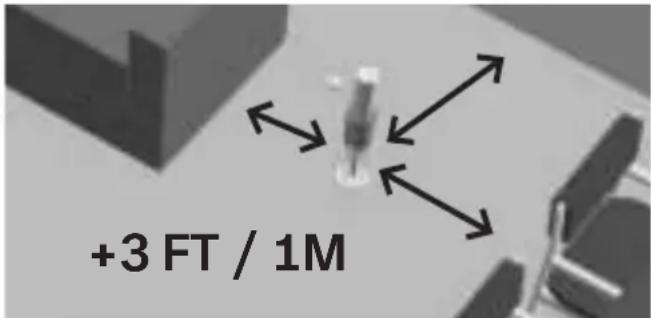

We recommend that you place the 500/Signature/Evolution models at least 3 feet (1 meter) away from all walls and furniture. If these recommendations are not followed, nearby walls and/or furniture may become somewhat dirty.

Never use the air purifier with a damaged power cable, damaged transformer or damaged electronics.

If the main lead is damaged it must be replaced by a qualified person.

To prevent from electric shock, fire, personal injury and any other hazard

do not immerse the air purifier including the transformer into water or any other liquid.

Do not place the air purifier or cable near a heat source.

Do not use the air purifier outdoors.

Do not use the air purifier in damp rooms.

Do not use the air purifier in conjunction with coloured or oil-based candles, as they emit soot which can become attached to walls and furniture.

You may experience a small electric discharge when touching the collector. This is harmless! If you find this discharge unpleasant, unplug the appliance before handling it and use the protective guard when the air purifier is on. Note that the protective guard is optional and not necessary from a safety perspective.

Note: LifeAir cannot be held responsible for any damage caused as a result of failure to follow the recommendations.

PRODUCT DESCRIPTION

IonFlow 500, Signature & Evolution:

1 ion generator (above= 3 corona needles, below= outlet and metal hook)
1 particle collector
1 acrylic stand
1 switch
1 transformer
4 decorative lights

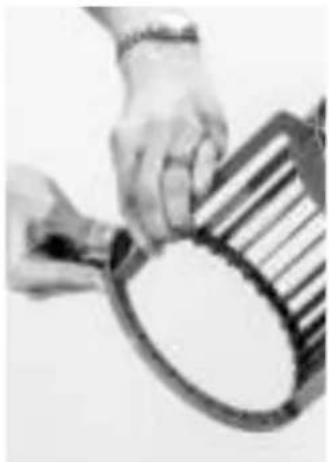

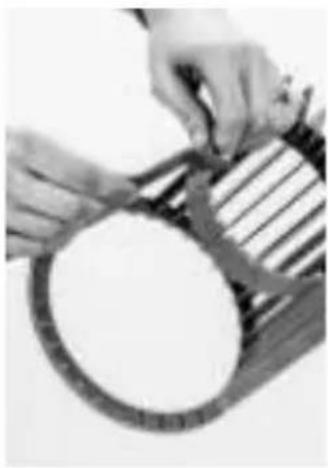

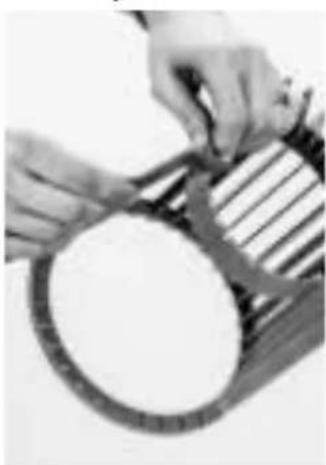

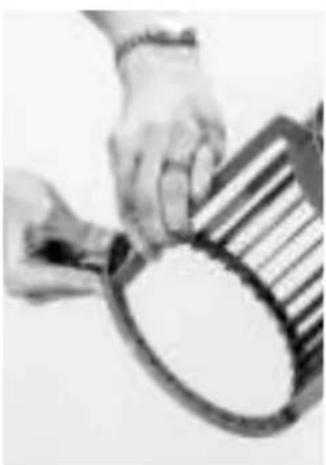

1 protective guard (32 slats and 2 assembly rings)
1 corona needle brush

CLEANING AND MAINTENANCE

You MUST disconnect the power supply and turn off the air purifier before cleaning.

Do NOT wash the collector in the dishwasher.

Do NOT use cleaning products that contain alcohol solutions, ammonia, or alkaline substances, as these products may damage the air purifier.

The collector should be cleaned approx. once every two weeks or when needed. The collector may require more frequent cleaning if used in highly contaminated environments.

Close-up of a metallic cylindrical container pouring liquid, creating a splash (no text or symbols visible)

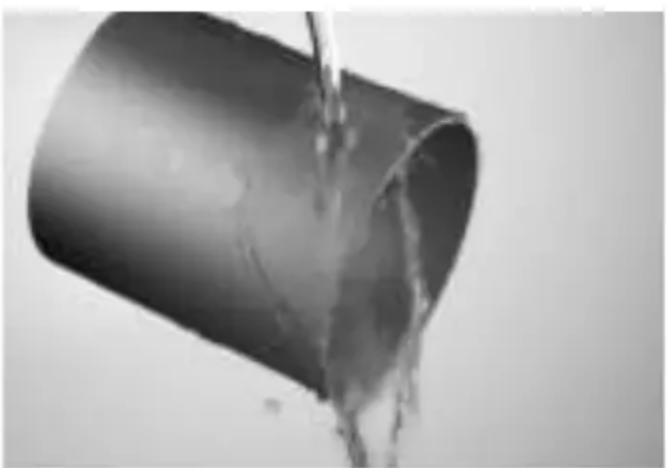

Cleaning the collector:

1. Clean the collector with washing-up liquid, water, and a soft sponge.

2. Dry the collector with a dish towel.

3. Put the collector back on the ion generator according to the above instructions.

If you have followed the above instructions but the collector is still not clean, try the following:

1. Spray detergent onto the collector and let it work for 5 minutes.
2. Use a damp sponge and rub any remaining spots until they disappear.
3. Dry the collector with a dish towel and place it back on the ion generator according to the above instructions.
4. Repeat the above procedure if necessary.

Close-up of hands using a tool to cut or mark a dark circular object with internal markings (no visible text or symbols)

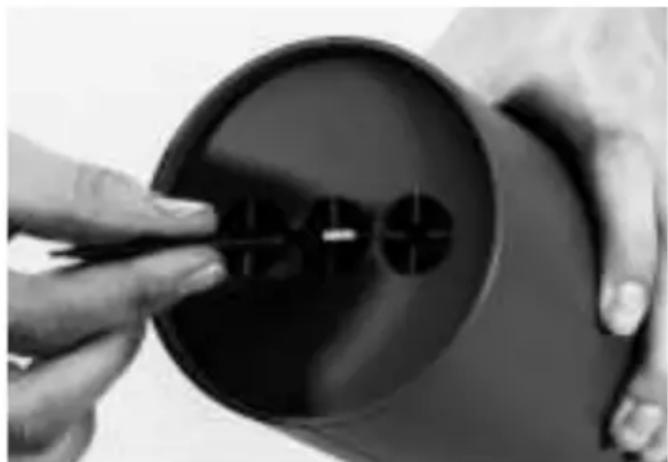

Cleaning the ion generator, corona needles and acrylic stand:

Once every two months you should carefully clean the fragile corona needles. Use the small brush that is included in the package and carefully brush away the thin layer of white lime scale and dirt, which may have become attached to the needles. Do not use pressure or water when you clean the needles.

Clean the ion generator and the acrylic stand

with a damp cloth or sponge. Wipe clean and rub away any remaining dirt and dry with a towel. Do not allow the top and bottom of the ion generator to come into contact with water and be careful with the corona needles.

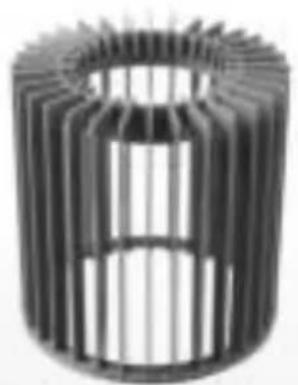

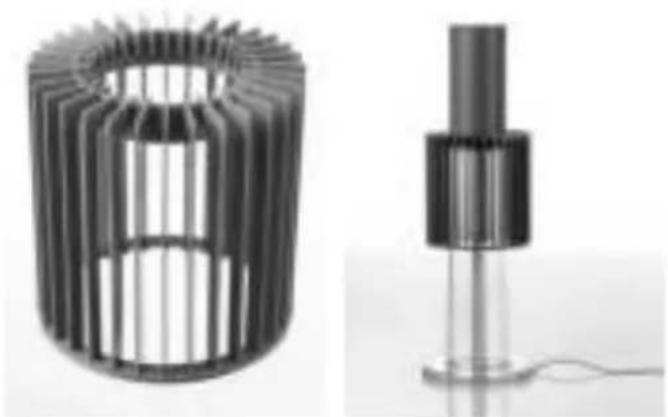

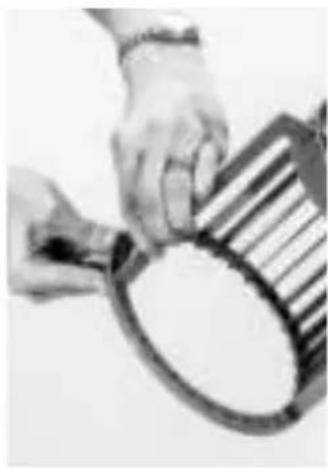

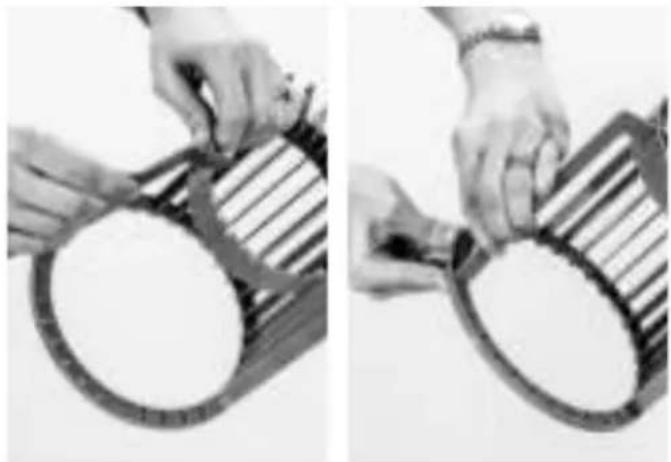

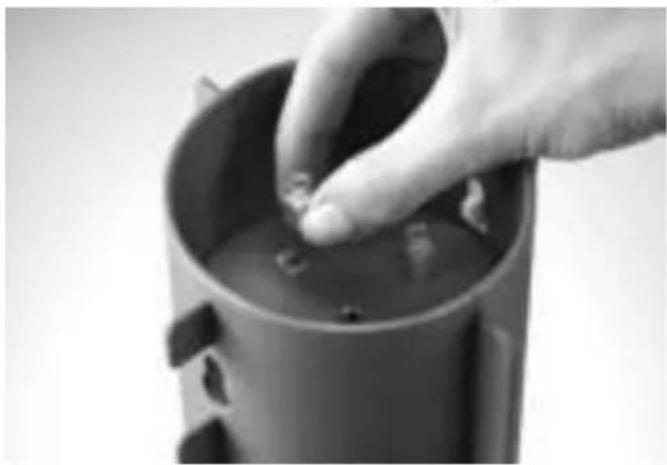

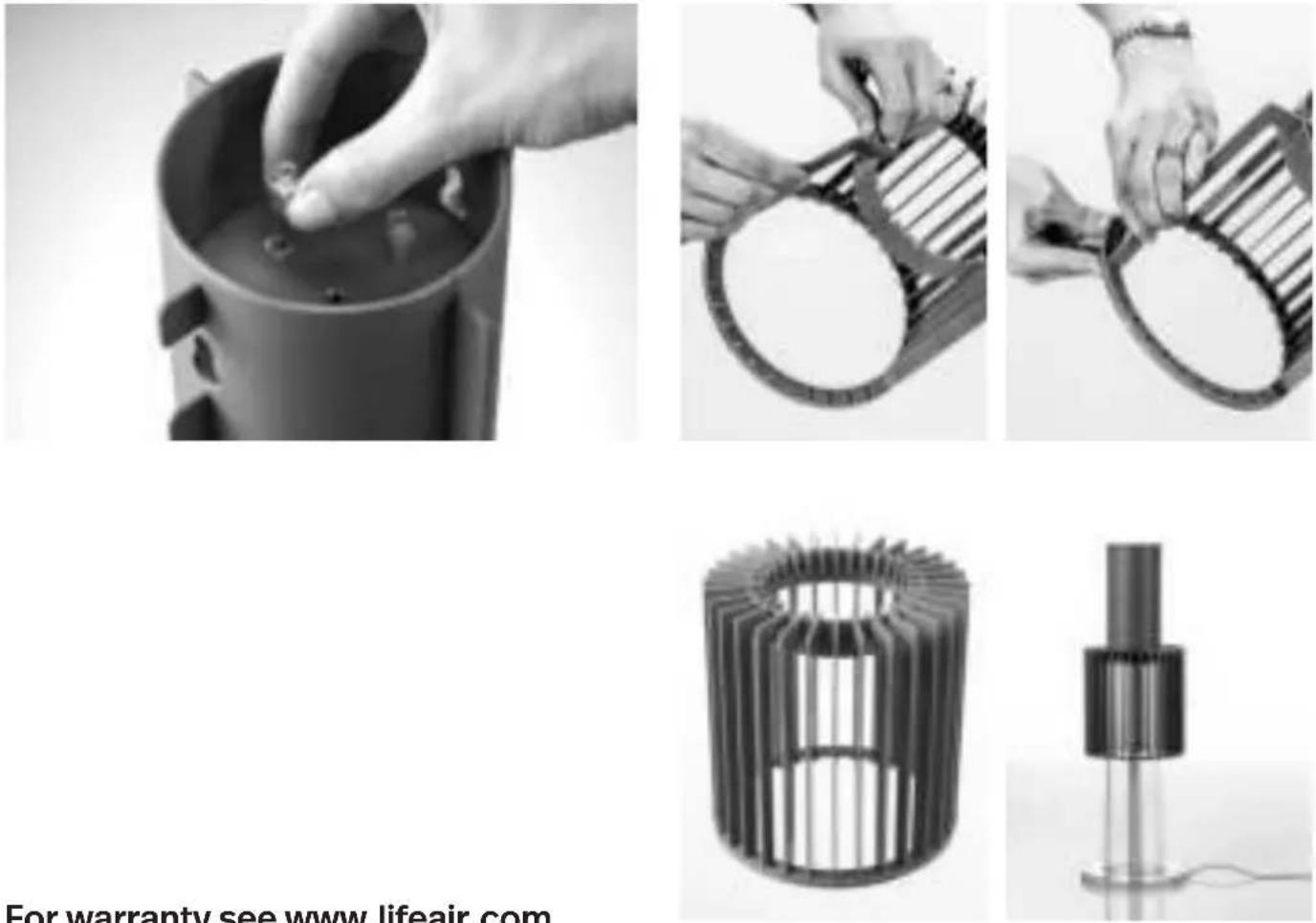

ACCESSORIES IONFLOW 500, SIGNATURE, & EVOLUTION:

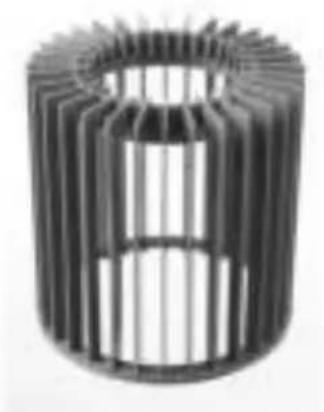

4 Decorative lights Protective guard

For warranty see www.lifeair.com

Correct disposal of this product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

SICHERHEITSHINWEISE

IonFlow 500, Signature, Evolution:

Close-up of a metallic bucket pouring liquid into a container (no text or symbols visible)

Kollektorreinigung:

Close-up of hands using a tool to adjust or install a black cylindrical component with internal holes (no text or symbols visible)

ZUBEHÖR IONFLOW 500, SIGNATURE, & EVOLUTION:

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

Two-panel black-and-white photo showing hands holding a circular object with striped pattern, no visible text or symbols

Two industrial electronic components: a cylindrical heat exchanger and a cylindrical device with a transparent top, shown without any text or symbols.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

INSTRUCTIONS DE SÉCURITÉ

Close-up of a metallic bucket pouring liquid into a container (no text or symbols visible)

Close-up of hands using a tool to cut or mark a dark circular object, no visible text or symbols

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

Close-up of hands holding a circular object with a striped handle, no visible text or symbols

Close-up of hands holding a circular object with parallel lines, possibly a lens or filter (no text or symbols visible)

3D rendering of a cylindrical mechanical component with radial grooves (no text or symbols visible)

Close-up of a cylindrical mechanical component with a transparent shaft and base, possibly a sensor or actuator (no visible text or symbols)

Pour la garantie, consulter www.lifeair.com

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

PRECAUCIONES

Close-up of a metallic cylindrical container pouring liquid, creating a sharp drop (no text or symbols visible)

Close-up of hands holding a cylindrical object with a black circular inset showing internal components (no text or symbols visible)

ACCESORIOS DE IONFLOW 500, SIGNATURE, Y EVOLUTION:

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

Two black-and-white photos showing hands holding a circular object with striped pattern, no visible text or symbols

Para consultar la garantía, visite www.lifeair.com

Two industrial electronic components: a cylindrical heat exchanger and a vertical cylindrical device with a transparent body (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

ISTRUZIONI PER L'UTILIZZO

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid (no text or symbols visible)

Close-up of hands holding a cylindrical object with a small inset showing internal components (no visible text or symbols)

ACCESSORI IONFLOW 500, SIGNATURE, & EVOLUTION:

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

Two black-and-white photos showing hands holding a circular object with striped pattern, no visible text or symbols

Two industrial components: a cylindrical heat exchanger with ribbed cooling and a vertical cylindrical device with a rod, shown from different angles (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

VEILIGHEIDSINSTRUCTIES

BESCHRIJVING VAN HET PRODUCT

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid (no text or symbols visible)

De collector reinigen:

Close-up of hands holding a cylindrical object with a small circular inset showing internal components (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

SÄKERHETSFÖRESKRIFTER

Close-up of a metallic cylindrical container pouring liquid, creating a splash (no text or symbols visible)

Close-up of hands holding a black cylindrical object with internal components (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

INSTRUKSER

Close-up of a metallic cylindrical container pouring liquid, creating a splash (no text or symbols visible)

Close-up of hands holding a cylindrical object with a small circular inset showing internal components (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

SIKKERHETSINSTRUKSJONER

Close-up of a metallic cylindrical container pouring liquid, no text or symbols visible

Close-up of hands using a tool to cut or mark a circular object, no visible text or symbols

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

VAROTOIMENPITEET

Close-up of a metallic cylindrical container pouring liquid, no text or symbols visible

Close-up of hands holding a black cylindrical object with internal circular features (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

INSTRUKCJA OBSŁUGI

IonFlow 500, Signature i Evolution:

Close-up of a metallic cylindrical container pouring liquid (no text or symbols visible)

Close-up of hands holding a cylindrical object with a small inset showing internal components (no visible text or symbols)

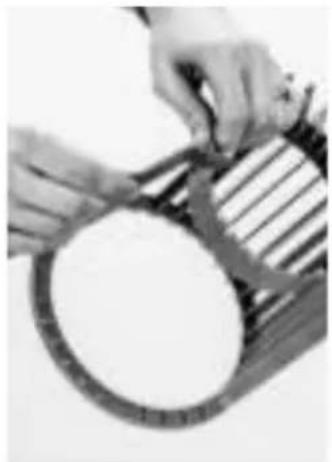

AKCESORIA DOLACZONE DO IONFLOW 500, SIGNATURE ORAZ EVOLUTION:

Close-up of a hand placing small circular objects into a cylindrical container (no text or symbols visible)

Close-up of hands holding a circular object with a ring, possibly a mechanical or electronic component (no visible text or symbols)

Close-up of hands holding a circular object with parallel lines, possibly a lamp or magnifying glass (no visible text or symbols)

3D rendering of a cylindrical mechanical component with radial fins (no text or symbols visible)

Close-up of a cylindrical mechanical component with a transparent base and a black cylindrical top, connected by a thin wire (no visible text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid, creating a splash (no text or symbols visible)

Close-up of hands using a tool to adjust or install a black cylindrical component with circular holes (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a hand using a tool to cut or mark a circular object, no visible text or symbols

Signature, Evolution, 500 IonFlow

غطاء الحماية

Close-up of hands holding a circular object with striped pattern (no visible text or symbols)

Close-up of hands holding a magnifying glass over a circular object (no visible text or symbols)

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

3D rendering of a cylindrical mechanical component with radial fins (no text or symbols)

Close-up of a cylindrical mechanical component with a transparent base and a thin wire attached (no visible text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Close-up of a metallic cylindrical container with liquid dripping (no text or symbols visible)

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid, creating a splash (no text or symbols visible)

Close-up of hands holding a cylindrical object with a small inset showing internal components (no visible text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

注意事項について

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid (no text or symbols visible)

Close-up of hands holding a black cylindrical object with internal dark circular features (no visible text or symbols)

Close-up of a hand placing small objects into a cylindrical container (no text or symbols visible)

Two-panel black-and-white photo showing hands holding a circular object with striped pattern, no visible text or symbols

Two technical diagrams of a cylindrical mechanical component with ribbed internal structure and a vertical cylindrical assembly with a rod (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

警告說明

IonFlow 500, Signature, Evolution:

Close-up of a metallic cylindrical container pouring liquid, no text or symbols visible

Close-up of hands holding a black cylindrical object with circular holes, no visible text or symbols

IonFlow 500, Signature & Evolution:

Close-up of a metallic cylindrical container pouring liquid, no text or symbols visible

Close-up of hands using a tool to adjust or inspect a dark cylindrical object with internal components (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

[안전상의 유의사항]

Close-up of a metallic cylindrical container with liquid dripping (no text or symbols visible)

Close-up of hands using a tool to adjust or install a black cylindrical component with internal holes (no text or symbols visible)

Correct disposal of this product: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

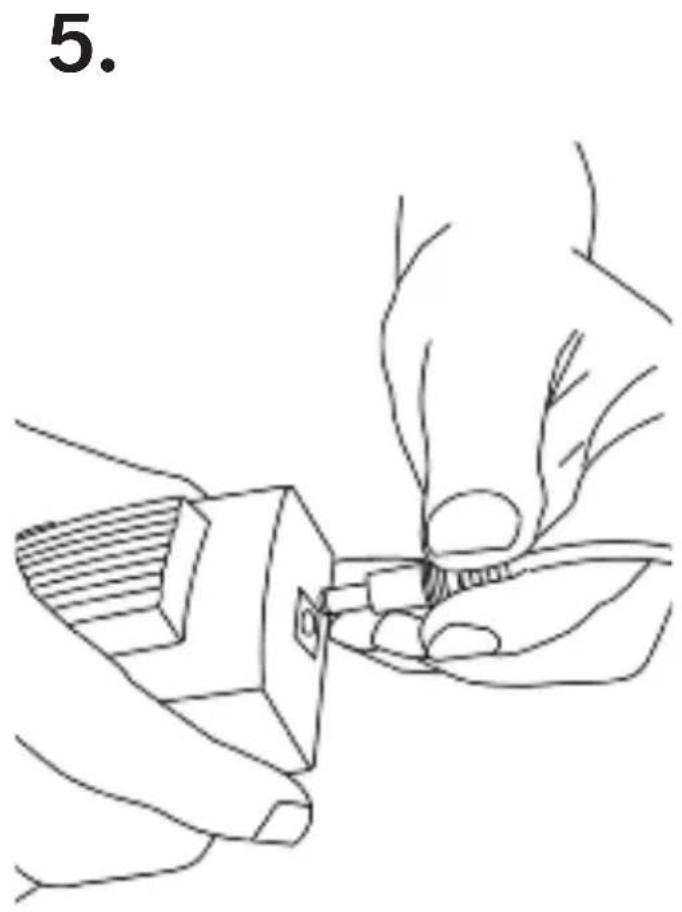

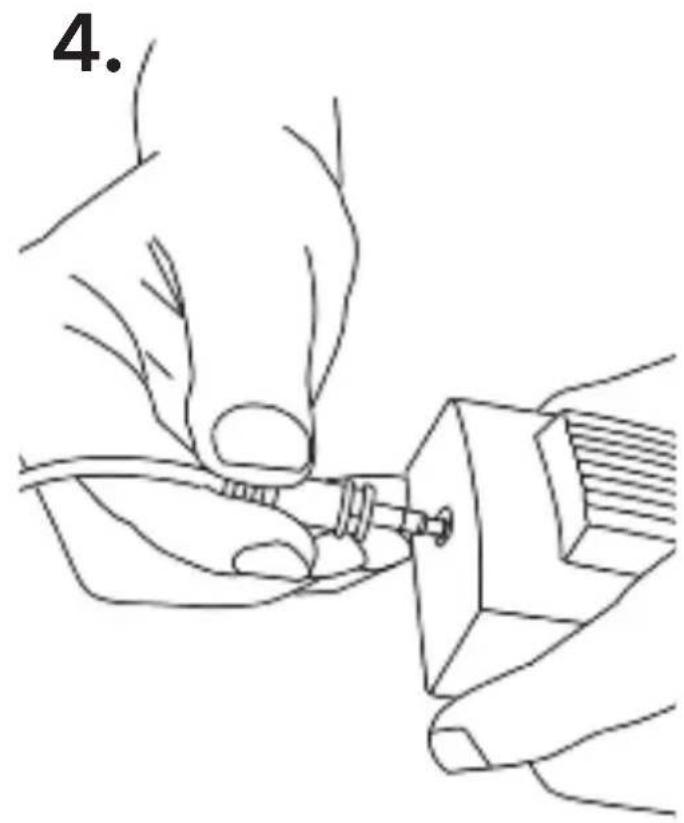

Line drawing of a hand holding a small object with a tool, no text or symbols present

Line drawing of a hand holding a small object with a striped pattern, no text or symbols present

Simple line drawing of a cylindrical electronic component with a base and wire, labeled '6.' (no text or symbols on the diagram itself)

Line drawing of a cylindrical device with internal vertical structure and base, no text or symbols present

CERTIFIED ACCORDING TO UL 867

This air cleaner complies with the federal ozone emissions limit. ARB CERTIFIED

This appliance complies with the European Directives for electromagnetic compatibility (EMC) 2014/30/EU and its revisions, as well as Low Voltage Directive (LVD) 2014/35/EU and its revisions.

This appliance complies with the WEEE-Directive 2012/19/EU on the disposal of electrical and electronic equipment (WEEE).

This product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibility to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retainer where the product was purchased. They can take this product for environmental safe recycling.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B ISM equipment, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• REORIENT OR RELOCATE THE RECEIVING ANTENNA.
• INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER.
- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED.
• CONSULT THE DEALER OR AN EXPERIENCED RADIO TV TECHNICIAN FOR HELP.

Electrical rating: 12VDC (with class II AC/DC adaptor, input: 100 - 240VAC 50/60Hz 0.4A max., output: 12VDC 600 - 1000mA)
