TOV 5200 - Toaster Orbegozo - Free user manual and instructions

Product type	Toaster
Brand	Orbegozo
Model	TOV 5200
Power supply	220-240 V, 50-60 Hz
Power consumption	750-850 W
Net weight	0.98 kg
Protection class	I
Capacity	2 slices
Browning control	6 positions (1 to 6)
Special functions	Defrost, reheat, stop
Bun warmer	Yes, integrated (pivoting)
Auto shut-off	Yes
Crumb tray	Removable
Cord storage	Under the appliance
Cool touch walls	Yes
Material	Metal and plastic
Cleaning	Damp cloth, removable tray
Safety	Auto shut-off, hot surface (caution)
Warranty	Legal, according to current legislation
After-sales service	https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - TOV 5200 Orbegozo

How to adjust the browning level?

Turn the thermostat clockwise from position 1 (light) to 6 (dark). If in doubt, start with a low setting.

What to do if the bread burns or does not toast enough?

Adjust the browning setting. If the problem persists, check that the appliance is plugged in and the lever is pressed down fully.

How to use the defrost function?

Place the frozen bread, lower the lever, then press the 'Defrost' button. The appliance defrosts and then toasts automatically.

How to reheat already toasted bread?

Lower the lever with the toast, then press the 'Reheat' button. The appliance reheats them without further browning.

How to clean the toaster?

Unplug and let it cool. Wipe the exterior with a damp cloth. For crumbs, slide out the crumb tray and empty it. Never insert hard objects into the slots.

How to use the bun warmer?

Rotate the knob at the top right of the appliance downward to deploy the rack. Place the pastries on it and use the normal toasting function.

What to do if the lever does not stay down?

Check that the appliance is plugged in and the bread slices are properly placed. If the problem persists, contact an authorized technical service.

Does the appliance get hot on the outside?

The walls are designed 'Cool Touch' but the metal parts become very hot. Do not touch during use and let it cool before storing.

How to store the power cord?

Use the cord storage located under the appliance. Never wind the cord around the toaster.

What to do in case of breakdown or damaged cord?

Do not repair yourself. Contact an authorized technical service via https://orbegozo.com/asistencia-tecnica/ or contact customer service.

USER MANUAL TOV 5200 Orbegozo

Red Dianicroto toaster with black handles and silver casing (no visible text or symbols)

White ceramic toaster with black handle and side screens (no visible text or symbols)

TOV 5200 – TOV 5210

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

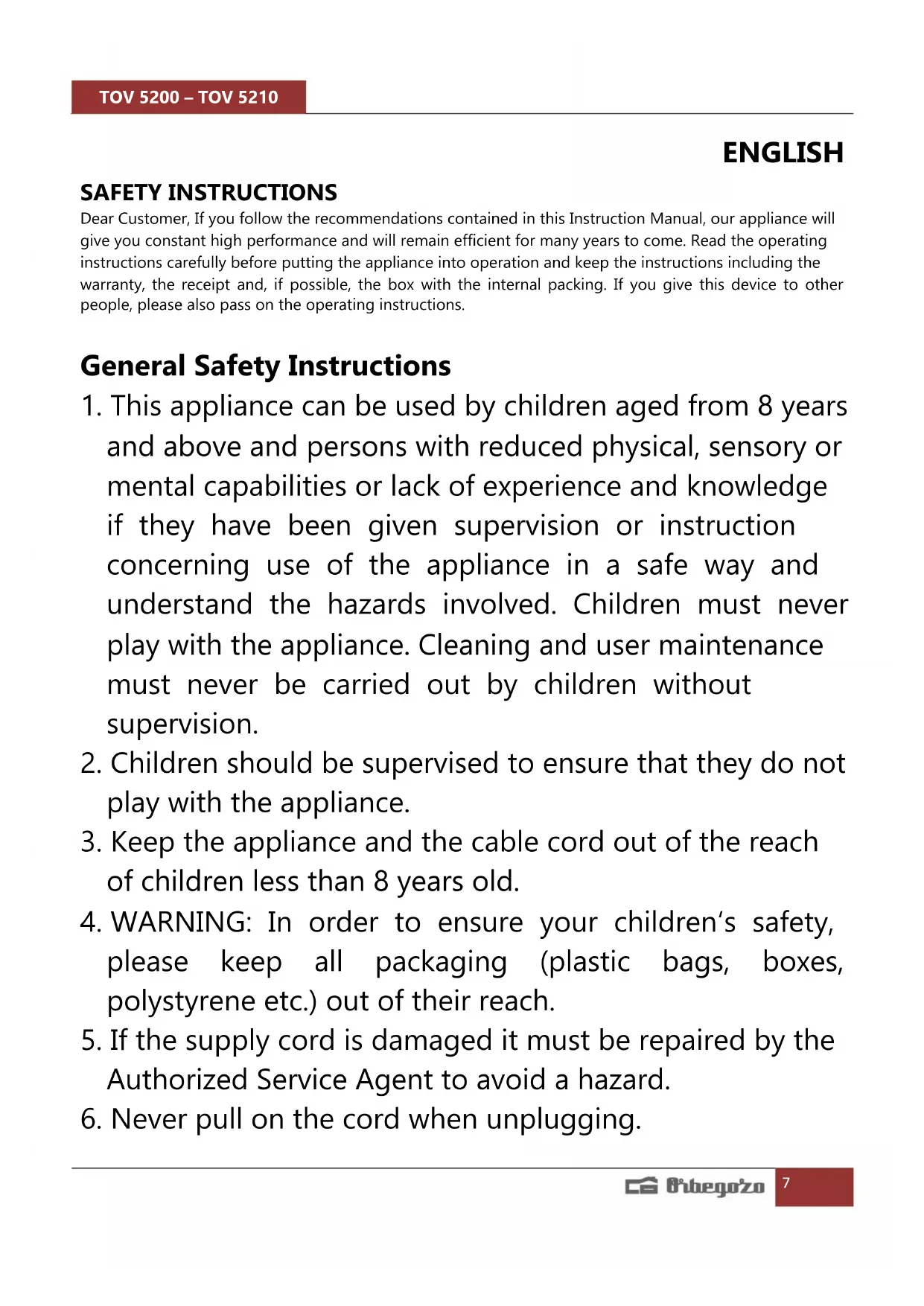

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask find it in our website: www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

Special safety information

ATTENTION. Hot surface. The surface can become hot during operation

- Do not operate the device connected to an external timer or a separate remote control system.

- Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• Always watch the unit while it is being used.
• Bread may burn; bread toasters must not be used in the proximity of, or under curtains or other flammable materials.
• The metal parts get hot. Danger of burns!
• Do not insert forks, knives or other objects in the toasting slot.
• Do not set up the unit next to infl ammable objects (e.g. curtains, wood, etc.)

OPERATION

1. Only connect the unit to a properly installed and earthed power socket (230 V, 50 Hz).
2. To set the browning level, turn the selector clockwise to the preferred level starting from the lightest - level 1 - to the darkest - level 6. If you are not sure, start with a lower setting.
   (The mark on the selector switch shows you the setting.).
3. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place.
4. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically.
   The slide pops up automatically.
5. The appliance has a heat-insulated "cool-touch" housing. The metal parts become hot during use. Leave the toaster to cool before putting it away.

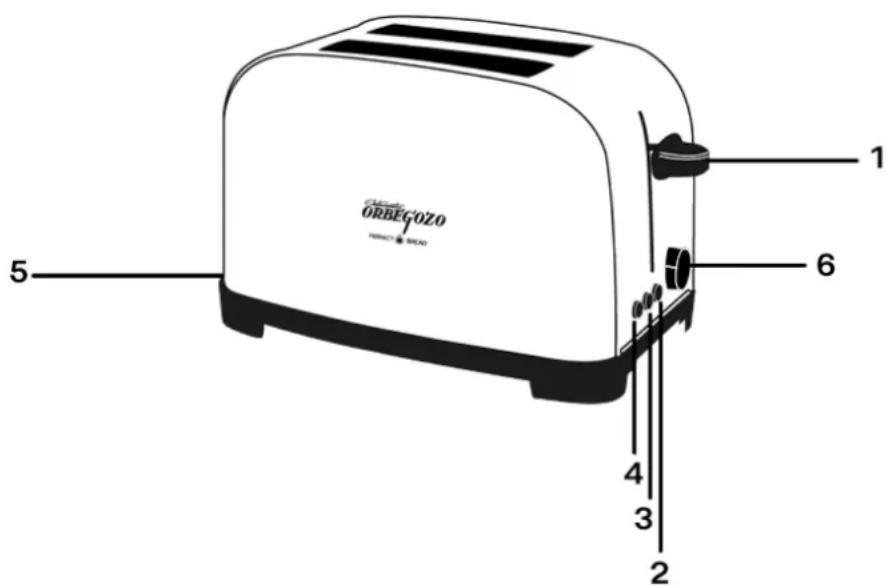

RoBeCoOZO ORBECoOZO 1 5 6 4 3 2

1. Carriage lever.
   Push down to start working.
2. Stop button. Push to cancel heating.

3. Reheat button.

4. Defrost button.

5. Crumb tray
6. Browning control knob. Bigger number for darker browning.

Special Functions

To sue special functions press the relevant key after lowering the lever.

• Defrost: to thaw and toast deep-frozen bread.
• Reheat to warm bread already toasted.
• Stop to stop toasting in advance.
• Integrated Toasting Attachment: for warm buns

TOASTING LEVELS

Grades	Bread type
1-3	Thin bread slice
3-5	General bread
5-7	Frozen bread

CLEANING AND MAINTENANCE

1. Always unplug the toaster from electrical outlet and let it cool before cleaning.
2. Do not use abrasive cleansers. Simply wipe the exterior with a clean damp cloth and dry thoroughly. Apply any cleaning agent to cloth, not directly onto the toaster.
3. To remove crumbs, slide out the crumb tray and discard crumbs. Never operate the toaster without the crumb tray in its place.
4. To remove any pieces of bread remaining in the toaster, turn the toaster upside down and shake gently. Never inset any hard or sharp instrument into the slots as this could damage the toaster and cause a safety hazard.
5. Never wrap the cord around the outsides of the toaster, use the cord storage cleats on the underside of the toaster.

TECHNICAL DATA

Model: TOV 5200 -TOV 5210
Supply: 220-240 V, 50-60 Hz
Power consumption: 750-850 W
Protection class: I
Net weight: 0,98 kg

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
