Product type	Portable power station / Charging station
Brand	Nitecore
Model	NES1200
Battery capacity	1200 Wh (implied)
Battery type	Lithium-ion
DC input	7.9 mm × 5.5 mm (solar panel or AC adapter)
USB-C input	2 USB-C PD 100 W ports (charging)
AC output	1200 W (max) – wall outlet
USB-A output	2 USB-A QC ports
USB-C output	2 USB-C PD 100 W ports (output)
12 V output	1 cigarette lighter port (12 V / 10 A)
Display	LCD showing input/output power, charge level, remaining time
Charging time (AC adapter)	Min. 8.5 h
Charging time (100 W solar panel)	Min. 20 h (depending on conditions)
Charging time (12 V/24 V car charger)	Min. 15 h
Charging time (USB-C 100 W)	Min. 13 h
Protections	Overload, overheating, low power, short circuit
Cooling system	Intelligent active fan
Operating temperature	-10 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Maintenance	Clean with a dry or antistatic cloth
Safety	Do not expose to water, flames, or disassemble. Maintain adequate ventilation.
Spare parts	Not supplied by the manufacturer – use only official accessories

Frequently Asked Questions - NES1200 Nitecore

How to turn the NES1200 station on and off?

Press and hold the main switch to turn the station on or off.

What devices can I plug into the AC outlets?

You can plug in devices up to 1200 W such as a microwave, kettle, desktop computer, etc. The AC output automatically disables if the maximum power is exceeded or if the battery level is too low.

How to recharge the station?

Use the supplied AC adapter (min. 8.5 h), a car charger (min. 15 h), a 100 W solar panel (min. 20 h), or a 100 W USB-C adapter on the input ports (min. 13 h). You can also use two input ports simultaneously to reduce charging time.

Why does the AC output turn off automatically?

This happens if the output power exceeds 1200 W (overload protection) or if the battery level is below 10%. Recharge the station as soon as possible.

Can I use the station while charging?

Yes, you can use the outputs while the station is charging. The display shows input and output power simultaneously.

What to do if an external device does not charge?

Check that the output port is enabled (corresponding switch on), the battery is not too low (< 10%), the total power does not exceed specifications, and connections are stable.

How to clean and maintain the station?

Use a dry or antistatic cloth to clean the device. Do not leave it unattended during use and unplug it if not in use. Store it in a ventilated place between 20 °C and 30 °C.

What are the important safety precautions?

Do not expose the station to water or flames. Do not disassemble it. Use only official accessories. Keep conductive objects away. Keep a distance of at least 20 cm from combustible materials.

How often should I recharge the station if not in use?

If storing for long periods, recharge it every 3 months to prevent irreversible battery damage. Charge it fully before storing.

Can I use non-official solar panels?

It is recommended to use NITECORE panels to ensure optimal efficiency and safety. Third-party panels may provide reduced power depending on conditions.

USER MANUAL NES1200 Nitecore

Before using or storing, please plug the power station into the power outlet until it is fully charged.

IMPORTANT NOTICE CONCERNING WARRANTY SERVICE

Thank you for purchasing! Before using this product, please find your verification code on the package box, and go to http://charger.nitecore.com/validation (or scan the QR code beside the verification code to visit on your mobile phone). Type in your verification code and personal information as required, and submit the page. After verification, NITECORE will send you a warranty service email for a free warranty extension of 6 months. This email and your registration email address are essential to your possible warranty application.

Contents

English 1

Deutsch 3

Francais 5

Русский 7

한국어 9

Italiano 11

Українська 13

简体中文 15

Technical Specifications

Model	NES1200
Cell	18650 Li-ion Batteries
Capacity	1252.8Wh (21.6V, 58Ah) (348000mAh)
DC Input	12V-36V, up to 10A 180W max
USB-C Input	5V=3A / 9V=3A / 12V=3A / 15V=3A / 20V=5A	100W max per port
AC Output	220V Version: 220V~6A 50Hz, Pure Sine Wave	1200W, 2200W surge
	110V Version: 110V~11A 60Hz, Pure Sine Wave
Cig Lighter Output	12V=10A 120W max
USB-A Output	5V=3A / 9V=2A / 12V=2A / 20V=1.5A	30W max per port
USB-C Output	5V=3A / 9V=3A / 12V=3A / 15V=3A / 20V=5A	100W max per port
Shelf-life	Charge every 3-6 months
Lifecycles	500 cycles to 80% (discharge rate: 1C, full charge/discharge, Temp 25°C)
Operating Temperature	-10~40°C (14~104°F)
Dimensions	317mm x 214mm x 282.5mm (12.48" x 8.43" x 11.12")
Weight	10.65kg (23.48lbs)
Accessories	AC Adapter, Power Cord, Car Charger

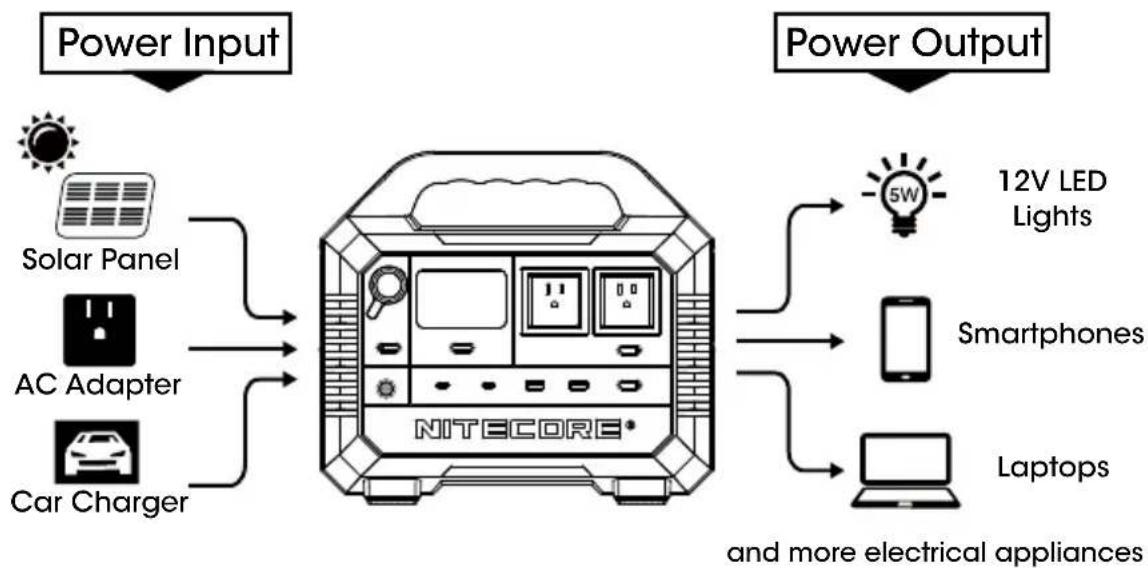

How It Works

Note: The power outlets shown in this manual is for reference only. The actual product may vary depending on regional variations.

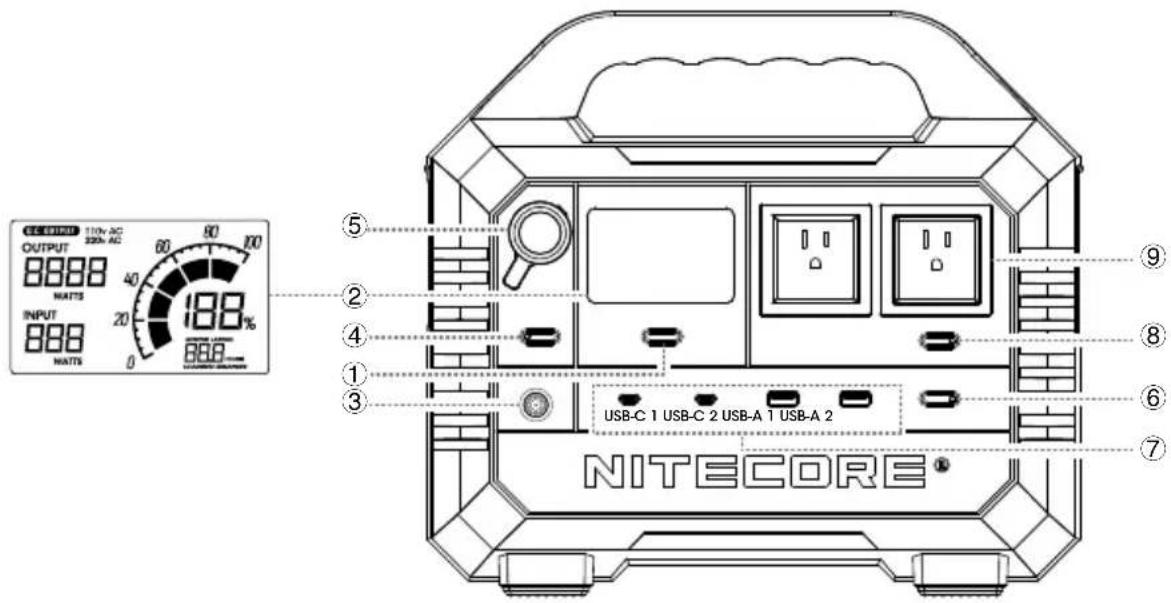

Get Familiar With Your Gear

OUTPUT 8888 NATTS 188% INPUT 888 NATTS 60 90 100 40 20 0 888 ⑤ ② ④ ① ③ USB-C 1 USB-C 2 USB-A 1 USB-A 2 ⑨ ⑧ ⑥ ⑦ NITECORE®

① Main Switch
② LCD Display

The LCD display can show the information on input/output power, power remaining and more. It can also show the runtime lasting and charging time remaining. Short press the Main Switch to switch between them when the power station is being charged.

③ DC Input

④ DC Output Switch (For Controlling ⑤)

⑤ Cigarette Lighter Output

⑥ USB Output Switch (For Controlling ⑦)

⑦ USB Ports

2 x USB-C PD Input / Output, 2 x USB-A QC Output

⑧ AC Output Switch (For Controlling ⑨)

⑨ AC Output

The power outlets shown in this manual is for reference only. The actual product may vary depending on regional variations.

(English) User Manual

① Main Switch
② LCD Display

The LCD display can show the information on input/output power, power remaining and more. It can also show the runtime lasting and charging time remaining. Short press the Main Switch to switch between them when the power station is being charged.

③ DC Input
④ DC Output Switch (For Controlling ⑤)
⑤ Cigarette Lighter Output
⑥ USB Output Switch (For Controlling ⑦)
⑦ USB Ports

2 x USB-C PD Input / Output, 2 x USB-A QC Output
⑧ AC Output Switch (For Controlling ⑨)
⑨ AC Output

The power outlets shown in this manual is for reference only. The actual product may vary depending on regional variations.

Charging Function

The power station can be charged via the solar panel (input port: 7.9mm*5.5mm), the AC adapter or the car charger (12V / 24V). Before using or storing, please plug it into the power outlet until it is fully charged.

Power Connection: When the power station is on/off, connect it to an external power via the input port(s) to charge the product. Charging Indication: During the charging process, the display will show the input power and the power bar will flash to inform the user. When the power station is fully charged, the power bar will stop flashing and the power level will show 100%.

Charging Time:

100W Solar Panel (Depending on the sunlight intensity, temperature, etc.) min. 20h
AC Adapter min. 8.5h
Car Charger min. 15h
100W USB Adapter min. 13h

Note:

1. The product can be charged via 2 input ports to achieve an increased input power.
2. The USB-C 1 port is not available when using the DC input port.
3. Please use USB-C charging cables with support of 100W power transfer to achieve a max USB-C input / output power of 100W.

Operating Instructions:

1. Long press the Main Switch to turn on/off the power station.
2. When the power station is turned on, short press the output switches to turn on the respective output port and its indicator to power the external devices.

Note:

1. When the output power exceeds the rated specifications, the AC output will be automatically turned off to ensure that the power station will not be damaged due to power overload.
2. When the power level is near depletion or the battery temperature is high, the AC output will not be available for use and will be automatically turned off. The power station will set off a warning alarm to inform the user.
3. Please turn off the AC output to save power if it is left unused for a prolonged time.
4. When the power station is on without any input or output, it will be automatically turned off to save power in 30 minutes.
5. The power station has an intelligent thermal protection. It will automatically activate the cooling system according to the working condition to effectively protect the batteries and prolong their lifespan.

Compatible Devices

AC Output: Laptops, monitors, etc.

USB Output: Smartphones, digital cameras, tablets, e-readers, etc.

12V Cig Lighter Output: Portable fridge, lighting appliances, car chargers, etc.

Cig Lighter Output	12V/5W LED Light Approx. 210h
	Portable Fridge 40W Approx. 48h
AC Output	Drone 38W Approx. 27 Charges
	Fan 40W Approx. 26h
	Electric Blanket 60W Approx. 17h
	Projector 100W Approx. 10h
	LCD TV 150W Approx. 7h
	Desktop Computer 200W Approx.	5.5h
	Electric Drill 500W	Approx. 2-4h
	Electric Kettle 800W	Approx. 1.2h
AC Output	Blender 1000W Approx. 2.5h
	Hammer Drill 1000W Approx. 1-2h
	Microwave 1200W Approx. 0.9-2h
USB Output	Mate 40 Pro Approx. 57 Charges
	iPhone 12 Pro Approx. 90 Charges
	MacBook Pro 16" Approx. 9 Charges
	iPad Pro 12.9" Approx. 25 Charges
	Switch Approx. 58 Charges

Note: The stated data is tested in the NITECORE Lab for reference only. The data may vary in real world use due to different power of the devices or environmental conditions.

Low Power Warning: The power station needs to be recharged when it sets off a warning alarm in the output status and the power level flashes to inform the user that the power level is below 10%.

Important Safety Instructions

Warnings!

1. Please read the user manual carefully before using the product.
2. Ambient Temperature of Usage: -10\~40°C (14\~104°F); Temperature of Storage: -20\~60°C (-4\~140°F)
3. Please only use charging accessories included or sold officially to charge the product.
4. Please connect the applicable external devices only according to the specifications in this user manual. The total power of the external devices should be no more than the rated specifications of the power station.
5. The product is designed for adults. Use of the product by kids under age must be under supervision. Operation, using or cleaning of the product may NOT be done by kids aged 8 years or younger.
6. DO NOT leave the product unattended when it is working. Unplug the product at any sign of malfunction.
7. It is risky to use accessories made by unprofessional manufacturers or sold by unauthorized dealers.
8. DO NOT operate the product if the power outlet or the power cord is damaged.
9. Please unplug the product when it is left unused.
10. Store the device in ventilated areas. DO NOT expose the device in rain or moist environment. Keep it at least 20cm (7.87") away from other objects and away from any combustible material. DO NOT place or cover other objects over the device or use the device in environments with a temperature over 40°C (104°F).
11. DO NOT expose the device to open flames. DO NOT store or use the product in an environment where the temperature is extremely high / low or changes rapidly, or in a confined area with a high temperature.
12. Please use a dry or anti-static cloth to keep the device clean.
13. Avoid any shock or impact to the device.
14. If the product has fallen into water, please place it in a safe and open area and keep a distance until it is fully dried. DO NOT use the product again in this case. Please strictly follow the local regulations to recycle or dispose of the product.
15. DO NOT place any conductive or metal object in the device to avoid short circuiting and explosions.
16. DO NOT disassemble or modify the device as this could result in battery explosion, cracking or leaking, causing personal injury, property damage and/or other unpredictable risks.

Troubleshooting

- If the external device cannot be recharged by the power station, please follow these steps:

1. Check the LCD display. The AC output will be automatically turned off if the power level is too low. In that case, please recharge the product as soon as possible.

2. Ensure that the output port has been turned on when being used, which is indicated by the respective indicator on the switch.

3. Check if the total power of the external devices exceeds the rated specifications of the power station.

4. Check if there is an unstable contact with the external devices.

- About solar panels:

The power efficiency of the solar panels may vary depending on the sunlight intensity, temperature, etc. It might suffer from a reduced power when in cloudy or windy environments. To ensure a high efficiency and charging safety, it is recommended to use official NITECORE solar panels (sold separately) to charge the product.

Maintenance

1. Please stop using this product and recharge it as soon as possible when it sets off a warning alarm and the power level flashes to inform the user that the power level is below 10%.
2. When the power is significantly insufficient during a long-time storage, it will do an irreversible harm to the battery cells and shorten the lifespan of the product. Therefore, it is recommended to fully charge the product before storage.
3. When it is left unused for a prolonged time, please discharge and recharge the product every 3 months.
4. It is recommended to use or store the product in an environment between 20°C\~30°C (68°F\~86°F).

Our authorized dealers and distributors are responsible for warranty service. Should any problem covered under warranty occurs, customers can contact their dealers or distributors in regards to their warranty claims, as long as the product was purchased from an authorized dealer or distributor. NITECORE's Warranty is provided only for products purchased from an authorized source. This applies to all NITECORE products.

Any DOA / defective product can be exchanged for a replacement through a local distributor/ dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE® products can be repaired free of charge for a period of 12 months (1 year) from the date of purchase. Beyond 12 months (1 year), a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. For an optional free warranty extension of 6 months, please refer to the "IMPORTANT WARRANTY NOTICE" section on top to validate your product.

The warranty is nullified if the product(s) is/are:

1. broken down, reconstructed and/or modified by unauthorized parties
2. damaged from wrong operations

For the latest information on NITECORE® products and services, please contact a local NITECORE® distributor or send an email to [e-mail].

※ The trademarks and product images specified herein this user manual are for reference purpose only. The copyright belongs to their lawful holders.
※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, information on our official website shall prevail. SYSMAX Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.
