NES300 / NES500 User Manual Charging Tips Before using or storing, please plug the power station into the power outlet until it is fully charged.

IMPORTANT NOTICE CONCERNING WARRANTY SERVICE

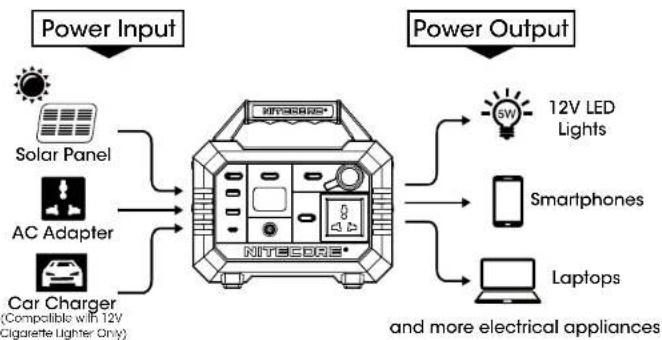

Thank you for purchasing! Before using this product, please nd your verication code on the package box, and go to http://charger.nitecore.com/validation (or scan the QR code beside the verication code to visit on your mobile phone). Type in your verication code and personal information as required, and submit the page. After verication, NITECORE will send you a warranty service email for a free warranty extension of 6 months. This email and your registration email address are essential to your possible warranty application.How It Works Contents Solar Panel AC Adapter Car Charger (Compatible with 12VCigarette Lighter Only) Power Input Power Output 12V LED Lights Smartphones Laptops and more electrical appliances Note: The power outlet shown in this manual is for reference only. The actual product may vary depending on regional variations. Get Familiar With Your Gear

• ····································

Technical Specications

• ···········································

• ·······································································

• ·····································································

• ·····································································

• ·····································································

• ·········································································

• ·····································································

• ·······························································

• ······································································ 17Get Familiar With Your Gear Technical Specications NES300

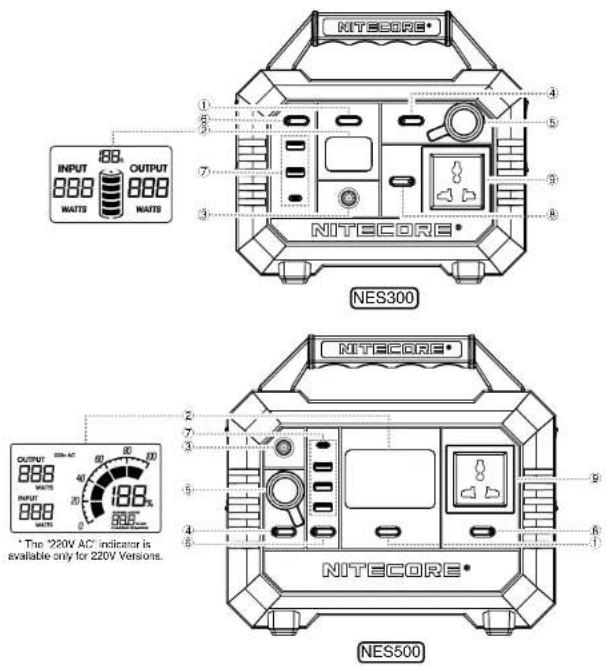

• The "220V AC" indicator is available only for 220V Versions. NES500 ① Main Switch② LCD Display The LCD display can show the information on input/output power, power remaining and more. (NES500 can also show the runtime lasting and charging time remaining. Short press the Main Switch to switch between them when the power station is being charged.)③ DC Input④ DC Output Switch (For Controlling ⑤ )⑤ Cigarette Lighter Output⑥ USB Output Switch (For Controlling ⑦ )⑦ USB Output NES300: 2 x USB-A Output, 1 x USB-C PD Output NES500: 3 x USB-A Output, 1 x USB-C PD Output⑧ AC Output Switch (For Controlling ⑨ )⑨ AC Output The power outlet shown in this manual is for reference only. The actual product may vary depending on regional variations. Model NES300 Cell 18650 Li-ion Batteries Capacity 311Wh (10.8V, 28.8Ah) (86400mAh) DC Input 14.4V-26V, up to 10A (160W max) AC Output 220V Version: 220V~0.91A 50Hz, Pure Sine Wave 200W, 400W surge 110V Version: 110V~1.81A 60Hz, Pure Sine Wave Cig Lighter Output 12V⎓10A (120W max) USB Output 5V⎓2.4A (12W max each port) USB-C Output 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓3A (60W max) Shelf-life Charge every 3-6 months Lifecycles 500 cycles to 80% (discharge rate: 1C, full charge/discharge, Temp 25°C) Operating Temperature -10~40°C (14~104°F) Dimensions 227mm x 211mm x 129mm (8.94" x 8.31" x 5.08") Weight 3.4kg (7.5lbs) Accessories AC Adapter, Power Cord, Car Charger Model NES500 Cell 18650 Li-ion Batteries Capacity 518Wh (10.8V, 48Ah) (144000mAh) DC Input 14.4V-26V, up to 10A (160W max) AC Output 220V Version: 220V~2.27A 50Hz, Pure Sine Wave 500W, 1000W surge 110V Version: 110V~4.54A 60Hz, Pure Sine Wave Cig Lighter Output 12V⎓10A (120W max) USB Output 5V⎓2.4A (12W max each port) USB-C Output 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓3A (60W max) Shelf-life Charge every 3-6 months Lifecycles 500 cycles to 80% (discharge rate: 1C, full charge/discharge, Temp 25°C) Operating Temperature -10~40°C (14~104°F) Dimensions 262mm x 237mm x 154mm (10.31" x 9.33" x 6.06") Weight 5.65kg (12.46lbs) Accessories AC Adapter, Power Cord, Car Charger -1- -2-(English) User Manual ① Main Switch ② LCD Display The LCD display can show the information on input/output power, power remaining and more. (NES500 can also show the runtime lasting and charging time remaining. Short press the Main Switch to switch between them when the power station is being charged.) ③ DC Input ④ DC Output Switch (For Controlling ⑤ ) ⑤ Cigarette Lighter Output ⑥ USB Output Switch (For Controlling⑦ ) ⑦ USB Output NES300: 2 x USB-A Output, 1 x USB-C PD Output NES500: 3 x USB-A Output, 1 x USB-C PD Output ⑧ AC Output Switch (For Controlling ⑨ ) ⑨ AC Output The power outlet shown in this manual is for reference only. The actual product may vary depending on regional variations. Charging Function Before using or storing, please plug the power station into the power outlet until it is fully charged. When the power station is on/o, connect it to an external power via the DC input port to charge the product. Charging Indication: During the charging process, the display will show the input power and the power bar will ash to inform the user. When the power station is fully charged, the power bar will stop ashing and the power level will show 100%. Charging Time: NES300 NES500 100W Solar Panel (Depending on the sunlight intensity, temperature, etc.) min. 3.5h min. 5.5h AC Adapter / Car Charger min. 6.5h min. 10.5h Operating Instructions

1. Long press the Main Switch to turn on/o the power station.

2. When the power station is turned on, short press the output switches to turn on the respective output port and its

indicator to power the external devices. Note:

1. When the output power exceeds the rated specications, the AC output will be automatically turned o to ensure

that the power station will not be damaged due to power overload.

2. When the power level is near depletion, the AC output will not be available for use and will be automatically turned

o. The power station will set o a warning alarm to inform the user on the low power level.

3. Please turn o the AC output to save power if it is left unused for a prolong time.

When the power station is on with all ports turned o, it will be automatically turned o to save power in 10 minutes.

5. The power station has an intelligent thermal protection. It will automatically activate the cooling system according

to the working condition to eectively protect the batteries and prolong their lifespan. Compatible Devices AC Output: Laptops, monitors, etc. USB Output: Smartphones, digital cameras, tablets, e-readers, etc. 12V Cig Lighter Output: Lighting appliances, car chargers, etc. NES300 NES500 Cig Lighter Output 12V/5W LED Light Approx. 55h Approx. 92h AC Output Drone 38W Approx. 7 Charges Approx. 12 Charges Fan 40W Approx. 7h Approx. 11h Electric Blanket 60W Approx. 5h Approx. 8h NES300 NES500 AC Output Projector 100W Approx. 3h Approx. 5h LCD TV 150W Approx. 2h Approx. 3h Desktop Computer 200W Approx. 1h Approx. 2h USB Output Mate 40 Pro Approx. 14 Charges Approx. 24 Charges iPhone 12 Pro Approx. 20 Charges Approx. 38 Charges MacBook Pro 16" Approx. 2 Charges Approx. 4 Charges iPad Pro 12.9" Approx. 6 Charges Approx. 11 Charges Switch Approx. 14 Charges Approx. 25 Charges Note: The stated data is tested in the NITECORE Lab for reference only. The data may vary in real world use due to dierent power of the devices or environmental conditions. Low Power Warning: The power station needs to be recharged when it sets o a warning alarm in the output status and the power level ashes to inform the user that the power level is below 10%. Important Safety Instructions Warnings!

1. Please read the user manual carefully before using the product.

2. Ambient Temperature of Usage: -10~40°C (14~104°F); Temperature of Storage: -20~60°C (-4~140°F)

3. Please only use charging accessories included or sold ocially to charge the product. It is compatible with the 12V

cigarette lighter only when charged via the car charger.

4. Please connect the applicable external devices only according to the specications in this user manual. The total

power of the external devices should be no more than the rated specications of the power station.

5. The charger is designed for adults. Use of the charger by kids under age must be under supervision. Operation,

using or cleaning of the charger may NOT be done by kids aged 8 years or younger.

6. DO NOT leave the product unattended when it is working. Unplug the product at any sign of malfunction.

7. It is risky to use accessories made by unprofessional manufacturers or sold by unauthorized dealers.

8. DO NOT operate the product if the power outlet or the power cord is damaged.

9. Please unplug the product when it is left unused.

10. Store the device in ventilated areas. DO NOT expose the device in rain or moist environment. Keep it at least 20cm

(7.87") away from other objects and away from any combustible material. DO NOT place or cover other objects over the device or use the device in environments with a temperature over 40°C (104°F).

11. DO NOT expose the device to open ames or extremely high ambient temperatures. DO NOT store or use the

product in an environment where the temperature is extremely high / low or changes rapidly, or in a conned area with a high temperature.

12. Please use a dry or anti-static cloth to keep the device clean.

13. Avoid any shock or impact to the device.

14. DO NOT place any conductive or metal object in the device to avoid short circuiting and explosions.

15. DO NOT disassemble or modify the device as this could result in battery explosion, cracking or leaking, causing

personal injury, property damage and/or other unpredictable risks. Troubleshooting

• If the external device cannot be recharged by the power station, please follow these steps:

1. Check the LCD display. The AC output will be automatically turned o if the power level is too low. In that case,

please recharge the product as soon as possible.

2. Ensure that the output port has been turned on when being used, which is indicated by the respective indicator

3. Check if the total power of the external devices exceeds the rated specications of the power station.

4. Check if there is an unstable contact with the external devices.
