DTP10 - Food thermometer VELLEMAN - Free user manual and instructions

Product type	Connected food thermometer
Brand	Velleman
Model	DTP10
Power supply	1 CR2032 battery (3 V) included
Measurement range (short term)	-50 °C to +420 °C
Measurement range (continuous)	0 °C to +350 °C
Accuracy	0 to 200 °C: ±1%; 200 to 300 °C: ±2%
Wireless range	10 m
Connectivity	Bluetooth 4.0, easybbq mobile app
Main functions	Temperature measurement, meat type and doneness selection, timer, audible alarm, temperature history
Display	RGB LED, via smartphone app
Compatible smartphones	iPhone 4s and later, iPad 3rd generation and later; Android 4.3 or later with Bluetooth 4.0
Cleaning and maintenance	Clean the main unit and probe with a damp cloth; let dry completely before storage. Do not immerse.
Safety	Use by children aged 8 and over under supervision; do not expose to excessive heat; shock protection
Warranty	24 months against manufacturing defects
Spare parts and repairability	No user-serviceable parts; use only original accessories

Frequently Asked Questions - DTP10 VELLEMAN

How to turn on the DTP10 thermometer?

Press and hold the on/off button for 3 seconds. The green LED blinks to indicate that the device is on.

How to pair the thermometer with my smartphone?

After turning on the thermometer, enable Bluetooth on your smartphone, launch the easybbq app and follow the on-screen instructions. Press the pairing button; the blue LED blinks to confirm the connection.

What battery to use and how to replace it?

Use a 3 V CR2032 battery. Open the battery compartment at the back of the transmitter, insert the battery respecting polarity, then close the cover.

How to clean the thermometer?

Clean the main unit and probe with a damp cloth. Let dry completely before storing. Never immerse the device in liquid.

What is the temperature measurement range?

In short measurement mode, the range is -50 °C to +420 °C. In continuous measurement mode, it is 0 °C to +350 °C.

Is the device compatible with an iPhone?

Yes, the device is compatible with iPhone 4s and later models, as well as iPad 3rd generation and newer.

What to do if the LED does not light up?

Check that the battery is correctly installed and in good condition. If the problem persists, contact your dealer.

How to select the meat type and desired doneness?

In the easybbq app, use the menu to select the meat type and desired doneness (e.g., rare, medium). The app and thermometer emit an audible signal when the target temperature is reached.

Is the thermometer waterproof?

No, it is not waterproof. Never immerse the device in water or any other liquid.

Where to download the easybbq app?

The app is available for free on the App Store (iOS) and Google Play (Android). You can also scan the QR code in the manual.

USER MANUAL DTP10 VELLEMAN

Close-up of a black rectangular electronic component with coiled wires extending outward (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 8

MODE D'EMPLOI 13

MANUAL DEL USUARIO 18

Technical diagram with labeled components and a magnified inset showing a circular component with numbered parts 1 to 5.

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Do not immerge the device in any liquid. Keep the main unit away from high heat.

DTP10

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	status indicator
2	cable
3	probe

4	on-off + pairing button
5	battery cover

5. Batteries

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

1. Open the battery compartment at the back of the transmitter.
2. Install 1 x CR2032 battery according to the correct polarity.
3. Close the battery compartment.

DTP10

6. Operation

6.1 Downloading the App

Search the keyword easybbq in the App Store®/Google Play®, or scan the QR code below. Download and install the app for free.

QR code image containing encoded data, no visible human-readable text

6.2 Pairing

1. Press and hold the on-off button for 3 seconds to switch on the thermometer. The green LED will blink.
2. Activate the BT function on your smartphone.
3. Launch the app and follow the instructions. The white LED is burning. Press the pairing button.
4. Pairing is successful when the blue LED is blinking.

6.3 Using the Thermometer

1. Switch on the thermometer.
2. Insert the probe into the food, making sure the tip reaches the centre.

Do not hold the main unit near the heat source as this can damage the device. Keep the main unit as far as possible away from the heat source.

DTP10

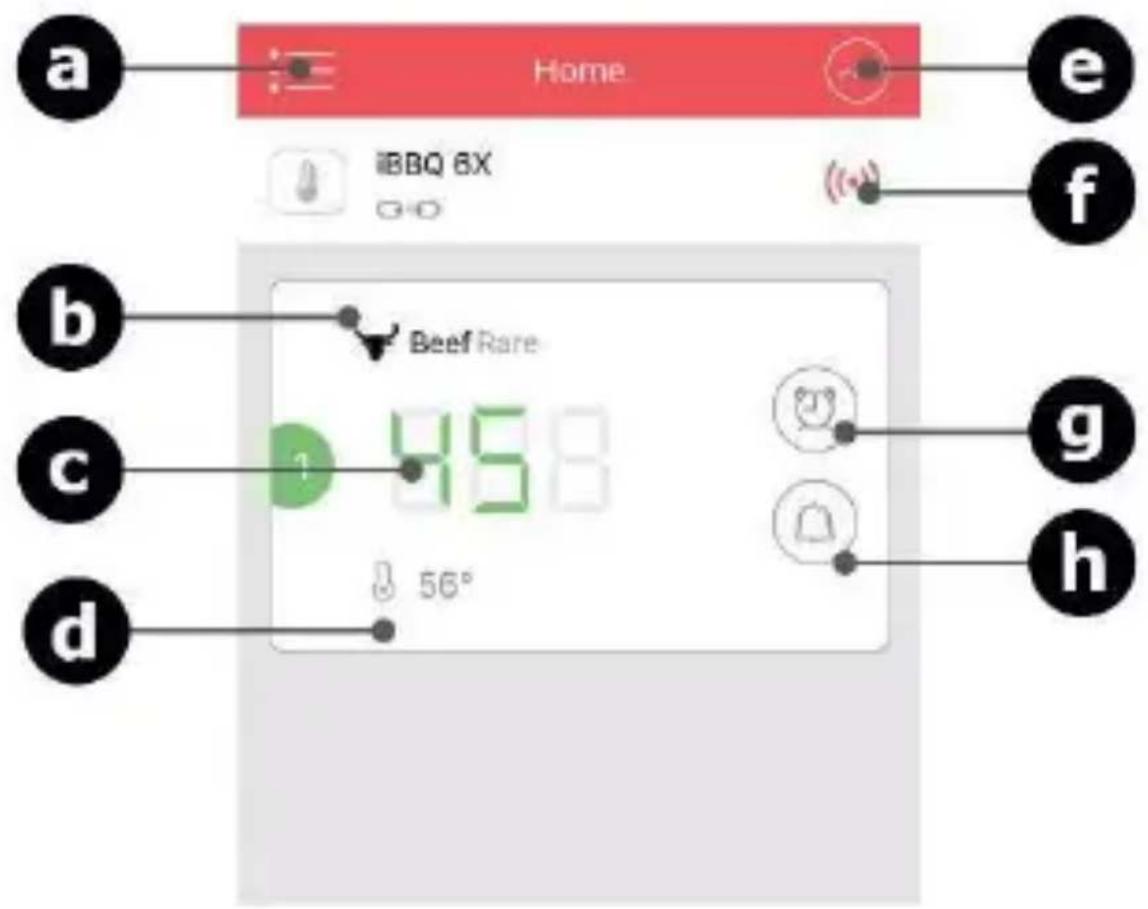

1. Turn to your smartphone and discover the screen:

Home BBQ 6X Beef Rare 45.8 56°

a. options menu
b. doneness preference + food type
c. current temperature
d. target temperature
e. temperature history
f. connection status
g. timer
h. preference setup

Select the food type and readiness preference, and start the timer. The thermometer and app will ring when the programmed doneness is reached.

DTP10

7. Cleaning and Maintenance

Clean the main unit and probe with a slightly moist cloth. Dry before storing.

8. Technical Specifications

display ...... RGB LED indicator, APP on smartphone wireless range...... 10 m

temp. tolerance range short-time measuring ....-50 to +420 °C continuous monitoring ....0 to +350 °C

range and accuracy 0 to 200 °C....+/- 1 % 200 to 300 °C....+/- 2 % power supply....1 x 3 V CR2032 (incl.)

compatible smartphones iPhone ^® ..... 4s, iPod ^® Touch 5th generation, ..... iPad ^® 3rd generation and later models

Android ^® 4.3 or later OS version equipped with BT 4.0 module

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

iPhone, iPod, iPad and App Store are trademarks of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

6.1 De app downloaden

QR code image containing encoded data, no visible human-readable text

6.2 Koppeling

QR code image containing encoded data, no visible human-readable text

6.2 Jumelage

QR code image containing encoded data, no visible human-readable text

6.2 Enlazar

QR code image containing encoded data, no visible human-readable text

6.2 Kopplung

QR code image containing encoded data, no visible human-readable text

6.2 Parowanie

QR code image containing encoded data, no visible human-readable text

6.2 Emparelhamento

Home BBQ 6X Beef Rare 45.8 56°

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [DTP10] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
