Range Toe Kick 30"

HEZ9TK30UC HEZ8TK30UC

[en-us] Installation Instructions Range Toe Kick 30" 2

1 Purpose .... 3
2 IMPORTANT SAFETY INSTRUCTIONS.... 4
2.1 Safety definitions.... 4
2.2 General information.... 4
2.3 Appliance handling safety 4
3 Parts included 5
4 Tools and parts needed.... 5
5 Installing range toe kick 5

1 Purpose

Thank you for purchasing a range toe kick accessory for your Bosch Industrial Style Range.

The purpose of this accessory is to give the appearance the front of the range is closer to the floor. This appliance accessory will make most of the front appliance feet no longer visible.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

2.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

2.2 General information

Here you can find general information about this manual.

■ Please read this manual carefully.
- Observe the safety instructions and warnings.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
- Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.

2.3 Appliance handling safety

WARNING

Hidden surfaces may have sharp edges.

▶ Use caution when reaching behind or under appliance.
▶ Wear gloves to avoid cutting fingers on sharp edges during installation.

WARNING

Children may breathe in or swallow small parts, causing them to suffocate.

▶ Keep small parts away from children.

▶ Do not allow children to play with small parts.

3 Parts included

After unpacking all the parts, check for any damage in transit and for completeness of delivery.

■ 1x front range toe kick
■ 1x left range toe kick
■ 1x right range toe kick
■ 3x screws

4 Tools and parts needed

Prepare these tools and accessories before you start to install your accessory.

■ Phillips head screwdriver
Gloves

5 Installing range toe kick

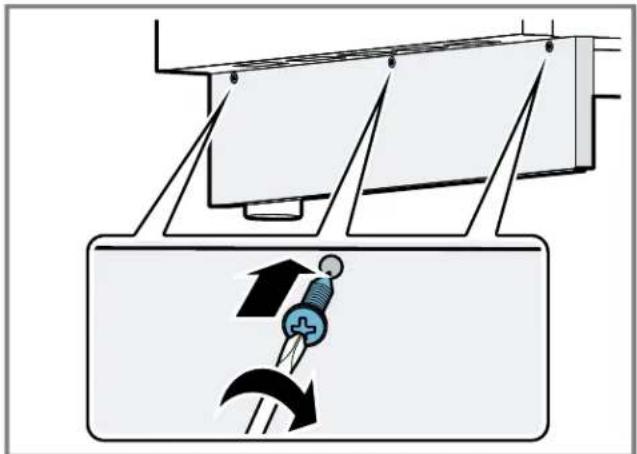

1. Align the holes in the front kick plate to the holes on appliance front.
2. Fasten the kick plate using included screws.

Diagram of a mechanical assembly with a tool and motion arrows indicating movement (no text or symbols)

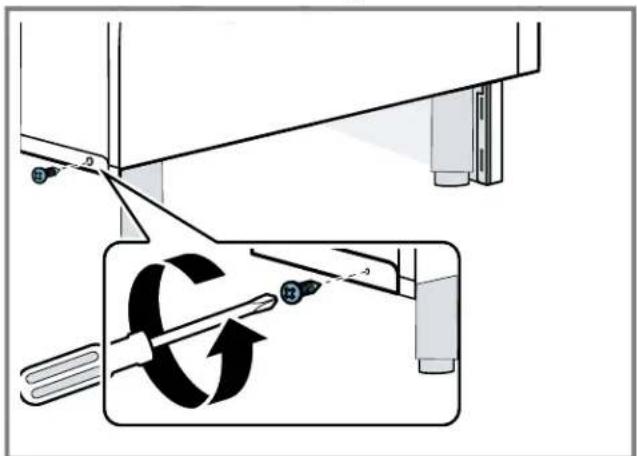

1. Remove and retain screw in right/left side frame.

Technical diagram showing mechanical assembly with labeled parts and a magnified view of a rotating component.

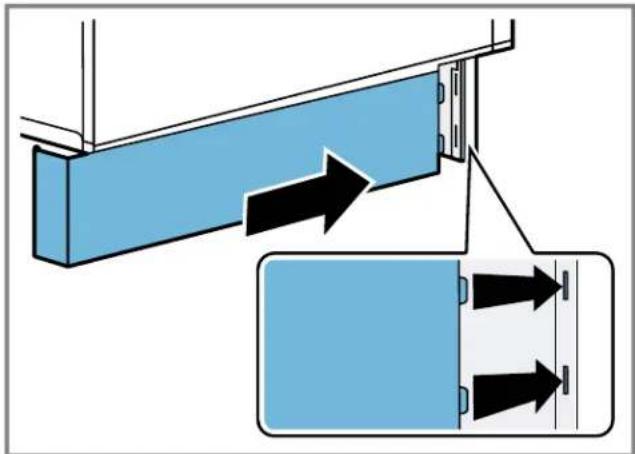

1. Align the right/left toe kick plate as indicated.

Diagram showing a blue structural component with arrows indicating direction, accompanied by a magnified inset of its internal structure.

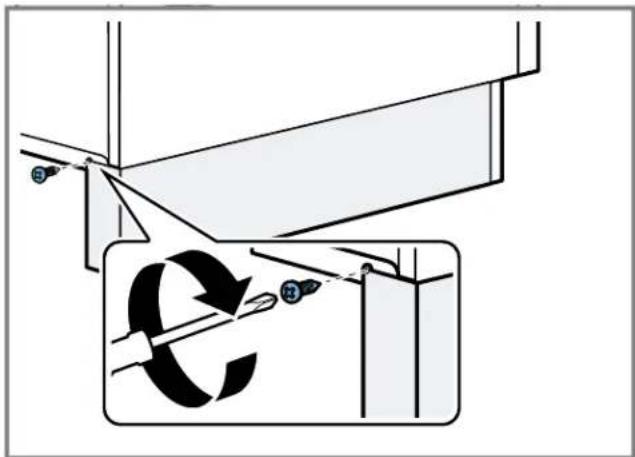

1. Fasten the right/left toe kick plate using the retained screw.

Technical diagram showing mechanical assembly with labeled components and a magnified view of a rotating component.
