Product type	Sandbox with roof
Brand	Playtive
Model	IAN 307531
Material	Solid wood
Filling capacity	About 140 kg of sand for 12 cm depth
Use	Domestic, outdoor
Assembly	Required, by two adults
Tools required	Not provided (screwdriver, wrenches)
Safety	Do not install on concrete, asphalt or other hard surfaces
Safety distance	Minimum 2 m from obstacles (fences, trees, etc.)
Supervision	Do not leave children unsupervised
Maintenance	Tighten screws periodically
Wood treatment	Apply a protective stain or paint each year
Weather resistance	Limited, requires annual treatment
Warranty	Contact customer service (Qsource GmbH)
Customer service contact	Phone: [phone], email: [e-mail]
Product weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - IAN 307531 Playtive

What type of sand to use?

Use standard play sand, uncontaminated and free of pebbles. Avoid construction sand which may contain harmful substances.

What quantity of sand is needed?

About 140 kg of sand for a depth of 12 cm. Adjust according to the actual size of your sandbox.

How to assemble the sandbox?

Follow the provided assembly instructions. First assemble all parts without tightening, then tighten at the end. Assembly must be carried out by two adults. Do not leave children nearby during assembly.

Where to install the sandbox?

Place it on a flat surface, at least 2 m from obstacles such as fences, trees, clotheslines or electrical cables. Avoid concrete, asphalt or hard surfaces.

How to maintain the wood?

Apply a suitable protective stain or paint each year. This protects the wood from weather and mold. The wood is treated against saliva and sweat, but has limited weather resistance.

Is the sandbox weather resistant?

No, solid wood is only partially resistant. It is recommended to treat it annually with a stain to prevent cracks and mold. In case of prolonged heat, cracks may appear but often disappear when temperatures drop.

Can children play unsupervised?

No, never leave them unsupervised. Explain to them how to play properly and regularly check the condition of the sandbox.

What to do if screws become loose?

Tighten the screws regularly with a screwdriver. Check the entire sandbox for any loose parts and tighten them to ensure stability.

How to clean the sandbox?

Regularly remove debris and leaves. For a deep clean, use a mild detergent and water. Rinse well and let dry. Sand rough areas if necessary.

Is there a warranty?

Yes, contact customer service Qsource GmbH at 0049/40/87932653 or by email at [e-mail]. Keep the purchase receipt to benefit from the warranty.

USER MANUAL IAN 307531 Playtive

www.lidl-service.com PDF online

SANDBOX WITH ROOF

GB IE NI

SANDBOX WITH ROOF

A55e/b.: □i05b47cbi105

FR BE

M106e4i0g58e-.ed0i0g

NL BE

ZANDBAK MET DAK

M10page81145c+4ifte0

IAN□307531

GB IE NI DK BE NL

You will need:

Du skal bruge:

Two stick figures standing side by side, facing each other (no text or symbols)

2 Pers.

Illustration of screwdriver, wrench, and screwdriver tool (no text or symbols)

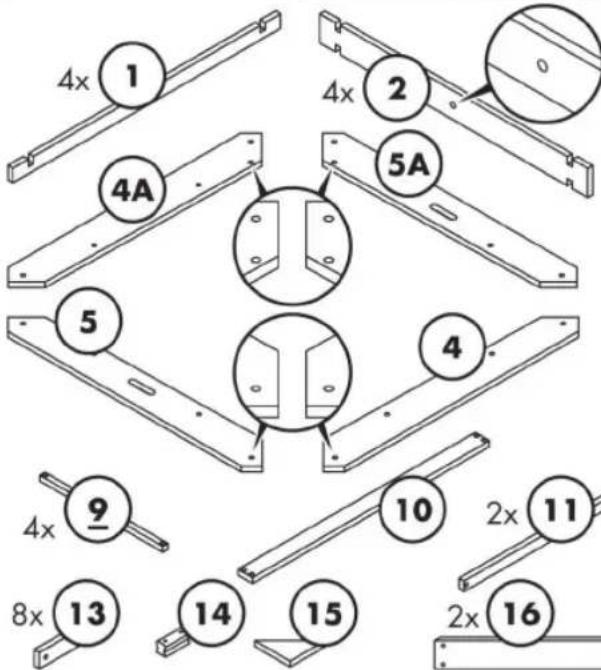

Parts:

Dele:

Pièces:

Onderdelen:

Teile:

[mm]

0

10

20

30

40

50

60

70

80

90

4x 1 4A 5A 5 4 9 8x 13 14 15 2x 16 4x 2x 11 10 4

2x 3 2x 6 2x 7 2x 8 2x 12 17

GB IE NI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB / IE / NI Operation and Safety Notes Page 3

Technical diagram showing a multi-step assembly or installation process with numbered components and structural elements.

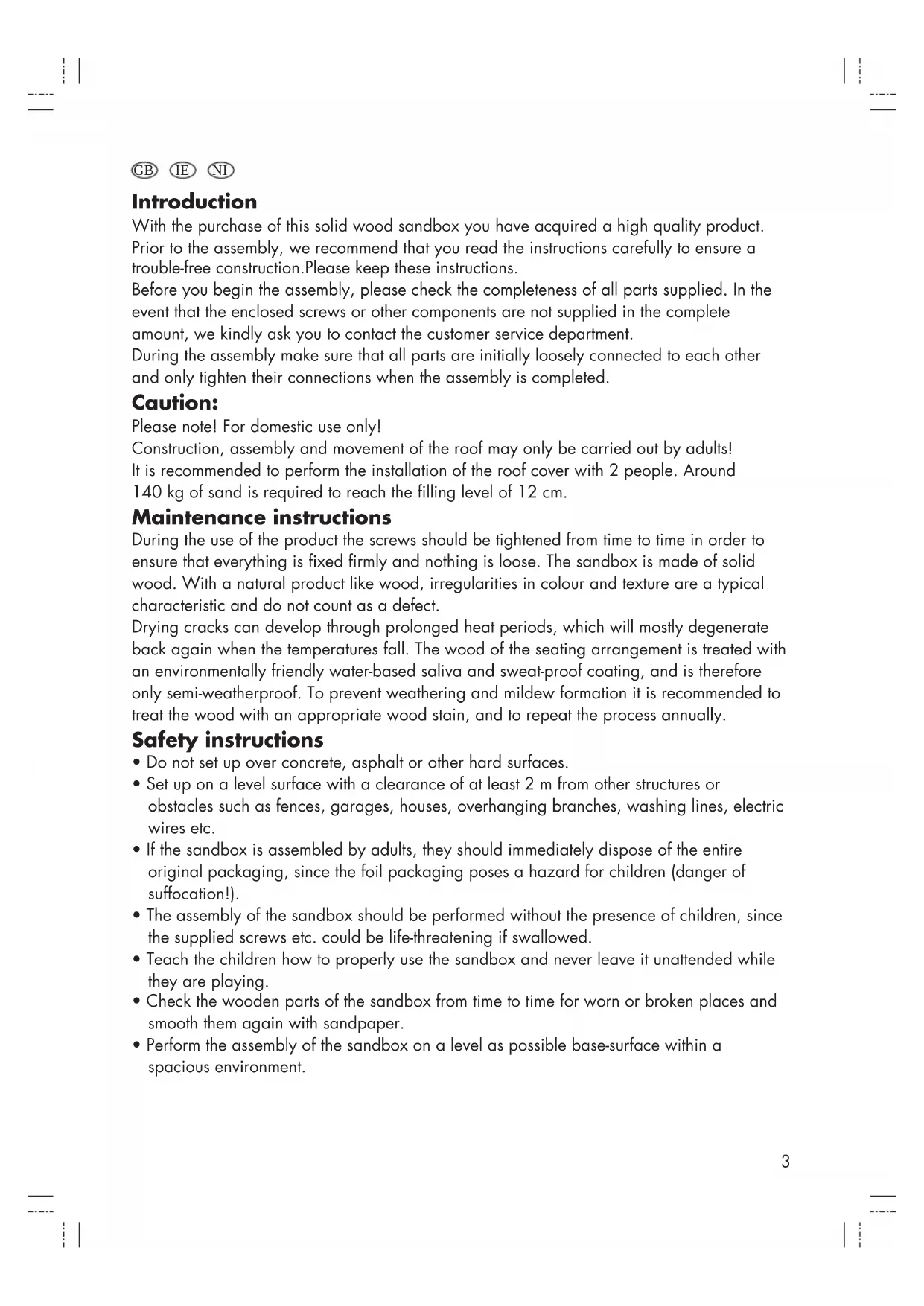

Introduction

With the purchase of this solid wood sandbox you have acquired a high quality product. Prior to the assembly, we recommend that you read the instructions carefully to ensure a trouble-free construction. Please keep these instructions.

Before you begin the assembly, please check the completeness of all parts supplied. In the event that the enclosed screws or other components are not supplied in the complete amount, we kindly ask you to contact the customer service department.

During the assembly make sure that all parts are initially loosely connected to each other and only tighten their connections when the assembly is completed.

Caution:

Please note! For domestic use only!

Construction, assembly and movement of the roof may only be carried out by adults! It is recommended to perform the installation of the roof cover with 2 people. Around 140 kg of sand is required to reach the filling level of 12 cm.

Maintenance instructions

During the use of the product the screws should be tightened from time to time in order to ensure that everything is fixed firmly and nothing is loose. The sandbox is made of solid wood. With a natural product like wood, irregularities in colour and texture are a typical characteristic and do not count as a defect.

Drying cracks can develop through prolonged heat periods, which will mostly degenerate back again when the temperatures fall. The wood of the seating arrangement is treated with an environmentally friendly water-based saliva and sweat-proof coating, and is therefore only semi-weatherproof. To prevent weathering and mildew formation it is recommended to treat the wood with an appropriate wood stain, and to repeat the process annually.

Safety instructions

• Do not set up over concrete, asphalt or other hard surfaces.
• Set up on a level surface with a clearance of at least 2 m from other structures or obstacles such as fences, garages, houses, overhanging branches, washing lines, electric wires etc.
• If the sandbox is assembled by adults, they should immediately dispose of the entire original packaging, since the foil packaging poses a hazard for children (danger of suffocation!).
• The assembly of the sandbox should be performed without the presence of children, since the supplied screws etc. could be life-threatening if swallowed.
• Teach the children how to properly use the sandbox and never leave it unattended while they are playing.
• Check the wooden parts of the sandbox from time to time for worn or broken places and smooth them again with sandpaper.
• Perform the assembly of the sandbox on a level as possible base-surface within a spacious environment.

This product is subject to a strict quality inspection. Should you still experience a defect, please contact our customer service department. For a free-of-charge handling of a warranty claim, it is imperative to keep your receipt available.

Qsource GmbH, Auguste-Baur-Str. 1, D-22587 Hamburg,

Tel. [phone], Fax [phone], E-Mail: [e-mail]

You can reach us Monday to Friday from 8:00 AM to 4:00 PM..

DK

Indledning

Diagram showing two structural beams with labeled circular components, marked as 1 and 2.

B 2x

Technical diagram showing three labeled structural components (2, 3) arranged in a 3D lattice with dashed alignment lines.

C 2x

Isometric line drawing of a structural frame with two horizontal supports and circular markers labeled '1' (no text or symbols beyond labels)

D 2x

! 90° 90°

c 6 6

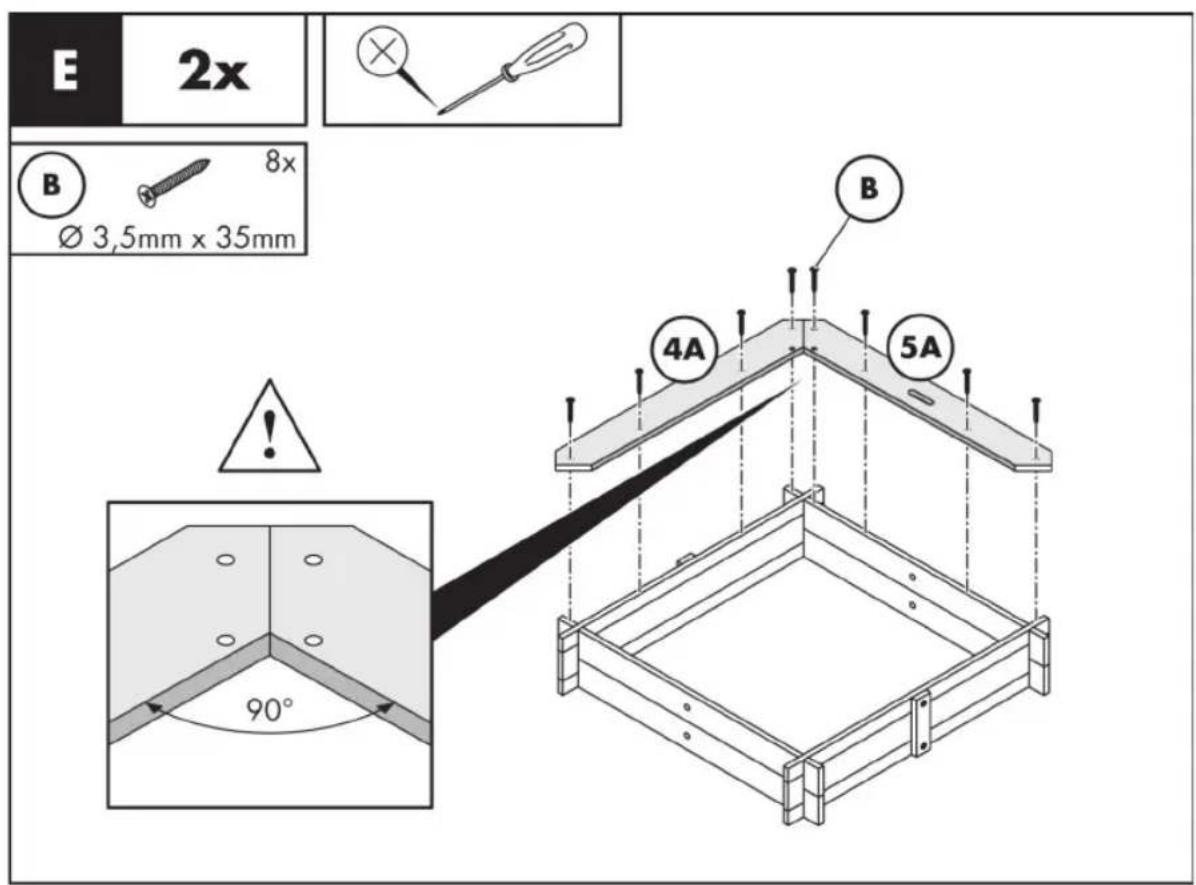

E 2x B 8x Ø 3,5mm x 35mm 90° B 4A 5A

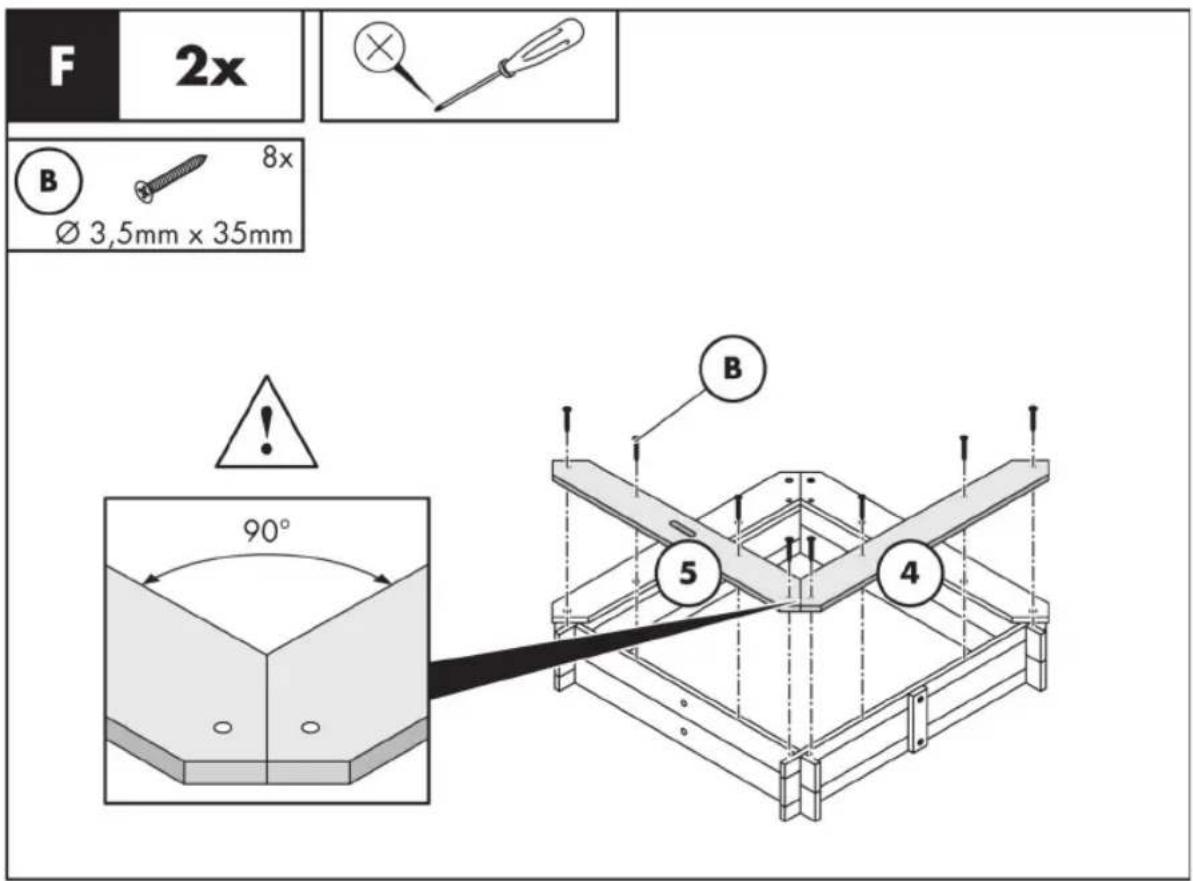

F 2x B 8x Ø 3,5mm x 35mm 90° B 5 4

G 4x A 4x D 24x Ø 3mm x 15mm D A

H 2x E 4x M8mm x 45mm F 4x Ø 8mm x 22mm G 4x M8 7 7 E F G

I 1x B 4x Ø 3,5mm x 35mm B 10 8 8

J 2x B 4x Ø 3,5mm x 35mm B 11 11

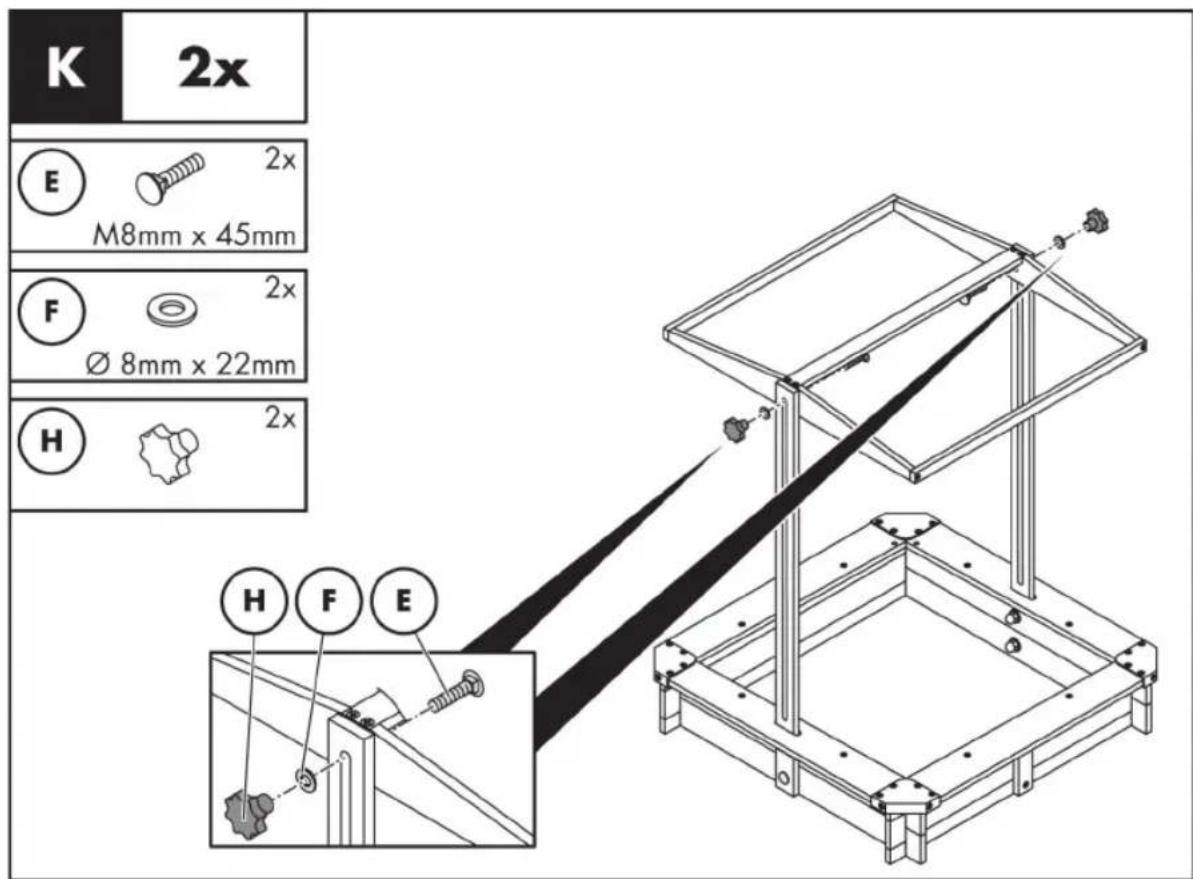

K 2x E 2x M8mm x 45mm F 2x Ø 8mm x 22mm H 2x H F E

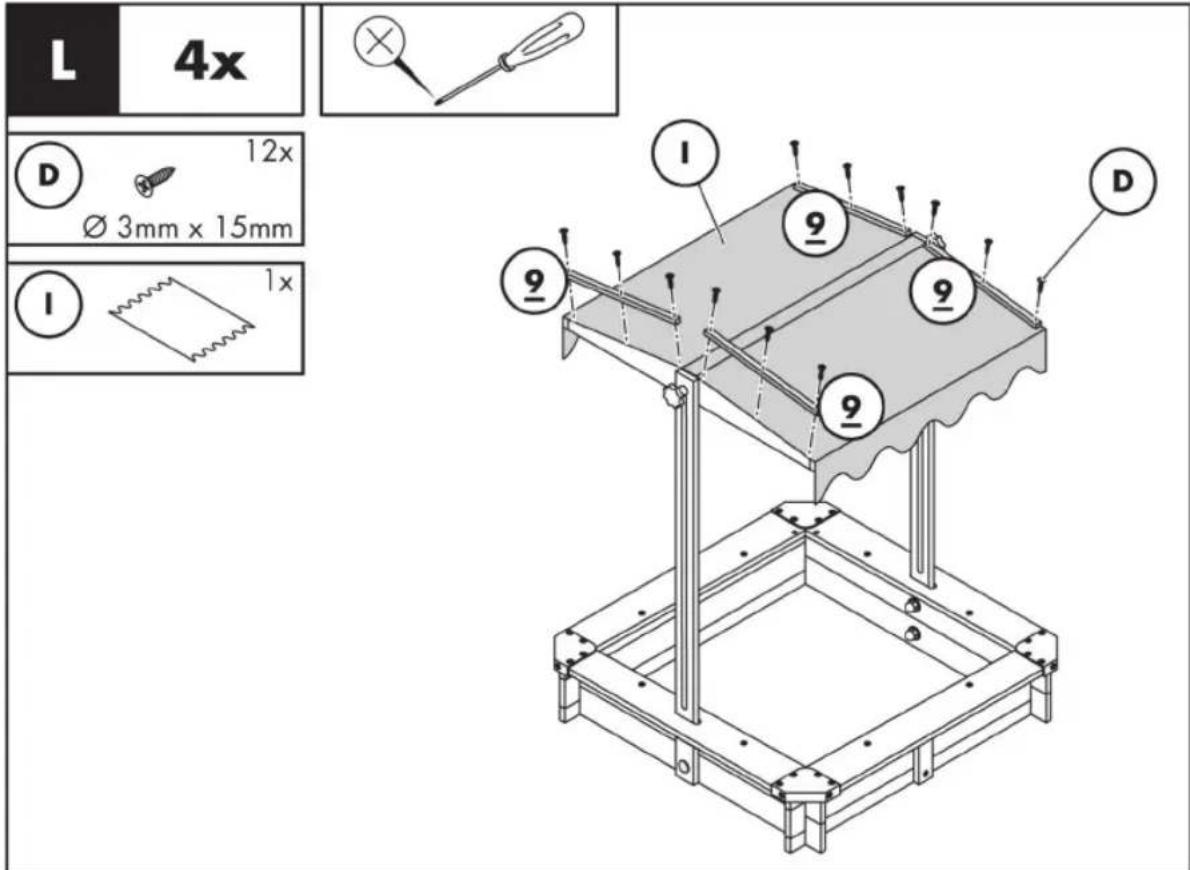

L 4x D 12x Ø 3mm x 15mm I 1x 9 9 9 D

M 2x D 10x Ø 3mm x 15mm 12 12 D

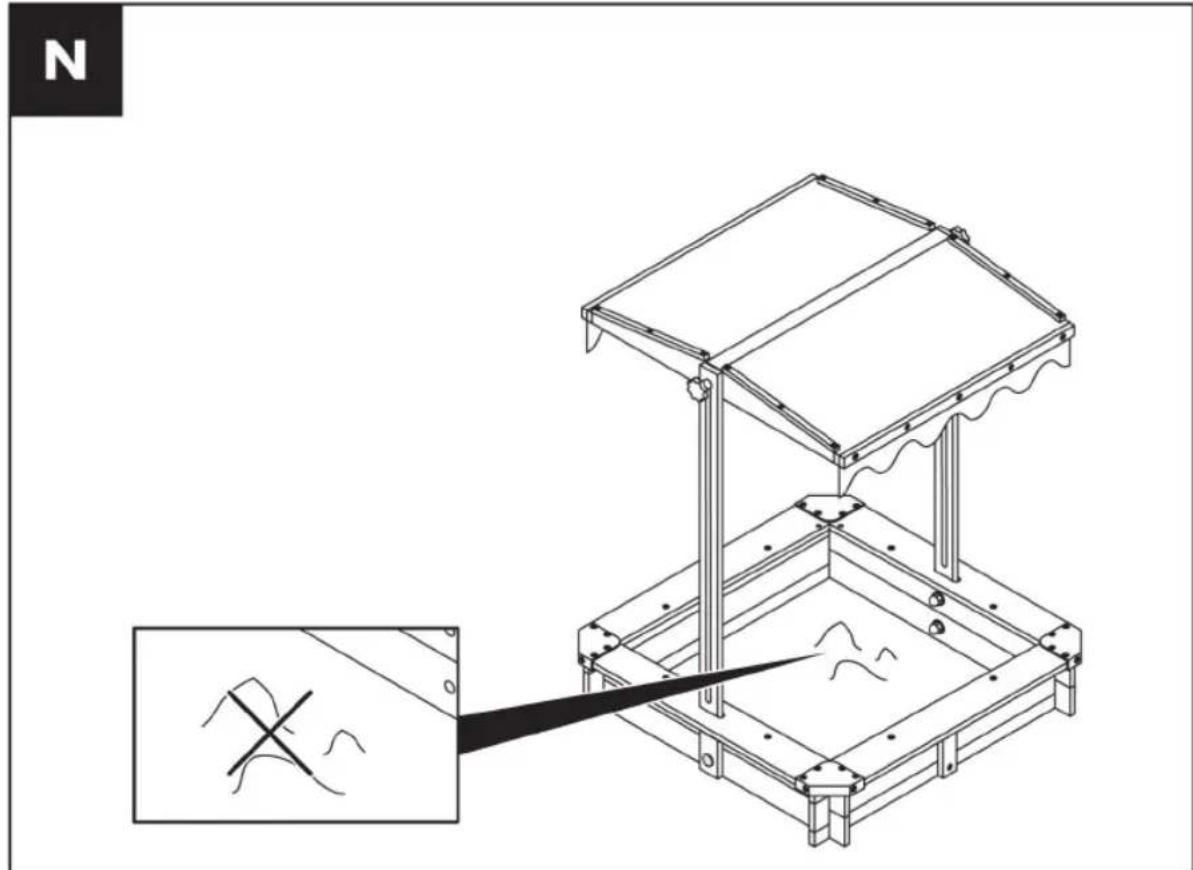

N

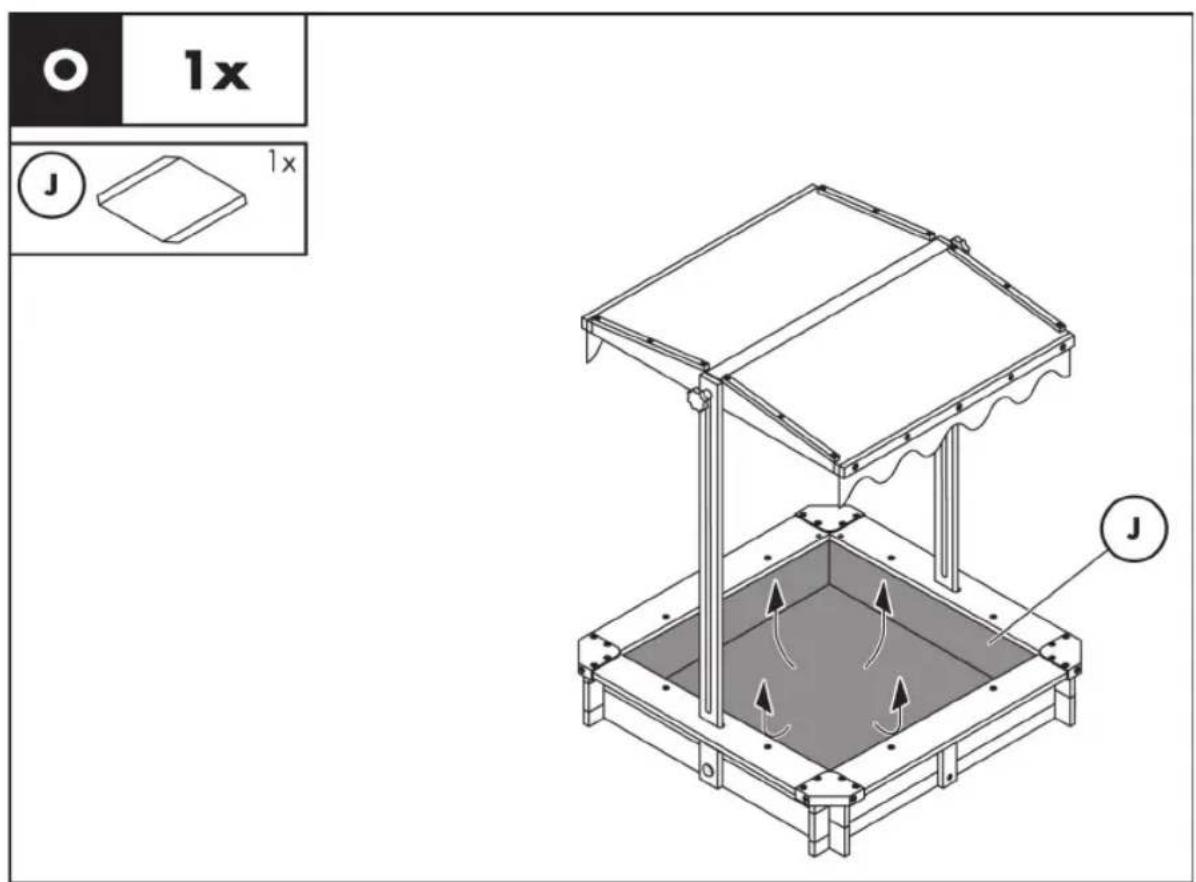

1x J 1x J

P 8x D 16x Ø 3mm x 15mm D 13

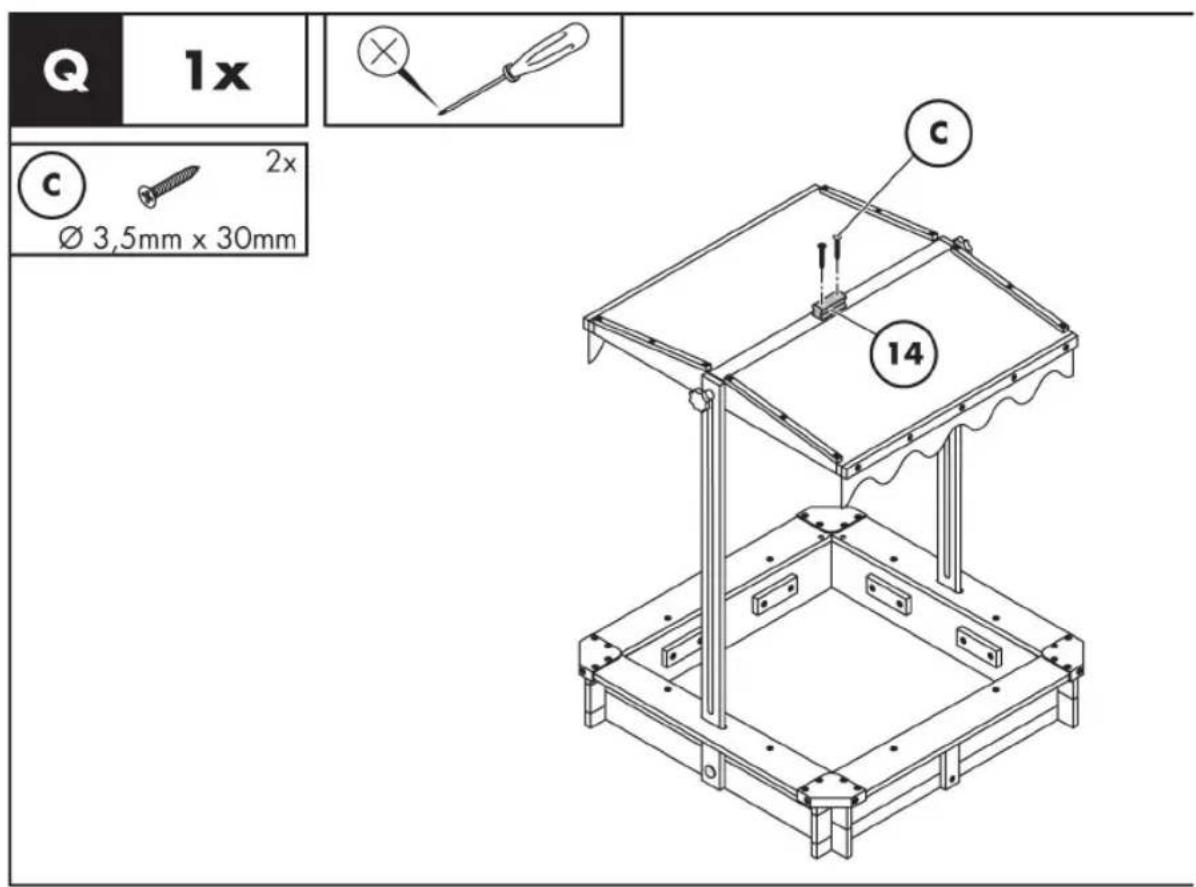

Q 1x C 2x Ø 3,5mm x 30mm c 14

V 2x ① K 2x

Technical line drawing of a structural frame assembly with supports and a labeled component 'K' (no text or symbols beyond label)

Technical diagram illustrating a safety risk test with a person crossed over a platform and a 3D model of a device under load.

Technical diagram illustrating a mechanical assembly with numbered steps and component details, including a checkmark and magnified views.

Q OURCE GMBH

A7g756e□Ba74□ 64aße□1

225870Ha/b74g

GERMANY

E-Mai.:[e-mail]

F10:□+49□40□87932653

Fa9:□+49□40□87932637

a0dlde4I0f14/asi10e0•Ve45i10llde5i0f14/asi105

Ve45i10e□de..e□i0f14/azi10i□•□La56□i0f14/abi10□U2dabe:

09/2018

IAN□307531
