Product Type	Sandbox with roof
Brand	Playtive
Model	IAN 327452
Material	Solid wood treated with water-based stain (saliva and sweat resistant)
Sand capacity	Approximately 140 kg for a 12 cm fill
Usage	Outdoor, domestic use
Assembly	Recommended for 2 adults; do not tighten screws until the end
Safety	Do not install on concrete, asphalt, or hard surface; minimum distance of 2 m from obstacles
Supervision	Do not leave children unsupervised during use
Maintenance	Retighten screws regularly; treat wood with stain or protective paint annually
Cleaning	Sand worn or defective parts; dispose of packaging immediately
Warranty	Strict quality control; contact customer service with purchase receipt
Customer service	Qsource GmbH, Auguste-Baur-Str. 1, D-22587 Hamburg, phone [phone], email [e-mail]
Recommended age	From 2 years (parental supervision required)

Frequently Asked Questions - IAN 327452 Playtive

How to assemble the Playtive IAN 327452 sandbox?

First assemble all parts without tightening, then tighten the screws at the end. The roof assembly should be done by two adults. Check that all parts are present before starting.

How much sand is needed for this sandbox?

For a fill of 12 cm height, approximately 140 kg of sand is needed.

Where to install the sandbox?

Place it on a flat, stable surface at least 2 meters from any obstacles (fences, walls, trees, etc.). Never install on concrete, asphalt, or a hard surface.

How to maintain the wood of the sandbox?

The wood is treated with a water-based stain, but it must be impregnated annually with a suitable protective stain or paint to prevent cracks and mold.

Should children be supervised during use?

Yes, it is imperative not to leave children unsupervised when playing in the sandbox.

What to do in case of missing or defective parts?

Contact Qsource GmbH customer service (phone [phone], email [e-mail]) Monday to Friday from 8am to 4pm. Have your purchase receipt for warranty.

Can I paint or varnish the sandbox?

Yes, it is recommended to apply a protective stain or paint annually to extend the life of the wood.

Is the sandbox weather-resistant?

The wood is treated against saliva and sweat, but its weather resistance is limited. Annual treatment is necessary to prevent damage from frost and moisture.

How to clean the sandbox?

Sand any worn or rough parts with fine abrasive. Regularly remove debris and change the sand if necessary.

Are there any injury risks?

Follow the safety instructions: do not install on hard surface, regularly check the condition of screws and wood, and explain to children how to play properly.

USER MANUAL IAN 327452 Playtive

Isometric technical diagram of a structural support frame with a central platform and roof structure (no text or symbols)

PDF ONLINE www.lidl-service.com

SANDBOX WITH ROOF

GB IE

SANDBOX WITH ROOF

Operation manual

FR BE

Two identical stick figures standing side by side, facing each other with hands extended (no text or symbols)

2 Pers.

Illustration of screwdriver, wrench, and screwdriver with magnified detail (no text or symbols)

Parts: Dele: Pièces: Onderdelen: Teile: [mm] 0 10 20 30 40 50 60 70 80 90 A 4x B 34x C 6x Ø 3,5mm x 35mm Ø 3,5mm x 30mm D 46x E 6x F 6x Ø 8mm x 22mm G 4x H 2x I 1x J 1x K 2x 4x 1 4x 2 2x 3 4A 5A 2x 6 2x 7 5 4 4 4 2 2x 8 8 9 10 11 12 13 14 15 16

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB / IE Operation and Safety Notes....Page 3

Technical diagram showing numbered components of a mechanical or structural assembly with numbered parts and labeled parts.

GB IE

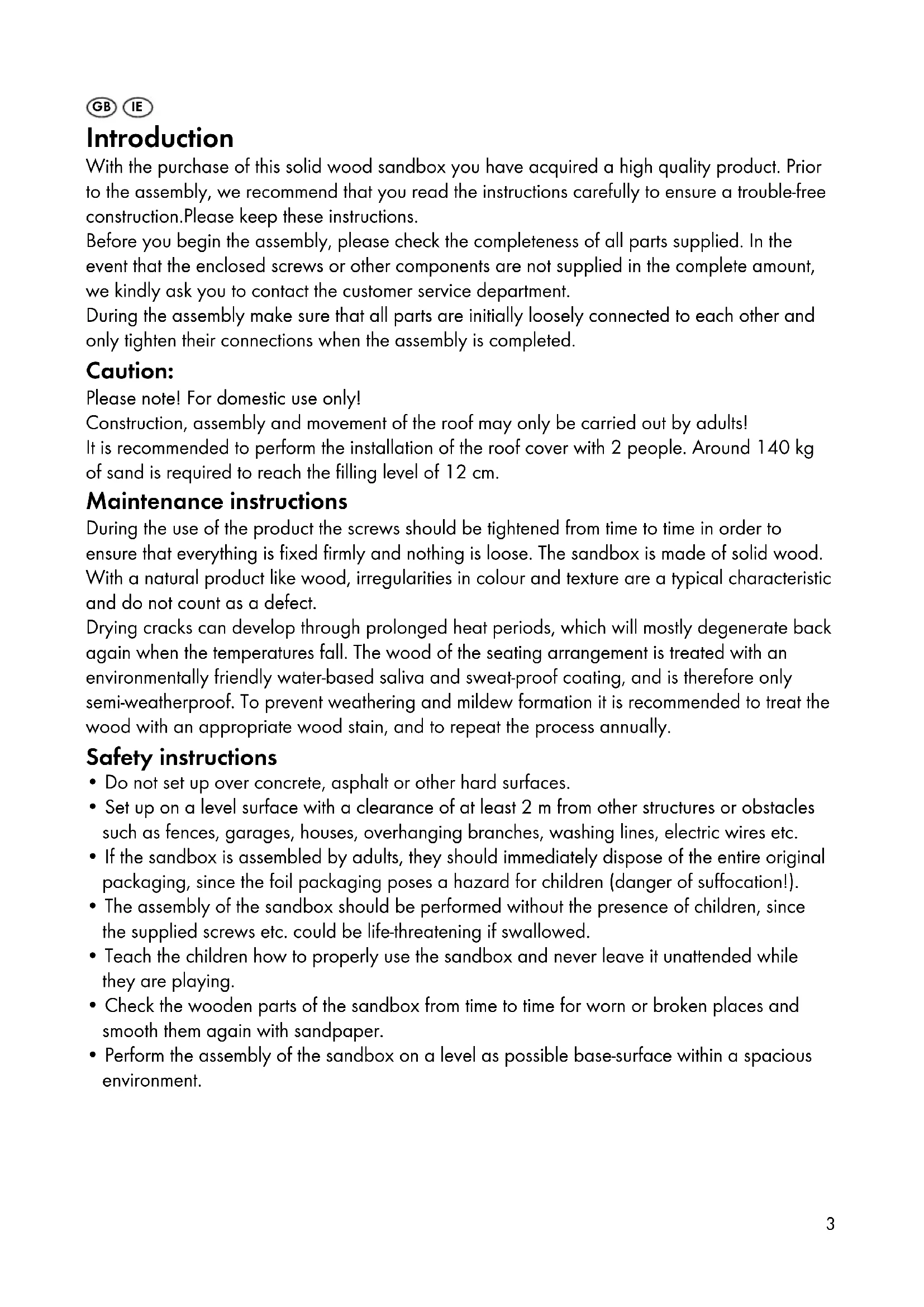

Introduction

With the purchase of this solid wood sandbox you have acquired a high quality product. Prior to the assembly, we recommend that you read the instructions carefully to ensure a trouble-free construction. Please keep these instructions.

Before you begin the assembly, please check the completeness of all parts supplied. In the event that the enclosed screws or other components are not supplied in the complete amount, we kindly ask you to contact the customer service department.

During the assembly make sure that all parts are initially loosely connected to each other and only tighten their connections when the assembly is completed.

Caution:

Please note! For domestic use only!

Construction, assembly and movement of the roof may only be carried out by adults!

It is recommended to perform the installation of the roof cover with 2 people. Around 140 kg of sand is required to reach the filling level of 12 cm.

Maintenance instructions

During the use of the product the screws should be tightened from time to time in order to ensure that everything is fixed firmly and nothing is loose. The sandbox is made of solid wood.

With a natural product like wood, irregularities in colour and texture are a typical characteristic and do not count as a defect.

Drying cracks can develop through prolonged heat periods, which will mostly degenerate back again when the temperatures fall. The wood of the seating arrangement is treated with an environmentally friendly water-based saliva and sweat-proof coating, and is therefore only semi-weatherproof. To prevent weathering and mildew formation it is recommended to treat the wood with an appropriate wood stain, and to repeat the process annually.

Safety instructions

• Do not set up over concrete, asphalt or other hard surfaces.
• Set up on a level surface with a clearance of at least 2 m from other structures or obstacles such as fences, garages, houses, overhanging branches, washing lines, electric wires etc.
• If the sandbox is assembled by adults, they should immediately dispose of the entire original packaging, since the foil packaging poses a hazard for children (danger of suffocation!).
• The assembly of the sandbox should be performed without the presence of children, since the supplied screws etc. could be life-threatening if swallowed.

- Teach the children how to properly use the sandbox and never leave it unattended while they are playing.

- Check the wooden parts of the sandbox from time to time for worn or broken places and smooth them again with sandpaper.

- Perform the assembly of the sandbox on a level as possible base-surface within a spacious environment.

This product is subject to a strict quality inspection. Should you still experience a defect, please contact our customer service department. For a free-of-charge handling of a warranty claim, it is imperative to keep your receipt available.

Qsource GmbH, Auguste-Baur-Str. 1, D-22587 Hamburg,

Tel. [phone], Fax [phone], E-Mail: [e-mail]

You can reach us Monday to Friday from 8:00 AM to 4:00 PM.

DK

Indledning

Diagram showing two structural beams with numbered circular components, likely illustrating a mechanical or electrical system.

B 2x

Technical diagram showing three labeled structural components (2, 3) arranged in a 3D frame structure with dashed alignment lines.

C

2x

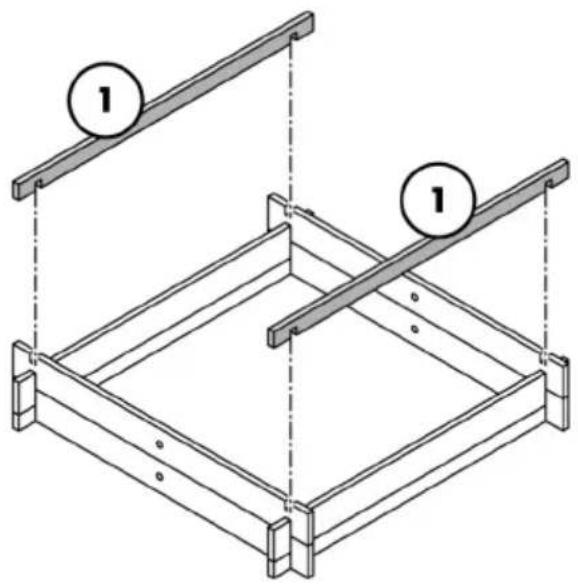

Isometric diagram of a structural frame with two horizontal beams and circular markers labeled '1' (no text or symbols beyond labels)

D

2x

C

∅ 3,5mm × 30mm

90° 6° 90° 6°

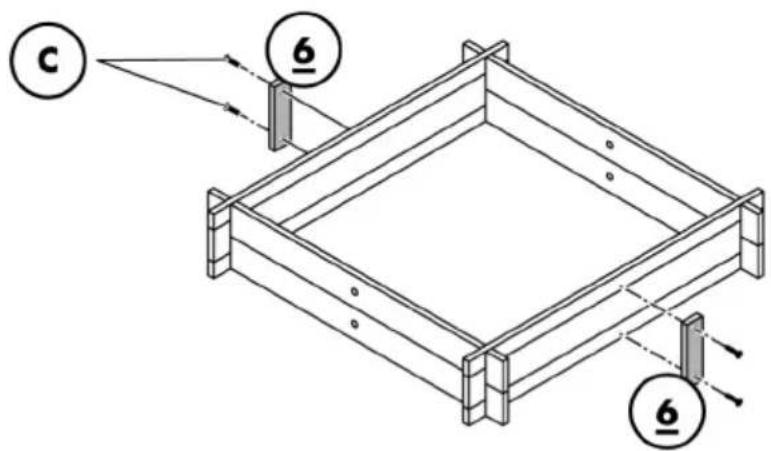

c 6 6

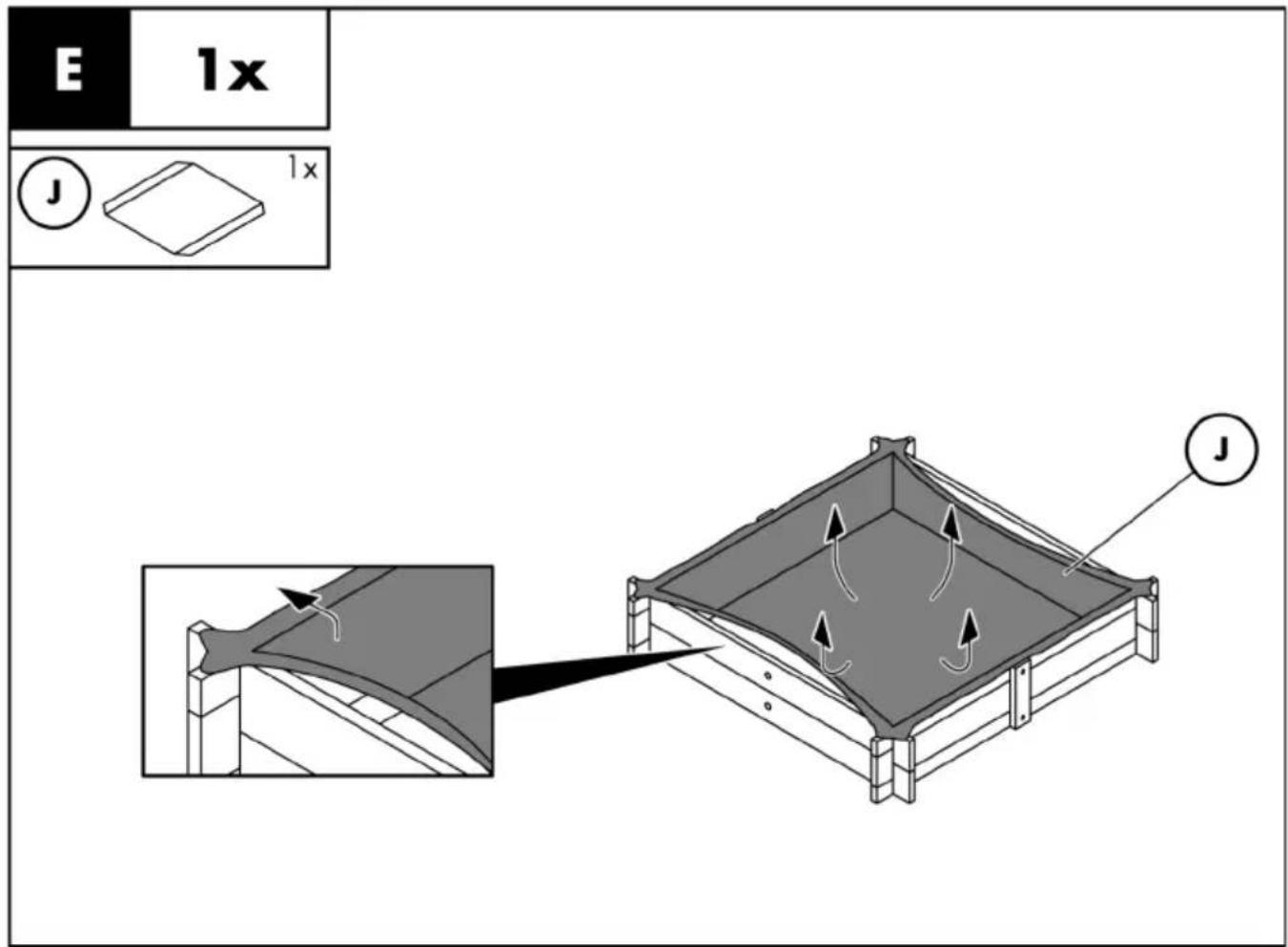

E 1x J 1x J

F 2x B 8x Ø 3,5mm x 35mm 4A B 4

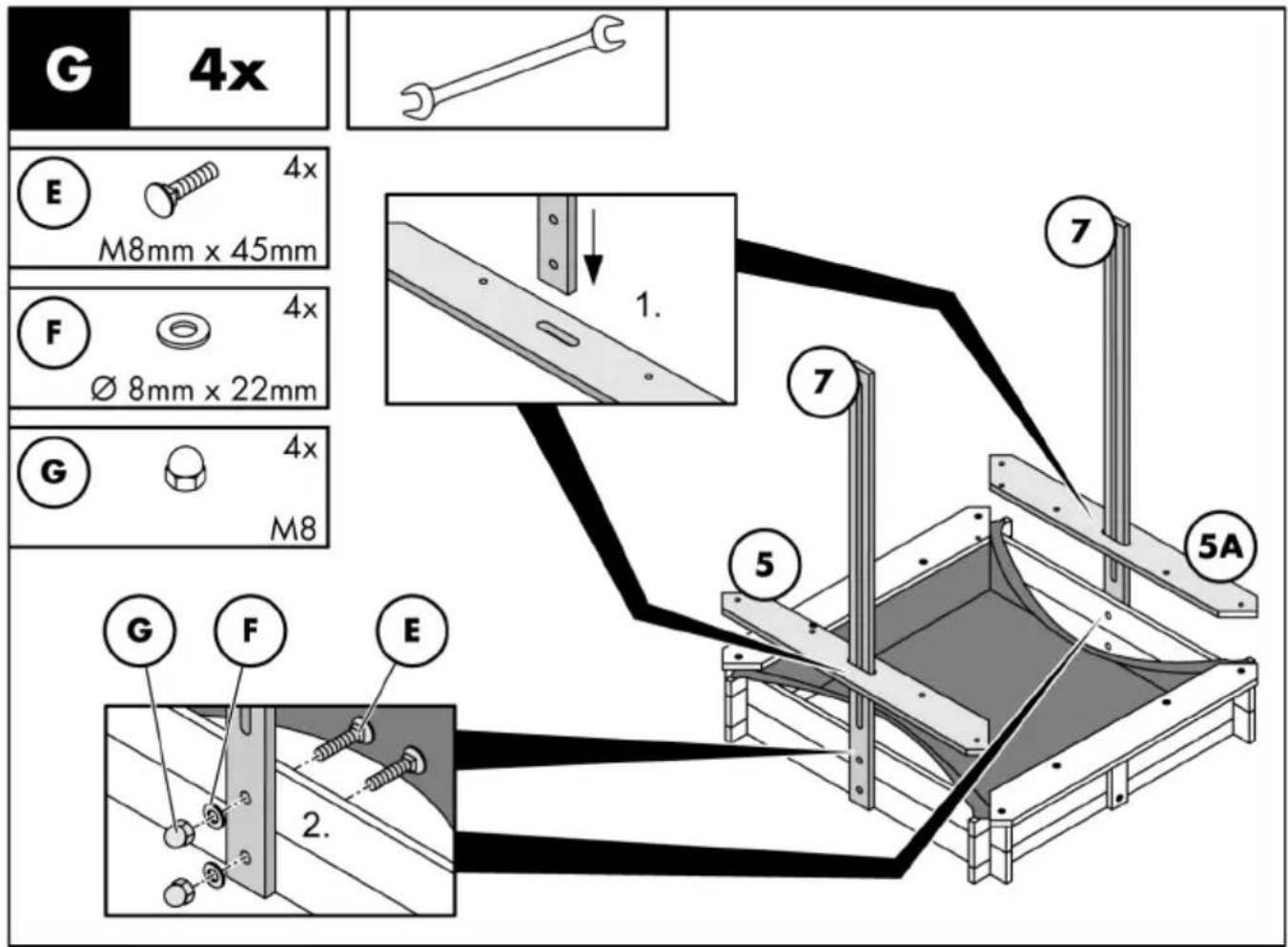

G 4x E 4x M8mm x 45mm F 4x Ø 8mm x 22mm G 4x M8 7 1. 7 5 5A G F E 2.

H 8x B 8x Ø 3,5mm x 35mm 2. B 90°

I 4x A 4x D 24x Ø 3mm x 15mm D A

J 1x B 4x Ø 3,5mm x 35mm B 10 8 8

K 2x B 4x Ø 3,5mm x 35mm B 11 11

L 2x E 2x M8mm x 45mm F 2x Ø 8mm x 22mm H 2x H F E

M 4x D 12x Ø 3mm x 15mm I 1x 9 9 9 D

N 2x D 10x Ø 3mm x 15mm 12 12 D

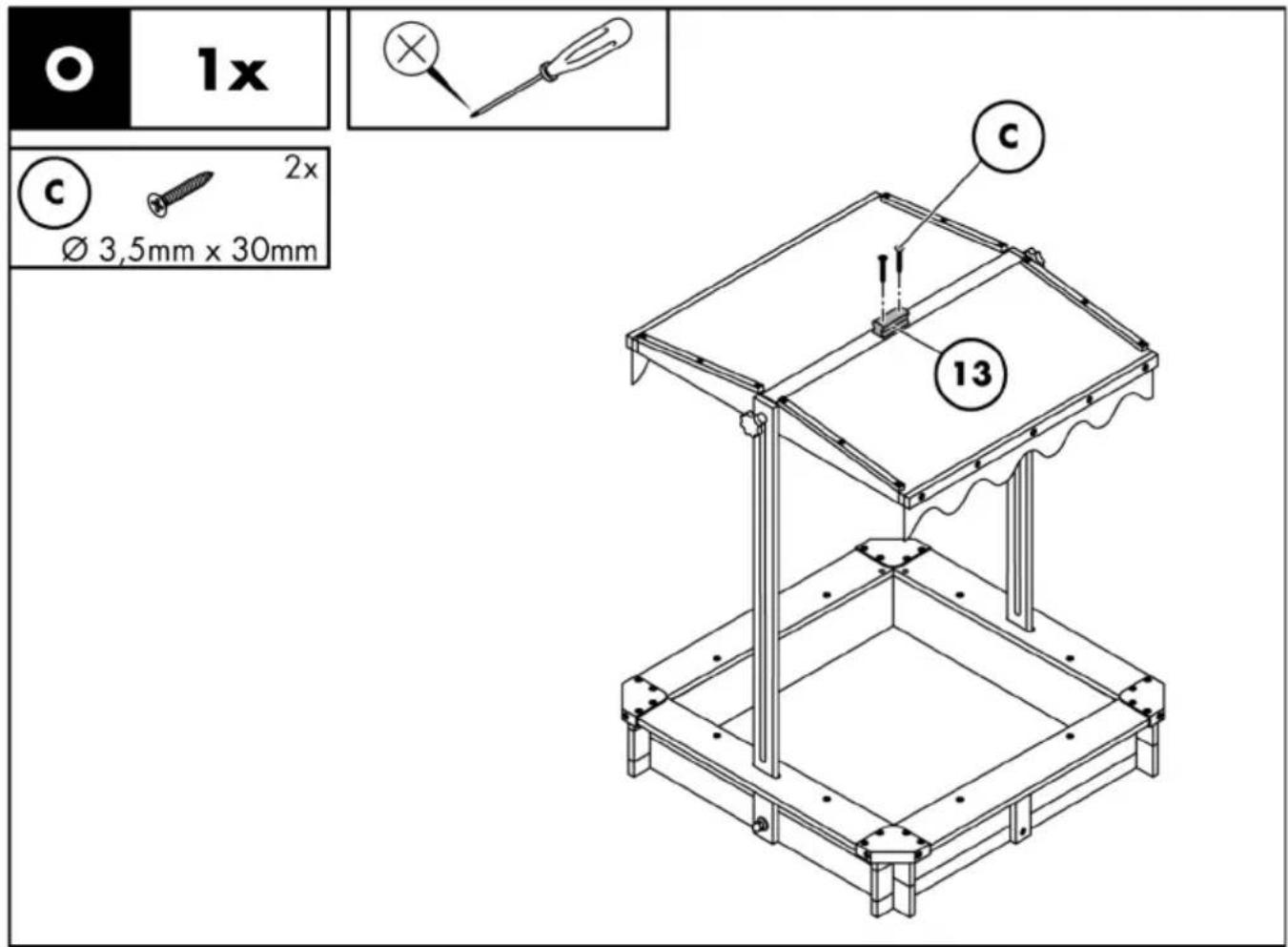

1x 2x Ø 3,5mm x 30mm c 13

P 1x B 2x Ø 3,5mm x 35mm B 14

Q 2x 16 15 16 2. 15 16 15

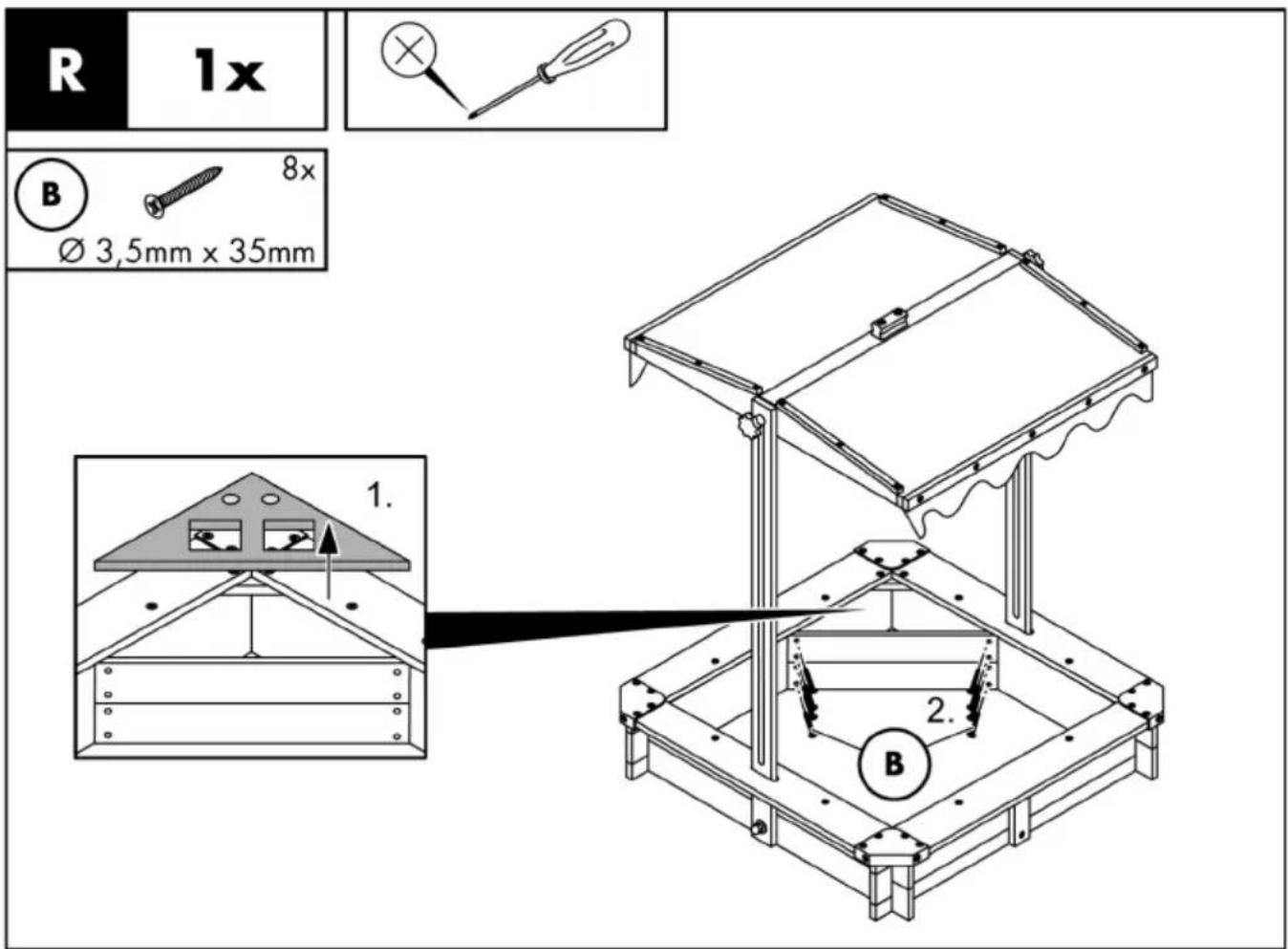

R 1x B 8x Ø 3,5mm x 35mm 1. 2. B

S 1x 16

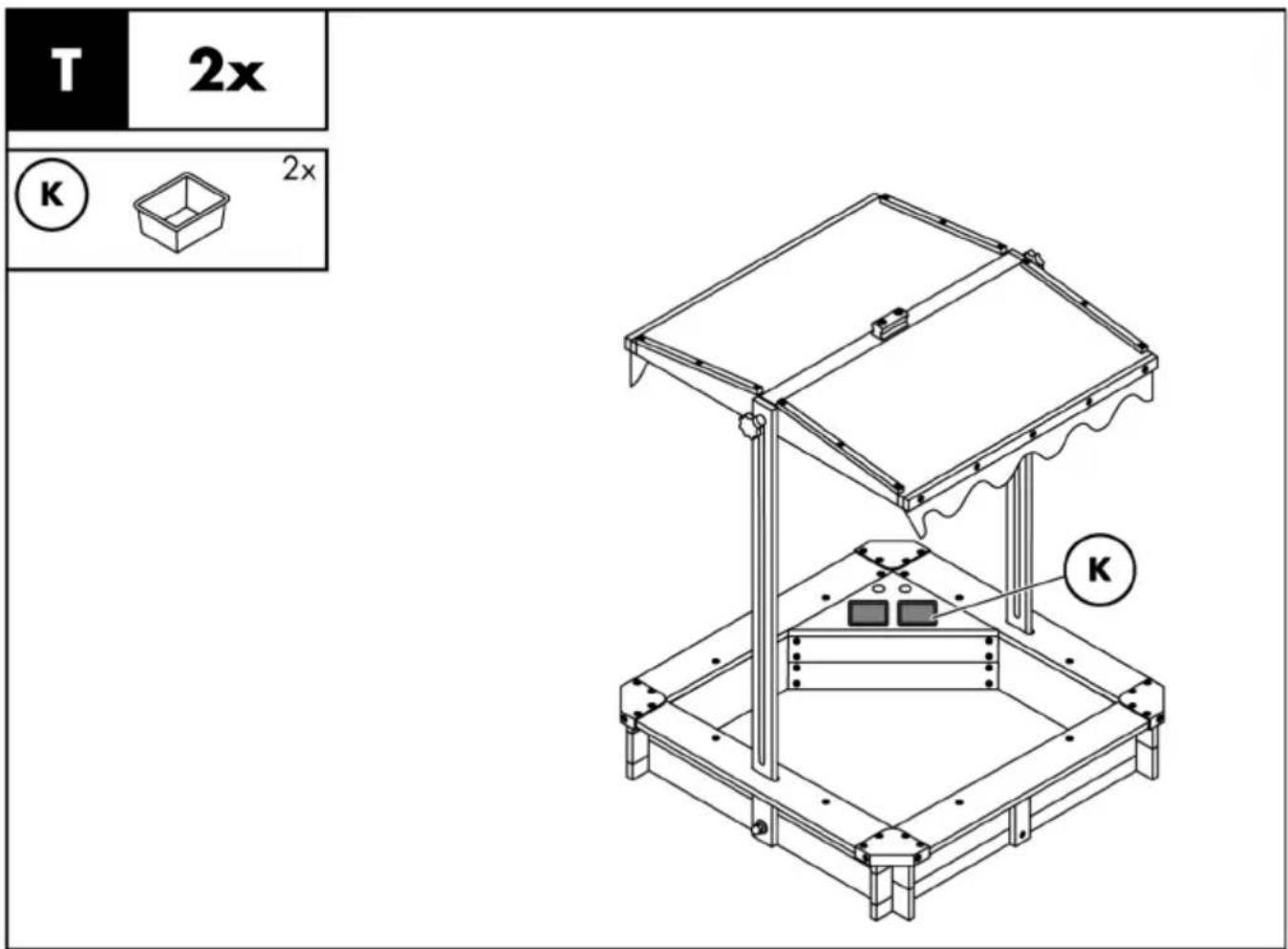

T 2x K 2x K

Safety warning diagram showing three scenarios: no warning, person without warning, and one with no warning, alongside a technical diagram of a mechanical device.

Technical diagram illustrating a mechanical assembly with numbered steps and component placement, including a checkmark icon.
