120161 - Model making Piko - Free user manual and instructions

Product type	Static model kit
Brand	Piko
Model	120161
Category	Railway model making
Approximate dimensions (assembled)	300 x 150 x 100 mm
Approximate weight	500 g
Recommended age	14 years and older
Main material	Injected plastic
Box contents	Sprues of parts, assembly instructions, stickers
Power required	None (static model)
Main functions	Assembly, painting, decoration, reproduction of locomotive shed
Care and cleaning	Dust with a dry cloth or soft brush
Safety instructions	Contains small parts – choking hazard. Keep out of reach of children under 3 years.
Spare parts and repairability	Missing or damaged parts: contact customer service by email ([e-mail]) indicating the reference on the instructions.
Assembly difficulty	Medium – requires patience and precision
Recommended tools	Side cutters, plastic glue, acrylic paint, brush

Frequently Asked Questions - 120161 Piko

How to get a missing part?

Locate the missing part on the instructions, check it, and send the instructions to Gelbr. FALLER GmbH at the indicated address. You will receive the part by return.

What glue to use to assemble the model?

Use a special liquid glue for plastic, preferably the one provided in the kit or a glue like Revell Contacta or Tamiya Extra Thin.

Do I need to paint the model?

Painting is not mandatory but recommended for a realistic result. Use acrylic paints for models and apply a primer first.

How to attach the roof without gluing the entire surface?

Glue only the ridge edge on parts 13/1 and 13/2. Let dry for about 20 minutes before gluing the pre-assembled position R parts.

What to do if a part does not fit?

Check that the sprues are properly detached and that injection burrs are removed using side cutters or a fine file.

Can I use cyanoacrylate glue?

Cyanoacrylate glue can be used but it dries very quickly. For beginners, liquid plastic glue is easier to apply and allows repositioning.

How long does it take to assemble the model?

Assembly time varies depending on experience, but allow about 3 to 5 hours for basic assembly, plus drying time for glue and paint.

Can I access the interior after assembly?

Yes, the roof is designed to be removable if you only glue the ridge edge. This allows access to the interior of the locomotive shed.

Are there any unused parts in the box?

It is possible that some parts are not used in the final assembly. Check the instructions to see which ones are optional.

How to clean the parts before gluing?

Wash the parts in warm soapy water to remove mold release residues, then dry them thoroughly before gluing.

USER MANUAL 120161 Piko

Before beginning with the assembly please familiarize yourself with the parts and read the instructions carefully. In case of missing parts please indicate these on the instructions leaflet with a circle and return the leaflet to Gebr. FALLER GmbH, [e-mail], Kreuzstraße 9, D-78148 Gütenbach, Germany. You will receive the replacement by return. It may happen in a kit that some parts are not required.

Liquid cement in plastic bottle with contents for very fine drapes.

Speed side cutter for cutting off electro- modified parts without bars. Only suitable for polystyrene.

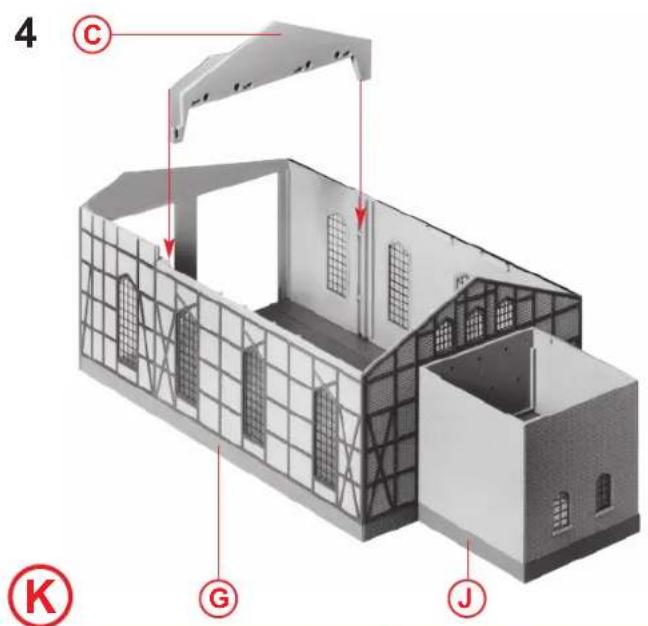

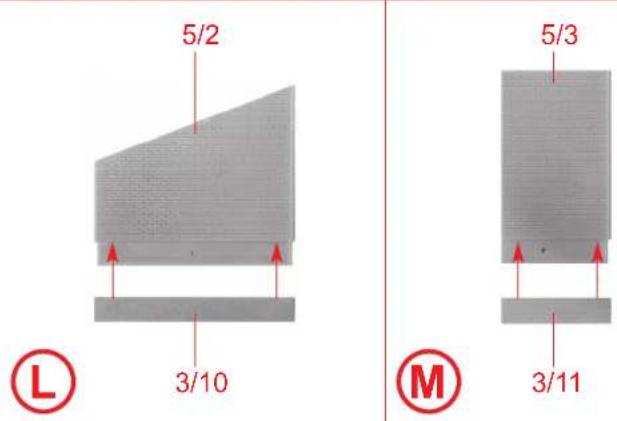

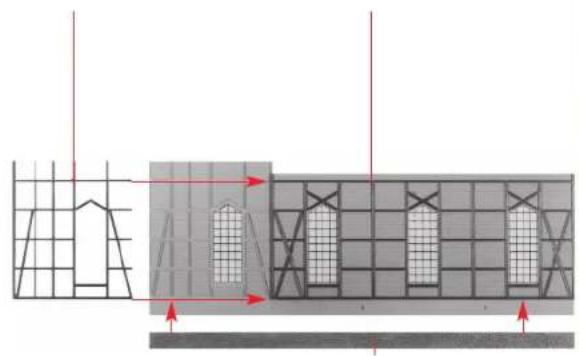

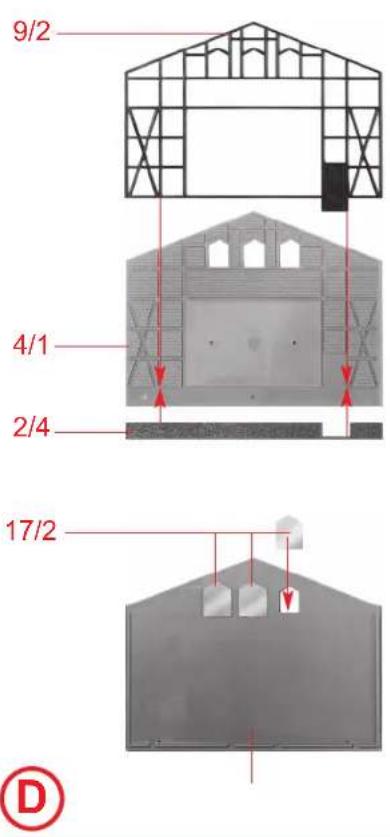

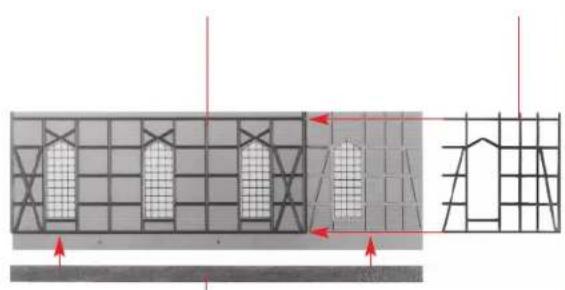

Architectural cross-section diagram showing structural elements and beam alignment (no text or labels)

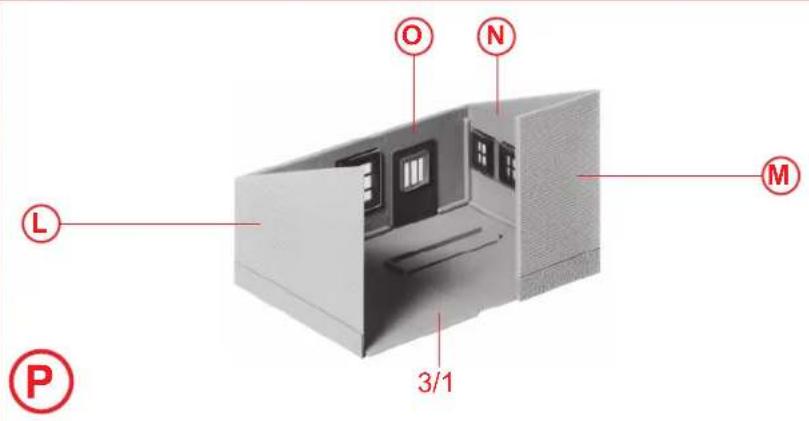

Architectural cross-section diagram showing structural layers and window layouts (no text or labels)

©

Achtung!

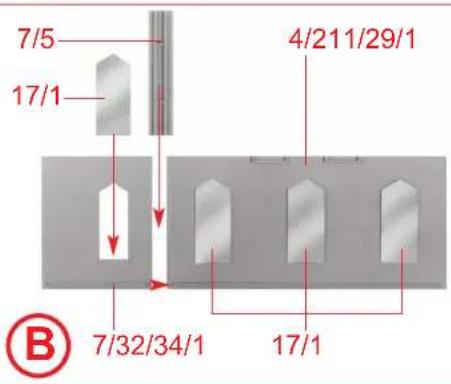

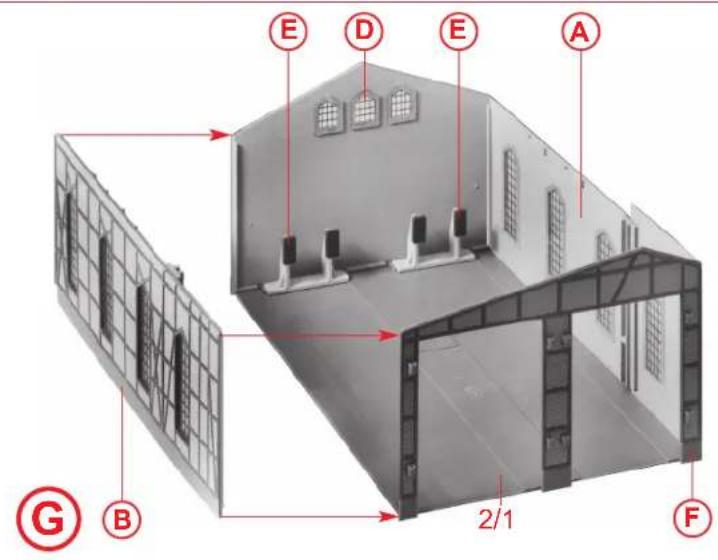

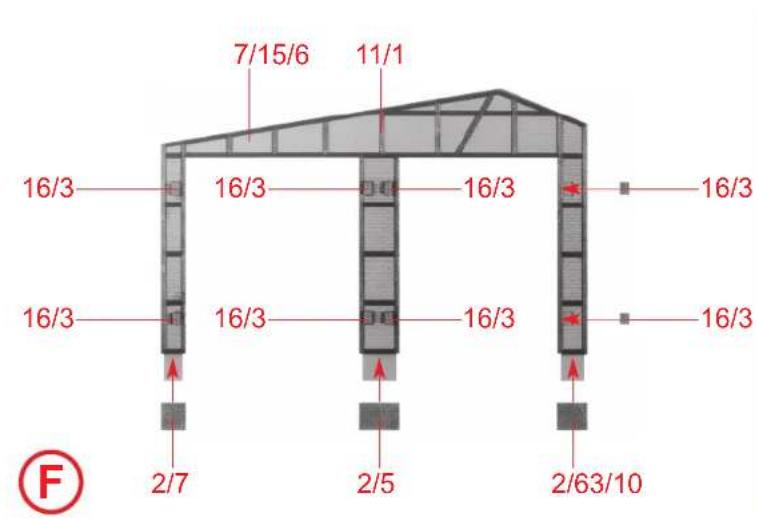

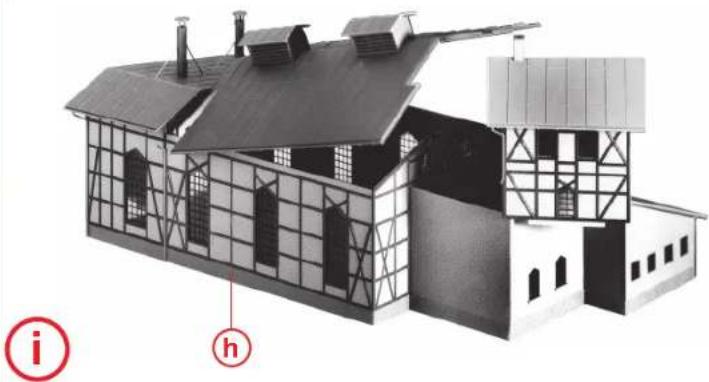

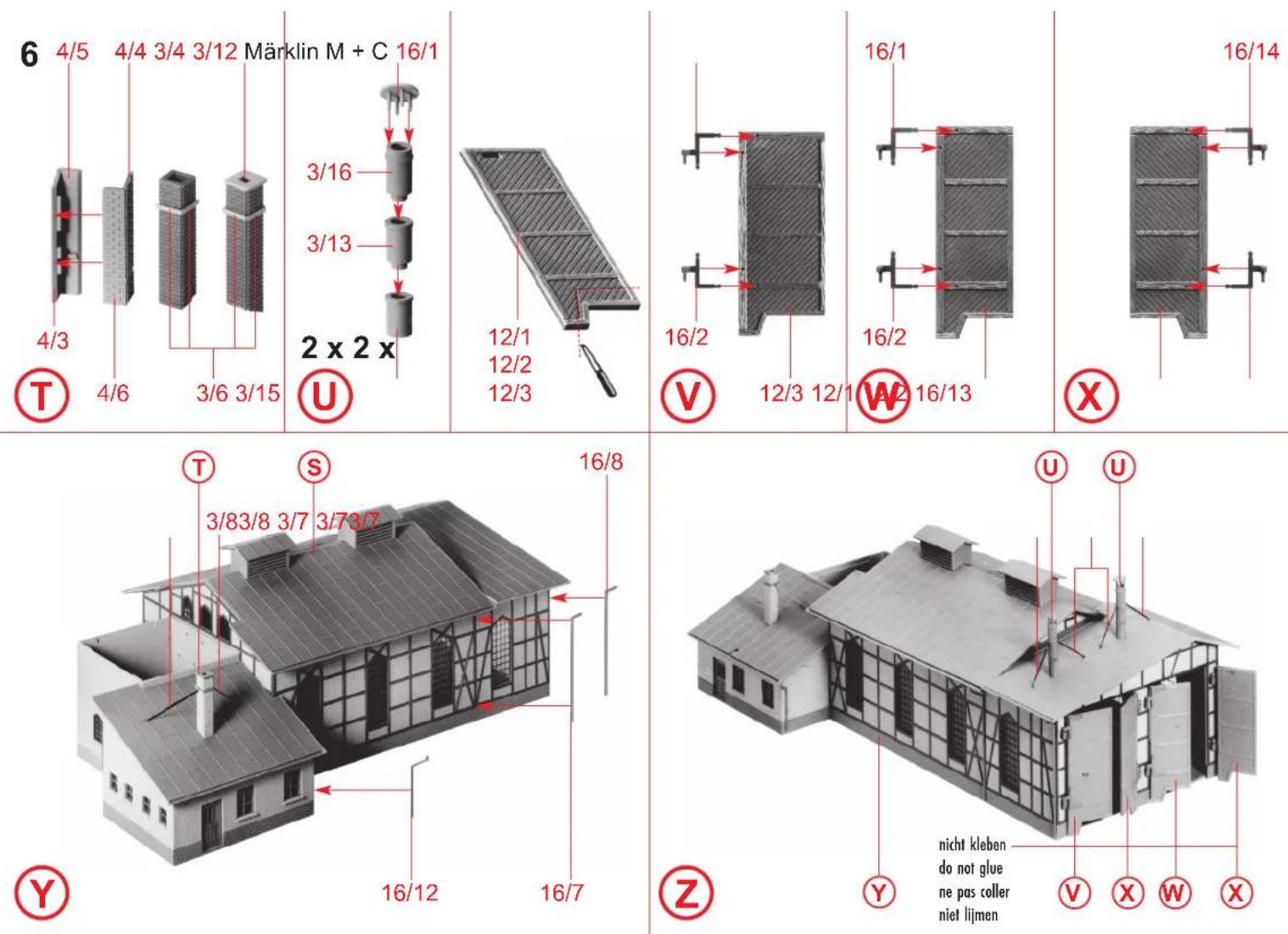

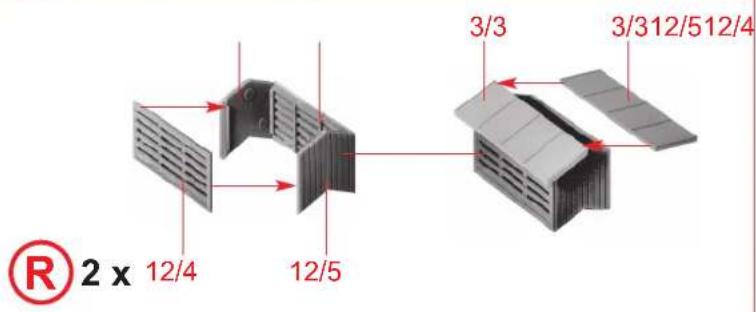

For installation of the tracks in the engine house, and then can be later controlled for running operation, there is no need to glue the roof down. Therefor only glue the pieces 13/1 and 13/2 on the gable together. And on top the pieces, already glued on (pos. R). Allow to try for approx. 20 minutes.

Attention!

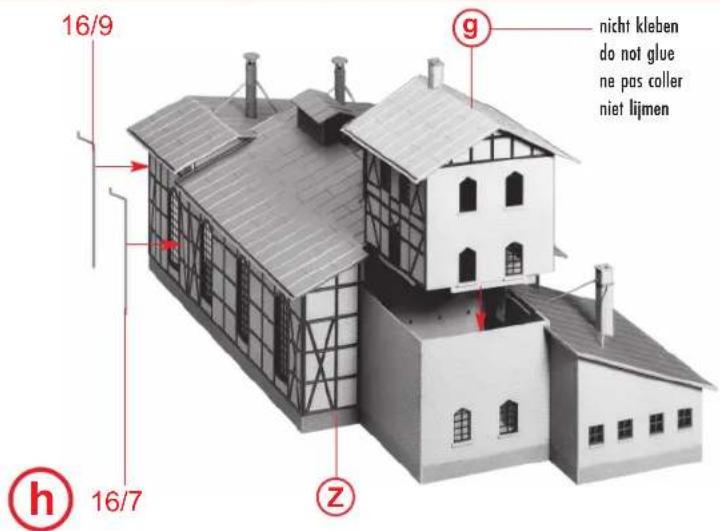

Beim Abnehmen des Daches zuerst die obere Hälfte des Turmes abheben, danach das Dach vom Hauptgebäude. When removing the roof, lift up the upper part of the tower and lift of the roof grom the main building. Lors du demontage du toit, ôter d'abord la partie haute de la tour, puis seulement le toit du bâtiment principal. Bij het afnemen van het dak eerst de bovenste helft van de toren afnemen en daarna het dak van het hoofdgebouw.

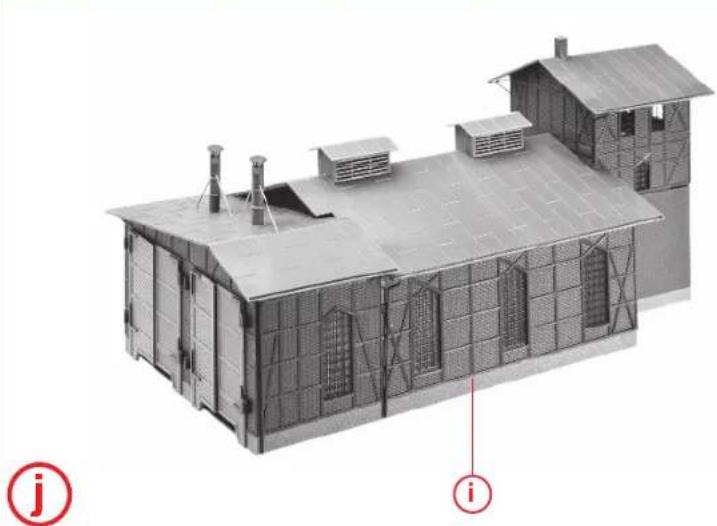

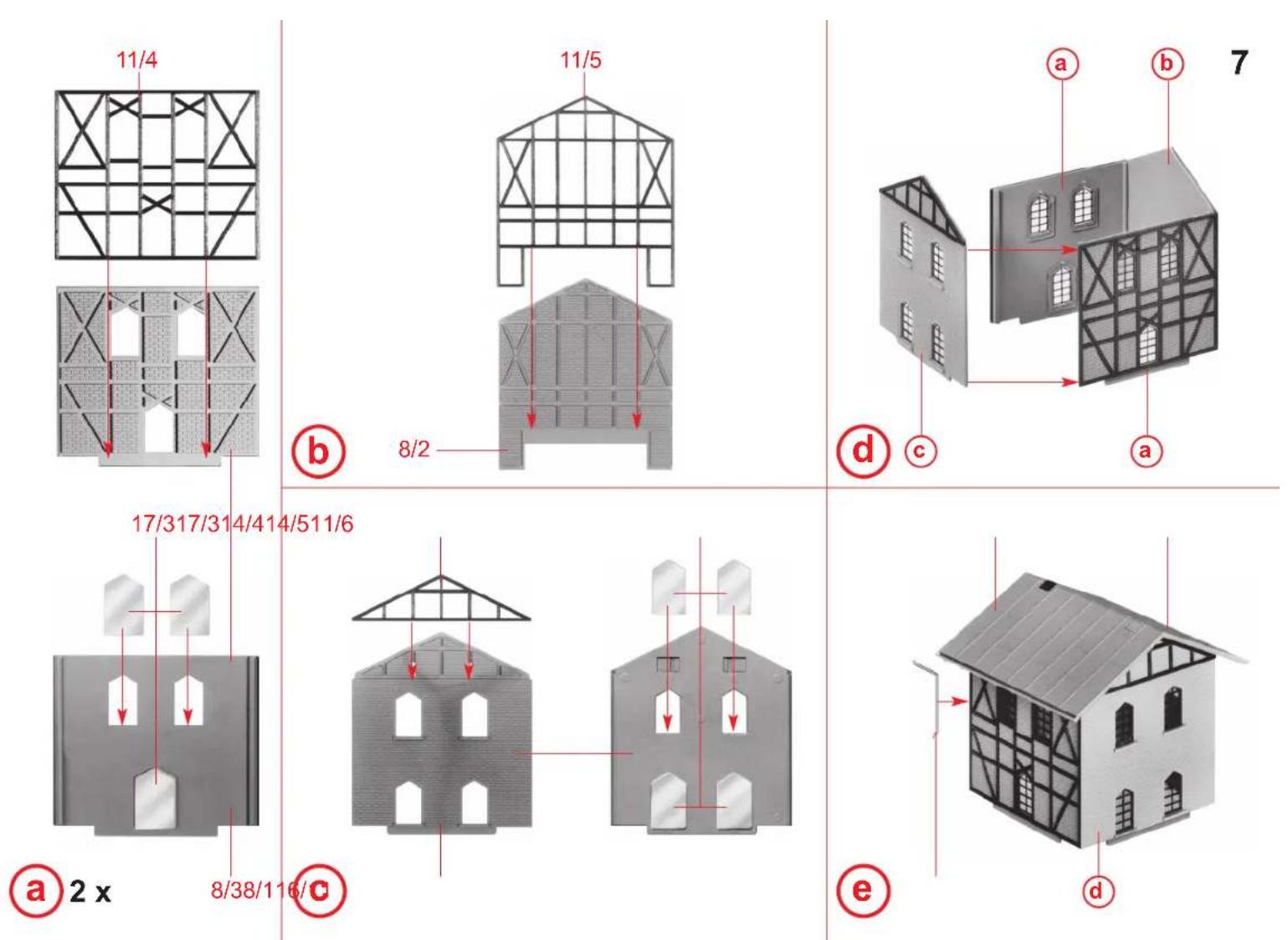

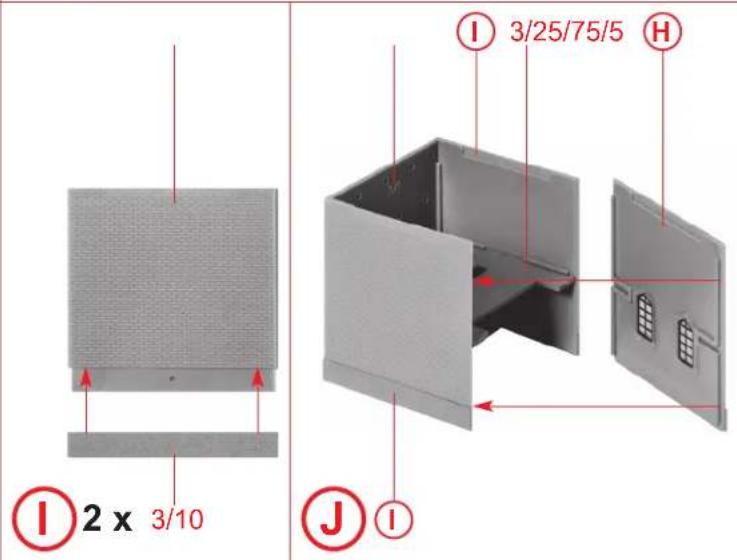

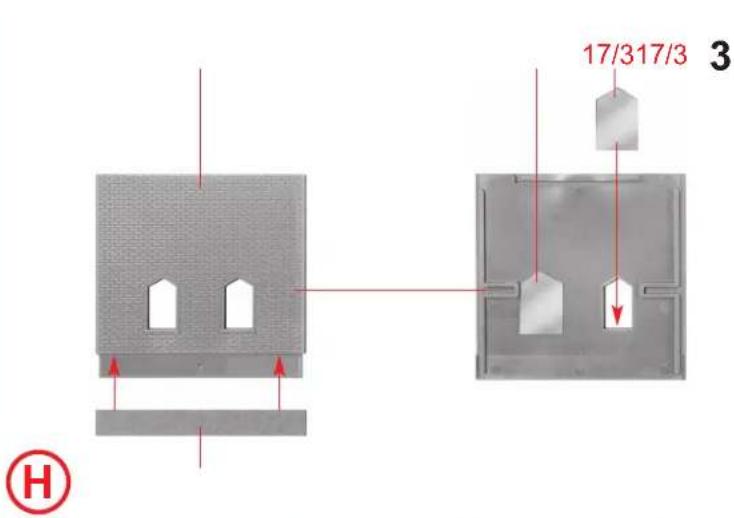

Architectural model of a two-story building with herring roof and window patterns, labeled with circled number i and h (no text or symbols on the structure itself)

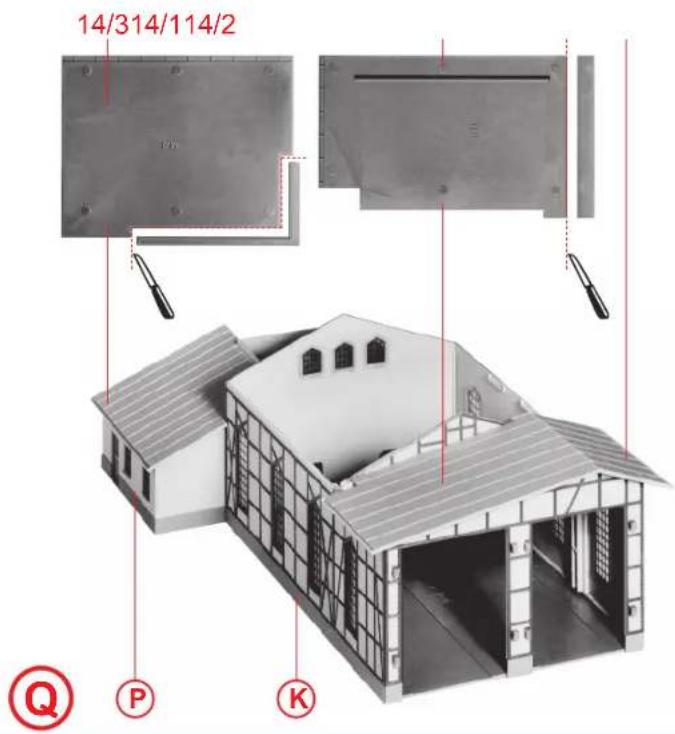

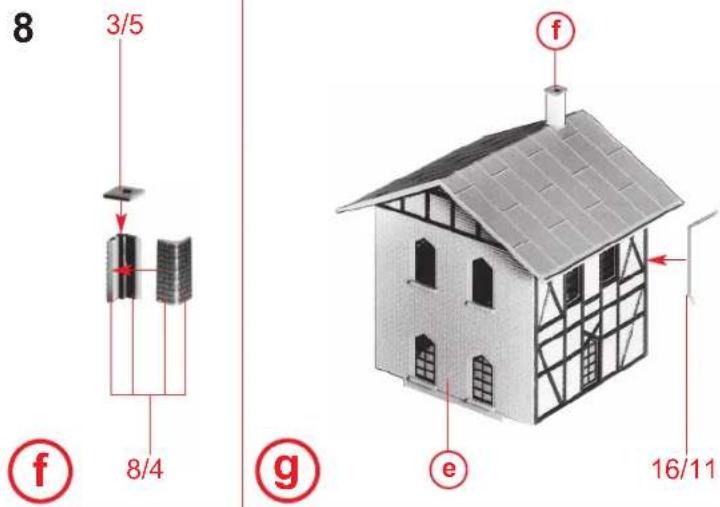

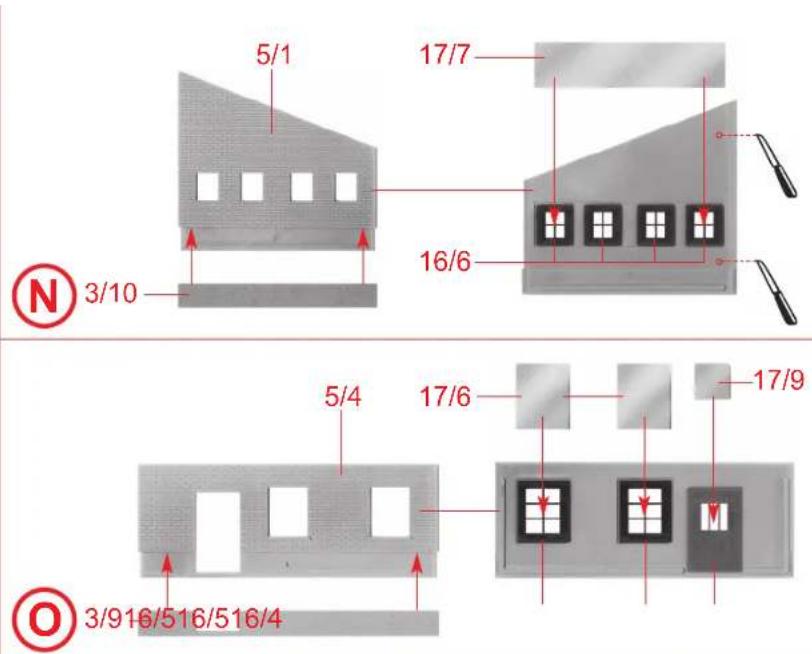

3D architectural rendering of a two-story industrial building with visible structural elements and chimney (no text or symbols)
