USER MANUAL CD615 POLAR

600 / 400 / 150 litre series Refrigerators/Freezers

Instruction manual

Front view of a white stainless steel refrigerator with ventilation grilles (no visible text or labels)

NL Koelkast/Vrieskast 10

Handleiding

Front view of a white commercial refrigerator with closed doors and ventilation slots (no visible text or labels)

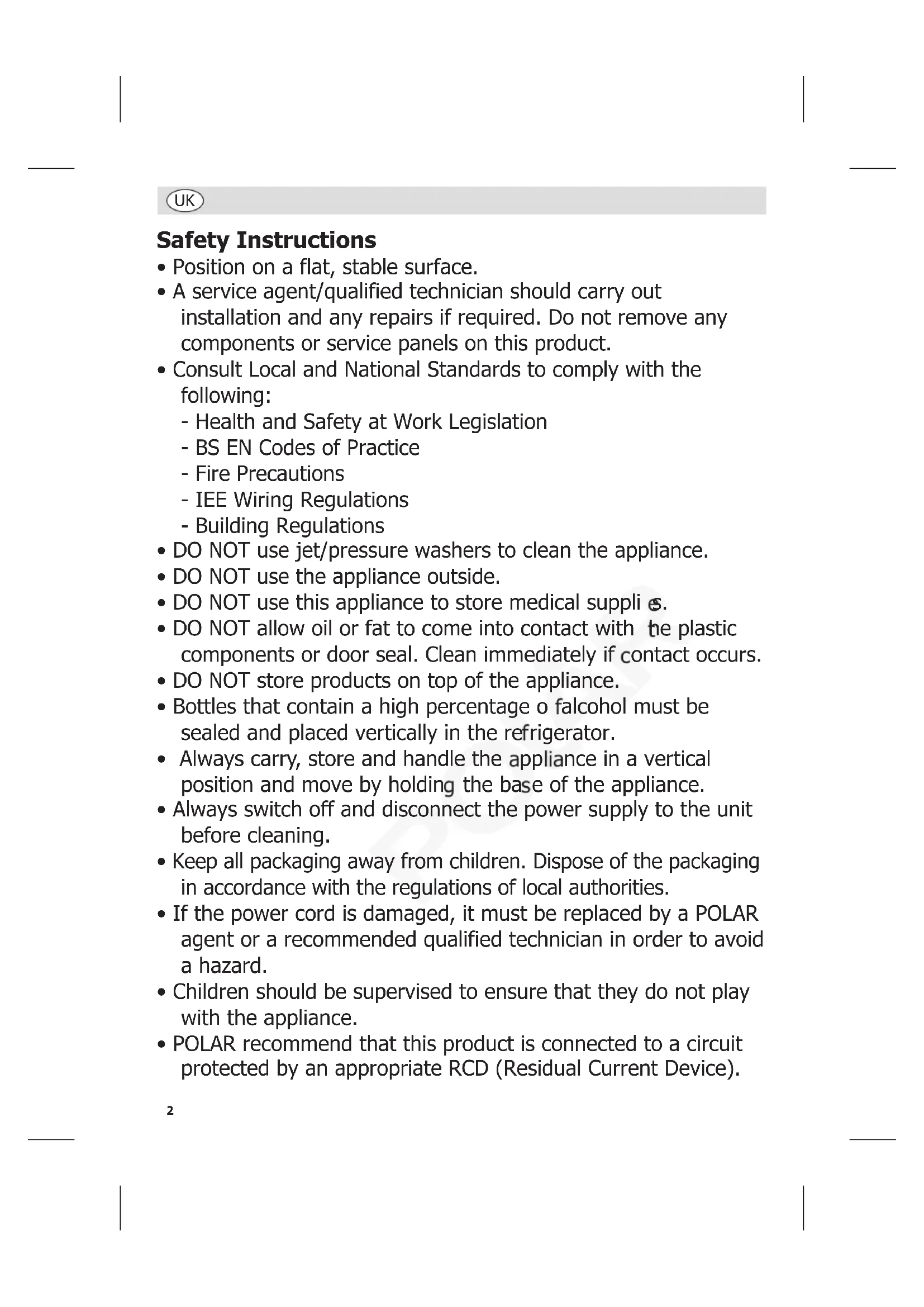

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.
  • DO NOT use the appliance outside.

• DO NOT use this appliance to store medical suppli €.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
  • DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of falcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
  • Children should be supervised to ensure that they do not play with the appliance.

• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• POLAR recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

CD610 - 150 litre Refrigerator CD611 - 140 litre Freezer

CD612 - 400 litre Refrigerator CD613 - 365 litre Freezer

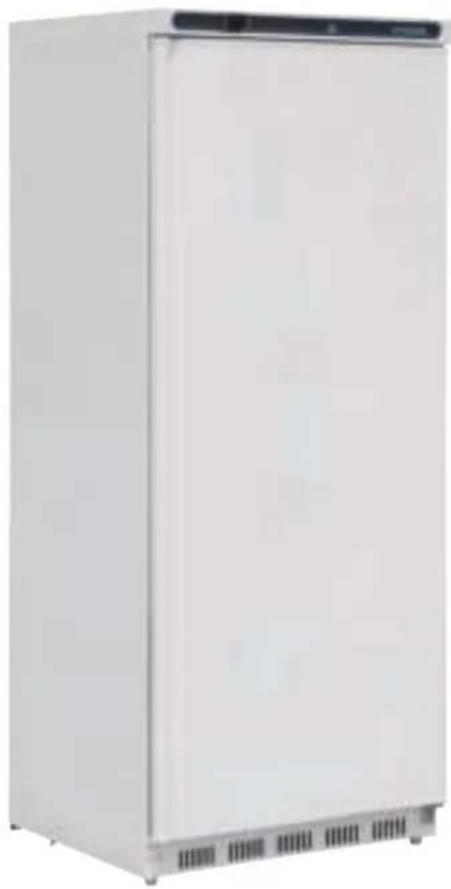

CD614 - 600 litre Refrigerator CD615 - 600 litre Freezer

CD086 - 150 litre Glass-Door Refrigerator CD087 - 400 litre Glass-Door Refrigerator

CD080 - 150 litre Stainless Steel Refrigerator CD081 - 140 litre Stainless Steel Freezer

CD082 - 400 litre Stainless Steel Refrigerator CD083 - 365 litre Stainless Freezer

CD084 - 600 litre Stainless Steel Refrigerator CD085 - 600 litre Stainless Steel Freezer

CD088 - 600 litre Glass-Door Refrigerator CB921 - 365 litre Glass-Door Freezer

GL185 - 522 litre Bakery Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

UK

Pack Contents

The following is included:

• POLAR Refrigerator / Freezer
• Shelves - Refrigerator only

CD610/CD080/CD086 x 3

CD612/CD082/CD087 x 4

CD614/CD084/CD088 x 4

• Tray Guides - Bakery refrigerator only GL185 x 12
• Keys x 2
• Spacers x 2
• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: A bracket is used to support the door during transportation. On receipt please remove the bracket.

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

The appliance is supplied with feet by default. However, castors can be supplied as an option from serial number range: 8124199-UK / 8128873-EU onwards.

Reversing the door (Excluding model CB921/CD086/CD087/CD088)

Depending on the location of the appliance, it may be necessary to change the direction the door opens by changing the side of the door handle.

To reverse the door handle:

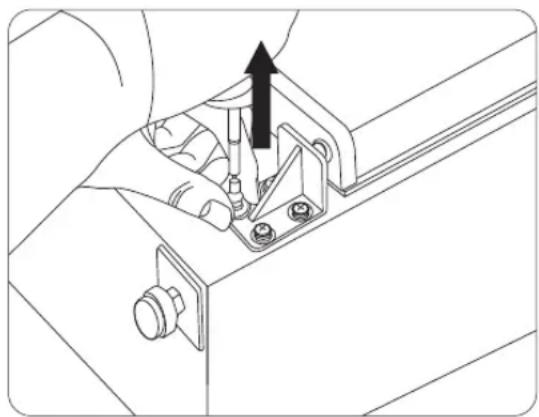

1. The door handle is on the left side. Disassemble the right lower hinge.

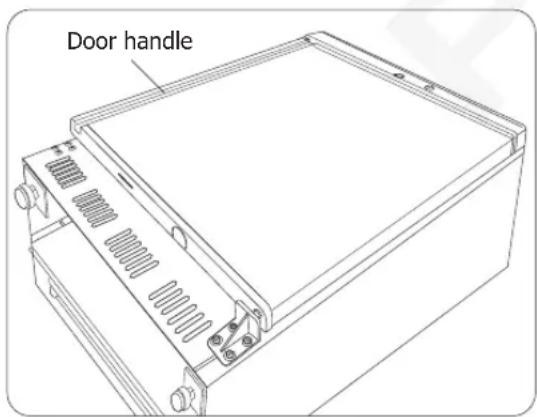

Door handle

Technical line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

UK

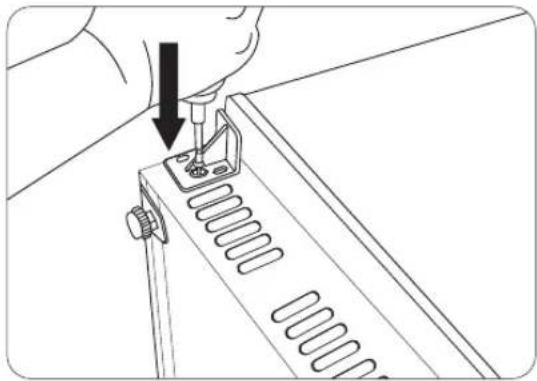

1. Remove the door from the right upper hinge. Then remove the hinge sleeve from the door top.

Technical line drawing of a mechanical component with a bolt and threaded end (no text or symbols)

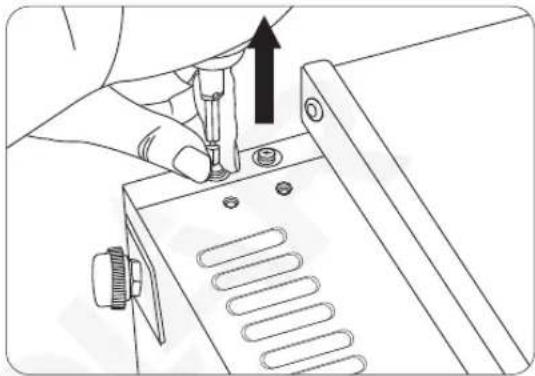

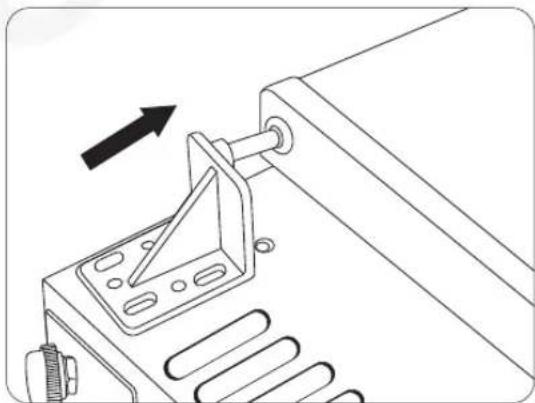

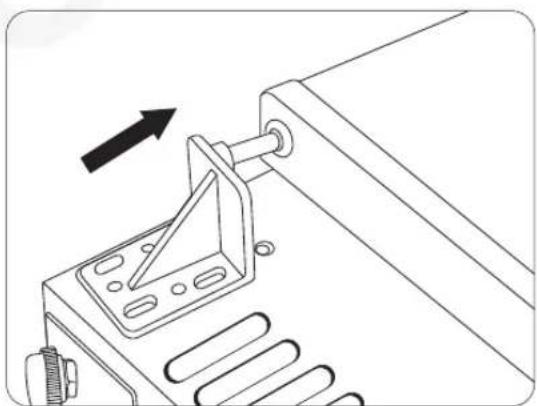

1. Remove the right upper hinge and install it on the left side. Afterwards, install the hinge sleeve onto the hinge.

Line drawing of a hand operating a mechanical device with a black arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a pipe fitting and directional arrow (no text or symbols)

1. Reverse the door and hang it onto the left upper hinge.

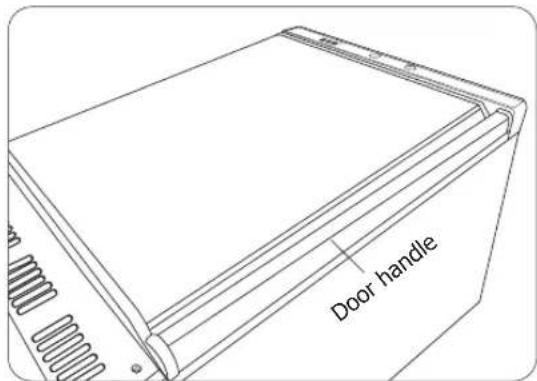

Door handle

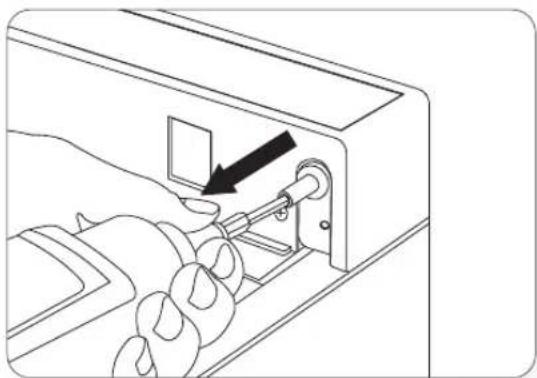

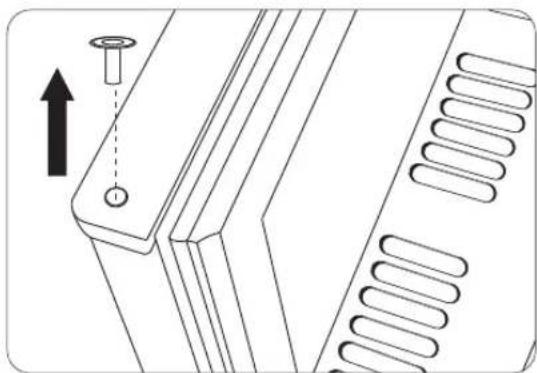

1. Remove the pre-mounted screws on the left lower side.

Line drawing of a sewing machine needle stitching a metal sheet with a black upward arrow indicating the process (no text or symbols present)

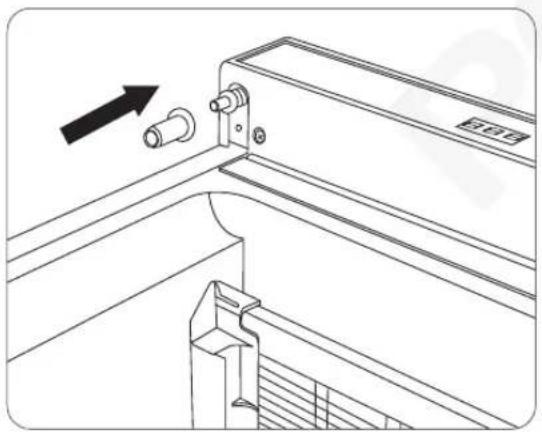

1. Inst all the previously removed right lower hinge on the left side.

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

UK

1. Secure the hinge in place using the previously removed screws.

Line drawing of a sewing machine needle stitching a slotted fabric (no text or symbols)

1. Now the door handle is installed on the right side.

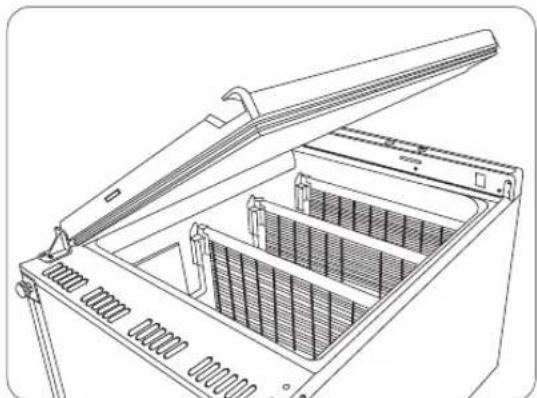

Technical line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Operation

Control Panel

The control panel is located on the front of the appliance.

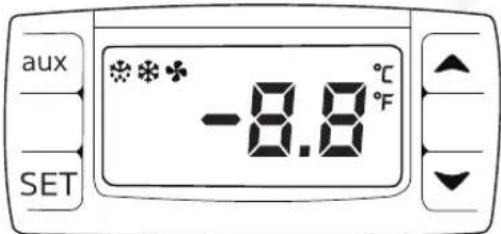

aux SET ***-8.8°C °F

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.

Set the Operating Temperature

1. Press the SET button for 3 seconds. The display will flash.
2. Press the ▲ or ▼ buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

Press and hold the defrost button "aux" for
2 seconds to begin a manual defrost. The defrost light illuminates.

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hofood or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the do for prolonged periods of time.

Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs are kept secure within your POLAR appliance.
  • Use the keys provided to lock/unlock the door.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
  • Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
  • Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.

POLAR recommend that a POLAR agent or qualified technician should clean the condenser.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable	Cause Solution
The appliance is not working	The unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug or lead is damaged Call PO AR	agent or qualified Technician
	Fuse in the plug has blown eplace	the fuse t
	Power supply Che power supply	ck
The appliance turns on, but the temperature is too high/low	Too much ice on the evaporator	first the appliance
	Condenser blocked with dust C an	the condenser
	Doors are not shut properly	Check doors are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high In	crease ventilation or move appliance to a cooler position
	Unsuitable foodstuffs are being stored in the appliance	Remove any excessive hot foodstuffs or blockages to the fan
	Appliance is overloaded Reduce the	amount of food stored in the appliance
The appliance is leaking water	The appliance is not properly levelled	Adjust the screw feet to level the appliance (if applicable)
	The discharge outlet is blocked Clear	the discharge outlet

UK

Fault Probable	Cause Solution
The appliance is leaking water	Movement of water to the drain is obstructed	Clear the floor of the appliance (if applicable)
	The water container is damaged Call POLAR agent or qualified Technician
	The drip tray is overflowing Empty the drip tray (if applicable)
The appliance is unusually loud	Loose nut/screw Check and tighten	all nuts and screws
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary
The display lamp does not light	Lamp needing replacing Call POLAR agent or qualified Technician

Technical Specifications

Model Voltage Power Current				Temperature Range	Capacity (litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
CD610 CD080	230V 50Hz	150 1.	0A 2°C to	8°C 150 R600a		(35g)	850 x 600 x 600	44
CD611 CD081	230V 50Hz	150 1.	0A -10°C	to -25°C 140	R600a	(36g)	850 x 600 x 600	44.5
CD612 CD082	230V 50Hz	185 1.	5A 2°C to	8°C 400 R600a		(75g)	1850 x 600 x 600	69
CD613 CD083	230V 50Hz	210	2A	-10°C to -25°C	365 R600a	(90g)	1850 x 600 x 600	71
CD614 CD084	230V 50Hz	185 1.	5A 2°C to	8°C 600 60 a		R 0 (100g)	1890 x 777 x 695	90
CD615 CD085	230V 50Hz	350 3.	5A -10°C	to -25°C 0	R600a	(130g)	1890 x 777 x 695	94
CD086	230V 50Hz	150 1.	0A 2°C to	8° 150 R600a		(35g)	850 x 600 x 600	47
CD087	230V 50Hz	185 1.	5A 2°C to	°C 00 R600a	4	(90g)	1850 x 600 x 600	72
CD088	230V 50Hz	185 1.	5A °C o	8°C 600 R600a		(115g)	1890 x 777 x 695	93
CB921	230V 50Hz	500	2.35A	-10°C to -25°C	365	R290 (110g)	1850 x 600 x 600	76
GL185	230V 50Hz	130 0.	9A 0°C to	8°C 522 R600a		(95g)	1720 x 777 x 725	90

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

Technical line drawing of a mechanical assembly with a hand holding a tool, no text or symbols present

Technical line drawing of a mechanical component with a bolt and threaded end (no text or symbols)

Line drawing of a hand operating a mechanical device with a black arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a pipe fitting and an arrow indicating direction (no text or symbols)

Line drawing of a sewing machine needle stitching a metal sheet with a black upward arrow indicating the process (no text or symbols present)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

NL

Line drawing of a sewing machine needle stitching a slotted fabric (no text or symbols)

Technical line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Bediening

Bedieningspaneel

aux SET ***-8.8°C °F

Aanzetten

Technical line drawing of a hand using a tool to adjust or install a mechanical bracket (no text or symbols present)

FR

Technical line drawing of a mechanical component with a bolt and spring-like features (no text or symbols)

Line drawing of a hand inserting a device into a device housing (no text or symbols)

Technical line drawing of a mechanical assembly with a pipe fitting and directional arrow (no text or symbols)

Line drawing of a sewing machine needle stitching a hole, with an upward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

FR

Line drawing of a sewing machine needle stitching a slotted collar (no text or symbols)

Technical line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Fonctionnement

Panneau de configuration

aux SET ***-8.8°C °F

Allumer

Technical line drawing of a mechanical assembly with a hand holding a tool, no text or symbols present

DE

Technical line drawing of a mechanical component with a bolt and spring-like features (no text or symbols)

Line drawing of a hand inserting a device into a device housing (no text or symbols)

Line drawing of a sewing machine needle stitching a metal sheet, with an upward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

DE

Line drawing of a sewing machine needle stitching a metal sheet (no text or symbols)

Line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Betrieb

Bedienfeld

Technical line drawing of a mechanical assembly with a hand holding a tool and an upward arrow indicating motion (no text or symbols)

IT

Technical line drawing of a mechanical component with a bolt and spring-like features (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical assembly with a pipe fitting and an arrow indicating direction (no text or symbols)

Line drawing of a sewing machine needle stitching a hole, with an upward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

IT

Line drawing of a sewing machine needle stitching a slotted collar (no text or symbols)

Line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Funzionamento

aux SET ***-8.8°C °F

Accensione

Technical line drawing of a mechanical assembly with a hand holding a tool, no text or symbols present

ES

Technical line drawing of a mechanical component with a bolt and threaded end (no text or symbols)

Line drawing of a hand operating a mechanical device with a black arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a pipe fitting and directional arrow (no text or symbols)

Line drawing of a sewing machine needle stitching a metal sheet with a black upward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

ES

Line drawing of a sewing machine needle stitching a spring, with no text or symbols present

Technical line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Funcionamiento

Panel de control

aux SET ***-8.8°C °F

Encender

Technical line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

PT

Technical line drawing of a mechanical component with a bolt and threaded end (no text or symbols)

Line drawing of a hand operating a mechanical device with a black arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a pipe fitting and an arrow indicating direction (no text or symbols)

Line drawing of a sewing machine needle stitching a metal sheet with a black upward arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

PT

Line drawing of a sewing machine needle stitching a metal sheet (no text or symbols)

Line drawing of an open industrial storage unit with internal compartments (no text or symbols)

Funcionamento

Painel de controlo

aux SET ***♣ -8.8° °C °F

Ligar

Trancar/Destrancar as portas

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Equipment Type • Ultrustingstype • Type d'équipement • Gerätetyp• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento		Model • Modèle • Modell • Modello• Modelo • Malli
1. Glass Door Display Freezer - 400Ltr2. St/St Undercounter Fridge 150Ltr3. St/St Freezer - 365Ltr4. 600Ltr St/St Fridge5. Glass Door Fridge - 600Ltr6. Undercounter Fridge - 150Ltr7. Undercounter Freezer - 140Ltr8. Upright Freezer - 600Ltr9. Upright Freezer - 365Ltr	10. Upright Fridge - 600Ltr11. 400Ltr St/St Fridge12. 600Ltr St/St Freezer13. Glass Door Fridge - 150Ltr14. Glass Door Fridge - 400Ltr15. St/St Undercounter Freezer 140Ltr16. Upright Fridge - 400Ltr17. G-Series Patisserie Refrigerator - White	1. CB921 (& -E -A)2. CD080 (& -E -A)3. CD083 (& -E -A)4. CD084 (& -E -A)5. CD088 (& -E -A)6. CD610 (& -E -A)7. CD611 (& -E -A)8. CD615 (& -E -A)9. CD613 (& -E -A)	10. CD614 (& -E -A)11. CD082 (& -E -A)12. CD085 (& -E -A)13. CD086 (& -E -A)14. CD087 (& -E -A)15. CD081 (& -E -A)16. CD612 (& -E -A)17. GL185 (& -E -A)
Application of Territory Legislation & Council Directives(s)Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	Machinery Directive 2006/42/ECEN 60335-1:2012 +A11:2014 +A13:2017EN 60335-2-89:2010 +A1:2016 +A2:2017EN 62233:2008Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/ECEN 55014-1:2017EN 55014-2:2015EN 61000-3-2: 2014EN 61000-3-3: 2013Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU	Electrical SafetyAS/NZS 60335.1:2011 +A1:2012 +A2:2014+A3:2015 +A4:2017AS/NZS 60335.2.89:2010 +A1:2013 +A2:2016Electromagnetic CompatibilityEN 55014-1:2017EN 55014-2:2015EN 61000-3-2: 2014EN 61000-3-3: 2013
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers• Nome del produttore • Nombre del fabricante • Nome do fabricante		Polar

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

3rdDecember 2020
Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

UK	[phone]
Eire
NL 040 –	2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 –	1860806
IT N/A
ES 901-100 133
PT [e-mail]

POLAR

QR code image containing encoded data, no visible human-readable text

http://www.polar-refrigerator.com/

CD610-CD615_CD080-CD088_CB921_GL185_ML_A5_v20_20210709
