USER MANUAL Studio SDWD24P3 LG

DISHWASHER ENGLISH SDWD24P3 MFL71467503Rev.00_111022 www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved. Scan to see the online manual. Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. This abridged owner's manual addresses user safety, precautions, and installation information. To view the complete owner's manual, you may:

3. Call or write to customer service as provided in your Limited

Warranty. en-us_main.book.book Page 1 Thursday, November 10, 2022 8:14 AMTABLE OF CONTENTS

3 WARNING STATEMENTS 6 CAUTION STATEMENTS 8 PRODUCT OVERVIEW 8 Product Features 10 INSTALLATION 10 Before Installing 11 Preparing Cabinet Opening 12 Preparing Dishwasher 14 Preparing Water and Electrical Connections 15 Sliding Dishwasher into Cabinet Opening 16 Connecting Water Supply Line and Power 17 Connecting the Drain Hose 19 Leveling Dishwasher 20 Securing Cabinet Panel to Dishwasher 22 Securing Dishwasher in Cabinet Opening 24 Final Installation Check 25 OPERATION 25 Before Using 28 Control Panel 29 Wash Cycles 30 Options and Extra Functions 31 Loading the Dishwasher 31 Loading the Silverware Basket 32 Loading the Lower Rack 32 Loading the Upper Rack 33 Loading the Cutlery Rack 34 Adding Cleaning Products 35 SMART FUNCTIONS 35 LG ThinQ Application 38 MAINTENANCE 38 Cleaning and Care 42 TROUBLESHOOTING 42 Before Calling for Service 45 LIMITED WARRANTY 45 USA 49 CANADA en-us_main.book.book Page 2 Thursday, November 10, 2022 8:14 AM3IMPORTANT SAFETY INSTRUCTIONS ENGLISH

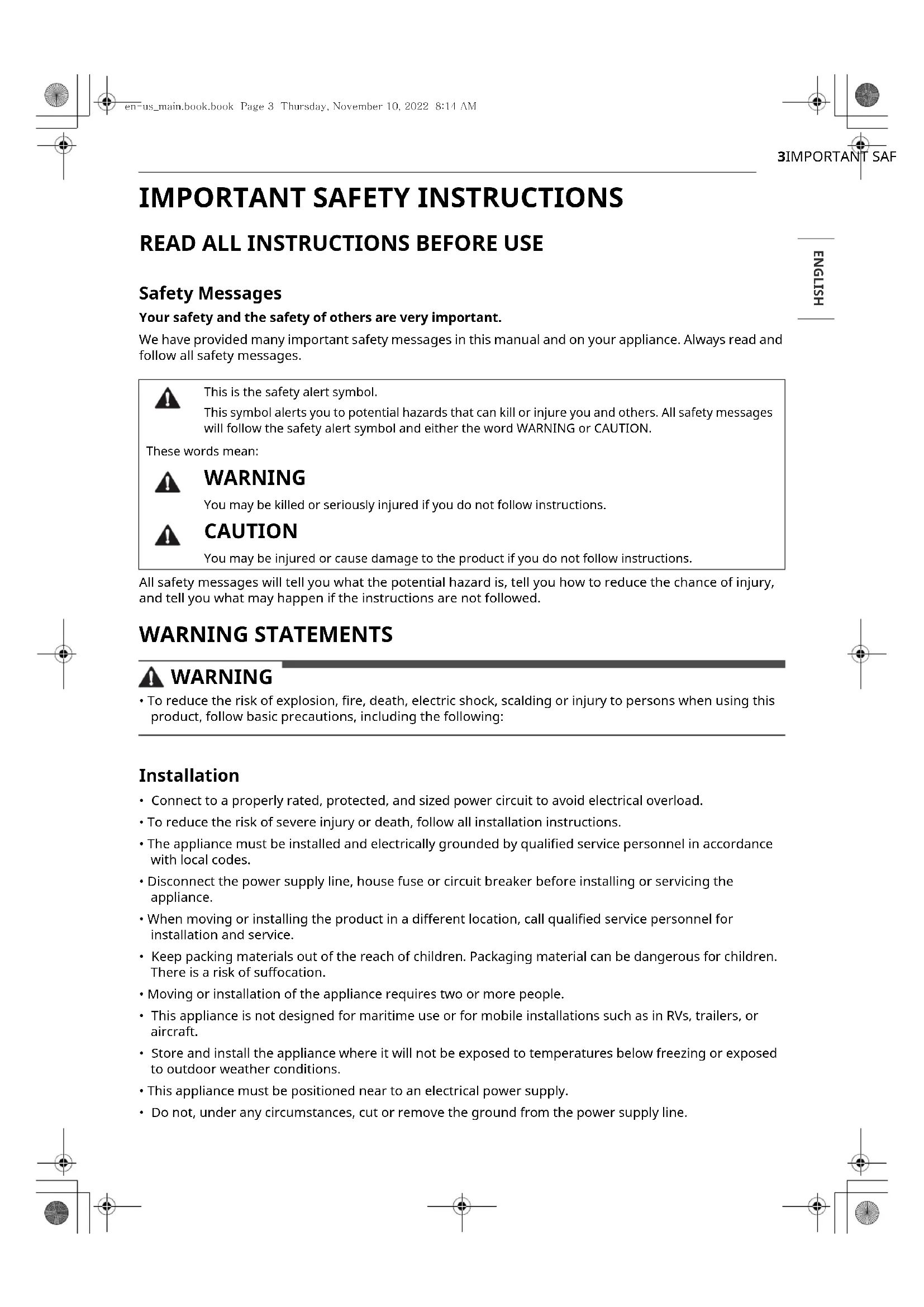

Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed. WARNING STATEMENTS WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: Installation

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
• To reduce the risk of severe injury or death, follow all installation instructions.• The appliance must be installed and electrically grounded by qualified service personnel in accordance with local codes.• Disconnect the power supply line, house fuse or circuit breaker before installing or servicing the appliance.• When moving or installing the product in a different location, call qualified service personnel for installation and service.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children. There is a risk of suffocation.• Moving or installation of the appliance requires two or more people.
• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.
• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.• This appliance must be positioned near to an electrical power supply.
• Do not, under any circumstances, cut or remove the ground from the power supply line. This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean: WARNING You may be killed or seriously injured if you do not follow instructions. CAUTION You may be injured or cause damage to the product if you do not follow instructions.en-us_main.book.book Page 3 Thursday, November 10, 2022 8:14 AM4 IMPORTANT SAFETY INSTRUCTIONS

• When installing or moving the appliance, be careful not to pinch, crush, or damage the power supply line.

• Do not install the appliance in humid spaces.

• Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged power supply line.

• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.

• The installer must ensure that the dishwasher is completely enclosed at the time of installation.

• Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.

• After installing, check the hose connection for leaks.

• Do not damage or place heavy items on the power supply line of the appliance. Operation

• Repair or immediately replace all power supply lines that have become frayed or otherwise damaged. Do not use a power supply line that shows cracks or abrasion damage along its length or at either end.

• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics customer information center.

• Never unplug the appliance by pulling on the power supply line.

• Do not use an extension cable or adapter with this appliance.

• Do not grasp the power supply line or touch the appliance controls with wet hands.

• Do not modify or extend the power cable.

• If the product has been submerged, contact an LG Electronics customer information center for instructions before resuming use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• If the electrical supply line is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

• Do not abuse, sit on, or stand on the door of the appliance.

• Read all instructions before using the appliance and save these instructions.

• Use this appliance only for its intended purpose.

• Do not allow children to play on, in or with the appliance. Close supervision of children is necessary when the appliance is used near children.

• Do not tamper with controls.

• In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a window or door to ventilate the area immediately.

• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the appliance turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. en-us_main.book.book Page 4 Thursday, November 10, 2022 8:14 AM5IMPORTANT SAFETY INSTRUCTIONS ENGLISH

• Fix the drain hose securely in place.

• Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

• Do not let children eat detergent or dishwasher rinse agent.

• When loading items to be washed: - Locate sharp items so that they are not likely to damage the door seal. - Load sharp knives with the handles up to reduce the risk of cuts or other injuries.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

• Do not touch the HEATING ELEMENT during or immediately after use.

• Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

• Do not install or store the dishwasher where it will be exposed to weather conditions.

• After cleaning the dishes, turn off the water supply. Before cleaning, turn the water supply back on and check the connections.

• Do not open the appliance door while it is operating. For safety reasons, the drain pump operates if the door is opened, resulting in a longer cycle time.

• Be careful not to catch your hand when closing the door of the product.

• Do not plug the dishwasher into a damaged outlet.

• Do not install or keep the dishwasher near electrical components or exposed flames.

• Do not wash dishes exposed to gasoline, solvents or other flammable materials.

• When cleaning, do not spray water on the product directly.

• Do not press buttons with a sharp object such as an awl or pin.

• Do not use solvent-based detergent.

• Do not come into contact with the steam outlet.

• Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children. Maintenance

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory parts.

• Do not disassemble or repair the appliance by yourself.

• Remove any dust or foreign matter from the power supply line.

• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.

• Remove the door before the appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside.

• Unplug the appliance before cleaning to avoid the risk of electric shock.

• Before discarding the appliance, cut off the power supply line and destroy the appliance's control panel. Grounding Instructions

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

• This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. en-us_main.book.book Page 5 Thursday, November 10, 2022 8:14 AM6 IMPORTANT SAFETY INSTRUCTIONS

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. WARNING Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Tip Over Hazard

• Do not use the dishwasher until completely installed.

• Do not push down on the open dishwasher door.

• Failure to follow these instructions may result in serious injury or cuts. CAUTION STATEMENTS CAUTION

• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation

• Install the product on a firm and level floor.

• This dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. The temperature should not exceed 149°F (65 °C) to prevent damage to dishes.

• Do not put the drain hose under the dishwasher during installation.

• Use caution when opening or closing the appliance door before installing the custom panel. The door may open or close abruptly. Operation

• Do not place objects on top of the appliance.

• Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended period of time, such as during vacations.

• Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.

• Do not touch draining water which may be hot.

• If the drain hose and the water supply hose are frozen in winter, defrost before using the appliance.

• Do not put hands, feet, or metal objects below or behind the appliance.

• Do not put the drain hose under the dishwasher during installation. Maintenance

• If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance. en-us_main.book.book Page 6 Thursday, November 10, 2022 8:14 AM7IMPORTANT SAFETY INSTRUCTIONS ENGLISH

SAVE THESE INSTRUCTIONS

en-us_main.book.book Page 7 Thursday, November 10, 2022 8:14 AM8 PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. NOTE

• For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.

• Do not remove the safety cover at any time.

• To ensure reliability, each LG dishwasher goes through thorough quality control before it leaves the factory.

• You may find water droplets or water spots from this process inside your new dishwasher. Front View a Control Panel b Lower Cover c Leveling Feet d Base e Power Cord f Drain Hose g Safety Cover h Shipping Brace Interior View a Top Wash Impeller b Upper Spray Arm c Lower Spray Arm d Dishwasher Salt Cover e Filtration System f Silverware Basket g Detergent and Rinse Aid Dispenser h Steam Nozzle i Lower Rack j Upper Rack k Cutlery Rack en-us_main.book.book Page 8 Thursday, November 10, 2022 8:14 AM9PRODUCT OVERVIEW ENGLISH l Tub Light NOTE

• The silverware basket ships installed at the back of the bottom rack. For best performance, install it along the right side.

• Remove all packing materials from the exterior and interior of the dishwasher before installing the appliance. Accessories a Installation Brackets (2 ea) b Wood Screws (4 ea, Φ4.5 mm x 12 mm) c Hose Clamp d Funnel e Lower Cover f Moisture Barrier Tape (Aluminum Tape) g Moisture Barrier Tape (Side Aluminum Tape) h Fleece Tape i Panel Bracket (4 ea, Upper & Middle) j Panel Bracket (2 ea, Lower) k Bracket Screw (Φ4 mm x 14 mm) l Lower Cover Screw (Φ4 mm x 14 mm) m Wood Screw (Φ4 mm x 14 mm) n Door Adjustment Screw (Φ4 mm x 34 mm) Product Specifications The appearance and specifications listed in this manual may vary due to constant product improvements. Model SDWD24P3 Electrical Requirements 120 V, 60 Hz AC only, 15 A circuit breaker Water Pressure 20 psi - 80 psi (140 kPa - 550 kPa) Dimensions (Width X Depth X Height) 23 1/2” X 21 7/8” X 32 1/16” (598 mm X 554 mm X 815 mm) Inlet Water Temperature 120 ℉ - 149 ℉ (49 ℃ - 65 ℃) Net Weight 88 lb (40 kg) en-us_main.book.book Page 9 Thursday, November 10, 2022 8:14 AM10 INSTALLATION INSTALLATION Before Installing Parts not Provided a Water Supply Tube

• Minimum 3/8″ O.D. copper tubing or stainless steel braided water supply line b Fittings for Tube c Coupler d Air Gap e Hose Clamp f 3/4” Elbow g Baseboard (Wood) h Wood Panel & Handle Tools Needed a Flat-Blade Screwdriver b Phillips Screwdriver c Hole Saw min. 2 1/2” bit d Electric Drill e Gloves f Safety Glasses g Adjustable Wrench (2 ea) h Tape Measure i Utility Knife j Level k 1/4” Square Drive Wrench l Pliers m Scale n Tape o Torque wrench p 3/8" Square Drive Wrench + 1/2" Socket q Saw en-us_main.book.book Page 10 Thursday, November 10, 2022 8:14 AM11INSTALLATION ENGLISH Installation Overview Please read the following installation instructions first after purchasing this dishwasher or transporting it to another location. a Preparing Cabinet Opening b Preparing Dishwasher c Preparing Water and Electrical Connections d Sliding Dishwasher into Cabinet Opening e Connecting Water Supply Line and Power f Connecting the Drain Hose g Leveling Dishwasher h Securing Cabinet Panel to Dishwasher i Securing Dishwasher in Cabinet Opening j Final Installation Check Product Dimensions Product Cabinet Panel Preparing Cabinet Opening This dishwasher is designed to fit a standard dishwasher opening. An opening may be needed on both sides to route plumbing and electrical connections.• To ensure proper drainage, install the dishwasher no more than 12 ft. (3.65 m) from the sink.• The location must have sufficient space for the dishwasher door to open easily and provide at least 0.1” (2 mm) between the dishwasher and the cabinet sides.• If installing the dishwasher in a corner, leave a minimum of 2” (50 mm) between the dishwasher and the adjacent wall.• The adjacent wall must be free of obstructions.• For flush installations only, you may remove the cabinet brace a inside the cabinet. Choosing the Proper Location 1 Select a location as close to the sink as possible for easy connections to water supply line, drain hose and electrical connection. 23 1/2”(598 mm) 18” (455 mm)32 1/16"(815 mm)21 7/8”(554 mm) 23 1/4 " - 23 3/4 " (590 - 603 mm 5/8 - 7/8 "(16 - 22 mm)28 3/8 " - 30 11/16" (720

780 mm)5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg) en-us_main.book.book Page 11 Thursday, November 10, 2022 8:14 AM12 INSTALLATION 2 To allow for proper clearance of plumbing and electrical, use the template included with the literature to determine the clearance on the side of the cabinet where the cabinet meets the back wall. Using a 2 1/2” diameter hole saw, drill a hole in the target area as shown on the template. WARNING

• Installation damage is not covered by the warranty, and leaks caused by improper installation may result in property damage.

• Do not use existing holes unless they are in the target area.

• Failure to properly locate the hole for the water and drain lines may prevent the dishwasher from installing flush with the cabinets and could result in kinked, pinched, crushed, stressed or damaged lines. Installing Moisture Barrier Tape Install the moisture barrier tape to the underside of the countertop to protect the surface from condensation when the appliance is opened. 1 Clean and dry the area on the underside of the countertop and the sides of the cabinet opening where the tape will be applied. 2 Remove the protective film from the tape. 3 Install the tape on the underside of the countertop. 4 Install the shorter pieces of tape on the sides of the cabinet opening at the top. NOTE

• Moisture barrier tape is included in the manual assembly bag.

• If the countertop is made of granite or waterproof materials, the moisture barrier tape is not required.

• Condensation may occur on the underside or along the front edge of the countertop when the room temperature is low. Preparing Dishwasher WARNING

• Do not remove safety cover a. Removal can result in fire, electric shock or death.

en-us_main.book.book Page 12 Thursday, November 10, 2022 8:14 AM13INSTALLATION ENGLISH Releasing Drain Hose Remove the twist tie holding the drain hose to the back of the shipping brace. Removable Shipping Brace The rear shipping brace can be removed if additional clearance is needed when installing the dishwasher under a low countertop. Removing Packing Materials from the Interior Remove all packing materials from the interior of the dishwasher before installing the appliance. CAUTION

• Take care when opening or closing the appliance door before the custom door panel is installed. The door may open or close abruptly without the weight of the panel. Checking the Cabinet Panel This dishwasher is designed to work with a cabinet front panel (not provided) which slides up as the door is opened. Before installing the dishwasher, check the weight and dimensions of the cabinet front panel you have selected.

• The dishwasher can support panels weighing 5.5 – 24.2 lb (2.5 – 11 kg).

• If the cabinet panel weighs between 17.6 lb (8 kg) and 24.2 lb (11 kg), adjust the door spring tension to make the door easier to open. See the Adjusting Door Spring Tension topic.

• For best results, the width of the wood panel should be 1/4” (6 mm) less than the width of thecabinet. Installing Fleece Tape Attaching fleece tape between the dishwasher door and the cabinet panel will reduce the friction when the door slides up and down. 1 Install the fleece tape close to the bracket openings to make sure the door slides smoothly. 23 1/4 " - 23 3/4 " (590 - 603 mm

5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg)

en-us_main.book.book Page 13 Thursday, November 10, 2022 8:14 AM14 INSTALLATION 2 Peel the fleece tape strips off the carrier and attach them to the door. Attaching Installation Brackets For countertops made of wood or other materials that will not be damaged by drilling, use the metal installation brackets provided. For countertops made of granite, marble, or other materials that could be damaged by drilling, use the wood screws to attach the dishwasher to the cabinet. See installation instructions in Securing Dishwasher to Cabinet Opening. NOTE

• Installation brackets and screws can be found in the silverware basket. 1 Insert the tabbed end of the installation brackets into the slots in the upper frame. Rotate the brackets until the tabbed ends are facing up. 2 Bend the tabs on the brackets to secure them to the frame using a pair of needle nose pliers. Preparing Water and Electrical Connections WARNING

• Water Connection - Do not reuse an old hose. Use only a new hose when installing the dishwasher. The old hose could leak or burst causing flooding and property damage. Contact an LG Customer Information Center for assistance in buying a new hose.

• Electrical Connection - Use a time-delay fuse or circuit breaker. - Operate this appliance with the correct voltage as shown in this manual and on the rating plate. - The wiring must be grounded properly. If in doubt, have it checked by a qualified electrician. - The appliance and outlet must be positioned so that the plug is easily accessible. - Do not use an extension cable or adapter with this dishwasher. - Do not overload the outlet with more than one appliance. - It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician. CAUTION

• When connecting the dishwasher water supply line to the house water supply, sealing tape or compound should be used on pipe threads to avoid leaks. Tape or compound should not be used on compression fittings.

• Connect the dishwasher to a hot water supply with a temperature range between 120 °F (49 ℃) and 149 °F (65 ℃). This temperature range provides the best washing results and shortest cycle time. To prevent damage to dishes, the temperature should not exceed 149 °F (65 ℃). 8 1/8"(207 mm)6 11/16"(170 mm)5 15/16"(150 mm)13 9/16"(345 mm) en-us_main.book.book Page 14 Thursday, November 10, 2022 8:14 AM15INSTALLATION ENGLISH CAUTION

• Water supply pressure must be between 20 psi and 80 psi (140–550 kPa). If the water supply pressure exceeds 80 psi, a pressure reducing valve must be installed. Otherwise premature failure of the inlet valve may occur. Connecting Water Supply Line and Power Water supply tube: Minimum 3/8″ O.D. copper tubing or metal braided dishwasher supply line 1 Connect the elbow a to the inlet valve on the back of the dishwasher. 2 Connect the water supply tube to the elbow. 3 Tighten both connections using two adjustable wrenches to avoid putting stress on the water inlet valve. 4 Make sure the water supply is turned off. Connect the water supply tube to the tap. 5 Insert the power plug into an outlet. 6 Turn on the water and check for leaks at the connections.

• If there is a leak, reconnect the elbow.

• Do not cross thread or overtighten the connections to avoid leakage. 7 Unplug the power cord. 8 Turn off the water supply and disconnect the water supply tube at the tap. Sliding Dishwasher into Cabinet Opening How to Slide Dishwasher CAUTION

• Do not pull or lift the dishwasher using the door a. Doing so can damage the door and hinges.

• Do not push the door of the dishwasher with knees when sliding the dishwasher into position. Doing so can damage the front cover. en-us_main.book.book Page 15 Thursday, November 10, 2022 8:14 AM16 INSTALLATION

• Do not push the top of the dishwasher. Doing so can damage the interior of the dishwasher. NOTE

• Open the door and grab the body frame and the top front opening b of the tub to move or lift the dishwasher. 1 Align the dishwasher with the opening. Make sure the water supply line and power cord extend smoothly without kinks or bends. 2 Smooth out or pad the edges of the hole drilled for the water supply to avoid damaging the drain hose. 3 Make sure the drain hose is straight before feeding the end of it through the hole for the water supply. As you slide the dishwasher into the opening, slowly pull on the drain hose from inside the cabinet to take up some slack. Be careful not to kink, pinch, crush or stress the drain hose during installation to avoid leaking and water damage. 4 Gradually slide the dishwasher into the opening, making sure that the water supply line and power cord are passing freely through the opening and do not get caught under the dishwasher.

• As you slide the dishwasher into the opening, stop periodically (or have an assistant help) to take up the slack by pulling the drain hose farther into the cabinet. CAUTION

• To avoid malfunctions or leakage, it is important that the drain hose not get kinked, pinched, stressed or crushed behind or under the dishwasher or inside the neighboring cabinet.

• Damage resulting from improper installation is not covered under the warranty. Connecting Water Supply Line and Power Connecting Water Supply Line 1 With the home water supply turned off, connect the water supply tube to the tap. en-us_main.book.book Page 16 Thursday, November 10, 2022 8:14 AM17INSTALLATION ENGLISH 2 Tighten the connection using a square drive wrench to avoid putting stress on the water tap. Connecting Power Insert the power plug into a grounded outlet.• The power cord should not be positioned behind the appliance but within 47.2 inches of the side so that the plug is easily accessible. WARNING

• Do not use an extension cord or 2-prong adapter.• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Connecting the Drain Hose If the end of the drain hose does not fit the drain line, use a heat and detergent resistant adapter (not supplied). These may be obtained from a local plumbing supply store.• Cut the adapter so the end matches the size of the drain connection. NOTE

• For drain hose installation, use the screw style hose clamp provided with this dishwasher in the silverware basket.• If connecting the dishwasher’s drain hose to the garbage disposal, be sure to follow your garbage disposal’s manual for proper installation instructions. Drain Hose Requirements
• Follow local codes and ordinances.• Do not exceed 12 ft. (3.65 m) distance to drain.• Do not connect drain hoses from other appliances to the dishwasher’s drain hose.• If an extension drain hose is required, use a 5/8" or 7/8" inside diameter, 2-3 ft. length hose and a coupler a for connecting the two hose ends. Height of the Drain Hose The height of the drain hose end must be at least 12" (305 mm) and within 40" (1016 mm) from the base of the dishwasher to avoid water being siphoned from the tub. Connecting to Disposal without Air Gap 1 Remove the knockout plug on the disposal with a hammer and screwdriver. en-us_main.book.book Page 17 Thursday, November 10, 2022 8:14 AM18 INSTALLATION 2 Remove the knockout plug a from the disposal. CAUTION

• If the knockout plug has not been removed, the dishwasher will not be able to drain properly. 3 Attach the drain hose to the disposal with the hose clamp provided. Move the hose clamp into position and tighten it with a flat-blade screwdriver. Connecting Waste Tee without Air Gap The height of the drain hose end must be at least 12” (305 mm) and within 40” (1016 mm) from the base of the dishwasher to avoid water being siphoned from the tub. 1 Remove the knockout plug with a hammer and screwdriver. CAUTION

• If the knockout plug has not been removed, the dishwasher will not be able to drain properly. 2 Attach the drain hose to the waste tee with the hose clamp provided. Move the clamp into position and tighten it with a flat-blade screwdriver. Connecting to Disposal or Waste Tee with Air Gap 1 Remove the knockout plug with a hammer and screwdriver. 2 Connect the end of the drain hose a to the air gap b with the hose clamp provided. Move the clamp into position and tighten it with a flat-blade screwdriver.

• This avoids water being siphoned from the tub. 3 If it is not connected, attach the rubber hose connector to the disposal or waste tee with a hose clamp (not provided). en-us_main.book.book Page 18 Thursday, November 10, 2022 8:14 AM19INSTALLATION ENGLISH Leveling Dishwasher Check that the dishwasher is level and adjust the leveling feet if necessary. CAUTION

• Failure to level the dishwasher may result in leakage, problems closing the door, or noise.

• Where the cabinet opening is narrower than recommended (see Preparing Cabinet Opening), the dishwasher must be carefully leveled and aligned so that the dishwasher is supported fully by the 3 leveling feet and is not hanging from the installation brackets. Failure to do so can result in leaks from the front of the dishwasher, AE errors, difficulty in closing the door, or failure to operate. Checking Leveling To check that the tub is level from front to back, remove the lower rack and pour 135 oz. (4 L) of water into the bottom of the tub. The water level should be near the center of both tub lower indentations at the front. With the lower rack removed, place a level on the inside wall of the tub to check that the dishwasher is level from side to side.

• If you do not have a level, try using a smartphone level application instead. Make sure that the gap between the tub walls and the door liner is the same on either side. Adjusting Leveling Feet Adjust as needed until the dishwasher is completely leveled.

• Adjust the front and rear leveling feet until they are all in firm contact with the floor. Failure to level the dishwasher may prevent the door from closing properly and the dishwasher will not turn on. Adjusting Front Leveling Feet Use a flat-blade screwdriver to turn the front leveling feet and adjust the front of the tub.

• Turn the front leveling feet clockwise to raise the front of the tub and counterclockwise to lower it.

• The adjustments work identically for both front leveling feet.

• When a flat-blade screwdriver is unavailable, use a 1/4" square drive wrench a or 3/8" square drive wrench b with 1/2" socket c to turn the front leveling feet and adjust the front of the tub. Max 2 3/8”(60 mm) en-us_main.book.book Page 19 Thursday, November 10, 2022 8:14 AM20 INSTALLATION Adjusting Rear Leveling Foot Use a Phillips screwdriver to adjust the rear leveling foot and the rear of the tub using the center screw at the base of the appliance in the front.• Turn the center screw clockwise to raise the rear of the tub and counterclockwise to lower it. NOTE

• To avoid damaging the screw, do not use an electric screwdriver. Securing Cabinet Panel to Dishwasher Adjusting Appliance Height 1 Adjust the height of the appliance so the top of the door is as close to the height of the surrounding cabinet doors or drawer fronts as possible. 2 Measure the difference in height (x") between the top of the dishwasher door and the tops of the surrounding cabinet doors or drawers. 3 Using the measurement from step 2, make a mark x" up from the bottom of both rulers at the top of the provided installation template. Draw a line between the marks and trim off the top of the template at the line. Cut out the squares marked on the midline of the template so that you can see the center line. Adjusting Door Spring Tension If the cabinet panel weighs between 17.6 lb (8 kg) and 24.2 lb (11 kg), adjust the door spring tension to make the door easier to open. 1 Open the dishwasher door to about 30 °.
• Do not adjust the spring strength with the dishwasher door fully open. 2 Use the door adjustment screws provided to adjust the door spring tension at the bottom of the dishwasher.

X "(X mm)17.6 lb (8 kg) ≤ ≤ 24.2 lb (11 kg) en-us_main.book.book Page 20 Thursday, November 10, 2022 8:14 AM21INSTALLATION ENGLISH CAUTION

• Tighten the door adjustment screws completely.

• Adjust the spring strength properly. If you do not adjust the spring strength, the door may fall open or spring closed unexpectedly.

• Tightening harder than 15 kgf may result in a crack in the screw boss. a Max. 15kgf Preparing Cabinet Panel 1 Mark a center line lengthwise down the back of the cabinet panel. 2 Align the top and center line on the installation template with the top and center line of the cabinet panel. Securely tape the installation template to the back of the cabinet panel. 3 Use a 1/16" (2 mm) diameter drill bit to drill 3/ 8" (10 mm) deep pilot holes at the 12 points marked on the template. 4 Remove the template, and attach the upper and middle panel brackets (provided) to the cabinet panel using the provided wood screws. 5 Attach the lower panel brackets (provided) to the cabinet panel using the provided wood screws.

3/8 " (10 mm)Ø 1/16 " (2 mm) en-us_main.book.book Page 21 Thursday, November 10, 2022 8:14 AM22 INSTALLATION 6 Attach a handle to the front of the cabinet panel before mounting the panel on the dishwasher. Make sure to countersink the screws so the panel slides smoothly. Mounting Cabinet Panel 1 Mount the cabinet panel on the dishwasher door by inserting the brackets on the panel into the bracket openings in the door. 2 Attach the cabinet panel to the dishwasher door on the sides using the provided bracket screws. Securing Dishwasher in Cabinet Opening There are 2 options for securing the dishwasher. If the countertop is made of wood or a material that can safely be drilled into, secure the dishwasher to the countertop with the provided brackets. If the countertop is granite, marble, or a material that cannot be drilled into, secure the dishwasher to the cabinet frame with the provided wood screws. CAUTION

• Ensure the dishwasher is level and all leveling feet are in firm contact with the floor before attaching the dishwasher to the countertop or cabinet. If the dishwasher is not leveled properly, the door may not close properly or water may leak. NOTE

• Installation brackets and screws can be found in the silverware basket.

• Use a magnetic screwdriver.

• Cover the filter hole with towels to prevent screws from falling down into the pump. 7 1/16"(180mm) en-us_main.book.book Page 22 Thursday, November 10, 2022 8:14 AM23INSTALLATION ENGLISH Securing Dishwasher to Countertop Use the bracket screws provided to secure the brackets at the top of the dishwasher to the underside of the wood countertop. Securing Dishwasher to Cabinet Frame If desired, the dishwasher can also be secured to the cabinet frame using the instructions which follow. 1 Remove the 2 plastic caps from the mounting bracket access holes. 2 Drive a wood screw through the mounting bracket and into the cabinet frame. 3 Reinstall the plastic caps. Attaching Toe Kick 1 Attach the provided lower cover to the base of the dishwasher. 2 Attach a custom toe kick. If needed, use a saw to cut a notch in the top of the custom toe kick to provide clearance for the cabinet panel when opening the door. Securing Dishwasher to Countertop Use the bracket screws provided to secure the brackets at the top of the dishwasher to the underside of the wood countertop. Securing Dishwasher to Cabinet Frame If desired, the dishwasher can also be secured to the cabinet frame using the instructions which follow. 1 Remove the 2 plastic caps from the mounting bracket access holes. en-us_main.book.book Page 23 Thursday, November 10, 2022 8:14 AM24 INSTALLATION 2 Drive a wood screw through the mounting bracket and into the cabinet frame. 3 Reinstall the plastic caps. Final Installation Check Testing the Dishwasher Check if the dishwasher is properly installed. 1 Turn on the circuit breaker. 2 Turn on the house water supply. 3 Make sure that the door opens and closes smoothly.• If necessary, level the dishwasher again.• If the door will not close, make sure the rack is level.• Make sure that all packaging materials have been removed. 4 Power on the dishwasher and run a Turbo cycle to verify proper operation. 5 Check for leaks at the drain hose and water supply connection. 6 If a water leak is detected, press and hold the Start button for 3 seconds to cancel the wash cycle and automatically drain the water from the dishwasher. Tighten all water connections and run another cycle. Repeat until no leaks are detected. 7 Remove the protective film from the door, if present. Leaving the film on may cause discoloration or condensation on the door. Installation Check Error Codes Refer to the chart below before calling for service.Error Code Possible Cause and Solution Drain hose is kinked or pinched.• Feed the drain and water supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.Drain hose is connected to the disposal without removing the knockout plug.• Remove the knockout plug from the disposal.Waste tee or disposal is clogged.• Remove knockout plug on the waste tee or disposal. Water supply line is kinked under dishwasher.• Feed the drain and water supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.House water supply is not turned on.
• Turn the water faucet on. en-us_main.book.book Page 24 Thursday, November 10, 2022 8:14 AM25OPERATIONENGLISH OPERATION Before Using WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance. NOTE

• Connect to the hot water supply only. The water supply temperature should be a minimum of 120 °F (49 °C) for better washing performance and shorter cycle time.• Follow the instructions for loading the dishwasher to ensure effective cleaning.
• Remove insoluble items such as bones, toothpicks, and pieces of paper while loading the dishwasher. Checking Water Hardness Level Method 1 1 Talk to the local municipal water department to check the water hardness in your area. 2 Set the water softening level on the appliance based on this information. Method 2 Test the hardness of your water using the strips included with the appliance. 1 Pour a glass of water from the tap, and submerge the test area of the strip in the water for about a second. Do not hold the test strip under running water. 2 Shake off excess liquid from the strip and wait for 1 minute. 3 Check the color on the strip against the chart on the package to determine the water hardness. 4 Set the water softening level on the appliance. Water Hardness Table Water HardnessSoftening levelppm °d °e °fmmol/l(Ca+Mg) mg/l (Ca) Range0 <4 <5 <7 <0.7 <29 Soft H075 4 - 7 5 - 9 7 - 13 0.7 - 1.3 29 - 50 H1 125 7 - 14 9 - 17.5 13 - 25 1.3 - 2.5 50 - 100 H2 250 14 - 21 17.5 - 26 25 - 38 2.5 - 3.8 100 - 150 H3 375 >21 >26 >38 >3.8 >150 Hard H4 en-us_main.book.book Page 25 Thursday, November 10, 2022 8:14 AM26 OPERATION Setting the Water Softening System For improved wash performance, adjust the water softening level based on how hard your water is. The water softener has 5 settings. The default setting is H2. Follow these steps to check the setting and adjust it if needed. 1 Press Power and Half Load button simultaneously.

• Current setting value indicated. 2 Press the Remote Start button repeatedly to set the desired softener level from H0 to H4. 3 Press the Start button to save the setting.

• The power turns off after saving. NOTE

• The Salt Refill LED turns on in the display if dishwasher salt needs to be refilled.

• Setting the softener level to H0 prevents the Salt Refill LED from turning on even when the dishwasher salt container is empty. Filling the Dishwasher Salt Fill the dishwasher salt container before starting a wash cycle. If more salt is needed, the Salt Refill LED will light up on the display, unless the softener level is set to H0. CAUTION

• After filling the dishwasher salt container, run the Rinse cycle immediately to remove any salt residue from the inner tub and prevent corrosion. 1 Remove the lower rack and remove the cap of the salt container located on the left side of the filters. 2 If you plan to use the water softening system, you must prime it before using the appliance for the first time. To do this, mix 2.2 lb (1 kg) of dishwasher salt with 34 oz (1 liter) of water. Use the funnel provided to pour the mixture into the dishwasher salt container. For details on setting the softener level, see the Before Using section. 3 Tightly close the cover on the dishwasher salt container. 4 Run the Rinse cycle without dishes. Salt Refill Frequency

• The frequency in the table is based on using the Auto cycle.

• Different cycles may use different amounts of salt. CAUTION

• To avoid product malfunction, do not pour detergent in the dishwasher salt container.

• Wipe any salt residue from around the salt container cover.

• Close the cover by aligning it horizontally and turning it clockwise. If the cover is not tightly closed, the salt solution can leak into the tub and cause corrosion.

• After refilling the dishwasher salt, run a Rinse cycle immediately without dishes to get rid of any salt residue which could cause rust or damage to the appliance. NOTE

• Dishwasher salt can be purchased online or from appliance retailers. Quick Start

H1 H2 H3 H4 Cycles 200 60 30 10 Salt Water en-us_main.book.book Page 26 Thursday, November 10, 2022 8:14 AM27OPERATION ENGLISH

2) Add the detergent.

3) Turn on the dishwasher.

4) Check the rinse aid.

5) Select the cycle and options.

6) Operate the dishwasher.

• Method 1 - Press the Start button and then close the door in less than four seconds to operate the dishwasher. If the door is not closed within four seconds, an audible tone is heard, and the cycle does not start.

• Method 2 - Close the door first and then press the Start button to operate the dishwasher. NOTE

• If the door is opened during the cycle, the dishwasher will stop. To resume the cycle, see methods 1 and 2 above.

• If the door is opened during the cycle and is not closed within four seconds after selecting the Start button, or if the door is closed without pressing the Start button, the white LED with time flashes, an audible tone is heard, and the cycle does not start.

• When the cycle is complete, a chime will sound and the display will show ENd until the door is opened or Power is pressed. To save energy, press and hold Delay Start and Remote Start simultaneously for three seconds to set the ENd display to automatically turn off a few minutes after the cycle ends.

• It is normal for the dishwasher to chime continuously if you open it during operation or just after the cycle ends. The dishwasher is letting you know that the interior temperatures of the unit are hot and to use caution when reaching inside. Once the unit has cooled down, the chiming will stop. For more details, refer to the online owner's manual. CAUTION

• Do not open the door during operation or immediately after it has completed the wash cycle as the escaping steam may cause scalding as the door is opened. Auto-Off The dishwasher automatically turns off after four minutes of inactivity if paused or if no cycle is started. en-us_main.book.book Page 27 Thursday, November 10, 2022 8:14 AM28 OPERATION Control Panel Control Panel Features a Power On/Off Button

• Press this button to turn the washer on or off.

• After the cycle is complete, the power automatically turns off for purposes of safety and economy.

• If there is a power surge, power outage, or disruption of any kind, power is automatically turned off for safety.

• When power is connected again, the dishwasher will turn on automatically and resume the cycle. b Display

• Rinse Aid Refill - This LED illuminates when the rinse aid level is low. The LED automatically shuts off when the rinse aid is refilled or the level is set to 0. - Refer to the Rinse Aid Dispenser Adjustment section.

• Machine Clean - The Machine Clean LED flashes every 30 cycles. To activate or deactivate the LED, press the Delicate button for three seconds. - If the Steam option is added to a cycle, the Machine Clean LED stays lit at the end of the cycle.

8:88 : Digital Display - The digital display on the control panel shows the ESTIMATED cycle time. When the cycle and options are selected, the display shows the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time. NOTE

• The estimated time shown on the display does not include delay times for heating water, etc.

• If Delay Start is selected, the display shows the delay time in hours.

• Cycle time may vary depending on the soil level of your load.

CL: Control Lock - The Control Lock feature helps prevent settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door. - While a cycle is running, press and hold Delay Start for three seconds to activate or deactivate Control Lock. - To start a new cycle, deactivate Control Lock.

• Wi-Fi - When the appliance is connected to the internet through a home Wi-Fi network, this LED illuminates. en-us_main.book.book Page 28 Thursday, November 10, 2022 8:14 AM29OPERATION ENGLISH - Press and hold Remote Start for approximately three seconds to connect to the network.

• Salt Refill - This LED flashes when the salt level is low. The LED automatically shuts off when the salt is refilled. c Chime On/Off Button

• To activate or deactivate the button sounds, press and hold Extra Dry and Delay Start simultaneously for three seconds. The error alert sound cannot be turned off. d Cancel Button

• The drain pump activates and the cycle cancels. Once the dishwasher finishes draining, the power turns off.

• Press and hold Start for three seconds to activate. e Start Button

• To operate the machine, either press Start and close the door within four seconds or close the door and press Start.

• An alert will sound if the door is closed more than 4 seconds after the Start button is pressed. Wash Cycles Select your desired cycle. Auto This cycle senses the soil amount and soil toughness and is optimized to achieve the best cleaning. Heavy This cycle is for heavily soiled dishes and dishes with hardened on soil. This cycle defaults to the strongest spray intensity and uses it to wash heavily soiled dishes. Delicate Use this cycle to clean delicate items such as fine china and stemware. Refresh This cycle freshens up and warms dishes that have been unused for a long time.

• Do not use detergent when using this cycle.

• The steam option cannot be turned off on this cycle. Normal This cycle is for daily, regular, or typical use to completely wash a full load of normally soiled dishes. The energy usage label is based on this cycle without any options. Turbo This cycle will clean heavily soiled dishes in an hour using slightly more energy and water.

• This cycle does not have drying. Select the Extra Dry option for better drying. Download Cycle Use a dedicated cycle downloadable via Wi-Fi or NFC. NOTE

• Only the cycle code for the current Download Cycle appears on the appliance. See the smartphone app for cycle codes, names, and more information about the available cycles. - Default Cycle : P1. Pots & Pans Machine Clean This cycle is for cleaning the inside of the dishwasher. Use the cycle without dishes in the machine. It eliminates residual soils, odor, white spots, and other dirt. Add citric acid or another cleaning agent for more effective results.

• Press and hold Heavy for three seconds to activate. en-us_main.book.book Page 29 Thursday, November 10, 2022 8:14 AM30 OPERATION Rinse This cycle is a quick rinse for dishes that will not be washed immediately. The cycle rinses dishes that have excess soil to soften dried on residue. Rinsing the dishes helps prevent odors in the dishwasher. No detergent should be used.

• This cycle does not have drying.

• Press and hold Normal for three seconds to activate. Express This cycle will quickly clean lightly soiled dishes.

• This cycle does not have drying. Select the Extra Dry option for better drying.

• Press and hold Turbo for three seconds to activate. Options and Extra Functions Select the desired cycle and then select the options for that cycle. Dual Zone This option automatically sets the spray intensity to soft for the upper spray arm and strong for the lower spray arm. Place heavily soiled dishes like plates and bowls in the lower rack and lightly soiled dishes like cups and small plates in the upper rack to get the best results. Half Load This option washes intensively by selecting the upper or lower racks. For small loads, use just the upper or lower rack to save energy and time. Press the Half Load button repeatedly to select the upper [ f] or lower [g] rack or to cancel the option. Steam This option adds steam at the start of the cycle to improve wash performance. High Temp. Raises the main wash temperature to improve cleaning. Extra Dry Select the Extra Dry option for better drying performance. This option adds extra drying time to the cycle and raises the heated rinse temperature.

• When the rinse aid is empty, the Extra Dry option is selected automatically. Delay Start This feature delays the start of a selected cycle. Each time the Delay Start button is pressed, the delay time increases by an hour. The delay time can be set from 1 to 12 hours, in one-hour increments. Remote Start Use a smartphone to control your appliance remotely. You can also monitor your cycle operation so you know how much time is left in the cycle. Once this function is enabled, you can start a cycle from the smartphone application. If the cycle is not started, the appliance will wait to start the cycle until it is turned off remotely from the application or this function is disabled. Auto Open Dry (AOD) Activate AOD to automatically open the door at the end of cycles that include drying to enhance the drying performance.

• The AOD feature is not available in all models.

• To activate or deactivate the AOD feature, press and hold the High Temp. and Extra Dry buttons simultaneously for 3 seconds.

• The AOD feature is not available when the Rinse cycle is selected.

• If the Download Cycle is selected, the AOD feature may operate even if it is deactivated. This is because downloadable cycles are designed to achieve the best wash performance for a specific purpose regardless of the appliance settings.

• The display shows whether the AOD feature is on or off. en-us_main.book.book Page 30 Thursday, November 10, 2022 8:14 AM31OPERATION ENGLISH WARNING

• Keep children away from the appliance while the appliance is operating. Exposure to high temperature steam may cause scalding or burns. Cycle/Option Guide The cycle guide shows the available options for each cycle. To see the Cycle/Option Guide, refer to the online owner's manual. Loading the Dishwasher The extra tall tub allows loading of dishes, pans, or other utensils up to 11 3/4" high. For effective washing performance, always follow these instructions.

• Remove large particles of food debris from plates including bones before loading.

• Items with burnt on food should be soaked prior to loading in the dishwasher.

• Deep pots or dishes should be placed upside down.

• Make sure that all items do not touch each other. Non-Dishwasher Safe Items The combination of high water temperature and dishwasher detergents may damage certain items. Do not wash the following items in the dishwasher.

• Copper or anodized aluminum

• Hand painted silver or gold leaf china

• Plastic items which are not dishwasher safe

• Sterling silver or gold-plated flatware or delicate or metal-rimmed china

• Fragile items such as crystal glasses CAUTION

• Do not place pots or pans with plastic handles in the appliance as the handles may deteriorate due to the heat and detergent.

• Waterproof or long-lasting lipstick smudges on glasses may not be removed during the wash. Loading the Silverware Basket The silverware basket has separators to avoid scratching and tarnishing of delicate silverware. Loading Silverware into the Basket Loading 10 Place Settings Loading 12 Place Settings Silverware Loading Tips:

• For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware.

• Load sharp items, such as knives, pointing down.

• When unloading the dishwasher, it is best to start with the silverware basket. Doing so will en-us_main.book.book Page 31 Thursday, November 10, 2022 8:14 AM32 OPERATION prevent water droplets from falling on your silverware from the upper rack. WARNING

• Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury. Loading the Lower Rack Loading Dishes into the Lower Rack Loading 10 Place Settings Loading 12 Place Settings Lower Rack Loading Tips: For details, refer to the online owner's manual. Folding Down the Lower Tines Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes. For more details, refer to the online owner's manual. Loading the Upper Rack Loading Dishes into the Upper Rack Loading 10 Place Settings Loading 12 Place Settings Upper Rack Loading Tips: For details, refer to the online owner's manual. Loading the Cup Rack Extra cups or cooking utensils can be laid on the fold down cup racks, which also provide support for long-stemmed glasses. For more details, refer to the online owner's manual. Removing and Replacing Cup Rack The left and right cup racks are interchangeable and can be removed. For more details, refer to the online owner's manual. en-us_main.book.book Page 32 Thursday, November 10, 2022 8:14 AM33OPERATION ENGLISH Folding Down the Upper Tines Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes. For more details, refer to the online owner's manual. Height Adjustable Upper Rack The upper rack adjusts up and down. Raise the upper rack to allow items up to 11 3/4" tall in the lower rack. Lower the upper rack to allow dishes up to 10 5/8" tall in the upper rack. The dishwasher ships with the upper rack raised. For more details, refer to the online owner's manual. WARNING

• Before adjusting, ensure the rack is empty of all dishes. Otherwise dishes may get damaged or you may get injured. Removing the Snap-In Gliding Upper Rack The instructions in the online owner's manual are for models with snap-in rack supports rather than wheeled rack supports. CAUTION

• The snap-in upper rack should only be removed for servicing. If you need to remove the rack, wear gloves and handle the screwdriver carefully to avoid personal injury or damage to the dishwasher. Loading the Cutlery Rack The cutlery rack is best suited for flatware. The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning. NOTE

• For best cleaning performance, place flatware in the silverware baskets. Heavily soiled utensils or items with baked on foods should be placed in the middle rack or spoon basket for best performance. Loading Silverware into the Cutlery Rack Loading 10 Place Settings CAUTION

• Do not place bowls in the center of the cutlery rack. The door may not close properly, resulting in leakage. Height Adjustable Tray For details, refer to the online owner's manual. Removing the Cutlery Rack The entire cutlery rack can be removed if more space is needed on the upper rack for larger items. For more details, refer to the online owner's manual. en-us_main.book.book Page 33 Thursday, November 10, 2022 8:14 AM34 OPERATION WARNING

• Be careful when loading and unloading items with sharp edges. Load sharp knives with the blade down to reduce the risk of injury. Adding Cleaning Products Adding Detergent to the Dispenser

• Remove the label on the dispenser prior to running the dishwasher for the first time.

• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

• Put detergent into the detergent compartment before starting any cycle, except the Rinse cycle. WARNING

• Dishwasher detergent and rinse aid contain chemical components, like all other household detergent. So, they must be kept out of the reach of children. CAUTION

• Use only detergent intended for dishwashers. Incorrect detergent may cause the dishwasher to fill with suds during operation. Excess suds may reduce wash performance and may cause the dishwasher to leak.

• To avoid damaging the dispenser, do not pull up on the dispenser to close the dishwasher door. For more details, refer to the online owner's manual. Adding Rinse Aid to the Dispenser The Rinse Aid Refill LED appears in the display when more rinse aid is needed. The use of rinse aid is recommended to prevent water spots on dishes and to enhance drying performance. For more details, refer to the online owner's manual. Rinse Aid Dispenser Adjustment The dispenser has five adjustment levels. The dishwasher is programmed at the factory for a rinse aid dispenser level of 2. This can be checked and adjusted from the control panel. NOTE

• Adjust the setting higher if you have hard water and notice calcium buildup on your dishes.

• Setting the rinse aid control too low will contribute to spotting and streaking on dishes and poor drying performance.

• Setting the control too high can cause foaming, which will cause poor wash performance. 1 Ensure the appliance is off. 2 Press Dual Zone and Power simultaneously to check the current setting. 3 Press Remote Start to change the rinse aid dispenser setting. Each press of the button changes the setting one step from L0 to L4. 4 Once the desired rinse aid dispenser setting is selected, press Start to save. Refilling the Rinse Aid How often the dispenser needs to be refilled depends on how often dishes are washed and the rinse aid setting used.

• The Rinse Aid Refill LED flashes when more rinse aid is needed, unless the rinse aid dispenser setting is set to L0. en-us_main.book.book Page 34 Thursday, November 10, 2022 8:14 AM35SMART FUNCTIONSENGLISH SMART FUNCTIONS LG ThinQ Application The LG ThinQ application allows you to communicate with the appliance using a smartphone. LG ThinQ Application Features
• Monitoring- Check the current status, cycle, options, running time and cycle end time for the appliance on a single screen.• Download Cycle- You can download new and specialized cycles that are not included in the standard cycles on the appliance. Connect the appliance to the app to download a variety of specialty cycles specific to the appliance. Once cycle download is completed in the appliance, the product keeps the downloaded cycle until a new cycle is downloaded. NOTE

• Only one downloaded cycle can be stored on the appliance at a time.• Machine Clean Coach- This function shows how many cycles remain before running the Machine Clean cycle.• Smart Diagnosis- This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use. Select Smart Diagnosis in the app and follow the instructions. For additional information, refer to the online owner's manual.• Settings- Set the Rinse Aid Dispenser Level, Machine Clean Reminder, Signal Level and Clean Indicator Light.When the cycle is complete or the appliance has problems, you have the option of receiving push notifications on a smart phone.• Push Alerts- Turn on the Push Alerts to receive appliance status notifications.The notifications are triggered even if the LG ThinQ application is off. NOTE

• If you change your wireless router, Internet service provider, or password, delete the connected appliance from the LG ThinQ application and connect it again.• This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users. Installing LG ThinQ Application and Connecting an LG Appliance Models with QR Code Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone. Models without QR Code 1 Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. 2 Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in. 3 Touch the add (~) button on the LG ThinQ application to connect your LG appliance. Follow the instructions in the application to complete the process. NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi LED on the control panel is lit.• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact en-us_main.book.book Page 35 Thursday, November 10, 2022 8:14 AM36 SMART FUNCTIONS your Internet service provider or refer to your wireless router manual.

• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

• The surrounding wireless environment can make the wireless network service run slowly.

• If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.

• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.

• The network connection may not work properly depending on the Internet service provider.

• The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.

• If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.

• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.

• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.

• If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again. Using the Appliance Remotely Remote Start Use a smartphone to control your appliance remotely. You can also monitor your cycle operation so you know how much time is left in the cycle. Using Remote Start 1 Load the dishes into the dishwasher. 2 Press the Power button. 3 Press the Remote Start button and close the dishwasher door to enable the remote control function. 4 Start a cycle from the LG ThinQ application on your smartphone. NOTE

• Once this function is enabled, you can only start a cycle from the LG ThinQ smartphone application. If the cycle is not started, the appliance will wait to start the cycle until it is turned off remotely from the application or this function is disabled.

• If the door has been opened, you cannot start a cycle remotely.

• If you press Start after pressing Remote Start, the Remote Start function will be disabled. Disabling Remote Start Manually While Remote Start is activated, open the dishwasher door or press the Remote Start button twice quickly with the door closed. Wireless LAN Module Specifications FCC Notice The following notice covers the transmitter modulecontained in this product. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Frequency Range2412 MHz - 2462 MHzOutput Power (Max)< 30 dBm en-us_main.book.book Page 36 Thursday, November 10, 2022 8:14 AM37SMART FUNCTIONS ENGLISH

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance. Industry Canada Statement This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. NOTE

• THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY

VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Open Source Software Notice Information To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https:// opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product. en-us_main.book.book Page 37 Thursday, November 10, 2022 8:14 AM38 MAINTENANCE MAINTENANCE To maintain performance and prevent trouble, it is important to check the outside and inside of the dishwasher, including filters and spray arms, at regular intervals. WARNING

• When cleaning the outside and inside of the dishwasher, do not use benzene or thinner. Otherwise, it may cause fire or explosion.
• To prevent injury during care and maintenance or cleaning, wear gloves and/or protective clothing. Cleaning and Care Cleaning the Exterior
• Do not use scrub pads or abrasive cleaners on the exterior of the dishwasher.• Most soil can be removed using a soft, damp cloth or sponge. A mild soap can be used to help release stubborn soil. Rinse and wipe dry with a soft cloth after cleaning.• Stainless steel surfaces can be polished using a stainless steel cleaner. Follow the instructions on the cleaner, and wipe in the direction of the grain. CAUTION

• If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance. Cleaning the Interior
• Clean the interior of the dishwasher periodically with a soft, damp cloth or sponge to remove food and dirt particles.• To remove white spots and odor from inside the dishwasher, run an empty cycle, without detergent, with one cup of white vinegar in a dishwasher safe glass or bowl placed on the upper rack. (Vinegar is an acid and with constant use it could damage the appliance.)•Using Machine Clean- Run the Machine Clean cycle once a month or after every 30 cycles to eliminate residual soil, odor, white spots and other dirt inside the appliance. 1 Remove all dishes from the appliance. 2 Add 3 tbsp. (40 g) of citric acid to the detergent dispenser or follow the manufacturer’s instructions if using a dishwasher cleaning agent. Do not use dishwasher detergent. 3 Press Machine Clean to select the Machine Clean cycle. 4 Press Start. NOTE

• Run the Machine Clean cycle once a month, or more often if needed, to remove detergent buildup and other residue.• If you have not used the dishwasher for a long time, refresh the inside by running the Machine Clean cycle without detergent. When the cycle is finished, clean the inside and outside of the dishwasher according to the MAINTENANCE instructions. Clogged Drain Air Gap or In-Sink Disposal Check the drain air gap or in-sink disposal if the dishwasher is not draining well. NOTE

• The drain air gap and disposal are external plumbing devices that are not part of the dishwasher.• The warranty provided with the dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap and disposal. en-us_main.book.book Page 38 Thursday, November 10, 2022 8:14 AM39MAINTENANCE ENGLISH Cleaning the Air Gap 1 Turn off the dishwasher. 2 Remove the air gap cover and the plastic cap underneath it. 3 Clean out any debris with a toothpick or brush. 4 Replace the plastic cap and air gap cover. Cleaning the Filters WARNING

• Be cautious of sharp edges when handling the stainless steel filter. CAUTION

• Remove food residue caught in filters to prevent the buildup of odor-causing bacteria and possible drainage problems. NOTE

• For best wash performance, clean the filter after each load. If food debris remains in the filter, it may cause an odor.

• In areas with hard water, clean the filter at least once a month with a soft brush.

• Clean the filters using non-abrasive materials and warm running water. 1 Remove the lower rack and position the bottom spray arm so a wider vee is open to the front. 2 Turn the inner filter counter-clockwise and take out the assembled inner filter and stainless steel filter. With the filters removed, check the sump opening and remove any foreign materials, if needed. 3 Clean the filters with a soft brush under running water. Reassemble the filters before reinstalling them. 4 To replace the assembled filters, position the spray arm so the wider vee is toward the front. Fit the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place. en-us_main.book.book Page 39 Thursday, November 10, 2022 8:14 AM40 MAINTENANCE NOTE

• Make sure the filter is assembled correctly before starting a cycle. When assembling, rotate the filter firmly until it clicks. Recommended Filter Cleaning Schedule Cleaning the Spray Arm If the spray arm holes are blocked by any food residue, dishes may not be cleaned well due to improper water spray. It is recommended that the spray arms be cleaned once every two weeks. Cleaning the Lower Spray Arm 1 Make sure that the water jet holes are not blocked by food particles. 2 If any food residue blocks the spray arm holes, remove it with a pin or piece of stiff wire. CAUTION

• To avoid breaking the rolling spray arm sections, do not pull or manually rotate them. Cleaning the Upper Spray Arm 1 Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles. 2 When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counter- clockwise and pulling down. 3 Remove food particles by rinsing or shaking the spray arm. 4 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool. Number of Loads Per Week If you wash dishes before loading If you scrape and rinse dishes before loading

1 - 3Every 6 monthsOnce a year4 - 78 - 12Every 6 months13 - 14

Number of Loads Per Week If you only scrape dishes before loading If you do not scrape or rinse dishes before loading

year Once a month4 - 7Twice a month(every 15 days)8 - 12Every 1.5 monthsEvery week13 - 14 Twice a week en-us_main.book.book Page 40 Thursday, November 10, 2022 8:14 AM41MAINTENANCE ENGLISH 5 After removing the food residue, clean the spray arms under running water. 6 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place. 7 After assembly, make sure that the spray arms rotate freely. Seasonal Maintenance and Storage

• If you will be absent for an extended period of time during warmer months, close the water valve and disconnect the power supply line, or turn off the circuit breaker. Clean the filter, tub and dispenser to prevent odor.

• If you will be absent for an extended period of time during colder months and there is a possibility of freezing temperatures, winterize the water supply lines and the dishwasher itself. Winterization must be performed by qualified service personnel. en-us_main.book.book Page 41 Thursday, November 10, 2022 8:14 AM42 TROUBLESHOOTING TROUBLESHOOTING The washer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the washer does not function properly or does not function at all, check the following before you call for service. Before Calling for Service For more troubleshooting, refer to the online owner's manual. User Support Videos For further assistance, there are videos and tutorials available through the LG.com website. 1 On the www.lg.com home page, click on the Support menu tab to bring up the menu selections. Select Video Tutorials. 2 Select a product category and then pick a topic or search a keyword. NOTE

• Scan this QR code to quickly access the video search page on the LG website. Error Messages Problem Possible Cause & Solution Water inlet problem.• Check for a clogged, kinked or frozen water inlet hose.• Check water supply. Drainage Problem.• Check for a clogged, kinked or frozen water drain hose.Air gap or disposal is clogged.• Clean air gap or disposal.Filters are clogged.• Clean filters. Oversudsing caused by improper detergent, such as liquid dish soap.• Do not use hand dishwashing liquids. Only use detergents which are designed for use in automatic dishwashers.
• To remove detergent residue in the tub, pour approximately 4 oz ~ 8 oz (100 ml ~ 200 ml) of milk into a shallow bowl, place it in the upper rack and then run the appliance on the Auto cycle.Failure to level dishwasher.• Make sure that the appliance is properly leveled. en-us_main.book.book Page 42 Thursday, November 10, 2022 8:14 AM43TROUBLESHOOTING ENGLISH Wi-Fi

• Turn off the water supply to the dishwasher and call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) or 1-888-542-2623 (Canada).

• The dishwasher makes an alert sound for 10 seconds, and runs the drain pump intermittently. If power is turned off to the machine, the machine powers back on automatically until the AE error is resolved.

Excessive Water supplied.

Heater circuit failure.

• Please call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1- 888-542-2623 (Canada). P1, Pz, P3, P4 The Download Cycle is selected.

• This is not an error code. This code indicates the current Download Cycle. N:#, U:#, d:#, t# (# is a number.) Test mode is selected.

• This is not an error code. This code is used when testing the dishwasher. Power the unit off and on and the code will disappear. LO, L1, Lz, L3, L4 Rinse aid level setting mode is selected.

• This is not an error code. This code indicates the current rinse aid level. For more information, refer to the Adding Cleaning Products section. HO, H1, Hz, H3, H4 Softener Hardness Level setting mode is selected.

• This is not an error code. This code indicates the current softener hardness level. For more information, refer to the Setting the Water Softening System section.

Control Lock is activated.

• This is not an error code. This code indicates that the control lock is activated. Press and hold Delay Start for three seconds. Problem Possible Cause & Solution Trouble connecting appliance and smartphone to Wi-Fi network The password for the Wi-Fi network was entered incorrectly.

• Delete your home Wi-Fi network and begin the connection process again. Mobile data for your smartphone is turned on.

• Turn off the Mobile data on your smartphone before connecting the appliance. Problem Possible Cause & Solution en-us_main.book.book Page 43 Thursday, November 10, 2022 8:14 AM44 TROUBLESHOOTING Trouble connecting appliance and smartphone to Wi-Fi network The wireless network name (SSID) is set incorrectly.

• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.) The router frequency is not 2.4 GHz.

• Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer. The appliance and the router are too far apart.

• If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater. During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones).

• Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name. - If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345. - If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance. Problem Possible Cause & Solution en-us_main.book.book Page 44 Thursday, November 10, 2022 8:14 AM45LIMITED WARRANTY ENGLISH LIMITED WARRANTY USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS (“LG”) TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Dishwasher (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S. Territories. † Main control board is located on the bottom right of the dishwasher when viewed from the front.

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.

• Replaced Product or part(s) will be the property of LG.

• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. Warranty Period Scope of Warranty

HOW SERVICE IS HANDLED

Two (2) years from date of original retail purchaseLabor / Parts LG will also provide, free of charge, all labor and on-site service to replace the defective part.Five (5) years from date of original retail purchaseMain control board / Racks / Stainless Steel Door Liner / TubMain control board, dishwasher racks, stainless steel door liner, tub. Customer will be responsible for any labor or in-home service to replace defective parts.Ten (10) years from date of original retail purchaseDirect Drive Motor Direct Drive motor. Customer will be responsible for any labor or in-home service to replace defective parts. en-us_main.book.book Page 45 Thursday, November 10, 2022 8:14 AM46 LIMITED WARRANTY THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.

• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.

• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner’s manual.

• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of LG.

• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.

• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.

• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.

• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner’s manual.

• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by LG.

• Damage or missing items to any display or open box Product.

• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.

• Products with original serial numbers that have been removed, altered, or cannot be readily determined.

• Increases in utility costs and additional utility expenses.

• Any noises associated with normal operation.

• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner’s manual.

• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.

• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty. The cost of repair or replacement under these excluded circumstances shall be borne by You. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-800-243-0000 and select the appropriate option from the menu. Or visit our website at http://www.lg.com Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, en-us_main.book.book Page 46 Thursday, November 10, 2022 8:14 AM47LIMITED WARRANTY ENGLISH predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration. en-us_main.book.book Page 47 Thursday, November 10, 2022 8:14 AM48 LIMITED WARRANTY Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: “Arbitration Opt Out” or (ii) calling 1- 800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https:// www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”). You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. en-us_main.book.book Page 48 Thursday, November 10, 2022 8:14 AM49LIMITED WARRANTY ENGLISH CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Dishwasher ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased from an authorized retailer and used within Canada, as determined at the sole discretion of LGECI. † Main control board is located on the right bottom of the Dishwasher when viewed from the front.

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.

• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty. LGECI’S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty’s terms. WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture.) Dishwasher Extended Component Warranty (Parts Only) (Consumer will be charged for Labor after One (1) year from the date of purchase.) Two (2) years from the date of original retail purchase Five (5) years from the date of original retail purchase Ten (10) years from the date of original retail purchase Labor / Parts (internal/functional parts only) Main control board

, Rack, Stainless Steel Door Liner, Tub DD Motor en-us_main.book.book Page 49 Thursday, November 10, 2022 8:14 AM50 LIMITED WARRANTY THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;

• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product’s owner’s manual;

• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product’s owner’s manual;.

• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;

• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product’s owner’s manual;

• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;

• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;

• Damage or missing items to any display, open box, refurbished or discounted Product;

• Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or any similar disclaimer;

• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;

• Increases in utility costs and additional utility expenses in any way associated with the Product;

• Any noises associated with normal operation of the Product;

• Replacement of any part that was not originally included with the Product;

• Replacement of light bulbs, filters, fuses or any other consumable parts;

• Costs associated with removal and/or reinstallation of the Product for repairs; and

• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair. All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com en-us_main.book.book Page 50 Thursday, November 10, 2022 8:14 AM51LIMITED WARRANTY ENGLISH PROCEDURE FOR RESOLVING DISPUTES: EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by en-us_main.book.book Page 51 Thursday, November 10, 2022 8:14 AM52 LIMITED WARRANTY considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in- person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration. Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: “Arbitration Opt Out;” or (ii) calling 1- 800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https:// www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on “Find My Model & Serial Number”). In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG. You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA. Warranty Exceptions Poor wash results caused by debris remaining in the filter. Clean the filter regularly. en-us_main.book.book Page 52 Thursday, November 10, 2022 8:14 AM53LIMITED WARRANTY ENGLISH Poor wash results caused by improper loading or over stacking: wash arm won't rotate or soap dispenser is held closed. Make certain that no dishes or utensils are in the path of the spray arms. Do not place one dish on top of another. Poor drying results caused by lack of rinse aid. Use rinse aid or combination detergent. Water is not supplied because the water tap is not turned on. IE error Check and turn on the water tap. Water is not supplied because the inlet hose is kinked. IE error Reinstall the inlet hose. Not draining because drain hose is kinked. OE error Reinstall the drain hose. The knockout plug in the garbage disposal is not removed. OE error Remove the plug on the disposal. The disposal or air gap is blocked by debris. OE error Clean the disposal or the air gap. Inlet valve and drain hose connection problem caused by improper installation. External leakage a Water tap b Water supply hose Reinstall the hose. Door movement or closing compromised by incorrect leveling. Adjust the lower front leveling feet to the required height. en-us_main.book.book Page 53 Thursday, November 10, 2022 8:14 AM54 LIMITED WARRANTY No power due to loose connection of power cord or electrical outlet problem. Reconnect the power cord or repair the electrical outlet. Pick-up, electrical wiring, plumbing. Installation You will be charged for the installation. en-us_main.book.book Page 54 Thursday, November 10, 2022 8:14 AMMANUAL DEL PROPIETARIO LAVAVAJILLAS ESPAÑOL SDWD24P3 www.lg.com Copyright © 2022 LG Electronics Inc. Todos los derechos reservados Escanee el código QR para ver el manual. Lea el manual del propietario detenidamente previo a operar el electrodoméstico y mantengalo al alcance para futuras referencias. Este manual del propietario abreviado aborda la seguridad del usuario, las precauciones y la información de instalación. Para ver el manual del propietario completo, puede

5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg)

5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg)

fr-ca_main.book.book Page 13 Thursday, November 10, 2022 9:04 AM14 INSTALLATION

fr-ca_main.book.book Page 21 Thursday, November 10, 2022 9:04 AM22 INSTALLATION
