ED 17mm F1.2 PRO - Lens OLYMPUS - Free user manual and instructions

Product Type	Lens
Brand	Olympus
Model	ED 17mm F1.2 PRO
Focal Length	17 mm (35mm equivalent: 34 mm)
Maximum Aperture	f/1.2
Angle of View	65°
Optical Construction	11 groups, 15 elements
Aperture Range	f/1.2 to f/16
Minimum Focusing Distance	0.2 m
Dimensions	∅ 68.2 × 87 mm
Filter Diameter	62 mm
Mount	Micro Four Thirds
Focus Adjustment	AF/MF Switching via Ring
Additional Features	L-Fn Button, Bayonet-style Lens Hood
Maintenance	Blow off dust, wipe with lens cleaning paper
Safety	Do not look at the sun through the lens

Frequently Asked Questions - ED 17mm F1.2 PRO OLYMPUS

How to switch to manual focus (MF)?

Turn the focus ring until the distance indicator appears. The lens will then operate in MF mode regardless of the camera setting.

What is the L-Fn button for?

The L-Fn button allows you to stop autofocus when pressed. You can assign other functions depending on your camera.

How to clean the lens?

Blow off dust with a blower, then gently wipe with lens cleaning paper.

Can I use multiple filters at the same time?

It is not recommended to stack multiple filters as this may cause vignetting (cut-off image edges). Use a single slim filter if possible.

Is the flash compatible with this lens?

Yes, but the flash light may be obstructed by the lens or hood depending on angles. Check for shadows.

How to attach the lens hood?

Align the mark on the hood with that on the lens and turn until it clicks. To remove, press the release button and turn.

What is the minimum focusing distance?

The minimum distance is 0.2 m (7.9 inches) from subject to sensor.

Can I use this lens on an Olympus camera without an adapter?

Yes, because it uses the Micro Four Thirds mount, compatible with all Olympus and Panasonic cameras of this mount.

Is the lens weather-sealed?

The manual does not mention sealing. For use in wet conditions, take precautions.

What to do if autofocus does not work?

Check the focus ring position: if the distance indicator is visible, the lens is in MF mode. Turn the ring to switch to AF.

USER MANUAL ED 17mm F1.2 PRO OLYMPUS

© 2017 OLYMPUS CORPORATION

date of issue 2017.9

WD290801

Printed in Vietnam

OLYMPUS®

MICRO FOURTHENDS

M.ZUKO DIGITAL

ED 17mm f1.2 PRO

Model No.:IM007

04-JP 取扱説明書

07 - EN INSTRUCTIONS

11 - INSTRUCCIONES

15 - ☑ MODE D'EMPLOI

19 - ВС ИНСТРУКЦИИ

22 - CS NÁVOD K POUŽITÍ

25 - DA BETJENINGSVEJLEDNING

1. DE BEDIENUNGSANLEITUNG

2. FLONDIES

3. ITIHISED

4. JONNOLD

5. KÄYTTÖK

6. W. HURTE

40 - UPOTE

43 - HM HASZNALATT UTMOTATO

46 - IISTRUZIONI

49 - LT INSTRUKCIJA

52 - LV NORĀDĪJUMI

55 - AANWIJZINGEN

58 - NO INSTRUKSJONER

61 - PL INSTRUKCJA

64 - PT INSTRUCÕES

67 - RC INSTRUCTION

70 - ВИНСТРУКЦИЯ

1. SK NÁVOD NA POLIŽITIE

76 - SI NAVODILA

79 - SR UPUTSTVO ZA UPOTREBU

1. SV BRUKSANVISNING

2. TALIMATLAB

3. ИНСТРУКИЯ

03

Technical diagram illustrating the assembly of a camera lens with numbered parts and directional arrows indicating motion or adjustment.

JP 取扱説明書

The following required description of the company is: (1) NYMUS, NY-2007; (2) NYMUS, NY-2007; (3) NYMUS, NY-2007; (4) NYMUS, NY-2007; (5) NYMUS, NY-2007; (6) NYMUS, NY-2007; (7) NYMUS, NY-2007; (8) NYMUS, NY-2007; (9) NYMUS, NY-2007; (10) NYMUS, NY-2007; (11) NYMUS, NY-2007; (12) NYMUS, NY-2007; (13) NYMUS, NY-2007; (14) NYMUS, NY-2007; (15) NYMUS, NY-2007; (16) NYMUS, NY-2007; (17) NYMUS, NY-2007; (18) NYMUS, NY-2007; (19) NYMUS, NY-2007; (20) NYMUS, NY-2007; (21) NYMUS, NY-2007; (22) NYMUS, NY-2007; (23) NYMUS, NY-2007; (24) NYMUS, NY-2007; (25) NYMUS, NY-2007; (26) NYMUS, NY-2007; (27) NYMUS, NY-2007; (28) NYMUS, NY-2007; (29) NYMUS, NY-2007; (30) NYMUS, NY-2007; (31) NYMUS, NY-2007; (32) NYMUS, NY-2007; (33) NYMUS, NY-2007; (34) NYMUS, NY-2007; (35) NYMUS, NY-2007; (36) NYMUS, NY-2007; (37) NYMUS, NY-2007; (38) NYMUS, NY-2007; (39) NYMUS, NY-2007; (40) NYMUS, NY-2007; (41) NYMUS, NY-2007; (42) NYMUS, NY-2007; (43) NYMUS, NY-2007; (44) NYMUS, NY-2007; (45) NYMUS, NY-2007; (46) NYMUS, NY-2007; (47) NYMUS, NY-2007; (48) NYMUS, NY-2007; (49) NYMUS, NY-2007; (50) NYMUS, NY-2007; (51) NYMUS, NY-2007; (52) NYMUS, NY-2007; (53) NYMUS, NY-2007; (54) NYMUS, NY-2007; (55) NYMUS, NY-2007; (56) NYMUS, NY-2007; (57) NYMUS, NY-2007; (58) NYMUS, NY-2007; (59) NYMUS, NY-2007; (60) NYMUS, NY-2007; (61) NYMUS, NY-2007; (62) NYMUS, NY-2007; (63) NYMUS, NY-2007; (64) NYMUS, NY-2007; (65) NYMUS, NY-2007; (66) NYMUS, NY-2007; (67) NYMUS, NY-2007; (68) NYMUS, NY-2007; (69) NYMUS, NY-2007; (70) NYMUS, NY-2007; (71) NYMUS, NY-2007; (72) NYMUS, NY-2007; (73) NYMUS, NY-2007; (74) NYMUS, NY-2007; (75) NYMUS, NY-2007; (76) NYMUS, NY-2007; (77) NYMUS, NY-2007; (78) NYMUS, NY-2007; (79) NYMUS, NY-2007; (80) NYMUS, NY-2007; (81) NYMUS, NY-2007; (82) NYMUS, NY-2007; (83) NYMUS, NY-2007; (84) NYMUS, NY-2007; (85) NYMUS, NY-2007; (86) NYMUS, NY-2007; (87) NYMUS, NY-2007; (88) NYMUS, NY-2007; (89) NYMUS, NY-2007; (90) NYMUS, NY-2007; (91) NYMUS, NY-2007; (92) NYMUS, NY-2007; (93) NYMUS, NY-2007; (94) NYMUS, NY-2007; (95) NYMUS, NY-2007; (96) NYMUS, NY-2007; (97) NYMUS, NY-2007; (98) NYMUS, NY-2007; (99) NYMUS, NY-2007; (1.1.1.

主な仕様

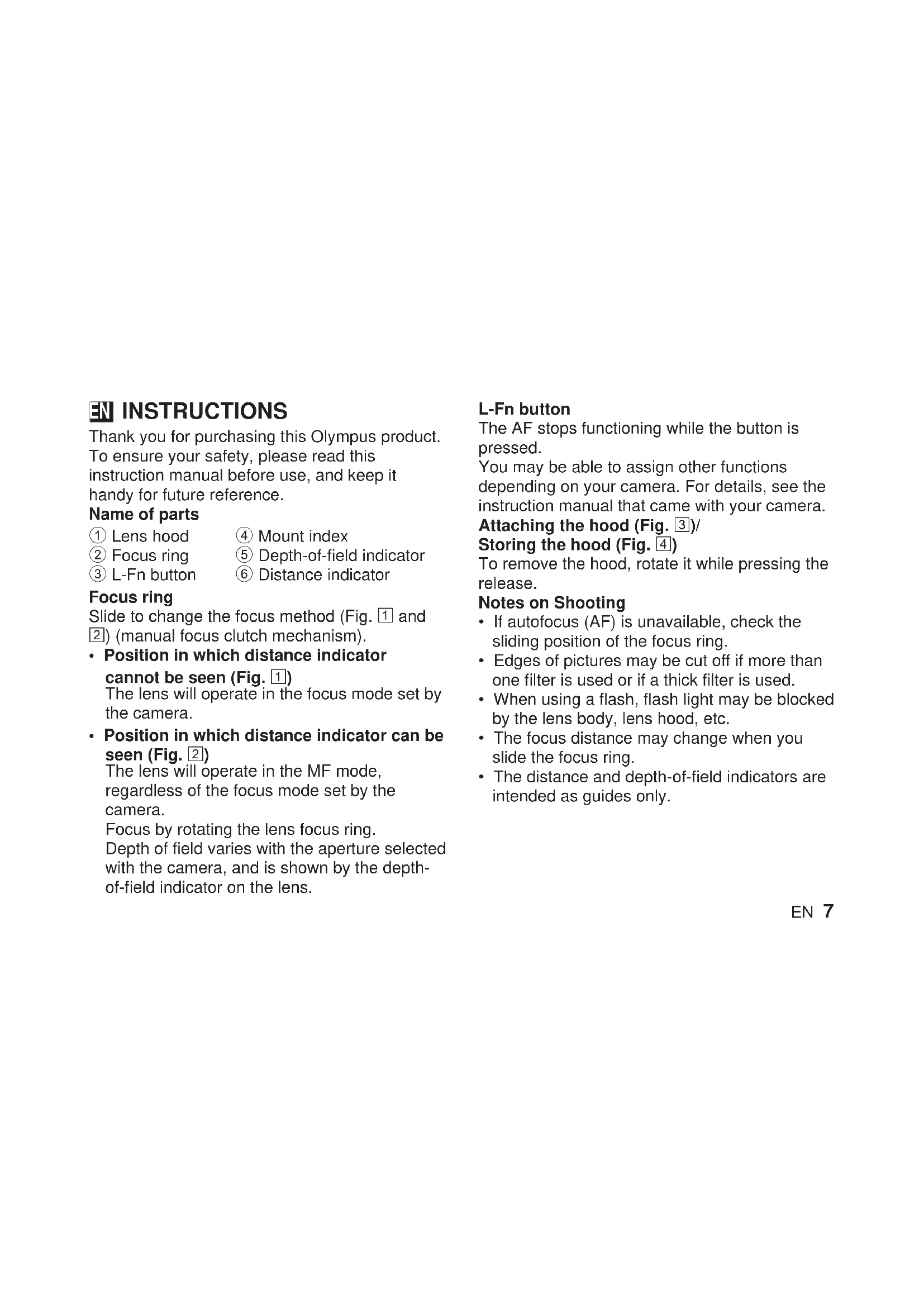

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts

① Lens hood
② Focus ring
③ L-Fn button

④ Mount index
⑤ Depth-of-field indicator
⑥ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1 and 2) (manual focus clutch mechanism).

- Position in which distance indicator cannot be seen (Fig. 1)

The lens will operate in the focus mode set by the camera.

- Position in which distance indicator can be seen (Fig. 2)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring.

Depth of field varies with the aperture selected with the camera, and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 3)/

Storing the hood (Fig. 4)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when you slide the focus ring.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 17 mm

(equivalent to 34 mm on a

35 mm camera)

Focus adjustment : AF/MF switching

Weight : 390 g (13.8 oz.)

(excluding hood and cap)

Dimensions :

Max. dia. ∅ 68.2

length 87 mm (3.4 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 62 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun.

(Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

ES INSTRUCCIONES

Monture : monture Micro Four Thirds

OLYMPUS CORPORATION.

RU 71

SR UPUTSTVO ZA UPOTREBU
