ED 1245mm F4.0 PRO - Lens OLYMPUS - Free user manual and instructions

Product Type	Lens
Brand	Olympus
Model	ED 1245mm F4.0 PRO
Mount	Micro Four Thirds
Focal Length	12-45 mm (35mm equivalent: 24-90 mm)
Maximum Aperture	f/4.0
Angle of View	84°-27°
Optical Configuration	9 groups, 12 lenses
Aperture Range	f/4.0 to f/22
Minimum Focus Distance	0.12 m (12 mm) / 0.23 m (45 mm)
Focus Adjustment	AF/MF Switch
Weight (without hood or cap)	254 g
Dimensions (max diameter × length)	∅63.4 × 70.0 mm
Filter Diameter	∅58 mm
Hood Mount	Bayonet
Supplied Accessories	Front cap, rear cap, lens hood
Care and Cleaning	Blow off dust with a blower; wipe with lens cleaning paper
Safety	Do not look at the sun through the lens; do not leave the lens without a cap to avoid fire; do not point at the sun
General Information	Multilingual manual available on the website; technical support in Europe and North America

Frequently Asked Questions - ED 1245mm F4.0 PRO OLYMPUS

How to attach the lens hood?

Align the hood mounting mark with that on the lens, then turn clockwise until it clicks. To remove, turn in the opposite direction.

What is the minimum focusing distance?

It is 0.12 m at 12 mm focal length and 0.23 m at 45 mm.

Can I use filters?

Yes, the filter thread diameter is 58 mm. Note: using multiple filters or a thick filter may cause vignetting.

How to clean the lens?

First blow off dust with a blower, then gently wipe with lens cleaning paper.

Is the lens compatible with all Micro Four Thirds cameras?

Yes, it is designed for the Micro Four Thirds mount and works with all compatible bodies.

What is the weight of the lens?

The weight is 254 g without the hood or caps.

How to switch from autofocus to manual?

Use the AF/MF switch on the focus ring. Slide the switch to change modes.

Can I use flash with this lens?

Yes, but the flash light may be blocked by the lens or hood, especially at close distances.

Where to find technical support?

In Europe: 00800 - 67 10 83 00 (toll-free) or +49 40 - 237 73 899. In North America: 1-800-260-1625.

What to do in case of vision problems due to the lens?

Never look at the sun through the lens, as it can cause irreversible damage or loss of vision. In case of accident, consult a doctor immediately.

USER MANUAL ED 1245mm F4.0 PRO OLYMPUS

©2019 OLYMPUS CORPORATION

date of issue 2019.12

WD529500

Printed in China

OLYMPUS

MICRO

FOURTHINGS

M.ZUIKO DIGITAL

ED 12-45mm f4.0 PRO

Model No.1M018

04 - IP 取投说明图

1. [3] INSTRUCT

2. 52 MODE D'EMPLO

3. MODE D'EMPLOI

14 - INSTRUCCIONES

Technical diagram showing exploded and assembled views of a camera lens assembly with numbered components

取极说明書

The following rules for the use of a specific method is to be used in the case of the use of the method.

The following table is in English.

[Unreadable Text]

お手入れ

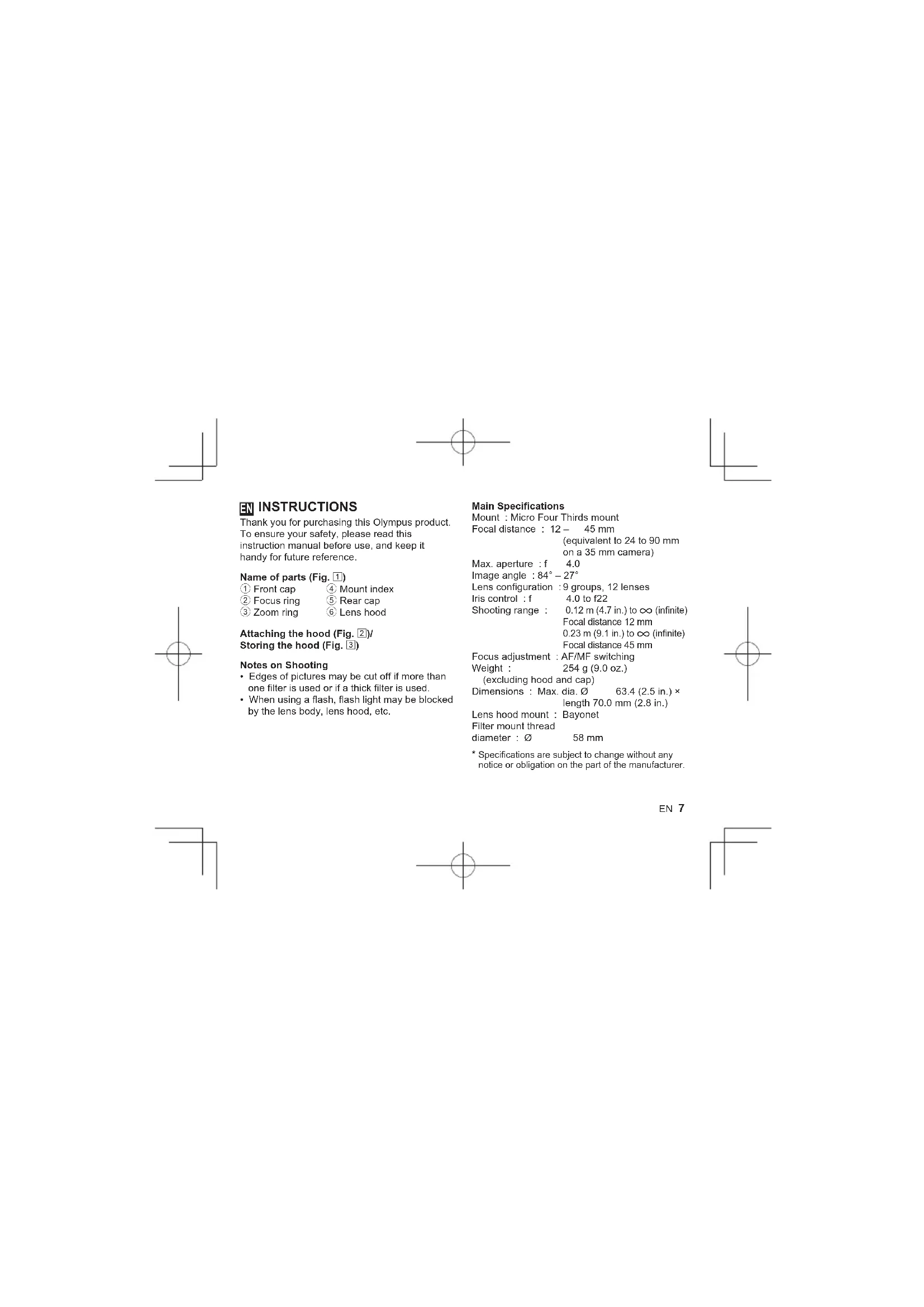

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts (Fig. 1)

① Front cap

④ Mount index

② Focus ring

⑤ Rear cap

③ Zoom ring

⑥ Lens hood

Attaching the hood (Fig. 2)/

Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than
  one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 12 - 45 mm

(equivalent to 24 to 90 mm

on a 35 mm camera)

Max. aperture : f 4.0

Image angle : 84° - 27°

Lens configuration : 9 groups, 12 lenses

Iris control : f 4.0 to f22

Shooting range : 0.12 m (4.7 in.) to ∞ (infinite)

Focal distance 12 mm

0.23 m (9.1 in.) to ∞ (infinite)

Focal distance 45 mm

Focus adjustment : AF/MF switching

Weight : 254 g (9.0 oz.)

(excluding hood and cap)

Dimensions : Max. dia. ∅ 63.4 (2.5 in.) ×

length 70.0 mm (2.8 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 58 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers.

8 EN

FCC Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For customers in North America, Central America, South America and the Caribbean

Declaration of Conformity

Model Number : IM018

Trade Name : OLYMPUS

Responsible Party : OLYMPUS AMERICA INC.

Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA

Telephone Number : 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3(B)/NMB-3(B)

EN 9

● Technical Support (U.S.A. / Canada)

24/7 online automated help :

http://www.olympusamerica.com/support

Phone customer support

Tel.[phone] (Toll-free)

Our phone customer support is available

from 9 am to 9 pm (Monday to Friday) ET

E-Mail: [e-mail]

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm
