ED 45mm F1.2 PRO - Lens OLYMPUS - Free user manual and instructions

Brand	Olympus
Model	ED 45mm F1.2 PRO
Product Type	Camera Lens
Mount	Micro Four Thirds
Focal Length	45 mm
Equivalent Focal Length (35 mm)	90 mm
Maximum Aperture	f/1.2
Angle of View	27°
Optical Construction	10 groups, 14 elements
Aperture Range	f/1.2 to f/16
Minimum Focus Distance	0.5 m
Focus Mode	AF/MF (ring switching)
Filter Diameter	62 mm
Dimensions (Dia. × Length)	∅70 × 84.9 mm
Lens Hood	Bayonet (removable)
L-Fn Button	Yes (programmable function)
Depth of Field Indicator	Yes
Distance Indicator	Yes (visible in MF mode)
Maintenance	Blower and lens cleaning paper
Precautions	Do not look at the sun, do not leave without cap

Frequently Asked Questions - ED 45mm F1.2 PRO OLYMPUS

How to change the focus mode on the lens?

Turn the focus ring. If the distance indicator is not visible, the lens uses the mode set by the camera (AF). If the indicator is visible, the lens switches to manual MF mode.

What is the L-Fn button for?

The L-Fn button stops autofocus when pressed. You can assign other functions depending on your camera (see camera manual).

How to attach the lens hood?

Align the mounting mark on the hood with that on the lens, then turn until it clicks (Fig. 3). To remove, press the unlock button and turn (Fig. 4).

What is the minimum focus distance?

The minimum shooting distance is 0.5 m to infinity.

Can I use filters with this lens?

Yes, the filter diameter is 62 mm. Avoid stacking multiple filters to prevent vignetting.

How to clean the lens?

Blow off dust with a blower, then gently wipe with lens cleaning paper.

What if autofocus doesn't work?

Check the focus ring position. Ensure the distance indicator is not visible (AF mode). If yes, turn the ring to switch to AF mode.

What is the maximum aperture?

The maximum aperture is f/1.2, offering high brightness and strong background blur.

What accessories are included?

The manual mentions a lens hood and a lens cap. Check packaging for the full list.

How to avoid damaging the lens?

Never look at the sun through the lens. Always replace the cap when not in use to avoid fire risk from concentrated rays.

USER MANUAL ED 45mm F1.2 PRO OLYMPUS

date of issue 2017.8

WD242101

Printed in Japan

OLYMPUS®

MICRO FOURTHINDS

M.ZUIKO DIGITAL

ED 45mm f1.2 PRO

Model No.:IM009

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
15 - FR MODE D'EMPLOI
19 - ВС ИНСТРУКЦИИ
22 - CS NÁVOD K POUŽITÍ
25 - DA BETJENINGSVEJLEDNING
28 - DE BEDIENUNGSANLEITUNG
31 - ELOAHΓIEΣ
34 - ET JUHISED
37 - F KÄYTTÖOHJEET
40 - HR UPUTE
43 - HU HASZNÁLATI ÚTMUTATÓ
46 - IT ISTRUZIONI
49 - LT INSTRUKCIJA
52 - LV NORADIJUMI
55 - NL AANWIJZINGEN
58 - INSTRUKSJONER

61 - PL INSTRUKCJA
64 - PT INSTRUÇÕES
67 - RC INSTRUCTION
70 - RU ИНСТРУКЦИЯ
73 - SKNÁVOD NA POUŽITIE
76 - SL NAVODILA
79 - SR UPUTSTVO ZA UPOTREBU
82 - SV BRUKSANVISNING
85 - TR TALIMATLAR
88 - UK I H C T P Y K C I A
93 - AF الإرشادات
94-사용설명서
97 - CH 使用說明書
100 - TH ค่าแนะน่าการใช้งาน
103 - VI CÁC HƯỚNG DÀN

P 取扱説明書

The following approximate classification worker is products imported into the EU (EU) and the EU (EU) of Europe: 2017, 1984. OLYMPUS EUROPA GE & Co. KG. Wonderstone 14-15, 2009; Hamburg, Germany Intralustrated by OLYMPUS EUROPA GE 2017, 1984.

主な仕様

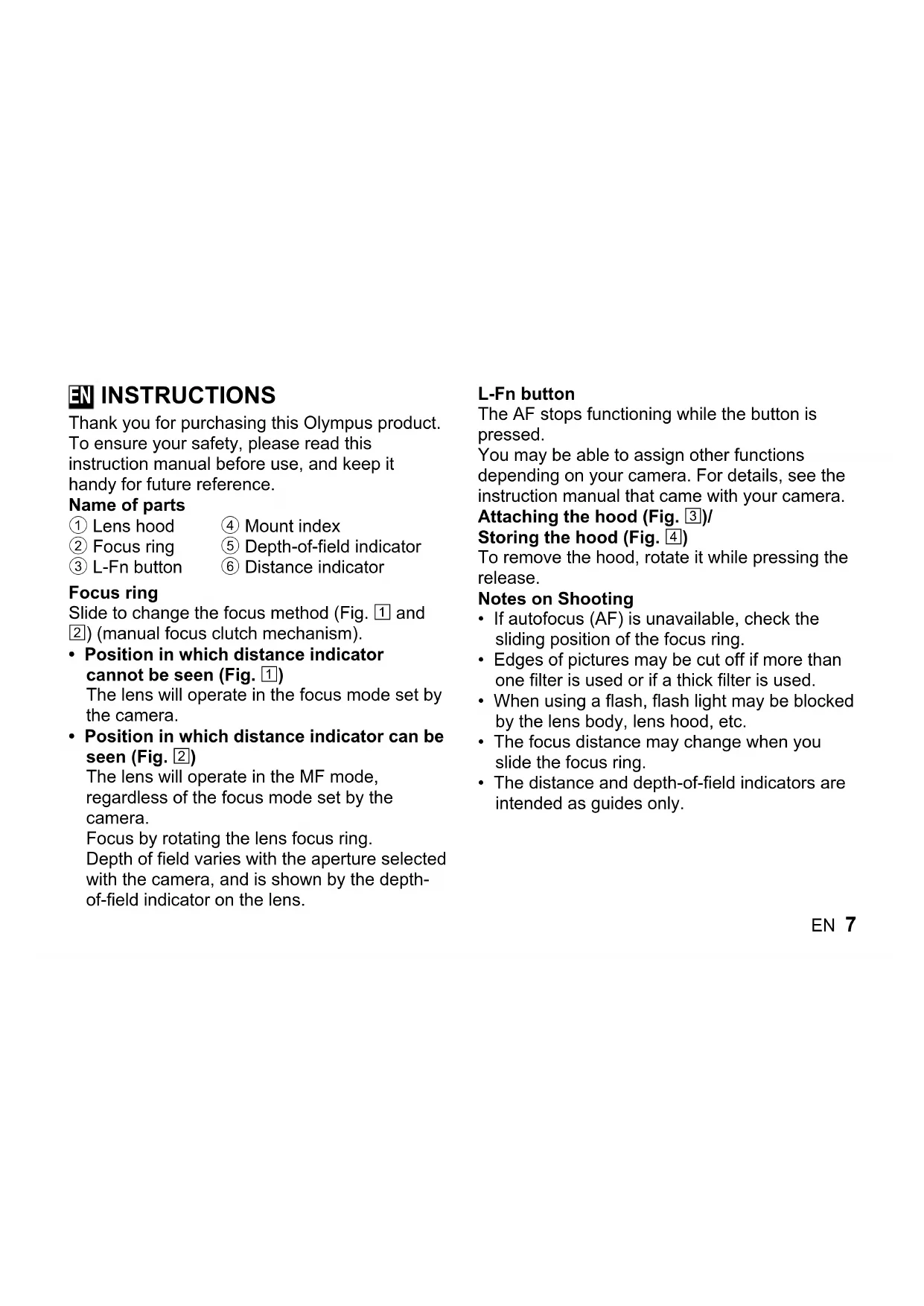

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

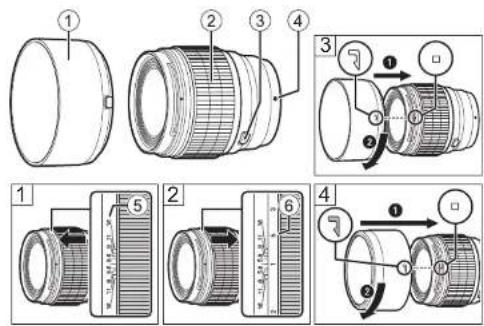

Name of parts

① Lens hood

④ Mount index

② Focus ring

⑤ Depth-of-field indicator

③ L-Fn button

⑥ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1 and 2) (manual focus clutch mechanism).

- Position in which distance indicator cannot be seen (Fig. 1)

The lens will operate in the focus mode set by the camera.

- Position in which distance indicator can be seen (Fig. 2)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring.

Depth of field varies with the aperture selected with the camera, and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 3)/

Storing the hood (Fig. 4)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when you slide the focus ring.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 45 mm

(equivalent to 90 mm on a 35 mm camera)

Shooting range : 0.5 m (19.7 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 410 g (14.5 oz.)

(excluding hood and cap)

Dimensions :

Max. dia. ∅ 70

length 84.9 mm (3.3 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 62 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun.
  2.8 Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

This product uses T-Kernel source code under the terms of the T-Engine Forum (www.tron.org) T-License.
