Series 7 720s3 - Shaver BRAUN - Free user manual and instructions

Product Type	Rechargeable electric shaver
Model	Series 7 720s3
Brand	Braun
Power Supply	Integrated rechargeable battery, power cord with low-voltage transformer plug
Charging Time	Approximately 1 hour
Run Time	Up to 50 minutes of cordless shaving
Corded Use	Possible when battery is empty
Charge Indicator	Display screen with green, red, high/mid/low segments
Shaving Settings	3 modes: Intensive (dark blue), Normal (light blue), Sensitive (white)
Pivoting Head	Yes, with lockable for difficult areas
Retractable Trimmer	Yes, for long hairs, sideburns, mustache and beard
Use Under Water	Yes, shaver head washable under running water
Cleaning	Under running water (liquid soap possible) or dry with brush
Maintenance	Oil once a week with a drop of sewing machine oil if washed frequently
Replacement Cassette	70S shaver cassette recommended every 18 months
Reset Counter	Reset button to press for 3 seconds after replacement
Warranty	2 years
Included Accessories	Travel case, power cord, cleaning brush
Safety	Low-voltage transformer plug, do not modify components

Frequently Asked Questions - Series 7 720s3 BRAUN

How to charge the Braun Series 7 720s3 shaver?

Plug the power cord into a power outlet with the motor off. Charge for at least one hour. The ideal ambient temperature is between 5°C and 35°C.

What is the run time after a full charge?

A full charge provides up to 50 minutes of cordless shaving. This may vary depending on the density, hardness, and length of your beard.

Can the shaver be used while plugged in?

Yes, if the battery is completely empty, you can shave while plugged into a power outlet via the power cord.

How to choose the shaving setting?

Use the sensitive (-) and intensive (+) buttons to select the mode. The integrated indicator lights on the switch show: Intensive (dark blue), Normal (light blue), Sensitive (white).

How to use the retractable trimmer?

Slide the retractable trimmer upward to trim sideburns, mustache, and beard.

How to clean the shaver under water?

Turn on the shaver (without cord) and rinse the head under running water. You can use non-abrasive liquid soap. Rinse off all foam, leave the shaver running for a few seconds, then remove the cassette and let it dry.

How often should the shaver cassette be replaced?

Replace the cassette when the replacement symbol lights up on the display (approximately every 18 months) or when the cassette is worn.

How to reset the counter after changing the cassette?

Use a pen to press the reset button for at least 3 seconds. The indicator light flashes then turns off when reset is complete.

Is the shaver under warranty?

Yes, Braun provides a 2-year warranty from the date of purchase, covering manufacturing or material defects. It does not cover normal wear (foil, cutter block) or damage due to improper use.

Where can I purchase spare parts?

Spare parts, such as the 70S shaver cassette, are available from your dealer or at Braun service centers.

USER MANUAL Series 7 720s3 BRAUN

Series 7 Series 7 735s-3 Sensitive trimmer BRAUN reset off on + intensive Chase High Low Pjw

735s-3

720s-3

Type 5694

Type 5695

Deutsch 4,8

English 9,13

Français 14, 18

Español 19, 23

Português 24, 28

Italiano 29, 33

Nederlands 34, 38

Dansk 39, 43

Norsk 44, 48

Svenska 49, 53

Suomi 54, 58

Türkçe 59

Ελληνικά 64, 68

D A 00 800 27 28 64 63 00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

GB 0800 783 70 10

IRL 1 800 509 448

F 0 800 944 802

B 0 800 14 592

E 901 11 61 84

P 808 20 00 33

① (02) 6 67 86 23

NL 0 800-445 53 88

DK 70 15 00 13

N 22 63 00 93

S 020 - 21 33 21

FIN 020 377 877

TR 0 800 261 63 65

HK 852-25249377

(Audio Supplies Company Ltd.)

www.service.braun.com

Deutsch

Illustration of a soldering iron plug with a screwdriver and a spring scale, no text or symbols present.

Illustration of a hairdryer tip connecting a cable to a plug (no text or symbols visible)

Rasierer-Display ⑨

735720 Charge Mol Mol high high

sensitivenorm 40mm 50mm 60mm 70mm 80mm

Rasieren

Semi-7 Semi-7

70S

Garantie

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Warning

Your shaver is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of electric shock.

This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

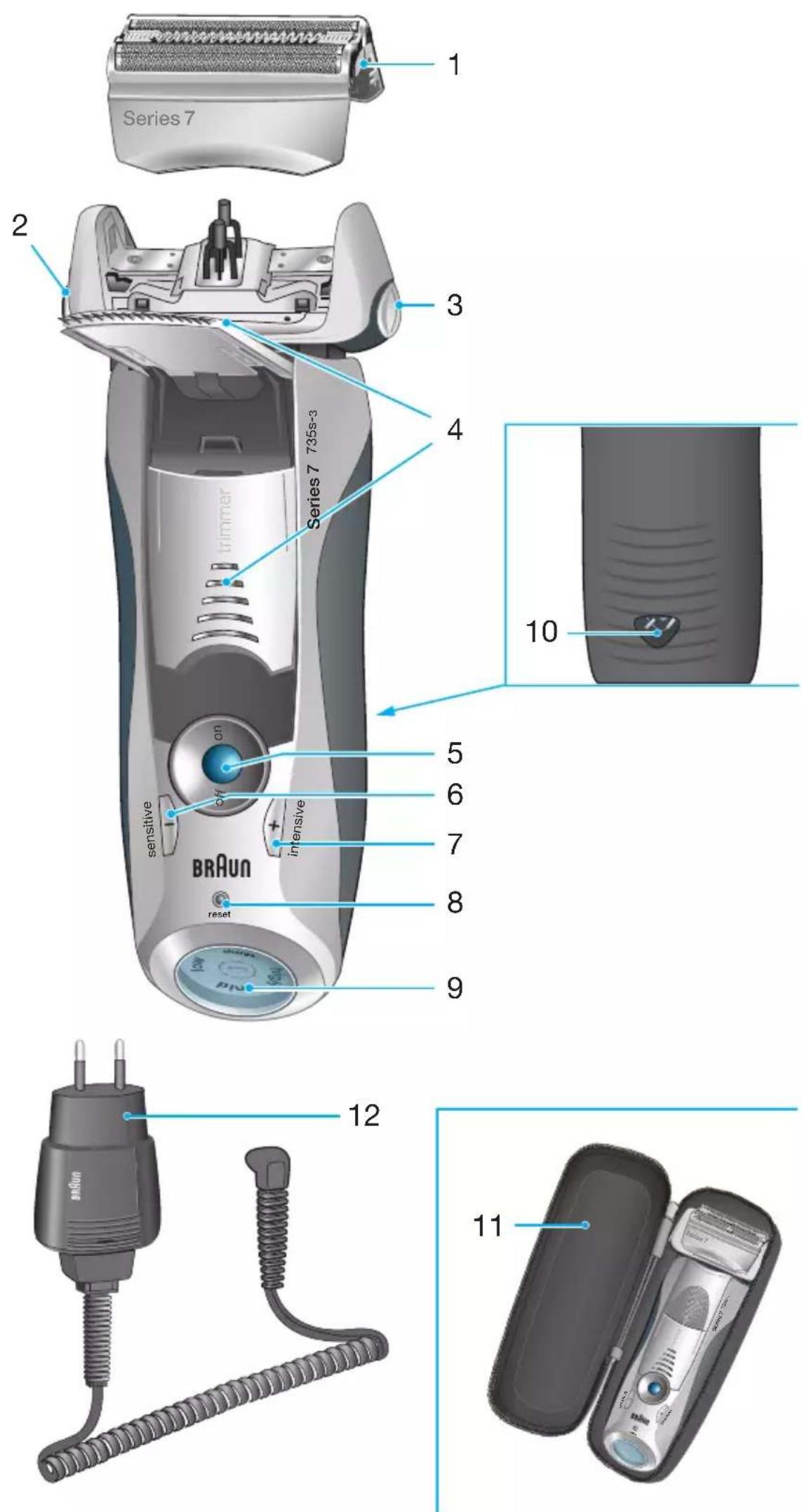

Description

① Foil & Cutter cassette
② Cassette release button
③ Shaver head «lock» switch
④ Pop-out long hair trimmer
⑤ On/off switch
⑥ «sensitive» (−) setting button
⑦ «intensive» (+) setting button
⑧ Reset button
⑨ Shaver display
⑩ Shaver power socket
⑪ Travel case
⑫ Special cord set

Charging

The best environmental temperature for charging is between 5 °C and 35 °C.

• Using the special cord set ⑫, connect the shaver to an electrical outlet with the motor switched off and charge it for at least one hour.
• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth.
• If the rechargeable battery has run out of power (discharged), you may also shave by connecting the shaver to an electrical outlet via the special cord set.

English

Illustration of a soldering iron plug and its wiring with a dial indicator (no text or symbols)

Illustration of a hairdryer tip and plug connection (no text or symbols)

Shaver display ⑨

The green indicator fl ashes when the shaver is being charged or when in use.

When the battery is fully charged, the charge segment «high» (720) / «high» «mid» (735) will light up continuously provided that the shaver is switched on or connected to an electrical outlet.

The red «low» indicator fl ashes when the battery capacity has dropped below 20%, provided the shaver is switched on. The remaining capacity will then be sufficient for 2 to 3 shaves.

Personalizing your shaver

Personalizing your shaver

With the «sensitive» ⑥ and «intensive» ⑦ buttons you can choose the best setting for shaving different areas of your face and as per your specific needs. The different settings are indicated by the pilot light incorporated in the on/off switch ⑤:

sensitivenormalintensive» = dark blue (powerful shave)

• «Normal» = light blue
• «Sensitive» = white (for a thorough comfortable shave in sensitive areas of your face such as neck)

For a thorough and fast shave we recommend the «intensive» setting.

Pressing the « + » or « - » button activates your preferred setting. When switching on next time, the last used setting will be activated.

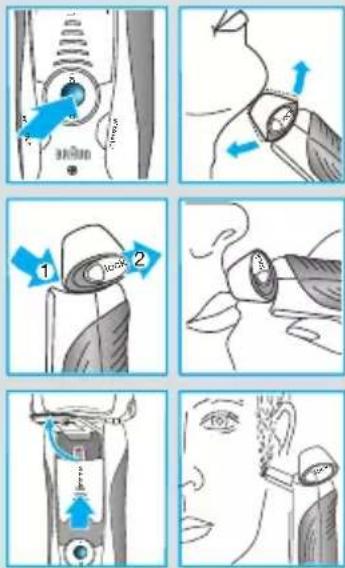

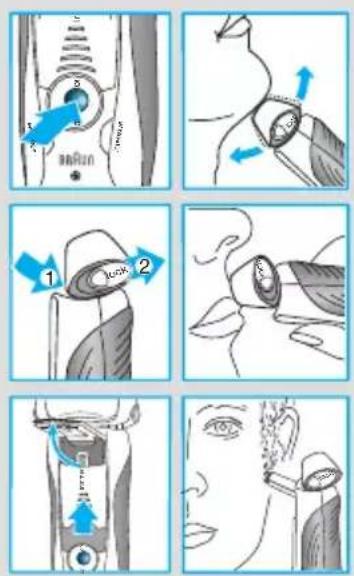

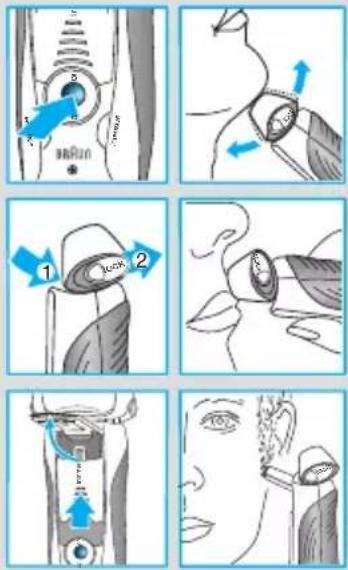

How to use

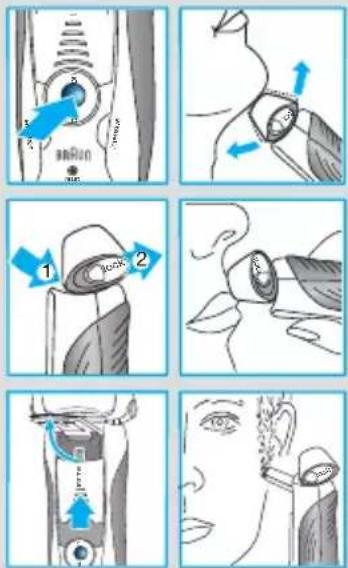

Press the on/off switch ⑤ to operate the shaver:

• The pivoting shaver head and fl oating foils automatically adjust to every contour of your face.
• To shave hard to reach areas (e.g. under the nose) slide the shaver head «lock» switch ③ to the back position to lock the pivoting head at an angle.
• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer ④ upwards.

Tips for the perfect shave

For best shaving results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

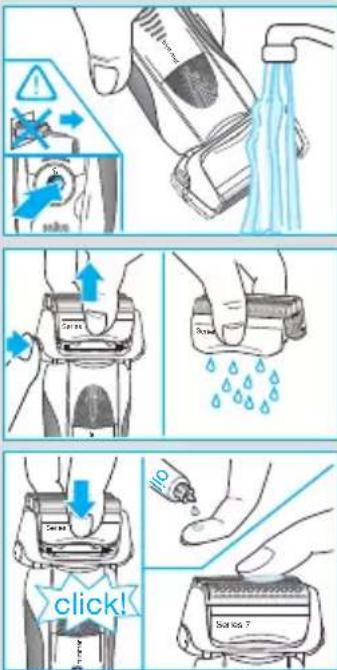

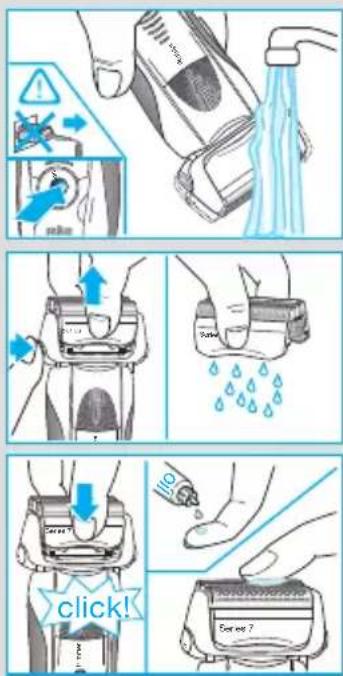

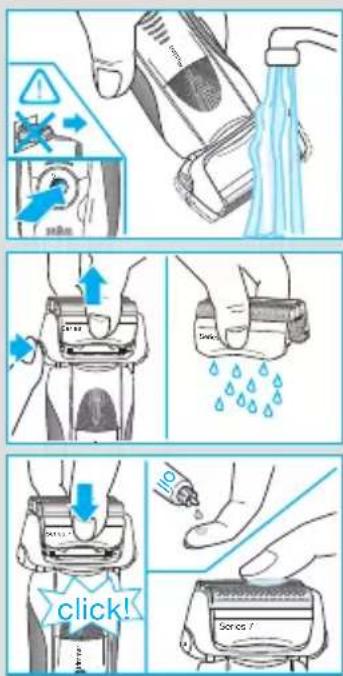

Cleaning

The shaver head is suitable for cleaning under running tap water.

Warning: Detach the shaver from the power supply before cleaning the shaver head in water.

Regular cleaning ensures better shaving performance. Rinsing the shaving head under running water after each shave is an easy and fast way to keep it clean:

• Switch the shaver on (cordless) and rinse the shaving head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

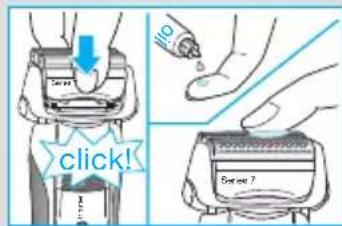

• Next, switch off the shaver, press the release button ② to remove the Foil & Cutter cassette ① and let it dry.

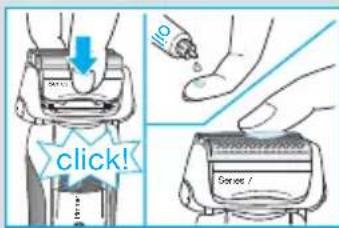

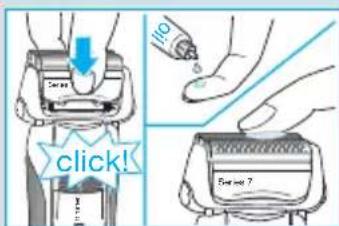

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

S### 7 S### 7

70S

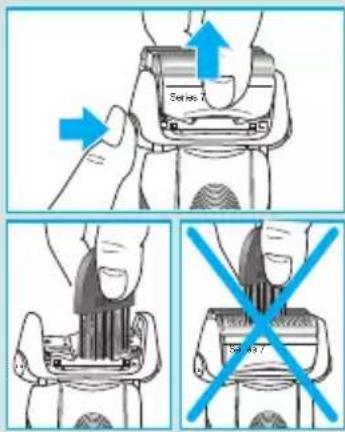

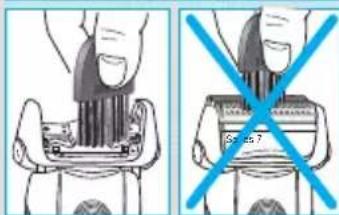

Alternatively, you may clean the shaver using the brush provided:

- Switch off the shaver. Remove the Foil & Cutter cassette ① and tap it out on a fl at surface. Using the brush, clean the inner area of the pivoting head. However, do not clean the foil and cutter cassette with the brush as this may damage it.

Keeping your shaver in top shape

Replacing the Foil & Cutter cassette / reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette ①, when the replacement symbol lights up on the shaver display ⑨ (after about 18 months) or when cassette is worn

The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display.

After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button ⑧ for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Accessories

Available at your dealer or Braun Service Centres:

- Foil & Cutter cassette 70S

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Illustration of a soldering iron plug and wire with a screwdriver, no text or symbols present

Illustration of a hairdryer tip connecting a cable to a plug (no text or symbols visible)

735720 charge mid high mid high

735720 charge low low high

sensitivenorm

Utilisation

Searbox 7 Searbox 7

70S

Garantie

Illustration of a soldering iron plug and its wiring with a compass needle (no text or symbols)

Close-up of a hairdryer tip and plug connection (no text or symbols visible)

Illustration of a soldering iron plug, screwdriver, and probe (no text or symbols)

Illustration of a hairdryer tip connecting a cable to an electrical plug (no text or symbols visible)

Carga da máquina de barbear

sensitivenorm 0.5 1.5 2.5 3.5 4.5 5.5

Modo de utilização

Saddle 7 Saddle 7

70S

Garantia

Illustration of a soldering iron plug and its wiring with a screwdriver (no text or symbols)

Illustration of a hairdryer with a coiled cord and plug, no text or symbols present

sensitiven

Diagram illustrating a hand cleaning a water bottle with warning symbols and a close-up of the device's handle.

Diagram illustrating water transfer steps with arrows and droplet symbols indicating flow direction

see click! see 7

S### 7 S### 7

70S

Illustration of a soldering iron plug and probe with a screwdriver (no text or symbols)

Illustration of a dental tool inserted into a socket connected to an electrical outlet (no text or symbols visible)

sensitivenorm low high low high

Scheren

Illustration of a soldering iron plug and its wiring with a compass needle (no text or symbols)

Illustration of a hairdryer connecting a cable to an electrical plug (no text or symbols visible)

Barbermaskinens display ⑨

sensitiven MILK MILK MILK MILK

Diagram illustrating a hand cleaning a shower using a device, with warning symbols and a close-up of the device's handle.

Diagram illustrating water transfer steps with arrows and droplet symbols indicating flow direction

see! click! see?

S### 7 S### 7

70S

Illustration of a soldering iron plug and probe with a screwdriver, no text or symbols present

Illustration of a hairdryer with a coiled cable inserted, connected to an electrical outlet (no text or symbols visible)

Barbermaskinens display

sensitivenorm

Illustration of a soldering iron plug and its wiring with a spring scale (no text or symbols)

Illustration of a hairdryer connecting a cable to an electrical plug (no text or symbols visible)

Rakapparatens display ⑨

sensitiven

sensitiven

Diagram illustrating a hand cleaning a water tap with warning symbols and a magnified view of the drain.

Diagram illustrating water transfer steps with labeled arrows and droplet patterns

click! Close /

Series 7

Diagram showing two methods of removing a car seatbelt, with blue prohibition signs indicating removal or disassembly.

70S

Illustration of a soldering iron plug and its electrical terminal (no text or symbols)

Illustration of a hairdryer with a coiled cable inserted, connected to an electrical outlet (no text or symbols visible)

Illustration of a soldering iron plug and its wire with a spring scale, no text or symbols present

Illustration of a hairdryer with a cable inserted, connected to an electrical outlet (no text or symbols visible)

Tıraş Göstergesi ⑨

Three identical camera lens images showing a blue lens, with no visible text or symbols.

normalintensive» «Intensive» = Yoğun koyu mavi (güçlü tıraş)

Diagram illustrating a hand cleaning a device with warning symbols and a water droplet, showing action buttons and component placement.

Diagram illustrating hand positioning and water drop behavior in a device, with arrows indicating movement and water droplets.

click! I/O Batter 7

Series 7

Set us 7

70S

[e-mail]

Ελληνικα

Illustration of a soldering iron plug with a stopbell and screwdriver (no text or symbols)

Illustration of a hairdryer tip inserted into a plug, showing the cable and outlet (no text or symbols)

sensitivenorm

Χρήση
