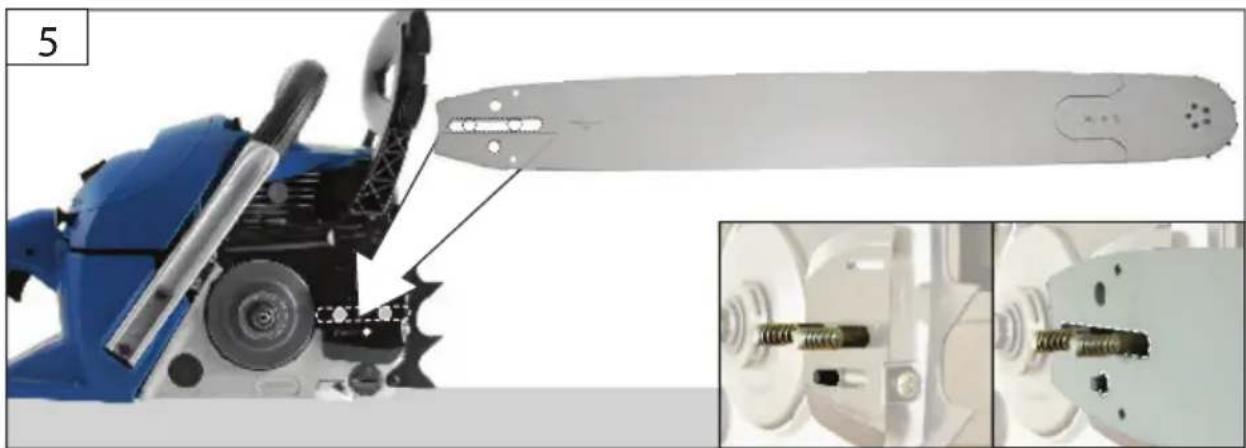

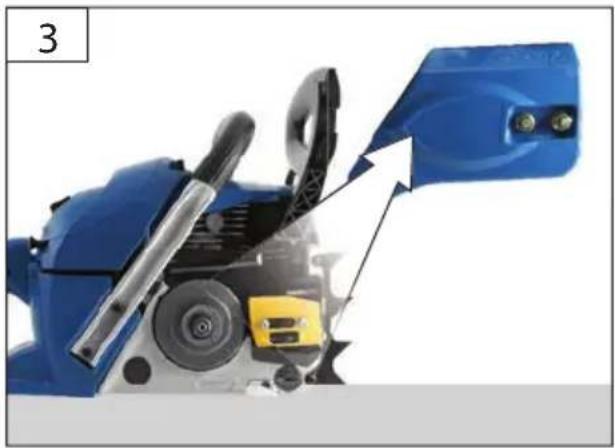

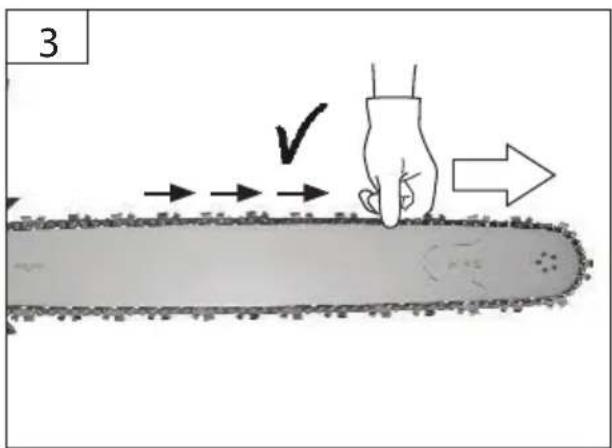

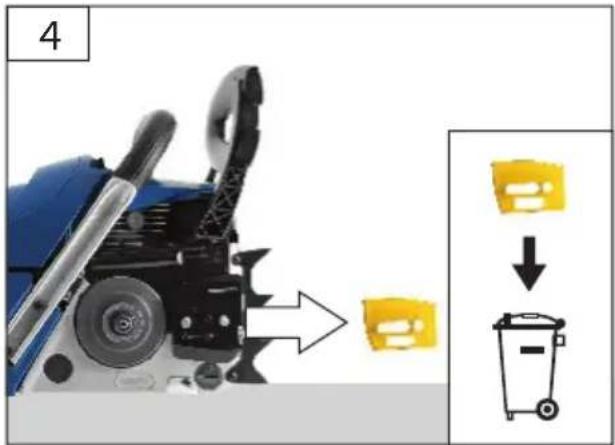

ASSEMBLY OF CHAIN BAR AND CHAIN

ASSEMBLY OF CHAIN BAR AND CHAIN

Pull rmly the starting rope approx. 3-5 times till the rst noise of running is evident.

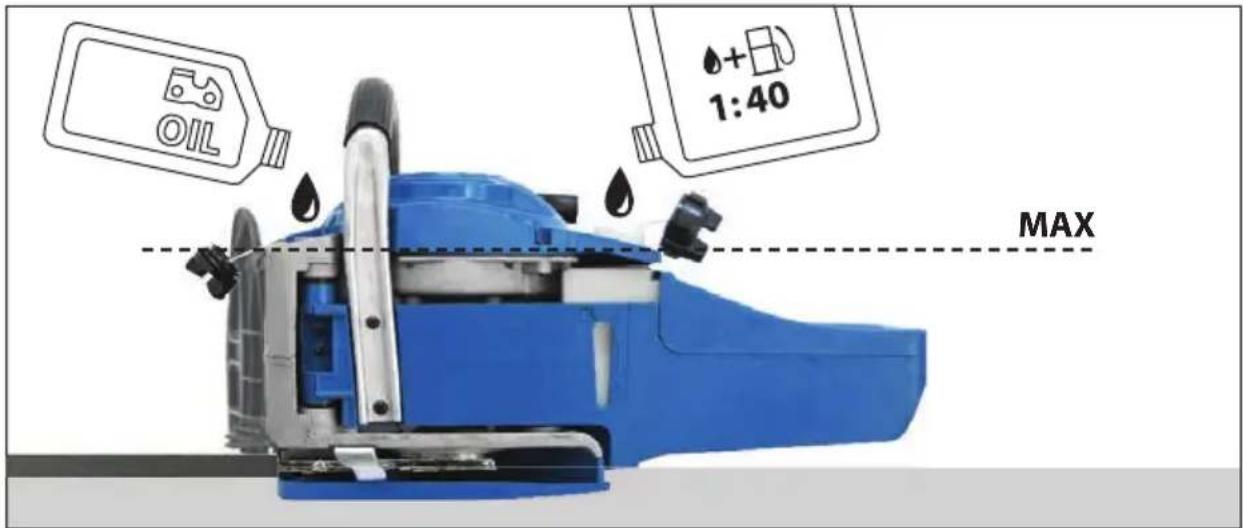

CHAIN LUBRICATION ADJUSTMENT

At work place, Measured according to ISO 22868, Uncertainty K=3 dB (A),

Measured according to ISO 22867, Uncertainty K=1,5 m/s

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may

increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. An accurate estimate of the vibratory load shouldalso take into account the times when the tool isshut down or when it is running but not actually inuse. This may signi cantly reduce the vibratoryload over the total working period. Identify additional safety measures to protect theoperator from the e ects of vibration such as:maintain the tool and the accessories, keep thehands warm, organisation of work patterns.28

KS 400 BW | KS 450 B | KS 501 BENGLISH

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsib- ly toward third parties. In case of any doubts about connection and operation refer please to our customer center delivered items

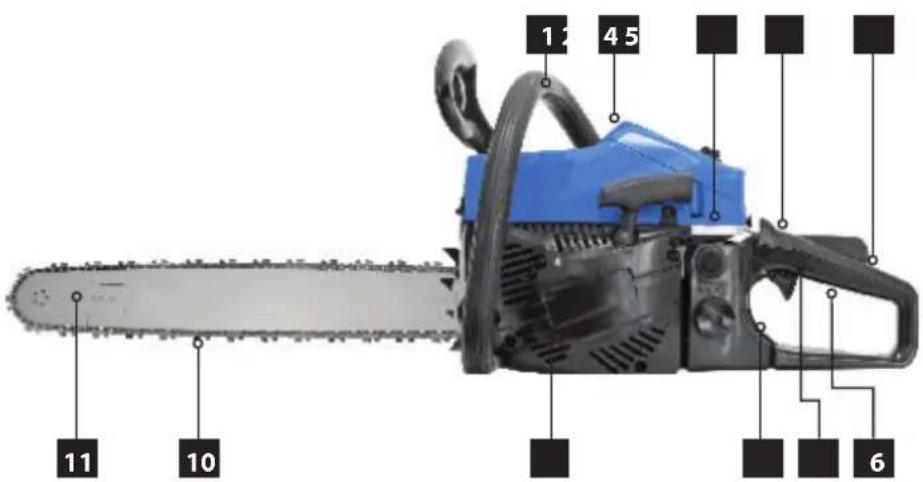

Chain oil top-up funnel

Saw bar Speci ed Conditions Of Use The chain saw is only intended to cut wood. Respec- ting technical data and safety precautions. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Use the appliance only outside, never use it in con ned and bad ventilated areas. Requirements for operating sta The operating sta must carefully read the Opera- tingInstructions before using the appliance. Quali cation: Because wrong using of the appliance can be risky, only competent persons are allowed to operated it. Operator must be trained properly concerning adjust- ment, operation and appliance using. Minimum age: Persons over 18 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Training: Using the appliance only requires corre- spondingtraining by a professional or the Operating Instructions. Nospecial training is necessary. Residual risks Danger of injury ! Contact with the saw chain can cause casualties. Never touch moving chain by hands. Danger of kickback ! Kickback can lead to casualties. Danger of burns ! Chain and guiding groove warm up in operation. Risk of poisoning! Toxic exhaust fumes and oil vapors can cause poisoning. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon quali ed medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, inaccordance with DIN13164, a workplace has to be ttedwith a rst-aid kit. It isessential to replace any usedmaterial in the rst-aid kitimmedia- tely after it has been used. If you seek help,state the following pieces ofinformation:

3. Number of injured persons

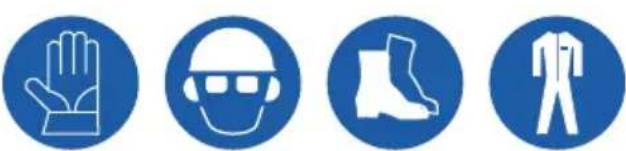

Symbols Caution! Read the Operating Instructions Wear protective helmet ! Wear eye protection ! Wear ear protectors! Wear protective gloves ! Wear safety cut through resistant shoes with safety sole and steel toe ! Wear protective clothing with cut through resistant ply ! Warning against dangerous kickback Keep distance of persons! Observe to keep out of dangerous zone29 KS 400 BW | KS 450 B | KS 501 B ENGLISH

Fire danger: Prohibited smoking and open re using. Switch o the engine before any work on it. Any damaged or disposed devices must be delivered to appropriate collection centres. Protect against humidity This side up Safety instructions for chainsaws

• Keep all parts of your body in safe distance from the saw when running. Before starting the saw, make sure the saw chain does not touch anything. A moment of inattention when working with the chainsaw is able to cause the saw chain to catch your clothes or parts of your body.

• Use your right hand to hold the chainsaw by its rear handle and your left hand to hold it by its front handle. Holding the chainsaw the opposite way incre- ases the risk of injury and you must not do that.

• Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Suitable protective clothing minimises the risk of injury by thrown-away wood chips and possible contact with the saw chain.

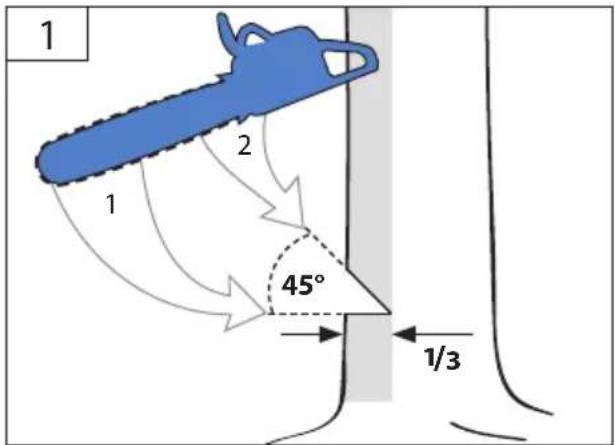

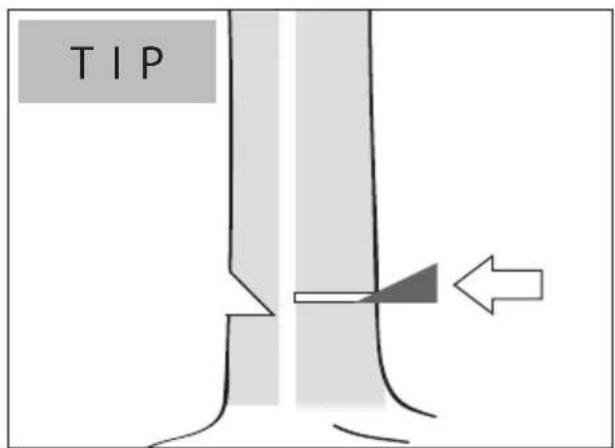

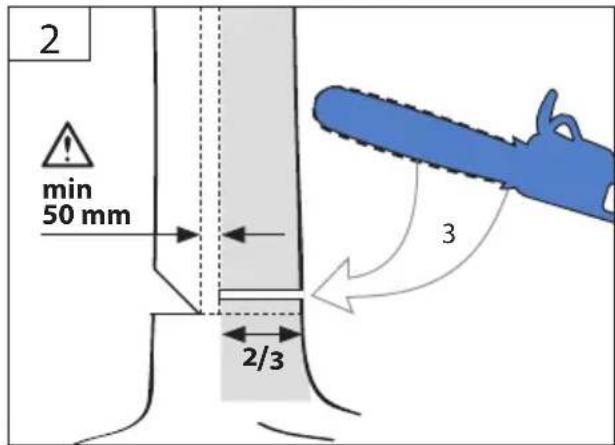

• Do not work on trees with the chainsaw. There is a risk of injury when working on a tree.

• Provide safe posture at all times and use the chainsaw only when standing on a solid, safe and level surface. A slippery or unstable surface, such as ladder, may lead to loss of balance or loss of control over the chainsaw.

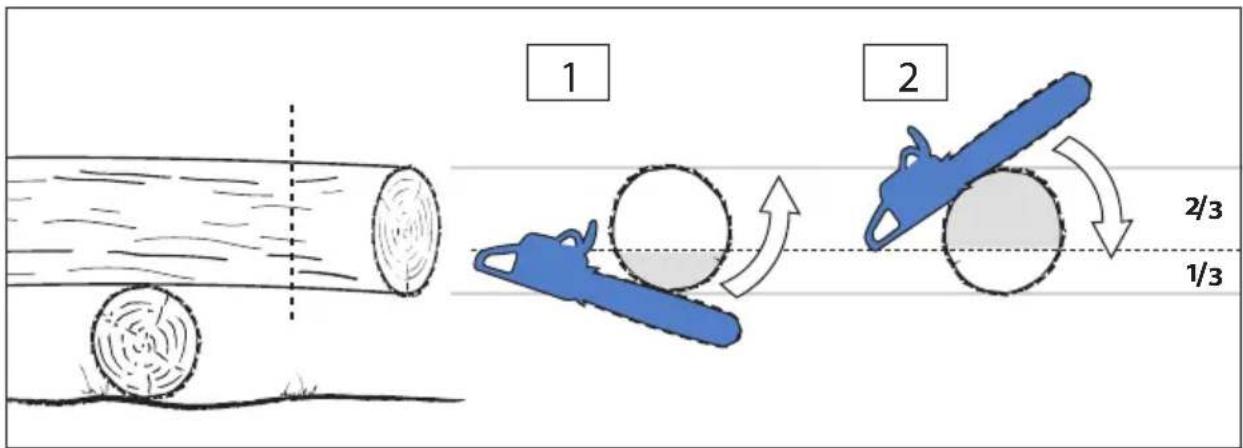

• When cutting a tense branch, be sure to know that the branch will bounce back. If tension in the wood bres gets released, the tense branch may hit the operator and/or cause a loss of control over the chainsaw.

• Be especially careful when cutting scrubs and saplings. Thin material may get caught in the chainsaw and hit you or you may lose your balance.

• Carry the chainsaw by the front handle in a switched-o condition and the saw chain must be de ected from your body. Fit a protection cover on the chainsaw whenever it is trans- ported or stored. Careful chainsaw treatment reduces the likelihood of an accidental contact with the running saw chain.

• Follow the lubrication, chain tension and accessory equipment replacement instructions. A chain that is not tightened or lubricated in a professional manner may crack or increase the risk of backlash.

• Keep the handles dry, clean and with no oil and fat. Handles dirty with fat or oil are slippery and lead to loss of control.

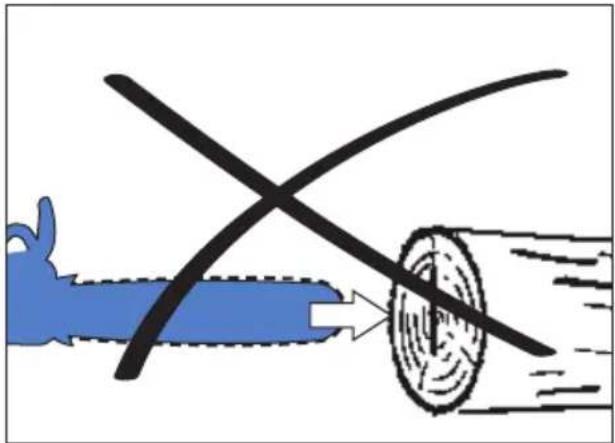

• Wood to be cut only. Do not use the chainsaw for works for which it has not been designed – example: do not use the chainsaw to cut plastic material, masonry or building materials not made of wood. Using the chainsaw for works that are in con ict with the designation may lead to dangerous situations. Backlash causes and prevention: Backlash may take place when the saw bar point touches an item or when the wood bends and the saw chain gets stuck in the cutting. In many cases, a contact with the bar point may lead to a situation when the operator unexpectedly bends backward and the bar is ejected upward toward the operator as a result. Sticking of the saw chain on the upper edge of the bar may throw the bar intensely o toward the operator. Each such reaction may lead to losing control over the saw and you may get seriously injured. Do not fully rely on the safety equipment tted in the chain- saw. As the chainsaw user, you should take various measures to be able to work without any accident and injury. Backlash is a result of inappropriate or wrong use of the electric tools. It can be prevented by appropriate preventive measures described below:

• Hold the saw rmly with both hands with thumbs and ngers embracing the chainsaw handles. Put your body and hands to such a position in which you are able to resist the backlash. If appropriate measures are taken, the operator may get the backlash under control. Never put the chainsaw out of your hands.

• Avoid abnormal body posture and do not cut above the shoulder level. This will prevent a contact with the bar point and the chainsaw will be controlled better in unexpected situations.

• Spare bars and saw chains speci ed by the manuf- acturer to be used at all times. Wrong spare bars and saw chains may lead to chain overloading and/ or backlash.

• Follow the saw chain sharpening and servicing instructions of the manufacturer. Too low depth limiters increase the risk of backlash. Observe national regulations and instructions for chain saws operation. Take care to prevent from fuel and oil leakage during transport. The dust that arises when working with this tool can be detrimental to health and therefore not reach the body. Wear a suitable dust protection mask.30

Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bure- aucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference: Serial No.: Art. No: Year of production: Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging. Maintenance Switch o the engine before any work on it and wait until is cooled. Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug. The machine must not be used under any circum- stances if the machine or the safety devices are damaged. Refer all servicing to customer service. Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insu cient mainte- nance and care can lead to unforeseen accidents and injuries. Disposal Disposal notes are based on the icons placed on the machine or on its package. Transport packaging disposal The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves ra Risk of su ocation! Keep parts of the packagings out of reach of children and dispose them as soon as possible. Guarantee A warranty period of 12 months applies to com- mercial use and 24 months apply to private use and commences on the day of purchase of the device. Warranty applies exclusively to failures due to defec- tive material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights. Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.31 KS 400 BW | KS 450 B | KS 501 B ENGLISH

Inspection and maintenance plan Generally Complete saw Plastic body Saw chain Chain saw bar Chain saw wheel Chain break Clutch Regularly clean the outer part Let regularly checked by authorized workshop Check for cracks and ssures Let regularly sharpen Clean regularly Clean regularly Regular functional test Regular functional test (Chain can not move in idle run). Before any start-up Saw chain Chain saw bar Chain lubrication Chain break Follow-up brake ON/OFF switch Oil tank cap Check for damages and sharpness Check the chain tension Functional test Functional test Functional test Functional test Check for tightness In case damage let repaired in authorized workshop After every take out of service Chain saw bar Bar xture Clean the oil top-up opening Clean above all guiding oil groove storage Chain oil tank Saw chain / Chain saw bar Complete saw Drain Dismount, clean and lubricate slightly by oil Clean the saw guiding groove Cleaned chain saw store safely in dry room - out of children reach. Let the chain saw checked by authorized workshop after long term storage (remaining oil can be resinous and clog the oil pump valve)32

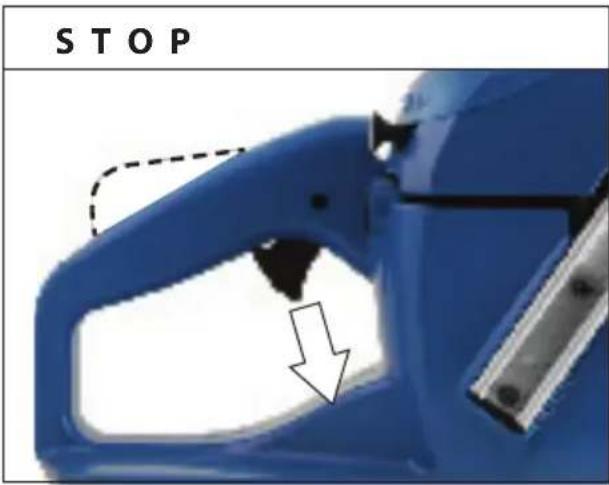

Defects searching Defect Cause The motor does not start 1. Put the operational switch to OFF position

4. Sooted spark plug (carbon residues on

electrodes), electrodes distance too big

6. Damaged spark plug contact, faulty

1. Put the operational switch to ON

2. Top-up fully the fuel tank

3. Reduce throttle, start couple times, in

case of necessity dismantle spark plug, clean and dry it

4. Clean the spark plug, check the plug

thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm

5. Let the carburettor cleansed, blow

through by air in authorized workshop

6. let changed in authorized workshop

7. Check the switch-o button, cable and

ignition module, poss. Let replaced in authorized workshop, let adjusted gap to 0.3-0.4 mm Idle speed too high 1. Cold engine 1. Heat up slowly, poss. Close slightly choke Engine does not give max. output

1. Sooted spark plug (carbon residues on

electrodes), electrodes distance too big

4. Exhaust, exhaust channel of cylinder

5. Leaky sealing gasket in crankcase

7. Bad fuel/oil mix (too much oil)

1. Clean the spark plug, check the plug

thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm

2. Let the carburettor cleansed, blow

through by air in authorized workshop

4. Let the exhaust dismantle and clean

in authorized workshop, let clean the carbon residues

5. Let replaced in authorized workshop

6. Let replaced cylinders, pistons and

piston rings in authorized workshop, let the cylinders ground with end lap and let installed oversize piston

7. Fill the fuel tank according to the

(0.3-0.4 mm) let adjusted in authorized workshop Motor can not be swit- ched o

1. Light-grey spark plug with traces of

2. Let cleaned the cylinder head, piston

top and cylinder channels in autho- rized workshop33 KS 400 BW | KS 450 B | KS 501 BFRANÇAIS

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.
