Brand	Koenic
Model	KVC 3110
Vacuum cleaner type	Bagless cylinder vacuum cleaner
Rated power	800 W
Supply voltage	220-240 V ~, 50/60 Hz
Protection class	II
Energy class	A
Annual energy consumption	24.5 kWh/year
Noise level	77 dB(A)
Carpet cleaning class	C
Hard floor cleaning class	A
Dust re-emission class	A
Dust container capacity	approx. 2 L
Filter type	Washable main filter and exhaust filter
Cable length	approx. 6 m
Telescopic tube	Yes, adjustable
Included accessories	Combination floor nozzle, crevice tool/dusting brush
Automatic cord rewinder	Yes
Carrying handle	Yes
Parking system	Yes

Frequently Asked Questions - KVC 3110 Koenic

How to assemble the KVC 3110 vacuum cleaner?

Insert the suction hose into the connection until it clicks. Place the floor brush on the lower end of the telescopic tube and the handle on the upper end. Adjust the tube length using the locking button.

How to use the vacuum cleaner on different floor types?

Use the combination floor nozzle: press the toggle switch to retract the brush for hard floors, and press again to extend it for carpets.

What to do if suction power decreases?

Check if the dust container is full or if the filters are clogged. Empty the container and clean the filters. Also ensure that the hose and tube are not blocked.

How to clean the vacuum cleaner filters?

For the main filter, remove it from the dust container, tap it or wash it with water, then dry it thoroughly. For the exhaust filter, open the cover, remove the filter, tap to remove dust or brush it, then reassemble in the correct direction.

Can the vacuum cleaner suck up liquids?

No, the vacuum cleaner is designed only for dry dust. Never vacuum liquids, as this could damage the appliance.

How to store the vacuum cleaner after use?

Turn off the appliance and unplug it. Use the cord rewind button to retract the cord. You can attach the tube with the nozzle to the vacuum cleaner for storage during short breaks.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a combination floor nozzle (with hard floor/carpet selector) and a crevice tool/dusting brush for furniture, creases and corners.

How to adjust the suction power?

Use the power control button (F) on the vacuum cleaner. You can also open the auxiliary air inlet cover on the handle to reduce suction on carpets.

What are the important safety precautions?

Do not vacuum liquids, hot ashes or flammable substances. Keep the appliance away from unsupervised children. Never immerse the appliance in water. Unplug before cleaning.

How to empty the dust container?

Press the opening button (S) to remove the dust container. Pull the trigger at the bottom of the container to open the bottom and empty the dust into a trash can. Then reassemble.

USER MANUAL KVC 3110 Koenic

Product image of a handheld vacuum cleaner with labeled technical specifications in English

Deutsch 8 1/2007-14 Bruch 15 20 Grenfeld 11 -26 Daimler 27 -17 Magne 38 -38 Büllner 6 -34 Schulzer 45 20 Petro 51 -26 Karl gels 27 -27 Sversa 58 08 Lakowski 29 -24

M. 1025 to 7131, 604, HR=3.173197, 243p

Labeled diagram of a vacuum cleaner with numbered parts and an inset photo showing the component.

Technical diagram showing mechanical assembly steps with labeled arrows and annotations

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the usage of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.

English

Safety instructions

• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
  • Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
• Be especially careful when cleaning the stairs.
• When in use, keep the product away from clothes and body parts (fingers, hair, face).
• Do not try to clean people or animals with the product.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed to vacuum dry dust and dirt only. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.

Do not dispose of this product as municipal waste. Return it to a designated collection point for the recycling of electrical and electronic equipment. Contact your retailer or local authorities for more information.

Content

1 x Vacuum cleaner
1 x Combi floor nozzle
1 x Dusting nozzle with integrated crevice
1 x User manual
1 x warranty card

Part list

A Suction tube handle
B Auxiliary air flap
C Telescopic tube locking mechanism
D Telescopic tube
€ On/Off button
F Power control knob
G Parking system
H Cable retraction button
Exhaust filter with cover
J Combi floor noozle
K Button for hard floor or carpet floor nozzle
L Dusting nozzle with integrated crevice
M Power cable with plug (retractable cable)
N Wheel
0 Dust container
P Suction hose connection
Q Filter system
R Carrying grip
s Dust container release button
T Suction hose

English

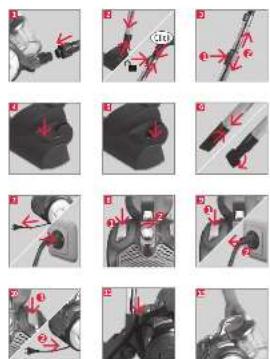

Assembling the vacuum cleaner (Part D, J, P, T)

Fig. 1 Insert the suction hose into the hose connection. Make sure that it has clicked into place.
Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.
Fig. 3 Adjust the telescopic tube to the desired length, by pressing the locking mechanism down and then pulling the telescopic tube out or pushing it together.

Use of the accessories provided Floor nozzle (Part J,K)

Fig. 4 To vacuum hard floors, press the toggle switch down.
Fig. 5 To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.

Dusting nozzle / Crevice nozzle (Part L)

Fig. 6 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc. For vacuuming folds, crevices and corners.

Operation

Fig. 7 Pull out the connection cable to the desired length and insert the power plug into a receptacle.
Fig. 8 Press the On/Off switch to turn the vacuum cleaner on/off. Use power control knob to adjust the desired power.

Tip: If the vacuum can only be guided with difficulty over carpeted areas due to excessively high suction power, decrease the suction power by opening the auxiliary air flap on the handle or by turning the power control knob.

Fig. 9 Switch the vacuum cleaner off after use and unplug it when you have finished working.
Fig. 10 Wind the power cable around the cable storage device by pressing the automatic cable retraction button. While you are doing this keep the cable taut, if possible.

Parking system for pauses in vacuuming

Fig. 11 You can store the telescopic tube with the combination nozzle on the vacuum cleaner for short pauses while vacuuming. Insert the combination nozzle with the parking attachments into the parking system.

Transport

Fig. 12 To carry your vacuum cleaner use the carrying grip.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying the dust canister (Part 0)

Fig. 13 If the suction power diminishes, the dust container must be emptied and the filters must be cleaned. We recommend to empty the dust container outside of the house.

• Press the release button and remove the dust container.
• To empty the dust container, simply pull the release on the bottom so that the bottom of the canister opens and the dust falls out. Hold the dust canister over a rubbish container whilst you are emptying it.
• Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the main filter (Part Q)

Fig. 14 • Loosen the lid and remove the entire filter insert from the dust container. Remove the filter, loosen the cap and disassemble the filter into all of its individual parts. Tap the filter to remove the dust and clean all parts with water and dry them thoroughly.
- Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the exhaust air filter (Part I)

Fig. 15 Open the cover and take out the filter. Find a dustbin and gently pat filter until dust falls off or use a brush to clean the filter. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.

English

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
Product cannot absorb dust or loose suction power	Filters are blocked with dirtDust container is fullSuction hose / telescopic tube is blocked with dirt	Clean and wash the filtersEmpty the dust containerClean and wash the suction hose/telescopic tube

Technical data

Rated Voltage : 220 - 240 V\~, 50/60 Hz

Rated input power : 800 W

Protection class : II

• This is a general purpose vacuum cleaner
• The Erp test method is according to (EU) No 666/2013 & EN 60312-1:2013
- Please refer to below website for detail technical information, or contact the manufacturer for technical document:

www.koenic-online.com

• Energy efficiency class: A
- Indicative annual energy consumption 24.5 kWh per year, based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
- Carpet cleaning performance class: C
• Hard floor cleaning performance class: A
• Dust re-emission class: A
• Sound power level: 77 dB
• The rated input power: 800 W

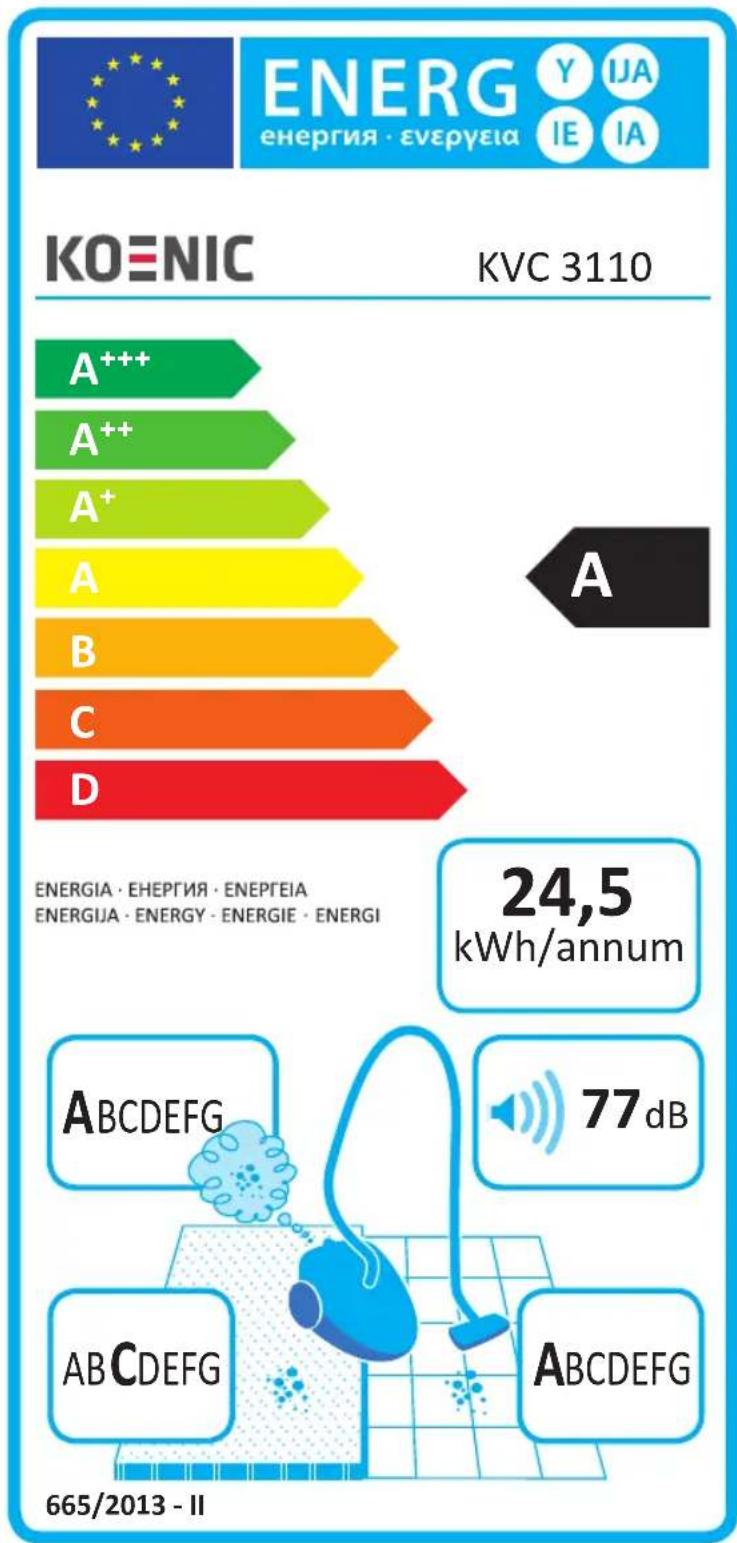

PRODUKTDATENBLATT // PRODUCT FICHE // FICHA DE PRODUCTO // FICHE PRODUIT

Imtron GmbH

KVC 3110

ES
