WSG30 - Salt/pepper mill Waring Commercial - Free user manual and instructions

Product Type	Electric Spice Grinder
Brand	Waring Commercial
Model	WSG30
Blade Material	Stainless Steel
Container Material	Stainless Steel
Number of Containers	3
Maximum Container Capacity	2 oz (60 g) for whole spices
Power Supply	120 V ~ 60 Hz
Thermal Protection	Yes, automatic shut-off in case of overheating
Safety	Safety lid prevents operation if not properly closed
Operation	Momentary on/off button
Removable Parts Care	Dishwasher safe
Body Cleaning	Wipe with a damp cloth
Immersion Prohibited	Never immerse the appliance
Included Accessories	3 containers, 3 lids
Plug Type	Three-prong grounded plug
Use	Grind spices, herbs, nuts, seeds, sugar, dry rice
Grinding Method	Rotating blades
Grinding Time	5 seconds to 1 minute depending on ingredient (guide included)
Customer Service	1-800-269-6640 (USA)
Origin	Made in China

Frequently Asked Questions - WSG30 Waring Commercial

How to use the WSG30 spice grinder?

Plug in the appliance, remove the lid, fill the stainless steel container with spices without exceeding the maximum capacity, replace the lid, then press the on/off button to grind. Release the button to stop. Unplug after use.

Can I grind wet or liquid ingredients?

No, the grinder is designed for dry ingredients only. Never fill the container with water or any other liquid, as this could damage the appliance.

What is the maximum capacity of the container?

The maximum capacity varies depending on the ingredient. For example, for peppercorns, do not exceed 2 oz (60 g). Refer to the user guide for exact quantities.

How to clean the WSG30 grinder?

Unplug the appliance. Wash the removable parts (containers, lids) by hand or in the dishwasher. Wipe the body of the appliance with a slightly damp cloth. Never immerse the appliance in water.

What to do if the grinder stops suddenly?

The appliance is equipped with thermal protection. In case of overheating, it stops automatically. Unplug it, let it cool for 5 to 10 minutes, then plug it back in and continue.

Can I use an extension cord?

Yes, if necessary, use an extension cord with a three-prong grounding plug, with a voltage rating equal to or higher than the appliance's. Use it only indoors.

How to unblock the blades if spices get stuck?

If large spices block the blades, remove the container from the base, clear the blades, then put the container back in place and continue grinding.

What types of spices can I grind?

You can grind pepper, cinnamon, star anise, dried chili peppers, cloves, nutmeg, mustard seeds, fenugreek, fennel, sesame, cardamom, bay leaves, nuts, sugar, and uncooked dry rice.

Are the grinder parts dishwasher safe?

Yes, the removable parts (containers and lids) can be washed in the dishwasher. Rinse and dry them before reassembling.

What to do if the lid does not close properly?

Check that the container is properly installed and the lid is aligned. The appliance will only operate if the lid is correctly closed. If the problem persists, contact customer service.

USER MANUAL WSG30 Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. To protect against risk of electrical hazards, do not immerse the Waring® Commercial Spice Grinder in water or other liquids.
3. Unplug from outlet when not in use, before assembling or disassembling, and before cleaning.
4. Avoid contact with moving parts.
5. Do not operate the Waring® Commercial Spice Grinder or any electrical equipment with a damaged cord or plug, or after the unit malfunctions, is dropped or damaged in any manner. If damaged, immediately stop use and call Waring customer service at [phone] for examination, repair or adjustment.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Do not use outdoors.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Check hopper for presence of foreign objects before using.
10. Use only attachments that are included in the packaging of the Waring® Commercial Spice Grinder. The use of other attachments may cause fire, electric shock or injury.
11. Put this instruction booklet in a safe place; do not discard.
12. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like the plug in drawing (1). An adapter, as in drawing (2), should be used for connecting the appliance plug to two-prong receptacles. The grounding tab which extends from the adapter must be connected to a permanent ground such as a properly grounded outlet box as shown in drawing (3) using a metal screw.

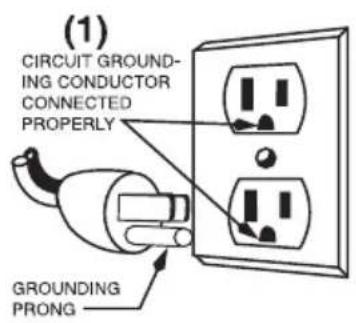

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG

(2) ADAPTER GROUNDING LUG

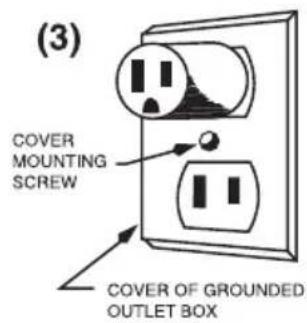

(3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

Note: The use of an adapter is not authorized in Canada.

EXTENSION CORDS

Use only 3-wire extension cords which have 3-prong grounding-type plugs and 3-pole cord connectors that accept the plug from the appliance. Use only extension cords which are intended for indoor use. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges.

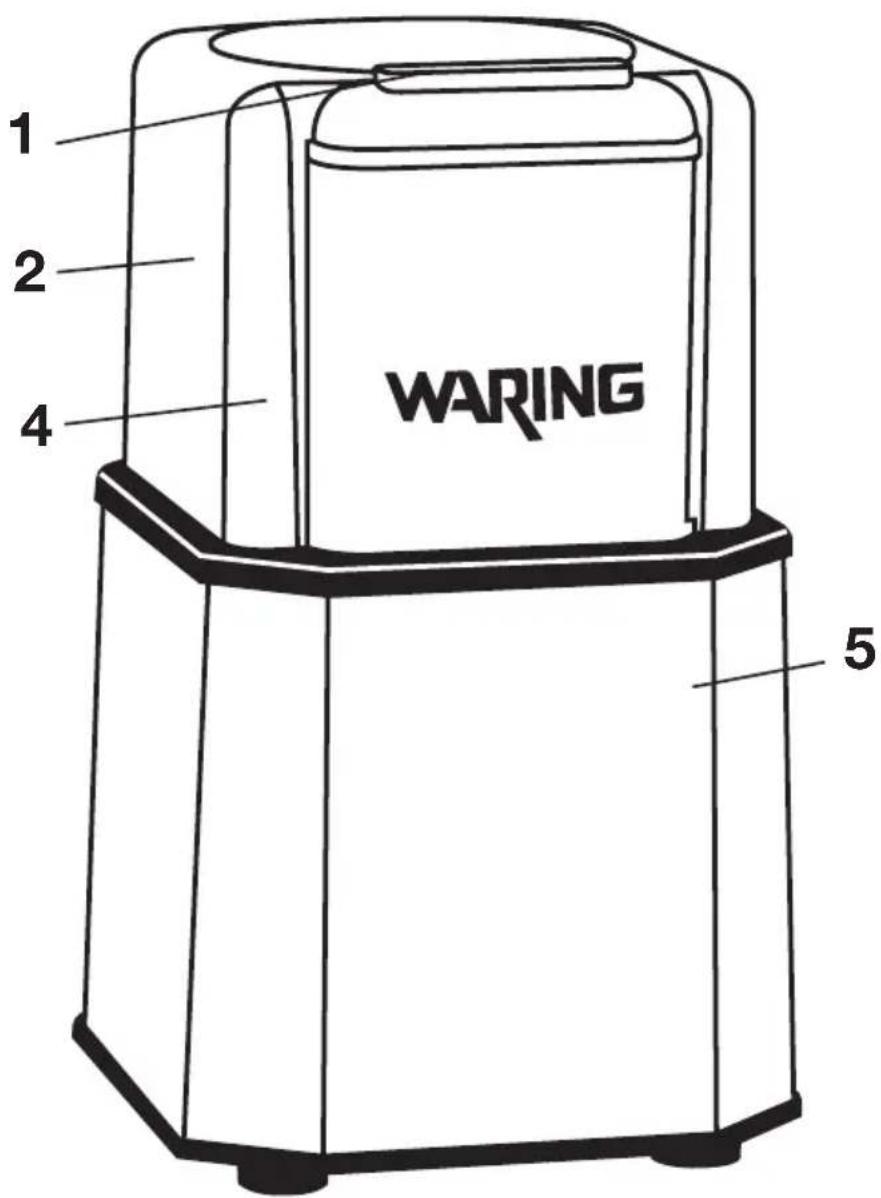

PARTS

1. On/Off button
2. Cover
3. Stainless steel blades (not shown)
4. Stainless steel removable bowl (3 included)
5. Grinder base
6. Storage lid (3 included) (not shown)

1 2 4 WARING 5

OPERATING INSTRUCTIONS

1. Plug cord into outlet.
2. Remove lid from base of grinder.
3. Fill stainless steel bowl with desired quantity of spices. Note: Use only dry ingredients. Do not add water or other liquids to bowl for operation.
4. Make sure the grinding bowl is in the locked position, then place the lid onto grinder base. Please note: A safety feature of this grinder does not allow it to operate unless the lid is in place, and the bowl is in locking position.
5. Press and hold on/off button to begin grinding.
6. Grind until spices are ground to desired consistency. To stop grinding, release pressure from on/off button.
7. If any large spice gets lodged under the blade: remove jar from base, dislodge spice, replace jar, and continue grinding.
8. Remove plug from outlet.
9. Measure ground spices as desired.
10. To store unused ground spices, remove grinding bowl and cover with storage lid.

RECOMMENDED GRINDING INSTRUCTIONS

The following are grinding instructions for some commonly used whole spices and other suggested ingredients.

Whole Spices & Max Recommended Other Ingredients Amount		Recipe
Peppercorn20 seconds for fine	2 oz. Run 5 seconds for coarse,
Cinnamon Sticks 3 sticks Run 30-45 seconds
Star Anise 1.5 oz. Run 30 seconds
Dried Chili PeppersRun 30 seconds for fine powder	10 stem-less peppersPulse 5 times for crushed,
Cloves	2 oz. 5 pulses, run 1 minute
Nutmeg	1-3 nutmegs	Run 5-15 seconds
Mustard Seed	2 oz.	Run 30 seconds
Fenugreek Seed	2 oz.	Run 30 seconds
Fennel Seed	2.5 oz. Run 15 seconds
Sesame Seed	2 oz.	Run 10 seconds
Cardamon Pods 1.5 oz. Run 30 seconds
Bay Leaves Fill 3⁄4 bowl	Run 30 seconds
Nuts	1.5 oz. Pulse to desired size
Granulated Sugar	1⁄3 cup	Run 15 seconds for fine powdered sugar
Uncooked Rice	2.5 oz. Run 30 seconds

CARE AND CLEANING GUIDE

Be sure the grinder's electric plug has been removed from the outlet. For easy cleaning: Rinse removable parts with hot soapy water immediately after each use to remove excess ground spices. Rinse with clean water. Allow parts to air dry. You may also wash removable parts on top shelf only of dishwasher.

Wipe the motor base with a damp cloth.

DO NOT IMMERSE THE MOTOR BASE IN WATER OR ANY OTHER LIQUID

THERMAL PROTECTOR

For your safety, this spice grinder is equipped with a thermal protector. Should the spice grinder overheat, the motor will automatically shut off. Unplug the spice grinder from the electrical outlet and let the motor cool down for 5 to 10 minutes. Once the motor has cooled down, plug unit into electrical outlet and resume grinding.

IMPORTANTES CONSIGNES DE SÉCURITÉ

1 2 4 WARING 5

MODE D'EMPLOI

©2008 Conair Corporation

314 Ella T. Grasso Avenue

Torrington, CT 06790

Waring® Commercial is a registered trademark of Conair Corporation. Any other trademarks or service marks of third parties referred to used herein are the trademarks or service marks of their respective owners.
